Anytimebackupcamera.com Install- Front and Rear Cameras

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Sep 7, 2018.

  1. Feb 4, 2019 at 1:36 PM
    #481
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Found my problem. I shorted a wire to my secondary rear camera's switch. Grounded it out even. All is well now. Finally had time to diagnose. Now I just need to properly mount the camera in the bed (under my Diamondback Tonneau Cover. I also want to put a waterproof box or hide it in the driver side cubby hole in the bed of the truck so that it can be disconnected easily when I need to remove the cover. I just need to educate myself on how to wire/solder audio cables so I can run it through an aftermarket plug instead of the standard yellow video cable plug.

    The aftermarket plug will have both the video signal and the power for the camera.

    Below are picks of the short and the secondary switch location. This mod functions normally if the secondary switch is in the off position, but if it is in the on position and the rear camera is selected from the DPDT switch that is installed for this mod, the secondary rear camera overrides the rear camera.

    I want the secondary rear camera installed far enough inside the bed that it can monitor any load I am carrying under the tonneau or for cases when I'm driving with the tailgate down.




  2. Feb 4, 2019 at 1:37 PM
    #482
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Yeah, he's pretty awesome. Replied quickly via email when I had setup questions as well. Seems like he's on his game with customer service.

    Pyrotech likes this.
  3. Feb 4, 2019 at 1:47 PM
    #483
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift

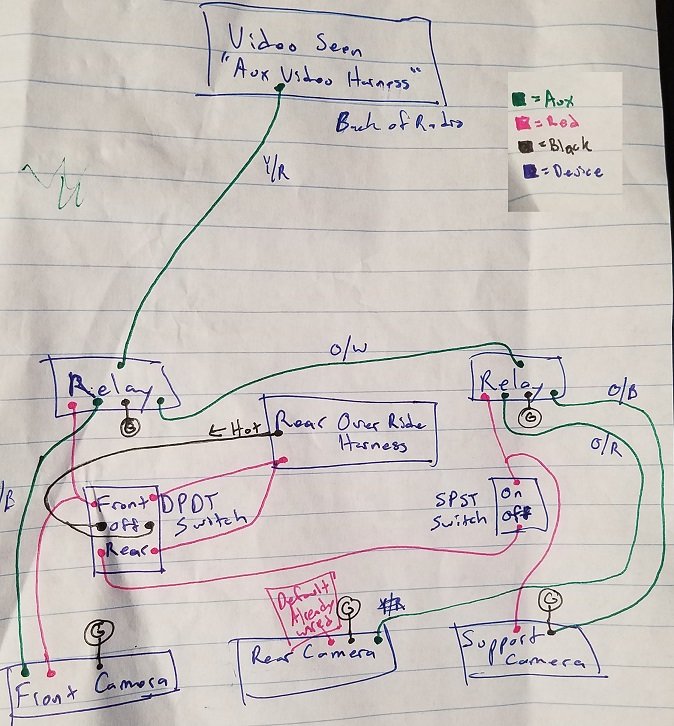

    Here is a temporary schematic I sketched up. I'll write a more detailed version later with a prettier layout.


    Basically, I added another relay (purchasable from Brian at https://www.anytimebackupcamera.com/ ) . All the "G"s that are circled just mean the black from each device is grounded. And stuff like Y/R or O/B seen next to the video cables was my way of labeling them with color coded electrical tape. This is just in case I needed to ever disconnect them I'd know which cable went where.

    The rear camera is turned on "anytime" if there is power from the DPDT switch (Rear Camera Selected). If, however, the secondary SPST switch I installed is "On", power continues to the second relay and overrides the rear camera with the signal from the secondary rear camera.

    Hope that makes sense.

  4. Feb 5, 2019 at 9:51 AM
    #484
    ZKH

    ZKH Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223969
    Messages:
    111
    Gender:
    Male
    northern Kentucky
    Vehicle:
    2018 TRD-OR DCLB A/T 4x4 BBP Prem+Tech
  5. Feb 5, 2019 at 1:30 PM
    #485
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    Looks like it would work just fine.

  6. Feb 6, 2019 at 6:56 AM
    #486
    ohioboater

    ohioboater Well-Known Member

    Joined:
    Dec 5, 2017
    Member:
    #237692
    Messages:
    87
    Gender:
    Male
    Vehicle:
    2017 DCLB 4x4 Sport
    For front end clearance, I like having the camera mounted high enough that a bit of the license plate bracket and bumper are visible at the bottom of the image, similar to the factory rear view. That way I can tell exactly when the nose of the vehicle is about to touch something or when it's exactly lined up with the parking space's front line. If you mount a camera to the license plate, you'd have to rely entirely on the camera's guide lines. Based on the one I used (not the same one as the one you link to), I would not trust its guide lines to be of any real use.

    bagleboy, Slashaar and ZKH like this.
  7. Feb 6, 2019 at 7:09 AM
    #487
    ZKH

    ZKH Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223969
    Messages:
    111
    Gender:
    Male
    northern Kentucky
    Vehicle:
    2018 TRD-OR DCLB A/T 4x4 BBP Prem+Tech
    ohioboater, thanks for the feedback!

    ohioboater and Slashaar like this.
  8. Feb 7, 2019 at 7:55 PM
    #488
    Kevinpd325

    Kevinpd325 Member

    Joined:
    Dec 22, 2017
    Member:
    #239125
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    San Diego
    Vehicle:
    2017 Tacoma TRD Sport 4x4
    SSO Slimline bumper Smittybuilt XRC winch Prinsu cab rack Leisner Designs ACS Leitner Designs bed stiffeners Firstworld Fab bedside and corner mounts Herculiner bed coating Icon extended travel stage 4 w/ tubular UCA Procomp 285-75-17 all-terrains K&N air filter Pedal Commander Anytime backup camera w/ 2nd rear camera LED interior light conversion LED headlights LED fog lights Genesis dual battery system sPOD Bantam Caliraised LED 42" light bar Auxbeam front & rear ditch lights OPT7 Quantum rock lights Expedition Essentials TPAM w/ Blue Sea USB Expedition Essentials bedside compressor mount w/ ARB twin 67 Designs phone mount Meso Customs lower switch panel Rago CB antenna mount Anytone AT-768 UHF/VHF radio Cobra Bearcat CB radio Kicker DS 6×9 Kicker DS 6 1/2 Kicker dash tweeters Kicker 10" powered sub
    Dude! This is badass! What cameras are you using for the front and secondary? I don't have a tonneau cover, but was thinking about maybe running a secondary camera on a plate mount. ‍

    r_to_the_k and Slashaar like this.
  9. Feb 7, 2019 at 8:03 PM
    #489
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    2,943
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC M5
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, backup camera, intermittent wiper switch
    I have mine set so the top of the front bumper is visible along the bottom of the screen just for that reason. The lines on the rear camera are just an inch or two outside the wheels but the the front camera being mounted lower the calibration would be different. I'd think it wouldn't be too hard to get a feel for them after seeing how they compare next to a curb.

    Slashaar likes this.
  10. Feb 7, 2019 at 9:09 PM
    #490
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    I'm using the TopTier Pro listed at the bottom of the page in the links. Fair enough camera.

    Hard part is because i want the secondary rear camera to be temporary so i can remove when i remove the tonneau. Might be able to work on this some Sunday, but I'll be coming back from camping. Work and life getting in the way of mods...lol.

  11. Feb 15, 2019 at 2:35 PM
    #491
    orion808

    orion808 Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    565
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    I've finished my install...pics and install notes to come, but i need some opinions from owners of other cameras.

    My cameras can get whited out when they are in a darker area and looking out into a brighter. Or they just get overloaded from road glare.

    Any suggestions on a better quality camera that handles bright lights?

    Tested my setup today hauling a couple sheets of plywood. Nice piece of mind seing how it rode. I just couldn't see anything outside/ past the tailgate due to the glare.

    Last edited: Feb 15, 2019
    r_to_the_k and MGMSangTaco like this.
  12. Feb 25, 2019 at 5:43 PM
    #492
    ZKH

    ZKH Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223969
    Messages:
    111
    Gender:
    Male
    northern Kentucky
    Vehicle:
    2018 TRD-OR DCLB A/T 4x4 BBP Prem+Tech
    Just pre-ordered my anytime kit bundled with the switch and camera. Hope I'm happy with the camera. Still need to order the cubby switch panel from forty2skates via shapeways. Also need too find a plain switch the same size as anytime's front/rear switch to use as a navigation override.

    Papadave418 [OP] likes this.
  13. Feb 25, 2019 at 6:00 PM
    #493
    Tacoma3rdGen

    Tacoma3rdGen Well-Known Member

    Joined:
    Nov 7, 2018
    Member:
    #271933
    Messages:
    891
    Gender:
    Male
    New Mexico
    Vehicle:
    2018 Tacoma Limited
    Not trying to hijack thread... just wanted to provide an alternative install for those who are minimalist and don’t wish to add camera switches with mismatch light colors (or do extra work). I installed the car-solutions system, with a simple front camera that is totally plug and play. This system uses the mode button to activate (double tap), and the up/down arrow keys to select the desired camera... works great, no extra switches/buttons required.

    System installed https://car-solutions.com/en/rfcc-ttg2-car-camera-control-system-for-toyota-touch-2-entune.php

    Camera installed https://www.amazon.com/dp/B01LXJ66DW?ie=UTF8&psc=1

    Install pictures https://www.tacomaworld.com/threads...del-and-where-mounted-on-2018-limited.590221/

    Marius and Foolio_Jones like this.
  14. Feb 25, 2019 at 10:54 PM
    #494
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    That’s a good solution. Nice write up. I looked at this type of option but I’ll tell you why I chose not to go with it. It’s a software based version that depends on the command module communicating with the head unit, whereas the anytime unit hijacks the actual feed and switches via a relay. Relays are reliable, cheap, and easy to swap out. I had an override unit for my Suburban LTZ and at another point a boxed command unit for my Mercedes E350’s fiber optic MOST system and both developed bugs when the dealership would service the car and update firmware on the head units. Both companies weren’t around a couple years later to update the unit, so I tend to avoid them now. Hopefully car solutions has a future track record that is helpful 5-10 years down the line. Thanks for sharing!

  15. Feb 25, 2019 at 11:00 PM
    #495
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    As a hobby I fly RC planes that move along at about 100-120mph and have FPVed (first person view) some of them. The cameras they use are awesome and can handle a much wider range of lights and colors, with TVL’s in the thousands depending on price. You could check out getfpv and find some decent options. They won’t be $13 though :)

    orion808 likes this.
  16. Feb 27, 2019 at 12:44 AM
    #496
    TRDPROHI

    TRDPROHI Well-Known Member

    Joined:
    Feb 21, 2018
    Member:
    #245121
    Messages:
    45
    Maui, Hi
    Can anyone running an aftermarket rocker switch provide some insight please. With the factory style switchfrom anytimebackup camera people are reporting the rear camera flashes for a second when switching from “front” to“off”. Does this still occur with an aftermarket rocker switchlike AOB?
    Thanks

  17. Feb 27, 2019 at 4:35 AM
    #497
    cruxx

    cruxx Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216831
    Messages:
    858
    Gender:
    Male
    First Name:
    Huy
    Vehicle:
    2017 TRD Sport
    Yes it happens, although i barely notice anymore. Something about the relay is not fast enough to switch back and forth. Normal and nothing to be concerned about

  18. Feb 27, 2019 at 5:22 AM
    #498
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    I agree, I don’t notice it either. And by flash we mean it shows an image and it’s gone very fast, probably cuz our retinas still have the image burned in :)

  19. Feb 27, 2019 at 8:50 AM
    #499
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    2,943
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC M5
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, backup camera, intermittent wiper switch
    Mine very briefly shows the feed from the rear view camera after switching off the front.

  20. Feb 27, 2019 at 11:39 AM
    #500
    sneakykiday28

    sneakykiday28 Well-Known Member

    Joined:
    Jan 3, 2019
    Member:
    #278023
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2019 Cavalry Blue Tacoma SR5
    Why not just tuck a switch behind the radio that has been left on for the override?
