Auto LSD

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Thelt, Sep 26, 2012.

  1. Sep 26, 2012 at 7:00 AM
    #1
    Thelt

    Thelt [OP] Well-Known Member

    Joined:
    Dec 28, 2011
    Member:
    #69505
    Messages:
    98
    Gender:
    Male
    Lenoir, NC
    Vehicle:
    '12 4x4 SR5
    Sorry, I know this has been covered before but I wanted to make sure I understood correctly. I have a 2012 4wd SR5. It does not have any of the TRD packages. To get maximum traction I should put it in 4wd and turn off the VDC? Turning off the VDC activates the auto LSD? I read some threads on here and got that impression.

  2. Sep 26, 2012 at 7:05 AM
    #2
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    VSC is the name.

    ALSD on in 4wd will give you a simulated LSD on all 4 tires. This would be maximum traction for uneven obstacles. Sometimes you need wheel speed so turning off ALSD will give you that. Really it all depends what you are trying to do.

    Remember that there are no traction systems on in low range. You need to do the yellow wire mod for that.

  3. Sep 26, 2012 at 7:54 AM
    #3
    Thelt

    Thelt [OP] Well-Known Member

    Joined:
    Dec 28, 2011
    Member:
    #69505
    Messages:
    98
    Gender:
    Male
    Lenoir, NC
    Vehicle:
    '12 4x4 SR5
    So turning off VSC will activate Auto Limited Slip Differential (ALSD)?

  4. Sep 26, 2012 at 7:58 AM
    #4
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Yes. You will see the light come on. ALSD operation in 4wd high is new for 2012s.

  5. Sep 26, 2012 at 8:04 AM
    #5
    GP3

    GP3 Well-Known Member

    Joined:
    Apr 11, 2011
    Member:
    #54719
    Messages:
    1,198
    Gender:
    Male
    California
    Vehicle:
    4X4 TRD Off Road
    Front: stock suspension, 12" wide fiberglass fenders Rear: stock suspension, 10" wide fiberglass fenders
    :rofl: really? Toyota sure loves their gimmicky names. Same system, different name. I'll be honest though, calling it ALSD in 4H makes more sense then calling it TRAC.

    So "TRAC" is only in 2wd now?

  6. Sep 26, 2012 at 8:13 AM
    #6
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Yeah I'm not sure why they didn't call it all TRAC but I guess it is to make people feel special that their truck has a bunch of crap in it.

    It also works in high like previous trucks but the throttle control stays on.

  7. Sep 26, 2012 at 11:07 AM
    #7
    Thelt

    Thelt [OP] Well-Known Member

    Joined:
    Dec 28, 2011
    Member:
    #69505
    Messages:
    98
    Gender:
    Male
    Lenoir, NC
    Vehicle:
    '12 4x4 SR5
    I did a little testing on a steep gravel road. Leaving it in 2wd with VSC on did not seem to have as much traction as 2wd with VSC off and Auto LSD on. That might be handy this winter when that same road has snow on it.

  8. Sep 26, 2012 at 5:04 PM
    #8
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,079
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

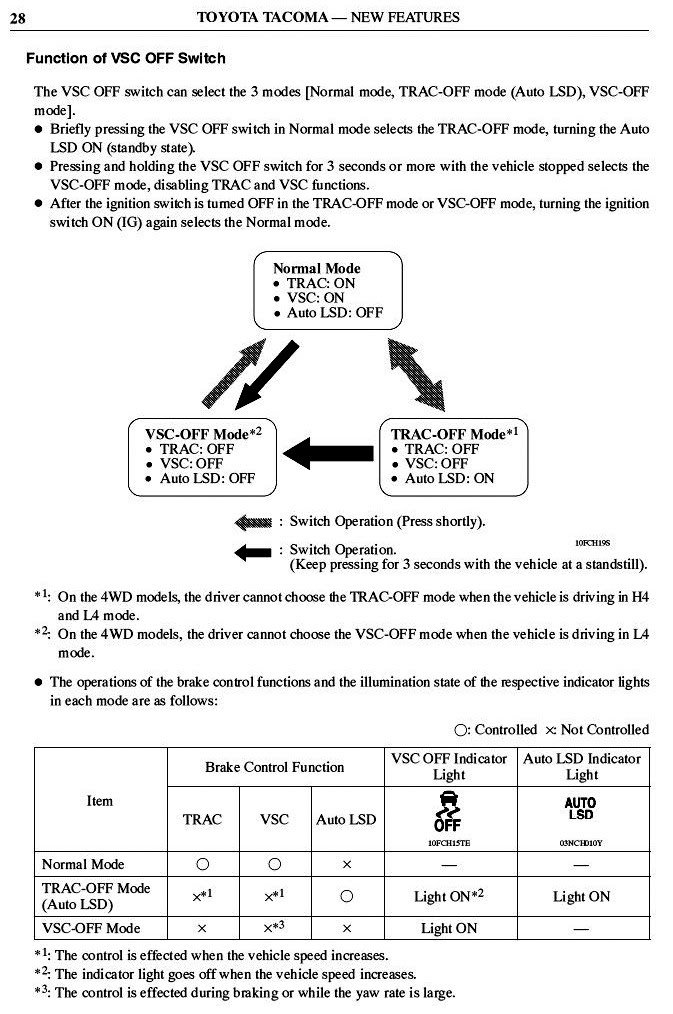

    It would be nice to see a chart on the 2012, like there was for the 2009-2011...

    VSC and TRAC go hand in hand. To turn off VSC is to also turn off traction control, except in 2WD, where AUTO LSD keeps VSC off, but only until 30 mph.

    [​IMG]

  9. Sep 26, 2012 at 5:06 PM
    #9
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,079
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Correct since AUTO LSD is the higher traction level in 2WD. VSC is not a traction control, but a stability control to keep you from spinning out on slippery roads.

    TRAC is light limited slip in 2WD and AUTO LSD is strong limited slip in 2WD.

  10. Sep 26, 2012 at 6:56 PM
    #10
    Thelt

    Thelt [OP] Well-Known Member

    Joined:
    Dec 28, 2011
    Member:
    #69505
    Messages:
    98
    Gender:
    Male
    Lenoir, NC
    Vehicle:
    '12 4x4 SR5
    Does AUTO LSD work in 4wd and if so does it work on the front and the rear or just the rear?

  11. Sep 26, 2012 at 7:09 PM
    #11
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,079
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yes but it is called TRAC in 4WD HI. On all four wheels. 2012 may be different .

  12. Sep 27, 2012 at 3:37 PM
    #12
    Thelt

    Thelt [OP] Well-Known Member

    Joined:
    Dec 28, 2011
    Member:
    #69505
    Messages:
    98
    Gender:
    Male
    Lenoir, NC
    Vehicle:
    '12 4x4 SR5

    When in 2wd after turning off the VSC it says Auto LSD on the dash. That gives me the stronger limited slip. Once in this condition and I switch to 4wd Hi Auto LSD goes away and "TRAC off" pops up. For maximum traction I want TRAC on so I should hit the button again to make "TRAC off" go away?

  13. Sep 27, 2012 at 3:40 PM
    #13
    GP3

    GP3 Well-Known Member

    Joined:
    Apr 11, 2011
    Member:
    #54719
    Messages:
    1,198
    Gender:
    Male
    California
    Vehicle:
    4X4 TRD Off Road
    Front: stock suspension, 12" wide fiberglass fenders Rear: stock suspension, 10" wide fiberglass fenders
    The 2012 is different. David K won't know. You'll have to do your own testing, but you are on the right track. You want TRAC on or AutoLSD on in 4H for maximum traction.

  14. Sep 27, 2012 at 4:56 PM
    #14
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,079
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

    That is correct, until I see a flow chart like we had for the 2009-2011 Tacomas, I am not versed on the name changes or new features.

    What it sounds like is that Toyota is LISTENING and renamed TRAC in H4 (limited slip with no engine regulation) to AUTO LSD (as it is/ was already in H2, no regulation)

    That would be super... If in H4, we have AUTO LSD and NO VSC at least to 30 mph, so that beep-beep-beep is silenced as we slosh through sand, gravel, snow in H4.

    On our models, to not have VSC in H4 is to also not have TRAC (AUTO LSD)... and limited slip, without engine output regulation is such a big improvement in low traction situations over open differentials (VSC OFF MODE)!

  15. Sep 27, 2012 at 5:02 PM
    #15
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,079
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

    To make sure we are on the same page...

    *Pressing the VSC button once in H2 moving or stopped, turns on AUTO LSD (only in H2 for 2009-11 Tacomas). VSC goes off only until 30 mph, then comes back on.

    *If you stop moving and then press and hold down the VSC button a few seconds, you are turning OFF the VSC (and TRAC and AUTO LSD) for no traction control... this is in H2 or H4.

    Pressing the button again or turning off the engine will return you to normal TRAC-ON/ VSC-ON.

  16. Sep 28, 2012 at 5:29 AM
    #16
    Thelt

    Thelt [OP] Well-Known Member

    Joined:
    Dec 28, 2011
    Member:
    #69505
    Messages:
    98
    Gender:
    Male
    Lenoir, NC
    Vehicle:
    '12 4x4 SR5
    I have not tried pressing and holding the VSC button. I will try that and let you know if it still works that way on the 2012 models.

    When I have done the first step you describe in H2 and VSC is off and Auto LSD is on and I then put it in 4wd hi "auto lsd" turns off and "trac off" pops up. My thought is that being in 4wd hi with "trac off" means open differentials. Pressing VSC again while in 4wd hi makes all the dash lights go off.

    I am thinking I want TRAC on while in 4wd hi.....

    Is TRAC and Auto LSD the same thing?

    Did the person who designed this system have some LSD at some point?

  17. Sep 28, 2012 at 7:06 AM
    #17
    GP3

    GP3 Well-Known Member

    Joined:
    Apr 11, 2011
    Member:
    #54719
    Messages:
    1,198
    Gender:
    Male
    California
    Vehicle:
    4X4 TRD Off Road
    Front: stock suspension, 12" wide fiberglass fenders Rear: stock suspension, 10" wide fiberglass fenders
    TRAC - traction control ("limited slip") with engine regulation (See David K's post)
    Auto LSD - traction control ("limited slip") without engine regulation

    Yes.

    • 2005-2006
    • 2007-2008
    • 2009-2011
    • 2012+

    All four groups share the same equipment (sans a VSC button in 2005-2006; sans an ATRAC button in 2005-2008), but are programmed differently.


    Which is why David has his 2009-2011 thread: http://www.tacomaworld.com/forum/2n...-controls-trac-auto-lsd-trac-rear-locker.html

    and I have my 2005-2008 thread: http://www.tacomaworld.com/forum/te...ds-vsc-trac-hac-dac-alsd-atrac-explained.html

  18. Sep 28, 2012 at 7:09 AM
    #18
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    I would have been better if they ditched all the electronic crap for lockers and stuck with a real LSD for the Sport models instead of reprogramming and renaming everything every few years.

  19. Sep 28, 2012 at 7:45 AM
    #19
    DoorDing

    DoorDing Someone was there .

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    26,030
    Gender:
    Male
    bee keeper
    Vehicle:
    2012 DCSB Off-Road 4WD
    You're going to be really pissed when they dumb it down further with a Dry/Wet/Sand/Gravel/Mud selector.

    Toyota has embraced electronic integration of their drivetrain/stability systems, as has the rest of the industry. The days of manual Hi-Lo & 2-4 levers are pretty much over for new vehicles, and having full manual control of front & rear lockers in a mainstream production vehicle would be a disaster for the manufacturer. Too many people would just tear the hell out of something like that.

    While I liked my 2012 OR enough to buy it, I was shocked to see what a poor job had been done with the drivetrain/stability control interface. It's so bad, I'm surprised Toyota didn't break up the transfer case control into separate buttons and scattered them across the cockpit with the rest of them. Someone definitely needs to rein in the control system and create a coherent interface; at least group all of the buttons together! Once that task is accomplished, the control structure needs to be overhauled and standardized over all of the Toyota and Lexus lines. I should be able to get in a 2013 4Runner and immediately feel at home with its 4WD and stability controls. The same goes for a Lexus RX450.

    But for the love of Whip, don't dumb it down to a stupid mode dial.

  20. Sep 28, 2012 at 7:53 AM
    #20
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    [​IMG]

    :D
