AX-TOYUSB-2 adapter - how to connect?

Discussion in 'Audio & Video' started by Carlemil, Mar 6, 2014.

  1. Mar 6, 2014 at 8:26 AM
    #1
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    Hi,
    I have installed the complete new sound system in my 2012 DC (HU, amp, speakers, sub, steering wheel control interface) and enjoying it since last weekend. The last thing is to connect the factory in-dash USB port to new HU rear USB connector, and I don't need the AUX connector on the in-dash USB module. I have ordered Metra AX-TOYUSB-2 adapter as it seems to me cleaner solution than the modified USB connector described in the other thread.

    The AX-TOYUSB-2 adapter has the same connector like the in-dash USB module and they don't fit together, so has anybody found how/where to connect the adapter to? I had no luck through google, but based on positive reactions in this product review on Crutchfield web it seems people found some connector behind dash where they managed to plug it in (not sure what Toyota they refer to). That would indicate the in-dash USB module will use factory wiring and the adapter will be connected somewhere else into wiring. Any idea?
    Thanks for help.

  2. Mar 6, 2014 at 8:33 AM
    #2
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,288
    Gender:
    Male
    It just plugs directly to the back of the unit? Better yet can you take photo's of what you are talking about? Also what head unit are you using that requires that specific usb adapter.

  3. Mar 6, 2014 at 10:00 AM
    #3
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    I will try to take pictures when I get home tonight.

    But the problem is described here: http://www.tacomaworld.com/forum/au...tereo-input-tacoma-aftermarket-head-unit.html

    I have that USB module (1st and 2nd picture in that thread) in my 2012 DC but instead of making that USB modified cable as they do there, I bought the AX-TOYUSB-2 adapter. The adapter has standard USB connector on one end which plugs into HU (no problem there) and the other "brown" end should go to that USB module and that is where they don't fit together.

  4. Mar 6, 2014 at 11:27 AM
    #4
    AEmedic

    AEmedic Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114034
    Messages:
    680
    Gender:
    Male
    First Name:
    Chris
    Boise, ID
    Vehicle:
    2014 DCLB 4X4 TRD Sport Supercharged
    TRD Supercharger, Toytec Adj. Coil-Overs, Bilstein 5100's, JL Audio system w/Kenwood DNX9980HD HU
    I used the Metra USB Adapter: AX-TOYUSB and it plugged directly to the grey USB harness that plugged into the factory HU.

  5. Mar 6, 2014 at 2:05 PM
    #5
    NfiniteZERO

    NfiniteZERO Well-Known Member

    Joined:
    Oct 3, 2013
    Member:
    #113807
    Messages:
    59
    Gender:
    Male
    First Name:
    Matthew
    Boise, ID
    Vehicle:
    2013 Double Cab TRD Sport
    AVS BugFlector and Vent-visors, Wet Okole seat covers, Extang Trifecta Signature,
    OP, based on what I see of your model and the issue you are describing, I think you do not have the correct wiring for the AX-TOYUSB-2 adapter.

    The adapter goes from the HU to the factory USB wiring. If I remember right, the 2012 had to have the TRD Sport option to get the factory USB port in the truck. Seeing that you have an SR5 listed, I do not think that the necessary wiring to properly use the adapter.

    Correct me if I am wrong, but that's what I remember from when I started truck shopping.

  6. Mar 6, 2014 at 3:54 PM
    #6
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5

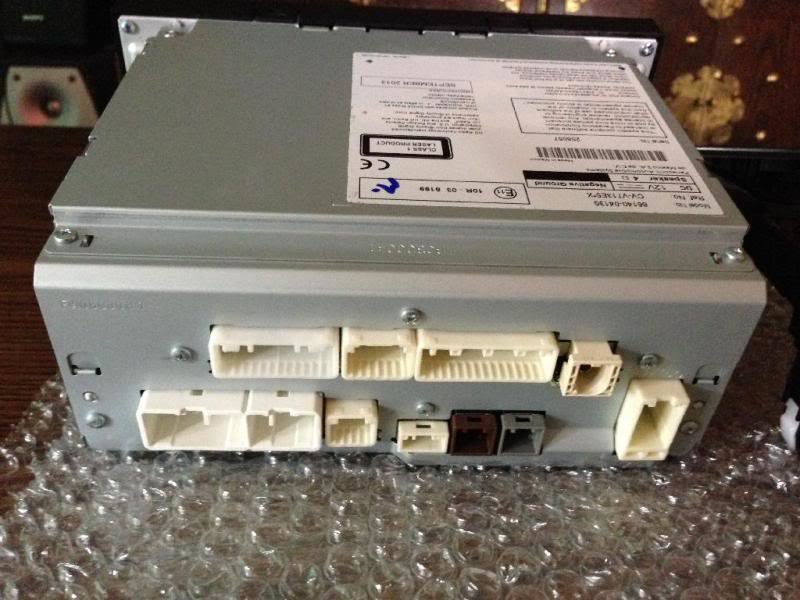

    My truck DC SR5 came new with the factory USB port and it was working with the factory head unit. I took the picture of the factory head unit, adaptor, and the USB module. It doesn't look like that any connector on the factory unit is the same as on the adaptor, so the factory corresponding wiring will probably not fit. I sent email to Metra, will see if and what they reply.


  7. Mar 6, 2014 at 4:03 PM
    #7
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    AEmedic: your adaptor is listed for 2013+ models, but do you think it is the same connector as the top one on my head unit?

  8. Mar 6, 2014 at 5:24 PM
    #8
    AEmedic

    AEmedic Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114034
    Messages:
    680
    Gender:
    Male
    First Name:
    Chris
    Boise, ID
    Vehicle:
    2014 DCLB 4X4 TRD Sport Supercharged
    TRD Supercharger, Toytec Adj. Coil-Overs, Bilstein 5100's, JL Audio system w/Kenwood DNX9980HD HU
    After looking at the back of your radio I would say not, the plug for the USB on my truck looks much like the blue plug on the back of yours. It is the grey plug:


  9. Mar 6, 2014 at 6:04 PM
    #9
    Goose8651

    Goose8651 Well-Known Member

    Joined:
    Mar 16, 2013
    Member:
    #99870
    Messages:
    1,048
    Gender:
    Male
    DFW
    Vehicle:
    2013 Double Cab
    Sounds like you have the wrong adapter cable. I just installed a new stereo and originally bought the TOYUSB-2 from "sonic craptronix" based on what they told me. The cable is incorrect. I called up Crutchfield and the correct part for my truck (2013 SR5) was the TOYUSB. Got the part and everything clicked perfectly.

    This is what I bought

    http://www.crutchfield.com/p_120TOY...for-Toyota-and-Lexus.html?search=Toyusb&avf=N

    Last edited: Mar 6, 2014
  10. Mar 6, 2014 at 7:35 PM
    #10
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    Got response from Metra: "The unit does not plug into a harness behind the factory radio, as this would have to be plugged into the vehicle's Multimedia Interface ECU"
    And so now I am searching where is the Multimedia Interface ECU [​IMG]

    Goose8651: 2013 model is different, I have 2012

  11. Mar 6, 2014 at 7:59 PM
    #11
    Goose8651

    Goose8651 Well-Known Member

    Joined:
    Mar 16, 2013
    Member:
    #99870
    Messages:
    1,048
    Gender:
    Male
    DFW
    Vehicle:
    2013 Double Cab
    My mistake. Sorry I could not be much help.

  12. Mar 6, 2014 at 8:08 PM
    #12
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
  13. Mar 6, 2014 at 10:15 PM
    #13
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    I found it! And...it works!
    I found same color brown connector behind the glove box completely on the right side plugged into what is probably the Multimedia Interface ECU. Pulled it out and plugged it into the AX-TOYUSB-2 adapter and the other adapter end is plugged into HU's rear USB port. Worked right away.


    Joseg14 and jimbo007 like this.
  14. Mar 11, 2014 at 7:13 PM
    #14
    NiceTaco

    NiceTaco Canadian Redneck

    Joined:
    May 1, 2008
    Member:
    #6336
    Messages:
    486
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2012 TRD Sport
    Aero Turbine 2525, Front bilstein 5100's @1.75, rear 5100's, 1" Toytec rear block, Devil Horns, BGF AT's, 18" Moto Metal 962's
    FML I was just struggling like a bastard to try and figure this out.. Gave up and ran the USB cord pioneer gave me to the glover box.. Now I'm I'm going to rip it all apart again tomorrow to do this again! Lol

    Thanks for posting the pic

  15. Mar 12, 2014 at 5:51 AM
    #15
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    I plugged the adapter in that same Pioneer extension USB cord first to check whether it works and didn't rip the whole stereo out. As it worked I left it behind the glove box with the extension cord. It actually looked like the adapter might be short to reach all the way between stereo and that brown connector.

  16. Mar 12, 2014 at 6:59 AM
    #16
    NiceTaco

    NiceTaco Canadian Redneck

    Joined:
    May 1, 2008
    Member:
    #6336
    Messages:
    486
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2012 TRD Sport
    Aero Turbine 2525, Front bilstein 5100's @1.75, rear 5100's, 1" Toytec rear block, Devil Horns, BGF AT's, 18" Moto Metal 962's
    Ya man thanks I was thinking the same thing about the length to cause it's the far side behind tr glove box.. I will do the same.. Maybe these companies will give some better instructions with this thing in the future..

  17. Mar 12, 2014 at 4:58 PM
    #17
    Balot64

    Balot64 Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65740
    Messages:
    201
    Gender:
    Male
    Jax to San Diego, now Jax again
    Vehicle:
    2012 Tacoma Offroad 4x4
    FX-R HID retrofit, G2 Bak cover, N-fab step wanna be, Pop & Lock, Weathertech digifit floor mat, LED interior, OME front and rear shocks, OME 884, LR UCA, Wheeler 3 leaf pack. FJ black trail rims with 265/75/16 Michelin LTX MS2
    Thanks to OP to figuring this out, just installed and its work. Now, needs to find out how to install the factory mic to aftermarket stereo. Lol.:)

  18. Mar 12, 2014 at 5:11 PM
    #18
    NiceTaco

    NiceTaco Canadian Redneck

    Joined:
    May 1, 2008
    Member:
    #6336
    Messages:
    486
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2012 TRD Sport
    Aero Turbine 2525, Front bilstein 5100's @1.75, rear 5100's, 1" Toytec rear block, Devil Horns, BGF AT's, 18" Moto Metal 962's
    Ya if that's possible I'm game to learn also.

  19. Mar 12, 2014 at 5:46 PM
    #19
    Carlemil

    Carlemil [OP] Member

    Joined:
    Oct 19, 2012
    Member:
    #89361
    Messages:
    19
    Gender:
    Male
    Ontario
    Vehicle:
    12 DC V6 SR5
    You are welcome.
    As per the OEM mic, I ran across this document in my conquest to beat the USB connection. You can locate the mic connections there.

  20. Oct 17, 2014 at 7:12 PM
    #20
    JPA2002

    JPA2002 Well-Known Member

    Joined:
    May 17, 2014
    Member:
    #129995
    Messages:
    760
    Gender:
    Male
    Roanoke, VA
    Vehicle:
    2021 DCSB TRD Pro
    This thread solved my issue. Thanks

    I installed a 2014 nav into my 2012, and I tried to figure out how to maintain the factory usb functionality. If you find this, you need the cable above and the cable from the 2014 hu to a usb and you should be set. I will come back and post pics and confirm functionality.

    Jon
