Back Up Light Installation Link and BS Thread

Discussion in '3rd Gen. Tacomas (2016+)' started by tonered, Sep 21, 2018.

  1. Sep 28, 2018 at 8:00 AM
    #21
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Yeah. That green had to go. :rofl: Fucking expensive little sticker! :fenforcer:

    Will do. I'm pretty excited as the line of sight off the bottom of the bumper looks pretty good, depending on the angle of the actual pattern. It may do all that I need it to.

    I don't have it wired up yet. Just chilling while the P-n-P taillight harness is getting finished. No big deal.

  2. Sep 28, 2018 at 8:04 AM
    #22
    TeecoTaco

    TeecoTaco Liberty Biberty

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    8,492
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    Nice job!

    GO Metric! Yay lol

    tonered [OP] likes this.
  3. Sep 28, 2018 at 8:11 AM
    #23
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Thanks! Not bad for a hack like me. :D

    It kills me that the US, esp the aero industry, is STUCK in SAE. I know that it would be a major effort to convert, but FFS, fasteners, holes, and threads would be easy start by comparison.

    TeecoTaco and BigWhiteTRD like this.
  4. Sep 28, 2018 at 10:41 AM
    #24
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    Can't beat the unibits for holes bigger than about 1/4" in thin metals. (Especially the work hardenable alloys like stainless). Really the only way to drill an installed thin stainless firewall without making the finished product look like a 100 year old barn door.
    Watch out, they can translate while stepping up if you have a lot of side load on, or the bit runs into something on the far side and you dont realize.

    So should a shim be slid in between the plastic and steel before installing the lights, so the light install screws aren't crushing this gap?

    (I will stick with the sae hardware myself, too much AN and MS hardware already memorized...)

    tonered [OP] likes this.
  5. Sep 28, 2018 at 10:59 AM
    #25
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA

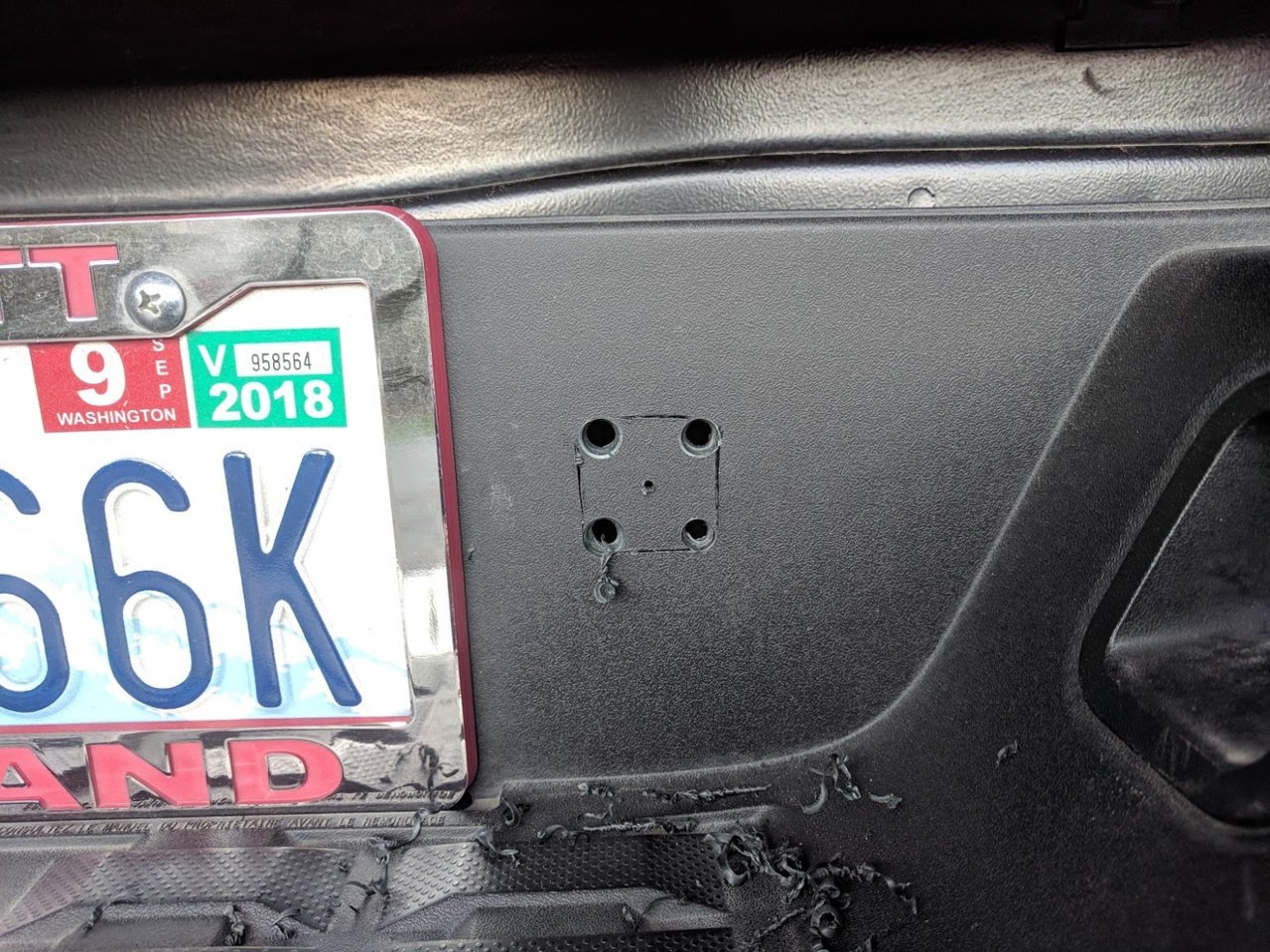

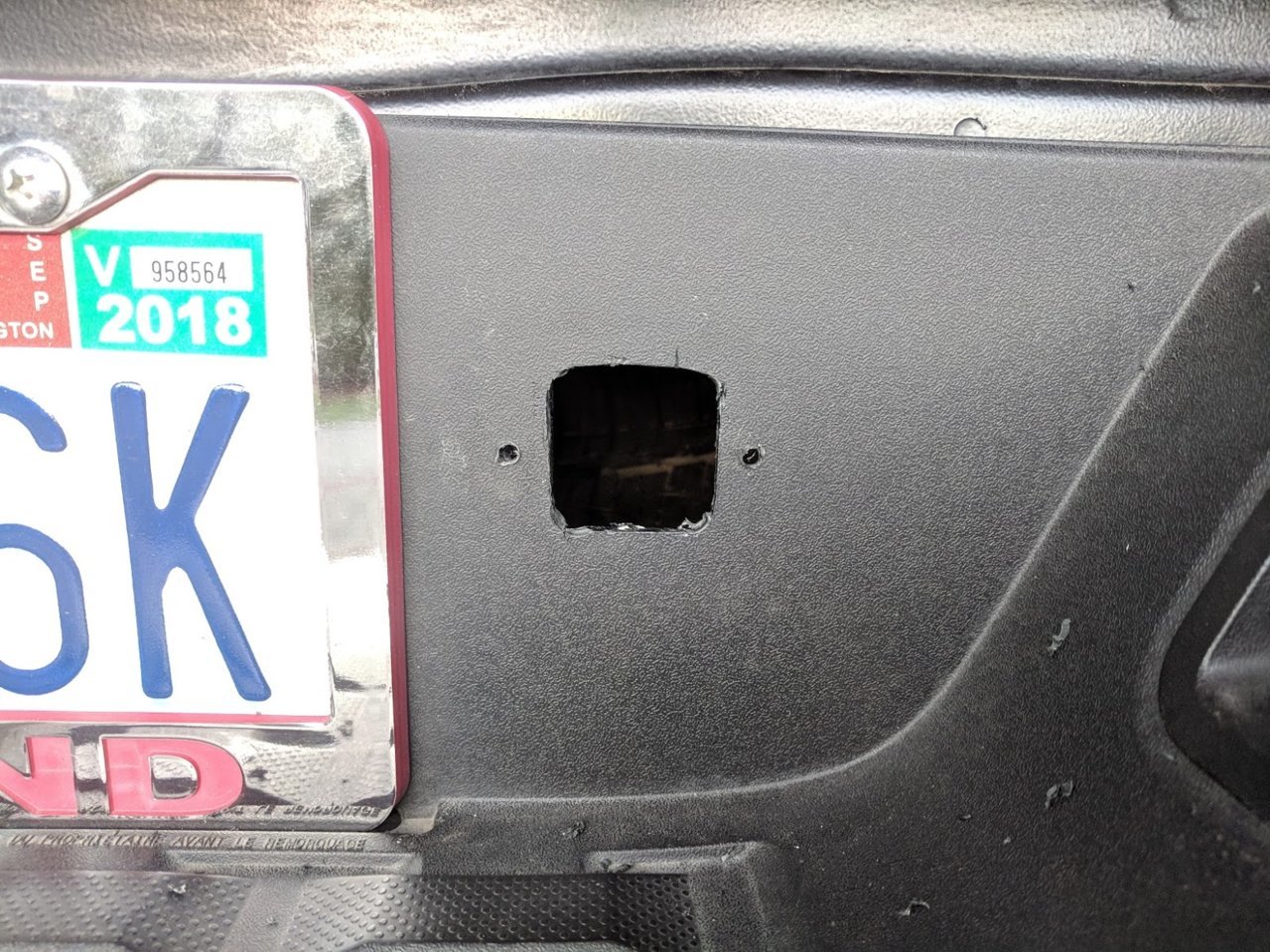

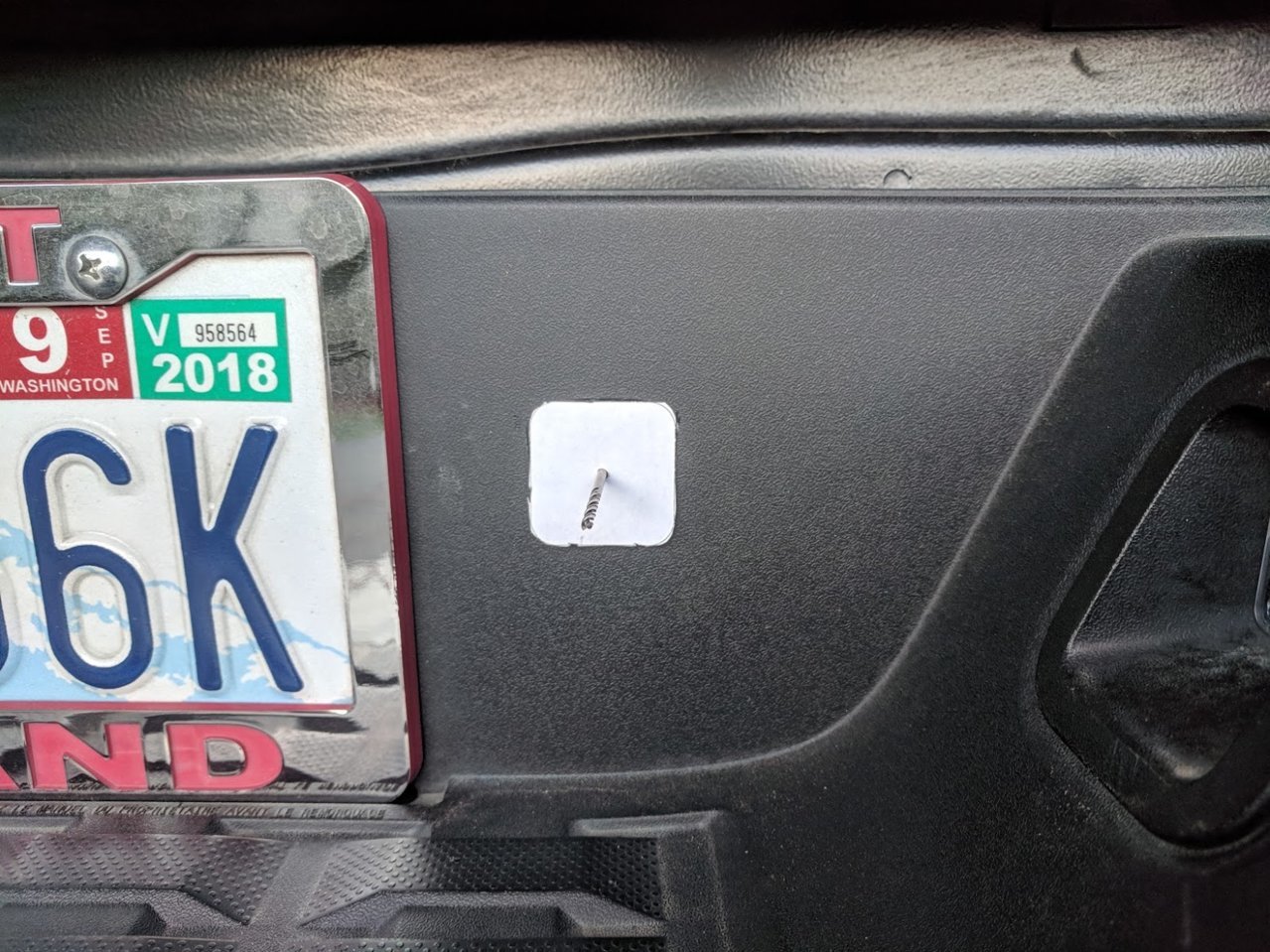

    I used the bit as a plane to shave the cutout. I could see that it would go off center easily if it hits something. Neat tool though.

    A shim on the left side is easy. Holding one in position on the right would be too difficult to mess with. I suppose that I could use a awl from the back to lead the screw through? The OP in the other thread just used epoxy, no fasteners. I will use nylocks and not clamp down hard. The light fits tight in the hole, so they will just retain things.

    The AN and MS specs are excellent to use and there are a lot of great fastener types covered by them (not to mention that the quick search site just works, smoothly), but if we were going to switch over, it'd be the place to start, IMO. My dad had a nice selection of SAE stuff. I inherited a lot of the solid tools like the Proto ratchets, crescent wrenches, vice grips, and such. I didn't take the SAE sockets since the stuff I had was metric and already had some decent sockets and allens. In my perfect world, we'd ditch all the head types other than 12pt and torx.

  6. Sep 28, 2018 at 5:54 PM
    #26
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA

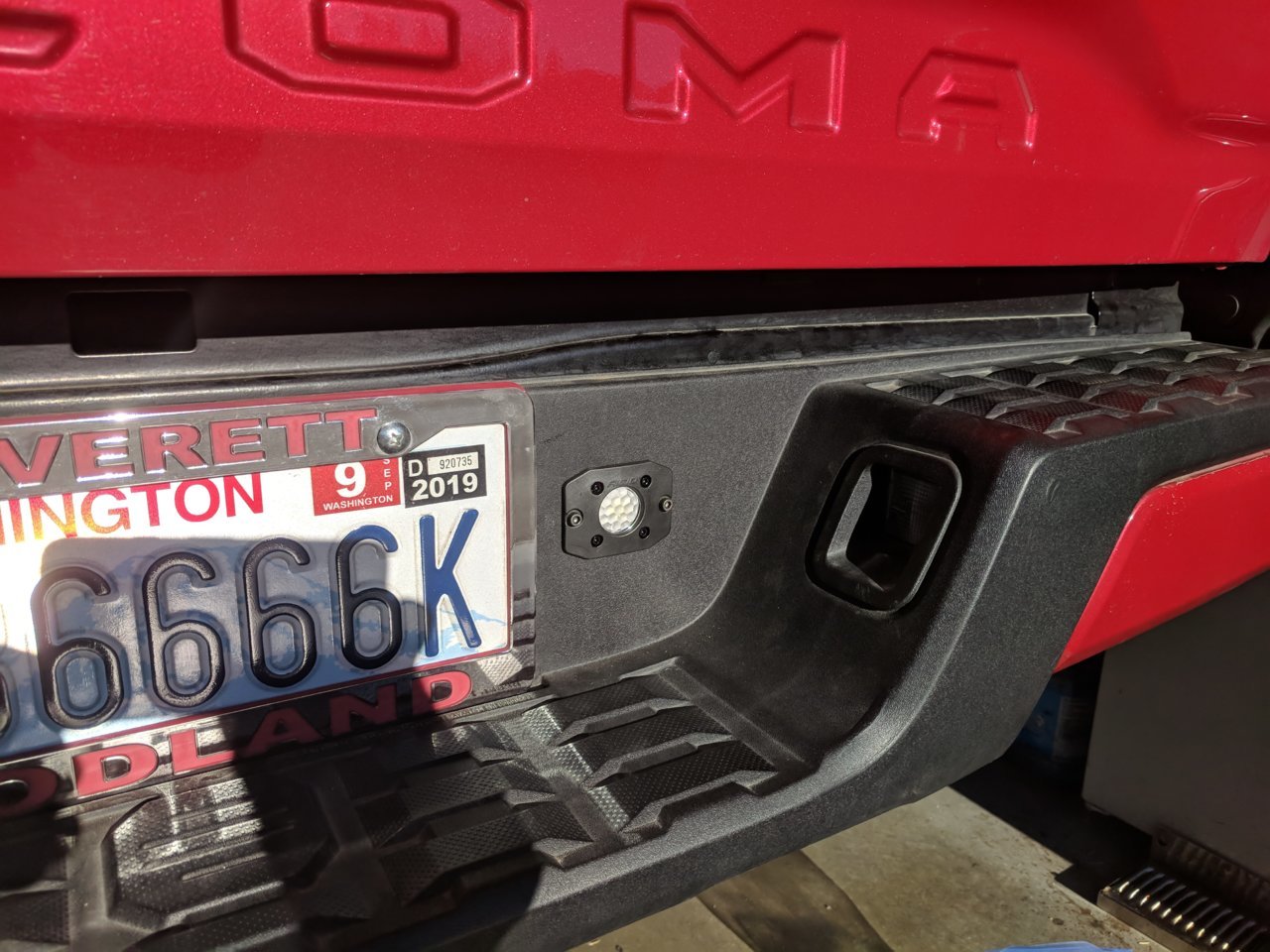

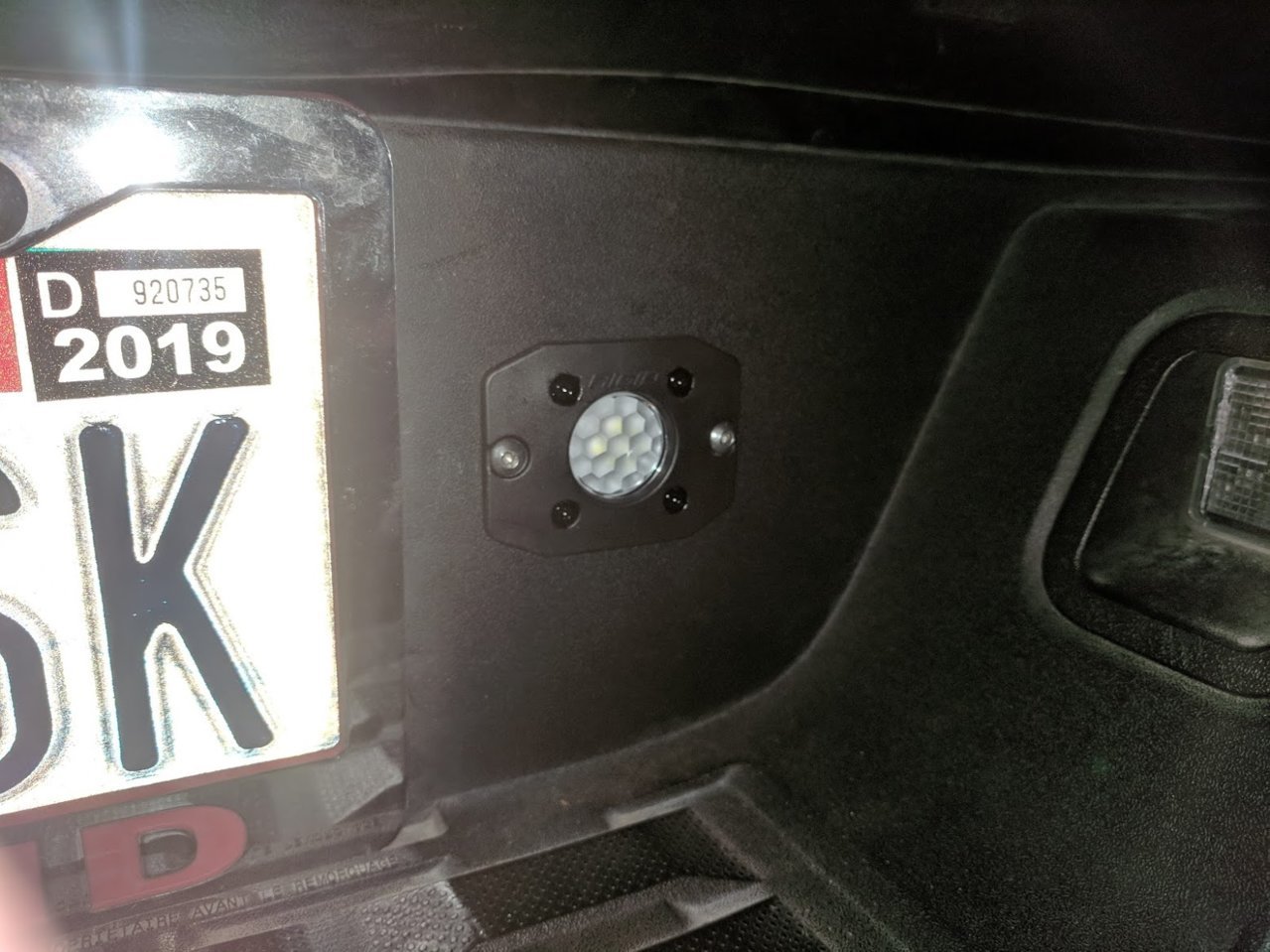

    Finished.


    Black chromate cap screws 8-32 x 1.0in and 3/8 x 0.171 x 1/4 nylon spacers.

    No need for paint since Lowes didn't have SS pan heads that long. Hahaha!


    6666 - cousin of the Beast! :headbang: :headbang: :headbang: :headbang:

    :cookiemonster:

  7. Oct 9, 2018 at 9:02 AM
    #27
    cafereef

    cafereef Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215206
    Messages:
    408
    Gender:
    Male
    Vehicle:
    2017 MGM Tacoma TRD Sport
    TRD Sport Exahust, OEM roof Rack, Predator Pro side steps.
    any night time pics to show what the throw looks like in reverse?

    tonered [OP] likes this.
  8. Oct 9, 2018 at 10:24 AM
    #28
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    It is still capped and stowed until the Full-C harnesses arrive . . . today! @NoOne has been teasing me about them since last freaking Thursday, esp about the Full-"C"olumbus Day holiday.

    I should have pics up tonight.

    Also, the black chromate screws were showing rust after their first bit of rain. Doh! I stopped by Ace who had a better small SS screw selection and found some pan head 8-32 x 1.0in long ones.

    NoOne likes this.
  9. Oct 15, 2018 at 8:38 AM
    #29
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I received the harness last week and forgot to update this thread. Here's some pics of the harness and the flush mount including night shots:
    https://www.tacomaworld.com/threads...rake-and-signals.471450/page-34#post-18889092

    After a couple dark commutes, I am satisfied with the single flush mount. Any object that is bumper height is light up well and fully seen in the reverse camera by reflected light. The only time that I noticed something not showing up at least as good as before is a parking lot curb. That is no big deal to me.

  10. Feb 1, 2019 at 6:59 AM
    #30
    JayTee

    JayTee Well-Known Member

    Joined:
    Nov 21, 2018
    Member:
    #273362
    Messages:
    140
    Gender:
    Male
    Lynn Ranch CA
    Nice Deacon.

    Ordered a single BD S2 Pro that I intend to put to right of plate.
    The single S2 only pulls 24W - will it be ok to tap directly into the wiring harness as well?
    Or do I need to add a relay or?

  11. Feb 1, 2019 at 12:01 PM
    #31
    Deacon Blues

    Deacon Blues Well-Known Member

    Joined:
    Sep 7, 2017
    Member:
    #229363
    Messages:
    957
    Gender:
    Male
    Vehicle:
    2017 SR5
    Eh, I would add a relay for that.

    The little Ignite is only 12 watts and draws less than one amp.

    tonered [OP] likes this.
  12. Jun 21, 2019 at 9:26 AM
    #32
    vicali

    vicali Chilling at YMH

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,853
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    Installed a BajaDesign S2 Sport flush beside the plate;
    Used an add-a-fuse and a CH4x4 switch, constant 12v, drilled and cut out a small 1/4in section to fit the lamp in.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  13. Jun 21, 2019 at 9:35 AM
    #33
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Nice work!

    I have been enjoying mine as the reverse light since I got it wired in. I have been thinking about also wiring it as a constant power aux light like yours. Maybe down the road.

  14. Jun 21, 2019 at 9:44 AM
    #34
    vicali

    vicali Chilling at YMH

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,853
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    I have the diodes and was ready to do a dual setup to work with the backup lights and a switch, but honestly this is so bright I would rather have it on only when I need it..

    tonered [OP] likes this.
  15. Jun 21, 2019 at 9:49 AM
    #35
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    22,554
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Definitely. That will light up anything that you need.

    The Rigid flush mount get a look every once in a while. It is probably 50% brighter than stock? Great visibility except for straight down.

  16. Jun 21, 2019 at 11:36 AM
    #36
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,476
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    vicali likes this.
  17. Jun 21, 2019 at 4:00 PM
    #37
    Chew

    Chew Not so well known user

    Joined:
    Mar 6, 2019
    Member:
    #285575
    Messages:
    2,371
    Gender:
    Male
    First Name:
    Chewy
    Midwest
    Vehicle:
    19 TRD OR
    Amazon dog poo bed mat mod
    Well done!
    I like practical mods, and I need some backup lights, my steep narrow wrap around drive is a bitch at night.





    tonered [OP] and vicali like this.
  18. Jun 21, 2019 at 4:24 PM
    #38
    vicali

    vicali Chilling at YMH

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,853
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    I bet if you used the diffused work light or the wide angle lenses you would get even better 'backup' light.. I went with Combo because I wanted some punch in the center too..

    Chew and tonered [OP] like this.
  19. Jun 27, 2019 at 4:33 PM
    #39
    notanexpert

    notanexpert Well-Known Member

    Joined:
    Nov 17, 2018
    Member:
    #272961
    Messages:
    81
    Gender:
    Male
    Golden, CO
    Vehicle:
    18 MT TRD pro

    Does the light cause glare in the backup cam?

  20. Jun 27, 2019 at 5:20 PM
    #40
    vicali

    vicali Chilling at YMH

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,853
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    Haven’t noticed any, maybe if I’m backing into the stall in my parkade but I don’t have it on most of the time.

    One of the reasons I wanted it was backing up the trailer in the dark, it’s a pain to only have light when the truck is in reverse and trying to get out to see where to park it.

    Also pretty handy and a dust/snowstorm light..
