Backup Camera Rocker Switch

Discussion in '3rd Gen. Tacomas (2016+)' started by StreetTiresJay, Feb 20, 2016.

  1. Feb 20, 2016 at 11:56 AM
    #1
    StreetTiresJay

    StreetTiresJay [OP] Well-Known Member

    Joined:
    Feb 20, 2016
    Member:
    #178812
    Messages:
    511
    Gender:
    Male
    First Name:
    Jay
    British Columbia Canada
    Vehicle:
    '16 Taco TRD Sport DBLcab Alpine White 6M
    Wife in passenger seat, not driver seat :)
    Quick details:
    I've got a 2016 double Cab manual transmission Tacoma with the factory backup Camera.

    What I want to do:
    Add a rocker switch to the dash so I can toggle the backup camera on and off at any time while driving or stopped at a red light WITHOUT putting the transmission in reverse.

    Question:
    Has anyone done this yet or know how to do this, or have advice on how to go about this?

    This is possible, I just can't find any information on it as most owners install aftermarket reverse cameras. I do not want to go this route on a brand new truck that has a perfectly functioning reverse camera.

    As I understand it, I should simply need to splice into the reverse gear switch that turns on the backup camera.

  2. Feb 20, 2016 at 2:03 PM
    #2
    OkTaco55

    OkTaco55 Member

    Joined:
    Feb 20, 2016
    Member:
    #178782
    Messages:
    15
    Gender:
    Male
    First Name:
    Todd
    Oklahoma
    Vehicle:
    2016 4x4 SR5 Double Cab Short Bed
    Black tubular steps; replaced cloth seats with leather ones from "road wire"; deluxe mats; Trident ToughFold tonneau cover; console dividers;
    Neat idea! I'd like that option too. Mine isn't in yet, but when it is I'll collaborate with you to see if we can create a clean and easy modification.

  3. Feb 20, 2016 at 2:06 PM
    #3
    WSC 2016 TRD off road

    WSC 2016 TRD off road Love this truck!

    Joined:
    Dec 16, 2015
    Member:
    #172386
    Messages:
    388
    Gender:
    Male
    First Name:
    Stephen
    Oklahoma
    Vehicle:
    2016 Tacoma TRD 4x4 OR DCSB MT
    None
  4. Feb 20, 2016 at 2:12 PM
    #4
    dimead0zen

    dimead0zen Well-Known Member

    Joined:
    Jan 11, 2016
    Member:
    #174700
    Messages:
    409
    Gender:
    Male
    So Cal
    Vehicle:
    Mid-Travel 2016 TRD Off-Road 4x4
    Desert prerunnin', rock crawlin' machine!
    Badass idea, I hope someone knows how to do this and take good pictures. I would love this feature.

  5. Feb 20, 2016 at 2:14 PM
    #5
    Rising Eagle

    Rising Eagle Well-Known Member

    Joined:
    Dec 18, 2015
    Member:
    #172514
    Messages:
    399
    Gender:
    Male
    Berkshires MA
    Vehicle:
    2020 DCSB OR
    Tap into the reverse light wire in the harness running to the back or tap into the reverse light in the tail light housing. It has nothing to do with the reverse gear or transmission itself.

    Wiring diagram below. I set up my Jeep with an AEV reverse light and the hot wire of the camera into the reverse light. Use a 3 position switch.reverselights.jpgDAP-20100417-142929.jpg

    StreetTiresJay [OP] likes this.
  6. Feb 20, 2016 at 4:34 PM
    #6
    StreetTiresJay

    StreetTiresJay [OP] Well-Known Member

    Joined:
    Feb 20, 2016
    Member:
    #178812
    Messages:
    511
    Gender:
    Male
    First Name:
    Jay
    British Columbia Canada
    Vehicle:
    '16 Taco TRD Sport DBLcab Alpine White 6M
    Wife in passenger seat, not driver seat :)
    Excellent, thank you for the reply Rising Eagle. I'll have my electrician friend help me with this up. Not sure when I'll have this mod completed but it's on my immediate to do list. I'll check back on this thread and update as I go. I'll get ad many pictures as I can so I don't miss any details for you guys

  7. Feb 20, 2016 at 5:25 PM
    #7
    Aussiek2000

    Aussiek2000 Well-Known Member

    Joined:
    Sep 5, 2015
    Member:
    #163499
    Messages:
    5,656
    Gender:
    Male
    Vehicle:
    2016 Offroad AC
    I don't know about toyota, but most manufacturers aren't using a reverse signal wire any more to trigger the camera. The radio looks for reverse signal on the data line. When it see the signal, it turns on the camera and displays the image

    Rising Eagle likes this.
  8. Aug 13, 2017 at 3:25 PM
    #8
    Jeepien

    Jeepien New Member

    Joined:
    Jan 3, 2016
    Member:
    #173943
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2016 SR5
    I'd like to do this to my '16 SR-5, but what I need is the relevant page from the wiring diagram that shows the color codes for the reverse line to the camera. I can find +12V easily enough, and I've got a SPDT switch, so I won't need a relay.

    Anyone have the wiring diagram or can describe how to find the wire I'm looking for?

    Stopmithering likes this.
  9. Aug 13, 2017 at 4:07 PM
    #9
    blackrifle76

    blackrifle76 Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191022
    Messages:
    547
    Gender:
    Male
    First Name:
    nick
    Louisiana
    Vehicle:
    white 2017 trd sport 4x4 dclb, white 2016 mustang ecoBOSS
  10. Aug 13, 2017 at 4:13 PM
    #10
    blackrifle76

    blackrifle76 Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191022
    Messages:
    547
    Gender:
    Male
    First Name:
    nick
    Louisiana
    Vehicle:
    white 2017 trd sport 4x4 dclb, white 2016 mustang ecoBOSS

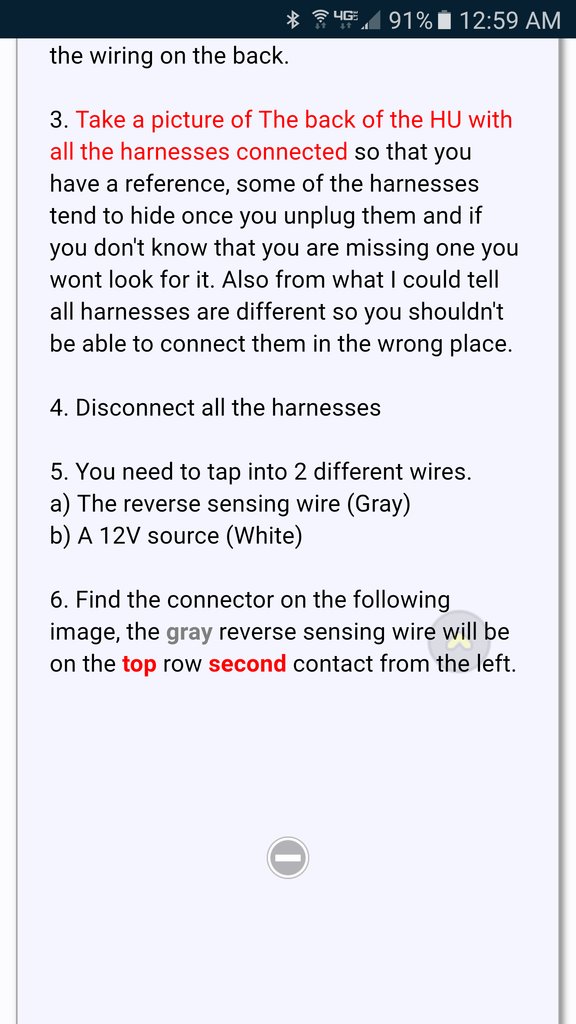

    Here's some screenshots that I used from that thread
    Screenshot_20170106-010002.jpg Screenshot_20170106-005956.jpg

  11. Aug 13, 2017 at 6:02 PM
    #11
    Jeepien

    Jeepien New Member

    Joined:
    Jan 3, 2016
    Member:
    #173943
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2016 SR5
    Thanks a bunch!

    Er, oops, looks like that final image didn't make it.

  12. Aug 13, 2017 at 6:08 PM
    #12
    blackrifle76

    blackrifle76 Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191022
    Messages:
    547
    Gender:
    Male
    First Name:
    nick
    Louisiana
    Vehicle:
    white 2017 trd sport 4x4 dclb, white 2016 mustang ecoBOSS
    Lol yea, that was a screenshot of someone's post with a picture that didn't post, I believe he fixed it later on in the thread
