BeatSonic Camera installed

Discussion in '3rd Gen. Tacomas (2016+)' started by VicNic3, Nov 11, 2019.

  1. Nov 11, 2019 at 11:26 AM
    #1
    VicNic3

    VicNic3 [OP] Well-Known Member

    Joined:
    May 5, 2018
    Member:
    #252619
    Messages:
    336
    Gender:
    Male
    GA
    Vehicle:
    2018 Toyota Tacoma Sport 4x4 DCSB Silver Sky Metallic

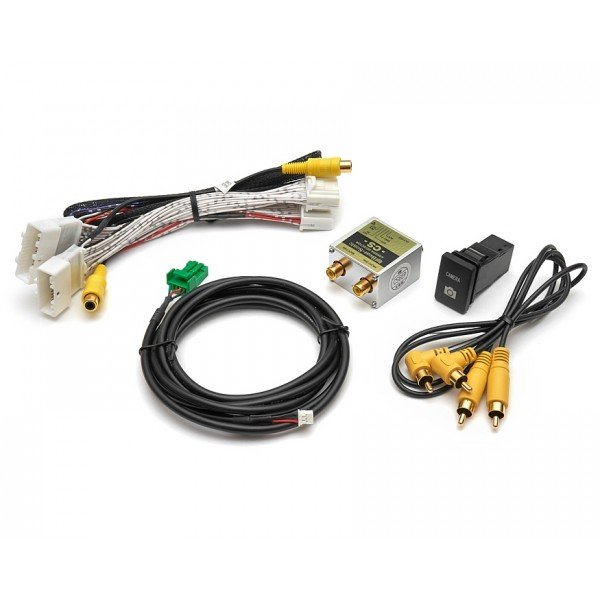

    Finally got round to installing the BeatSonic Front/Rear Camera. This is the camera system I used. I add to make a wire extension for the switch. But not hard at all. Only 3 wires as the BeatSonic switch is special switch from manufacture.
    The switches offered have a chip inside whereas the standard Toyota switches don't. Ran wire along inside headliner and down A pillar. I also swapped out the white LED's from another Toyota switch that had blue LED's to give that factory look in color.
    https://www.beatsonicusa.com/cameras/cs6ep.html

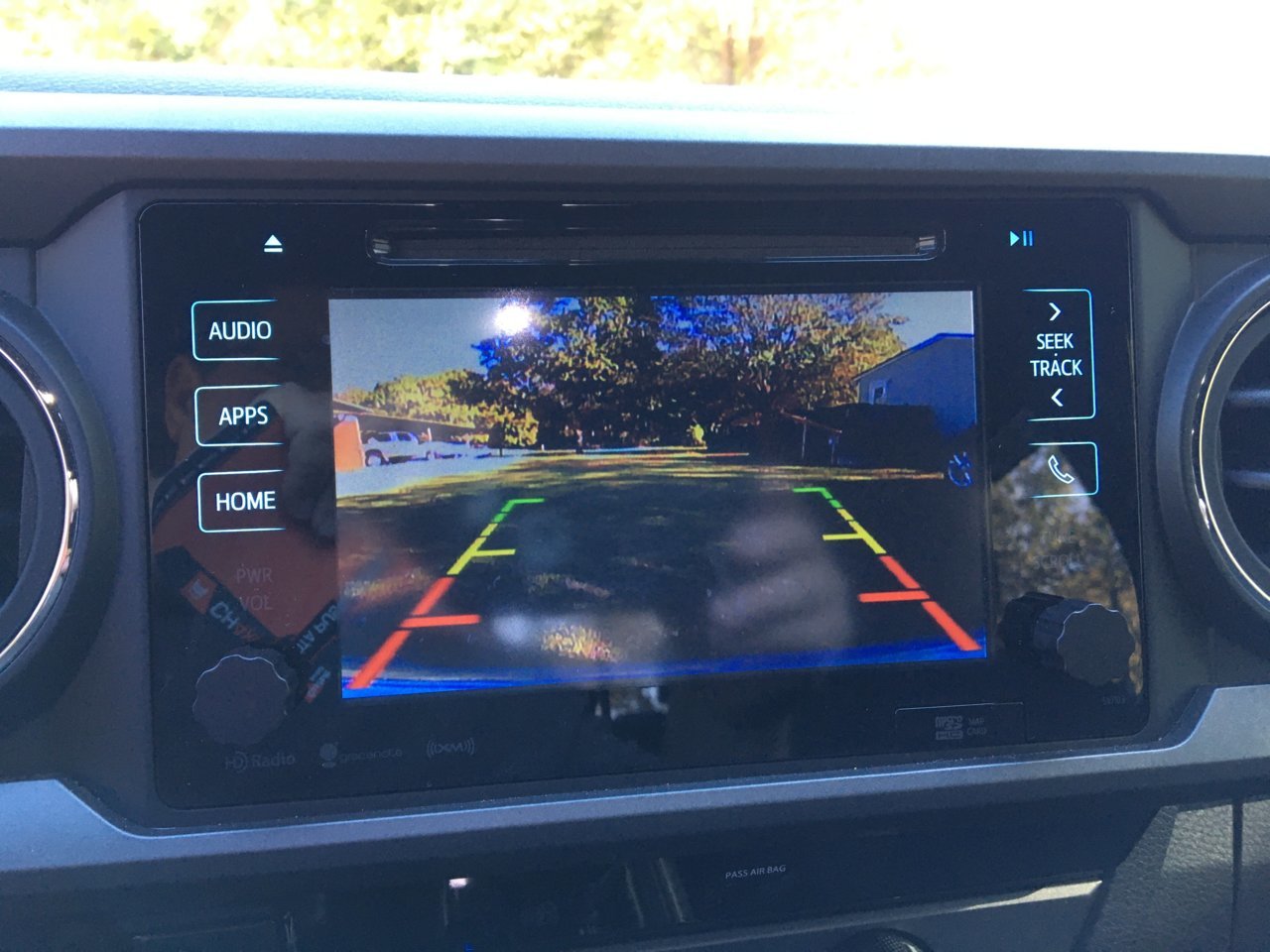

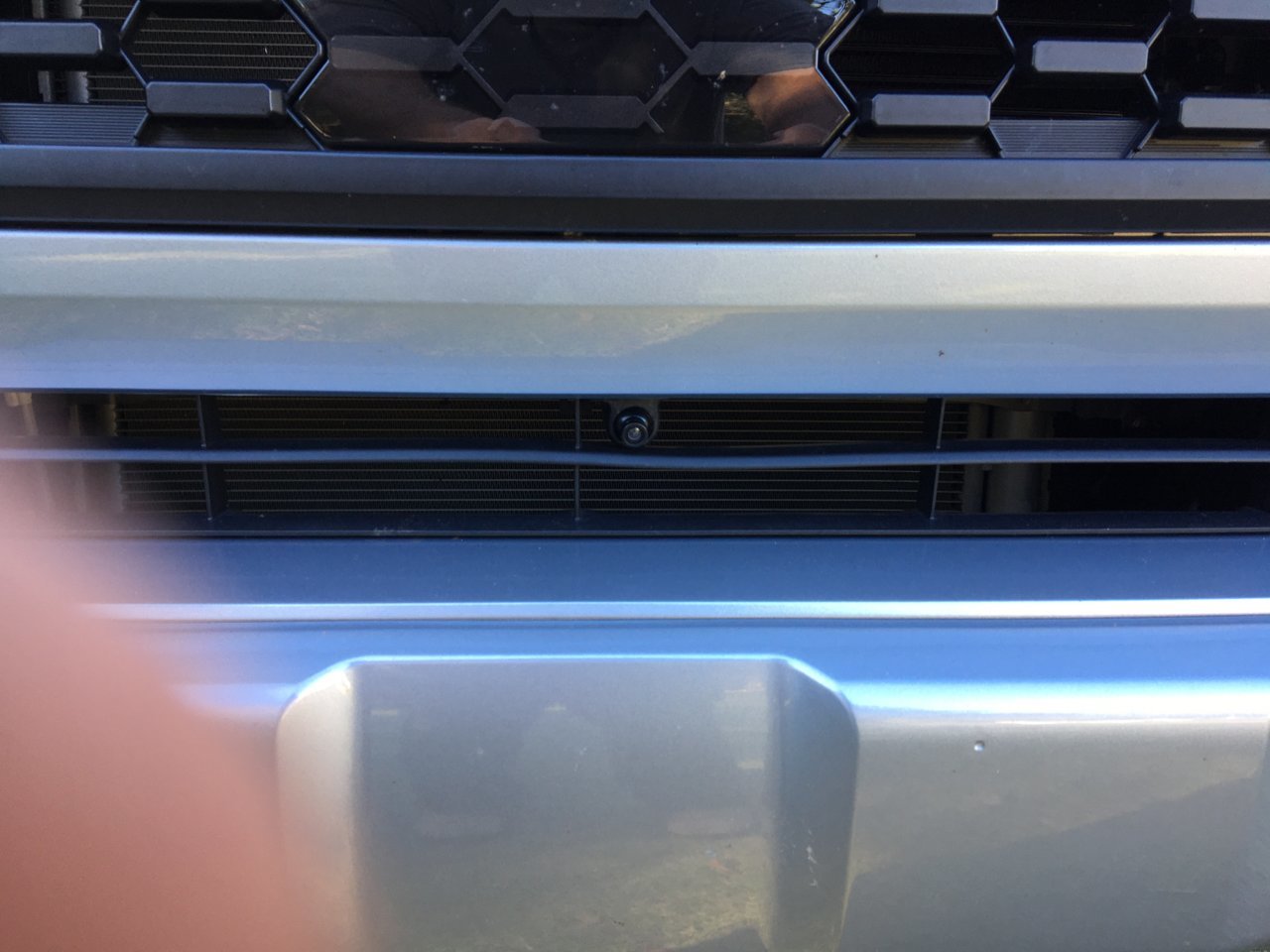

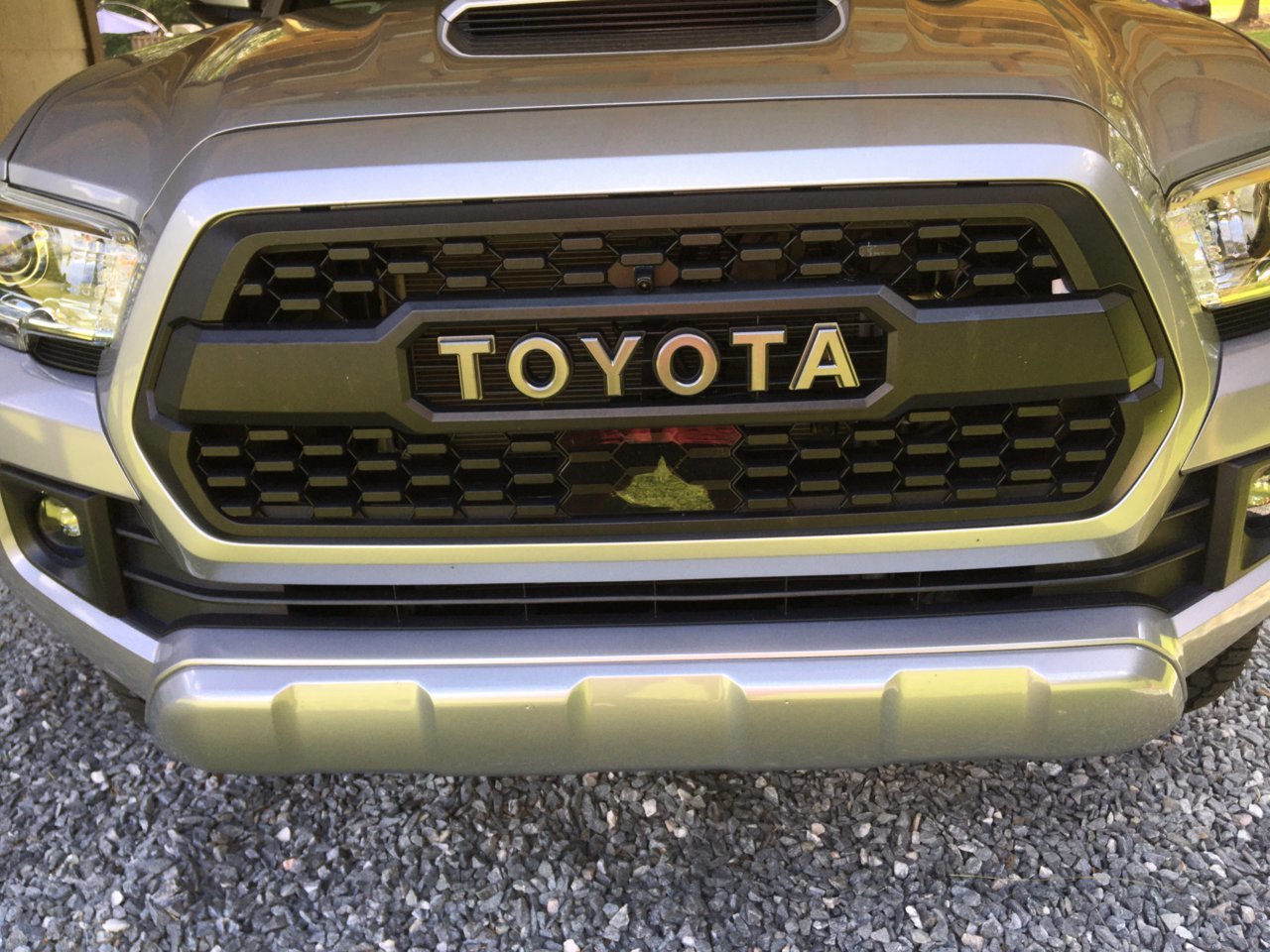

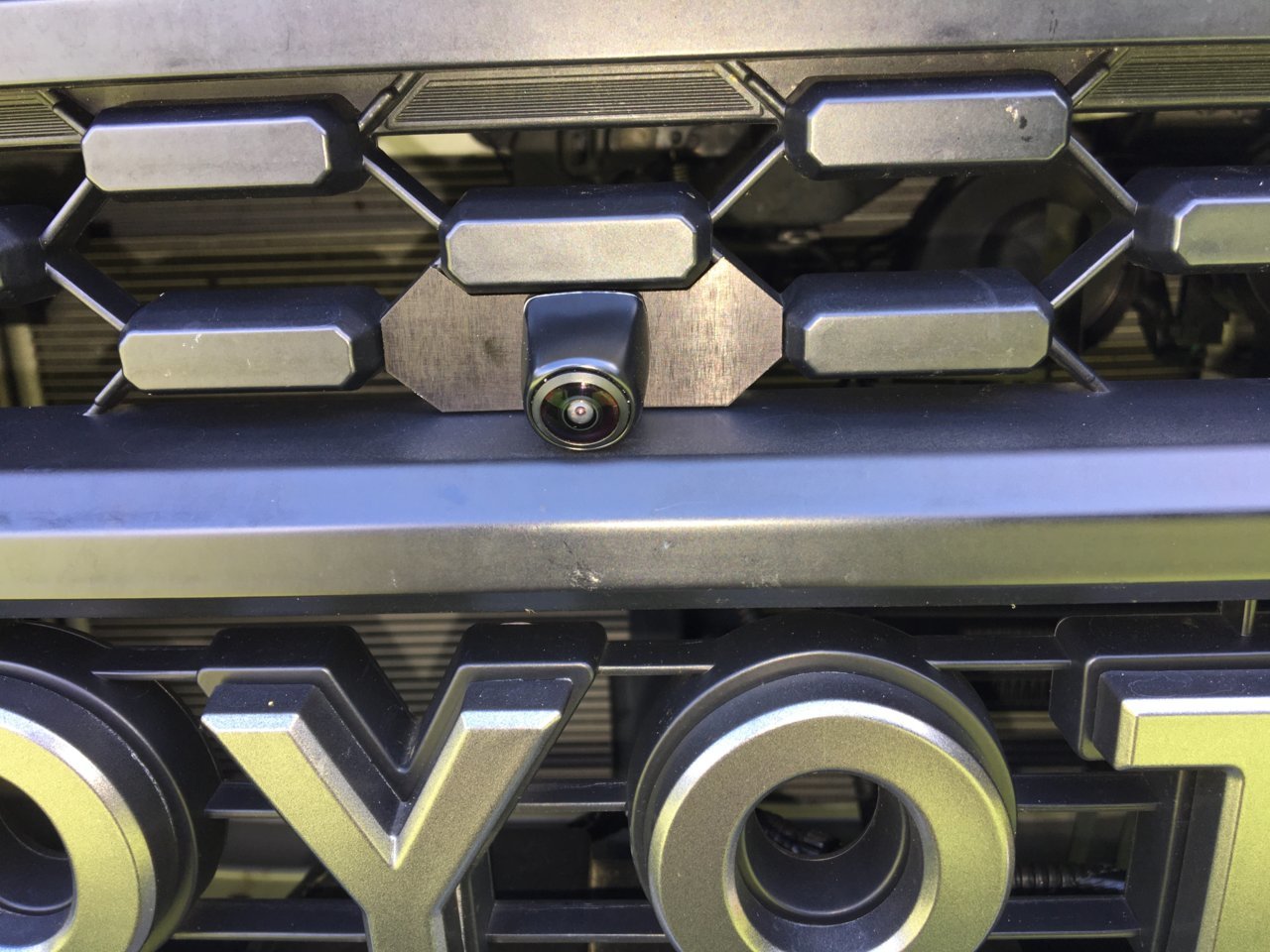

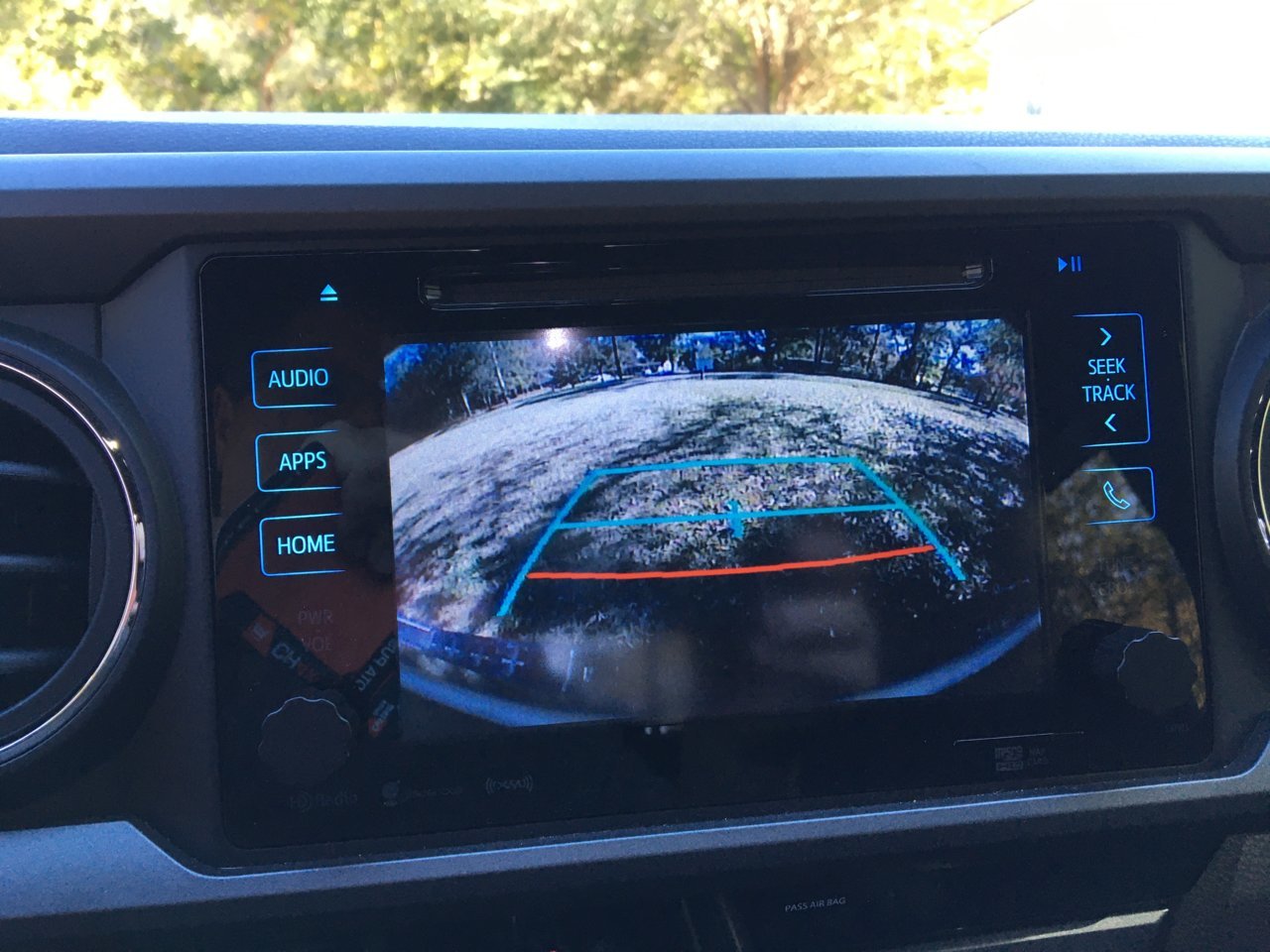

    Used this Front Camera. Mounted in lower grille below the TRD grille
    https://www.amazon.com/gp/product/B07R144716/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

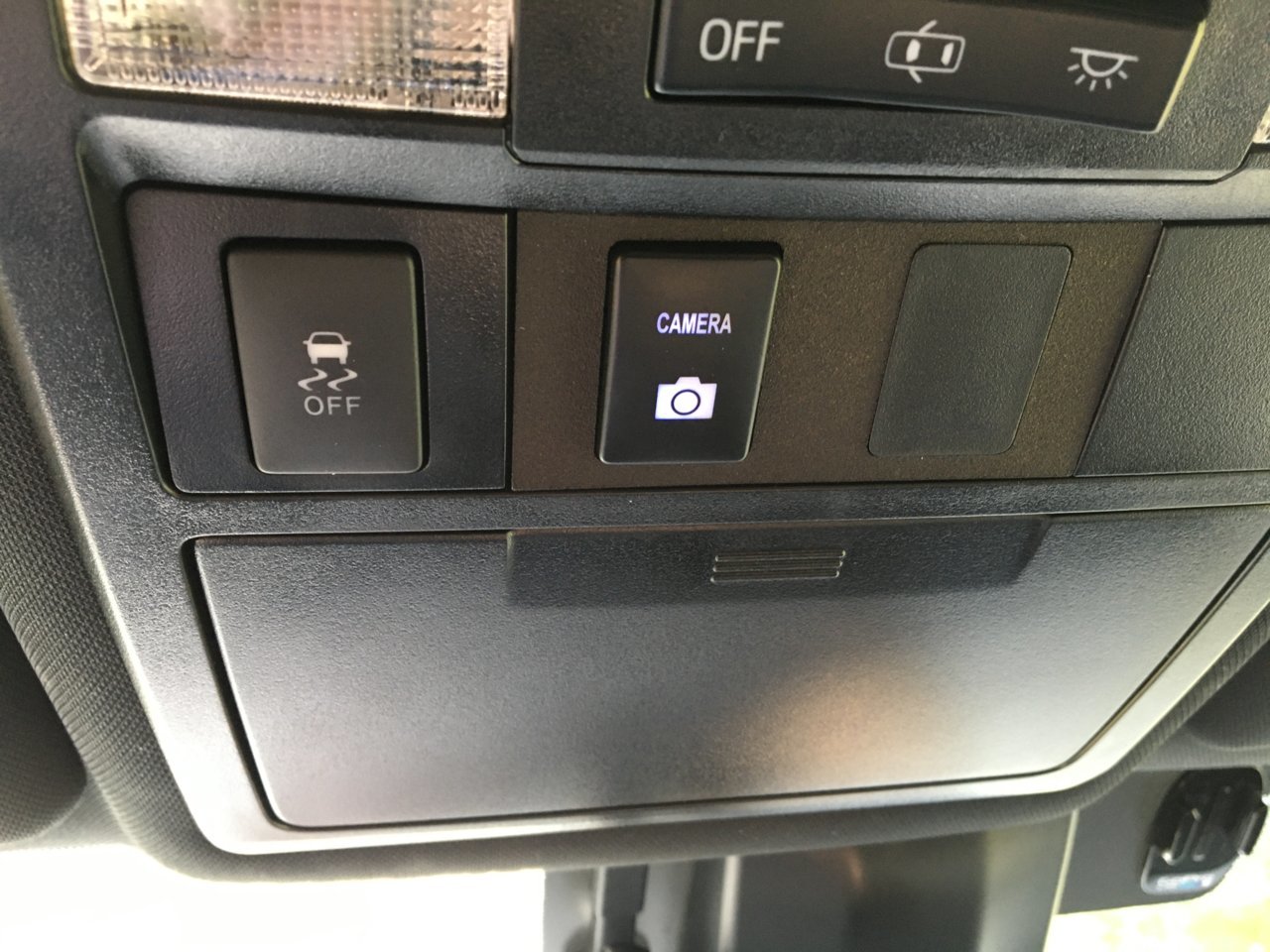

    Mounted the Camera switch in the overhead panel for easy access. Used this panel.
    https://www.shapeways.com/product/8A22XRNYG/2016-toyota-tacoma-overhead-center-switch-panel

    Some install pics.


    Last edited: Nov 11, 2019
    58electricman likes this.
  2. Nov 11, 2019 at 12:08 PM
    #2
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    1,972
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    That’s where I’m going to put my switch with the same panels but I haven’t painted the panels yet- going to use the sem paint MESO uses on his 3D printed parts.

    How hard was replacing the led? Soldering required?

    did you buy the extra blank (pt#?) or moved it from another spot?

  3. Nov 11, 2019 at 1:48 PM
    #3
    VicNic3

    VicNic3 [OP] Well-Known Member

    Joined:
    May 5, 2018
    Member:
    #252619
    Messages:
    336
    Gender:
    Male
    GA
    Vehicle:
    2018 Toyota Tacoma Sport 4x4 DCSB Silver Sky Metallic

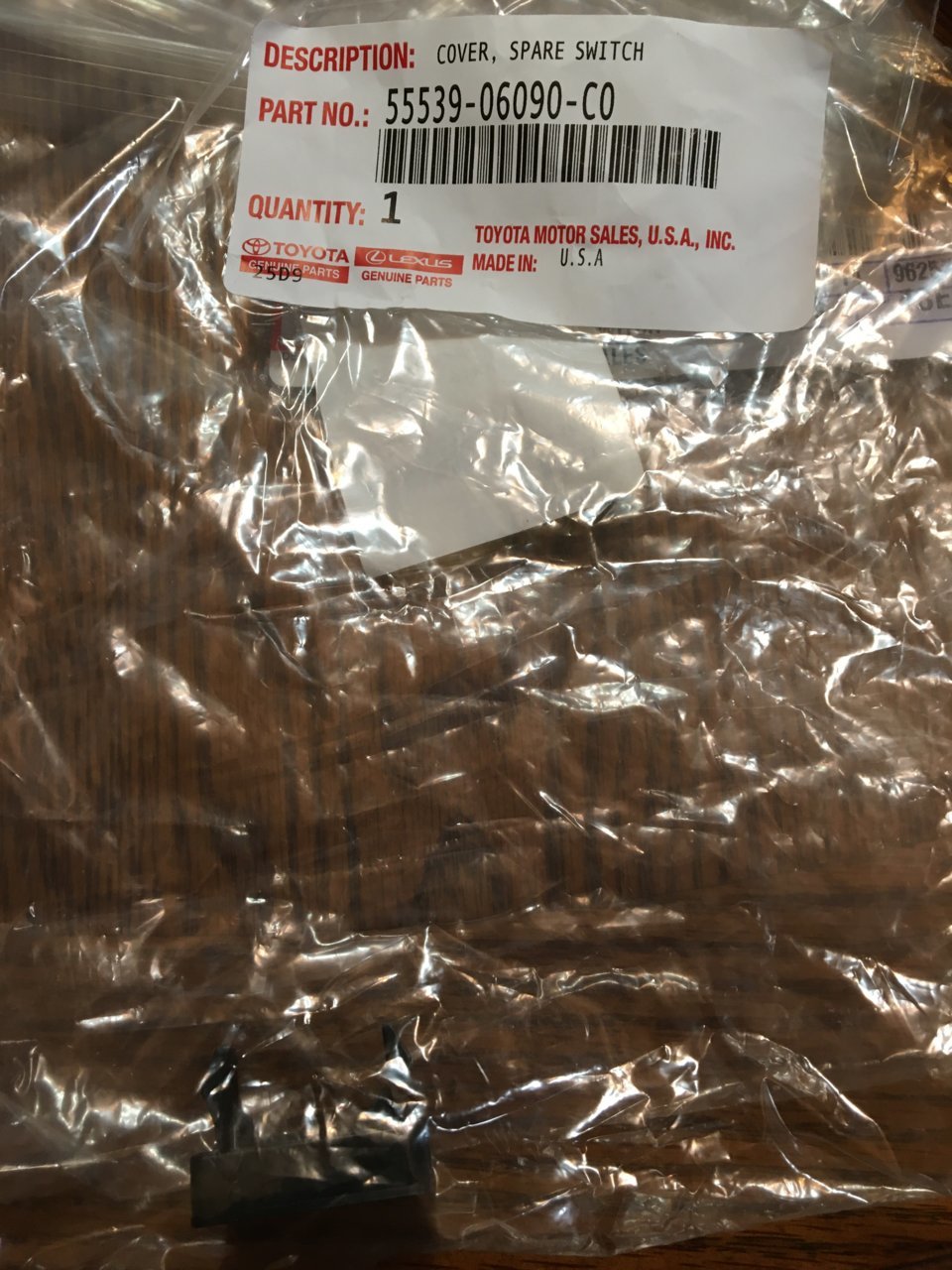

    Not bad soldering, just use low heat and put in the right orientation. You could use a blue sharpie marker and color the existing white LED’s to get close in color. Here is the Toyota small switch blank part number.

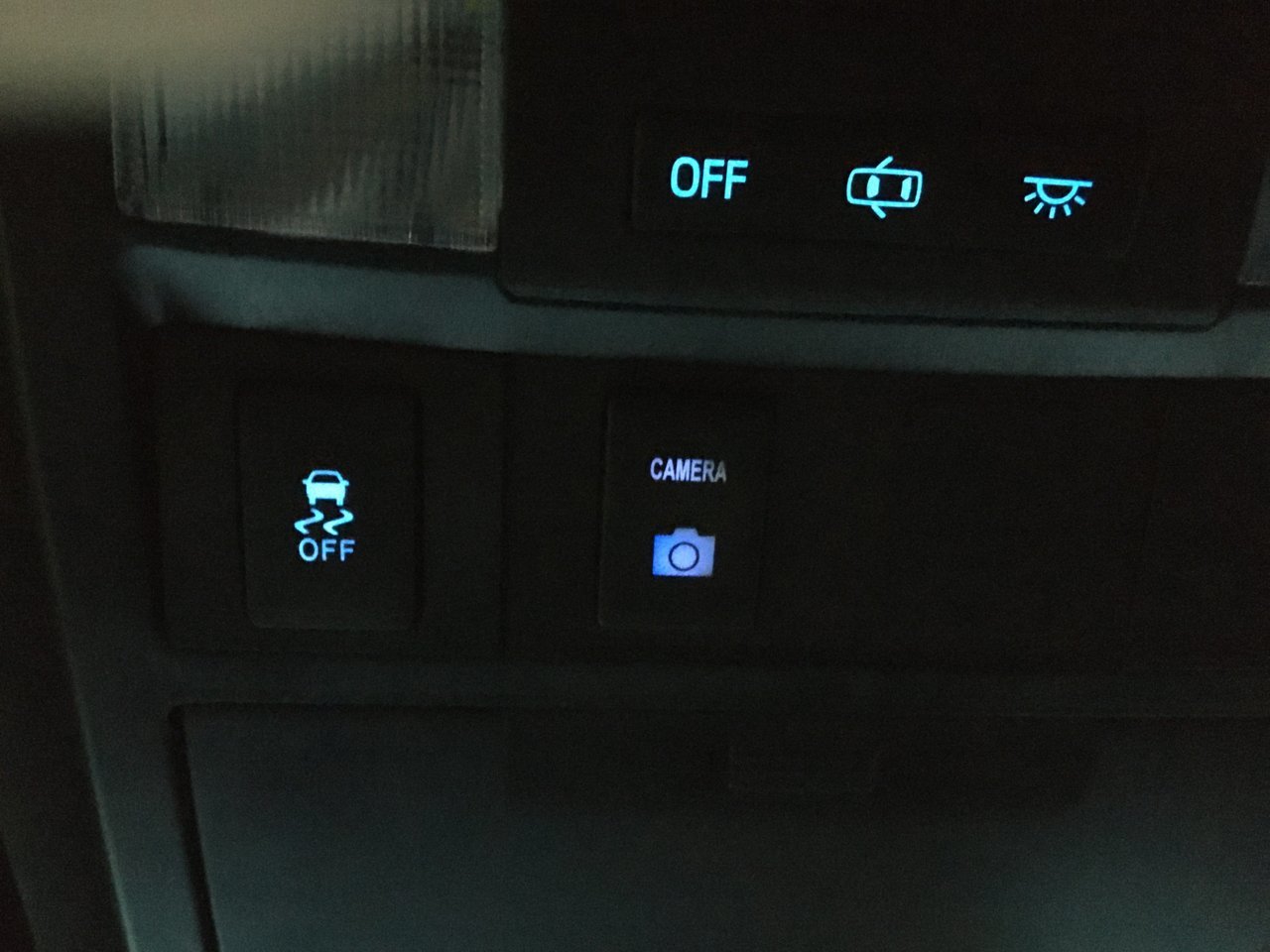

    Night pic of switch

    Last edited: Nov 11, 2019
    58electricman likes this.
  4. Nov 11, 2019 at 4:27 PM
    #4
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    1,972
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Thanks for the pt# when I was searching for blanks they never showed an actual pic always a half ass diagram (as is with most any parts) the number I had was the same except the last digits were c1 not c0

    Ill probably just keep it white. That blue looks off compared to the rest. And different shades of blue will bother me more than a plain white

    I do plan on running a secondary switch on MESO stage2 pro shifter which I’ll use 99% of the time

  5. Apr 6, 2020 at 5:00 PM
    #5
    VicNic3

    VicNic3 [OP] Well-Known Member

    Joined:
    May 5, 2018
    Member:
    #252619
    Messages:
    336
    Gender:
    Male
    GA
    Vehicle:
    2018 Toyota Tacoma Sport 4x4 DCSB Silver Sky Metallic

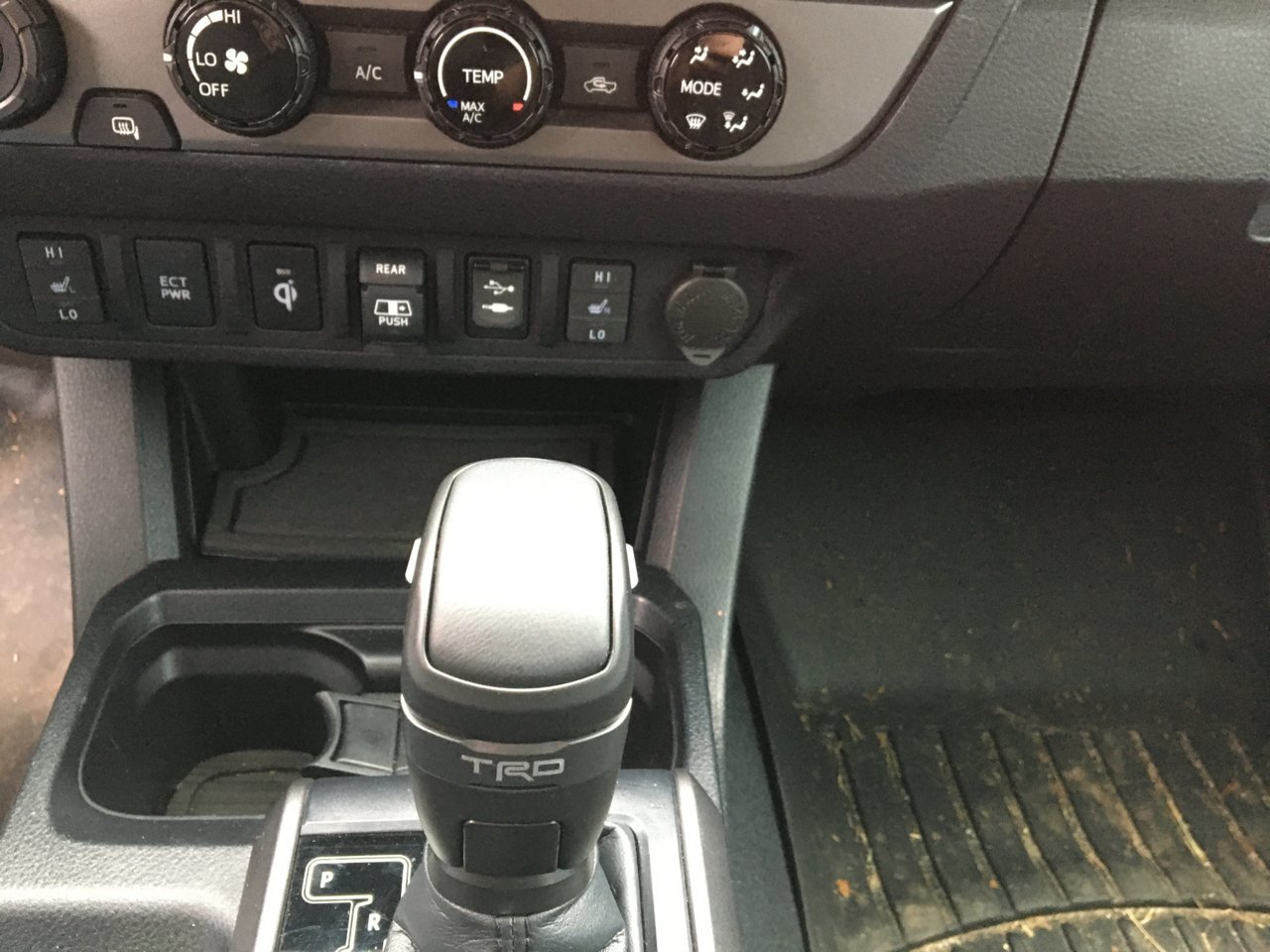

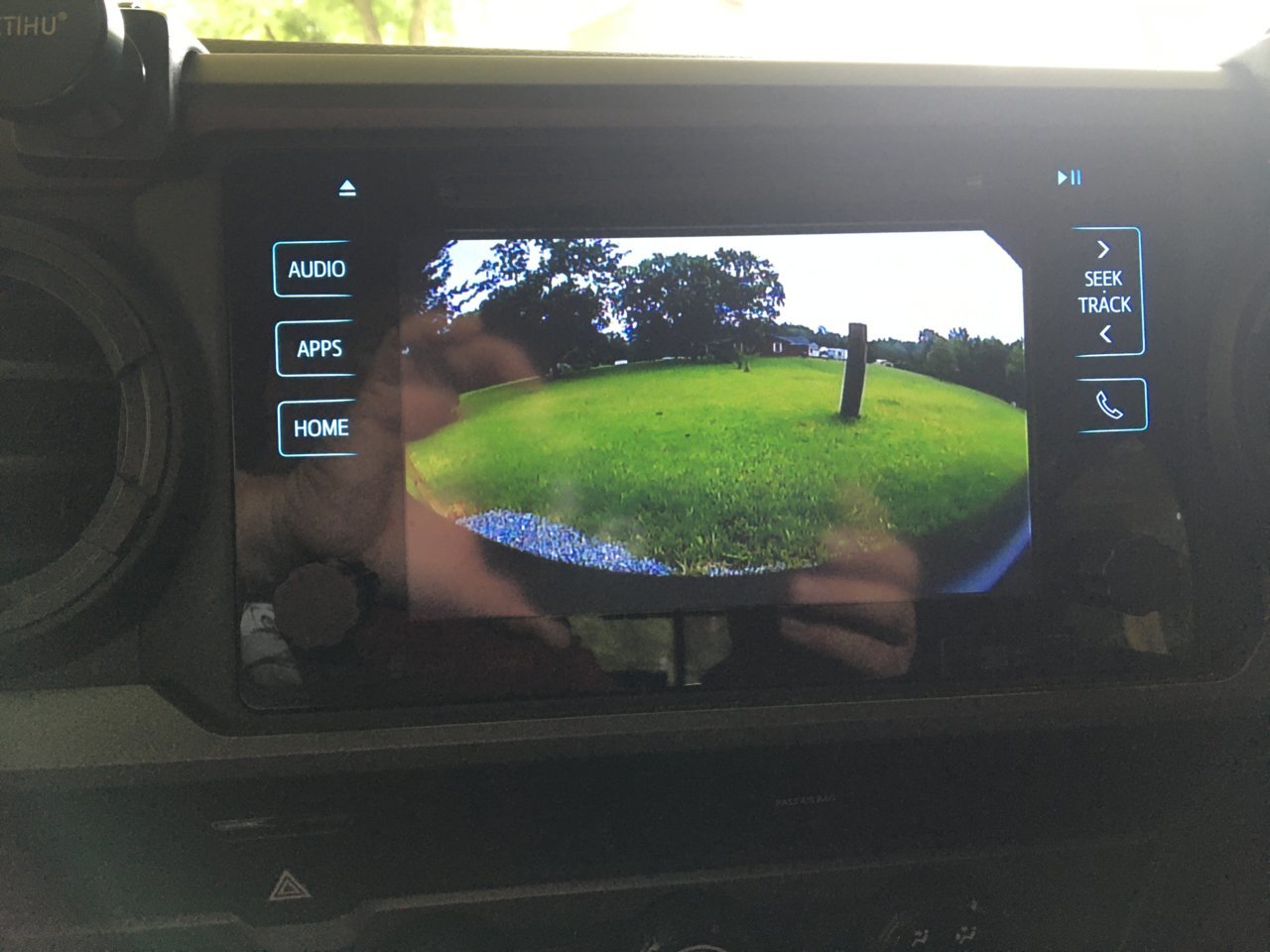

    Finally got around to installing jumper wires to the MESO DIY Stealth Black Shift Knob Kit for the BeatSonic Front/Rear camera. It's easy to press the RH MESO switch on shifter to activate front/rear camera. Had some help from a fellow member. He done the initial testing.
    https://www.tacomaworld.com/threads/ect-stealth-pro-shift-knob.597659/page-111
    baldbeardedtaco
    Hooking up the Meso 2nd switch wires (yellow and white) to the camera wires (red and green) works as the factory switch I have mounted in overhead console.
    For those wanting to this mod:
    Red provides power, Black is ground for the switch illumination, and the Green is the switch providing power to the module to switch.
    Here is the link to use factory switch connectors.
    https://www.digikey.com/product-detail/en/jae-electronics/IL-AG5-5P-S3C1/670-2209-ND/2044116
    https://www.digikey.com/products/en?keywords=670-1799-ND
    Pins
    https://www.digikey.com/products/en?keywords=670-1790-1-ND
    https://www.digikey.com/products/en?keywords=670-1785-1-ND
    Meso switch connectors
    https://www.amazon.com/MUYI-Waterpr...Superseal+Connector+Kit&qid=1586218902&sr=8-1




    Last edited: Apr 6, 2020
    58electricman and Boyitz like this.
  6. Apr 7, 2020 at 12:20 AM
    #6
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    1,972
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I’d have to say this mod as a whole (stealth stage 2 with the ect and front camera and beat sonic kit) is my favorite combination mod.

    after doing this I actually changed the settings and I like it better. I turned the auto on (under 12mph) off, turned time-out off and turned rear camera off. Since I can easily find/press the button on the shifter I don’t need the auto on anymore plus I always disliked the slight delay, it constantly turning on in traffic or slow speed (always when I was trying to change the radio :frusty:). And I never really used the on demand rear camera anyways since it still automatically comes on in reverse. I could really disconnect the beat sonic switch completely and free up a space which I may do.

    58electricman and VicNic3 [OP] like this.
  7. Apr 7, 2020 at 12:22 PM
    #7
    elpulpo

    elpulpo Well-Known Member

    Joined:
    Jan 13, 2018
    Member:
    #241125
    Messages:
    51
    Gender:
    Male
    First Name:
    Jack
    Brooklyn, NY
    Vehicle:
    2018 Cement TRD OR DCLB
    I really like that mounting location for the front camera. I'm going to have to put mine there now.

    VicNic3 [OP] likes this.
  8. May 30, 2020 at 10:27 AM
    #8
    Infinite_Taco

    Infinite_Taco Well-Known Member

    Joined:
    Jul 23, 2018
    Member:
    #260293
    Messages:
    53
    Gender:
    Male
    First Name:
    Aaron
    Medford Oregon
    Vehicle:
    2020 Tacoma TRD PRO Magnetic Gray Metallic
    I have the surround camera's but I hate the terrible resolution.
