Bed Ammo Can Mount Write-Up

Discussion in 'Garage / Workshop' started by CanisLupus, May 27, 2012.

  1. May 27, 2012 at 3:54 PM
    #1
    CanisLupus

    CanisLupus [OP] Previously "MGMTacoFF"

    Joined:
    May 17, 2011
    Member:
    #56826
    Messages:
    4,558
    Gender:
    Male
    First Name:
    Matt
    Northern Virginia
    Vehicle:
    2011 DCSB 4WD
    Hi all, I decided to do a write up of my ammo can mount. Credit for the idea goes to member "GTABurnout," who I first saw the mount from. I believe he has a small write up in his build but I figured I might do a specific thread about it with my experience on the project. I used my father's old 7.62mm army ammunition can and bedlined it using Rustoleum Truck Bed Liner Paint. I also stole GTABurnout's idea and put an 1/4'' eye bolt through the handle and put a padlock on it to keep my belongings secure. I decided to not drill through the center of the handle since that was where the can was held together from and I didn't want to compromise the strength of the can, so I drilled off-center and used a second washer for the eye bolt on the outside to space the eye bolt out from the handle so I could put the padlock through. You guys can experiment with different size hardware and such but I will posting my specifications from what I used.

    Tools Needed/Preferred:

    (1) Ammo Can
    (3) 1/2'' Hex Bolts
    (3) 1/2'' Hex Nuts
    (3) 1/2'' Neoprene Washers
    (1) 1/4'' Eye Bolt
    (2) 1/4'' Nuts
    (1) 1/4'' Neoprene Washer
    (1) Rustoleum Truck Bed Liner Paint Can
    (1) Cordless Drill
    (1) 1/2'' Drill Bit (capable of drilling light-grade metal)
    (1) 1/4'' Drill Bit (capable of drilling light-grade metal)
    (1) Padlock

    Write Up


    • Paint (can be done after drilling if preferred)
    • Measure holes to fit rail system and drill
    • Slide bolts through rail system
    • Attach bolts through can holes
    • Attach hardware
    • Enjoy!

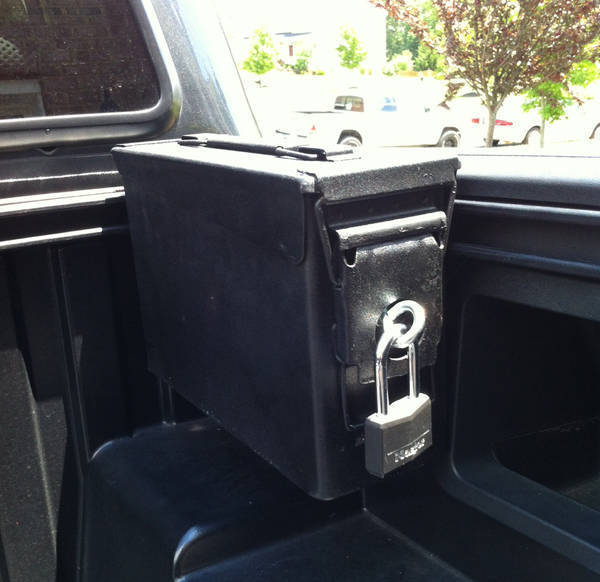

    Finished Project Driver's Side:

    [​IMG]

    Recovery Strap and Inside View (can also see the D-Rings I mounted in the front of the bed recently):

    [​IMG]

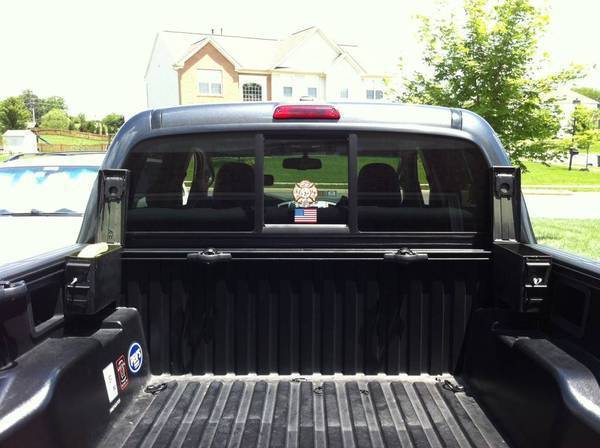

    Inside View w/ no Recovery Strap:

    [​IMG]

    The door will not hit rear glass or paint (rest on rubber seal)

    [​IMG]

    *EDIT* (Added twin ammo can on passenger side)

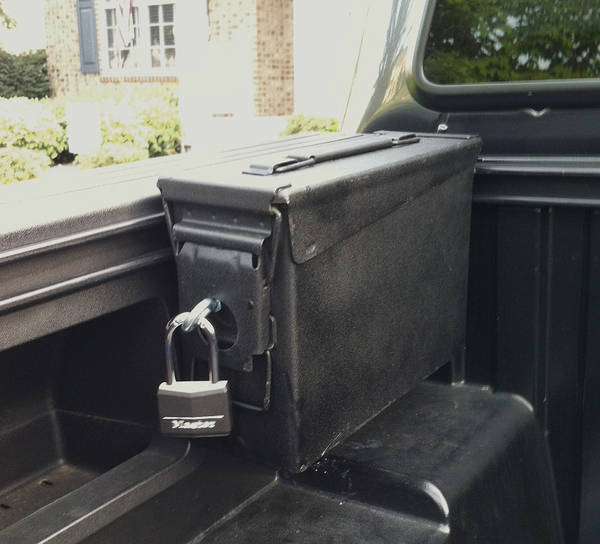

    Finished Project Passenger Side:

    [​IMG]

    Inside View with no ratchet straps/rope:

    [​IMG]

    Inside view w/ ratchet straps/rope:

    [​IMG]

    Top hits rubber seal on passenger side as well:

    [​IMG]

    Final Finished Project:

    [​IMG]

    Hope it was a good read, and good luck!

  2. Jun 4, 2012 at 8:56 PM
    #2
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,367
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    How long are the 1/2" bolts you used? And they are the hex heads? I was going to use rounded head carriage bolts, because I figured its the only thing that would fit into the rails.

  3. Jun 4, 2012 at 9:09 PM
    #3
    skidooman

    skidooman I'm your huckleberry

    Joined:
    Apr 6, 2011
    Member:
    #54438
    Messages:
    4,681
    Gender:
    Male
    First Name:
    TJ
    Idaho
    Vehicle:
    sold everything
    Looks good. You could also get some t-slot nuts that fit in the rails and run the bolt into them. I'll get the mcmaster carr part number that I got that fit in the rails tomorrow.
    :thumbsup:

  4. Jun 4, 2012 at 9:41 PM
    #4
    Rhino

    Rhino Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55529
    Messages:
    279
    Gender:
    Male
    First Name:
    Ryan
    Laurel, Mississippi
    Vehicle:
    03 TRD SR5 4x4
    gray wire mod, blacked out, debadged, toolbox foglights, cb in dash, system, bilstein 5100's in front wrapped in eibach coils, 5125's in the rear with 2 inch aal and 1 inch shackle, diff drop kit, extended rear brake line, 8000 lb smittybuilt winch on a custom winch bumper, 2 4 inch 100 watt kc's and 2 6 inch 100 watt kc's on the bumper, sometimes a ladder rack,much more to come
    great idea gonna do somethin similar to my first gen now

  5. Jun 4, 2012 at 9:42 PM
    #5
    ABregenzer

    ABregenzer Fish

    Joined:
    Feb 10, 2012
    Member:
    #72566
    Messages:
    3,425
    Gender:
    Male
    First Name:
    Alex
    The Dirty Lew, TX
    Vehicle:
    2004 4X4
    Stickers. Lots of stickers.
    Subbed for later. Got the ammo cans, just need time to put it all together.

  6. Jun 4, 2012 at 10:01 PM
    #6
    Nick701

    Nick701 Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    174
    Gender:
    Male
    Lincoln, ca
    Vehicle:
    06Prerunner TRD
  7. Jun 4, 2012 at 10:24 PM
    #7
    wileyC

    wileyC Well-Known Member

    Joined:
    Oct 22, 2011
    Member:
    #65685
    Messages:
    2,924
    Gender:
    Male
    Centerville, OH
    Vehicle:
    2012 PreRunner Double Cab TRD Sport
    looks good! i like the black rugged finish, matches bed ;)

  8. Jun 5, 2012 at 7:52 AM
    #8
    CanisLupus

    CanisLupus [OP] Previously "MGMTacoFF"

    Joined:
    May 17, 2011
    Member:
    #56826
    Messages:
    4,558
    Gender:
    Male
    First Name:
    Matt
    Northern Virginia
    Vehicle:
    2011 DCSB 4WD
    I believe the bolts I used were 1/2'' by 1.5''. I looked for shorter bolts so they wouldn't stick out so much but unfortunately those were the shortest Home Depot carried. And yes they are hex bolts but some of the other people on TW that have done this mod have used rounded head bolts. (Hex bolts obviously fit but it's whatever you want to do.)

    Matt

  9. Jun 5, 2012 at 10:12 AM
    #9
    skidooman

    skidooman I'm your huckleberry

    Joined:
    Apr 6, 2011
    Member:
    #54438
    Messages:
    4,681
    Gender:
    Male
    First Name:
    TJ
    Idaho
    Vehicle:
    sold everything

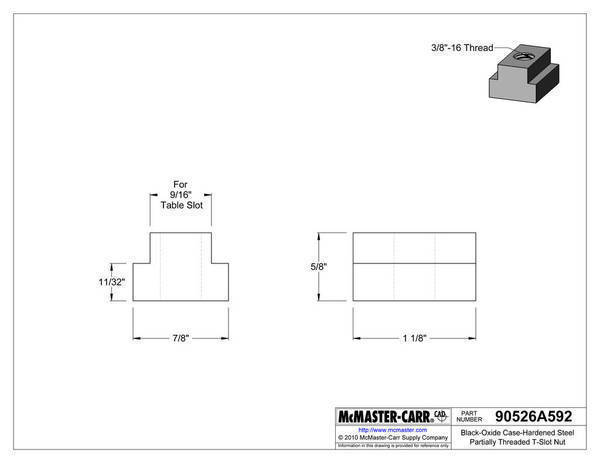

    The Mcmaster Carr part number for the t slot nuts I bought is 90526A592.
