Bed Rail Attachments - T-Slots and Knobs plus Tie Down and Fishing Rod Holder

Discussion in '2nd Gen. Tacomas (2005-2015)' started by steelhd, Mar 7, 2015.

  1. Mar 7, 2015 at 7:46 PM
    #1
    steelhd

    steelhd [OP] Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    2,923
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    The bed rail attachments thread (http://www.tacomaworld.com/forum/2nd-gen-tacomas/114001-bed-rails-attachments.html) lists a number of options for attaching to our bed rails. Lots of good ideas but IMO they can all be ignored other than the t-slot nuts. The tapped through, 3/8-16 pitch x 5/8 high x 9/16 slot depth nuts are a perfect fit. They even lock into the bed rail notches. Instead of screwing around with Fastenal, I went with Amazon and had them shipped right to my door

    http://www.amazon.com/T-Slot-Finish-Tapped-Through-Threads/dp/B009SWGLHW/

    [​IMG]


    I also ordered some 1-31/32 fluted knobs with 3/8-16 x 63/64 long studs. I was worried that they would be fragile but now that they are in hand I think they are going to be just fine. http://www.amazon.com/gp/product/B00A9N54FE/

    [​IMG]


    A knob and nut aren't any good without something to hanging off of them to attach a strap or something. So I went to the local hardware store and bought a couple short sticks of 1/8 aluminum flat bar, found some old fishing rod holder parts in the garage, and spent a couple of quality hours doing a ghetto fab job. This was the result.

    [​IMG]

    The tie downs would be better if they were made of steel but they should be just fine for securing things like coolers and totes.

    [​IMG]

    The aluminum is going to work just fine for keeping my expensive fishing rods secure and out of harms way. The next sets I make will hold the rods a little lower.

    [​IMG]

    [​IMG]

    Last weekend I picked up a cheap waterproof (indoor/outdoor) 15 watt 800 lumen LED work light from Home Depot to plug into the bed outlet. http://www.homedepot.com/p/Husky-5-ft-800-Lumen-Portable-LED-Work-Light-K40010/204330841. Pretty crappy light as far as LED tech goes but will work fine for now. The end caps on the base pop off and the tubes are a handy place to store machine screws and washers so I can reinstall the base in a couple of minutes for use on the tailgate or ground. Eventually I will replace it with a good 20W or 30W that will light up an entire freaking goose decoy spread at 4 a.m on a cold winter morning. :) Light plus more ghetto fab and this is the result.

    [​IMG]

    [​IMG]

    Update 3/25 - I came up with an improved solution for securing the rod handles. I used 2" x 2" x 11ga aluminum angle from Lowes and cut it into 7" long pieces. One leg of the angle was trimmed down to down to 1" so it would mount on the 1" x 1/8" flat bar. Drilled two 1-1/2" holes in each angle then inserted 1-1/4" ID x 1-7/8" OD SBR rubber grommets. http://www.grainger.com/product/GRAINGER-APPROVED-Grommet-3MPT5?nls=1&searchQuery=3MPT5 Now there is no chance of the handles coming loose on rough washboard roads and the grommets protect the handles from damage. With a pair on each side, four rods can be carried up and out of the way of whatever I am carrying in the bed.

    [​IMG]
    [​IMG]

    Update 7-25-15
    Had an idea for making simple tie downs for coolers, light building materials, and etc out of nylon webbing. I used some 1" webbing that I salvaged from a ruined boat cover and 3/8" brass grommets. I think they will be plenty strong and would be even better with 1-1/2" webbing. No pictures of the fab since its just folding both ends over to make the material 4x thick, punching it out, hitting with a butane lighter, then setting the grommet. A pile of them can be stashed almost anywhere in the truck.
    [​IMG]
    [​IMG]

    Last edited: Jul 26, 2015
  2. Mar 7, 2015 at 7:55 PM
    #2
    hogeyphenogey

    hogeyphenogey Rotted frame = New Truck!

    Joined:
    Jan 18, 2008
    Member:
    #4318
    Messages:
    1,281
    Gender:
    Male
    First Name:
    Dave
    Chicopee, MA
    Vehicle:
    2015 TRD Off Road Crew Cab in White
    RokBloks mudguards, tonneau cover, cut my old LB bed mat to fit my SB, weathertech mats, RedLine hood struts, LED interior and plate lamps, child seat in the rear (my kid is the best mod so far!), center console light and "restaurant" organizer, floor-mount phone cradle, red grille emblem, red tow hook.
  3. Mar 7, 2015 at 7:58 PM
    #3
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    813
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    That setup looks great!!! Also, the knobs will bring you a very cool way of getting your holder out of the way really fast!

  4. Mar 7, 2015 at 7:58 PM
    #4
    Amo-cat3

    Amo-cat3 Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    455
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    07 TRD Blown dubcab
    TRD Supercharged 4.0 w/ 2.7" URD Pulley, UCON EMS, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Icon CDC 2.5 coilover set at 3", 1.5" Wleelers Progressive aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, Kelly Safari a/t 265/70/17, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    Thanks for posting all the info and doing the homework. It's nice to use Amazon instead of running up and down aisles at HD or Lowes. Cool DIY with the rod holders. Really like the knobs.

  5. Mar 8, 2015 at 9:14 AM
    #5
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    7,064
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, BFG KO2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder, CMC by Tandem Automotive, 70mm throttle body, CSF radiator, Doug Thorley shorties, Vibrant 7101 cats, SOS Offroad front and rear bumpers, Smoothflow 2.5” SC pulley, Steeda SC belt tensioner, roostfactor belt wrap kit, switch Pro 9100 in custom Tandem Automotive holder, WAT trans valvebody, FIC 650cc injectors, HP Tuner.
    Outstanding! Those knobs look almost like the AllPro hi-lift jack holder knobs.

  6. Mar 8, 2015 at 9:35 AM
    #6
    sambrody44

    sambrody44 Member

    Joined:
    Feb 28, 2015
    Member:
    #149769
    Messages:
    8
    Gender:
    Male
    Vehicle:
    6 Speed Crew Cab Short Bed
    I'll be putting together some custom bed rails to mount bike trays to this spring. this is the perfect mounting solution.

  7. Mar 8, 2015 at 11:21 AM
    #7
    NBBAZ

    NBBAZ Well-Known Member

    Joined:
    Jan 19, 2013
    Member:
    #95541
    Messages:
    131
    Gender:
    Male
    Arizona
    Vehicle:
    2010 Toyota Tacoma DCSB Sport 4x4
    Nice work! Bummer, Amazon lists the knobs as "out of stock" at the moment. Did you buy them all?;)

  8. Mar 8, 2015 at 11:50 AM
    #8
    GlazeB

    GlazeB Well-Known Member

    Joined:
    Mar 8, 2015
    Member:
    #150403
    Messages:
    159
    Gender:
    Male
    First Name:
    Adam
    Moseley, Va
    Vehicle:
    05 Taco access cab TRD 4x4
    Icon front coilovers, All pro uca's, allpro expedition leaf packs, fox rear shocks,pelfreybilt font bumper, sliders and skids
    Awesome idea! offically added to the todo list before summer hits, broke 2 poles last year not looking to do that again.

  9. Mar 8, 2015 at 12:14 PM
    #9
    steelhd

    steelhd [OP] Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    2,923
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    Similar knobs can be ordered from a lot of different places but double check my original post. I screwed up last night and linked to the wrong knob so there is a new pic and part number! The correct stud length is 63/64" and 3/4" would be even better if you can fined them. On my truck the 63/64" stud just bottoms out when snugged up without anything between the knob and rail.

    Last edited: Mar 8, 2015
  10. Mar 8, 2015 at 3:15 PM
    #10
    Crom

    Crom Outside

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,450
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Very good! Thx for sharing.

  11. Mar 8, 2015 at 5:57 PM
    #11
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,495
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Nice...

    I did something similar -

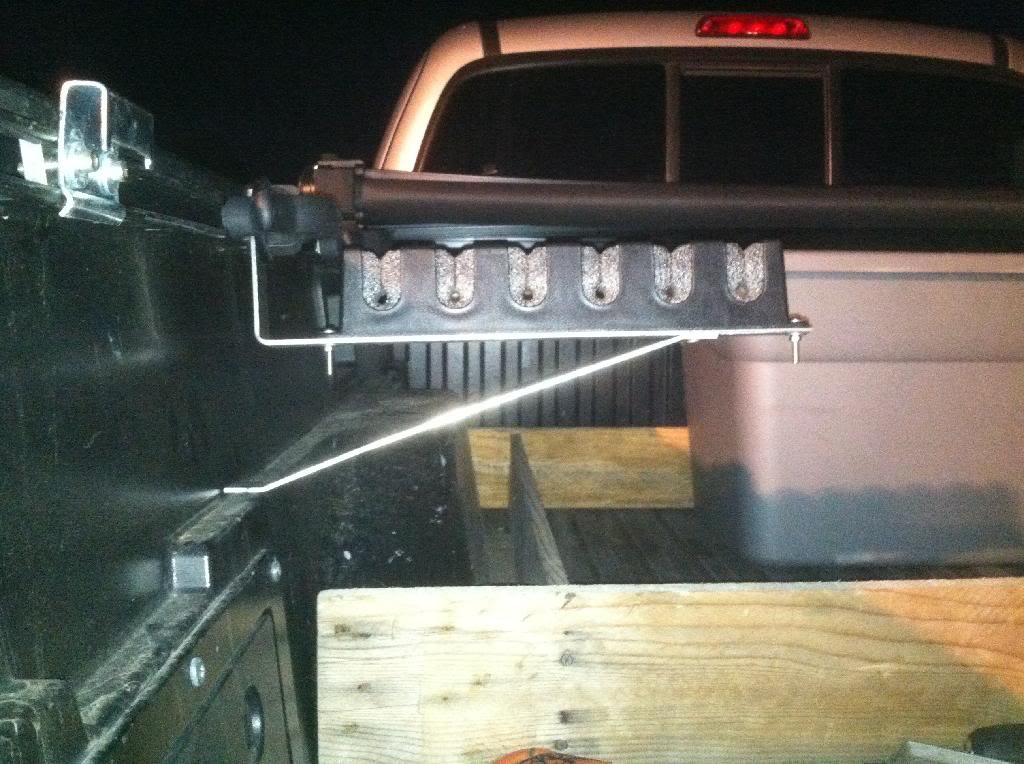

    ADCD47E7-B199-4916-8CD7-82200F0B988F_zps_405adf9eb809b759be81c3bbad0b1547c79664f3.jpg
