bjmoose installs HAM Radio with NMO antenna mount

Discussion in 'Audio & Video' started by bjmoose, Mar 13, 2011.

  1. Mar 13, 2011 at 11:42 PM
    #1
    bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    First off, I was heavily influenced by barlowrs Yaesu FT8800 install thread, here:

    http://www.tacomaworld.com/forum/audio-video/75220-yaesu-ft-8800r-install-05-tacoma.html

    My first purchase was an inexpensive but powerful Yaesu one piece 2m transciever. While I was impressed with the solidity of the unit, it quickly became clear that anywhere I installed it would intrude heavily into the interior space of my bench seat regular cab. So I returned it and got a detachable face unit. I chose the Yaesu FT 8900R quad bander on the theory that far off miles from nowhere, I'd like additional band choices such as operating on 10m FM as well as the more traditional mobile repeature bands of 2m and 70cm.

    (EDIT - earlier I made a mistake and wrote "10m AM" above. But the FT8900R is an FM only unit. It'll receive AM, but only transmits using FM.)

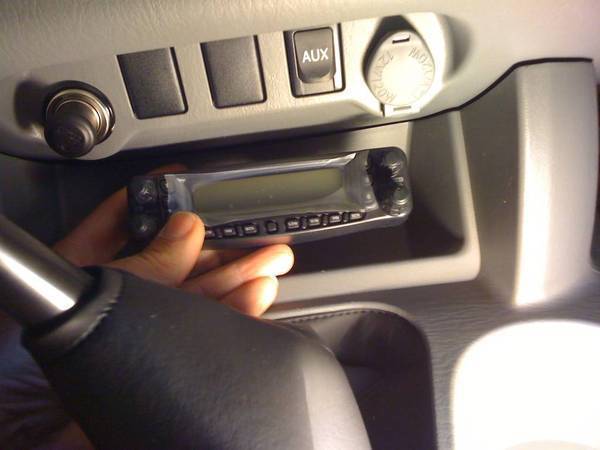

    Here was my first though on where I'd mount the detachable face:

    [​IMG]

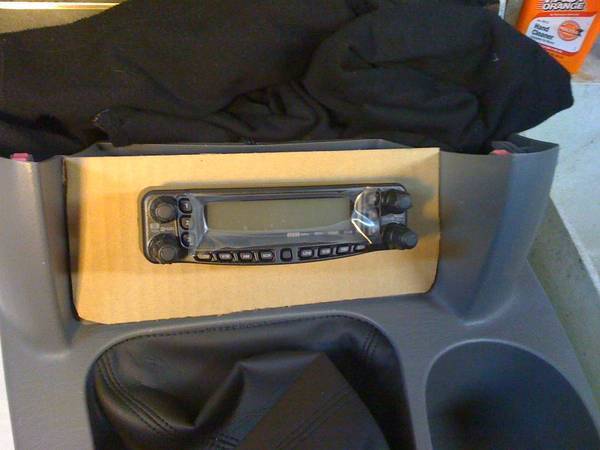

    Made a cardboard template - plan was to make a plastic template that the face would mount to. But later I decided I'd put the face elsewhere, as you'll see below, and put the speaker there instead.

    [​IMG]

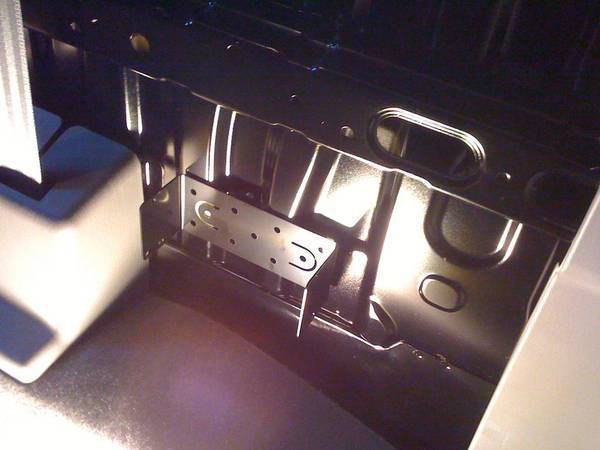

    Mounting the bracket for the unit itself on the rear wall of the cab. Plain old sheet metal screws here. (Pic shows adhesive squares holding it in place preparatory to drilling the mounting holes)

    [​IMG]

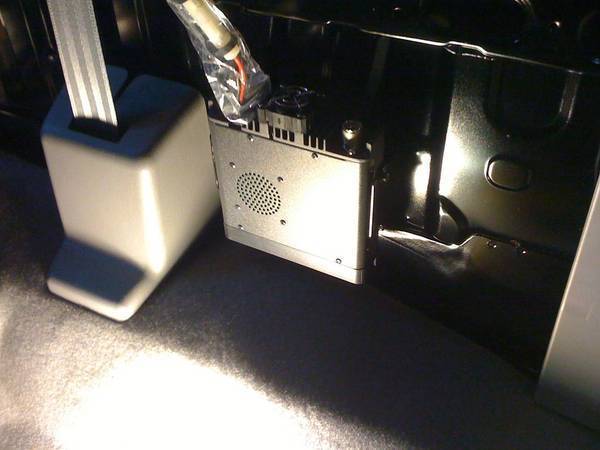

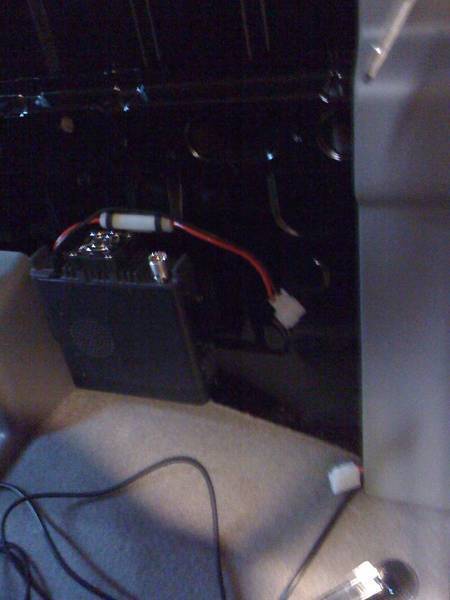

    and the unit itself in place

    [​IMG]

    The challenging part of the install is dropping the headliner to gain access to the roof to put in the NMO mount and run the antenna cable. It's helpful to have the Hayne's/Chilton's guide to describe all the steps that need to be covered. Though they overkill a little on removal, all the pillars either need to be removed or at least loosened.

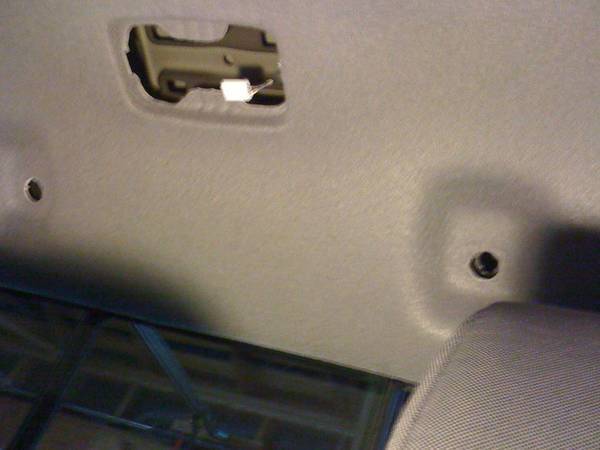

    Here's the first step, removing the interior lamp and coat hangers.

    [​IMG]

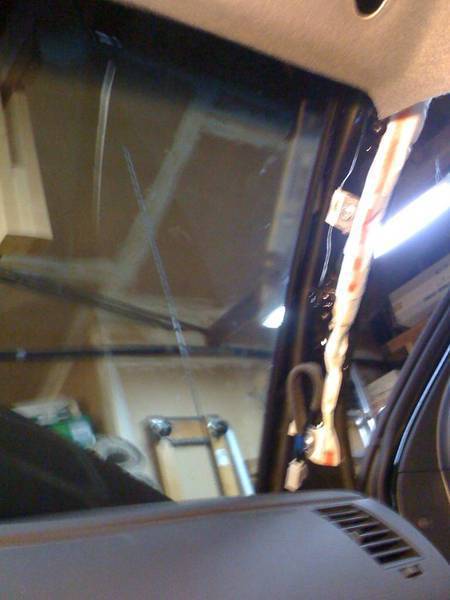

    Hand grip, A pillar cover, and sun visor removed, driver side, revealing curtain air bag. You DID disconnect the negative battery terminal, like they told you to, right??

    [​IMG]

    and passenger side

    [​IMG]

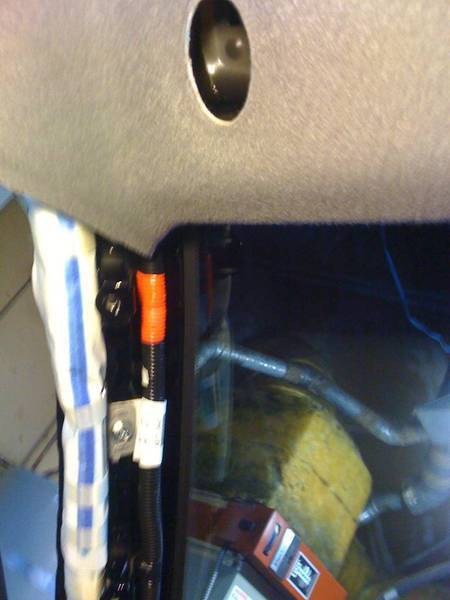

    Loosening rear B pillar plastic to free the headliner not shown. But, once the headliner is free, watch out for this driver side wire (circled in red) - don't pull it loose and break it.

    [​IMG]

    Headliner drops away, giving access to the roof.

    [​IMG]

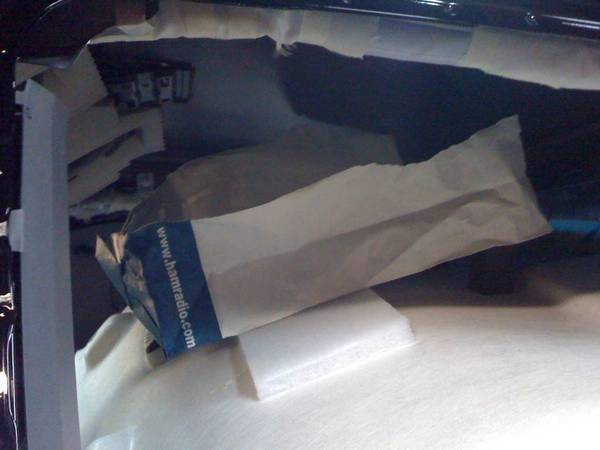

    Place a big paper catch basin under the roof to catch the cutout and shavings from the hole we're going to cut.

    [​IMG]

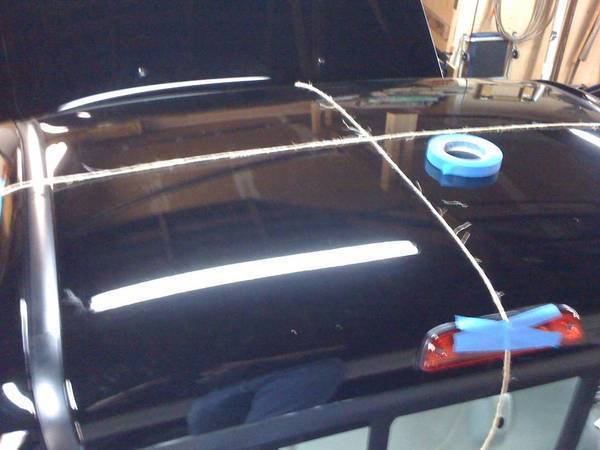

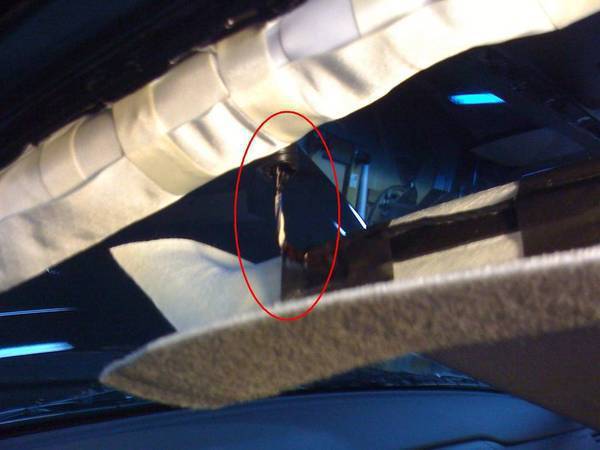

    On top of the roof, using two pieces of string to identify the exact center point to cut.

    [​IMG]

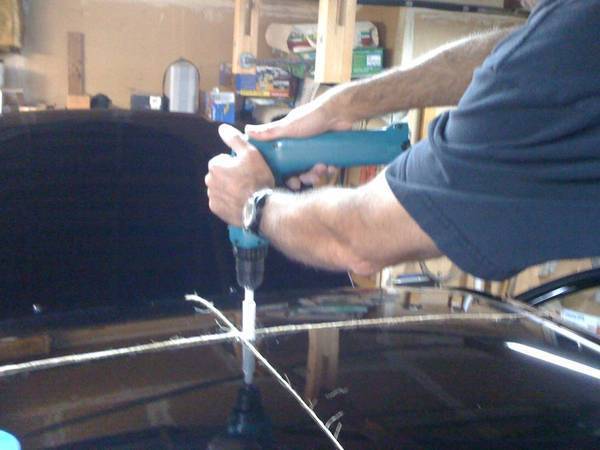

    And cutting the hole with a hole saw. This step isn't all that difficult, but is a psychological challenge for most folks.

    IMPORTANT: I didn't put down newspaper around the hole I was about to cut, and I have paint scratches on the roof as a result. Metal shavings are hard and sharp, paint is soft. So sweeping away the shavings scratches the paint!! Tape down newspaper around the area to be cut, so the shavings can be picked up by gathering the paper. You can't use a magnet - as the roof itself is metal and using a magnet actually magnetizes the shavings to the roof, making them HARDER to remove. (Doh!)

    [​IMG]

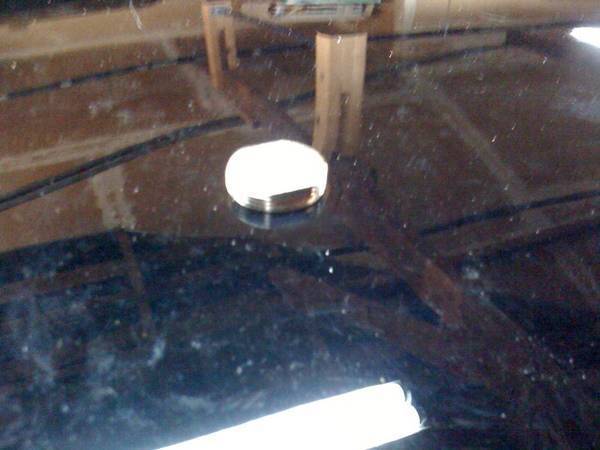

    The NMO as mounted, from the top. Don't forget to scrape away enough paint so it gets a good ground.

    [​IMG]

    And from below:

    [​IMG]

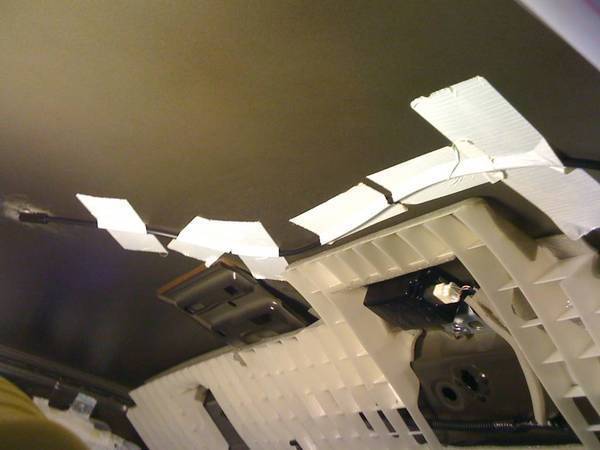

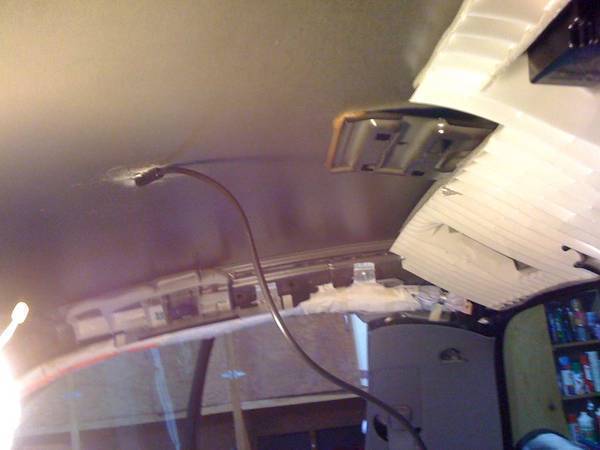

    Routing the cable and taping in place with duct tape:

    [​IMG]

    Time to route the power cables through the firewall.

    I chose to go straight to the battery for an "unswitched" install for a few reasons.

    1: I want to be able to operate the radio with the ignition off. I want to sit in the car operating the radio without anything else drawing current, and as a bonus I can operate with the door open without that annoying "door open, key in ignition" chime going off!

    2: The radio doesn't draw a lot of current when monitoring, and has a one hour "self shut off" feature, so even if I leave it on, it'll shut itself off before draining the battery.

    3: If the emergency call I need to make is "we fell in the lake and lost our keys to the bottom" I can still operate the radio (though I might have to break a window to do it.)

    Taped red and black to a piece of plain 12 ga. steel wire that's pushed through the firewall grommet/gasket. You can go engine to interior, or interior to engine. I've done it both ways now and strongly prefer the interior-to-engine route (shown) because the other way, the steel wire ends up poking many of the tiny wires in your wiring harness under the dash after it goes through. Don't want to poke through any of their insulation causing a short!!

    [​IMG]

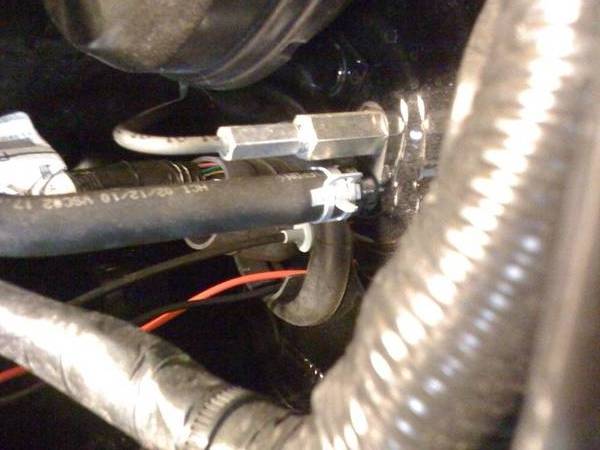

    Steel wire emerged through on the engine side of the firewall

    [​IMG]

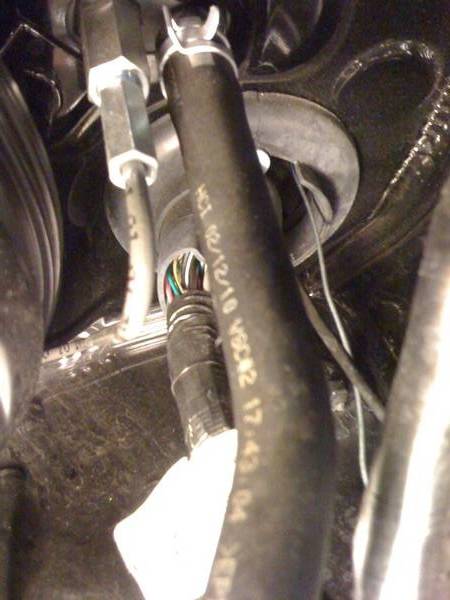

    And the red and black power wires, having been pulled through by grabbing and pulling the steel wire.

    [​IMG]

    NOT SHOWN: The fuses on the ends of the power wires were cut off to facilitate drawing the wires through the firewall grommet. The fuses are reattached back to the wires with butt-crimps and the wires are ring-crimped to the battery terminals.

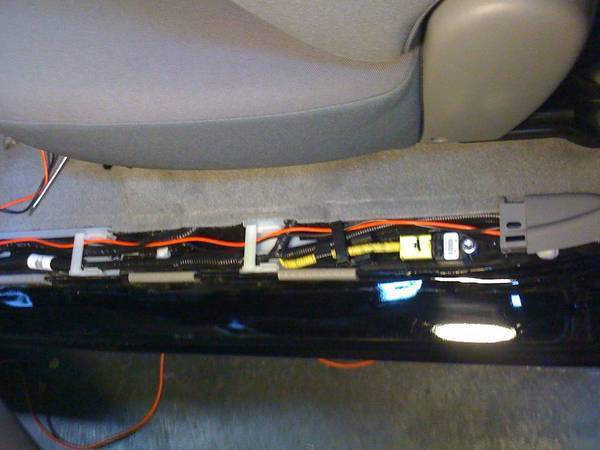

    Running the power wires under the door jamb.

    [​IMG]

    And to the unit:

    [​IMG]

    Once I had the radio temporarily working, I quickly realized I needed an external speaker for two reasons:

    1. The mounted speaker isn't loud enough

    2. Having a 2 way radio speaker mounted *behind* you in a car will absolutely drive you ape-shit. Unexpected human voices right behind you while you're driving are maddening. Boo! Ahhh! :eek:

    So, I wanted to mount my speaker wher barlowrs did in his thread. But the 4 banger 5 speed center console isn't as big, and didn't provide room to mount a speaker there. The console plastic is too small. So I decided to put the speaker right where I'd originally intended to put the face itself. That worked out great, but meant the face had to go in a new spot.

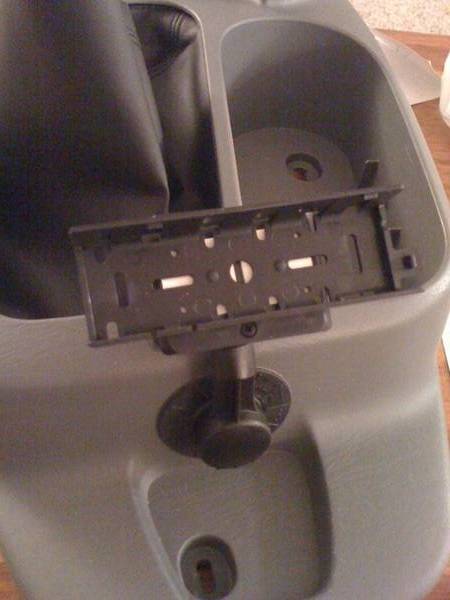

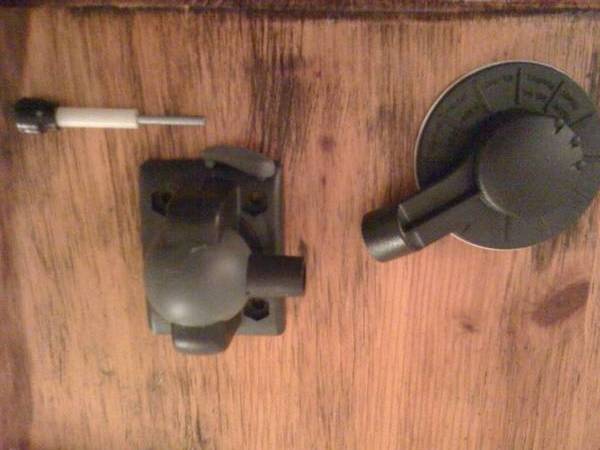

    To mount the detachable face, Ham-Radio-Outlet has a huge variety of plastic mounts of all kinds of shapes and sizes. A catalog won't help you here, you need to go into the store and look at what they've got. I saw this one and knew it was what I needed.

    [​IMG]

    This location will put the (tiny) knobs and controls ready to hand, and the hand can be steadied on the seat bench while turning the knobs: The mount is attached using supplied adhesive.

    [​IMG]

    And, as completed. The detachable face and the entire top half of the HRO mount is easily removed in a few seconds by removing a thumb screw and unplugging the RJ11 control wire if I'm worried about theft, or need to put a person in the middle seat for a short trip.

    [​IMG]

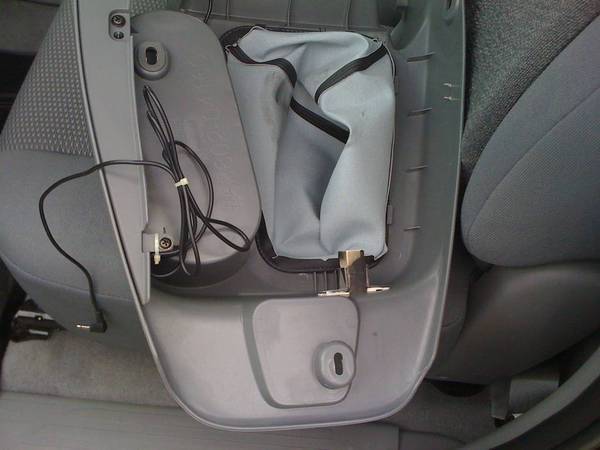

    I mounted an RJ 11 jack next to the mount, and plug the face into it there using a short 6 wire RJ 11 jumper cable. That makes it cleaner and easier to take the face out of the cab.

    [​IMG]

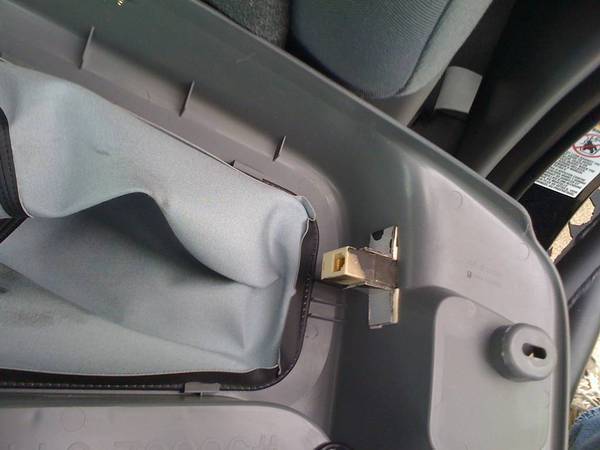

    From the back -- it's attached with L brackets and epoxy. No fasteners.

    [​IMG]

    You can see how the extension wire from the FT8900 can be plugged and unplugged - this keeps it easy to fully remove that center console plastic piece. You can also see the extension jack for teh speaker. Neither of them are permanently wired into place.

    [​IMG]

    This has actually been a great mod for a commuter rig as well as an off-road rig. The K6LRG http://www.largeradio.org/ is very active during the commute hours and I'm developing HAM radio as a hobby entirely aside from using it as a means for off-road mobile communications.
