Blue Sea fuse box vs bus bar

Discussion in '3rd Gen. Tacomas (2016+)' started by littlefish, Dec 25, 2018.

  1. Dec 25, 2018 at 8:31 AM
    #1
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    As I’m adding accessories wiring is quickly piling up and becoming unorganized. I recently ordered a @Mr.PowerTrays tray to mount an ARB compressor, and while I was at it I ordered an 8 circuit terminal block and a 10 screw common bus bar. I wasn’t really thinking about my plan when I ordered these, just threw them into the cart because they weren’t all that expensive.

    Right now the accessories I have wired up are @XenonDepot HIDS, and I will be adding a @Baja Designs S8 light bar, plus adding an ARB single air compressor. I’m also adding a Smittybilt X20 winch but I’ll be keeping the wires for that right on the battery terminals.

    Assuming I didn’t want to buy a fuse box, could I just mount the bus bar and terminal block to the tray and hook the positive wires up to the bus bar and the negatives up to the terminal block? Would I use 4 gauge wire from the battery to the bus bar?

    If I did use a fuse box, how do I handle inline fuses as all my accessories have in line fuses? Would I put a higher amp fuse into the inline spot, and use the correct amp fuse into the fuse box?

    What else am I missing / do I need?

  2. Dec 25, 2018 at 8:47 AM
    #2
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    520
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
  3. Dec 25, 2018 at 8:49 AM
    #3
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    So the accessories wire into the bus bar, and then into the fuse box? Isn’t that redundant?

  4. Dec 25, 2018 at 9:03 AM
    #4
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,613
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    You run one or the other, not both. Same thing with your fusing, if you have a fuse box with built in fuse slots then you don’t run an additional inline fuse. You just need one fuse on the line. Some, including myself, run an additional fuse for the large gauge wire that runs from the battery to the fuse panel.

    Edit: for your grounds a bus bar is good to use. Some fuse panels have built in negative busses also just depends on what you get.

    max_o likes this.
  5. Dec 25, 2018 at 9:06 AM
    #5
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,613
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica

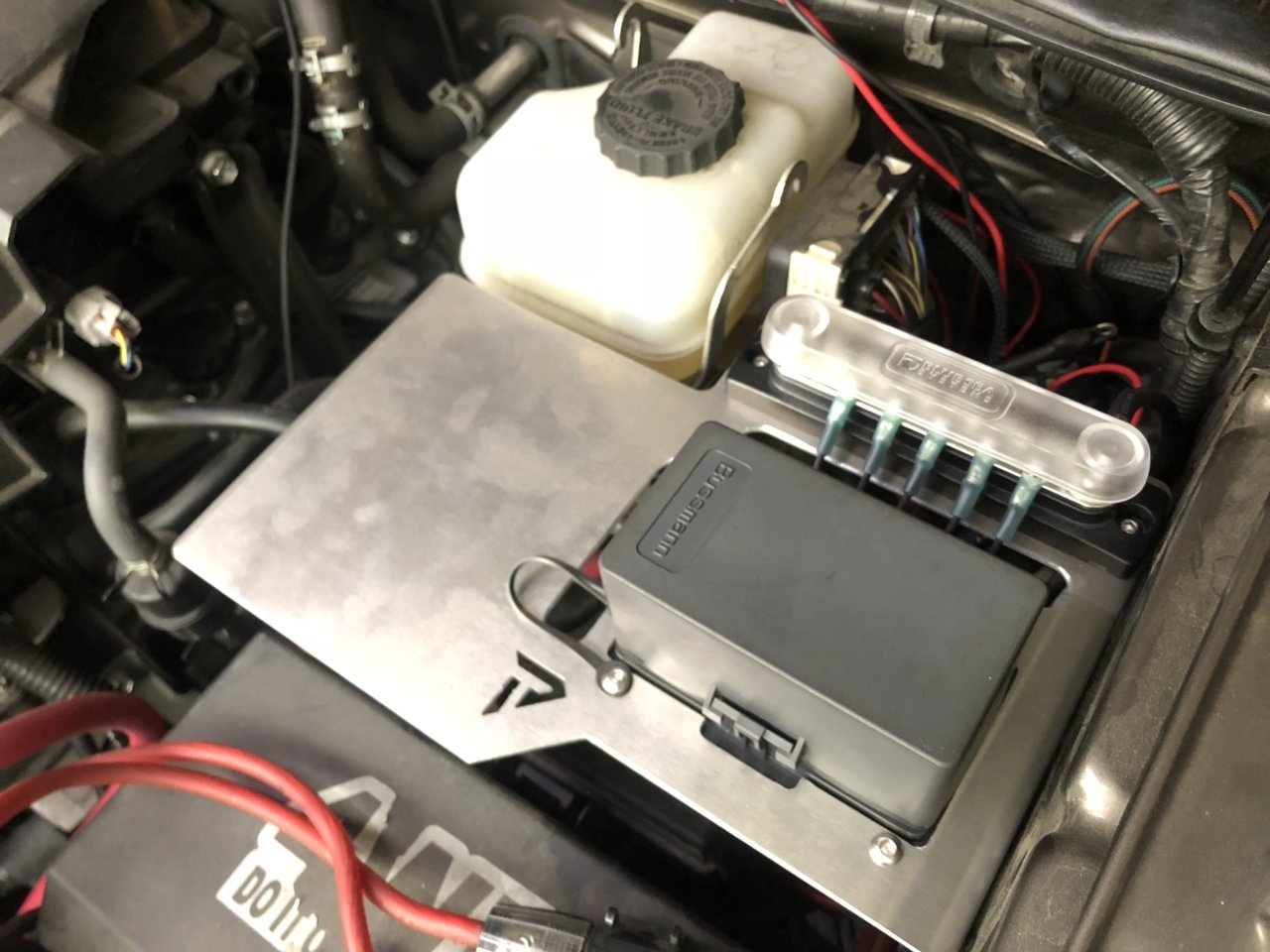

    See my setup, Bussman RTMR, has built in 5 circuits that utilize relays and an additional 5 circuits for straight fused accessories (no relays) for 10 circuits total. You can see toward the firewall I have a blue sea buss bar for all my negative leads, and a large gauge cable attached to that which then runs to the battery ground on the fender adjacent to the battery.


    Geeterman likes this.
  6. Dec 25, 2018 at 9:17 AM
    #6
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    Ok that’s what I thought. But if I remove the inline fuse won’t the accessory not work since power can’t make it without the fuse in the slot completing the circuit?

  7. Dec 25, 2018 at 9:18 AM
    #7
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    520
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    A bus bar is a common block where all the terminals are linked together. You would use that for all the negatives. The block is separate terminals. I think that combo is more commonly used for wiring up switch pros. With the blue seas you wouldn’t need either.

    If you are just running a couple accessories though it may not be worth doing all that. You could either get a relay mount and in-line fuses, or wiring harnesses that have in-line fuses and relays all combined.

  8. Dec 25, 2018 at 9:19 AM
    #8
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,613
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    If you wire everything to a fuse block, you snip off the in-line fuse that was already attached to your accessory, and if let’s say you have a blue sea panel, you crimp on a ring terminal and attach it to the blue sea panel, and put in whatever fuse size your accessory needs in that circuit. The main power lead from battery to the panel already supplies power to the panel.

    max_o likes this.
  9. Dec 25, 2018 at 9:22 AM
    #9
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    All my accessories have inline fuses and relays already. What would I do about all the leads adding up on the battery terminals then? That’s my only issue really. If I’m counting right I have four plus another fifth if you count the winch too.

    Gotcha. Makes sense now thank you!!

  10. Dec 25, 2018 at 9:36 AM
    #10
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    520
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    You could either hook them up directly to the battery or use something like this and run one 4ga wire to the battery and another ground.

    Fastronix 3/8" 4 Stud Power Distribution Block with Cover https://www.amazon.com/dp/B078VGKC8T/ref=cm_sw_r_cp_api_i_RSMiCbV6HD48S

    Would just need to find somewhere to mount it in the engine compartment.

  11. Dec 25, 2018 at 9:50 AM
    #11
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    So that’s basically a bus bar which I already have so I could just use that right?

  12. Dec 25, 2018 at 9:57 AM
    #12
    Marbleyard

    Marbleyard Thread killer

    Joined:
    Jul 15, 2016
    Member:
    #192084
    Messages:
    796
    Gender:
    Male
    First Name:
    John
    Virginia
    Vehicle:
    2019 4Runner Pro
    SOLD 2016 taco: premium technology and tow package. OV Tune 1.05; A.R.E. V Camper Shell; BRO grille & Tails; OEM bed mat; Xenon Depot HID headlight conversion; reflective gray tailgate letter inserts; GoPro session; Hondo radio knobs; K&N cold air intake, quicksand painted dash bezels, Subaru dash speakers, Kicker CS 6x9 fronts and 6.5 rear speakers; All LED interior lights and LED high-beam headlights. Redline elite hood shock props. prinsu cab and camper rack with rough country 30" light bar; (2) 8" rear facing “F.U.”rough country black LED lights; prinsu cargo basket kit, (2) prinsu load racks; roadshower 4; ARB 2500 awning and room kit; weather tech floor mats; carhart seat covers; ckma12 ARB air compressor under the hood; blue ridge overland gear air tools bag, tool bag, driver's seat molle. Rack mounted TRED 800 recovery treds and plano case. Rotopax water and fuelpax fuel canisters; Pelican cased first aid kit in bed. rockblokz mud flaps. ARB rear dif. breather. Stand alone fuse block. SSO bumper with 10k smittybilt synthetic line winch and factor55 ultrahook. Pro Eagle 2-Ton “The Beast” jack. OME lift kit: 90000 front shocks and 886 OME coils, Camburg 310078 UCA, 60091 rear shocks with light duty Dakar leafs. Good Year duratracs 285/75R16. Black vinyl inlays on factory OR wheels; RCI Steel Front/Trans/Trans Case/Rear Diff Skids, Alum A-Arm; Mobtown bolt-on sliders with scorpion bed coating; pelfreybilt aluminum fuel tank skid; Cali-Raised full length Molle storage LH & RH bed sides; Caliraised bedside reinforcements; HELLA sharptone horns; Optima blue-top battery with AJT machined red tiedown bracket. AJT quicksand key fob. Overland Bound member #6996

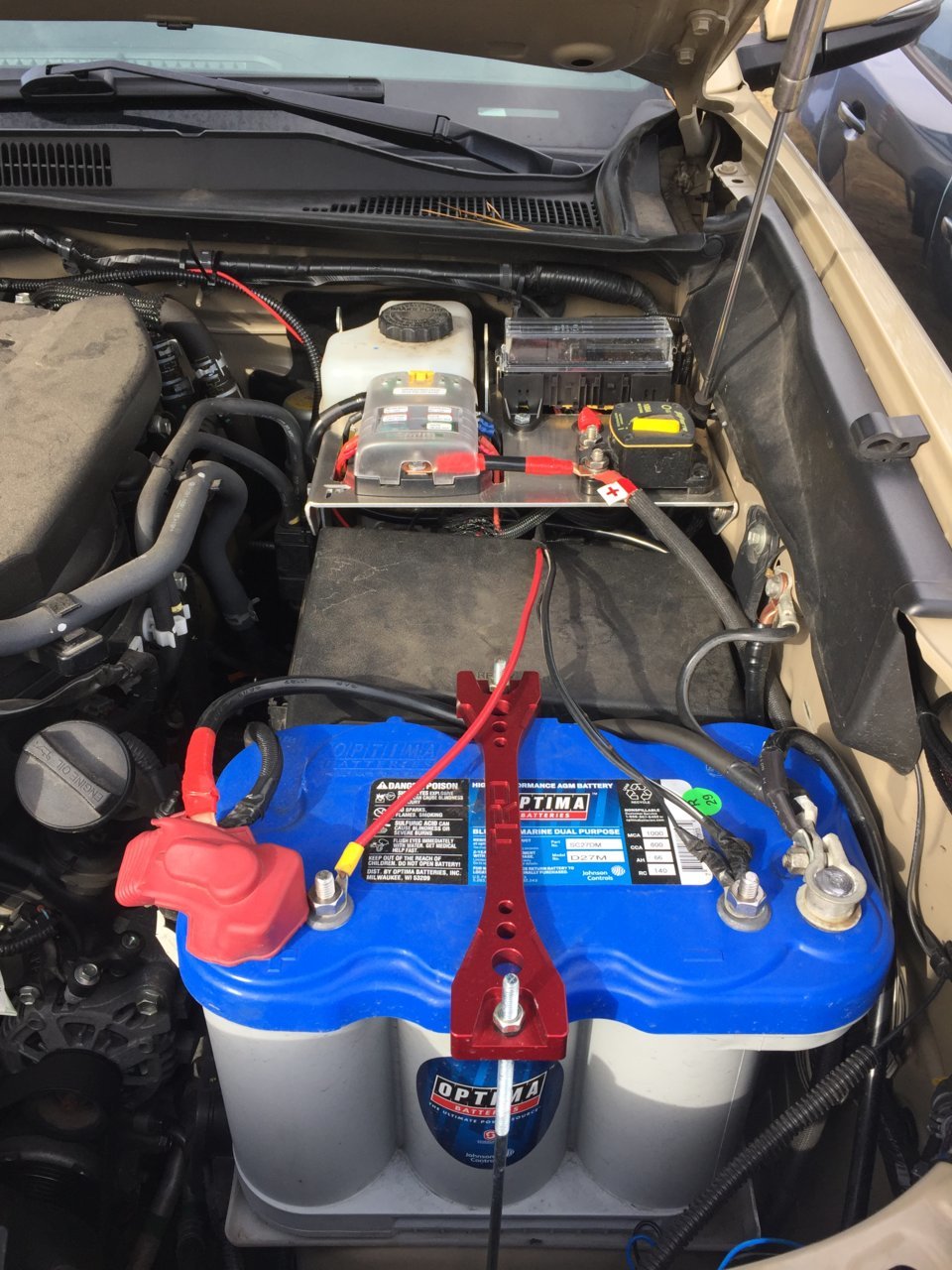

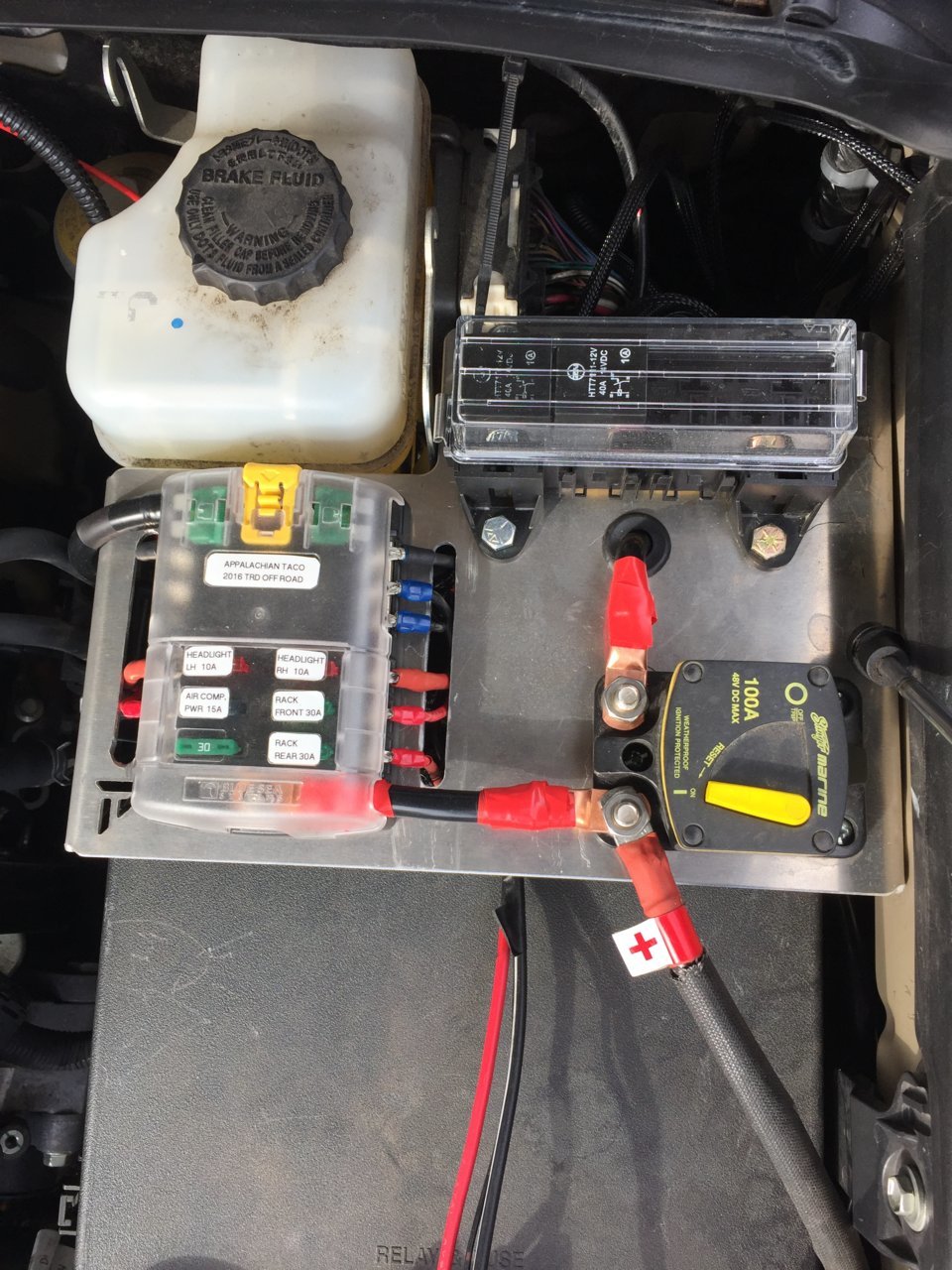

    Haven’t shared my set up since I finished. Wasn’t real easy but I’m pleased with it. Winch power is run through the breaker the compressor is tied into the studs on the battery.

    littlefish [OP] likes this.
  13. Dec 25, 2018 at 10:17 AM
    #13
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    tacomarin likes this.
  14. Dec 25, 2018 at 10:38 AM
    #14
    theesotericone

    theesotericone Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260800
    Messages:
    524
    Gender:
    Male
    Bishop CA
    Have you winched since you installed it? A winch can easily pull 200A on even a small pull. My winch goes from my battery to a 350A disconnect. My compressor is also wired direct to the battery. My after market accessories go from battery to a 100A relay that is wired to the ignition. From the relay it goes to a 100A breaker. Then from the breaker to a Blue Sea 12 w/neg. As soon as I turn the key to the off position all my after market power goes dead because of the relay. My winch is dead all the time because the disconnect it always off unless I'm wheeling.

  15. Dec 25, 2018 at 10:42 AM
    #15
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    520
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    Yes but you will need one for positive and one for negative.

  16. Dec 25, 2018 at 10:46 AM
    #16
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    520
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
  17. Dec 25, 2018 at 10:56 AM
    #17
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
  18. Dec 25, 2018 at 11:04 AM
    #18
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    520
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    Calculate your total amp draw. All your accessories are going to be wired in parallel with that setup so you can add up all your in-line fuses that your accessories have and put a fuse in equal to or greater than that. Or take the power (W) of each accessory, add them all up and divide by 12V to get the total amp draw and put a fuse in a bit bigger than that.

  19. Dec 25, 2018 at 11:07 AM
    #19
    littlefish

    littlefish [OP] Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    262
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    Excellent. Thank you so much for all the great ideas and answers!!

    tacomarin likes this.
  20. Dec 25, 2018 at 1:34 PM
    #20
    Marbleyard

    Marbleyard Thread killer

    Joined:
    Jul 15, 2016
    Member:
    #192084
    Messages:
    796
    Gender:
    Male
    First Name:
    John
    Virginia
    Vehicle:
    2019 4Runner Pro
    SOLD 2016 taco: premium technology and tow package. OV Tune 1.05; A.R.E. V Camper Shell; BRO grille & Tails; OEM bed mat; Xenon Depot HID headlight conversion; reflective gray tailgate letter inserts; GoPro session; Hondo radio knobs; K&N cold air intake, quicksand painted dash bezels, Subaru dash speakers, Kicker CS 6x9 fronts and 6.5 rear speakers; All LED interior lights and LED high-beam headlights. Redline elite hood shock props. prinsu cab and camper rack with rough country 30" light bar; (2) 8" rear facing “F.U.”rough country black LED lights; prinsu cargo basket kit, (2) prinsu load racks; roadshower 4; ARB 2500 awning and room kit; weather tech floor mats; carhart seat covers; ckma12 ARB air compressor under the hood; blue ridge overland gear air tools bag, tool bag, driver's seat molle. Rack mounted TRED 800 recovery treds and plano case. Rotopax water and fuelpax fuel canisters; Pelican cased first aid kit in bed. rockblokz mud flaps. ARB rear dif. breather. Stand alone fuse block. SSO bumper with 10k smittybilt synthetic line winch and factor55 ultrahook. Pro Eagle 2-Ton “The Beast” jack. OME lift kit: 90000 front shocks and 886 OME coils, Camburg 310078 UCA, 60091 rear shocks with light duty Dakar leafs. Good Year duratracs 285/75R16. Black vinyl inlays on factory OR wheels; RCI Steel Front/Trans/Trans Case/Rear Diff Skids, Alum A-Arm; Mobtown bolt-on sliders with scorpion bed coating; pelfreybilt aluminum fuel tank skid; Cali-Raised full length Molle storage LH & RH bed sides; Caliraised bedside reinforcements; HELLA sharptone horns; Optima blue-top battery with AJT machined red tiedown bracket. AJT quicksand key fob. Overland Bound member #6996
    Not more than to cycle and re-spool. I will take tools with me and put under a load next respool and see if it kicks. Thanks for the heads up!
