Cooling issues? Not anymore

Discussion in '3rd Gen. Tacomas (2016+)' started by Deo taco, Aug 25, 2020.

  1. Sep 11, 2020 at 7:47 PM
    #281
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,610
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Not sure if this if OP wants me to start a new thread, as I am piggybacking off this idea. But hopefully we can collectively brainstorm for anyone else looking to upgrade the cooling in the 3rd gen.(that's what TW is for right?!) Disclaimer; I have no intentions to sell these..just a project for my personal truck.

    I first started making some brackets to attach the fan
    [​IMG]

    They would work, but I felt like it needed a little more rigidity. After looking at the OEM unit, the mount is integrated around the entire circumference of the fan motor. So I set off and purchased a whole new unit from GM, bracket and all
    [​IMG]

    Here is the new radiator; CSF #7082 (which is actually made for 2nd gens, but will fit 3rd gens will a small modification I will go over later) also pictured is the OEM 3rd Gen shroud installed, and the new fan.
    [​IMG]

    2nd Gen radiator mounts holes are larger diameter (1.150") compared to the 3rd gen which is smaller(sorry didn't measure)
    [​IMG]

    A quick search for some bushings/hardware and we are back in business to mount it.
    [​IMG]

    Clutch fan removed.. frees up ALOT of space!
    [​IMG]


    Now the fun part... cut apart the stock GM fan. I only needed it for the support arms/brackets
    [​IMG]

    Ground down and cleaned up the edges. Mocked up to the stock shroud
    [​IMG]

    I knew it would be close by eyeballing, but we are still 3/8" off from meeting up with the shroud diameter. My plan is to make some small spacers and put a through bolt/nylon nut from each support arm into the shroud. Now when this thing spins @ XXXXXRPM I won't have to worry as much. Between the new fan and the aluminum radiator it should be SUPER COOL. Next is hooking up the electronics. The PWM module has been back ordered, but should be here next week:D

    Last edited: Sep 11, 2020
  2. Sep 11, 2020 at 7:54 PM
    #282
    Lateralus01

    Lateralus01 Well-Known Member

    Joined:
    Feb 12, 2018
    Member:
    #244223
    Messages:
    225
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD OR DCSB 4x4
    @MESO thanks for sharing. I’m in for this as a solution for the underwhelming A/C on hot days here in Nevada. Not liking the 62 pages of garbage the TSB offers for a pusher fan.

    OP what’s the latest on your efforts?

  3. Sep 11, 2020 at 7:55 PM
    #283
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,027
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Very cool. Did you buy the one I linked you from Amazon? Haha rock auto has it too for a little cheaper

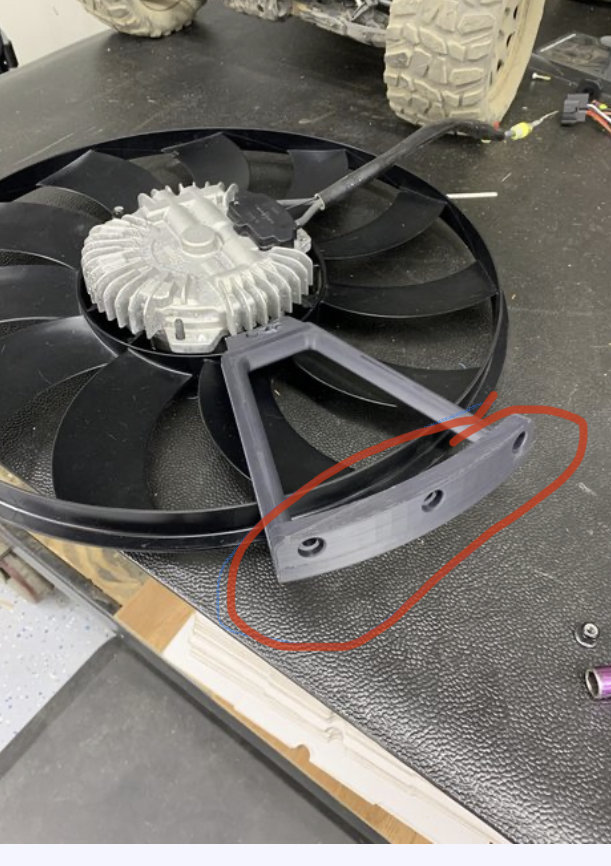

    you could 3D print some spacers similar to this section, maybe 4 of them and it would be super solid

  4. Sep 13, 2020 at 2:34 PM
    #284
    TheTacoChrist

    TheTacoChrist Well-Known Member

    Joined:
    Apr 4, 2018
    Member:
    #249400
    Messages:
    152
    First Name:
    Dick
    Vehicle:
    2018 TRD PRO Taco
    Lettuce removed Ghost pepper sauce added Subbed: Tortured baby cow for tofu.
    Looking forward to this being sold as a kit. Count me in.

    Ol'gray mare likes this.
  5. Sep 13, 2020 at 2:45 PM
    #285
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,610
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    No I ended up getting it from Scoggin-Dickey which is one of the biggest GM parts dealer. Same price but free shipping and was here in a few days. Be careful as I have seen some that look like OEM replacements but are not label SPAL, and look like an inferior casting body.

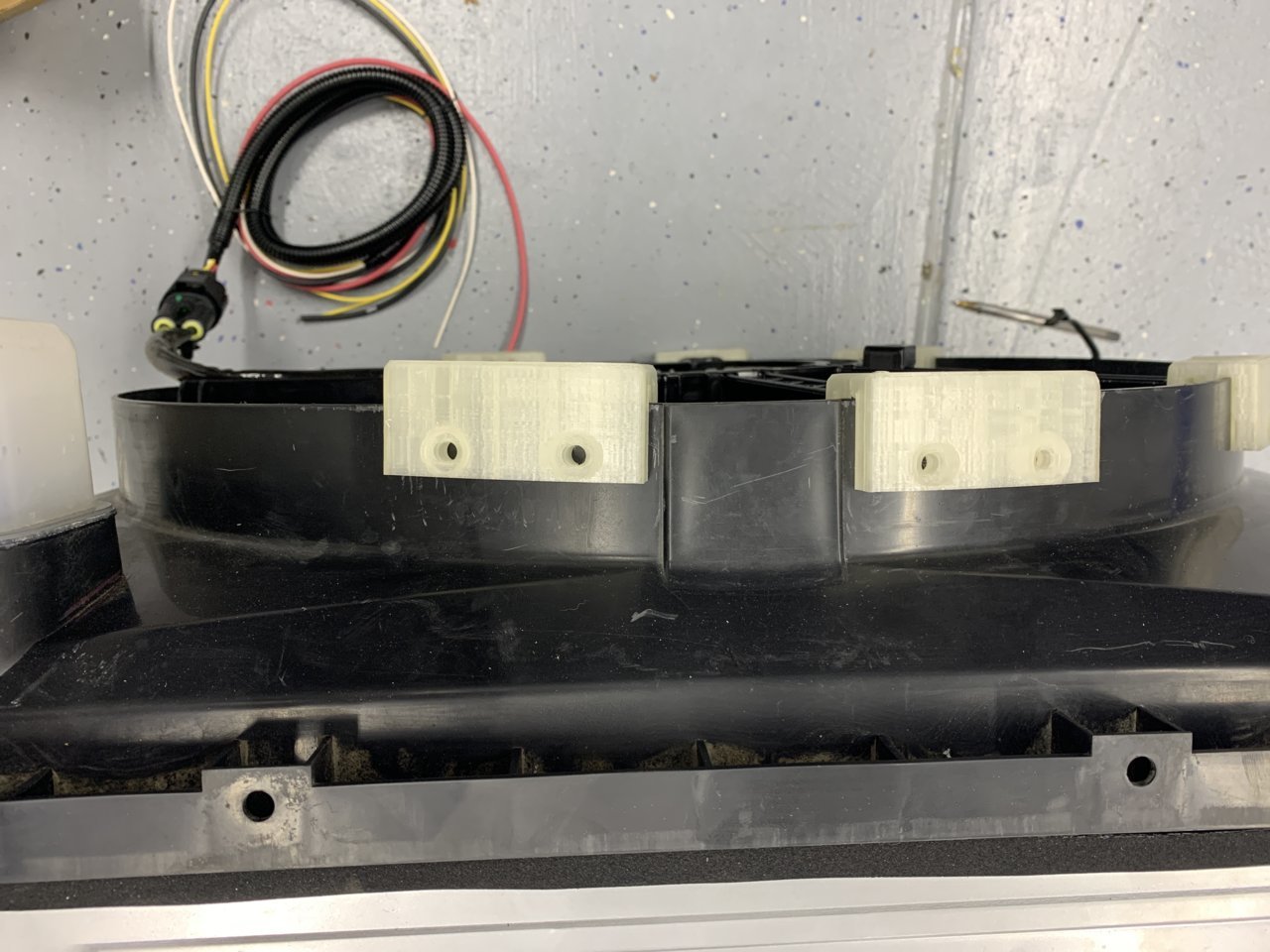

    I already have the spacers tested and they are super beef. They taper down into the stock plastic fan frame and sandwich to the fan shroud. 2 bolts will go through each. I feel more than confident with this mounting.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    These were just quick mockup prints for fitment. Final ones will be printed this week on the HP MJF.

    Torspd, JG358, 12TRDTacoma and 8 others like this.
  6. Sep 13, 2020 at 4:02 PM
    #286
    Lucario Runner

    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    4,276
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    Nice, I'll need a couple of sets if/when in production.

    Ol'gray mare likes this.
  7. Sep 13, 2020 at 4:07 PM
    #287
    Xtra_yota

    Xtra_yota Well-Known Member

    Joined:
    Aug 26, 2020
    Member:
    #338865
    Messages:
    165
    Sacramento
    Vehicle:
    2017 Tacoma SR, 5MT
  8. Sep 13, 2020 at 4:23 PM
    #288
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,027
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Would it fit having the 3 mounts on the left/right and having the wires come straight up? Would fit better that way with the larger alum radiator. Fj shroud doesn’t have the overflow bottle in the way like the Tacoma one

  9. Sep 13, 2020 at 4:36 PM
    #289
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,610
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Technically you could rotate it anyway orientation and use as little as 3 brackets(triangulated). I wanted overkill so I’m putting a bracket each stock arm(7). Also the way they are clocked, there is a gap where there are no arms/brackets which works perfect because that’s where the overflow is. The best part is the fan only sticks out ~1/2” past the shroud


  10. Sep 13, 2020 at 4:47 PM
    #290
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,027
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Very cool. Would definitely work for me. Fj shroud is smooth all the way around. If I just cut 1/2” out at each mount the fan would be flush, provided that there’s enough room to the radiator. Would definitely solve this issue

  11. Sep 13, 2020 at 4:48 PM
    #291
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    3,921
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

    I dont think it does, it doesnt apply to manuals either. Its something to do with the transmission cooler blocking a bit of the air flow, and there is such a razor thin margin for working that just that blockage makes it not work.

  12. Sep 13, 2020 at 5:05 PM
    #292
    Xtra_yota

    Xtra_yota Well-Known Member

    Joined:
    Aug 26, 2020
    Member:
    #338865
    Messages:
    165
    Sacramento
    Vehicle:
    2017 Tacoma SR, 5MT
    ahh I was actually thinking that as I posted - thanks for the clarification. Guess I’m glad I’m MT with no tranny cooler lol

  13. Sep 15, 2020 at 10:47 AM
    #293
    kcx23

    kcx23 Member

    Joined:
    Nov 11, 2011
    Member:
    #66863
    Messages:
    15
    Gender:
    Male
    Los Angeles
    Torspd and Ol'gray mare like this.
  14. Sep 15, 2020 at 11:02 AM
    #294
    uploadadventure

    uploadadventure 10% off SOS Concepts Products- promocode adventure

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    7,806
    First Name:
    Rich
    5% off DesertArmor RTT promocode adventure
    Vehicle:
    2019 Tacoma TRD Offroad
    OVTune, SOS Armor, MESO stuff, UpTopOverland roof rack, Softopper, Rigid & BD lights, RCI Armor, ROAM awning, misc stuff
    @MESO strikes again!

    a PWM fan would be awesome

  15. Sep 16, 2020 at 6:30 PM
    #295
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,610
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS

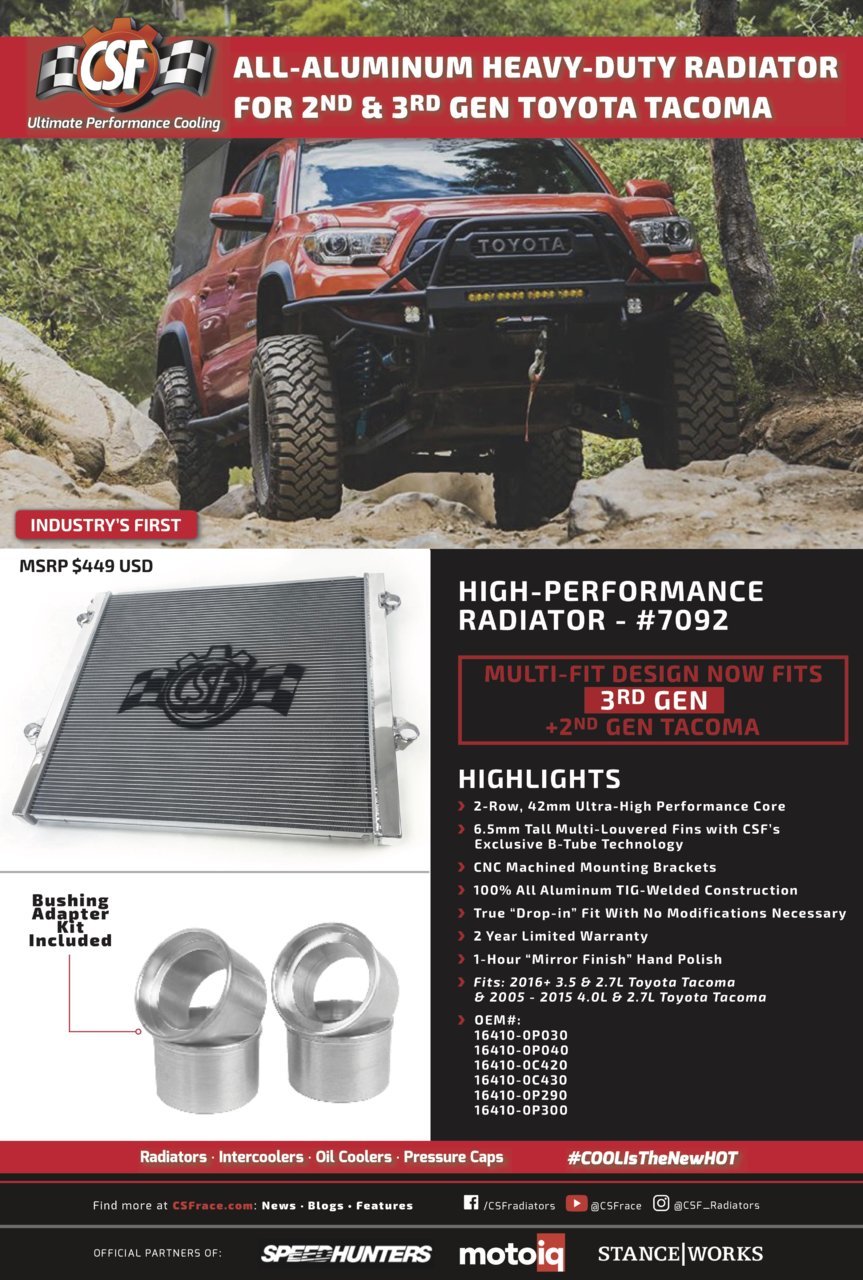

    I was just impatient and didn't want to wait lol. It's the same as 2nd gens but now has aluminum bushings.
    She's in!
    [​IMG]

    Final brackets
    [​IMG]

    Was going to put the allen head one the outside(where the recess is) and lock nut on the inside but the fan was alot closer than I anticipated. So they went in the other way
    [​IMG]

    Clearance
    [​IMG]

    It's strong AF. I have no doubts it will hold together. It actually stiffened up the whole plastic shroud.
    [​IMG]

    BYE BYE clutch fan!
    [​IMG]

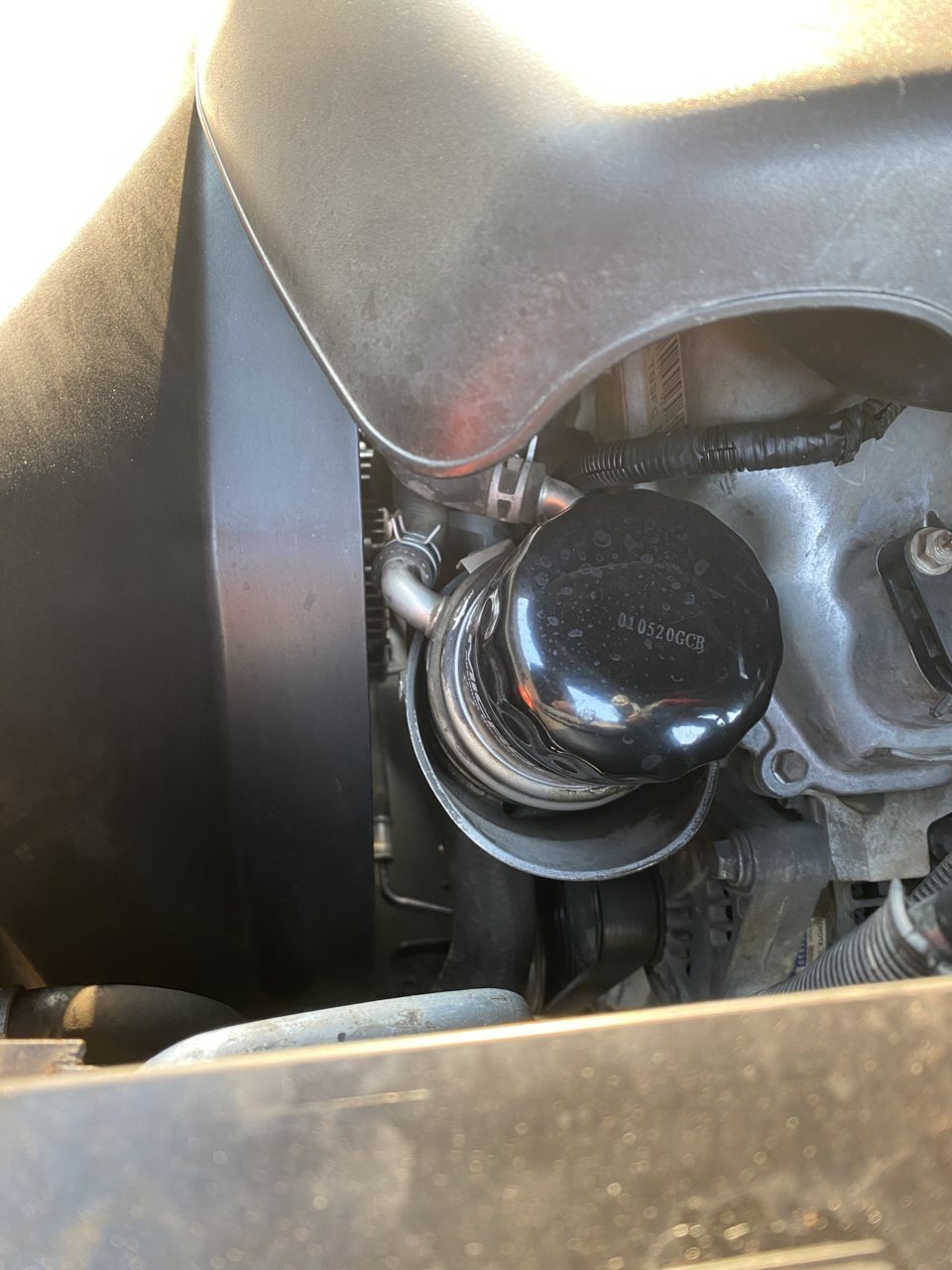

    Room to spare:)
    [​IMG]

    aboftofbeam, Torspd, dubktrd and 12 others like this.
  16. Sep 16, 2020 at 6:34 PM
    #296
    Lucario Runner

    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    4,276
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    Awesome

    MESO likes this.
  17. Sep 16, 2020 at 6:34 PM
    #297
    ovrlndkull

    ovrlndkull STUKASFK - HC4LIFE

    Joined:
    Jan 7, 2017
    Member:
    #206806
    Messages:
    32,357
    Gender:
    Male
    First Name:
    Skip
    Burlington, NC
    Vehicle:
    2005 DCLB Silver
    63s, XD Machete, Beat not Babied
    If there is that much room on mine when done it'll be perfect!

    uploadadventure likes this.
  18. Sep 16, 2020 at 6:46 PM
    #298
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,610
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    P.S I used HPS radiator hoses for a 2nd gen and they worked out perfect.

  19. Sep 16, 2020 at 7:55 PM
    #299
    mysubiewasalemon

    mysubiewasalemon Well-Known Member

    Joined:
    Oct 18, 2018
    Member:
    #269886
    Messages:
    358
    Gender:
    Male
    Sent you a pm

  20. Sep 16, 2020 at 8:16 PM
    #300
    crashdb

    crashdb Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    3,411
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    Why fer? HPS makes 3rd gen hoses.
