Dakars make contact with shackle.

Discussion in '3rd Gen. Tacomas (2016+)' started by BroID, May 15, 2019.

  1. May 15, 2019 at 1:40 PM
    #1
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms
    Hey Tacoma world. I have run into an issue with my Dakars. First of all this is my setup:
    Front-OME 888 coils with bilstein 5100s
    Rear-RCD extended travel bilstein 5100s, OME HD Dakars, Wheelers super bumps bumpstops, stock shackle hangers and shackles.
    For what it’s worth 255/85r16 tires

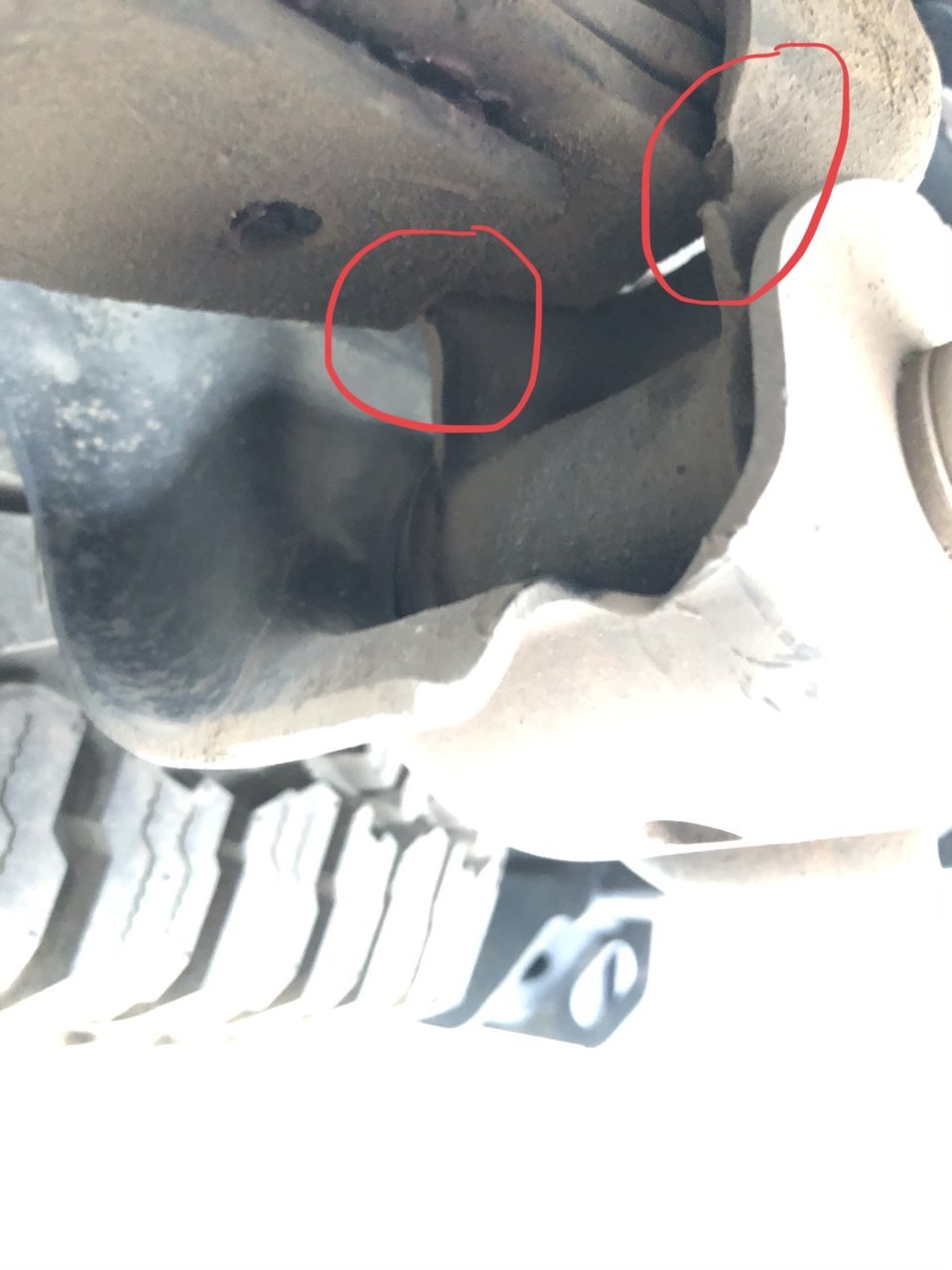

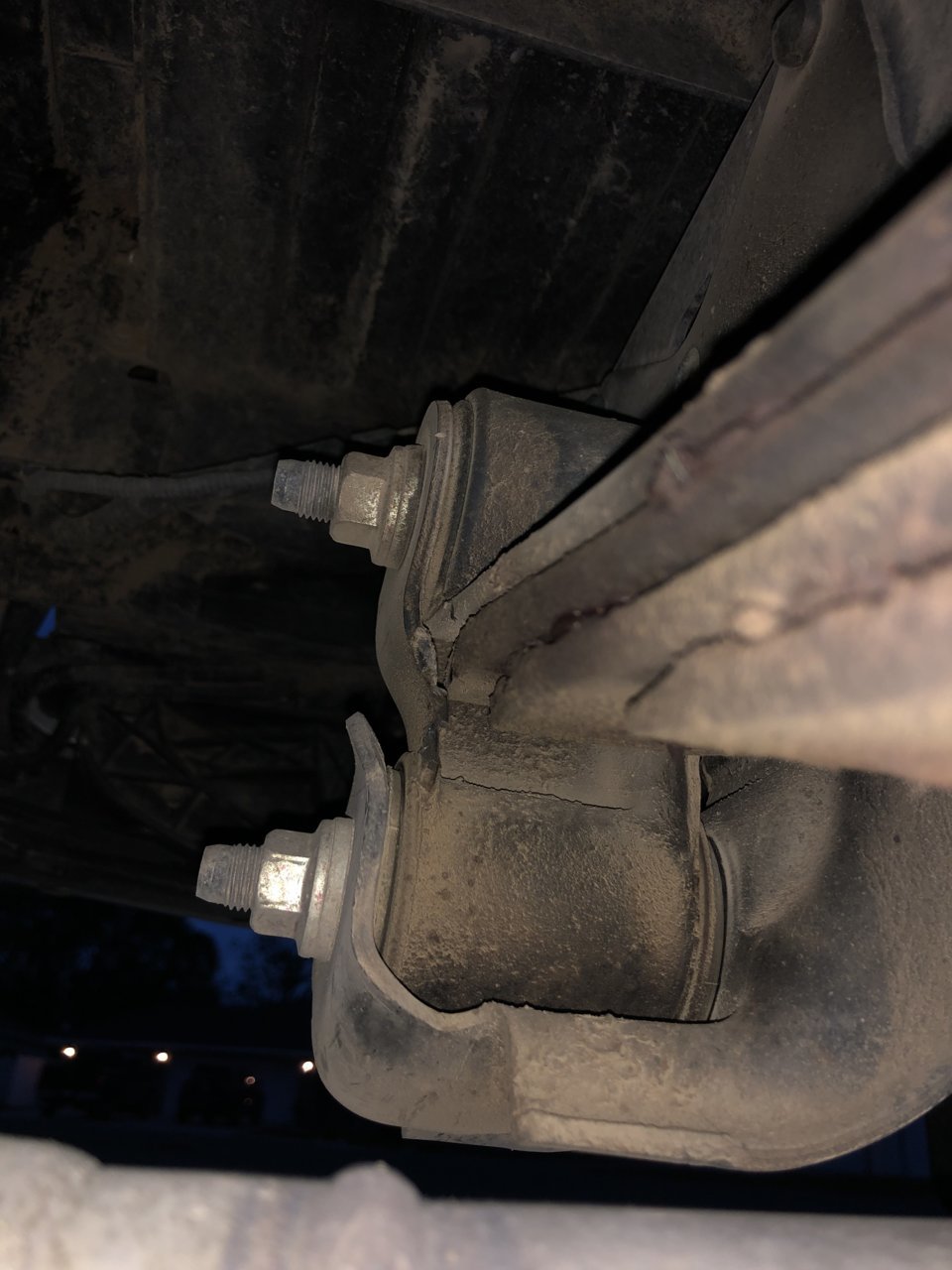

    So as the title says I have contact from the leaf on the shackle on both passenger and driver side on both sides of the shackle. Driver outside being the worst.

    My first thoughts, I have bent the shackle hanger. Ordered The HD BAMF shackle hangers and shackle (not yet recieved). After thinking about it that can’t be it becuase of the contact on both sides of the shackle. Granted one side is much worse on the driver side.

    Leafs are straight and aligned with one another as well.

    I have about 15k miles on the setup

    Any thoughts?


  2. May 15, 2019 at 1:44 PM
    #2
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms

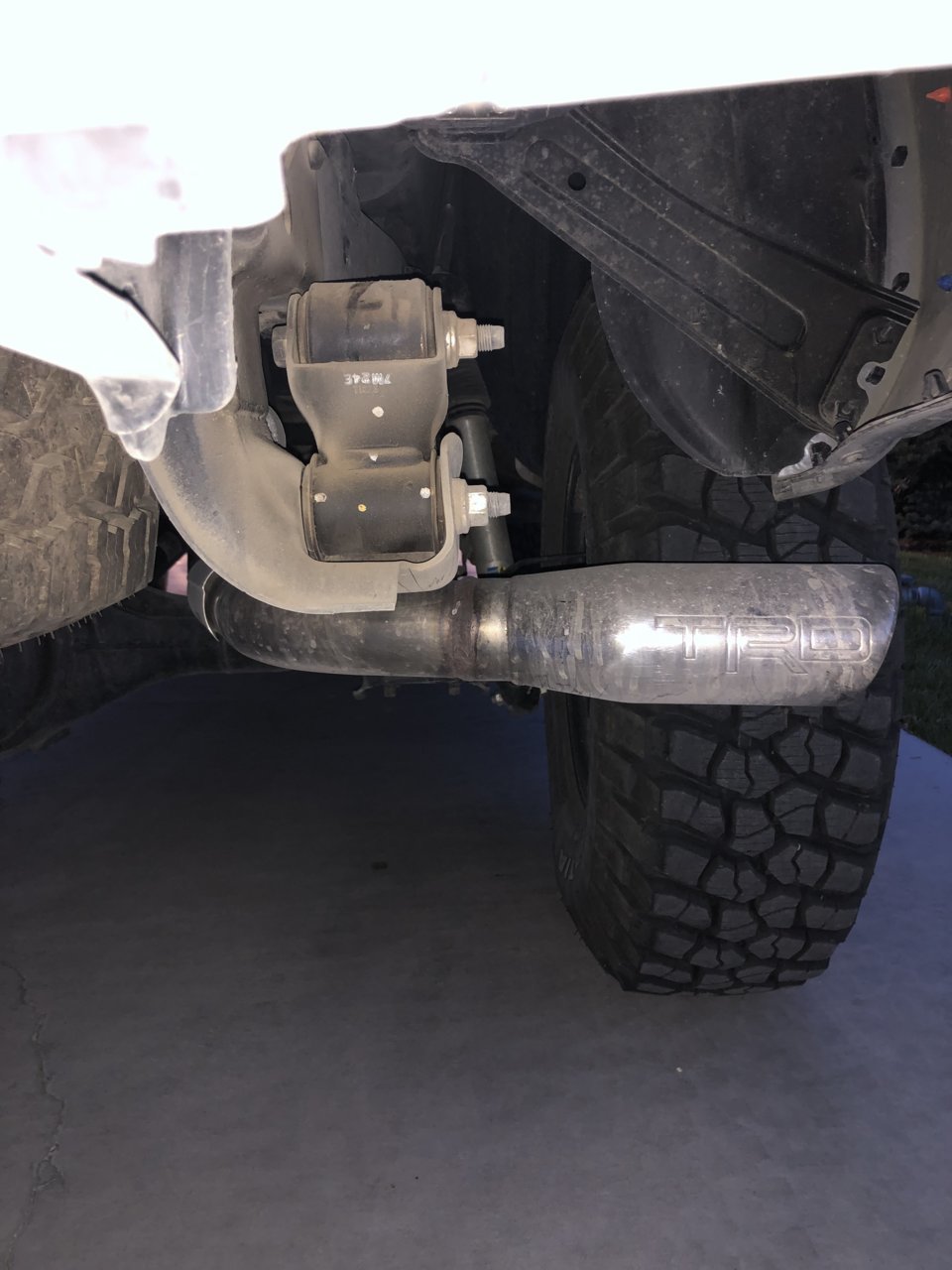

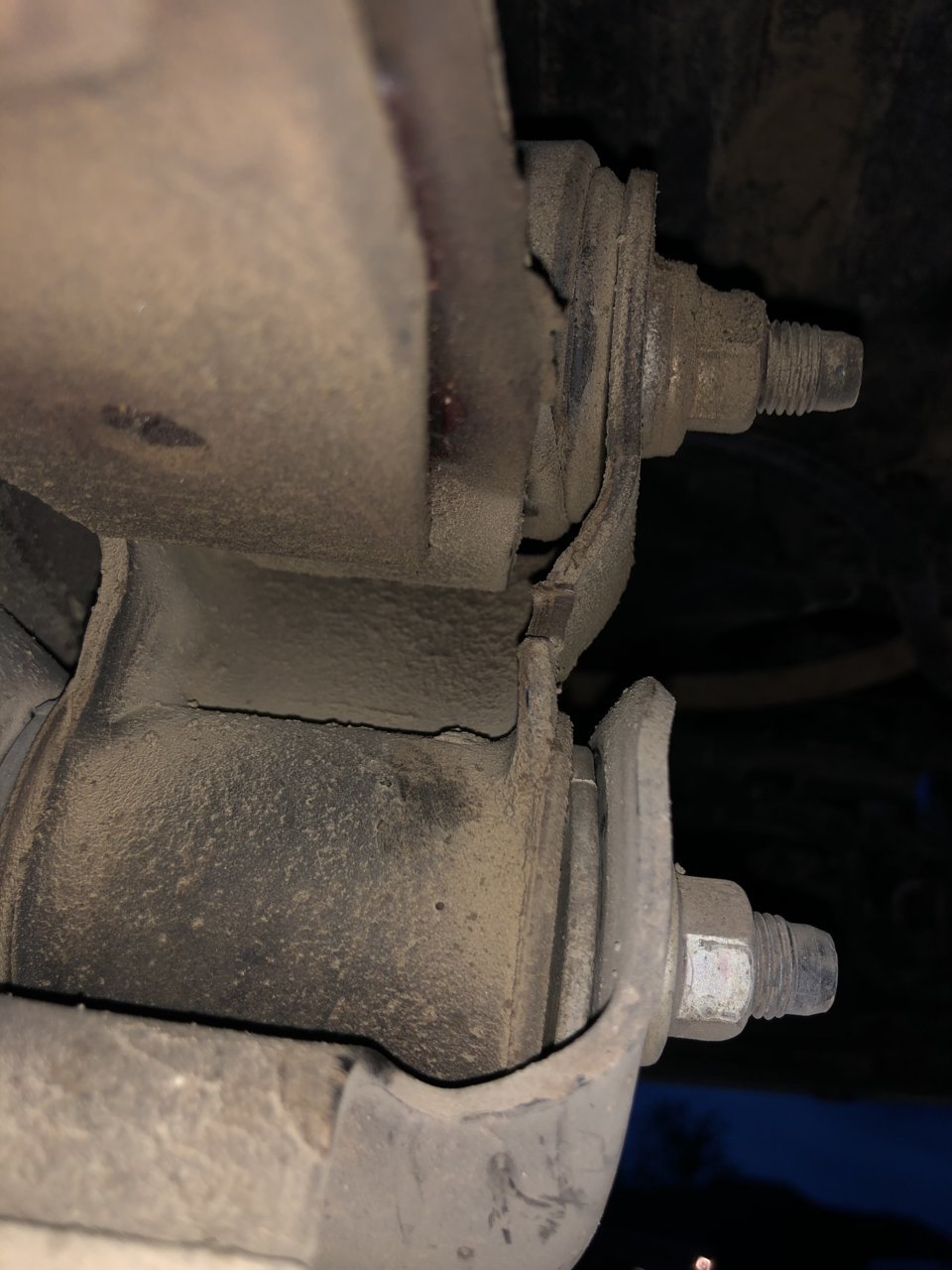

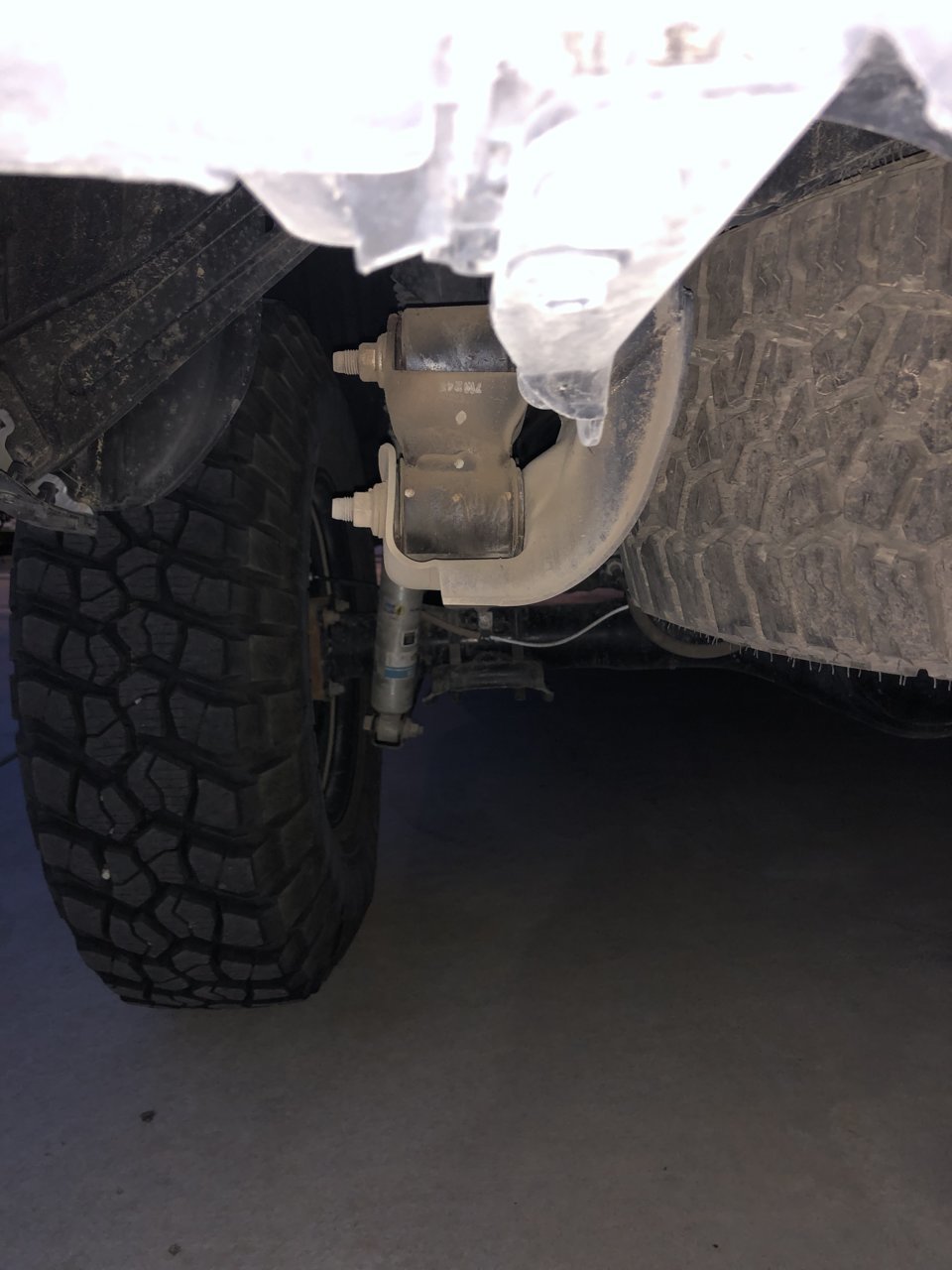

    More pics


  3. May 15, 2019 at 1:50 PM
    #3
    EatSleepTacos

    EatSleepTacos MOBTOWN OFFROAD AMBASSADOR

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    41,041
    Gender:
    Male
    First Name:
    Randy
    Silver Spring, MD
    Vehicle:
    4x4 2005 SR5 AC 6MT POOP Edition
    Are the leafs installed in the correct orientation? i.e. the little arrow pointing forward.

    whatstcp likes this.
  4. May 15, 2019 at 1:53 PM
    #4
    InfernoChalupa

    InfernoChalupa Using CRAWL control on Bunny Trails

    Joined:
    May 10, 2018
    Member:
    #253137
    Messages:
    3,495
    Gender:
    Male
    First Name:
    Mark
    Birmingham,AL
    Vehicle:
    2016 Inferno DCSB TRDOR
    Child booster seat, spilled glitter slime, chicken nugget crumbs, spilled milkshake in cupholder, and many more courtesy of daughter.
    Following as this is the exact setup I plan to go with!

  5. May 15, 2019 at 2:07 PM
    #5
    swissrallyman

    swissrallyman Well-Known Member

    Joined:
    Jun 14, 2010
    Member:
    #38945
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Sport
    Check you U bolts and the centerin pin through the leaf pack... i would suspect something amiss in that general area

  6. May 15, 2019 at 2:09 PM
    #6
    whatstcp

    whatstcp Well-Known Member

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    2,680
    Gender:
    Male
    IE, Ca
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    OEM Kings F/R non-adj. Icon AAL. Camburg UCA, Locked Offroad hydros rear, superbumps front
    that is interesting to say the least, I've actually heard the opposite is usually the case. Dakars not being compatible with bamf HD shackles due to the springs making contact and it is usually recommended to go with the oem shackle kit.

    subbed for outcome.

  7. May 15, 2019 at 2:17 PM
    #7
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,407
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM

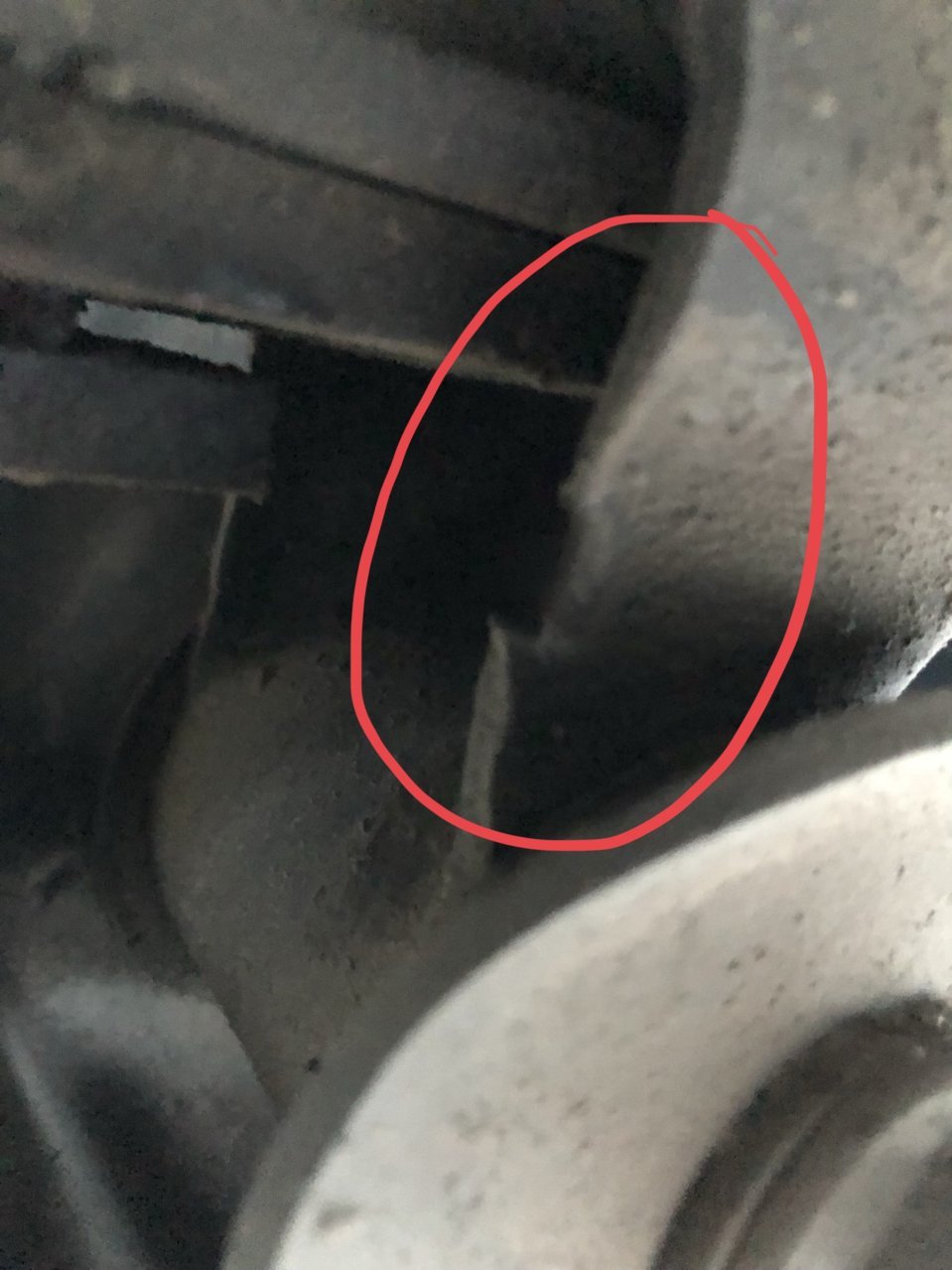

    In the last pic; the leaf with the hole is moving side-to-side, hitting both sides of the shackle?

  8. May 15, 2019 at 2:33 PM
    #8
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    1,419
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    Yeah. I have no experience but it looks like the over load is loose and pivoting. I'd imagine the shackles get further away when the spring compresses no?

    BroID [OP] likes this.
  9. May 15, 2019 at 2:37 PM
    #9
    Hobbs

    Hobbs Giraffe Whisperer

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    4,550
    Gender:
    Male
    First Name:
    Dan
    on U.S. Route 395 in California.
    Vehicle:
    2016 TRD Off Road AC, AT, QuickSand
    I'm gonna check my Dakars.

  10. May 15, 2019 at 3:36 PM
    #10
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms
    Yes. Little arrow forward!
    Tonight I will put the truck up on stands and check u bolts etc. I have already checked the hardware at the shackle and hanger.

    Dakars and BAMF hangers with BAMF hangers are not compatible and require some trimming of the Dakars. As you mentioned. I plan to trim the Dakars or am hoping that some one comes up with something better.

    Thank you all for your responses.

    Bumble Bee Tuna likes this.
  11. May 15, 2019 at 6:35 PM
    #11
    tallpilot

    tallpilot Well-Known Member

    Joined:
    Feb 19, 2016
    Member:
    #178749
    Messages:
    640
    Gender:
    Male
    First Name:
    David
    Florida
    Vehicle:
    2016 TRD OR 4X4 DC SB AT Silver
    Mobtown sliders, RCI skids, Bilstein 6112/5160/Dakar, DuroBumps
  12. May 15, 2019 at 6:40 PM
    #12
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    4,072
    Gender:
    Male
    Vehicle:
    2016 TRD Off-Road DBLCB SB
    Yep, this is normal for Dakars and you may hear a clunk from time to time as that military style wrap slaps the shackle during a bump while turning.

    I hated that sound which is why I did this


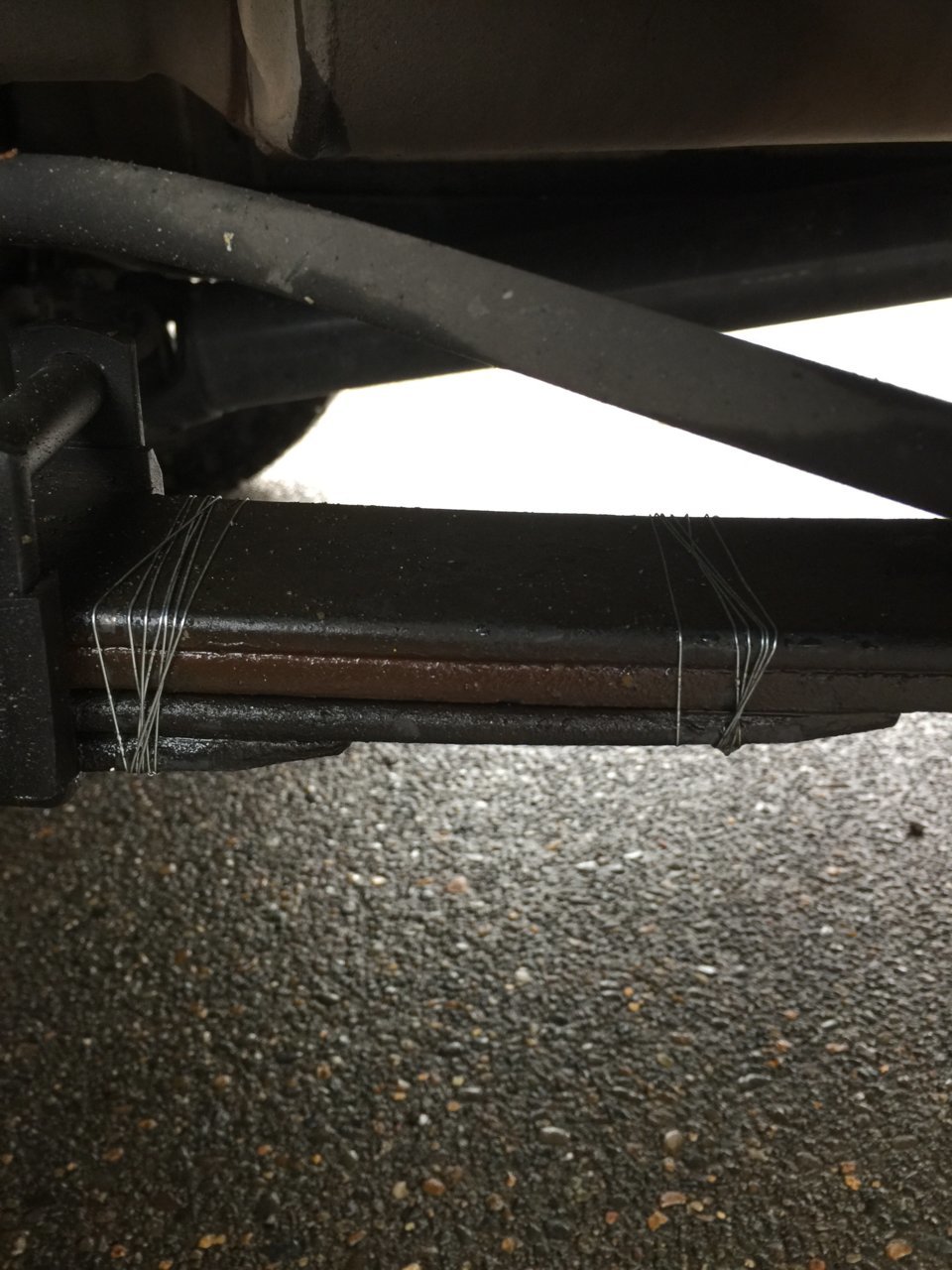

    sd1uh8as and BroID [OP] like this.
  13. May 15, 2019 at 6:52 PM
    #13
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms
    Seriously!!! Is it just me or do I do I feel ARB has taken a step backwards on quality. Are those leafs the CS047s? Im curious if they are because I have the newer version. They could have fixed this issue when they did the update!

    SpeySquatch likes this.
  14. May 15, 2019 at 6:59 PM
    #14
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms
  15. May 15, 2019 at 7:31 PM
    #15
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    4,072
    Gender:
    Male
    Vehicle:
    2016 TRD Off-Road DBLCB SB
    Yep they are the CS047

  16. May 16, 2019 at 3:25 AM
    #16
    ARCHIVE

    ARCHIVE Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    938
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 DCSB 6spd, '05 Seq, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Deaver SUA
    OME did update the design, but this particular spot on the springs isn't much better on new EL095/96.

    Please call up ARB/OME and tell them the issue, they need to hear it so they can fix the problem. Get them to fix the problem they created.

    IMO, here's what happened: OME was used to making leaves for the Hilux with shackle design opposite of the Tacoma. On Hilux it is fine to stack leaves under the spring eye, nothing to hit on Hilux.
    Then someone decided it would be fine to use that Hilux friendly design on the 2nd gen Tacoma. Isn't the aftermarket great?

    Archive Hammer hangers are improved by moving shackle pivot rearward which helps with Dakars contact issue because shackle rotates away from leaves a bit. Because Dakars are so short, they get the most lift with Hh, but max out around 3/8" for HD Dakars since revision in September 2018.

    On BAMF side, the shackle he offers don't work with a standard spring eye, like Dakars and Alcan use. They only work for an English wrapped eye like Deaver uses. I watched it unfold, BAMF painted himself in a corner with the hanger design, his original shackles were rubbing the hangers with longer springs, so the shackles could only work the final way he now offers (for longer springs). But they do cost less.

    Last edited: May 16, 2019 at 3:31 AM
  17. May 16, 2019 at 5:54 AM
    #17
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms
    I emailed ARB but have yet to hear from them. I will be calling. Mind blowing ARB has allowed this. Upsetting because now I am looking at repairs and contemplating different leaf springs.

    Archive, excuse my ignorance but the stock shackle is 3.4”. You sell a 4.5” that would lower ride height with a spring over axle and Dakars, also the 4.5” might not flex fully as a spring over. You sell a 3.6” this would yield the same ride height?

  18. May 16, 2019 at 5:58 AM
    #18
    BroID

    BroID [OP] Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    224
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, and HD Dakar’s, JBA control arms
    All hardware touching rear suspension is torqued appropriately.

  19. May 16, 2019 at 9:24 AM
    #19
    ARCHIVE

    ARCHIVE Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    938
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 DCSB 6spd, '05 Seq, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Deaver SUA
    The 4.5 would lower the truck with Dakars, and only with Dakars they would not hurt flex.

    I'd recommend staying with stock length or 3.6" shackles for spring over

  20. May 16, 2019 at 12:32 PM
    #20
    Dee_Rail

    Dee_Rail Well-Known Member

    Joined:
    Jun 29, 2018
    Member:
    #257857
    Messages:
    174
    Gender:
    Male
    First Name:
    Dee
    SoCal
    Vehicle:
    '18 Tacoma Off Road 4x4
    Notice my Dakars did the exact same thing when I installed them back in January. Had one of the guys at RPM Garage look at it when I was getting an alignment, and he showed me a shackle that was beat to shit because of the same leaf packs, said the guy who had them wheeled a lot.
