Darth Taco

Discussion in '3rd Gen. Builds (2016-2023)' started by Metalhead514, Sep 26, 2016.

  1. Sep 26, 2016 at 2:16 PM
    #1
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    My build will be a little slow, as we all know things get expensive. I am creating this thread after my catback was installed, so that isn't included here. First project is my CB install. I am open to suggestions and any tricks people have learned along the way! Enjoy!

    ***EDIT***
    First part is the CB install
    Second part is the Aux system
    Third is the rear LED install
    The front guard, LED, rock sliders, and NEW air temp gauge are on page 3.
    Supercharger, intake adapter, belt cover, hood louvers on some page after that.

    Last edited: Jan 8, 2023
  2. Sep 26, 2016 at 2:38 PM
    #2
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    First step was figuring out how to mount this thing. Turns out, I can do it without removing the wireless charging pad! I did leave it unplugged after I reassembled, so it won't cause interference with the radio. Oh, and I am using a Uniden 520XL.

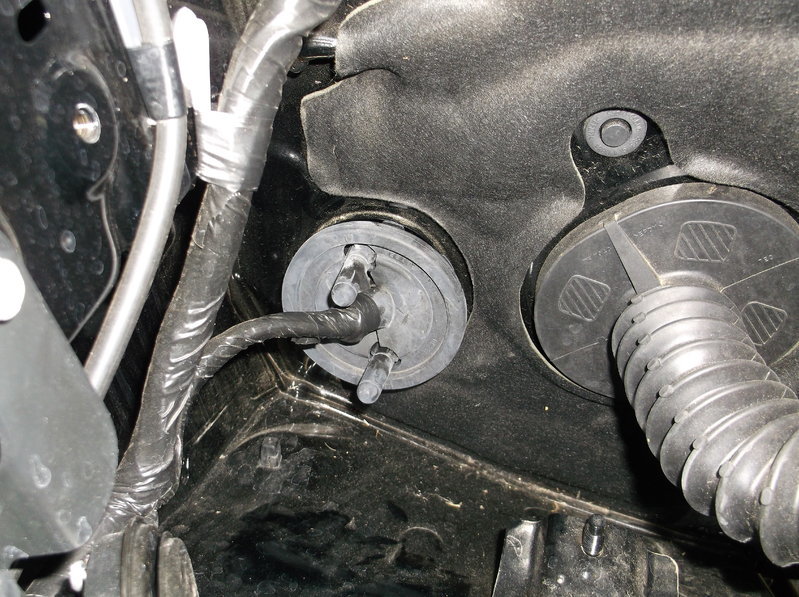

    I first identified the point at which my power lines would enter the engine bay. I chose to use this area pictured. It is located on the passenger side of the firewall. I made a small hole just big enough for a couple wires to get through. This plug is like a cone on the other side and was a bitch to hold and cut a hole at the same time.

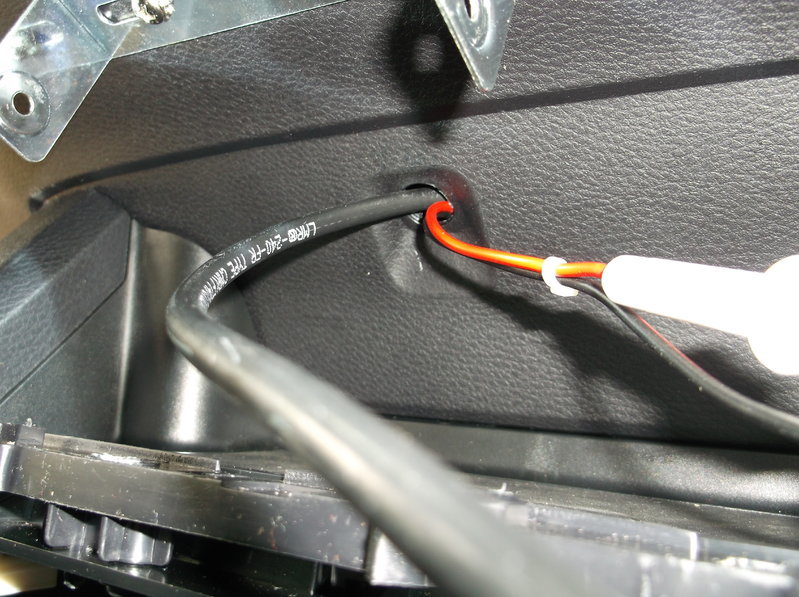

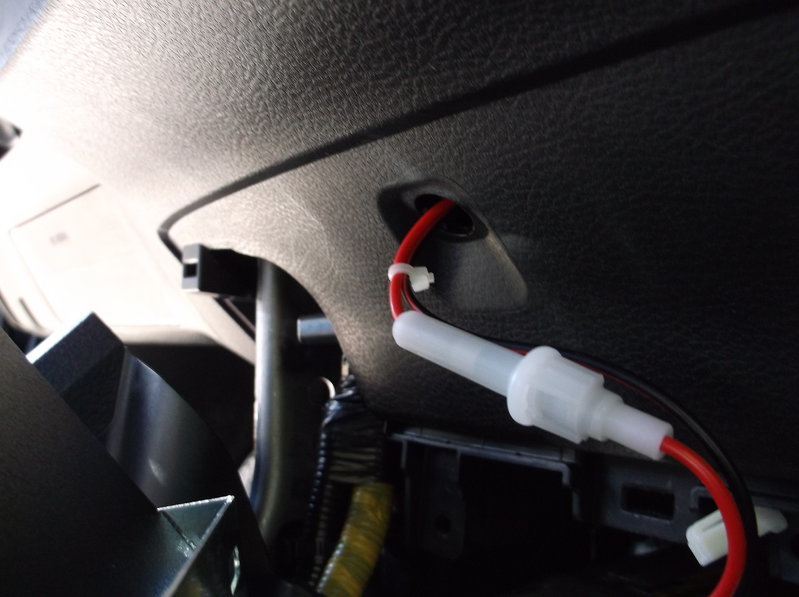

    I fed wire from the bay into the cab, since the wires from the radio were too short. This view is from the passenger side looking forward with the side panel by the feet removed:

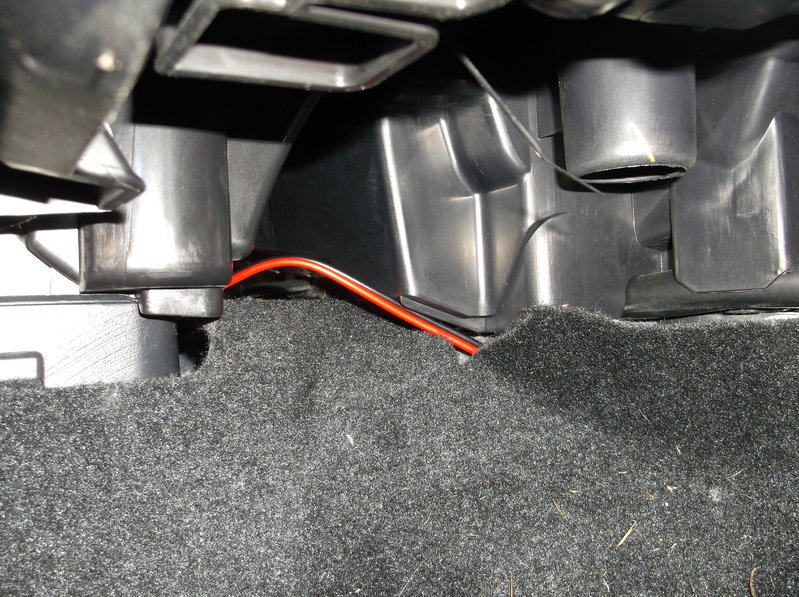

    Then I fed the wires from where the radio will be to the extension wires. I removed the LED above the charge pad and used that hole to route the wires behind the dash, along (and under) the carpet, and to the other wire.


    Then I spliced the wires together. I may or may not have acquired these splices from my deployment kit...



    After that, it is on to the engine bay where I used tape to help plan out where I would secure the wires. Then I removed the tape, added a protective sleeve, and secured it with good ol' zip ties. At the battery end, I tucked the wires behind a plastic cover until I have more time to work on it.

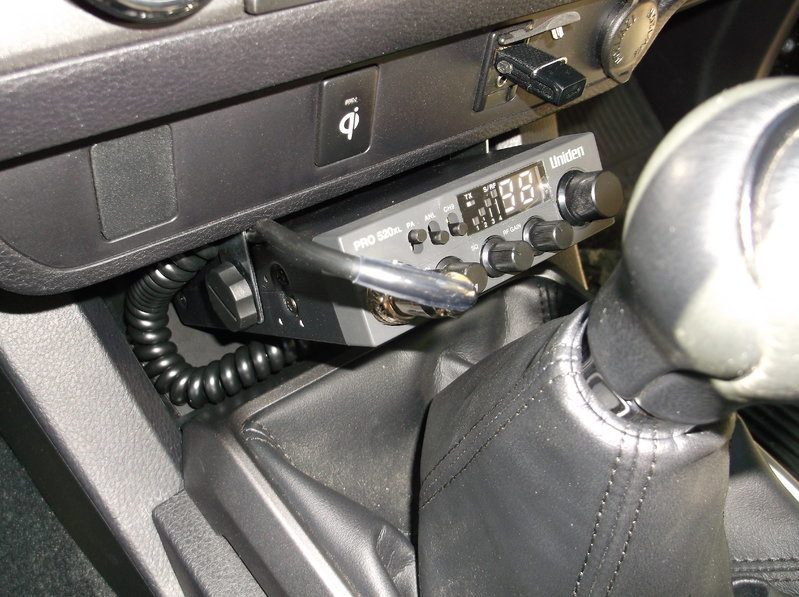

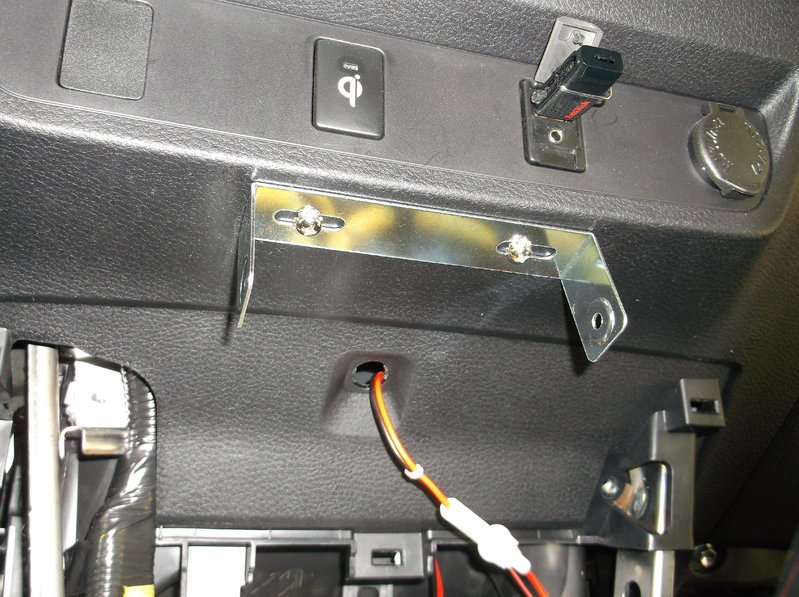

    After all that, I mounted the bracket. I wanted to try doing this without drilling, but it was unavoidable. Mounted just in front of the shifter. Had to move it over and tuck the mic cord back because it was in the way when I was in reverse. In the pics, my shifter is in the reverse position.

    DSCF3320.jpg DSCF3322.jpg

    That's as far as I got today. I will post more pics as I move forward with the install. Most of my parts are still in the mail.

    Last edited: Nov 20, 2016
  3. Sep 28, 2016 at 1:50 PM
    #3
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    Got the terminals installed and hooked up. Wires are tucked away nicely. Had to get a 90 degree adapter for my antenna line so that it would fit where the radio is mounted. Then I stuck the antenna in the bed with the line through the sliding window to give it a try! Lots of background noise, but I still need to fine tune it. I was able to hear, but nobody replied back. I may not have the power to TX very far off the island.

    Last edited: Nov 20, 2016
    ChadsPride and vinkon235 like this.
  4. Sep 28, 2016 at 1:53 PM
    #4
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,858
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Vehicle:
    2024 GMC Sierra
    Just want to give you a heads up. That power wire off the battery, the fuse should be as close to the battery as possible. Your fuse is on the inside of Vehicle in the center part of the dash. If that ever shorts out its going to arch and burn up from the battery to that fuse. That's a lot of wire and can cause a fire. Just a heads up

  5. Sep 28, 2016 at 1:55 PM
    #5
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    Thanks for the heads up. I will do some splicing and move the fuse to the engine bay.

    Lawfarin[QUOTED] likes this.
  6. Sep 29, 2016 at 4:46 PM
    #6
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.

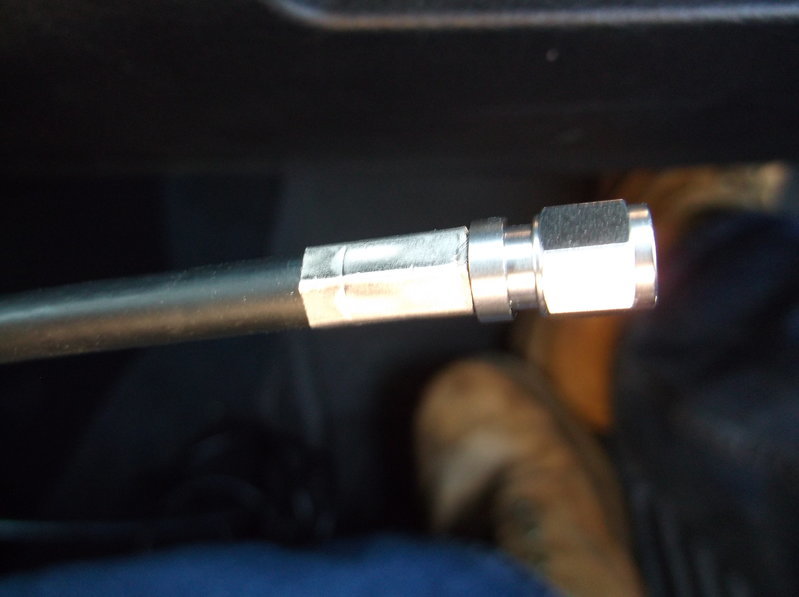

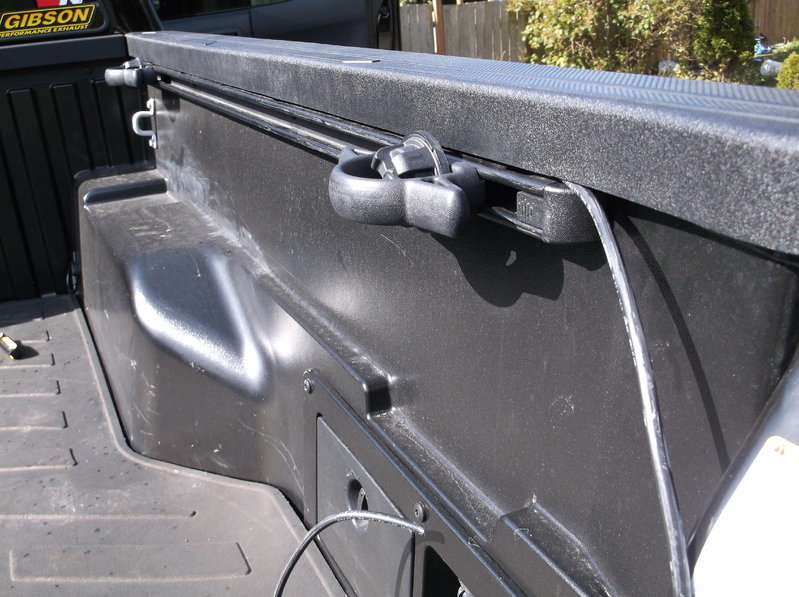

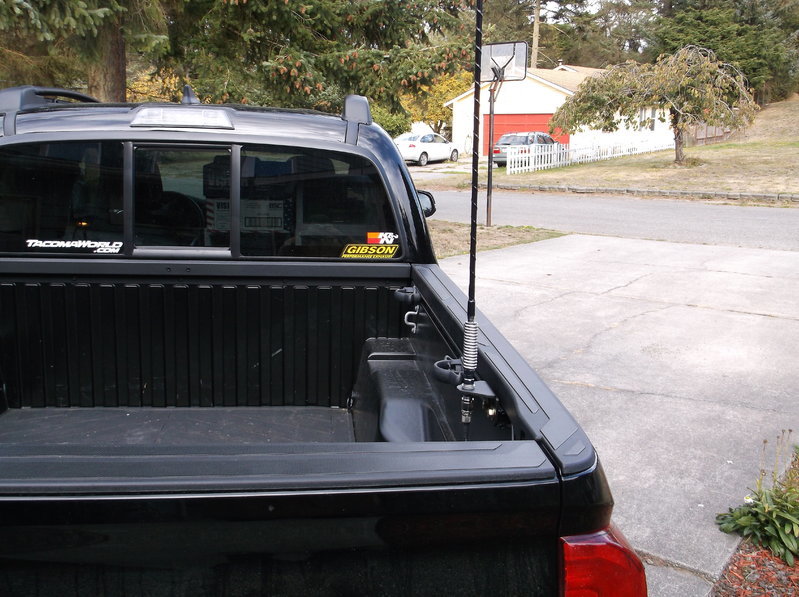

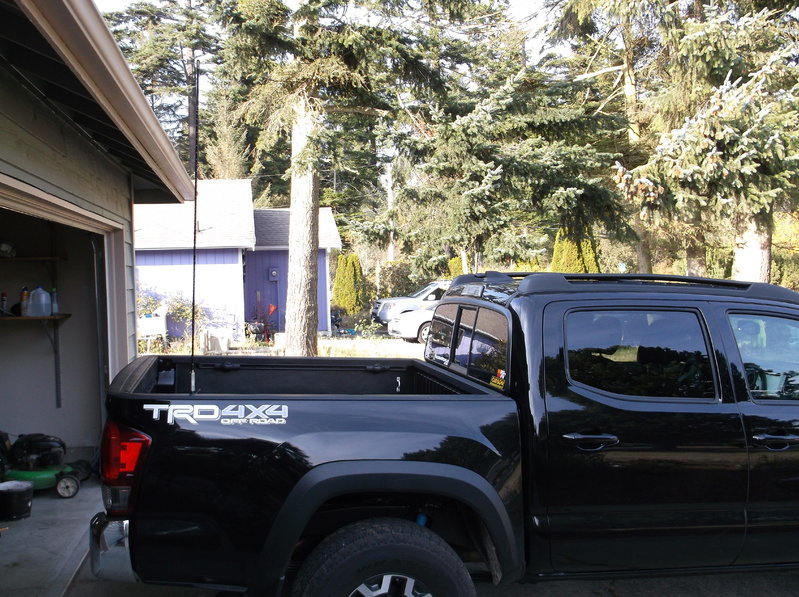

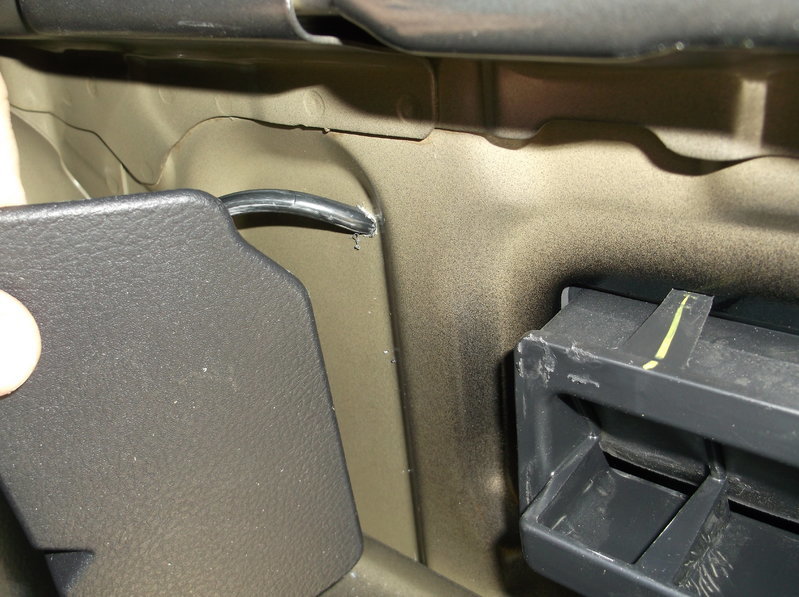

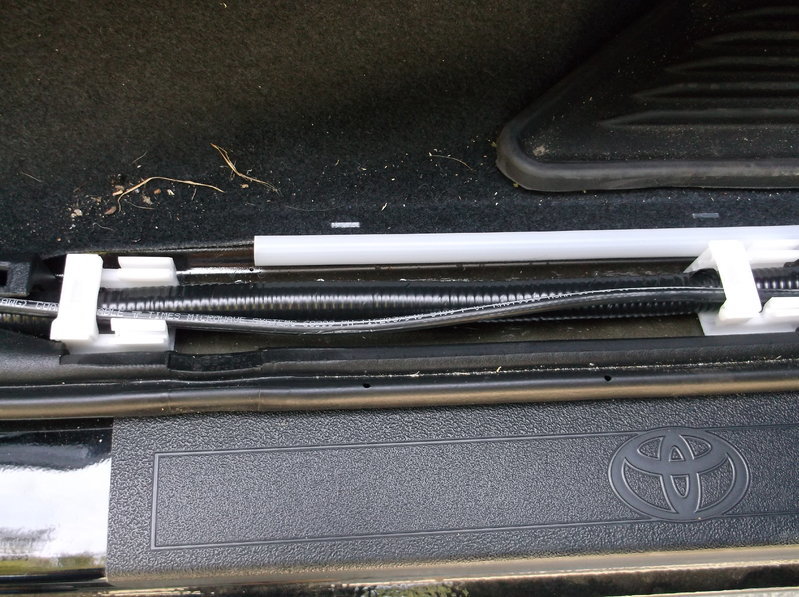

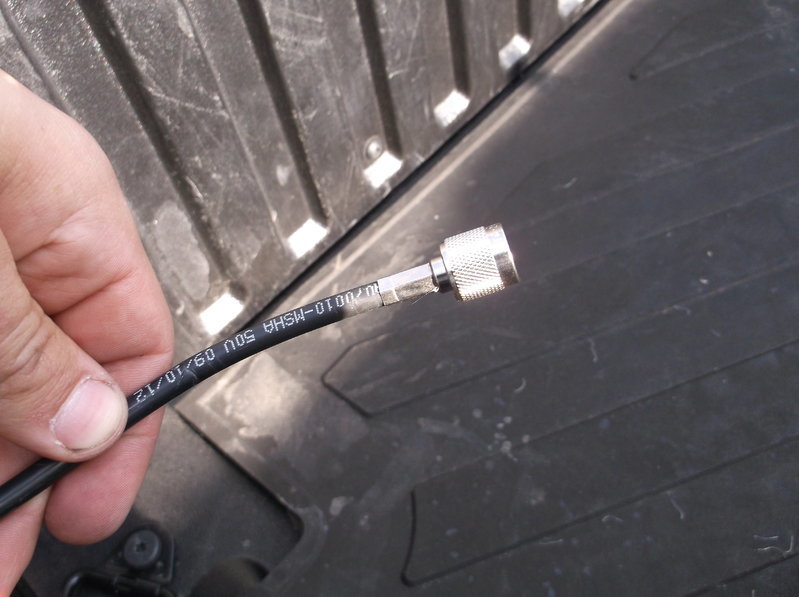

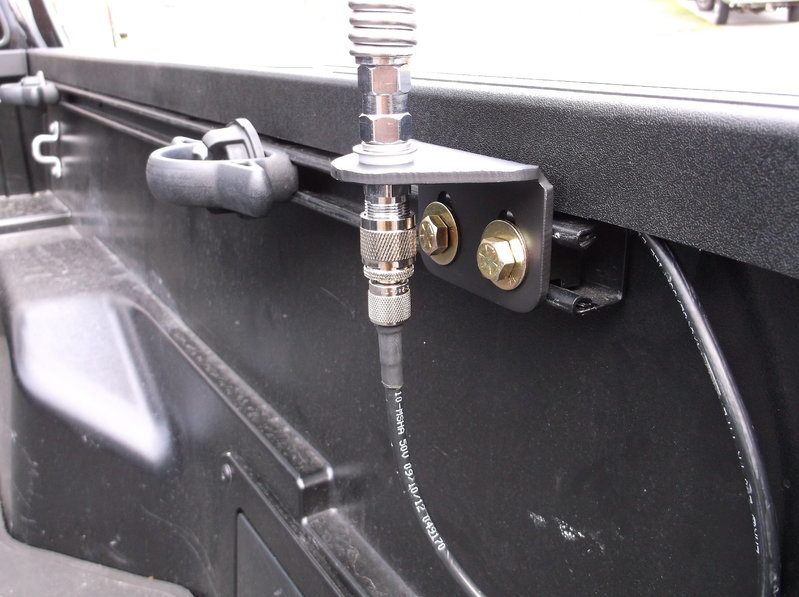

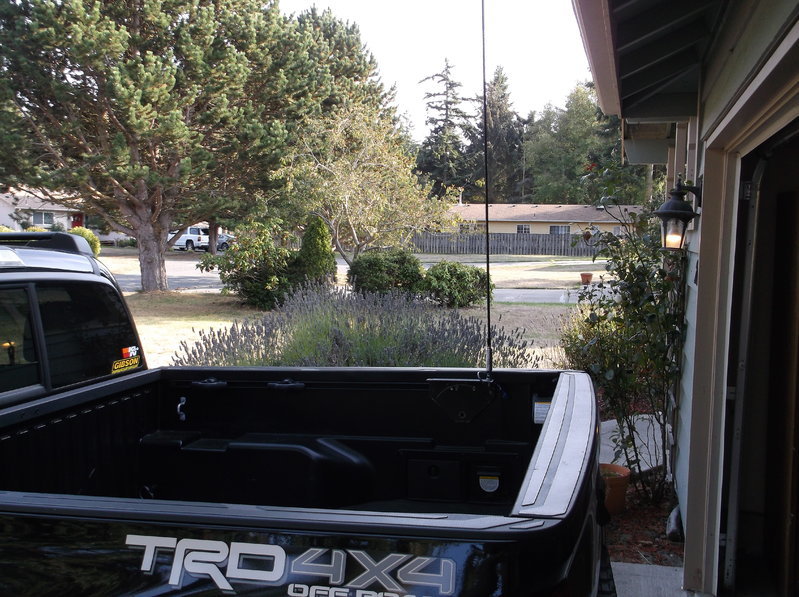

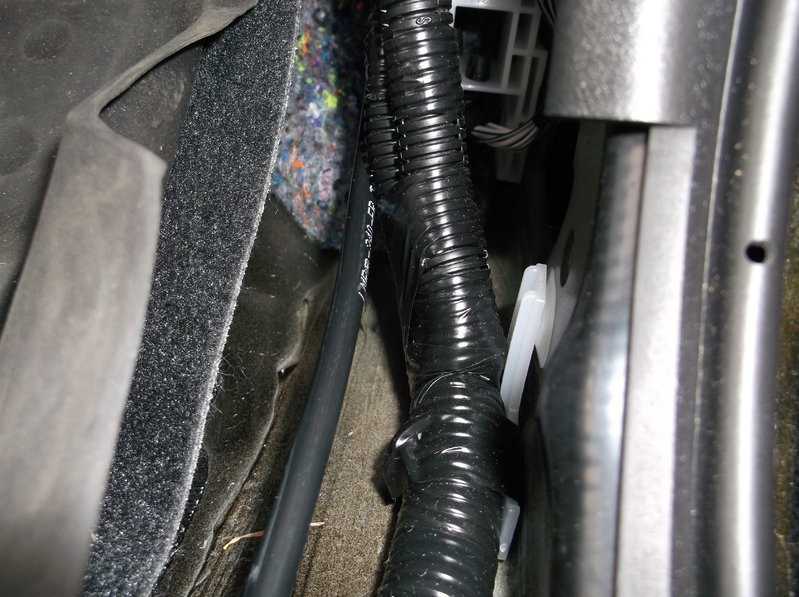

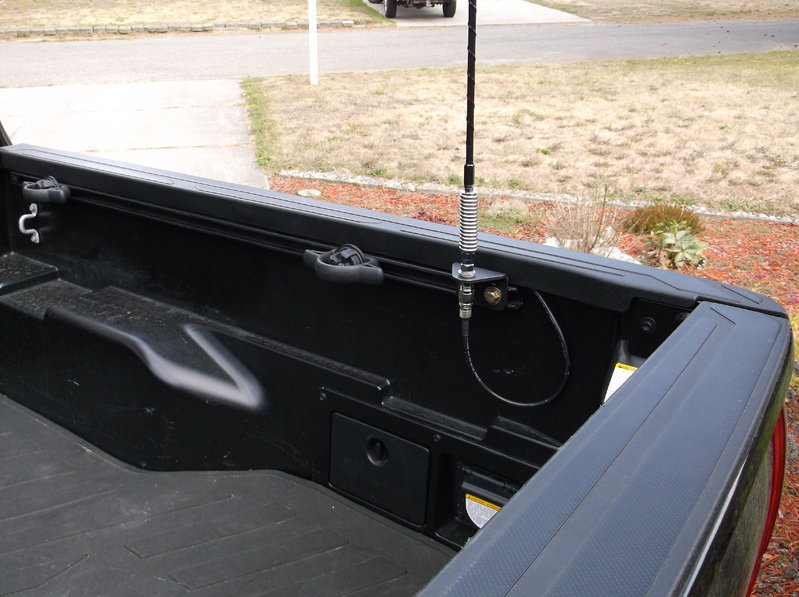

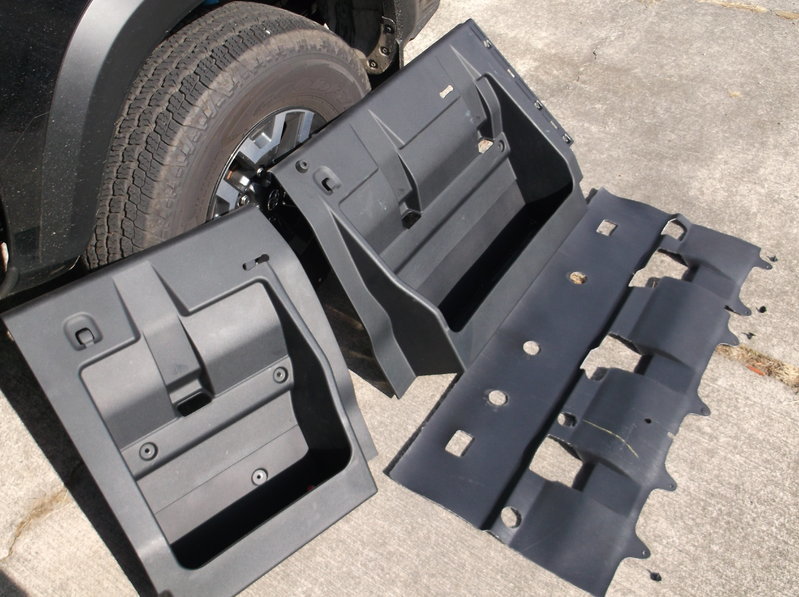

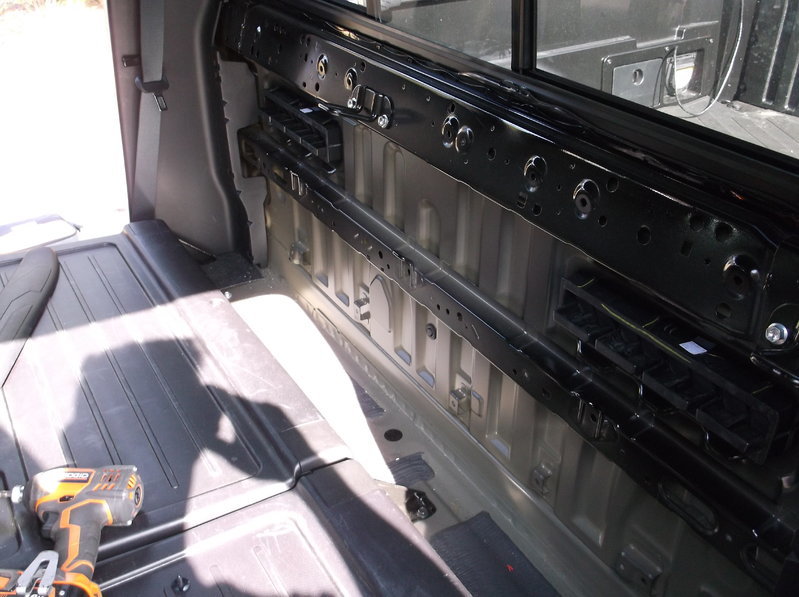

    Today I ran an antenna line. This is no off the shelf line. This is LMR-240 ultra low-loss and shielded coax cable. I ran it back along the passenger side underneath the sills and behind the rear seats. I drilled a 1/4" hole in the skin below the level of the bed. I then threaded the line under the plastic guards on the bed, right back to my antenna mount. The mount that I currently have is temporary until I get the one I ordered. Then I built an SMA inside and a TNC outside. Now all I need is a couple adapters, and I'm in business!


    Prairie Hawk and ChadsPride like this.
  7. Sep 29, 2016 at 6:13 PM
    #7
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.

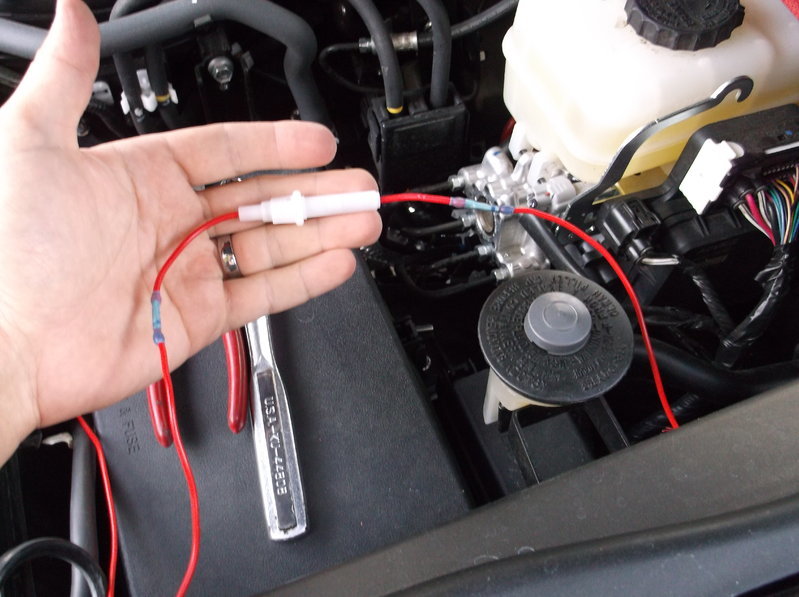

    All fixed! The fuse is now in the engine bay.


  8. Sep 30, 2016 at 3:31 AM
    #8
    vinkon235

    vinkon235 Well-Known Member

    Joined:
    Jun 25, 2016
    Member:
    #190492
    Messages:
    92
    Gender:
    Male
    First Name:
    vince
    steubenville oh
    Vehicle:
    2016 white tacoma trdor access cab
    opt7 cree series fog lights busman aux relay box viair 450c oba opt7 fluxbeam led headlights
    nice write up.

    Metalhead514[OP] likes this.
  9. Sep 30, 2016 at 6:37 PM
    #9
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.

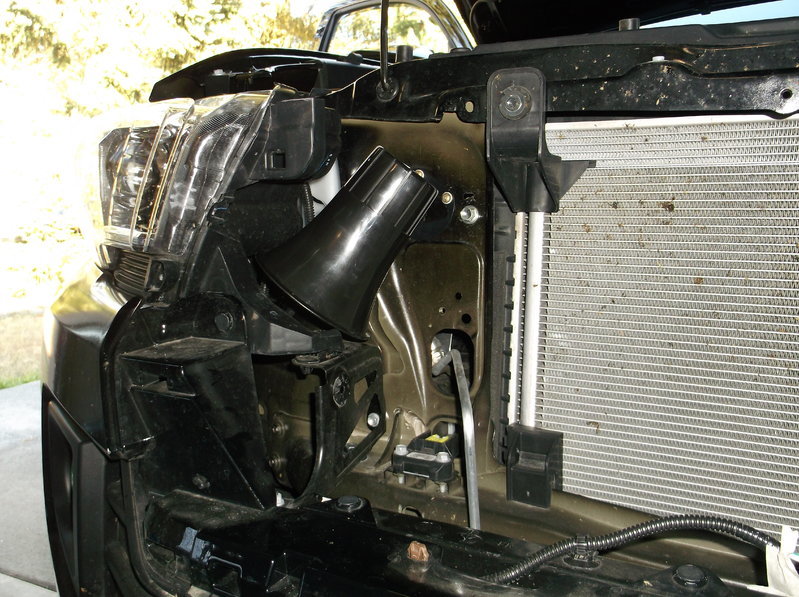

    And now that I am just waiting for a couple connector adapters, the only thing left to install for this project is............ the PA speaker. Zero practical uses, unlimited impractical uses. Just for fun! The line more or less followed the power lines. So far, no interference.

    I was able to tuck the speaker behind an air deflector, so you can't even tell that it's there!


  10. Oct 1, 2016 at 11:19 PM
    #10
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    Lawfarin likes this.
  11. Oct 6, 2016 at 2:13 AM
    #11
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    So I am getting a LOT of interference from the engine and brake booster. I have a few things planned to combat this:

    1. I will use a shielded twisted pair for my power lines.
    2. The new power lines will be routed around the FRONT of the engine bay, away from the booster.
    3. I will place ferrite beads along the power lines to try and cancel out more noise.

    I will post pics when I actually get around to doing this.

  12. Oct 6, 2016 at 2:55 AM
    #12
    Cows Have Claws

    Cows Have Claws Well-Known Member

    Joined:
    Dec 14, 2015
    Member:
    #172257
    Messages:
    296
    Gender:
    Male
    First Name:
    Matt
    Oregon
    Vehicle:
    2024 Tacoma Trailhunter 6ft
    What PA is that? Amazon link?

  13. Oct 6, 2016 at 3:21 AM
    #13
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
  14. Oct 6, 2016 at 9:08 AM
    #14
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,858
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Vehicle:
    2024 GMC Sierra
    Where did you ground the unit? Perhaps try a solid ground point first. And keep your ground as short as possible. Also your power you ran out on the passanger side? Perhaps your better off keeping that short going through a grommet on the drivers side. Longer the cable the larger the chance to induce noise. Try to keep away from large power wires and from running along parallel with them. If you must come in contact with one try and cross it at a 90 degree angle or as close to one as possible. I would save shielding for a last resort. That usually doesnt do much for noise being induced through power lines. Normally a good ground will help tremendously

  15. Oct 6, 2016 at 11:08 AM
    #15
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    I am grounded to one of the main ground points in the engine bay. I ran through the passenger side because the grommets on the driver side were all harder to use because they all went under the dash.

  16. Oct 6, 2016 at 11:37 AM
    #16
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,858
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Vehicle:
    2024 GMC Sierra
    Ground inside the vehicle behind the dash or kick panel area somewhere. Shortening that ground wire will probably help you out a lot

  17. Oct 7, 2016 at 3:04 AM
    #17
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    I will try that, thanks!

  18. Oct 7, 2016 at 3:30 PM
    #18
    Toyota Kawasaki

    Toyota Kawasaki Seasons Beatings

    Joined:
    Dec 1, 2015
    Member:
    #171193
    Messages:
    320
    Gender:
    Male
    509
    Vehicle:
    2016 TRD OR
    I use as large of power cable as possible (10 gauge at least) especially for runs
    from battery to radio's on back wall behind rear seat.. I used a couple feet of ground (again, as large and short as possible) to go under cab to frame for my Icom 7000 or Icom 2730A. Although I only use 10M & 2M mostly in vehicle (sometimes 20M)...

    Oooops, I meant to put this in the cb specifics thread... Oh, well.. Info still applies:)
    https://www.tacomaworld.com/threads/cb-specifics.434871/page-20

    Last edited: Oct 7, 2016
  19. Oct 13, 2016 at 12:12 PM
    #19
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    Quick update:

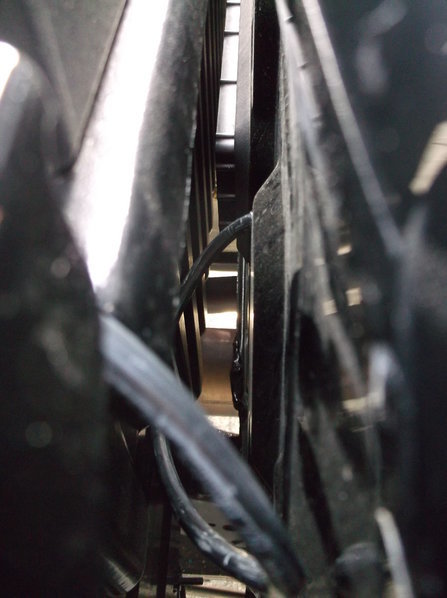

    I moved my power wire so that it routes around the front of the engine bay and used a shielded wire as well. I shortened the ground to inside the cab, and placed ferrite beads along the ground and power lines. My interference has quieted, but not gone away. Turns out, I am still getting some from the antenna. I tried moving the antenna line away from all power/ ground lines and it still had issues. The only thing that stopped it was un plugging the antenna. I guess I will have to deal with a little interference for now. I'm tired of dealing with it.

    My next mods will be a grill guard and sliders. I won't be doing a lot of heavy off roading, so I don't need a 200lb bumper for the front, just a solid place to tie straps to when I'm using the roof racks.

  20. Oct 18, 2016 at 10:20 AM
    #20
    Metalhead514

    Metalhead514 [OP] Darth Taco

    Joined:
    Jun 1, 2016
    Member:
    #188494
    Messages:
    529
    Gender:
    Male
    First Name:
    Nate
    Washington State
    Vehicle:
    '16 TRD Off Road
    MBRP catback, Magnuson TVS 1900 Supercharger, Injen Evolution intake, Race Louvers RST hood vent, Avid front and rear guards and side steps, Cali raised front/ rear LED's, TRD Pro Skid plate, custom aux fuse box, Bak Flip tonneau.
    Update to my mod plans (not in order):
    EDITED 16 October, 2021

    1. Going to fabricate an aux fuse system with a 6 fuse box and a relay controlled by ignition. COMPLETED (3d Printed)
    2. That aux system will run a few things:
    a) CB (already installed)
    b) Front LED bar (Probably cali raised 31.5")COMPLETED
    c) Rear flood ligts (Lower priority) COMPLETED
    d) Electronic exhaust cutout valve ABANDONED
    3. Avid front bumper guard, Line-X coated. COMPLETED + REAR GUARD
    4. Avid Sliders, also Line-X'd COMPLETED (Steps, not sliders)
    5. Supercharger (WAAAAAAAY WAAAAY down the line...) ON ORDER FROM MAGNUSON!

    Last edited: Oct 16, 2021
