DEI DBALL2 Remote Start Install using OEM fob - 2017 Tacoma Push to Start

Discussion in '3rd Gen. Tacomas (2016+)' started by gpb, Dec 22, 2016.

  1. Dec 27, 2016 at 3:14 PM
    #41
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    Clean install, @Frogsauce

    Yes, as stated elsewhere this product was already on my radar and I did my own research as I documented.

    Expandable wire sleeves are expandable wire sleeves. I used what I had in my parts drawer. Any idiot with a sense of keeping things neat looms up their install. Next, someone's going to bitch that I used *black* electrical tape and shrink wrap. *rolleyes*

    PJnc284 likes this.
  2. Dec 27, 2016 at 3:21 PM
    #42
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    You connected the tan wire to the white wire. THIEF!!!!!

  3. Dec 27, 2016 at 3:25 PM
    #43
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    LOL

  4. Dec 28, 2016 at 6:56 AM
    #44
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    Added some supplemental photos to post #2

    Also for anyone who doesn't want to go the ebay route and are looking for a pre-configured kit and to save some money, I'm selling the one below for $65 shipped. It's the pre-voodoo kit that nick was selling initially for $70. I redid the ground terminal and heat-shrinked it since insulated terminals look like crap. Labelled the wires and also including 2' of the wrap-around tubing I used in my install.


    https://www.tacomaworld.com/threads/remote-start-for-16-17-tacoma.466945/

    Initial order

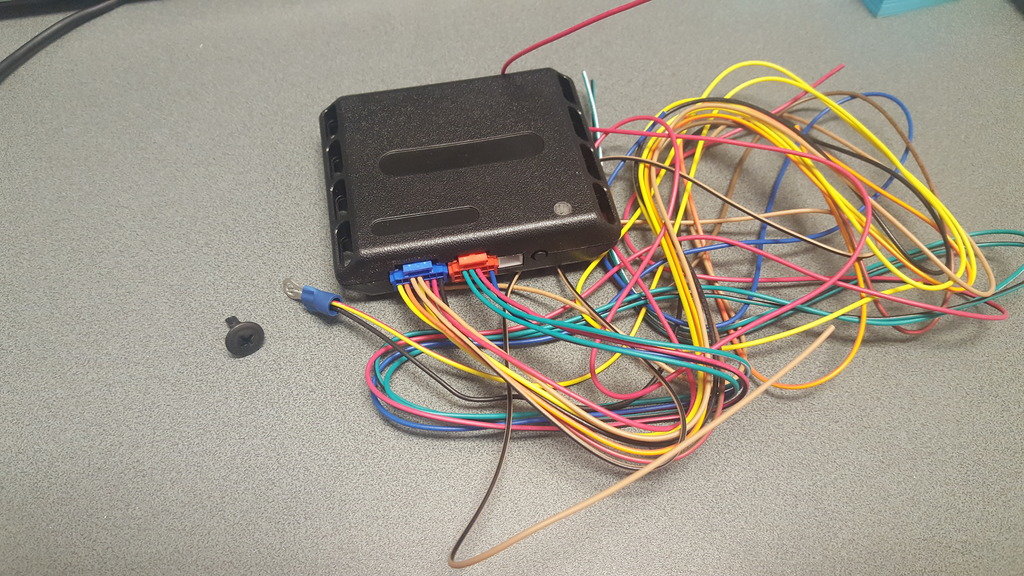

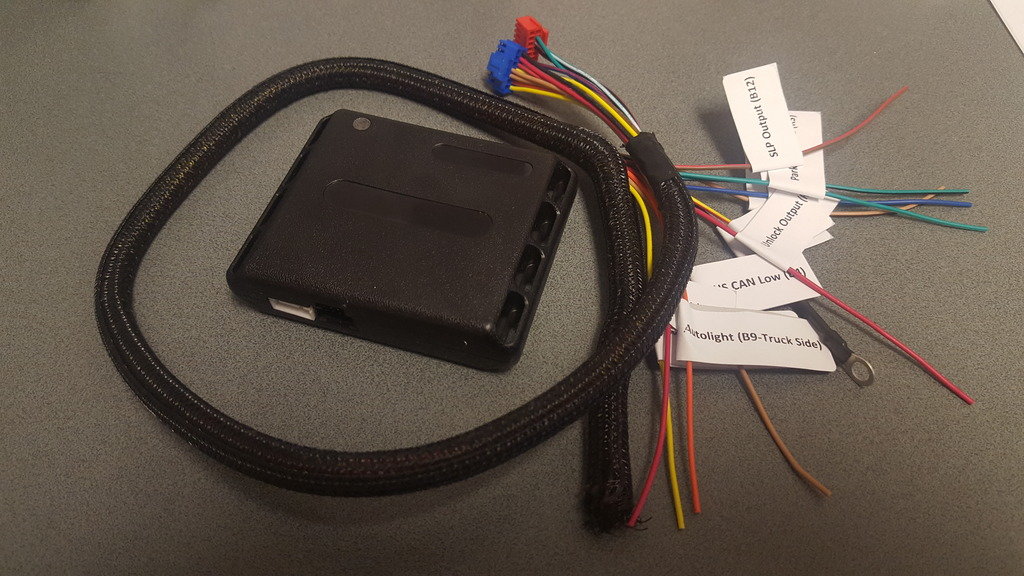

    What the buyer will get

    Hank Heel, MilkTeacoma and Frogsauce like this.
  5. Dec 28, 2016 at 6:58 AM
    #45
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    Nice, see the labels themselves are worth their weight in gold.

    MilkTeacoma likes this.
  6. Dec 28, 2016 at 1:24 PM
    #46
    Val-n-Tn

    Val-n-Tn Active Member

    Joined:
    Oct 11, 2016
    Member:
    #199469
    Messages:
    36
    Gender:
    Male
    First Name:
    Al
    Vehicle:
    2016 Tacoma TRD OR & 2018 Raptor
    I got in on the initial buy from Nick but used your instructions on the install. Worked great..
    Thanks

    gpb [OP] likes this.
  7. Dec 28, 2016 at 1:31 PM
    #47
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
  8. Dec 29, 2016 at 7:28 AM
    #48
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4

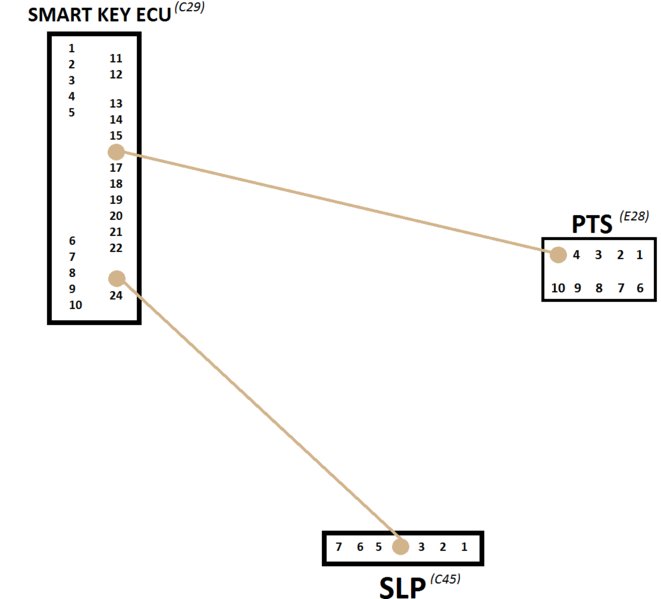

    To collect info together I'm copying a section of a post I made in another thread giving more info about the PTS and SLC wiring. Original post here: https://www.tacomaworld.com/threads...using-oem-remote.463996/page-32#post-13987320

    Relevant content is the following:

    the DEI instructions have you go to the SLC in the steering wheel housing as well as go to the connector behind the PTS button.

    In a discussion with @PJnc284 while I was verifying all the DEI connections against the FSM, we noticed the FSM referenced wiring harness test procedures both for the PTS and SLC connectors that showed the wires landed on the C29 connector at the Smart Key ECU.

    I dug into my truck to get to the SLC and PTS connectors and performed the harness test procedure to validate that they're the same. I figured that could make my own install that much cleaner and save other folks a bit of digging when doing their own installs.

    Here are the bits from the FSM: (S45 is the SLC connector, E28 is the PTS connector)

    [​IMG]

    [​IMG]

    ratcityrain likes this.
  9. Dec 29, 2016 at 11:37 AM
    #49
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,373
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    Right now this all sounds confusing, but I will wait until my kit arrives so I can see what it states in there, but if the C29 connector is more accessible then of course I would rather go there then have to take the steering column apart and or try to gain access to the back of the push button.

  10. Dec 29, 2016 at 11:49 AM
    #50
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    It's a lot easier to visualize when you're sitting there looking at it.

    As for more accessible, the C29 connector is a couple inches away from where you're already working.

    [​IMG]

    ratcityrain likes this.
  11. Dec 29, 2016 at 11:52 AM
    #51
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,373
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    Ya I saw that and saved this picture. I was just waiting for the dball so i can reference that on which wire label on the dball goes to the c29 connector rather than up in the steering column, but yes this seems to be way to easy with all the connectors being right there in front and easy to access.

    Mine arrives tomorrow, my plan is to install Monday, but I may not have time to test my skills on removing jackets off wire so I can solder dball wires onto oem wires. I can use the posi-locks, but I think it will look cleaner and be stronger with solder.

  12. Dec 29, 2016 at 11:58 AM
    #52
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    The below should help with the visualization







    Attached Files:

    ratcityrain likes this.
  13. Dec 29, 2016 at 12:03 PM
    #53
    nm4553

    nm4553 You had me at "Meat Tornado"

    Joined:
    Jan 5, 2015
    Member:
    #145655
    Messages:
    767
    Gender:
    Male
    First Name:
    Nick
    NEPA
    Vehicle:
    2017 DCSB TRD Sport
    SCS Stealth 6 Matte Bronze on Toyo Open Country 265/70R17, Fox 2.5 Coilovers, Bilstien 6150 w/ Remote Resi, Dakar Leaf Pack, Wheeler's Bumpstop, OVTuned
  14. Dec 29, 2016 at 12:10 PM
    #54
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    The tacoma isn't in the compatibility list for that harness. Also should be able to find it for $36 or so programmed on ebay.


  15. Dec 29, 2016 at 12:14 PM
    #55
    nm4553

    nm4553 You had me at "Meat Tornado"

    Joined:
    Jan 5, 2015
    Member:
    #145655
    Messages:
    767
    Gender:
    Male
    First Name:
    Nick
    NEPA
    Vehicle:
    2017 DCSB TRD Sport
    SCS Stealth 6 Matte Bronze on Toyo Open Country 265/70R17, Fox 2.5 Coilovers, Bilstien 6150 w/ Remote Resi, Dakar Leaf Pack, Wheeler's Bumpstop, OVTuned
  16. Dec 29, 2016 at 12:16 PM
    #56
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4

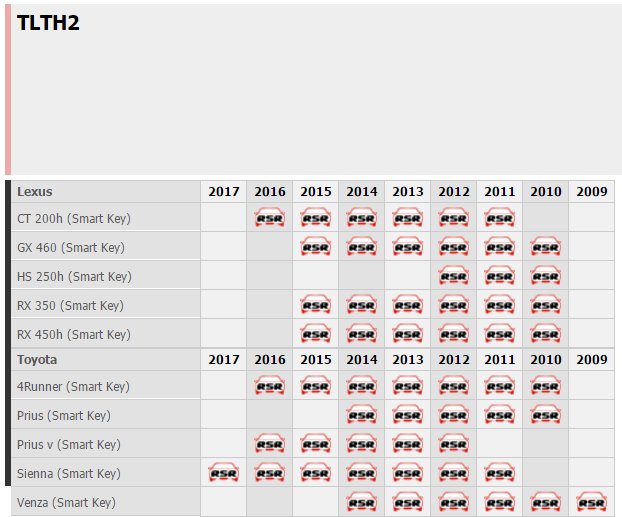

    Manufacturer page, vehicle compatibility list: https://www.directechs.com/product.aspx?sku=TLTH2#vagtab

    Also if you look at the harness on Crutchfield they have a better picture. Doesn't match up to the connectors in the third gens. See http://www.crutchfield.com/S-CW1HNVrVtEg/p_607TLTH2/XpressKit-TLTH2-Interface-Harness.html

    I spent a fair bit of time trying to find a PnP (or semi-PnP) harness and wasn't able to locate one.

  17. Dec 29, 2016 at 12:23 PM
    #57
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,373
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    After looking at these pictures, something isn't making sense to me.

    What connector is the SLP (C45)? It shoes that pin 4 on the SLP (C45) connector goes to pin 23 on C29 connector, but I also show that pin 23 on C29 goes go to pin 12 on the blue dball connector

  18. Dec 29, 2016 at 12:24 PM
    #58
    gpb

    gpb [OP] Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,129
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    C45 is the Toyota connector inside the steering wheel cover. I think it's referenced as SLC (Steering Lock Control / Connector) and I may have mistyped SLP somewhere.

  19. Dec 29, 2016 at 12:25 PM
    #59
    PJnc284

    PJnc284 Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74326
    Messages:
    690
    Gender:
    Male
    Garner, NC
    Vehicle:
    2016 Tacoma TRD Off Road 4x4

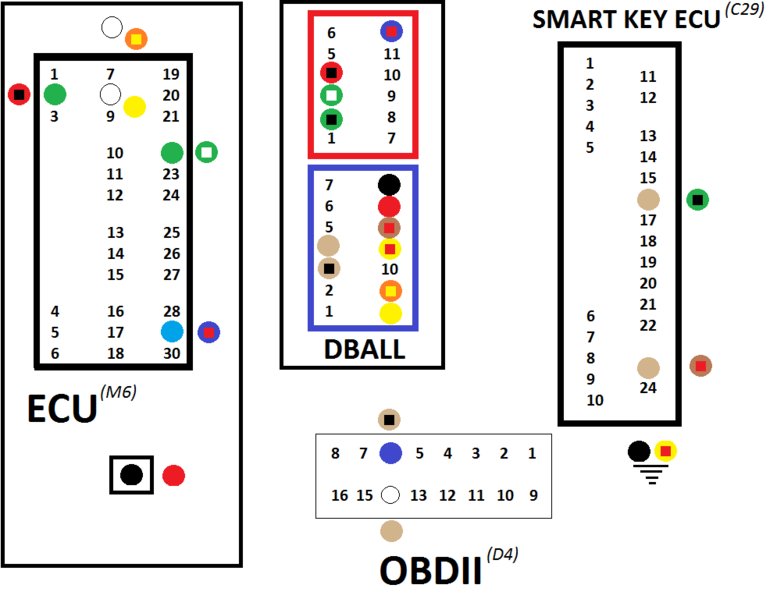

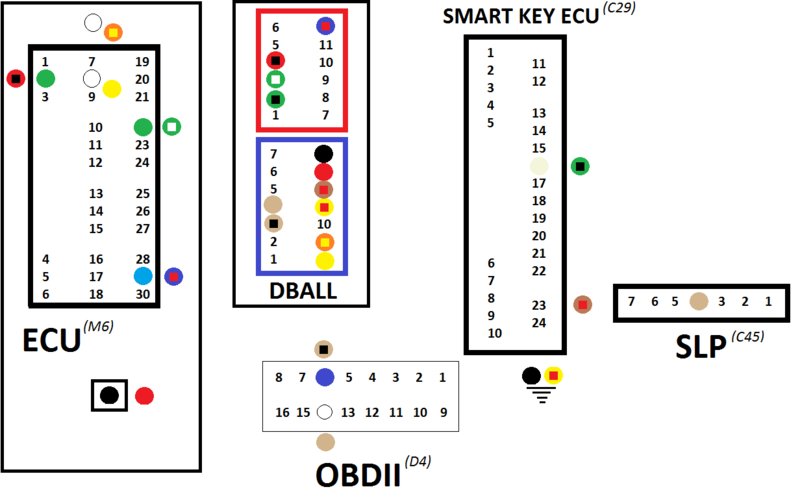

    The first image is just the normal toyota wiring and shows why you can tap into the wires at the C29 instead of going to the pts and slc separate. The 2nd shows where the dball wires should go.

    ratcityrain likes this.
  20. Dec 29, 2016 at 12:25 PM
    #60
    nm4553

    nm4553 You had me at "Meat Tornado"

    Joined:
    Jan 5, 2015
    Member:
    #145655
    Messages:
    767
    Gender:
    Male
    First Name:
    Nick
    NEPA
    Vehicle:
    2017 DCSB TRD Sport
    SCS Stealth 6 Matte Bronze on Toyo Open Country 265/70R17, Fox 2.5 Coilovers, Bilstien 6150 w/ Remote Resi, Dakar Leaf Pack, Wheeler's Bumpstop, OVTuned
    So if someone had the time they would certainly be able to construct a semi-pnp harness knowing what the wiring and install diagrams now look like for our trucks?
