DiamondBack Cover Bed lighting Solution

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by lowtaco, Jan 12, 2020 at 8:24 PM.

  1. Jan 12, 2020 at 8:24 PM
    #1
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    I've tested out a few different solutions for lighting up the bed while both sides of the cover were closed and the solutions that exists weren't bright enough for me.

    I made this solution that lights up my bed with the cover closed and it lights up the entire bed front to back .

    It's utilizes 2 KC cyclones with my own wiring harness using XT-60 connectors and a li-on battery.

    It's been in the bed installed since July of last year and has been functioning perfectly since. The battery can be removed and recharged as well.

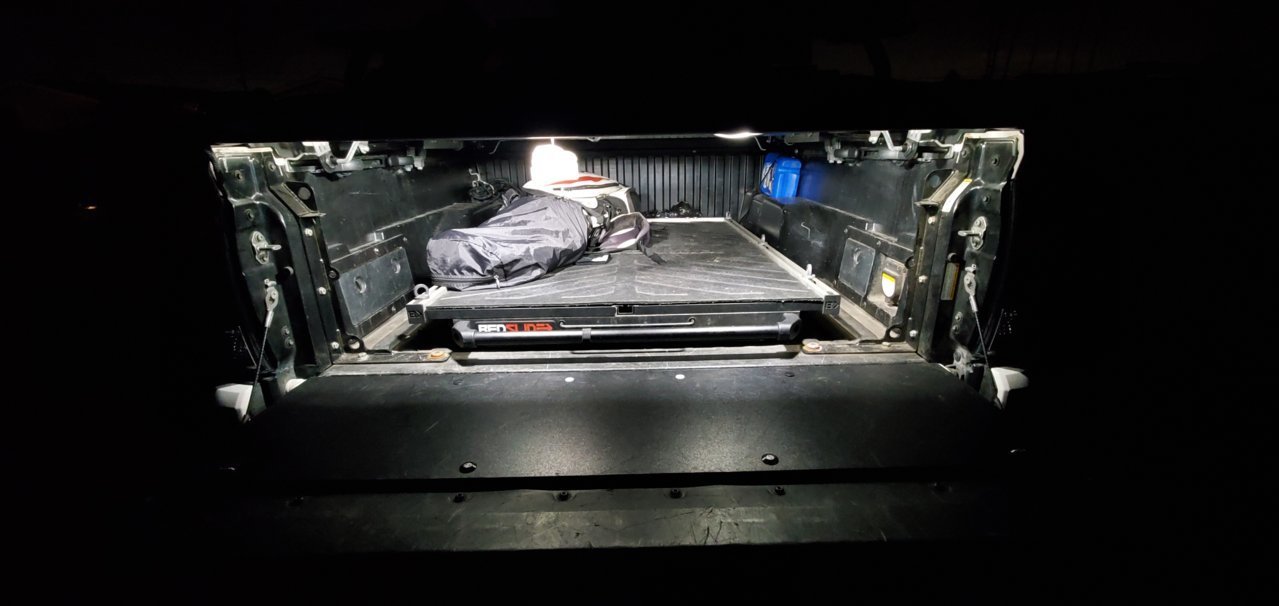

    Here is a photo of the bed covered and the lighting solution on.

    If you are local I can demo the light system for you.

    I wanted to offer this solution to other members who have been looking for a lighting solution if you own the diamond back cover.

    I have another kit that I can put together for another member which will include the battery and wiring harness for $65. The 12v 6000mah Li-on battery is $35 on it's own.


  2. Jan 13, 2020 at 4:06 AM
    #2
    Cav_BluTRD

    Cav_BluTRD Instagram- @UploadAdventure

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    5,423
    First Name:
    Rich
    Need Armor? SOS Concepts. Discount Code uploadadv
    Vehicle:
    2019 Tacoma TRD Offroad
    OVTune, SOS Concepts Rack, Rigid & BD lights, UpTopOverland roof rack, Softopper, other stuff.
  3. Jan 13, 2020 at 4:09 AM
    #3
    Bannerman

    Bannerman Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166789
    Messages:
    2,506
    Gender:
    Male
    First Name:
    Johnson
    Charlotte, NC
    Vehicle:
    15 TRD OR MT

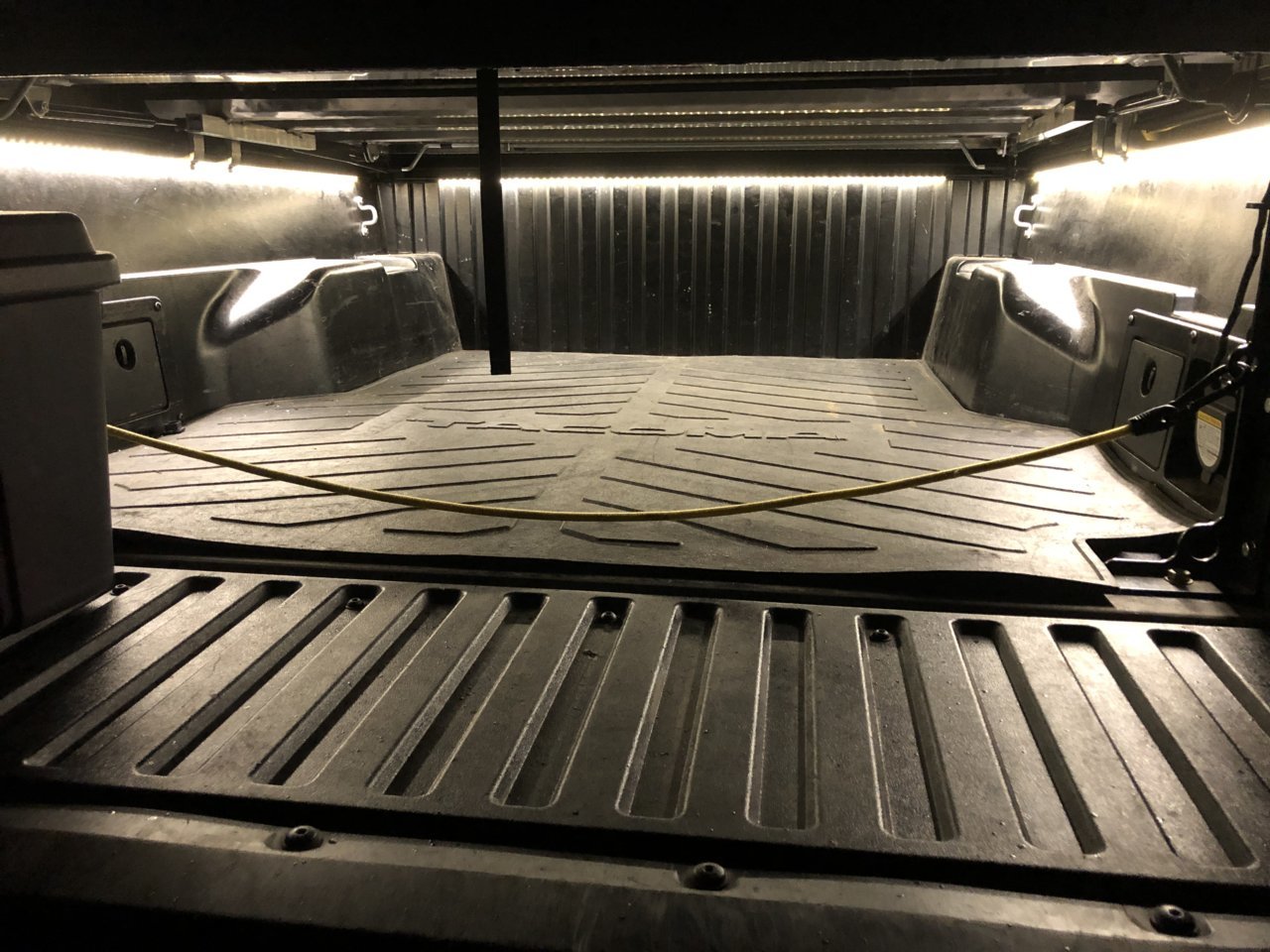

    I have lights! :thumbsup:


    Tullie D and Cav_BluTRD like this.
  4. Jan 13, 2020 at 7:19 AM
    #4
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    Do you have photos of the bed with items put on top of the wheel well? When I tried this solution it always blocked light to the middle of the bed.

  5. Jan 13, 2020 at 7:21 AM
    #5
    Bannerman

    Bannerman Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166789
    Messages:
    2,506
    Gender:
    Male
    First Name:
    Johnson
    Charlotte, NC
    Vehicle:
    15 TRD OR MT
    I dont have a picture but you can see that you would have to block 14 linear feet of light to not get light to the middle of the bed.

  6. Jan 13, 2020 at 7:27 AM
    #6
    Bannerman

    Bannerman Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166789
    Messages:
    2,506
    Gender:
    Male
    First Name:
    Johnson
    Charlotte, NC
    Vehicle:
    15 TRD OR MT
    Cav_BluTRD likes this.
  7. Jan 13, 2020 at 7:28 AM
    #7
    Bannerman

    Bannerman Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166789
    Messages:
    2,506
    Gender:
    Male
    First Name:
    Johnson
    Charlotte, NC
    Vehicle:
    15 TRD OR MT
    Not at all trying to knock your solution, this just seems to make a lot more sense and has worked for me. I dont sell these products or have a dog in this fight at all. :cheers:

    Tullie D likes this.
  8. Jan 13, 2020 at 7:38 AM
    #8
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    Maybe it's just me and my age but I didn't like the amount of light other solutions had.

    When I didn't have a cover on the bed I was lighting up the back of the truck bed with baja designs s2 sports.

    When I put the cover on I wanted that same amount of coverage along with as much light as possible . With the two cyclones that's over 1000 lumens just for the bed.

    Cav_BluTRD and Bannerman like this.
  9. Jan 16, 2020 at 9:37 AM
    #9
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male

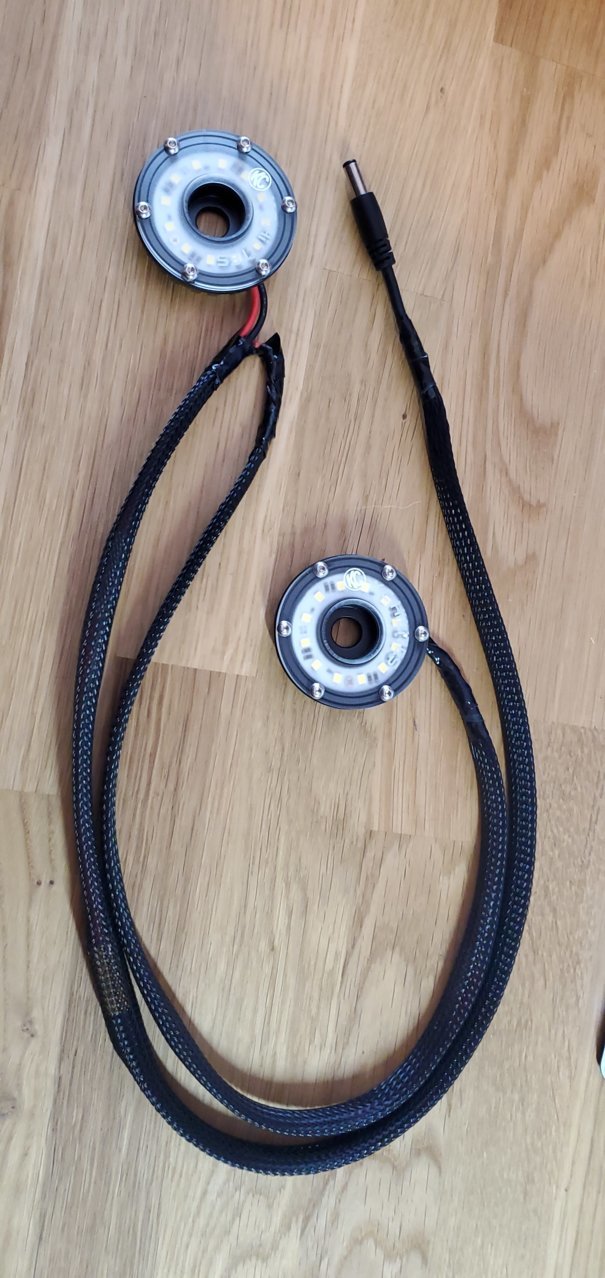

    I've created another wiring solution for forum member. Put a sleeve over everything to make for a clean looking install .


  10. Jan 16, 2020 at 9:51 AM
    #10
    Khoadattran

    Khoadattran Well-Known Member

    Joined:
    Jul 7, 2019
    Member:
    #298519
    Messages:
    359
    Gender:
    Male
    First Name:
    Khoa
    Can this kit be use for other brand software or hard tonneau cover or is it only for the Diamond Back?

  11. Jan 16, 2020 at 9:55 AM
    #11
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    What cover were you interested on using this on ?

  12. Jan 16, 2020 at 10:06 AM
    #12
    Khoadattran

    Khoadattran Well-Known Member

    Joined:
    Jul 7, 2019
    Member:
    #298519
    Messages:
    359
    Gender:
    Male
    First Name:
    Khoa

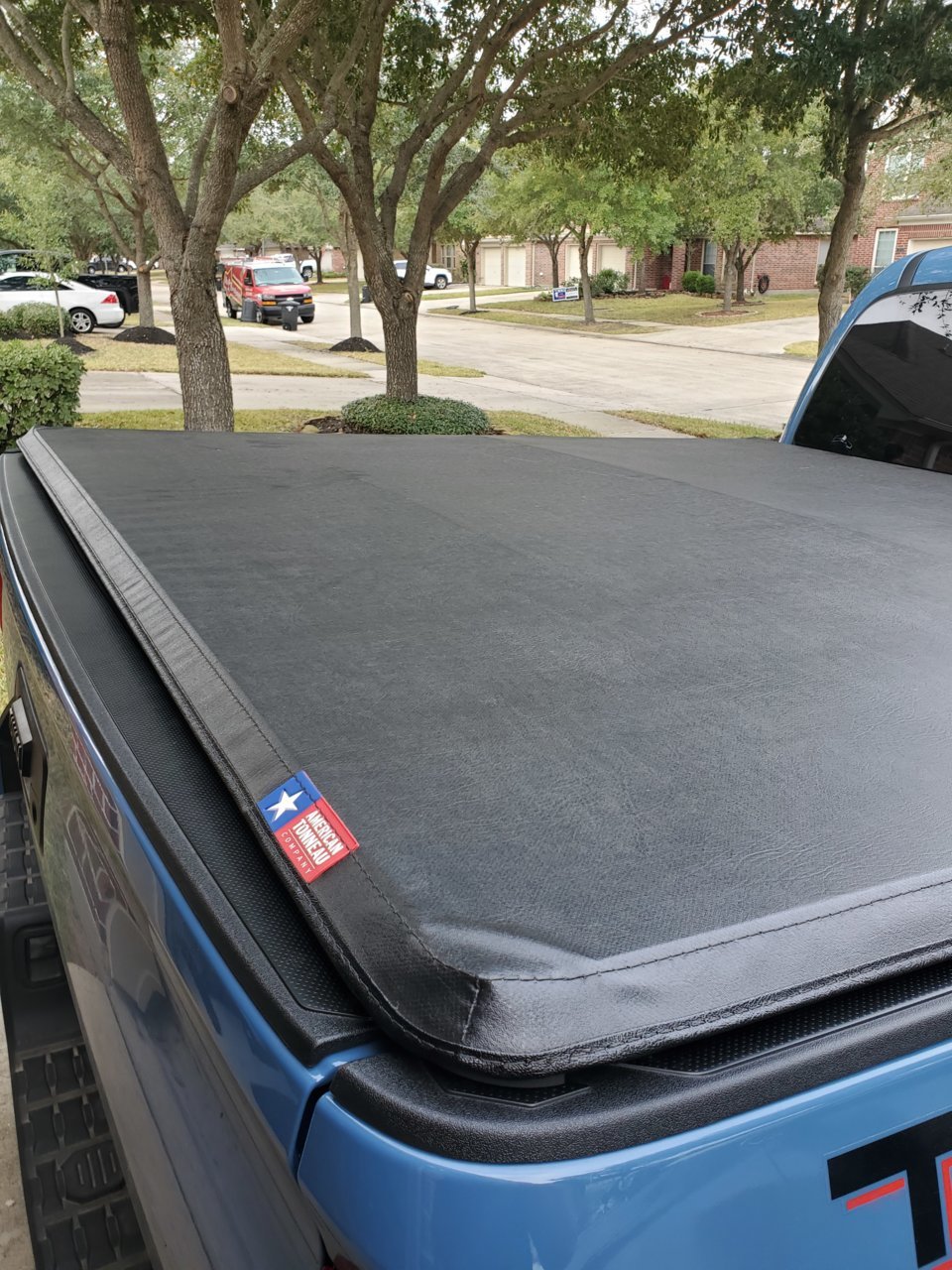

    I got a soft top American Tonneau Company.


  13. Jan 16, 2020 at 10:15 AM
    #13
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    3,802
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    Why use an external battery instead of using truck battery?

  14. Jan 16, 2020 at 10:23 AM
    #14
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    If I used the truck battery then I would need a wire that would have to be long enough to reach from the cover to where ever I drilled a hole in my bed and then go all the way to the battery. This way everything is on the cover and I can open and close it without having a wire in the way .

    Also this is a not permanent install on the cover and makes it portable. Everything is held onto the cover with 3m Velcro which allows me to take it on and off over and over. . I can take these lights off my truck cover and use them at camp to light up the cooking area.

    Skydvrr likes this.
  15. Jan 16, 2020 at 10:27 AM
    #15
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    Is there a hard metal or plastic surface you can adhere a velcro strip onto ? I can't tell from the photo. If so it can be installed.

    The light output might not be as good as the diamond back because due to the reflective aluminum on the back side the light just reflects and skaters throughout the entire bed.

  16. Jan 16, 2020 at 10:33 AM
    #16
    Khoadattran

    Khoadattran Well-Known Member

    Joined:
    Jul 7, 2019
    Member:
    #298519
    Messages:
    359
    Gender:
    Male
    First Name:
    Khoa

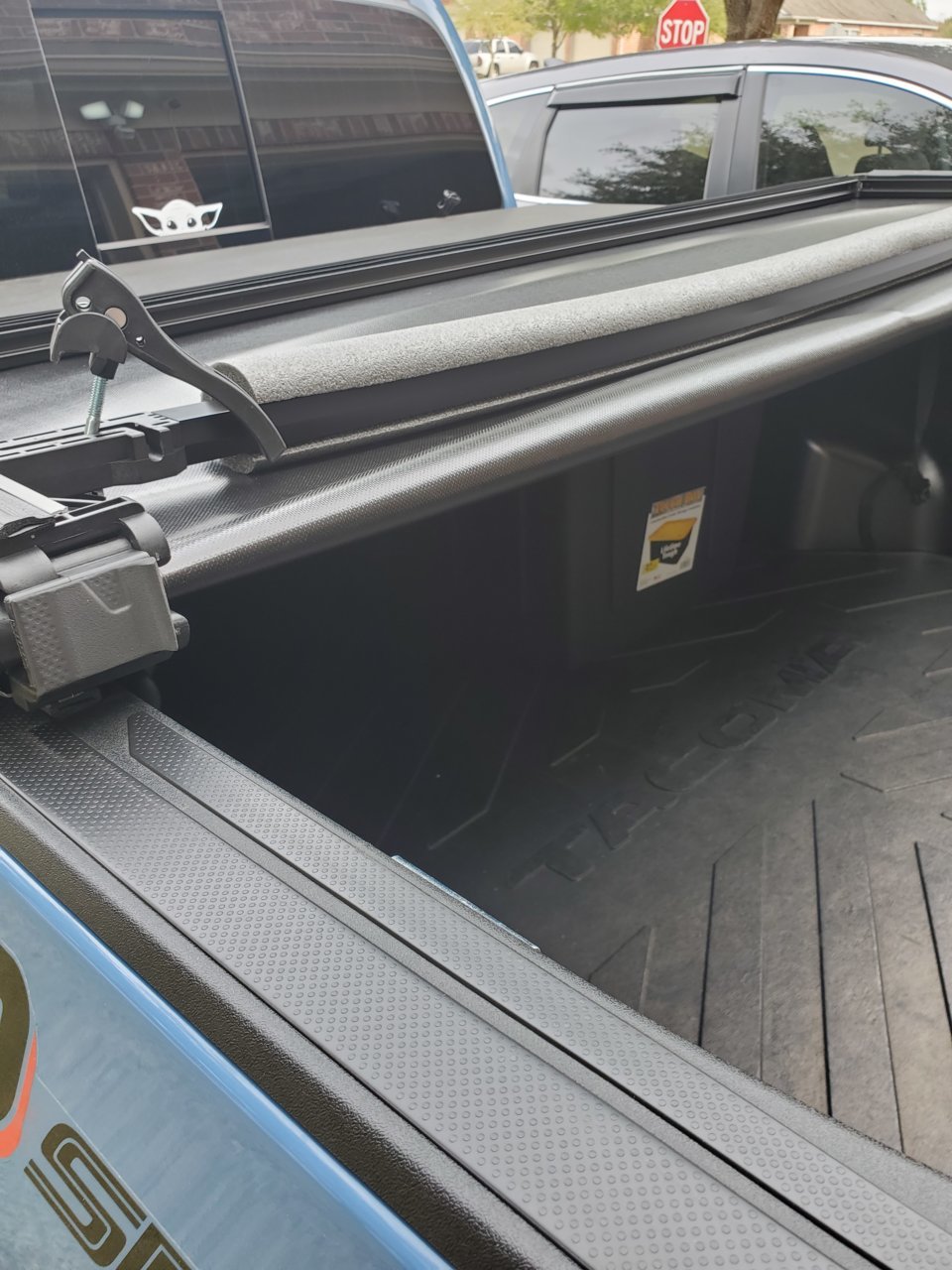

    There are metal support beams where the fold is when tri folded up. So a total of 2 metal support beams.

  17. Jan 16, 2020 at 10:40 AM
    #17
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    3,802
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    How do u charge it?

  18. Jan 16, 2020 at 10:44 AM
    #18
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    The lithium Ion battery comes with a charger.

    I take it off my cover and charge it at home and the next morning take it and put it back on the cover.

    With a 6000mah battery that gives you 5 hours of run time on the LED's before you reach about 20% charge which is when you should charge the battery.

    I don't use my bed lights in that manner though. When i'm coming home after a fishing trip or camping. I turn on the lights and unload everything out of the bed and turn it off which is no more than 5 to 10 minutes.

    In the past 6 months I've only had to charge the battery 3 times. 1 time was because I forgot to turn the light off.

  19. Jan 16, 2020 at 10:47 AM
    #19
    lowtaco

    lowtaco [OP] Well-Known Member

    Joined:
    May 28, 2014
    Member:
    #130801
    Messages:
    188
    Gender:
    Male
    That would work. the two KC cyclones and the battery would be held onto those pieces utilizing velcro strips.

    In the photo with the KC lights installed the member wanted to purchase the lights from me as well so It would be a simple plug ,velcro and play install.

  20. Jan 16, 2020 at 10:48 AM
    #20
    Papadeucer

    Papadeucer Well-Known Member

    Joined:
    Jul 24, 2019
    Member:
    #300167
    Messages:
    53
    Gender:
    Male
    First Name:
    Jack
    SoCal
    Vehicle:
    2019 Cement Tacoma Off-Road
    Curious as to why you want it lit up while closed.
