DIY: Gen 2 Illuminated 4wd switch

Discussion in 'Technical Chat' started by maverick491, Oct 31, 2007.

  1. Feb 6, 2017 at 8:53 PM
    #61
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,811
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I tried at the Hvac tap but essentially yes

  2. Feb 8, 2017 at 10:55 PM
    #62
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,811
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    In the end it was determined the switch is DOA in terms of lighting up. Returning it for replacement.

    For now I have the HVAC plugged back in with no 4x4 switch for now, but have it in case I need it. The problem I am seeing now is my whole HVAC unit is really dim now. Not as right as before I hacked it all up. When I was testing the Helux switch with a battery I did test the HVAC and it lit up super bright so I know the LEDs are still in tact. Any thought was would be shorting the HVAC of its power. Seems as though its not getting enough juice. The dimmer works but again its light.

  3. Dec 10, 2017 at 12:27 PM
    #63
    Michael_Westen

    Michael_Westen Well-Known Member

    Joined:
    Oct 15, 2017
    Member:
    #233048
    Messages:
    370
    Gender:
    Male
    NC
    Vehicle:
    2018 Tacoma Double Cab TRD Off Road Inferno
    I have a 2015 Tacoma TRD and would like to add the light mod to my 4wd switch but would like to know if the 4Runner 4wd switch 84724-35020 & terminal leads 82998-12420 will work and are the best if not only way to go? I saw a post about a LED board but they guys says they will only fit 2005 -2011.

  4. Dec 10, 2017 at 8:29 PM
    #64
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,811
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    4 runner is plug and play but a bit ugly. The Helux switch and ring a member makes looks 1000x better. No way to mod the existing switch.

  5. Dec 11, 2017 at 8:05 AM
    #65
    Michael_Westen

    Michael_Westen Well-Known Member

    Joined:
    Oct 15, 2017
    Member:
    #233048
    Messages:
    370
    Gender:
    Male
    NC
    Vehicle:
    2018 Tacoma Double Cab TRD Off Road Inferno
    Would this black out 4wd switch be able to be illuminated 84724-04030?

  6. Dec 11, 2017 at 8:14 AM
    #66
    Muffdiver

    Muffdiver Growing old is mandatory, growing up is optional

    Joined:
    Jun 16, 2015
    Member:
    #157550
    Messages:
    1,111
    Gender:
    Male
    First Name:
    Ty
    Elkhart, In
    Vehicle:
    2012 TRD OR DC 4x4
    Negative. You either have to use the 4Runner switch or the Hilux switch previously mentioned.

  7. Dec 18, 2018 at 8:06 AM
    #67
    DanvilleTrain

    DanvilleTrain Well-Known Member

    Joined:
    Oct 11, 2018
    Member:
    #269005
    Messages:
    77
    Gender:
    Male
    First Name:
    Edward LongMember
    Vehicle:
    2015 Tacoma
    I am getting ready to do this to my 2015 DCSB and was wondering why OP doesn't clearly say he used the lighted 4WD switch to replace the non lighted switch at the end. IOW, to make this mod make sense, we would have to cannibalize the lighted switch knob from the new 4 Runner switch and install it in the non lighted Tacoma switch receptacle after making the mods to the bulb housing and wiring. It's not clear from his OP if the original OEM knob is used or discarded. But it seems to make sense to me that the original knob is discarded and replaced with the 4 runner switch indicator.

  8. Dec 18, 2018 at 9:08 AM
    #68
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,897
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
    To anyone who wants to do this but doenst want to spend $60 on a switch for just the bulb go here and search for the following part #s from what i saw these are correct.

    https://parts.toyotaofdallas.com/


    82998-12420 youll need 2

    90010-01084 this is the bulb

  9. Dec 19, 2018 at 2:45 PM
    #69
    Muffdiver

    Muffdiver Growing old is mandatory, growing up is optional

    Joined:
    Jun 16, 2015
    Member:
    #157550
    Messages:
    1,111
    Gender:
    Male
    First Name:
    Ty
    Elkhart, In
    Vehicle:
    2012 TRD OR DC 4x4
    The original is discarded and replaced with the 4runner switch. I have the 4runner switch and some wire leads to do this, but i sold my truck before i was able to install. PM me your info and i'll mail them to you for free.

  10. Aug 2, 2019 at 8:43 PM
    #70
    DanvilleTrain

    DanvilleTrain Well-Known Member

    Joined:
    Oct 11, 2018
    Member:
    #269005
    Messages:
    77
    Gender:
    Male
    First Name:
    Edward LongMember
    Vehicle:
    2015 Tacoma
    >>4 runner is plug and play but a bit ugly.

    I successfully installed the 4 Runner switch in my USA 2015 DCSB today. It was plug and play. No mods were required to change from the OEM Tacoma non lighted switch to the 4 Runner lighted switch. The 4 Runner Switch just snapped into place perfectly. I did add the two wires to the OEM Tacoma 4WD switch harness (OEM on mine had 3 wires, after adding the two illum wires the connector was filled with 5 wires which is max) for the illumination power but was unable to find out which HVAC wires I was supposed to tap into. I would appreciate someone updating this thread with the correct power tap wires from the 2015 Tacoma HVAC switch to identify which of those wires provide the power to the 4 runner bulb.

    [​IMG]

    Last edited: Aug 3, 2019
    TheDevilYouLove likes this.
  11. Aug 6, 2019 at 9:06 AM
    #71
    DanvilleTrain

    DanvilleTrain Well-Known Member

    Joined:
    Oct 11, 2018
    Member:
    #269005
    Messages:
    77
    Gender:
    Male
    First Name:
    Edward LongMember
    Vehicle:
    2015 Tacoma
  12. Jan 9, 2020 at 12:31 AM
    #72
    aktaco12

    aktaco12 Well-Known Member

    Joined:
    Oct 19, 2019
    Member:
    #308434
    Messages:
    97
    Gender:
    Male
    AK
    Vehicle:
    2012 4x4 DCLB TRD Sport

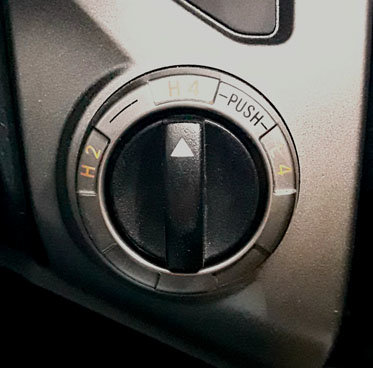

    Nice straight forward mod but looks much better with the black taco knob.

    4wd switch.jpg

    Last edited: Jan 11, 2020
    jkuniverse and TheDevilYouLove like this.
  13. Jan 12, 2020 at 8:12 AM
    #73
    TheDevilYouLove

    TheDevilYouLove You can’t polish a turd, but you can polish a TRD

    Joined:
    May 26, 2016
    Member:
    #187953
    Messages:
    2,432
    Gender:
    Male
    First Name:
    Steve
    Marylandistan
    Vehicle:
    2010 Tacoma TRD Sport Access cab 4x4 silver streak
    is there a write up on I stalling that switch? Is it plug and play on a 2010?

  14. Jan 12, 2020 at 6:32 PM
    #74
    aktaco12

    aktaco12 Well-Known Member

    Joined:
    Oct 19, 2019
    Member:
    #308434
    Messages:
    97
    Gender:
    Male
    AK
    Vehicle:
    2012 4x4 DCLB TRD Sport
    No. Only 2011.2-2015 can use the 4Runner plug&play, but still have to add wires for the light.

    If you want to use the 4Runner switch on a pre 2011.2, see post #21.

    To illuminate your stock switch, go back to post #1 or buy a DIY kit HERE.

    Last edited: Apr 16, 2020
  15. Mar 31, 2020 at 4:40 PM
    #75
    97duc748

    97duc748 Well-Known Member

    Joined:
    Sep 1, 2014
    Member:
    #137386
    Messages:
    152
    Gender:
    Male
    Vehicle:
    07 Tacoma
    Snugtop, lift, Prinsu Rack and lead foot.
    DIY kit link did not work. I would like to do this on a 2007. I have already tapped the LED light section for 5 other switches. What year 4R switches can be cannibalized? What LED part numbers can be used in the new housing? Is there room in the stock plug to add two additional leads for a plug in?

  16. Apr 17, 2020 at 2:37 AM
    #76
    aktaco12

    aktaco12 Well-Known Member

    Joined:
    Oct 19, 2019
    Member:
    #308434
    Messages:
    97
    Gender:
    Male
    AK
    Vehicle:
    2012 4x4 DCLB TRD Sport
    Last edited: Apr 17, 2020
  17. Nov 10, 2020 at 4:19 PM
    #77
    massaker

    massaker New Member

    Joined:
    Apr 11, 2019
    Member:
    #289838
    Messages:
    1
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2015 Silver Sky Tacoma TRD
    Did you ever figure this out? Mine is dim also after the mod.
    The problem I am seeing now is my whole HVAC unit is really dim now. Not as right as before I hacked it all up. When I was testing the Helux switch with a battery I did test the HVAC and it lit up super bright so I know the LEDs are still in tact. Any thought was would be shorting the HVAC of its power. Seems as though its not getting enough juice. The dimmer works but again its light.
