DIY MTB "rack"

Discussion in '1st Gen. Tacomas (1995-2004)' started by gonathan85, Mar 22, 2010.

  1. Mar 22, 2010 at 10:36 AM
    #1
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma
    In order to avoid paying unnecessary a**loads of money for an aftermarket truck bed bike rack, I decided to make my own :).

    The Yakima keyed mounts were roughly $30 each, and the wood/hardware from Home Depot came out to ~$25.

    My original idea was to pull the plastic liner out, and screw the yakima fork mounts to the actual bed of the truck. Being a person who isn't keen on making extra holes in his aged beast, I decided to go a different route.

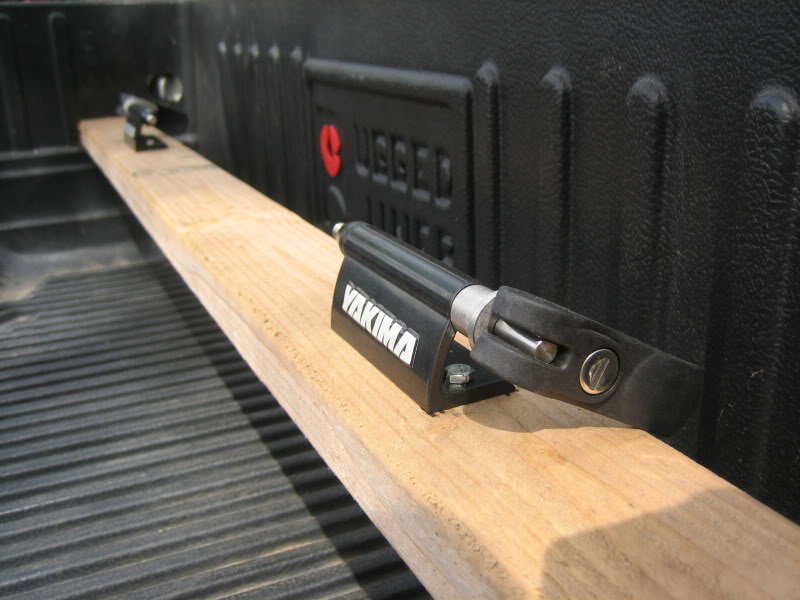

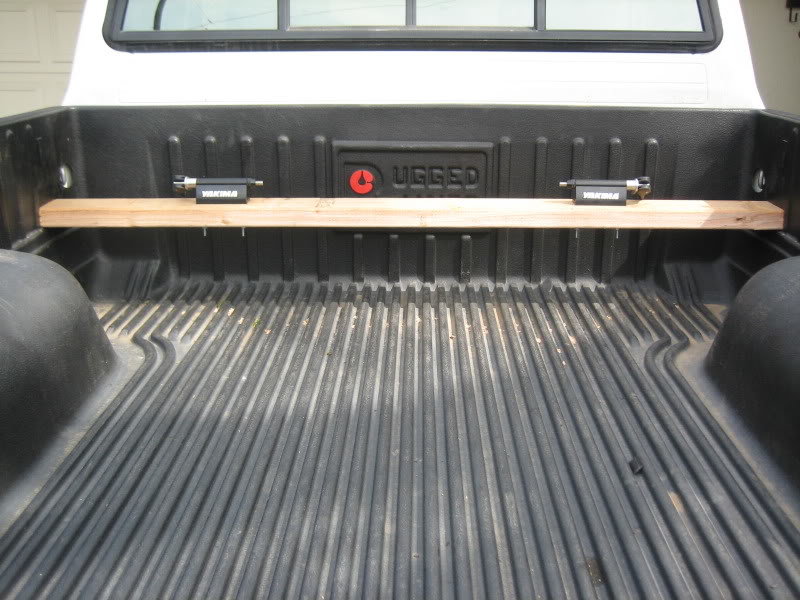

    I ended up removing the plastic liner, and building the simple 2x4 based design inside. I used lag screw shields, rubber/stainless washers, and lag screws to secure it to the bed. This allows for easy removal, and also a secure mount.

    Any suggestions for a simple weatherproofing of the 2x4? I thought about simply painting it black to seal the wood? Future design will be made out of aluminum, or include the integration of a "mini" toolbox.

    Pics:

    [​IMG]

    [​IMG]

    [​IMG]

    -nate

  2. Mar 22, 2010 at 10:41 AM
    #2
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma

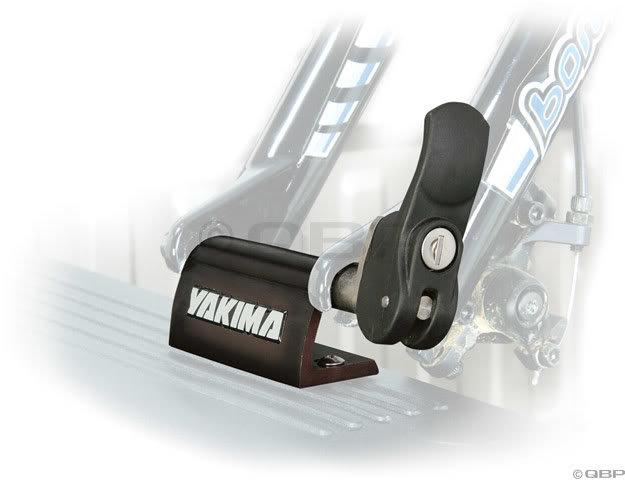

    This is how the unit works. Both of my bikes have quick release wheels. A simple removal of the front wheel, and the forks are placed on the blockhead, thus locking them in.

    [​IMG]

  3. Mar 22, 2010 at 11:01 AM
    #3
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,911
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 240k miles
    '95-'97 camouflaged, ARB bull bar, RAT Products skid plate kit, sliders, Green Mountain Customs rear tube bumper and overland bed rack, King coilovers with Icon neoprene covers, defenestrated sway bar, OME Rear Suspension: CS046R leafs + AAL/5125 shocks/NWOR greasable hardware/U-bolt flip kit; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor, Superwinch S9000 with 12V Guy clock switch, 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions, Duratrac tires, Sockmonkey bedside decals, boat cupholder, Dakine bike pad
    Nice idea. Simple and effective.
    Like the design, may have to do it myself...

  4. Mar 22, 2010 at 11:07 AM
    #4
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma
    Thanks much! I'll trade my bike rack expertise for you and your buddies rear bumper skills? =)

    Just checked out your truck...nice rig!

  5. Mar 22, 2010 at 11:11 AM
    #5
    doubletaco

    doubletaco Well-Known Member

    Joined:
    May 3, 2009
    Member:
    #16753
    Messages:
    627
    Gender:
    Male
    DFW
    Vehicle:
    16 Quicksand TRD O/R 4x4
    TRD FJ Wheels, LED Fog lights
    I made a real simple one from 2 inch angle welded to the tie down hooks.

    Bike rack.jpg

  6. Mar 22, 2010 at 11:22 AM
    #6
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma
    Nice setup! I thought about mounting off of the tie down hooks, but wanted to be able to use them in addition to the bike mounts.

    I'll probably do something like your setup next time. I'm going camping in Big Sur, CA this coming weekend, and wanted a quick setup.

  7. Mar 22, 2010 at 11:43 AM
    #7
    doubletaco

    doubletaco Well-Known Member

    Joined:
    May 3, 2009
    Member:
    #16753
    Messages:
    627
    Gender:
    Male
    DFW
    Vehicle:
    16 Quicksand TRD O/R 4x4
    TRD FJ Wheels, LED Fog lights
    You can still use the tie down hooks. I sold that truck but still have the rack with mounts never got around to selling it, but it's for a 01 to 04 double cab won't fit reg or extend cab.

  8. Mar 22, 2010 at 8:24 PM
    #8
    da0023

    da0023 The One, The Only

    Joined:
    Apr 28, 2009
    Member:
    #16547
    Messages:
    414
    Gender:
    Male
    First Name:
    Drew
    Alabama
    Vehicle:
    99 PreRunner SR5
    none
    to OP....use some thompsons water seal to keep your 2x4 waterproof. i am wanting to do a similar setup, but the problem is I have a toolbox and I definetly do not want to but holes in my toolbox just to mount the fork clamps. any ideas?

  9. Mar 22, 2010 at 9:16 PM
    #9
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma
    thanks for the recommendations. i'll have to check out the product next time i make it to a hardware store.

    if it were me, i'd just drill into the side of the toolbox, and mount the clamps there. of course i'd have to make it sealed with either a rubber gasket or silicone...etc...but you mentioned you don't want to mess with the box.

    not sure how i'd do it with a box.

  10. Mar 31, 2010 at 2:48 AM
    #10
    Werloc

    Werloc Large Member

    Joined:
    May 25, 2009
    Member:
    #17604
    Messages:
    540
    Gender:
    Male
    First Name:
    Bob
    Central, NJ
    Vehicle:
    2003 Double Cab 4X4 TRD 3.4 V6
    Exactly how I had mine mounted. Now I have a newer truck, so I need to mod it a little to work....;)

  11. Mar 31, 2010 at 9:03 AM
    #11
    shift96

    shift96 Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33153
    Messages:
    465
    Gender:
    Male
    I Used to do that but I know have an AM Bike with a 25mm thru axle and Dual crown fork so taking the wheel off and on isn't a quick task. I just tie it down AKA motorcycle style and that's it. Still need to make a small chock to hold the wheel from moving. No biggie

    If you really want to go hog wild check this out. I contemplating doing this last year but the tie downs work fine

    http://www.utahmountainbiking.com/goodies/TruckbedBikeRack.htm

  12. Mar 31, 2010 at 10:12 AM
    #12
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma
    That's a neat setup, Shift. I'd consider doing something like this if I had bike that were a pain to tear down, and trail ready.

    Werloc...right on man.

    Well....I arrived home last night from our trip to Big Sur. I'm going to make a separate thread here in a bit.

  13. Apr 3, 2010 at 3:09 PM
    #13
    shift96

    shift96 Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33153
    Messages:
    465
    Gender:
    Male

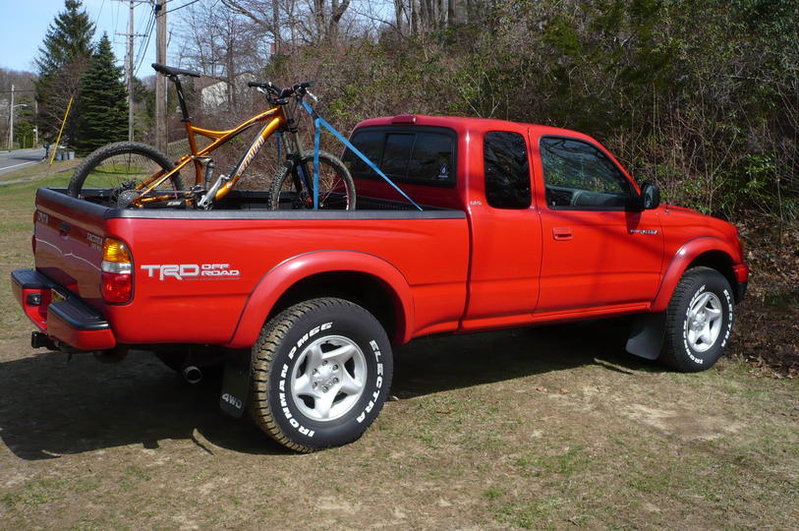

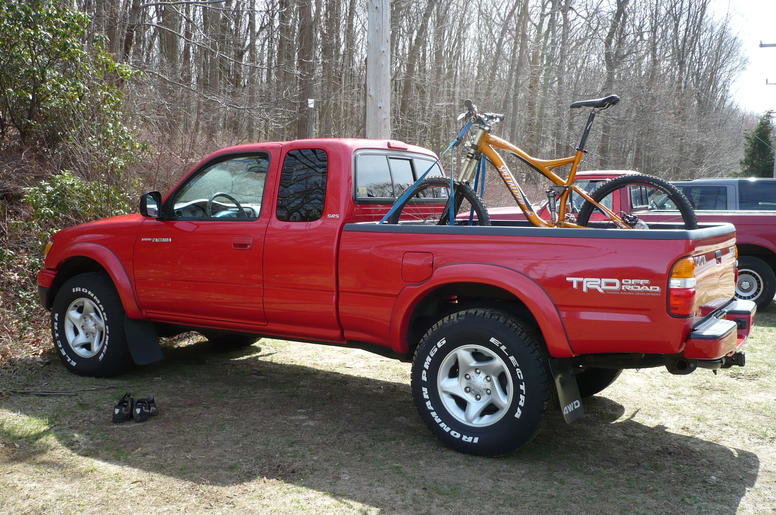

    Here's my setup. Old school baby:D works great and simple.

    mtb 001.jpg
    mtb 002.jpg
    mtb 003.jpg

  14. Apr 5, 2010 at 11:14 AM
    #14
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma

    This is how I used to have the truck set up. I changed to the mounts and 2x4 recently.

  15. Apr 5, 2010 at 11:15 AM
    #15
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma
  16. Apr 5, 2010 at 11:56 AM
    #16
    ETaco23

    ETaco23 Marshall offroad Fabrication

    Joined:
    Feb 2, 2008
    Member:
    #4544
    Messages:
    5,332
    Gender:
    Male
    First Name:
    Evan
    PNW
    Vehicle:
    13' Pyrite Mica TRD Offroad DCSB 4x4
    Color Match Grille, Bed mat, Icon's with JBA UCA's, Dakars and 295 BFG KO2, Bora 1" spacers, Snugtop Canopy, and my "Marshall Fabrication" Rock Sliders.
    Nice setup! I was ganna do something similar also, but I have a tool box so I just screwed it down to my box and weather sealed it with a foam gasket and silicone. Works perfectly!!!

    Dont have a real close good pic of it, but you can see them in this one..

    [​IMG]

  17. Apr 5, 2010 at 2:14 PM
    #17
    gonathan85

    gonathan85 [OP] Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27220
    Messages:
    458
    Gender:
    Male
    First Name:
    Nate
    Central California
    Vehicle:
    '13 4x4 SR5 V6 Tacoma

    Shoot...if I had a box...this is EXACTLY how I would do it. Well done.

    PS: sell me your mud flaps and fender flares! :D

  18. Aug 16, 2010 at 2:53 PM
    #18
    wht09taco

    wht09taco Well-Known Member

    Joined:
    Oct 13, 2009
    Member:
    #24243
    Messages:
    100
    Gender:
    Male
    First Name:
    James
    Northern NY
    Vehicle:
    White 09 v6 4x4 sport
