DIY pressurized water tank update

Discussion in '3rd Gen. Tacomas (2016+)' started by daohaus, Jul 21, 2017.

  1. Jul 21, 2017 at 10:32 AM
    #1
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    Last weekend I set about to make my own pressurized water tank using 4" ABS pipe. Although I was happy with it I wasn't completely satisfied with the outcome, in particular the fill port was bothering me in that it didn't seem to have a solid connection and worried that over time I would develop air leaks.

    So back to Lowe's and I picked up a "T" fitting with a 2" threaded neck. I felt that this connection would be more secure and provide more of a solid air tight fit. Plus it looks a heck of a lot better than version 1.0.

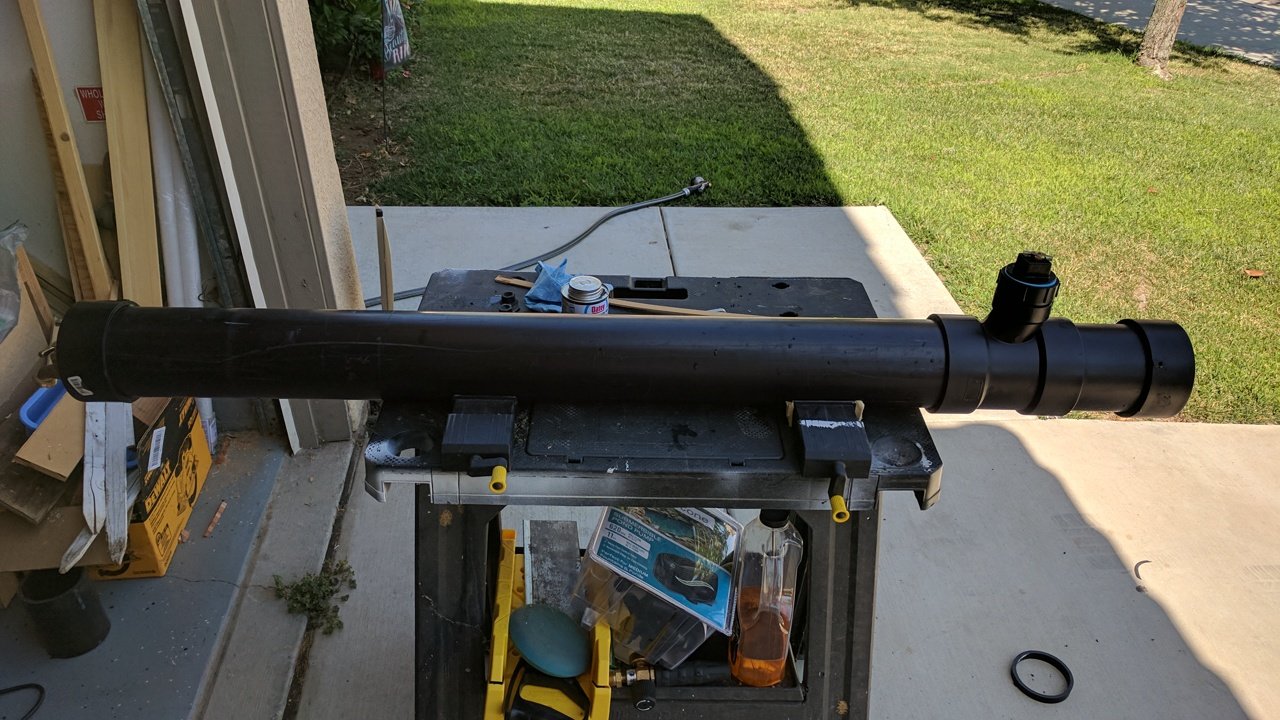

    Here is the fill port on the first iteration:
    And here is version 2.0 fill port:
    Now I'll let it set for a bit, I ordered some bed rail brackets from @Zac of all trades and some T nuts from Amazon as well as some quick fist and this will be perfect for excursions or a quick wash down after a noon bike ride at work.

    For those wondering this holds close to 3 gallons based on the calculator I found online.

    Here's the test, pumped up to 50 PSI I get a nice stream of water, now just have to setup the compressor to deliver constant 50 PSI and I'll be set.


    Last edited: Jul 21, 2017
  2. Jul 21, 2017 at 10:36 AM
    #2
    Bentrodder

    Bentrodder PeeRunner Fanboy

    Joined:
    Oct 11, 2014
    Member:
    #140142
    Messages:
    6,148
    Gender:
    Male
    First Name:
    Peter
    Cotati, CA.
    Vehicle:
    2015 DCLBFTMFW TRD Sport
    Kings and a TW DECAL!!!
    I need to do something like this.

    ChadsPride and scottalot like this.
  3. Jul 21, 2017 at 10:36 AM
    #3
    scottalot

    scottalot X

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    111,977
    First Name:
    Stockalot
    The Right Coast
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    Are you adding water and then pressurizing it with air?

    toofast4u752 and ChadsPride like this.
  4. Jul 21, 2017 at 10:37 AM
    #4
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    Yup, fool with water then pressurize, I have a Schrader valve so a bike pump or compressor should provide enough pressure to get the water flowing

    ChadsPride and scottalot like this.
  5. Jul 21, 2017 at 10:39 AM
    #5
    scottalot

    scottalot X

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    111,977
    First Name:
    Stockalot
    The Right Coast
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    Looks like a winner - then maybe just add a shutoff vale or something and a hose - valve keeps it sealed until use and lets you adjust flow GPA when in use :thumbsup:

    I bet that water comes out hot AF once its been in the sun for a while haha - may need a separate tube that's white and a mixing valve :laugh:

  6. Jul 21, 2017 at 10:44 AM
    #6
    OffCamber00

    OffCamber00 Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211418
    Messages:
    101
    First Name:
    mat
    Charlotte
    Vehicle:
    2017 Super White SR5 DCSB
    What kind of pressures are you using? Schedule 40 PVC is not rated for pressure. I'm sure it's fine at low pressures just to get the water to flow.

  7. Jul 21, 2017 at 10:45 AM
    #7
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    I have a house bib attached and a pressure relief valve on to of the fill cap, yeah it will definitely get hot AF lol, I like your idea of a mixing tank lol now I'm getting really involved

    ChadsPride and scottalot like this.
  8. Jul 21, 2017 at 10:45 AM
    #8
    scottalot

    scottalot X

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    111,977
    First Name:
    Stockalot
    The Right Coast
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    I'd hope he's keeping it pretty low with that in mind :popcorn:

    daohaus [OP] and ChadsPride like this.
  9. Jul 21, 2017 at 10:45 AM
    #9
    scottalot

    scottalot X

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    111,977
    First Name:
    Stockalot
    The Right Coast
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    One white pipe, one black :laugh:

    jmaack, daohaus [OP] and ChadsPride like this.
  10. Jul 21, 2017 at 10:46 AM
    #10
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    Yeah sched 40 but I'm only running at most 40 psi nothing crazy

    scottalot likes this.
  11. Jul 21, 2017 at 10:46 AM
    #11
    OffCamber00

    OffCamber00 Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211418
    Messages:
    101
    First Name:
    mat
    Charlotte
    Vehicle:
    2017 Super White SR5 DCSB
    Word.

    daohaus [OP] and scottalot like this.
  12. Jul 21, 2017 at 10:56 AM
    #12
    Glenn_R

    Glenn_R The Unicorn Turd Gen

    Joined:
    Nov 8, 2016
    Member:
    #201874
    Messages:
    997
    Gender:
    Male
    First Name:
    Glenn
    Vehicle:
    17 Tacoma DCSB OR Inferno
    ABS and PVC schedule 40 have pressure ratings and are derated by ambient temperature and some other factors. Both are going to further weaken from exposer to the sun. As long as you use a pressure relief valve and not go crazy, <65PSI you should be fine. The materials the author is using is ABS I believe by the looks and the OP. PVC has the higher rating but is hard to find in black or dark colors at a reasonable price. Great job OP, I want to do this with 8" pipe so I can have larger capacity. How much of your capacity are you leaving for air when you fill the pipe?

    scottalot and daohaus [OP] like this.
  13. Jul 21, 2017 at 11:07 AM
    #13
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    Yup using ABS running below 40 PSI. I consulted the engineering toolbox to look up some of that info

    As for room to fill with air I'm going to play around with that. Maybe fill 2.5 gallon and the rest air. I'll play around with it.

    Man an 8" pipe would probably be good to have sit vertically in the corner of the bed since you don't need much length, is that what you were planning on doing?

    scottalot likes this.
  14. Jul 21, 2017 at 11:16 AM
    #14
    mwc273

    mwc273 Earning my EAF sticker, one mod at a time.

    Joined:
    May 10, 2013
    Member:
    #103900
    Messages:
    8,433
    Gender:
    Male
    First Name:
    Matt
    Cincinnati-ish
    Vehicle:
    '13 TRD DCLB 4x4 (Trail-Limo)
    dents an' scratches an' stuff
    I just use this to clean out my radiator...

    [​IMG]

    9TRDTCO and daohaus [OP] like this.
  15. Jul 21, 2017 at 11:18 AM
    #15
    Glenn_R

    Glenn_R The Unicorn Turd Gen

    Joined:
    Nov 8, 2016
    Member:
    #201874
    Messages:
    997
    Gender:
    Male
    First Name:
    Glenn
    Vehicle:
    17 Tacoma DCSB OR Inferno
    I will mount it on my rack at 5' of schedule 40 PVC would have about 10 gallons and 3 gallons of air. This should be plenty to serve my hot water needs for 1 week and would need 1 65PSI charge to empty.

    daohaus [OP] likes this.
  16. Jul 21, 2017 at 11:32 AM
    #16
    Qwack

    Qwack Well-Known Member

    Joined:
    Oct 14, 2015
    Member:
    #166696
    Messages:
    342
    Gender:
    Male
    Oahu
    Vehicle:
    2016 TRD Sport 4x4 2017 4Runner
    good idea. i was thinking along the same lines. except i thought wouldn't it be great
    if you had some 4'' dia nerf bars, one filled with water and other filled with air?
    would come in handy and would be dual purpose.

    daohaus [OP] likes this.
  17. Jul 21, 2017 at 12:49 PM
    #17
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    Edited original post with video

  18. Sep 12, 2017 at 9:07 AM
    #18
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    2,081
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR Taco
    Some stickers, plastidip and radio knobs
    Great idea that I want to copy from you. Lol. Would you happen to have a photo of it installed in your truck?

  19. Sep 12, 2017 at 9:34 AM
    #19
    daohaus

    daohaus [OP] Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    Bastek likes this.
  20. Sep 12, 2017 at 9:35 AM
    #20
    Sagebrush

    Sagebrush Well-Known Member

    Joined:
    Apr 2, 2016
    Member:
    #183141
    Messages:
    419
    Gender:
    Male
    Vehicle:
    2016 Silver Double Cab Tacoma OR
    Stock plus a topper
    I applaud your project. If I had a bed rack, I'd build one.

    Here's my solar-powered shower. It's just a metal weed sprayer with a 5' piece of 3/8" hose and brass fittings for the nozzle. Works well.
