DIY Video - Front Camera Install and Demo

Discussion in '3rd Gen. Tacomas (2016+)' started by iampraneel, May 7, 2019.

  1. May 14, 2019 at 6:57 AM
    #41
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    2,963
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2018 TRD Off-Road Access Cab 6 speed manual
    KC-HiLites Fog Lamps, Kicker speaker and tweeter upgrade, USB in center console, Power tailgate lock, Soundproofing
    To follow up on my message above (post #16 of this thread), attached are a few photos confirming the setup works with a 6MT. All and all I'm happy right now, but may move the camera if I have long term issues with the FOV (field of view) as detailed below.

    [​IMG]

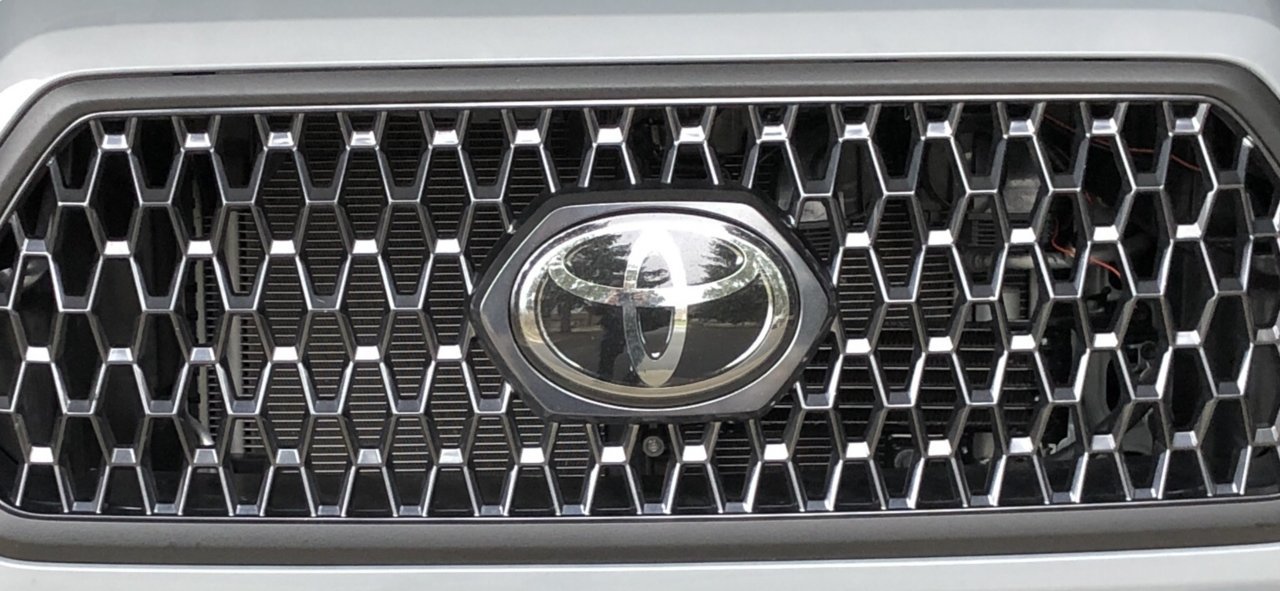

    Location of the camera just below the TSS and behind the grill. I wanted a stealth look as much as possible without damaging the grill.

    [​IMG]

    I took an old pry tool (orange piece), cut it, and used JB weld to fix it to the grill so that the camera sits slightly behind the grill. This has FOV implications as shown in the next picture. I will tap it in with a small screw for added security once I've tested the FOV for awhile.

    [​IMG]

    FOV from the front camera. You can see the view is blocked on the sides and bottom.

    [​IMG]

    Regular view from the back camera.

    Last edited: May 14, 2019
    Tacospike and MrBrooks like this.
  2. May 14, 2019 at 7:08 AM
    #42
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,757
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    It helps when parking against something, for lining up a front receiver hitch (if you use one), and as a front view when all you can see is your hood and sky when cresting a steep hill while offroading.

    You could also use it to see where you’re driving if you have to duck from bullets while driving the getaway car, while trying to hide from your significant other, and to freak out people into thinking your Taco is actually a self driving truck!:bananadance:

    Last edited: May 14, 2019
    Tocamo and itzWicks like this.
  3. May 14, 2019 at 3:30 PM
    #43
    harley100

    harley100 Well-Known Member

    Joined:
    Dec 4, 2015
    Member:
    #171424
    Messages:
    150
    Gender:
    Male
    First Name:
    Phil
    Colorado
    Vehicle:
    2016 tacoma off road dbl cab short bed white
    too many mods to count
    You don't have to run the red wire all the way to the radio unit. there is a small red wire intagrated into the AV cable. Use that wire to power the camera. Splice the red from the AV cable at the camera end into the red wire to the camera.

  4. May 14, 2019 at 4:27 PM
    #44
    Giggity Reid

    Giggity Reid Well-Known Member

    Joined:
    May 8, 2019
    Member:
    #292678
    Messages:
    156
    Gender:
    Male
    First Name:
    Tony
    Mauldin SC
    Vehicle:
    2019 Tacoma TRD Sport MGM
    MrBrooks and itzWicks like this.
  5. May 14, 2019 at 7:15 PM
    #45
    Tocamo

    Tocamo Not to be confused with Camel Toe

    Joined:
    Jan 16, 2018
    Member:
    #241451
    Messages:
    2,483
    Gender:
    Male
    First Name:
    Rick
    Ottawa, Ontario. Capital of Canada
    Vehicle:
    2017 OFF-ROAD DCSB Quicksand
    C load 265/75/16 Duratracs.
  6. May 15, 2019 at 3:09 AM
    #46
    HiProofProducts

    HiProofProducts Well-Known Member

    Joined:
    Mar 28, 2019
    Member:
    #288305
    Messages:
    193
    Gender:
    Male
    First Name:
    Mike
    NE Ohio
    Vehicle:
    2017 Tacoma TRD Sport

    Thanks for showing how you mounted the camera. I finally ordered one of these packages from Amazon myself and looking forward to installing it. In the summer I pull a boat and have always had problems seeing over the front of the hood when parking so this will work double duty for me. Gotta love this site for sharing of ideas

    iampraneel [OP] and MrBrooks like this.
  7. May 15, 2019 at 6:50 PM
    #47
    iampraneel

    iampraneel [OP] Well-Known Member

    Joined:
    Jan 6, 2019
    Member:
    #278405
    Messages:
    106
    Gender:
    Male
    Thanks all for the great feedback and support. Also, thank you to all that have subscribed to my YouTube channel. Check out my instagram.

    instagram.com/prosumer_garage

    There is a teaser on an upcoming video.




  8. May 24, 2019 at 9:29 AM
    #48
    protacodan

    protacodan Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232200
    Messages:
    590
    Gender:
    Male
    GILROY Ca.
    Vehicle:
    2017 Tacoma TRD PRO
    285/75/16 KM3’s. Cali Raised rock sliders Revtek 427AP lift kit Victory 4x4 Strike bumpers Warn VR8S winch
    Have camera mounted, wire through fire wall, getting ready to pull head unit dose the head unit have the red trigger wire? How about the white wires on the harness do we use these? Any help is great! Thanks

  9. May 24, 2019 at 9:33 AM
    #49
    Thatnoobguy

    Thatnoobguy Well-Known Member

    Joined:
    Aug 31, 2017
    Member:
    #228634
    Messages:
    491
    Gender:
    Male
    Somewhere
    Vehicle:
    2020 Tacoma trd off road
    . For later

  10. May 30, 2019 at 5:44 PM
    #50
    iampraneel

    iampraneel [OP] Well-Known Member

    Joined:
    Jan 6, 2019
    Member:
    #278405
    Messages:
    106
    Gender:
    Male
    Not sure what you mean.

  11. May 30, 2019 at 6:39 PM
    #51
    protacodan

    protacodan Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232200
    Messages:
    590
    Gender:
    Male
    GILROY Ca.
    Vehicle:
    2017 Tacoma TRD PRO
    285/75/16 KM3’s. Cali Raised rock sliders Revtek 427AP lift kit Victory 4x4 Strike bumpers Warn VR8S winch
    It’s all good I figured it out thanks anyway Happy Trails

    iampraneel [OP] likes this.
  12. May 31, 2019 at 3:41 PM
    #52
    iampraneel

    iampraneel [OP] Well-Known Member

    Joined:
    Jan 6, 2019
    Member:
    #278405
    Messages:
    106
    Gender:
    Male
    You are welcome.

  13. Jun 8, 2019 at 11:28 PM
    #53
    iampraneel

    iampraneel [OP] Well-Known Member

    Joined:
    Jan 6, 2019
    Member:
    #278405
    Messages:
    106
    Gender:
    Male
    How is everybody’s front camera solution doing? Anyone having any issues?

  14. Jun 9, 2019 at 9:27 AM
    #54
    protacodan

    protacodan Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232200
    Messages:
    590
    Gender:
    Male
    GILROY Ca.
    Vehicle:
    2017 Tacoma TRD PRO
    285/75/16 KM3’s. Cali Raised rock sliders Revtek 427AP lift kit Victory 4x4 Strike bumpers Warn VR8S winch
    Only one problem, front camera stutters every now and then or refuses to turn on then somehow seems to heal. Maybe it’s my install or the camera it’s self because the rear works perfect. Happy trails.

  15. Jul 16, 2019 at 11:03 PM
    #55
    Rjwz28

    Rjwz28 Well-Known Member

    Joined:
    May 6, 2019
    Member:
    #292494
    Messages:
    100
    Gender:
    Male
    First Name:
    Rob
    Big Island of Hawai’i
    Vehicle:
    2019 TRD sport
    Mostly stock. Icon wheels, running boards, sounds, custom grill, front camera.
    Hi. I want to install this in my truck but Amazon and Car Solutions don’t have the RFCC TTG2 kit in stock. Is there any place else that sells these? None on Ebay either.

    Thanks,
    Rob

    Last edited: Jul 17, 2019
  16. Jul 18, 2019 at 6:01 PM
    #56
    iampraneel

    iampraneel [OP] Well-Known Member

    Joined:
    Jan 6, 2019
    Member:
    #278405
    Messages:
    106
    Gender:
    Male
  17. Jul 18, 2019 at 6:27 PM
    #57
    Rjwz28

    Rjwz28 Well-Known Member

    Joined:
    May 6, 2019
    Member:
    #292494
    Messages:
    100
    Gender:
    Male
    First Name:
    Rob
    Big Island of Hawai’i
    Vehicle:
    2019 TRD sport
    Mostly stock. Icon wheels, running boards, sounds, custom grill, front camera.
    Like I said in my post. They are also out.
    Thanks.

  18. Jul 19, 2019 at 5:55 AM
    #58
    dTor

    dTor Well-Known Member

    Joined:
    Jul 3, 2019
    Member:
    #298243
    Messages:
    78
    Gender:
    Male
    Sub'd, as wifey wants me to install a front camera.

  19. Aug 1, 2019 at 1:48 PM
    #59
    Rjwz28

    Rjwz28 Well-Known Member

    Joined:
    May 6, 2019
    Member:
    #292494
    Messages:
    100
    Gender:
    Male
    First Name:
    Rob
    Big Island of Hawai’i
    Vehicle:
    2019 TRD sport
    Mostly stock. Icon wheels, running boards, sounds, custom grill, front camera.
    Amazon and Car Solutions now have them. Ordered mine from Amazon but it will take like a month to get here.

  20. Aug 1, 2019 at 10:59 PM
    #60
    iampraneel

    iampraneel [OP] Well-Known Member

    Joined:
    Jan 6, 2019
    Member:
    #278405
    Messages:
    106
    Gender:
    Male
    Thanks. Here are the links. Get it before it sells out.

    Car Solutions Camera Control Switch System for Toyota Touch 2 - https://amzn.to/2Y7P5GC

    NATIKA Backup/Front View Camera - https://amzn.to/2XXX9OO

    Here are some other camera options.

    Chicken wire type grille:
    TOPTIERPRO Upgraded Mini Backup Camera: https://amzn.to/2yxKCm6
