Drive train rebuild questions

Discussion in '1st Gen. Tacomas (1995-2004)' started by Abeyancer, Apr 17, 2019.

  1. Apr 17, 2019 at 9:04 AM
    #1
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    Hello everybody!

    This is my first post but I've been a creepier and have read this forum and used it as a search tool for ages. This'll be a long post cause I'm a notorious data dumper/talking rambler so bare with me..

    Back story: I bought a 98 2.7l 4x4 manual 4runner with 219k for 200 bucks (cause it wouldn't start) and figured out the previous owner screwed up doing a head gasket job when it was really a cracked head. Pulled the motor and over the course of a year did a full fresh rebuild on the motor (I can get into those details later if you guys really want to know) but in the time it took me to do that the motor work , tweakers smashed the back window and stole a bunch of engine attachments from the back of the runner to scrap for drug money probably... intake manifold, wiring harness, alternator you know crap like that. So instead of paying all that money just to get the runner back to stock I decided to buy a similar tacoma to drop the freshened motor into. Much searching and gnashing of teeth I've finally procured a 98 2.7l 4x4 manual ext cab tacoma with 229k on it, got a great deal cause the truck needs a clutch and cyl 1 has horrible compression.

    The truck owner told me that the guy he bought it from but in a used tranny a couple years ago and when I inspected everything in the sun the next day this other transmission is wet, like SUPER wet at every seem, same with the transfer case. Meanwhile the 4runner transmission is dry and worked okay for the 2 months I got to drive it before pulling the motor. Both vehicles have the W59/VF2AM combo

    So my question; would it be better for me to take the tranny and transfer case from the runner and mate it back up to the new engine then drop the whole shebang into the tacoma? Or rebuild the tranny in the truck so it's new as well? I want to freshen up the transfer case but I can't find a good resource for a rebuild kit for that VF2AM case.

    Or since it's not leaking should I just change the input/output seals and call it good? I don't know what kind of life the gears, bearings and syncros have nor the chain in the transfer case.


    Side question; during my inspection on the truck the center (carrier?) Bearing for the driveline has zero rubber left in the insulator, should I change all three ujoints st the same time I swap the bearing?

  2. Apr 17, 2019 at 10:13 AM
    #2
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15
    Welcome!

    That's an interesting story lol.

    I would say go ahead and rebuild the tranny/case if you have the tools/experience so you don't have any problems. This will give you peace of mind since you have a rebuilt engine going in and you will have a rebuilt trans/xfer case too.

    Change all 3 joints as well for the driveshaft. Unless it's a double cardan then there is a write up for it but you would be better off getting it rebuilt.

    My way of doing things: While you're in there, might as well replace with new so you don't have problems.

  3. Apr 17, 2019 at 10:19 AM
    #3
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    I'm a small engine mechanic so I'd like to pretend that I have the experience/knowledge but tearing into the engine taught me ALOT I knew nothing about lol

    I agree with you on doing the work while it's out and while I can but I can't find a good resource on service parts for the xfer case. I can buy the trans rebuild kit from cobra transmission and it comes with everything I'd imagine (bearings, gaskets, seals and syncros) but I'm lost with the xfer case.. if I buy them individually like I'm afraid I'll have to, what would you recommend? Seals, bearings, chain .... and anything else?

  4. Apr 17, 2019 at 11:58 AM
    #4
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15

    Transmission kit I used for my rebuild:
    TK162CWS is the part number

    https://www.ebay.com/itm/Toyota-Lex...-and-Synchro-Rebuild-Kit-1992-05/370559031203

    As far as Transfer Case: R100 chain driven

    Rebuild Kit:
    BK195A is the part number

    https://www.ebay.com/itm/Transfer-C...-Tacoma-Tundra-T100-4Runner-R100/282948362509

  5. Apr 17, 2019 at 11:59 AM
    #5
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15
    Here is some useful info for you


    Attached Files:

  6. Apr 17, 2019 at 12:58 PM
    #6
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz

    Holy Banana pants you are a Godsend! Thank you so much

    Just a side note, where did the R100 designation for the xfer case come from? I get way more google hits searching for that vs the VF2AM which is what I got from this site

  7. Apr 17, 2019 at 1:34 PM
    #7
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15
    Glad I can help.

    Hmm it was a lot of research and I was able to get it a couple years back. Only mentioned a few times in the forums. It seems after 1995 people stopped updating Toyota transfer case info LOL When I find the source I will let you know.

    The VF2AM is pre 1995 Pickup

  8. Apr 17, 2019 at 2:13 PM
    #8
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    Doh! That would explain why I couldn't find anything but the gear drive xfer case rebuild stuff then, thanks again!

    PS did you order and or use any of the Yota SST? Most of that stuff I have the Horrible Fright versions of but I was wondering about the seal pullers and setters... or should I just trust picks/screwdrivers to yank em and sockets to set em?

  9. Apr 17, 2019 at 3:08 PM
    #9
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    Found the part number for the chain on toyota parts catalog and they want 700 MSRP :annoyed:searching for the part number shows Amazon selling multiple chinese equivalents for around 200 ... would you trust it? Is the chain supposed to be a "lifetime" chain? Even pre stressed chains can stretch so I've never really bought into that lifetime nonsense..

    When you rebuilt your trans did you do the xfer case as well? What did you do about your chain?

    P/N I got and looked up is 36293-35040

  10. Apr 18, 2019 at 5:46 AM
    #10
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15

    I am sure you have a lot of this stuff but this is a few things I used:

    1) Harbor Freight 3 Jaw Puller Set https://www.harborfreight.com/three-jaw-puller-set-3-pc-63953.html
    2) Seal removal tool https://www.amazon.com/Lisle-56750-Seal-Puller/dp/B0002SRCKG
    3) Seal Driver set https://www.harborfreight.com/10-piece-bearing-race-and-seal-driver-set-63261.html\
    4) Ball joint service kit - I used the adapters and plates to press bearings on https://www.harborfreight.com/ball-joint-service-kit-for-2wd-and-4wd-vehicles-63279.html
    5) Wheel bearing adaptor set - same as BJ service kit. Used the adapter plates and such for bearings https://www.harborfreight.com/front-wheel-bearing-adapters-63728.html
    6) Good Punch Set - This is a random link but something like this https://www.amazon.com/OTC-4600-Pun...=punch+set&qid=1555591109&s=automotive&sr=1-6
    7) Dead Blow Hammer - https://www.amazon.com/Hardware-Mac...ow+hammer&qid=1555591406&s=automotive&sr=1-17
    8) Brass Hammer - https://www.amazon.com/TEKTON-30903...on&qid=1555591372&s=automotive&sr=1-1-catcorr
    9) Snap Ring Pliers - Need regular inside/outside - https://www.amazon.com/Channellock-...fix=snap+ring+pliers+h,automotive,133&sr=1-24
    10) Lock Ring Pliers - https://www.amazon.com/Tools-741-He...+duty+flat&qid=1555591505&s=automotive&sr=1-4
    11) My 20 Ton Press
    12) Gasket scraper
    13) Scotch Brite
    14) Bearing Separator set - https://www.harborfreight.com/bearing-separator-and-puller-set-62593.html
    15) Large Bearing Separator - https://www.harborfreight.com/large-bearing-separator-3979.html
    16) Bench Vise - SUPER IMPORTANT as it will hold the trans for you while you take it apart


    The chain I would go OEM TBH. It's not an easy task to replace as you will have to tear everything back apart and the front wheels are directly driven off that chain. Imagine putting a chinese chain in there and going off-roading only to have it snap.

    I did not replace my chain as it was in good shape. You gotta figure that if the truck hasn't been off road a lot or at all and in 4x4 the chain isn't put through stress so it should still be to factory specs. I cleaned it with mineral spirits, and inspected it for any cracks or wear. Looked brand new. I lubed it up when re-installed.

    Here is the site I use for part numbers:

    https://partsouq.com/en/catalog/genuine

    Type in your VIN and you can find anything you need with an OEM number. I DO NOT order anything from this site I just use it as parts diagram resource.

    Here is an example of my truck parts diagram for trans/transfer:
    https://partsouq.com/en/catalog/genuine/vehicle?c=Toyota&ssd=$*KwHB9eT_u8CGvIuoopXd15mNraq0xcrHxtTK-IjQgdbJ0K_Vhobb0cjHiY2EnJPq35qahtfO0aS8uYiImpqB187RxqG2_-qOwrHCp6nCwMeekIHR3teXkNDP1ZyTjMfExdbf0JiUiJ6aoai7xcXDudr-9vW3ubS20d7XkcPAmsnDiAAAAABP17YY$&vid=0&cid=2&q=4TAUN61C7SZ050449

    One important note:
    There is a seal between the trans and transfer case. They do not share fluid. DO NOT mess it up when you put them together. Or you will lose all your gear oil from your trans and start burning it up. It is REALLY easy to mess it up since you have a heavy trans and heavy X-fer case that have to mate up perfectly and it get's a bit difficult to lower the X-fer case on it with a steady hand due to weight. Just something to look out for.

    Last edited: Apr 18, 2019
  11. Jun 2, 2019 at 11:03 AM
    #11
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    Months later I'm finally tearing into this rebuild of mine and immediately I've got questions! :facepalm:

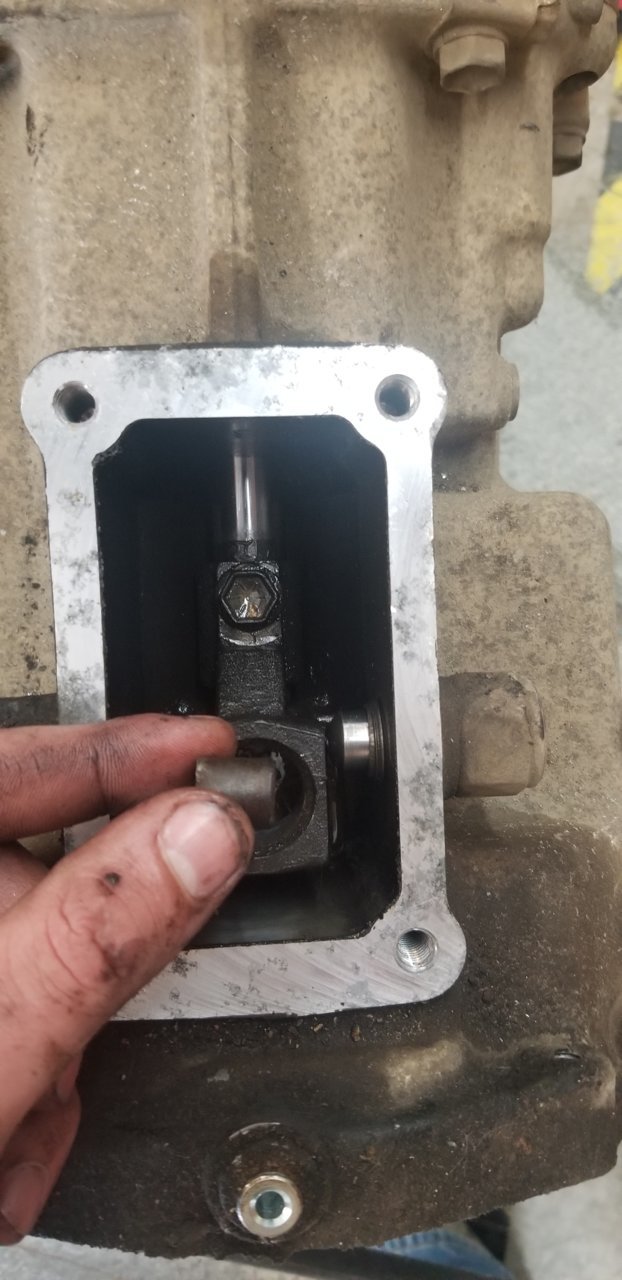

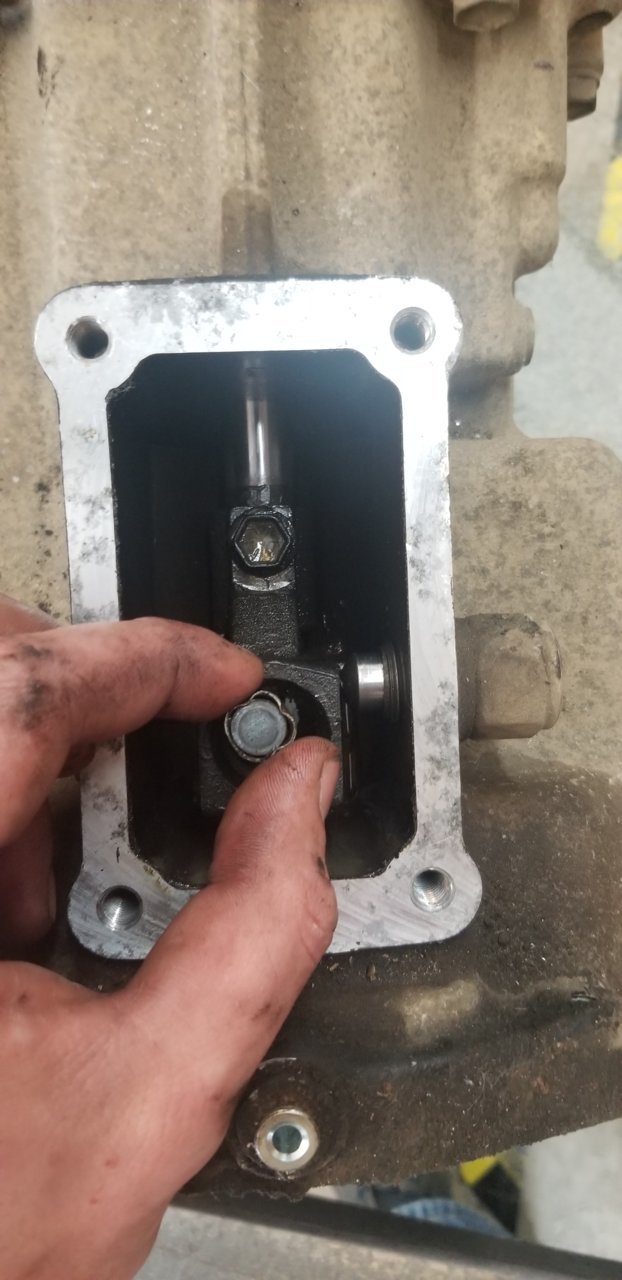

    What is this thing? I was prepping the trans for a deep bath now that it's outta the rig and when I rolled it over this little doohickey fell out .... I don't see a replacement one in the rebuild kit i bought (i got the one from Ebay mentioned previously)


  12. Jun 3, 2019 at 10:18 AM
    #12
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15

    Perhaps this may help:
    https://partsouq.com/en/catalog/gen...T$&vid=0&cid=2&uid=274667&q=4TAUN61C7SZ050449

  13. Jun 3, 2019 at 1:19 PM
    #13
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,394
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
  14. Jun 4, 2019 at 7:17 PM
    #14
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz

    Hopefully you can help me more? Tearing into the kit for the transmission, I noticed the split needle bearing under the counter 5th gear isnt included ... did you reuse yours or is my kit missing parts? I'm only half way through the teardown and I haven't checked everything else but it mostly looks in order

    I bought the same kits you posted earlier... if I didn't mention that already


    Haven't even looked at the xfer case except to take it off the trans lol

  15. Jun 5, 2019 at 2:13 AM
    #15
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,394
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    You dont have to take the detents and interlocks apart , just separate the case halves and mount the center divider in a vise

  16. Jun 5, 2019 at 5:17 AM
    #16
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz

    Sonuva diddly ... that sucks, I just followed the FSM step by step and they told me I had to :(

  17. Jun 5, 2019 at 7:22 AM
    #17
    Russianman92

    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    813
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15
    The split needle bearings were not included but were in great shape still. I reused mine

  18. Jun 7, 2019 at 4:17 PM
    #18
    Abeyancer

    Abeyancer [OP] Not so secret, secret van guy

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    7,245
    Gender:
    Male
    First Name:
    Jimmie
    PNW
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    @Russianman92

    Did you run into this issue with your syncros?
    Finally putting it all back together and I'm scared to continue lol
