driving lights that come on with brights

Discussion in 'Lighting' started by jokerj80, Nov 20, 2012.

  1. Dec 13, 2012 at 8:10 AM
    #21
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,804
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Caribe and I accomplished the same end function just 2 different ways. Caribe is accustomed to using the ground as the switch where as I'm more used to switching the power side. His method is neater, mine is a little more straight forward although does require splicing into one of the OEM wires. When it comes to wiring in an aftermarket accessory, there are many ways to go about doing it, especially when it comes to 'custom' functions. I would choose the way you understand the best and you are most comfortable doing.

  2. Dec 13, 2012 at 9:16 AM
    #22
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    582
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    Ok, Ill take some pictures later of how I wired mine! They only turn on with brights...

  3. Dec 13, 2012 at 10:21 AM
    #23
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
  4. Dec 14, 2012 at 4:42 PM
    #24
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    582
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
  5. Dec 17, 2012 at 4:07 PM
    #25
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    Caribe.. I went according to your diagram but the relay is not flipping. For the add-a-line thing I put two 10 amp fuses and in the picture you have a 3 amp and 10 amp. Could that be the problem?

  6. Dec 17, 2012 at 5:21 PM
    #26
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    582
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    I don't think that would be a problem...



    Are the fuses ok? and did you check that the switch is correctly grounded???

  7. Dec 17, 2012 at 5:30 PM
    #27
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,804
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    In Caribe's drawing, the bottom fuse should be the size of the fuse you took out of that slot. The top fuse doesn't need to be very large at all, using a 10A won't hurt anything, it's just more power than you need.

  8. Dec 17, 2012 at 6:14 PM
    #28
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    486
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you followed the diagram exactly, then you might have a bad relay or switch. Try to activate the circuit without the switch. Just get wire from pin 85 to ground with high beams ON.{test}

  9. Dec 18, 2012 at 4:39 AM
    #29
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    Yes I bought a new relay, and took the switch off and attached the two wires so that it was always grounded. Same issue.

  10. Dec 18, 2012 at 10:12 PM
    #30
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    582
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift

    Ok, lets solve this problem... we will split it in two: Headlights and new circuit.

    First of all, disconnect your battery (-) so there won't be any problems...

    Now, lets take everything to stock, disconnect the new addafuse or any other cable you plugged for the install.

    Lets check all the fuses in the fusebox, if you have a fuse tester it will be better... if not, take a voltmeter and check if there is continuity on them. Remember that sometimes they look good, but they are not!

    Caribe indicated in this image where are the High fuses, I might thing that the ones to the right are the Low:

    [​IMG]

    Of course, if they are blown, you need to change them.

    Next thing is to test the relay for High and Low. You will need the voltmeter to check the continuity when its on high and low... I'm referring to this relay:

    [​IMG]

    This is the way we can check if there is any problem with the headlights...

    Now, plug everything back to place and connect the battery....


    Going to the other thing, your new circuit...

    What kind of relay did you get? The one with 4 pins or 5 pins?

    (Remember to disconnect the battery before doing any electrical stuff)

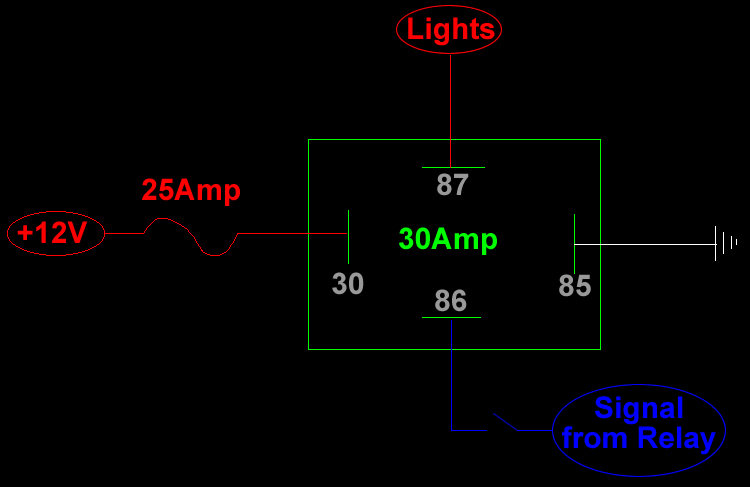

    The way to connect a relay is with this diagram:
    [​IMG]

    Pin30 goes to battery+fuse
    Pin85 goes to ground
    Pin87 goes to your lights
    Pin86 goes to the signal, signal+switch or battery+switch

    If you have a 5 pins relay, you will have another that is Pin87A, in this case you will NOT connect anything to this pin. What it does is to take the energy to whatever is plugged when the switch is off or there is no signal...

    After checking that the relay is connected the way it should be, check that your lights are connected in a correct way (+ to pin87 and to ground).

    To TEST the circuit, the signal (pin86) is not going to be plugged to the fuse box, but let the cable free so you can test it with the battery.

    Now, you have to connect the battery, and to test if it will turn on, put the "signal cable" (pin86) to positive on the battery, your lights should turn on... when you disconnect the cable to the battery, they will turn off...

    This is the way that we know that your circuit is working fine...

    Hope this helps!

  11. Dec 18, 2012 at 11:20 PM
    #31
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    486
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You forgot to include verifying the new bulbs....:rolleyes:

  12. Dec 19, 2012 at 8:24 AM
    #32
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    582
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    You're right... And the old (headlights), too...

  13. Dec 19, 2012 at 12:11 PM
    #33
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    Everything should be connected correct. And yes, when I touch the signal cable to the + side of the battery, it comes on and when I take it off it turns off.. But everywhere I am being told to connect the signal doesn't work. I noticed the lights are aftermarket.. Would that affect any way the current is moved around?

  14. Dec 19, 2012 at 3:24 PM
    #34
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    Okay so after toying around I now have the issue of my low or high beams won't turn on. Only my flashers. I checked all the fuses I could think of and my only other thing I can think of is the head relay, although it flips to activate the flashers could something still be wrong with it? It cost 30 to replace so I don't want to replace it unless someone deems it necessary.

  15. Dec 19, 2012 at 3:26 PM
    #35
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    Also, I switched the heater relay and the high/ low relay (the biggest 2 blue relays on bottom of the picture above) and still the same issue so it's not that relay either

  16. Dec 19, 2012 at 3:48 PM
    #36
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    486
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Head Relay only provides power to the headlights, Dim relay switches from Low Beam to High Beam. In our vehicles the fuses to the lamps are AFTER the relays.
    So the flashers (turn signals/hazards) have nothing to do with the headlight circuit.

  17. Dec 19, 2012 at 5:47 PM
    #37
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    When I say flashers I mean to pull the thing on steering wheel toward you, where it tenporary lights up the brights.. That works but normal high and low beam doesn't. Any suggestions?

  18. Dec 19, 2012 at 6:11 PM
    #38
    tacomawv

    tacomawv tacomawv

    Joined:
    Oct 11, 2011
    Member:
    #65049
    Messages:
    105
    Gender:
    Male
    First Name:
    Richard
    WV
    Vehicle:
    sr5
    Wade sure-fit mats, afe dry filter
    Want to do this but I have question . First let me say that wiring scares me..I have off road lights hooked up to a switch off a relay . So do I just need to take the wire that goes to the switch in the cab from the relay and hook it to the blue relay in the fuse block under the hood. Any help will be great.

  19. Dec 20, 2012 at 8:14 AM
    #39
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    That's what I understand. But it won't work for me like its supposed to. Best thing is to keep the switch in case you want it to be off even with high beams.. It's nice to have that option

  20. Dec 20, 2012 at 11:02 AM
    #40
    tacomawv

    tacomawv tacomawv

    Joined:
    Oct 11, 2011
    Member:
    #65049
    Messages:
    105
    Gender:
    Male
    First Name:
    Richard
    WV
    Vehicle:
    sr5
    Wade sure-fit mats, afe dry filter
    Thanks. I am going to try it. I will report back. With all of the pictures I hope I can figure it out.
