DTRL toggle switch mod (stealth mode)

Discussion in 'Lighting' started by Crom, Apr 4, 2010.

  1. Dec 23, 2010 at 12:38 PM
    #41
    Hunter500ky

    Hunter500ky Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,523
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    for future reference anyone wanting to just cut it and never use it again.

    You can follow the wire to a black plug harness that is easier to get to, cut it there you dont have to move anything unless your a big person.

    I cut it (left enough room to strip the wire and possibly use it with a switch for future) and then taped it off and it works like a charm.

    Just wanted to say thanks!

  2. Dec 26, 2010 at 8:08 PM
    #42
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,223
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    You're welcome! p.s. I like that Glock in your sig!

  3. Dec 27, 2010 at 6:22 AM
    #43
    Hunter500ky

    Hunter500ky Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,523
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,

    LOL thanks, G19 G26 :D

  4. Jan 6, 2011 at 11:01 PM
    #44
    97T

    97T Resident T100 guy

    Joined:
    Nov 15, 2010
    Member:
    #46228
    Messages:
    1,700
    Gender:
    Male
    First Name:
    Melt
    Littleton, CO
    Vehicle:
    97 T100 xcab 5spd 2wd
    soundstream 550.2 amp, 2 eclipse 10" subs, 4% tint rear window, 20% sides, 6" sunstrip, clear bumper lenses, avital 4103 alarm with keyless, BF Goodrich Rugged Terrain T/A 235/75/15, 15X7 6-5.5 0C Unique 298 rims
    i just seen this and have a question for guys who want to be able to have all the lights off in park ... every vehicle ive ever driven so far with daytime running lights, THEY TURN OFF if the PARKING BRAKE IS ON .... so it seems like a lot of work if thats the reason.

  5. Jan 7, 2011 at 7:40 AM
    #45
    Hunter500ky

    Hunter500ky Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,523
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    mine didnt turn off with the parking brake

  6. Jan 7, 2011 at 9:56 AM
    #46
    97T

    97T Resident T100 guy

    Joined:
    Nov 15, 2010
    Member:
    #46228
    Messages:
    1,700
    Gender:
    Male
    First Name:
    Melt
    Littleton, CO
    Vehicle:
    97 T100 xcab 5spd 2wd
    soundstream 550.2 amp, 2 eclipse 10" subs, 4% tint rear window, 20% sides, 6" sunstrip, clear bumper lenses, avital 4103 alarm with keyless, BF Goodrich Rugged Terrain T/A 235/75/15, 15X7 6-5.5 0C Unique 298 rims
    thanks for the clarification, seems like toyota dropped the ball there.

  7. Jan 7, 2011 at 3:47 PM
    #47
    earlbooms

    earlbooms Active Member

    Joined:
    Sep 21, 2010
    Member:
    #43589
    Messages:
    29
    Gender:
    Male
    First Name:
    Shawn
    New Mexico
    Vehicle:
    '10 PreRunner TRD Off Road
    Grillcraft Billet Grill, Kumho Road Venture K61 265/75R16, Kenwood Excelon DNX9960 GPS Head unit, All Polk Audio door speakers, 2 - JL Audio 10w1v2, Rockford Fosgate Amp
    Just did this mod. Thanks for the info!

    It was a serious pain making those connections in such a cramped space, and I'm a fairly small guy. I'm glad I did it though.

  8. Jan 8, 2011 at 5:06 AM
    #48
    Hunter500ky

    Hunter500ky Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,523
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    If you dont find it tonight ill post another pic, I found it and clipped it without remoing anything.

  9. Jan 8, 2011 at 7:23 AM
    #49
    earlbooms

    earlbooms Active Member

    Joined:
    Sep 21, 2010
    Member:
    #43589
    Messages:
    29
    Gender:
    Male
    First Name:
    Shawn
    New Mexico
    Vehicle:
    '10 PreRunner TRD Off Road
    Grillcraft Billet Grill, Kumho Road Venture K61 265/75R16, Kenwood Excelon DNX9960 GPS Head unit, All Polk Audio door speakers, 2 - JL Audio 10w1v2, Rockford Fosgate Amp
    Did you see the plug for the data link? It's white and has a black cover over it. Right above that is a big white plug with only three wires coming out of it. The is all on the backside of that fuse panel, so it's hard to maneuver around, but it's up there.

  10. Jan 8, 2011 at 8:39 AM
    #50
    earlbooms

    earlbooms Active Member

    Joined:
    Sep 21, 2010
    Member:
    #43589
    Messages:
    29
    Gender:
    Male
    First Name:
    Shawn
    New Mexico
    Vehicle:
    '10 PreRunner TRD Off Road
    Grillcraft Billet Grill, Kumho Road Venture K61 265/75R16, Kenwood Excelon DNX9960 GPS Head unit, All Polk Audio door speakers, 2 - JL Audio 10w1v2, Rockford Fosgate Amp
    By big grey panel, do you mean the whole fuse box? If so, then no, I didn't. If you do, then it might actually be easier to make the connections, cause you'd have more room to work. I thought about doing it.

    And yeah, the OBDII is the data link.

  11. Jan 8, 2011 at 8:52 AM
    #51
    earlbooms

    earlbooms Active Member

    Joined:
    Sep 21, 2010
    Member:
    #43589
    Messages:
    29
    Gender:
    Male
    First Name:
    Shawn
    New Mexico
    Vehicle:
    '10 PreRunner TRD Off Road
    Grillcraft Billet Grill, Kumho Road Venture K61 265/75R16, Kenwood Excelon DNX9960 GPS Head unit, All Polk Audio door speakers, 2 - JL Audio 10w1v2, Rockford Fosgate Amp

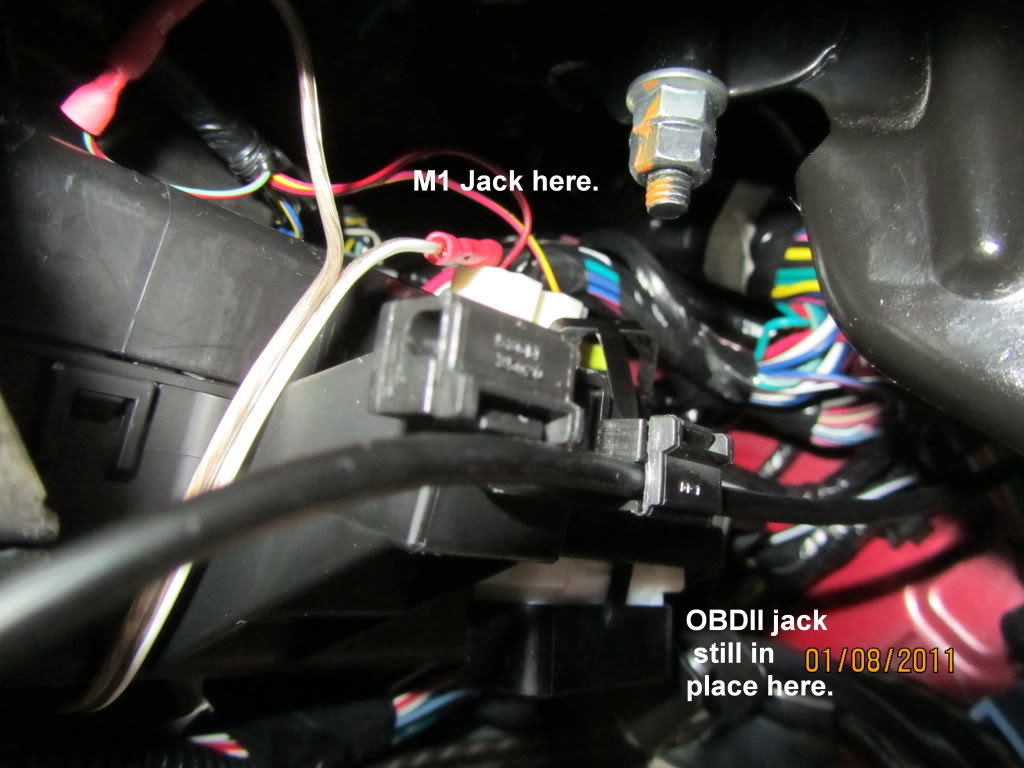

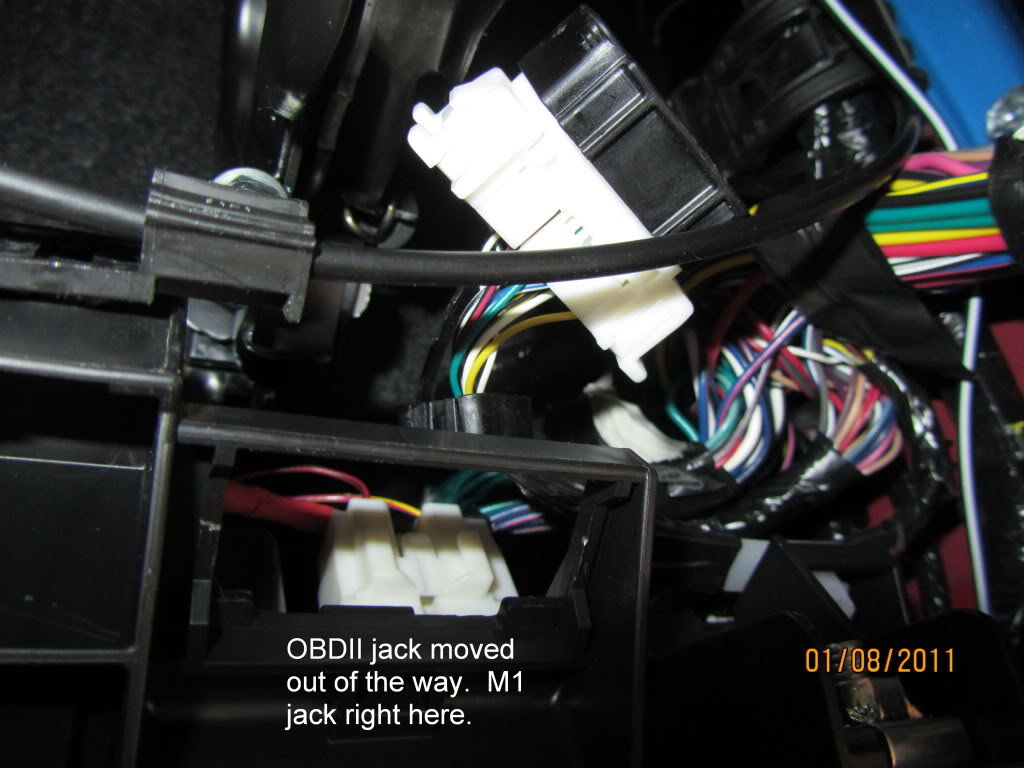

    Maybe these pics will help...

    [​IMG]

    [​IMG]

  12. Jan 10, 2011 at 9:59 AM
    #52
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,223
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    The Tacoma's DTRL do not turn off when the parking brake is on, at least after it's been driven. If it did, we wouldn't have had to mod our trucks. Silly Toyota. :rolleyes:

  13. Jan 10, 2011 at 10:03 AM
    #53
    hookedontronics

    hookedontronics Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,791
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    nice write up.

  14. Mar 30, 2011 at 10:34 PM
    #54
    11BSSG

    11BSSG Well-Known Member

    Joined:
    Oct 8, 2010
    Member:
    #44386
    Messages:
    276
    Gender:
    Male
    First Name:
    Matt
    33°28'18"N /-86°48'2"W
    Vehicle:
    07 4X4 A/C 6 Spd
    Front-Billy 5100'2 @ 2.5, Rear- Wheelers 1.5" AAL w/ Billy 5100's, 17" XD Addict's, 285/70-17 Nitto TerraGrappler AT's, 20% Tint, UWS Low Pro Toolbox, N-Fab Nerf Steps, K&N, Black Head Lights, Hard Wired GPS, XM Onyx, Hardwired Radar Detector, Ultraguage, Thule Mtn Bike Lock, Sleeved Fog Light Housing, Black Emblems, Satoshi/Color Matched grille, Misc. Security Upgrades.
    Awesome, I just ordered my DTRL kit from trdparts4u.com and will do this along with the install. I was wondering if there was a way to toggle the DTRL's. I like the idea of being able to go with no lights at all. Thanks for the write up!

  15. Mar 31, 2011 at 7:05 PM
    #55
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    497
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Maybe you shoul re-read the whole post for the answer...:rolleyes:

  16. Apr 1, 2011 at 12:11 AM
    #56
    11BSSG

    11BSSG Well-Known Member

    Joined:
    Oct 8, 2010
    Member:
    #44386
    Messages:
    276
    Gender:
    Male
    First Name:
    Matt
    33°28'18"N /-86°48'2"W
    Vehicle:
    07 4X4 A/C 6 Spd
    Front-Billy 5100'2 @ 2.5, Rear- Wheelers 1.5" AAL w/ Billy 5100's, 17" XD Addict's, 285/70-17 Nitto TerraGrappler AT's, 20% Tint, UWS Low Pro Toolbox, N-Fab Nerf Steps, K&N, Black Head Lights, Hard Wired GPS, XM Onyx, Hardwired Radar Detector, Ultraguage, Thule Mtn Bike Lock, Sleeved Fog Light Housing, Black Emblems, Satoshi/Color Matched grille, Misc. Security Upgrades.
    I was referring to the post.... as in "I was previously wondering if there was a way to toggle", until the TacomaWorld fairy came and dropped this thread in my lap. Reading what I wrote, I can see how you would take that as a question; but it was more of a statement. Read, "and will do this along with the install." Just showing my gratitude to the OP for the write up. I'm still relatively a newb, but I'm not a full ruh-tard. (I try to never go full retard.)
    :annoyed:

  17. Apr 1, 2011 at 1:23 AM
    #57
    TacoVerde

    TacoVerde Well-Known Member

    Joined:
    May 26, 2010
    Member:
    #37871
    Messages:
    495
    Gender:
    Male
    First Name:
    Sean
    So Cal
    Vehicle:
    09 PreRunner
    URD short shifter, OBX racing pedals and titanium/carbon fiber shift knob, Rear speaker mod, Taco bed mat, Bed extender, taco door sill protectors, Black TRD floormats, AFE stage 2 CAI, Doug Thorley Header and Catback, Glassworks Unlimited front fenders/bedsides, Engage front LT kit,2.5x8 King co's with resi's, dj straps
    How the hell did i not find this earlier lol....good job crom:thumbsup:

  18. Apr 1, 2011 at 11:25 AM
    #58
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,223
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    I'm glad to help out. Thank you. :)

  19. Apr 13, 2011 at 11:01 AM
    #59
    ruslanus

    ruslanus Well-Known Member

    Joined:
    May 5, 2010
    Member:
    #36608
    Messages:
    324
    Gender:
    Male
    First Name:
    Rus
    Wasilla, AK
    Rear diff breather relocate, CB, weather tech floor mats, rain guards EGR, DTRL stealth mode switch, removed mud flaps, SnugTop Rebel camper shell, Airflow America snorkel
    Finally did it yesterday, didn't bother taking pictures since mine looks almost the same as OP's. The hardest part was maneuvering in the small space. Thanks for the write-up!

  20. Apr 16, 2011 at 7:24 PM
    #60
    primer

    primer Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42725
    Messages:
    282
    Gender:
    Male
    First Name:
    T
    OK
    Vehicle:
    06 SS Mica AC 4x4 TRD Off-Road
    (Mostly) debadged, Homelink mirror, Elevated rear diff breather, LED illuminated 4x4 switch, Color matched grill surround, Bed cover, Ivan Stewart wheels, Bridgestone 265/75 Dueler AT Revo 2 tires
    Big thanks to Crom for putting this together. Great mod. Finally finished mine today. Very pleased except I scuffed things up when I drilled for my switch.

    This isn't very organized, but I hope it makes this easier for some who are new to this like me.

    My 2 cents:

    This is a hard place to work. I’ve done a little of this sort of stuff, but the wire you’re tapping into is short and hard to work with. I didn’t see this until after I’d already done much of this part, but if I were doing it again - I’d do this:
    http://www.tacomaworld.com/forum/technical-chat/19468-05-drl-enable-disable-switch.html

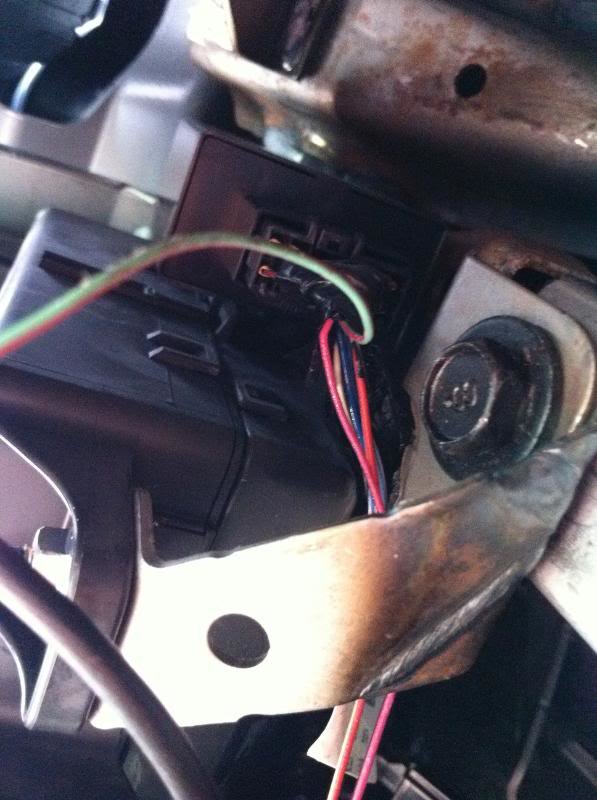

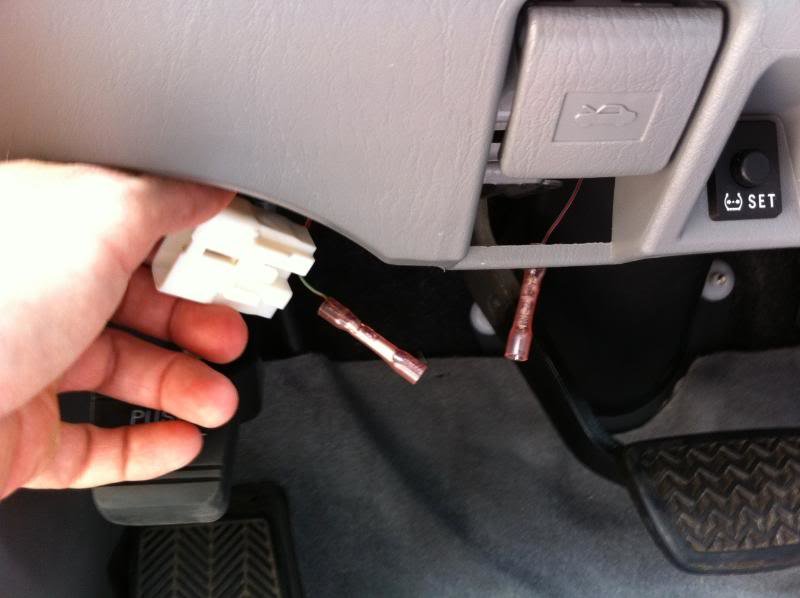

    I pulled the green/red wire out of the group to get some more slack to work with.


    [​IMG]

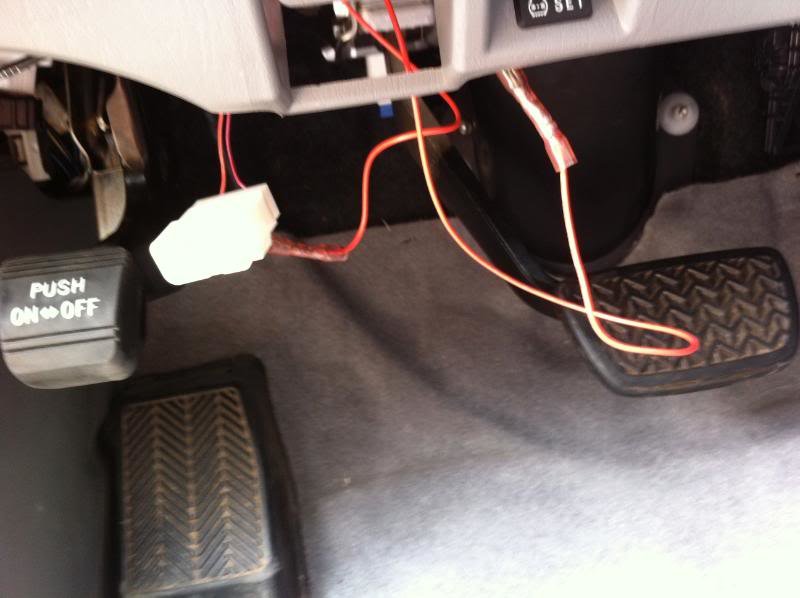

    Then I just inserted a length of red wire to make it longer and even EASIER to work with.

    [​IMG]

    [​IMG]

    [​IMG]

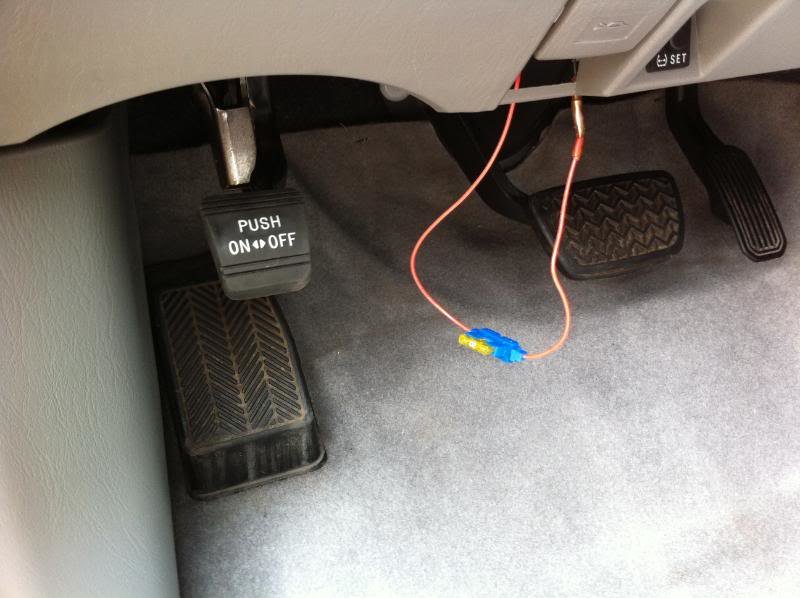

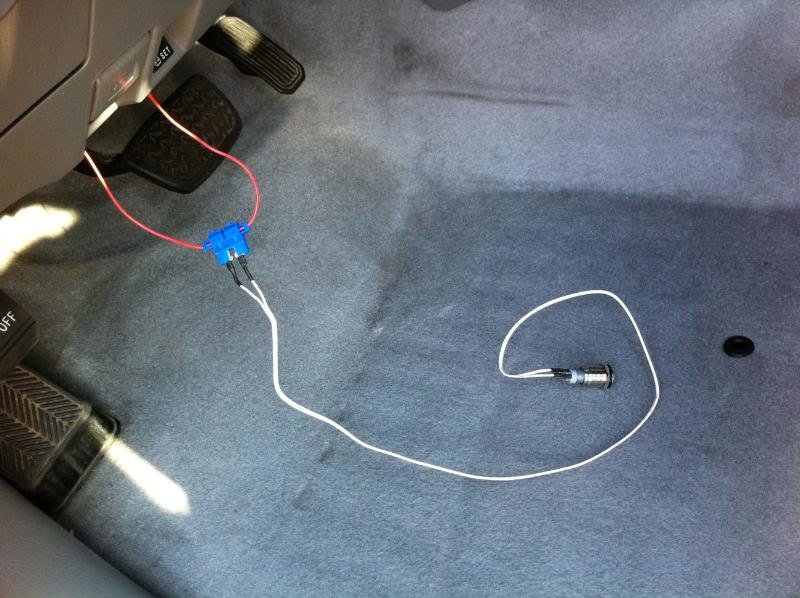

    Thanks to caribe makaira I used a 3m fuse tap which worked fine.
    http://www.amazon.com/3M-Scotchlok-...rial&qid=1301270621&sr=8-1&tag=amazonquery-20

    You cut the wire then put both ends in the tap and close it. The circuit is broken unless you insert a fuse. With a fuse in place the circuit is closed and the DTRL work just like normal. I put male spade connectors on the leads to my switch and inserted them in the slots for the fuse and now the switch controls the lights. I can pull the switch wires out and put the fuse in and I'm basically stock again.

    It’s made for larger wire so I stripped mine before I closed it to make sure there was good contact. The spade connectors were a little to big so I trimmed them with some tin snips. They are close enough to one another that I worried they might touch so I put some electrical tape around one.

    [​IMG]

    [​IMG]


    This is the switch I used:
    http://www.frozencpu.com/products/8...ousing_-_Dot_Illumination.html?tl=g52c343s894

    Flush mount. Worked great. The terminals don’t look like the web site said.

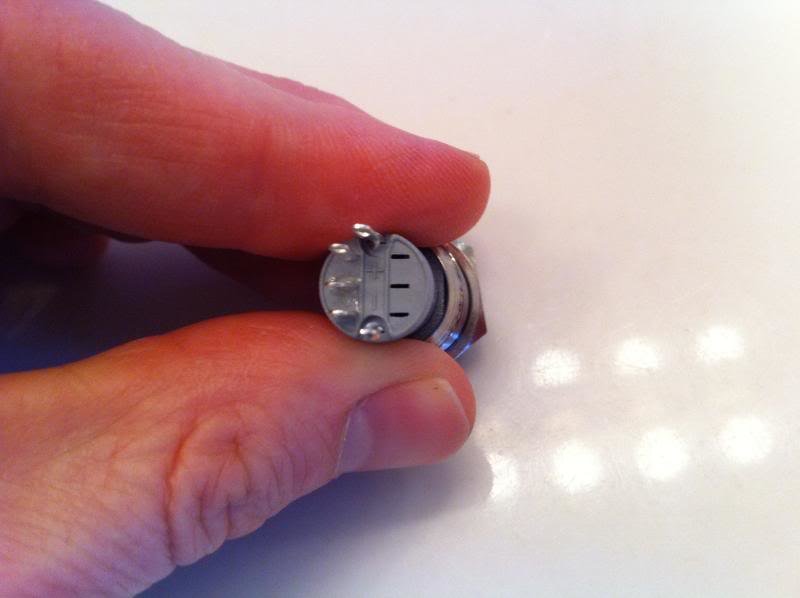

    This is the back of the switch:

    [​IMG]

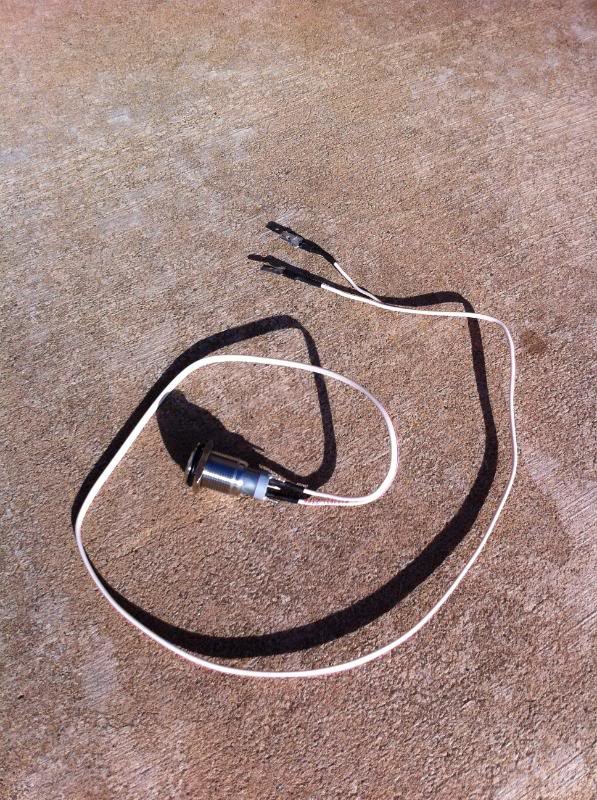

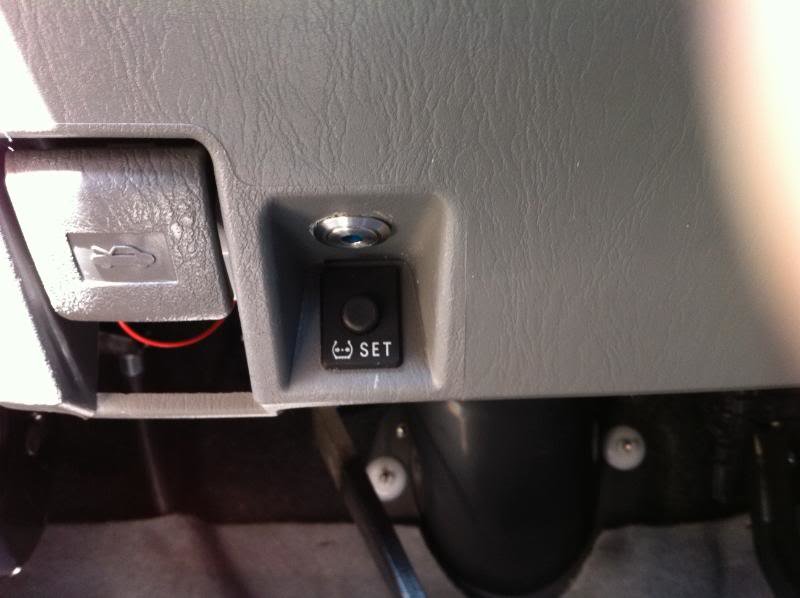

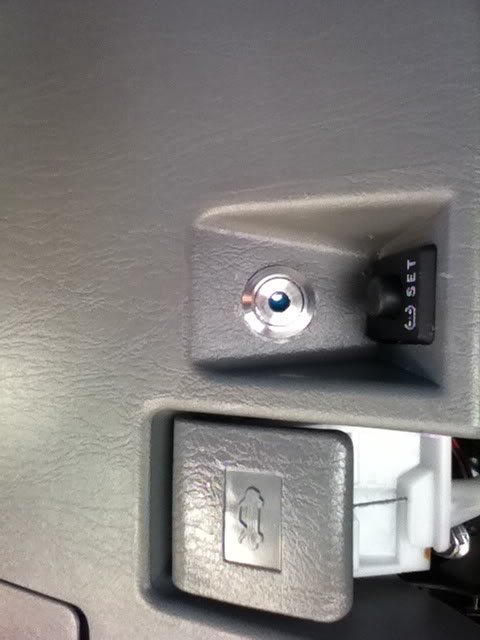

    I tested and found that attaching my wires to the top and bottom of the group of 3 terminals on the side that are unlabeled gave me what I wanted. In the normal state (switch not depressed) the DTRL are on. If you press the switch the DTRL go off. Attaching 12v to the two terminals labeled + and - lights the LED. I couldn’t find a combination that lit it based on whether it was pressed or not. I have no doubt that can be done, but I wasn’t sure I wanted it lit at all so I didn’t hook anything up for illumination.

    [​IMG]

    [​IMG]


    This thread documents some of my prep work:
    http://www.tacomaworld.com/forum/lighting/138349-switch-help.html
