Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Apr 10, 2020 at 5:39 AM
    #2661
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    3,060
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo

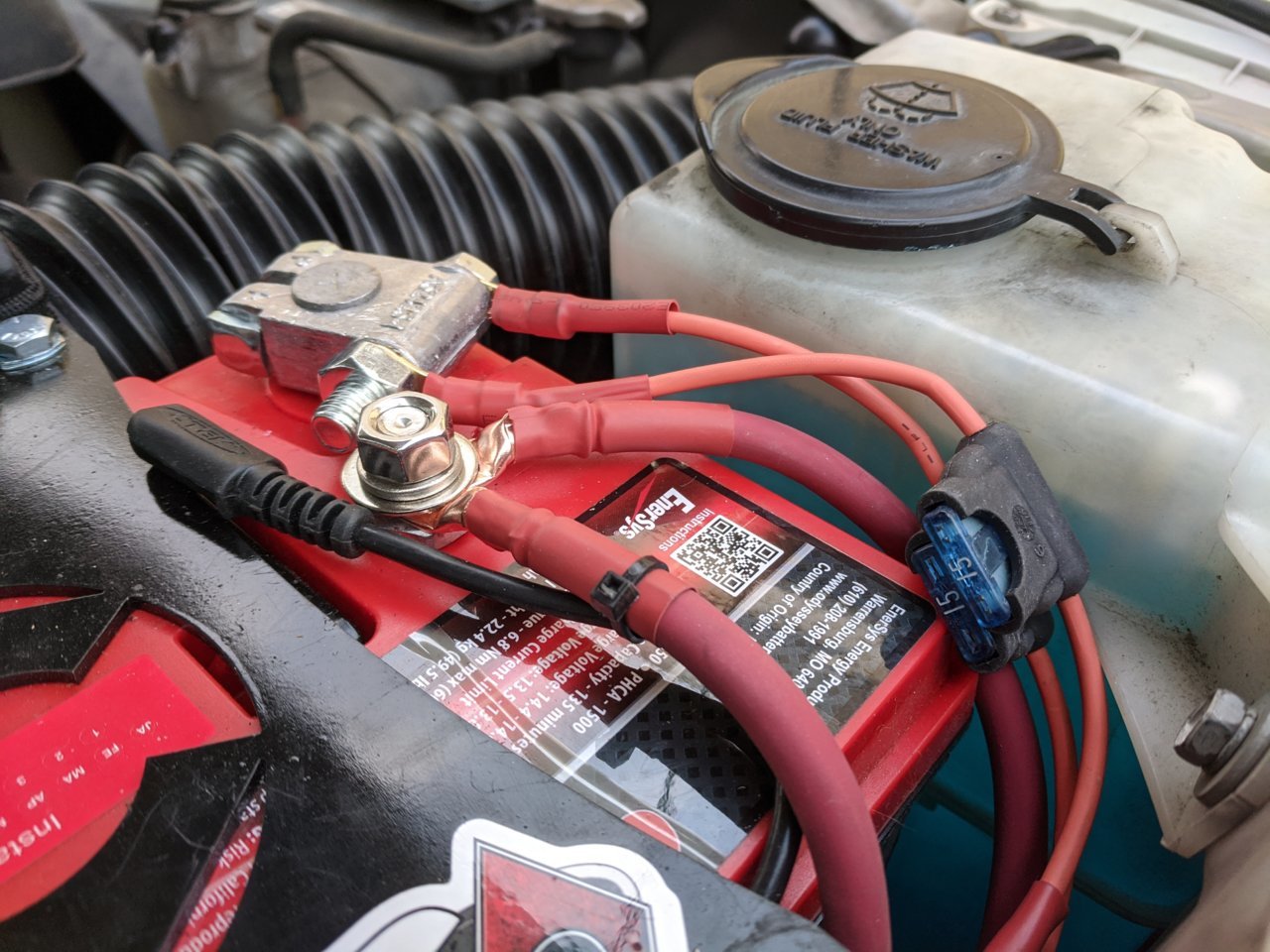

    You might want to cover or protect the fuses/holders from the weather.

    Dirt and moisture will eventually corrode the fuse connections. I had a temporary setup like that - after about a year, I had to replace fuse holder.

  2. Apr 10, 2020 at 7:25 AM
    #2662
    John90XJ

    John90XJ Well-Known Member

    Joined:
    Aug 11, 2019
    Member:
    #301865
    Messages:
    86
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2006 Tacoma Access TRD OR
    I'll give them both a squirt of dielectric grease and we'll see what happens. Thanks for the tip.

    MountainManGuy likes this.
  3. Apr 17, 2020 at 7:43 AM
    #2663
    harryn

    harryn Active Member

    Joined:
    Apr 16, 2020
    Member:
    #324949
    Messages:
    43
    Gender:
    Male
    Auxiliary Power
    Looks very nice. What type of sleeving are you using?

    Very impressive thread. Took a while to get through it.

    Last edited: Apr 17, 2020
    Toynado likes this.
  4. Apr 17, 2020 at 8:50 AM
    #2664
    Toynado

    Toynado Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166816
    Messages:
    1,384
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 TRD OR DCSB Quicksand
    EXTERIOR: Toytec Boss 2.0 Dakar CS047R Leaf Springs Tailpipe chopped Pelfreybilt Front full hoop front bumper w/ Pelfrey fairlead Pelfreybilt Rear standard bumper Pelfreybilt Aluminum IFS, Mid, Rear (exhaust reroute) & Gas tank skids Pelfreybilt Fuseplate w/ 12 circuit fuse block All-Pro Apex Sliders ProComp 7036 17"x9" -6 offset BFG 275/70R/17 KO2's Warn VR10000-S winch Baja Designs S8 light bar & Squadron sports amber pods in front bumper Baja Designs S2 flush pods in rear bumper Baja Designs Squadron Pro amber pods on Caliraised ditch light brackets @rrentrop reflective black tailgate inserts RSI LED's for regular & high beams Prinsu Cabrac Custom Tradesman Truck Top by Access Manufacturing w/ Powertank 8"propane tank mount & Yakima tracks on the roof INTERIOR: Warrior Products door sill protectors Husky Weather Beater floor mats front & rear Coverking arid multicam seat covers in the front Midland 75-822 CB w/ 4' Firestick antenna on C4 Fabrication tailgate mount Consolevault Hondo Garage iPhone mount
    sierra.grit, k8md and harryn like this.
  5. Apr 17, 2020 at 11:47 PM
    #2665
    harryn

    harryn Active Member

    Joined:
    Apr 16, 2020
    Member:
    #324949
    Messages:
    43
    Gender:
    Male
    Auxiliary Power
    Thanks for the info.

    At this point I am used to using color coded wire by voltage (12 / 24 / 48 ) and then spiral wrapping the bundles it in PTFE. Always on the lookout for for improvements.

    I will need to buy some of that loom and play with it.

    Toynado likes this.
  6. Apr 18, 2020 at 10:28 AM
    #2666
    harryn

    harryn Active Member

    Joined:
    Apr 16, 2020
    Member:
    #324949
    Messages:
    43
    Gender:
    Male
    Auxiliary Power
    Most items that are available in 12 volt are also available in 24 volt. Refrigerators, fans, lights, heaters, inverters, etc. Semi truck and marine stuff is routinely 24 volt. It might be easier to just do a 24 volt house battery pack. About 1/2 of the systems that I build are 24 volt IMHO easier than 12 volt), the other 1/2 are 48 volt, which honestly is a bit more painful to deal with due to parts availability.

  7. Apr 18, 2020 at 10:47 AM
    #2667
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,774
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Shouldn't be much difference, wire and connectors are similar, the same type of parts are needed(connectors and such), the only benefit to 24v that I see is smaller wire because higher voltage at lower amperage.

    If your vehicle runs on a 24v system stick with it, if it runs 12v stick with that.

    Last edited: Apr 18, 2020
    MountainManGuy and harryn like this.
  8. Apr 18, 2020 at 10:51 AM
    #2668
    harryn

    harryn Active Member

    Joined:
    Apr 16, 2020
    Member:
    #324949
    Messages:
    43
    Gender:
    Male
    Auxiliary Power
    Hi - I am attempting to help a friend with his Tacoma, but don't have access to it right now.

    In the photo, there is a cover marked 400 watt idle, 100 watt running.
    - Is this item a factory stock 12 volt outlet that is on most Tacomas?
    - Is it on / off with ignition on/off?
    - I am assuming that it is a 12 volt outlet of some type?

    The reason for the questions is that I am looking for an:
    - Switched 12 volt supply that goes on/off with the ignition
    - 10 - 20 ish amps range (or more if that is available easily)
    - For powering some items in the bed area

    Thanks

    Harry

  9. Apr 18, 2020 at 10:54 AM
    #2669
    harryn

    harryn Active Member

    Joined:
    Apr 16, 2020
    Member:
    #324949
    Messages:
    43
    Gender:
    Male
    Auxiliary Power
    That is mostly correct. He already has a 24 volt vehicle so it seemed to make sense to keep it that way. There are some other subtle improvements as well.

  10. Apr 18, 2020 at 10:55 AM
    #2670
    saf023

    saf023 Well-Known Member

    Joined:
    Aug 13, 2009
    Member:
    #21124
    Messages:
    883
    Gender:
    Male
    East Coast
    Vehicle:
    2nd Gen TRD Sport DCSB 4X4
    Very clean! Think I'm going to start looking into the Columbia Overland Version.

  11. Apr 18, 2020 at 10:55 AM
    #2671
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,774
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Ninja edited to say the same.

    harryn likes this.
  12. Apr 18, 2020 at 11:02 AM
    #2672
    John90XJ

    John90XJ Well-Known Member

    Joined:
    Aug 11, 2019
    Member:
    #301865
    Messages:
    86
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2006 Tacoma Access TRD OR

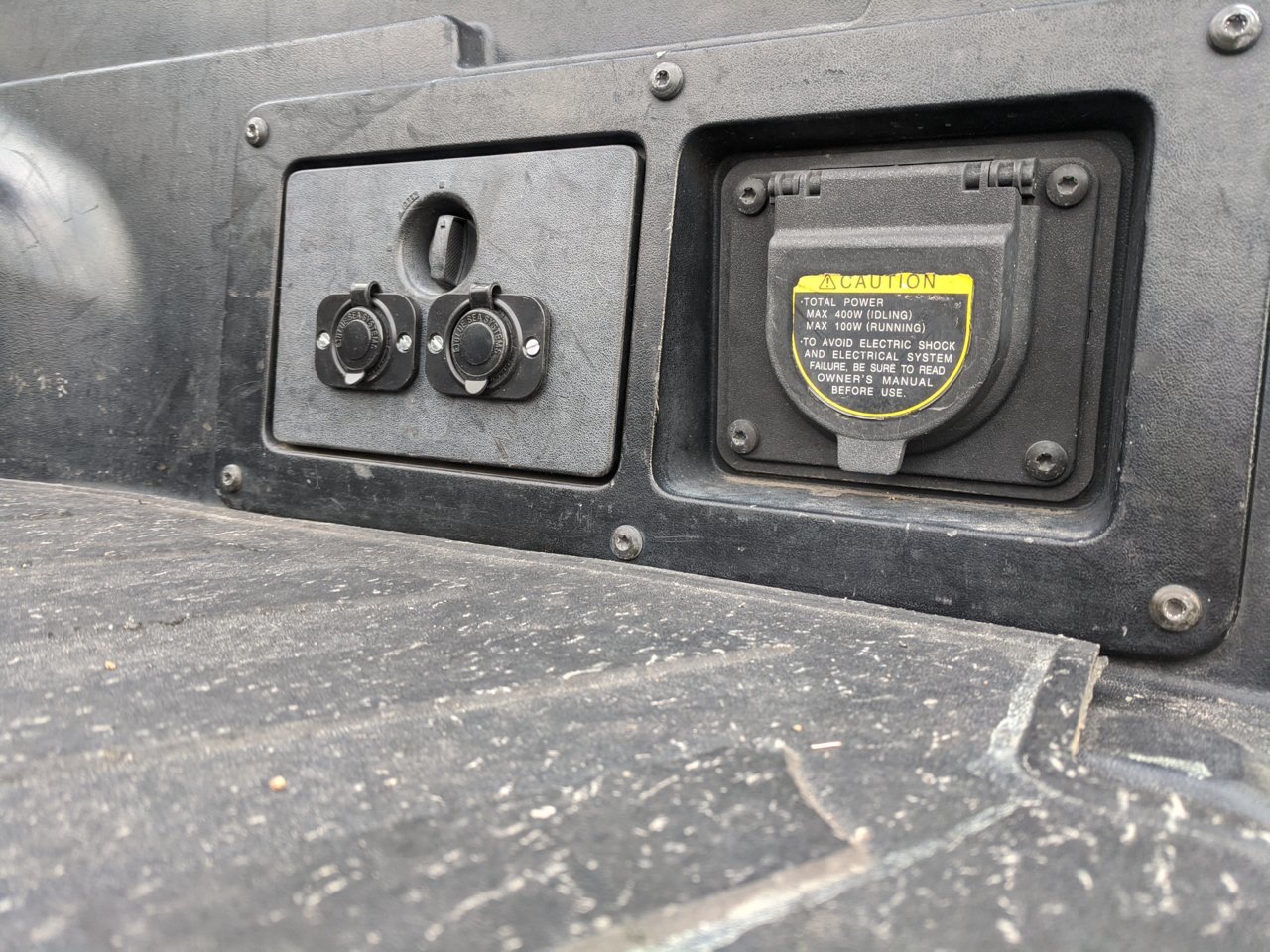

    The large plug cover on the right is the factory supplied 120VAC inverter female plugin. It's on and off with ignition AFAIK.

    The two outlets on the left are the Blue Sea weatherproof 12VDC outlets I added that are constant hot for my refer and whatever.

    To make the 12VDC outlets ignition only would require the addition of a relay triggered by an ignition signal and I honestly don't know if that could be done at the inverter plugin or if you would have to go further toward the cab to grab that signal.

    harryn likes this.
  13. Apr 20, 2020 at 6:16 PM
    #2673
    NorrinRadd

    NorrinRadd Well-Known Member

    Joined:
    Jan 25, 2020
    Member:
    #317188
    Messages:
    520
    Gender:
    Male
    WA
    Vehicle:
    2019 TRD Sport, access cab, MT, tow, silver.
    2019 TRD Sport manual access tow, no room on passenger side sadly. Anyone know of a side-by-side battery tray that is not specific to AGM batteries? Since 2019 has charging voltage set by ECU I can't do the funky fuse/diode trick to bump up the voltage. I just want to run 2 standard lead batteries next to each other, with a relay to control charging that will lock off the aux or main. Would also be great if no drilling into my truck is required. I tried reading through this thread but after about 13 pages decided I wouldn't be able to read every page, sorry if my question was answered on a later page!

    Last edited: Apr 20, 2020
  14. Apr 20, 2020 at 6:47 PM
    #2674
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,337
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    I would honestly reconsider a side by side dual battery set up. That’s generally too heavy for one side and several people have had issues with the thin sheetmetal fenders cracking because of this.

    Perhaps behind one of the back seats will be a better option? Removing the plastic creates a lot more space back there

    SR-71A and MountainManGuy like this.
  15. Apr 20, 2020 at 7:07 PM
    #2675
    NorrinRadd

    NorrinRadd Well-Known Member

    Joined:
    Jan 25, 2020
    Member:
    #317188
    Messages:
    520
    Gender:
    Male
    WA
    Vehicle:
    2019 TRD Sport, access cab, MT, tow, silver.
    Rather not run a wet cell in the cab due to vapors (worried about turning japanese) (lol a few will get that), plus can a battery fit behind those jumpseats in an Access cab?
    The only dual tray I've found (from off grid 4x4) that might work is this one but it requires drilling my truck: /collections/battery-trays/products/2005-2017-toyota-tacoma-dual-battery-tray-side-by-side

  16. Apr 20, 2020 at 7:38 PM
    #2676
    MountainManGuy

    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    538
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    Could run the aux battery in the bed of the truck. Wouldn't have to worry about vapors then. You'd need to run some really thick wire to connect the two since they would be so far apart, but some 1/0 would work. I've done this before.

    SR-71A and thebaker like this.
  17. Apr 20, 2020 at 7:43 PM
    #2677
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,337
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    Post a pic of your engine bay. Thought 3rd gens had more room bc of the smaller engine

  18. Apr 21, 2020 at 6:14 AM
    #2678
    NorrinRadd

    NorrinRadd Well-Known Member

    Joined:
    Jan 25, 2020
    Member:
    #317188
    Messages:
    520
    Gender:
    Male
    WA
    Vehicle:
    2019 TRD Sport, access cab, MT, tow, silver.
  19. Apr 21, 2020 at 6:20 AM
    #2679
    NorrinRadd

    NorrinRadd Well-Known Member

    Joined:
    Jan 25, 2020
    Member:
    #317188
    Messages:
    520
    Gender:
    Male
    WA
    Vehicle:
    2019 TRD Sport, access cab, MT, tow, silver.
    Did you run the wires under the cab or have to pull everything out to route them through the cab and firewall?

  20. Apr 21, 2020 at 8:07 AM
    #2680
    MountainManGuy

    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    538
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    This is sort of controversial, but I run mine under the cab. 1/0, 2/0, and 3/0 wires are so damn thick it's a pain trying to hide them inside the cab. Doesn't really fit under the molding. When running under the cab, I always use some sort of protective wire loom, and lots of zip ties. Keep it high and away from heat and moving parts. Oh, and use a pretty large fuse as well in the unlikely event that line gets severed or damaged.

    SR-71A and harryn like this.
