Finally finished LEDS - cupholders, console, and bed lights

Discussion in 'Lighting' started by Oregon TRD, Jan 27, 2012.

  1. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box

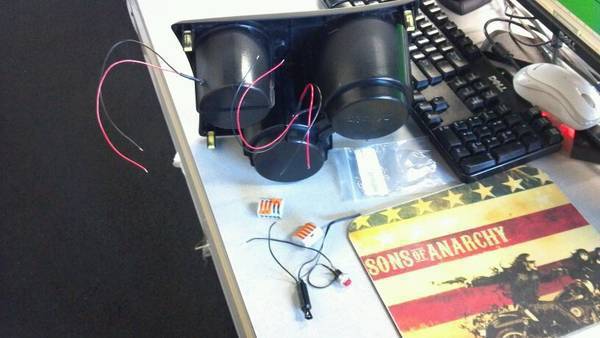

    Heres all the stuff I used for this project for Cupholders and Center console.

    The WAGO clamps (best thing made EVER):These are $3 EACH on Oznium website. This guy on EBAY is badass sells 5 of em for $9.50
    http://www.ebay.com/itm/5-Wago-222-...242?pt=LH_DefaultDomain_0&hash=item20aefae732

    LED holders (a must buy):
    http://www.ebay.com/itm/390380286829?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649

    LED'S:
    http://www.ebay.com/itm/390372095349?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649

    The LED'S I have in my center console I bought from Fred Meyer. They were $20 but I got them on sale for $4.99. You can get them at Vatozone also - These are the ones:
    http://www.autozone.com/autozone/ac...N-25pw?itemIdentifier=60064&_requestid=232879


    ^^^instead of these guys^^^ (they were only $5 so I grabbed them) you can use the LED's I used for my cupholders. Just drill 2 - 1/4" holes in each end of the inside of the center console and put 2 of the 5mm led's in.
    To do the LED in the rear cupholder, I drilled a 1/4" hole on the inside of the console all the way thru to the inside of the rear cupholders. Theres a few tricks (where to run the wires) - when you flip the whole console over, you will see a space between the rear cupholders and the center console box. I ran the rear cupholder led wires down thru there instead of back thru the hole going into the center console. I will put a white LED to fill that hole later.

    Hope all that doesn't sound confusing.

    By the way: all of the lighting under my dash and under two front seats I did a couple years ago....that setup is this:
    http://www.amazon.com/Multi-Color-C...4Z7Q/ref=sr_1_3?ie=UTF8&qid=1327942574&sr=8-3

  2. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    Another trick:

    If anyone buys the LED strips from Fred Meyer, autozone, etc.......cut the red button switch with battery off carefully AND KEEP IT!!! It makes a killer tester....

    example

    [​IMG]

    [​IMG]

  3. txtrd

    txtrd Rookie

    Joined:
    Jul 25, 2011
    Member:
    #60490
    Messages:
    113
    Gender:
    Male
    First Name:
    Jason
    Somewhere Down In TX
    Vehicle:
    07 TRD Off Road
    K&N drop in filter, nerf bars, alarm & remote start with 2-way paging
    Beware of the LEDs from 1michiganer on ebay. I put some in my truck and they only lasted maybe 2 months. Thankfully I bought a 10 pack so I just replaced them Friday night. 2 month life span for LEDs is unacceptable in my book.

  4. cverneau

    cverneau Well-Known Member

    Joined:
    Feb 22, 2011
    Member:
    #51619
    Messages:
    233
    Gender:
    Male
    First Name:
    Craig
    Cheshire, CT.
    Vehicle:
    11 Access Cab 4cyl 4x4 Auto
    AVS In-Channel Window Deflectors, AVS Rear Window Sun/Rain Deflector, EGR Front Hood Deflector, Weathertech Digital Fit Floor Liners, TonnoPro Tri-Fold Cover, Coverking Black Neoprene Front Seats & Center Console Cover, Devil Horns Of Fire On Satoshi, Pop N Lock 5300, Seatbelt Chime Off, Interior & Exterior Led's, Cubby & Drink Holder Amber LED's, Infinity Reference #9633 6X9 Speakers, Solar-Gard HP Smoke 35% Tint, De-badged & Pinstripe Removal, Sun Visor Stickers Removed, Illuminated 4x4 Switch, ImMrYo Rear-View Mirror Lift Bracket, Ultragauge, Bed Storage Cubby Locks Mod, Additional D-Rings In Bed, Intermittent Wiper Stalk, Black Vinyl Arm Rest Mod, Secondary Air Filter Removal Mod, Spare Tire Rod Alignment Tube Mod, 14" Antenna Mod, Tailgate Theft Mod, DTRL Wire Jumper Mod, Parking Lights As Turn Signals Mod, 30 Watt Reverse Bulbs, PIAA 510's In Fog Locations, Burner Bedlights In Bed Cubby's, GoRhino Dominator II Side Steps, Avid Light Bar, Horn Relocation Mod, Rear TSB Springs.
    Thanks for the info and links. I just purchased ten of the orange led's and ten of the led holders from him for less than $11 shipped. The orange will most closely match the stock amber dash. I've been looking all over for led's that don't protrude from the surface very far but I wasn't having much luck and didn't want to use the flat surface mount ones. I plan on putting two of these on the surface of the overhang in front of the 12v outlets (2011) downward facing the cupholders and the recessed tray. I'm also gonna put one in the roof of the cubby right above my right knee. Who knows, maybe I'll use the others in the rear cupholders....

    Hey - a quick question:
    I'm assuming these led's are dimmable as I plan on tying them into my dash circuit (at the AC controls) to use with the dimmer switch. Are they in fact dimmable?? It's not a deal breker if they aren't, but it would be nice....

  5. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    Oh shiiittt!!!! Thanks for the info. Counting down the days....lol

  6. TonkaToyTaco

    TonkaToyTaco Hope you can run faster than 965 FPS

    Joined:
    Feb 2, 2011
    Member:
    #50428
    Messages:
    1,317
    Gender:
    Male
    First Name:
    Louie
    Street, MD
    Vehicle:
    11 Tacoma TRD DCLB 4X4
    Bilstein 5100 all around with front set at .85 w/Eibach coil and 1/2 spacer, Rear 2" Deaver AAL, SCS Steath 6 matte black rims wrapped in 265/70/17 Duratracs, Blacked out emblems, Debaged tailgate, Tinted windows (5% in rear, 20% up front and 50% on windsheild), HID 35W 6000K headlights and 35W 4300K fog lights, Smoked Tail lights and 3rd brake light, T-Rex 2 eyelids colormatched, Foglight anytime MOD, All LED interior and exterior ligths, Volant CAI With forced Ram, JET throttle body spacer, Doug Thorley LT Headers, Aero Turbine SS Muffler, Aero Turbine SS 4inch tip dumped after axel, URD MAF Calibrator, LED bed lights, 4X4 light mod, Satoshi Grill with matching scoop and lower Valance, Hella 700FF HID 55W 6000K behind Satoshi, Diff breather mod, Sea Blu secondary fuse box with 100A breaker, Omega Train Horns with dual Air Compressors and 5 Gal tank, Ultraguage, Andre Devil Horns
    Awesome mod and job

  7. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box

    This weekend I will try to mount 2 of these in that cubby in front of gear shift but i didn't want to drill....I'll mess with that later.

    If you can see in the front cupholders, these things were incredible at how flush they (almost) are. I was wayy impressed.

    Dimmable? Not sure but I would bet yes! If they are wired into the dash dimmer then they should dim just fine. LED's take absolutley next to no power and can do about anything.

    If you get to the "cubby" led install be4 me let me know how it goes.

  8. sparkystaco

    sparkystaco Well-Known Member

    Joined:
    Jan 26, 2010
    Member:
    #30122
    Messages:
    433
    Gender:
    Male
    First Name:
    Sparky
    SE Wi
    Vehicle:
    06 4x4 dc trd ofrd
    3" lift? A.R.E cap 285/70/17 moto metal 955 17x9
    I did the same as you want to do, put LED's in the recesses of the 12v outlets [in the little half circles pointing down] the pita was dissassembiling the dash to get that piece out to drill the holes. I used the LED's from radioshack and wired them into the AC controls using the wiring diagram from the lighted 4wd switch mod. It worked out well, the light hits the bar between the cubby and the cupholders lighting the whole area, and yes they dim with the other dash lights

  9. cverneau

    cverneau Well-Known Member

    Joined:
    Feb 22, 2011
    Member:
    #51619
    Messages:
    233
    Gender:
    Male
    First Name:
    Craig
    Cheshire, CT.
    Vehicle:
    11 Access Cab 4cyl 4x4 Auto
    AVS In-Channel Window Deflectors, AVS Rear Window Sun/Rain Deflector, EGR Front Hood Deflector, Weathertech Digital Fit Floor Liners, TonnoPro Tri-Fold Cover, Coverking Black Neoprene Front Seats & Center Console Cover, Devil Horns Of Fire On Satoshi, Pop N Lock 5300, Seatbelt Chime Off, Interior & Exterior Led's, Cubby & Drink Holder Amber LED's, Infinity Reference #9633 6X9 Speakers, Solar-Gard HP Smoke 35% Tint, De-badged & Pinstripe Removal, Sun Visor Stickers Removed, Illuminated 4x4 Switch, ImMrYo Rear-View Mirror Lift Bracket, Ultragauge, Bed Storage Cubby Locks Mod, Additional D-Rings In Bed, Intermittent Wiper Stalk, Black Vinyl Arm Rest Mod, Secondary Air Filter Removal Mod, Spare Tire Rod Alignment Tube Mod, 14" Antenna Mod, Tailgate Theft Mod, DTRL Wire Jumper Mod, Parking Lights As Turn Signals Mod, 30 Watt Reverse Bulbs, PIAA 510's In Fog Locations, Burner Bedlights In Bed Cubby's, GoRhino Dominator II Side Steps, Avid Light Bar, Horn Relocation Mod, Rear TSB Springs.
    I'm not gonna disassemble the dash to drill the holes. I'll put out the AC control (I also did the lighted 4x4 switch) and use a right angle drill from below. I should be able to see clearly and be able to see straight down in that location when the AC control is removed.

  10. sparkystaco

    sparkystaco Well-Known Member

    Joined:
    Jan 26, 2010
    Member:
    #30122
    Messages:
    433
    Gender:
    Male
    First Name:
    Sparky
    SE Wi
    Vehicle:
    06 4x4 dc trd ofrd
    3" lift? A.R.E cap 285/70/17 moto metal 955 17x9
    I thought the same thing but theres a support rib that sticks straight up where you would want to drill holes so the lights are back far enuff to hit the cupholders, otherwise the lights will be shining into the cubby. And theres not much room thru the AC controls hole unless you have really small hands.lol

  11. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    I'm gonna take my time and look shit over this weekend before I do this. I don't want to drill into too much up there either.

  12. Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,109
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    that sucks they charge for the LED holders. My first LED order from oznium they included them for free!

  13. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    Yeah..they are cheap ass fragile plastic.....should be free!!

  14. txtrd

    txtrd Rookie

    Joined:
    Jul 25, 2011
    Member:
    #60490
    Messages:
    113
    Gender:
    Male
    First Name:
    Jason
    Somewhere Down In TX
    Vehicle:
    07 TRD Off Road
    K&N drop in filter, nerf bars, alarm & remote start with 2-way paging
  15. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
  16. bootboiler

    bootboiler Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67480
    Messages:
    190
    Gender:
    Male
    First Name:
    Scott
    Softopper, Maggiolina, US Over-Rack, Camberg UCA's, locking tailgate, hid driving lights, ipod connector, B 5100's, airlift, bud built plates, Relentless rear bumper, light bar, sliders with kick, breathers on pumpkins, working on satochi grill
    Can't wait to see the Bed Light work up...

  17. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    Under my bedrails i'm going to use this:

    http://www.amazon.com/Filite-Flexib...ref=sr_1_1?s=hi&ie=UTF8&qid=1327968226&sr=1-1


    And wire it like I have my neons under my truck - with a remote control. This is the same kit I use for my under truck neons. I will wire the bedlights into this and just use the 2 remotes (one on keychain and 1 mounted inside the truck) to turn em on.

    http://www.ebay.com/itm/350528269871?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1438.l2649

    Heres my neon one mounted in my truck (other remote is on my keychain). Eliminates another toggle switch and it'll be nice to be able to turn my bedlights on from 50+ yards away...

    [​IMG]

  18. Casey05Taco

    Casey05Taco Well-Known Member

    Joined:
    Aug 26, 2008
    Member:
    #8781
    Messages:
    1,997
    Gender:
    Male
    First Name:
    Casey
    Penngrove, CA
    Vehicle:
    05 Tacoma Prerunner
    trd seat covers, bed mat, tinted windows, debadged, mud flaps removed, tinted tails, blacked out center console, Black Rims, 6000k HID in highs and fogs, blacked out front emblem, Pioneer AVH-4300DVD, Gauge Cluster, lower valence, retrofitted, audio system, Maxtrac Spindles, Billies
  19. sparkystaco

    sparkystaco Well-Known Member

    Joined:
    Jan 26, 2010
    Member:
    #30122
    Messages:
    433
    Gender:
    Male
    First Name:
    Sparky
    SE Wi
    Vehicle:
    06 4x4 dc trd ofrd
    3" lift? A.R.E cap 285/70/17 moto metal 955 17x9
    RAPR
    That area you circled is exactly where my lites shine, and they don't mess with my eyes

  20. Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    10,682
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box

    So after looking at the cubby last night....i'm going to put a hole right where the red is in this picture.....i'm gonna hook an LED up to my battery tester and see if I put one on each side that the one facing me as I drive doesnt shine in my face. If it does - I'm going to mount it a little higher above that red circle and put a "hood shroud" thing on the led holder that will put a "umbrella" type thingy over the led and just shoot the light straight down. SHITTY DRAWING...lol....but you can prob get the idea i'm thinking bout.

    [​IMG]


    [​IMG]
