Finally found a decent SPDT switch for the dashboard

Discussion in '2nd Gen. Tacomas (2005-2015)' started by stretch85, Oct 22, 2011.

  1. Oct 22, 2011 at 4:13 PM
    #1
    stretch85

    stretch85 [OP] Active Member

    Joined:
    Aug 11, 2011
    Member:
    #61560
    Messages:
    33
    Gender:
    Male
    Raleigh-Durham, NC
    Vehicle:
    2011 V6 4x4 TRD Sport
    A while ago, I came across Crom's awesome 09 Anytime-On Rear View Camera with Switch on Dash mod and was excited to give it a shot. But I wanted to mount the switch in place of one of the blanks in the dash to the left of the steering column. It took me more time and money than I liked, but I'm happy to say I finally found a near-perfect switch for the job.

    This is my story...

    Switch #1: OTRATTW V-Seires Contura II


    I had read a number of posts and here and elsewhere suggesting this switch. Unfortunately, it requires a good deal of dremmeling to fit in an open slot, and I was just a little too nervous about it, especially since this is my first ever electrical work on a vehicle.

    Switch #2: Oznium GSW-45 Rocker Switch (Scion OEM style)


    This switch fit well, but my dumb ass neglected to realize when I bought it that it was a lighted SPST (single pole, single throw) switch, not an SPDT (single pole, double throw). Derp. On with my search...

    Switch #3: Digi-Key 480-2154-ND


    After days of careful research and calculations, I ordered another switch that doesn't fit. Actually, this one has the same body size at the OTRATTW switch. The button and face of the switch also stick out a little further than necessary.

    Switch #4: Digi-Key WR13ATN-ND


    Finally, I found my near-perfect switch. Digi-Key offers several variations of this switch; I opted for the screw terminals on the back because I had already terminated my wiring that way, but the switch is also available with quick disconnects (check the data sheet for the correct part number). For reference, the panel cutout dimensions listed for this switch are 34.20mm x 17.20mm. It sits loosely in the socket out of the box, but wrapping it with a couple layers of electrical tape gives it a nice firm seating (and it's still easy to push back out from behind should you need to remove it).

    Here it is installed in my Tacoma, with a near-OEM look:


  2. Oct 22, 2011 at 5:14 PM
    #2
    JKD

    JKD Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18207
    Messages:
    2,011
    Gender:
    Male
    Nice find.

  3. Oct 23, 2011 at 7:37 AM
    #3
    Tacomitron

    Tacomitron New Guy

    Joined:
    Apr 22, 2010
    Member:
    #35814
    Messages:
    32
    Gender:
    Male
    First Name:
    Kevin
    Ellicott City, MD
    Vehicle:
    TRD Offroad 4x4 Impulse red tow
    3 inch lift in front and 1.5 inch lift in the rear, 1" front diff drop kit, 255/70/17 BFG Mud terr, OEM roof rack, fog lights on anytime mod, OBX headers, Volant CAI, Helix Power Tower throttle body spacer, Century cab high cap with custom roof rack made from Tundra deck rail system, cargo light on anytime mod, extra D-rings mod, tail light guards, EZ-down tailgate assist, Pop N Lock inside the tailgate keyless remote locking tailgate lock, TPMS black tape mod, frame welded rock sliders w/ diamond plate steps welded by each door, bed mat, Impulse red"BHLM", silver painted Sport wheels, DIY black painted fender flares, 5000k HID heads and fogs, blacked our grill and emblems, hidden front hitch receiver from CBI Offroad fab. More in the making.......
  4. Dec 1, 2011 at 8:54 AM
    #4
    TIPICOTACO

    TIPICOTACO Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,074
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"

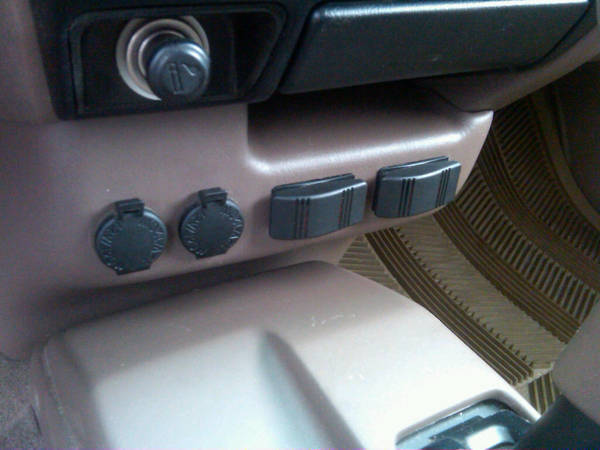

    Some lift, some armor, some scratches..
  5. Dec 1, 2011 at 8:56 AM
    #5
    tacoapw

    tacoapw Member

    Joined:
    Apr 8, 2011
    Member:
    #54562
    Messages:
    41
    Gender:
    Male
    Northeast
    Vehicle:
    2011 TRD Sport Access Cab
    35 Watt 6000K HID's, Westin Bull Bar, Westin Step Bars, PIAA 540 Driving Lights, Uniden PRO520XL CB
    I put the oznium one in a bit ago, took a little bit of trimming with a dremel but it fits snug and looks stock

  6. Dec 1, 2011 at 12:55 PM
    #6
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    RHD Fender Flares, BAMF everything, OKLEDLIGHTBARS.com lighting
  7. Dec 1, 2011 at 7:42 PM
    #7
    DIVERMAN

    DIVERMAN Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29888
    Messages:
    460
    Gender:
    Male
    First Name:
    Cullen
    Louisiana
    Vehicle:
    2012 Pyrite Mica 4x4 TRD O/R SWB
    Tailgate theft prevention, Locking rear window, Blind spot mirrors, Fogs on anytime, Rear diff breather relocated, Bed storage locks, LEDs in/out, Relocated trailer plug(custom!), OEM bed mat, OEM running boards, OEM bed divider, Bed lights, Rev lights, Raptor lights, WeatherTech floor mats and window vents, Extra D-rings, ImMrYo Bracket, UWS low pro black toolbox, Carhartt seat covers,
    sub'd

  8. Dec 2, 2011 at 10:22 PM
    #8
    three west

    three west Well-Known Member

    Joined:
    Sep 27, 2010
    Member:
    #43917
    Messages:
    125
    Gender:
    Male
    First Name:
    JD
    UP MI
    Vehicle:
    09 DC SB TRD Sport
    I see this is an old thread, but for anybody viewing it later, switch #1 really doesn't require that much modding to make it fit. I did it in two minutes or less with a file.

  9. Jan 7, 2013 at 4:42 PM
    #9
    DriverSound

    DriverSound Señor Member

    Joined:
    Mar 29, 2009
    Member:
    #15329
    Messages:
    2,603
    Gender:
    Male
    SoCal
    Vehicle:
    15 TRD-OR DCSB
    Just enough! Other vehicles: 2015 Mustang GTPP 2014 Prius 2010 4runner SR5 4x4 2009 TRD-OR AC
  10. Jan 8, 2013 at 5:27 AM
    #10
    stretch85

    stretch85 [OP] Active Member

    Joined:
    Aug 11, 2011
    Member:
    #61560
    Messages:
    33
    Gender:
    Male
    Raleigh-Durham, NC
    Vehicle:
    2011 V6 4x4 TRD Sport
    It's on-off-on. I wired the top "on" position to the normal camera condition (only on when in reverse) and the bottom "on" position to constant on. The middle "off" position is constant off.
