Front Body Mount Noise Fix - That noise may not be your leaf springs

Discussion in '3rd Gen. Tacomas (2016+)' started by Victory, Dec 13, 2016.

  1. Dec 13, 2016 at 6:34 PM
    #1
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,034
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    This may be a fix for those who believe they have squeaking leaf springs, or hear other squeaking, groaning or popping sounds.

    Over the past month, my truck has been noisier than my 12 year old 4Runner that I traded with 170,000 miles on it. This one is only 8 months old with just 5,800ish miles on it. I thought originally it was my leaf springs, I cleaned and lubed them, with no improvement. I found on this forum many complaining of the front passenger side body mount. I know the dealer should replace this under warranty, but my dealer spends 2.5 hours on an oil change with an appointment, I didn't have time to deal with them actually doing real work. I ordered Energy Suspension part 9.4101G off Amazon, for $25.10 (they also had a red version for a few cents less)

    Tonight I replaced my front body mounts, while I have installed body lifts before, and this is really no different, it took me a few minutes to figure out how to get behind the bumper. I figured I would do a little writeup.

    You will need a 14mm Deep Socket, a 14mm wrench, a 10mm socket, a flathead screwdriver, a jack and blocks, and possibly a prybar.

    Edit: I have an Off Road with no front air dam. If you have an air dam, likely your first step will be to remove it - I am not sure if it will be in the way, but I am guessing it is.

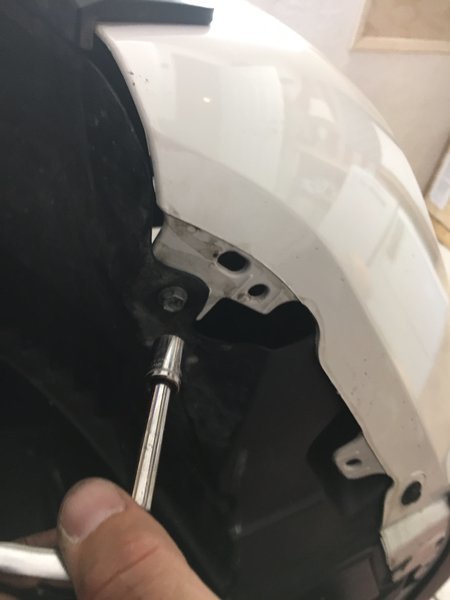

    First turn your wheel to whichever side you want to start on. You will peel back the splash guard in the wheel well. Using the 10mm socket unbolt the two bolts (one black and one silver) on the bottom of the bumper. You will see an orange clip behind one of the bolts, this needs to also come out, get behind the orange clip with the flathead screwdriver and pop it out.

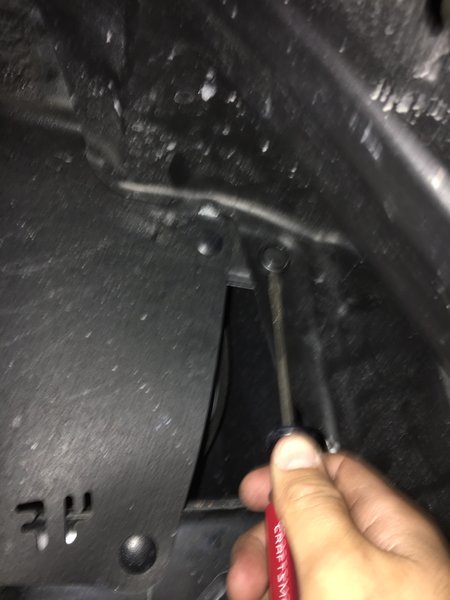

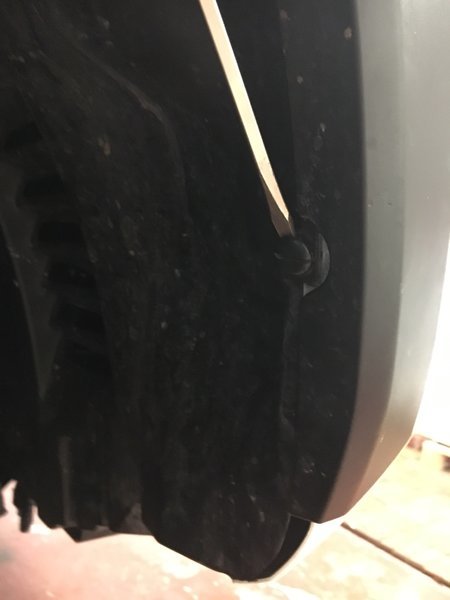

    Then using your flathead screwdriver pop out the clip in the back near the splash guard by just sticking the screwdriver under the clip, and the clip on the outer edge near the fender flare by turning 90 degrees so the slot is horizontal and popping it out from there.


    Then you can pull the splash shield back and prop it on the steering tie bar, and you should be right where you need to be with the mount right in front of you, excuse the white lithium grease, I had tried spraying that on everything trying to quiet it down.

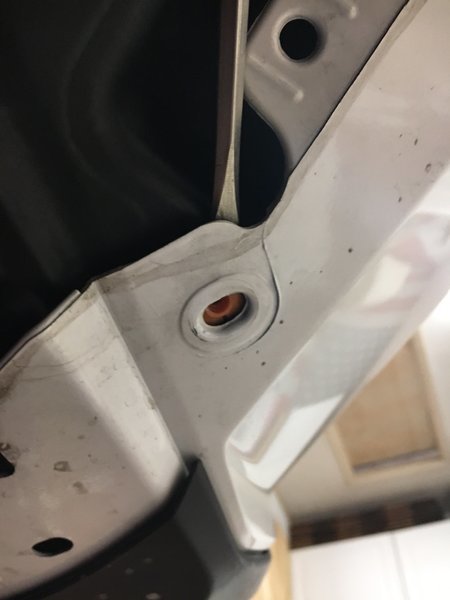

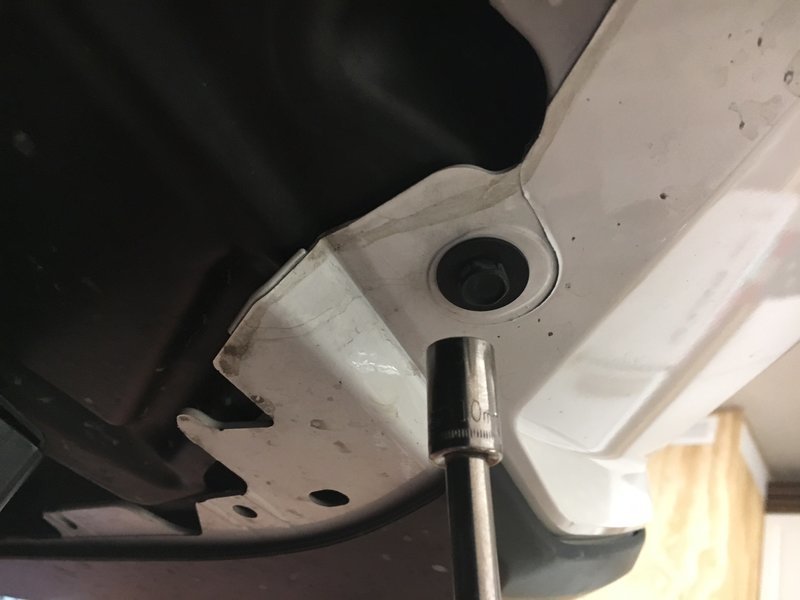

    Pretty self explanatory now, use the 14mm deep socket and wrench to remove the nut and bolt on the mount.

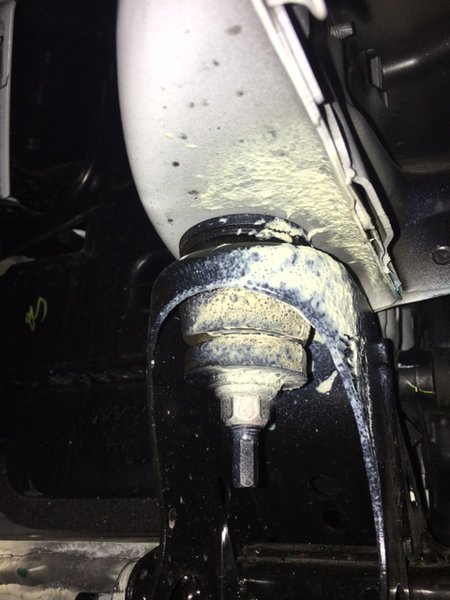

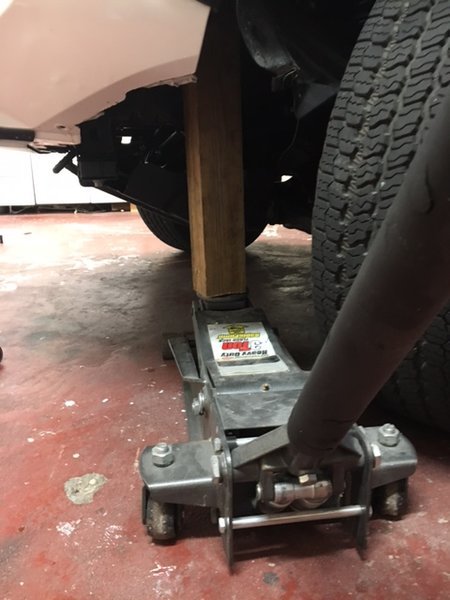

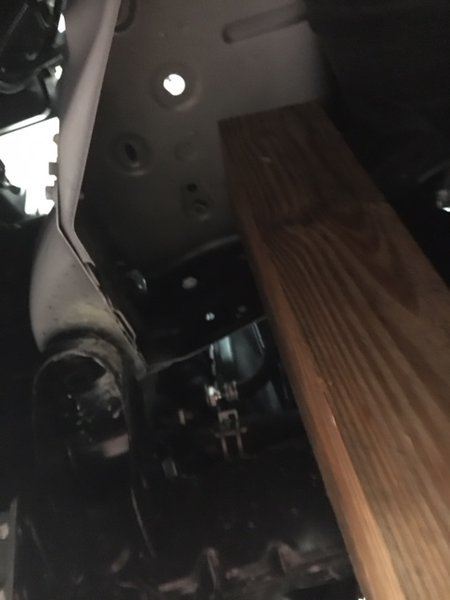

    Use your jack and block to lift the body off the frame just a little bit.

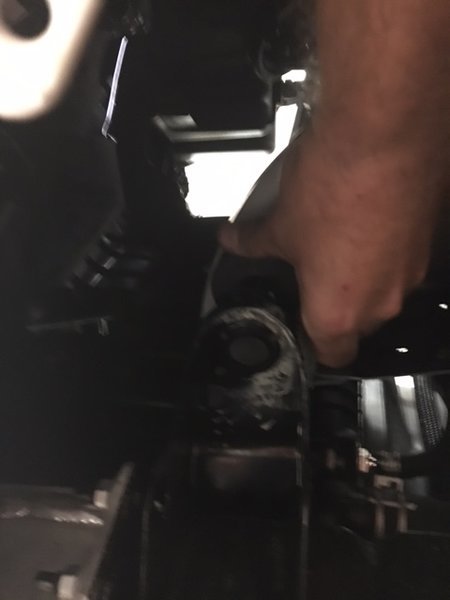

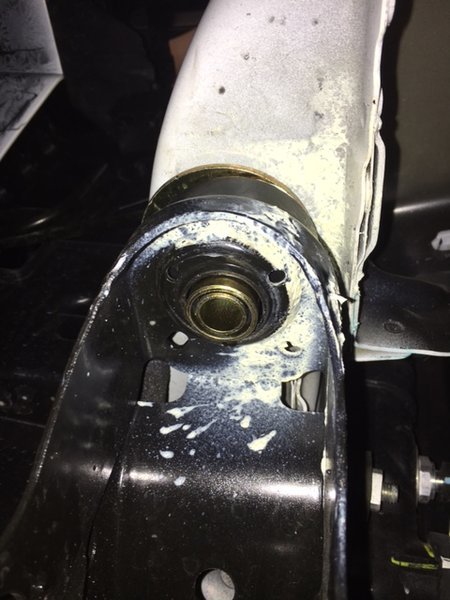

    You can now pull the rubber mount out

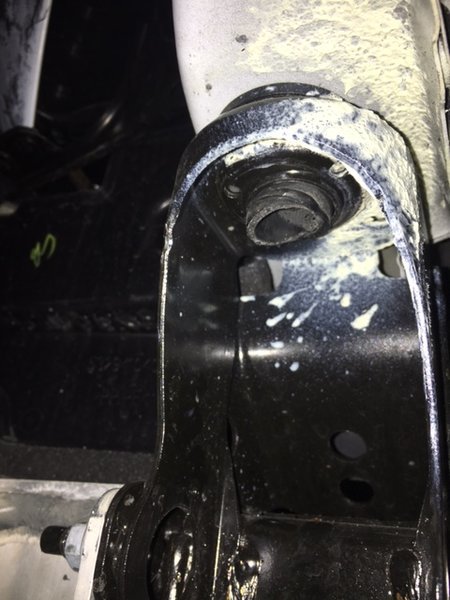

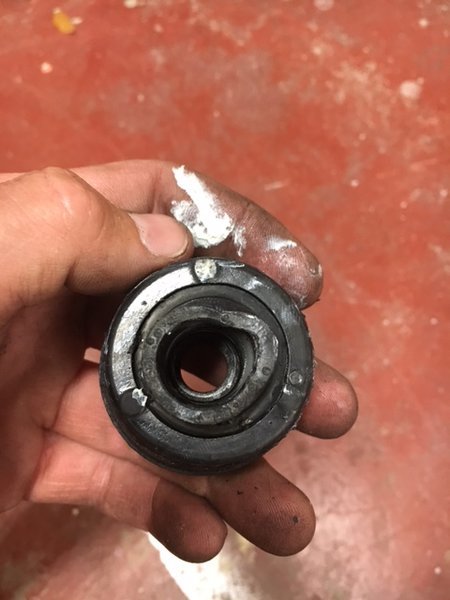

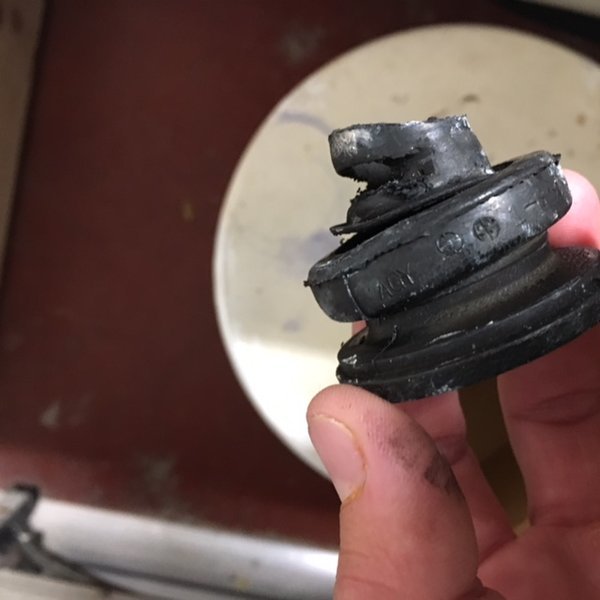

    and you can see how it is damaged, the metal was worn through the rubber making contact with the frame and making the noise.

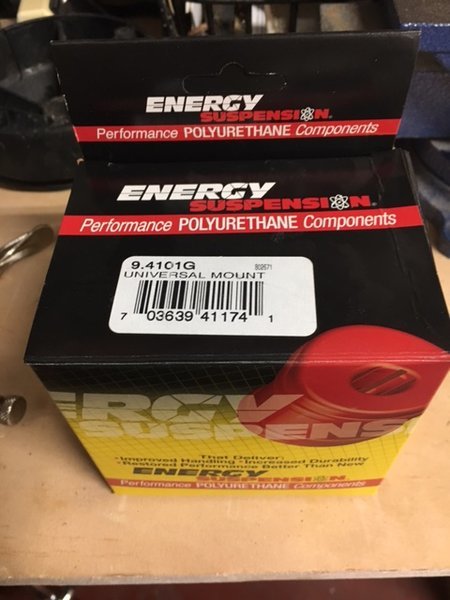

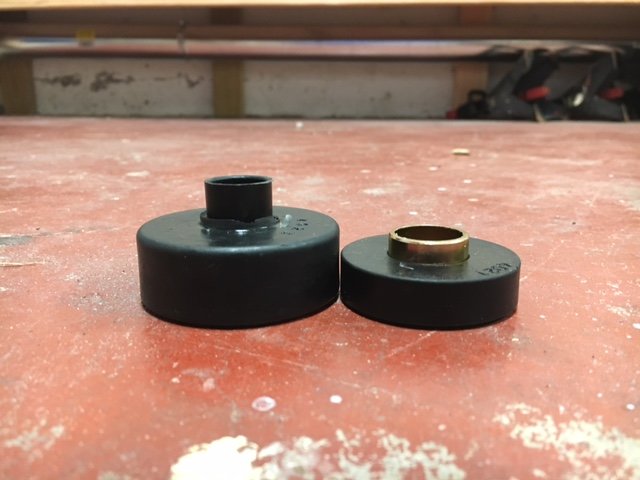

    Take the new parts, and take the larger of the mounts without any metal on it, and place it between the frame and body with the little nipple facing down into the hole in the frame.


    Then insert the metal rings.


    and then the large washer on top of everything. You can now send the bolt down from above and through everything. You now get to lower the body onto the mount and frame, and remove the jack.

    You can now take the smaller mount and put it on the bottom of the bolt, and then the smaller washer, and the nut, tighten it up, and put the wheel well splash guard back together.

    To do the other side, you would obviously do everything in reverse.

    My driver side mount was not worn through the rubber yet, and I have not heard anyone on here complain about the driver side, but mine was distorted and not centered. Here is a pic of the driver side

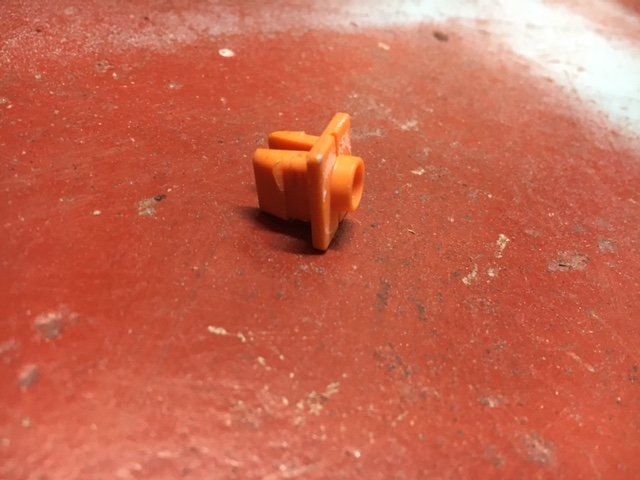

    Also while the passenger side went together with no issue, I had to use a prybar when putting the driverside back together in order to line up the bolt through all holes, I am afraid it could wear through at some point in the future, though the Energy Suspension parts are higher quality and I am sure will last longer than factory.

    After I was all done, I took it on some light off roading and did not hear a thing, nice and quiet, before I couldn't back out of my driveway, or go over the speed bumps in my neighborhood without terrible noises. The whole thing took about an hour and a half, with taking pictures and figuring out how to get behind the bumper without taking it off.


    Feel free to ask any questions
