Front camera frustration!! What else do I need?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Arkie-Marty, Mar 7, 2017.

  1. Mar 7, 2017 at 2:27 PM
    #1
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    I have spent the past week Googling and reading all of the "front camera" threads I could find here on TW, but cannot find what I'm looking for. I have the camera and video switcher listed below, but neither came with directions that I can understand.

    I have a 2017 4x4 Sport, with non-JBL HU, with Navigation. It is my understanding that there is no RCA video port on the back of the HU, so I don't understand how I can use either of these items. What am I missing here?

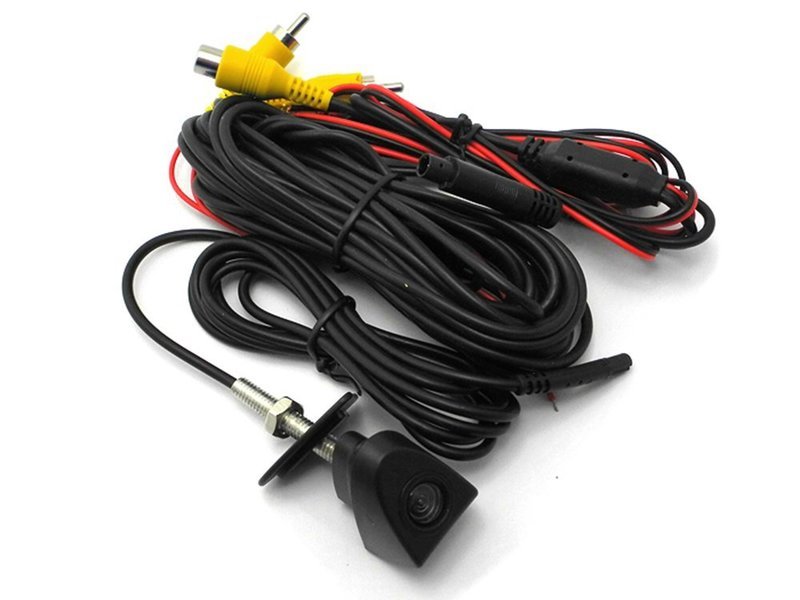

    https://smile.amazon.com/gp/product/B00P2EN5J2/ref=oh_aui_detailpage_o01_s01?ie=UTF8&psc=1

    https://smile.amazon.com/gp/product/B00B155G5M/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

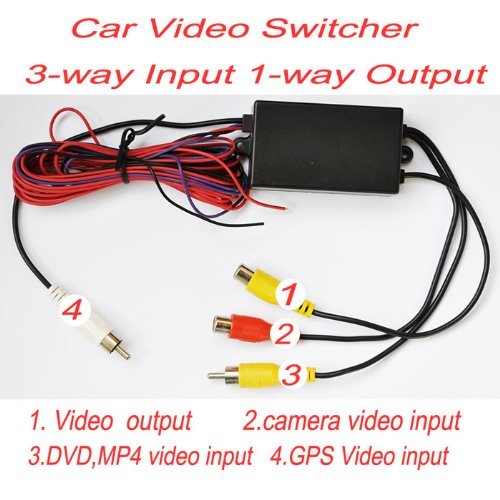

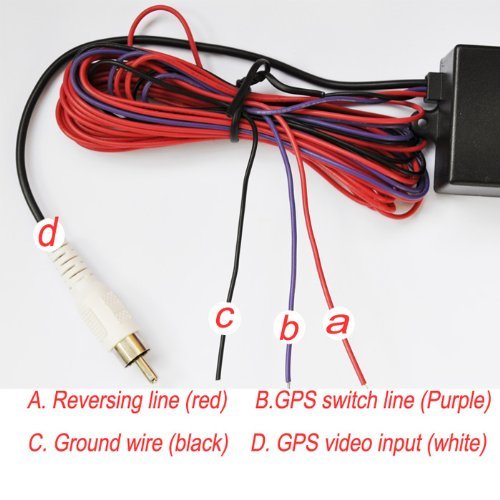

    video-switcher-labeled .jpg video-switcher-labeled-2 .jpg

  2. Mar 7, 2017 at 8:01 PM
    #2
    lamia2super

    lamia2super Well-Known Member

    Joined:
    May 13, 2013
    Member:
    #104088
    Messages:
    412
    Gender:
    Male
    First Name:
    Frank
    Miami Beach, FL
    Vehicle:
    2016 Tacoma TRD Off-Road, (sold) 07 Tacoma xRunner
  3. Mar 7, 2017 at 8:17 PM
    #3
    OdiN1701

    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,975
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Curious what one would need this for anyway?

  4. Mar 7, 2017 at 8:33 PM
    #4
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
  5. Mar 7, 2017 at 8:44 PM
    #5
    Cazzwell

    Cazzwell The Circuit Rider Signman

    Joined:
    Oct 25, 2016
    Member:
    #200651
    Messages:
    446
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2018 Silver Sky DCSB TRD Sport
    Stock.
    I'd say when pulling into a tight parking space when there's a moron parked across the line in front of you (which would leave you hanging out in the back). Could also be used to keep an eye on your winch or tow rope and such.

    I'd be more interested in trying to record the video (from both) in case of an accident.

    Arkie-Marty[OP] likes this.
  6. Mar 7, 2017 at 9:15 PM
    #6
    OdiN1701

    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,975
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Huh...I've never needed a camera to know if the front of my vehicle will hit something. Drives my wife nuts because she thinks I'm too close a lot.

  7. Mar 7, 2017 at 9:19 PM
    #7
    sigrooms

    sigrooms Well-Known Member

    Joined:
    Feb 10, 2017
    Member:
    #210194
    Messages:
    434
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2017 MGM Tacoma TRD Off Road 4x4 Auto DCSB w/JBL
  8. Mar 8, 2017 at 12:14 PM
    #8
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
  9. Mar 8, 2017 at 12:26 PM
    #9
    OdiN1701

    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,975
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    The RCA plugs are just two wires - ground (outer) and signal (inner). As long as you are splicing the right wire to the right inputs, etc. it is just a video signal.

    Arkie-Marty[OP] likes this.
  10. Mar 8, 2017 at 1:50 PM
    #10
    lamia2super

    lamia2super Well-Known Member

    Joined:
    May 13, 2013
    Member:
    #104088
    Messages:
    412
    Gender:
    Male
    First Name:
    Frank
    Miami Beach, FL
    Vehicle:
    2016 Tacoma TRD Off-Road, (sold) 07 Tacoma xRunner
    i would use the front for trail purposes. cant see anything when the nose is up in the air

    bsacamano likes this.
  11. Mar 8, 2017 at 1:53 PM
    #11
    OdiN1701

    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,975
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    You get used to seeing your line and knowing what to do while your nose is up. But sometimes if your nose is that much up the front camera wouldn't help much. In that case you need a spotter :)

  12. Mar 8, 2017 at 1:55 PM
    #12
    sigrooms

    sigrooms Well-Known Member

    Joined:
    Feb 10, 2017
    Member:
    #210194
    Messages:
    434
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2017 MGM Tacoma TRD Off Road 4x4 Auto DCSB w/JBL
    Then how about this:
    https://www.anytimebackupcamera.com/

    He did majority of the wiring work for you, you just need to install the camera and kit he provides.

  13. Mar 8, 2017 at 2:00 PM
    #13
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589
    @Arkie-Marty

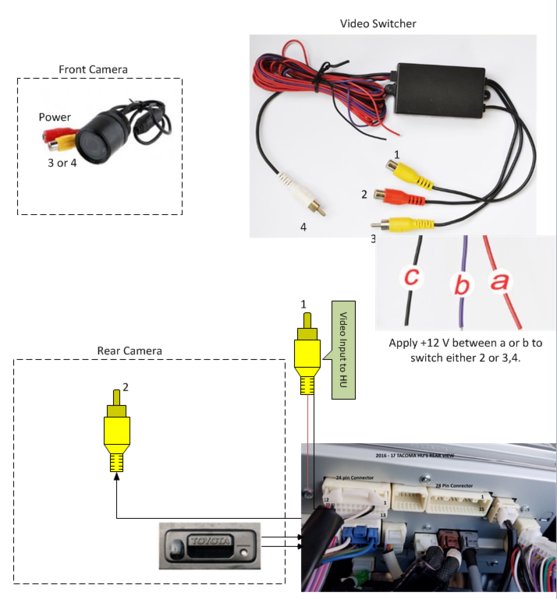

    My rough draft drawing per your parts. (Not included switch for a,b selection and Line 2 (Reverse signal) control to toggle to Video screen at anytime).


    IMHO: Do not use E-Video Switcher, you can either connect per:
    1. This link
    2. Or use Mechanical A/V switch box to replace your E-Video Switcher

    This site contains affiliate links for which the site may be compensated.
    #13
    synaps3 and Arkie-Marty[OP] like this.
  14. Mar 8, 2017 at 3:01 PM
    #14
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589
    Keep in mind that the whole idea is:
    1. Switch line 12 of 24 pin connector between Front and Rear Camera. Allow user to toggle between Rear Video or Front Video.
    2. Apply 12 vdc to Pin 2 of 28 pin connector when you are not in Reverse gear to toggle video screen ON (so you can see Front or Rear Video at anytime). Required to cutoff line 2 and install switch (read and understand before you do it).

  15. Mar 8, 2017 at 7:07 PM
    #15
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    @Hoangde man I sure appreciate your help! So if I understand the diagram above correctly, I won't need to use a relay or diodes....correct? Also, in reference to above diagram, I'm not understanding the yellow rear camera plug and the other yellow plug. How do these physically connect to the 24 pin connector? Do I just jab the stripped wires into the appropriate hole? Why the red X on the picture?

  16. Mar 8, 2017 at 11:08 PM
    #16
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589
    This is my way, you may find a different way to do it. Welcome to understand and do the way you like:

    1. Locate wire on pin 12 and wire on pin 24 of 24 pin connector.
    2. Cut both wires in the middle. (Red X).
    3. Now you have wire on pin 12 and wire on pin 24 at Head Unit side (the wires still attached to plastic connector). Let's call these side "AB" for now.
    4. The other end of wire on pin 12 and wire on pin 24 (the wires still attached to bundle wires). Let's call these side "CD" for now.

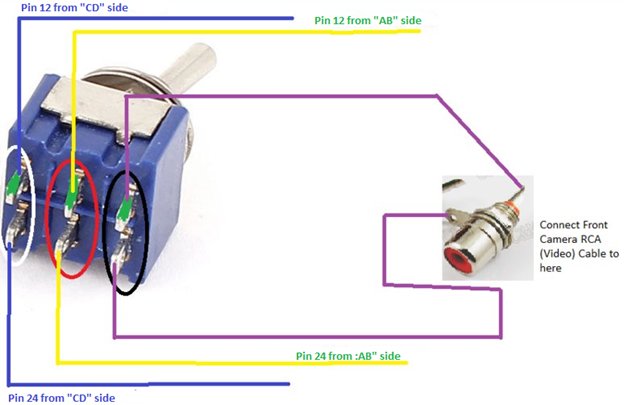

    5. Now connect wires (Wire 12&24) from "AB" side and wires (Wire 12&24) from "CD" side as figure 1 below
    6. Get a RCA Female connector and connect as in black circle.
    7. You just completed Front/Rear Camera Selector
    8. Connect 12 vdc to Front Camera
    9. Connect Video cable from Front Camera to RCA Female Connector (step 6).




    Next locate wire on Pin 2 of 28 Pin connector.
    1. Cut wire on Pin 2 in the middle length.
    2. Now you have wire on pin 2 at Head Unit side (the wires still attached to plastic connector). Let's call this side "E" for now.
    3. The other end of wire on pin 2 (the wires still attached to bundle wires). Let's call this side "F" for now.

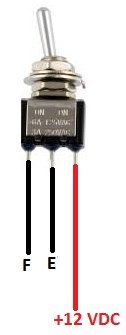

    4. Connect wire on E side and wire on F side as figure below.
    5. Located +12 vdc and connect to switch as below.
    6. You just completed Anytime Camera switch

    Congratulation. You just DIY “Anytime Front/Rear Camera Mod”.

    If you understand to this point, you can substitute the two toggle switches above with OEM style as you wished.
    _______________________________________________________________

    For better power control and keep Front Camera off when not in uses then connect per my diagram (with relay) in here

    Last edited: Mar 8, 2017
    synaps3 and Arkie-Marty[OP] like this.
  17. Mar 9, 2017 at 5:42 AM
    #17
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    Outstanding work @Hoangde!!! Even a senile old fart like me can follow those instructions! :thumbsup:

  18. Mar 13, 2017 at 11:21 AM
    #18
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    Just to be sure, is this an "on-off-on" DPDT or "on-on-on"?

    UPDATE: The correct switch is a DPDT two position On/On switch. A DPDT on-off-on will also work.

    Last edited: Mar 21, 2017
  19. Mar 13, 2017 at 2:08 PM
    #19
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589

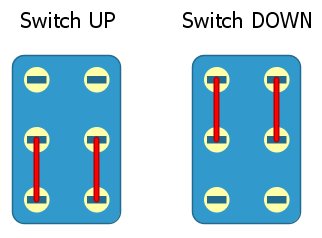

    S1= DPDT, on/on

    S2 = SPDT, on/on
