    anyone installed a front facing camera on their sr or sr5? I see a lot of pro installs but would love to get some ideas of where to mount on the grille of an sr5 with tss

    Heath101, Sep 1, 2019
    #1
    Tullie D likes this.
  2. Sep 1, 2019 at 12:10 PM
    #2
    bagleboy

    #2
    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,161
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    What year?

    bagleboy, Sep 1, 2019
    #2
  3. Sep 1, 2019 at 12:46 PM
    #3
    Heath101

    #3
    Heath101 [OP] Well-Known Member

    Joined:
    Jun 25, 2019
    Member:
    #297402
    Messages:
    59
    Gender:
    Male
    2019

    Heath101, Sep 1, 2019
    #3
  4. Sep 1, 2019 at 12:48 PM
    #4
    bagleboy

    #4
    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,161
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Some use the license plate, some offset to the side.

    bagleboy, Sep 1, 2019
    #4
  5. Sep 1, 2019 at 2:05 PM
    #5
    Heath101

    #5
    Heath101 [OP] Well-Known Member

    Joined:
    Jun 25, 2019
    Member:
    #297402
    Messages:
    59
    Gender:
    Male
    Looking for pics for some ideas

    Heath101, Sep 1, 2019
    #5
  6. Sep 2, 2019 at 7:44 PM
    #6
    Heath101

    #6
    Heath101 [OP] Well-Known Member

    Joined:
    Jun 25, 2019
    Member:
    #297402
    Messages:
    59
    Gender:
    Male
    Looks like I may have to create a solution for others...

    Heath101, Sep 2, 2019
    #6
    Tullie D likes this.
  7. Sep 5, 2019 at 1:50 PM
    #7
    Tullie D

    #7
    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Do it ! :thumbsup:

    BTW, welcome to the forum from Eastern North Carolina.

    Tullie D, Sep 5, 2019
    #7
  8. Sep 5, 2019 at 2:06 PM
    #8
    Gen3TacomaOBX

    #8
    Gen3TacomaOBX Well-Known Member

    Joined:
    Dec 12, 2018
    Member:
    #275624
    Messages:
    1,488
    Gender:
    Male
    First Name:
    S
    Vehicle:
    2018 Tacoma DCSB SR 4x4
    Bilstein 6112 front / 5100 rear (extended) shocks, Headstrong AAL, Firestone airbags, 4.88 gears, OME Carrier bearing drop kit, Aluminum 1/4" skids (engine to transfer). Custom sliders (1.75" HREW tube w/ 3/16" base plates). Custom front bumper and high clearance rear bumper (1/4" steel plate, 1.75" tube.) Apex 5500 winch w/synthetic line (36lbs) and required accessories for an underpowered winch (snatch blocks and extra line.) Tekonsha P3 brake controller, remote start, any-time-backup camera w/ front facing camera, Leer 100R shell (w/e-track single slot tie-down mounts for removable Yakima EasyTop.) Cat shields by CaliRaised. Husky liners, window tint, heated seat (passenger only.) Relentless bed rail brackets with QuickFists (shovel/axe/fire extinguisher.) Hondo Garage Un-holey vent mount. Anytime rear with front facing camera. Billet front seat risers. Viair 88p. 265/75r16 Goodyear Ultra-terrain tires.

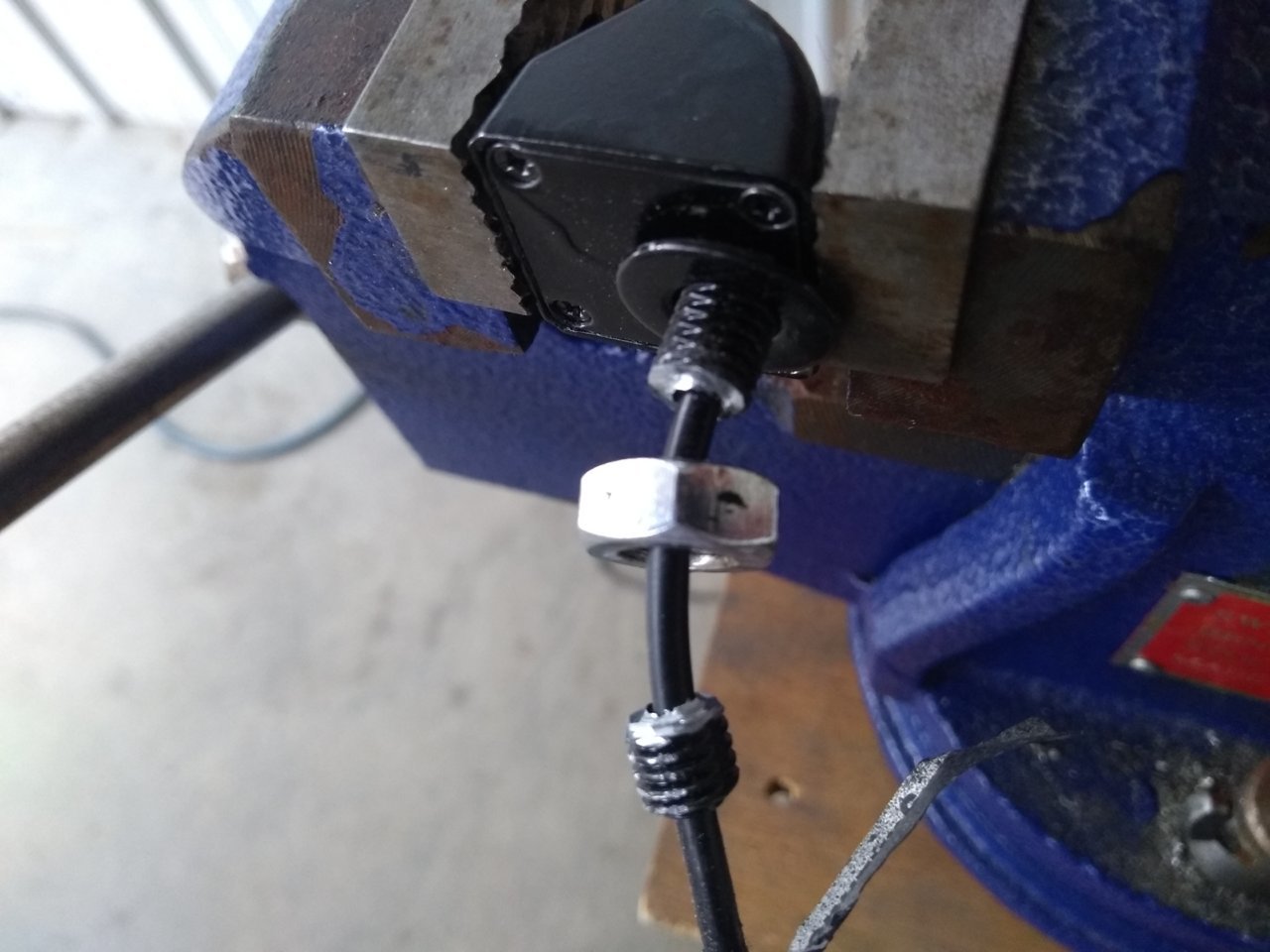

    I don't have a picture of the front mount location at the moment.

    I mounted the camera centered in the grill underneath an area that had been reinforced for the sensor. For this to work I had to shorten the threaded camera attach point as pictured.

    Be sure to mock up your install and take a look at the image displayed on screen before going through the trouble of routing everything. My first attempt was with a camera that couldn't be adjusted without a mirrored image and I was forced to switch it out with a different brand camera.


    Last edited: Sep 5, 2019
    Gen3TacomaOBX, Sep 5, 2019
    #8
    Tullie D likes this.
  9. Sep 5, 2019 at 2:28 PM
    #9
    Tullie D

    #9
    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Welcome to the forum from Eastern North Carolina.

    BTW, Nice work with the saw. :thumbsup:

    What camera did you end up using?

    Tullie D, Sep 5, 2019
    #9
  10. Sep 5, 2019 at 3:04 PM
    #10
    Gen3TacomaOBX

    #10
    Gen3TacomaOBX Well-Known Member

    Joined:
    Dec 12, 2018
    Member:
    #275624
    Messages:
    1,488
    Gender:
    Male
    First Name:
    S
    Vehicle:
    2018 Tacoma DCSB SR 4x4
    Bilstein 6112 front / 5100 rear (extended) shocks, Headstrong AAL, Firestone airbags, 4.88 gears, OME Carrier bearing drop kit, Aluminum 1/4" skids (engine to transfer). Custom sliders (1.75" HREW tube w/ 3/16" base plates). Custom front bumper and high clearance rear bumper (1/4" steel plate, 1.75" tube.) Apex 5500 winch w/synthetic line (36lbs) and required accessories for an underpowered winch (snatch blocks and extra line.) Tekonsha P3 brake controller, remote start, any-time-backup camera w/ front facing camera, Leer 100R shell (w/e-track single slot tie-down mounts for removable Yakima EasyTop.) Cat shields by CaliRaised. Husky liners, window tint, heated seat (passenger only.) Relentless bed rail brackets with QuickFists (shovel/axe/fire extinguisher.) Hondo Garage Un-holey vent mount. Anytime rear with front facing camera. Billet front seat risers. Viair 88p. 265/75r16 Goodyear Ultra-terrain tires.
    Thanks! I play down on the NC coast whenever I get a chance but live in Va. Hoping the area doesn't get too flooded/battered this hurricane season.

    This is the one that worked for me:
    $40 NATIKA Backup/Front View Camera,IP69K Waterproof Great Night Vision HD and Super Wide Angle Metal OEM Style Reverse Rear View Backup Camera for Cars Pickup Trucks SUVs RVs Vans (Black)
    https://www.amazon.com/NATIKA-Backup-Camera-Waterproof-Reverse/dp/B07H852D49

    Gen3TacomaOBX, Sep 5, 2019
    #10
    Tullie D[QUOTED] likes this.
  11. Sep 5, 2019 at 3:20 PM
    #11
    Tullie D

    #11
    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Well, we've been pounded by Tornados this afternoon, and the Hurricane itself is still a long ways off.

    I may order one of those cameras. Looking forward to seeing how you mounted yours. :thumbsup:

    Tullie D, Sep 5, 2019
    #11
  12. Sep 5, 2019 at 3:25 PM
    #12
    no vtec 4me

    #12
    no vtec 4me Well-Known Member

    Joined:
    Jan 29, 2017
    Member:
    #209016
    Messages:
    1,596
    Gender:
    Male
    First Name:
    Kevin
    West Chester, Pa
    Vehicle:
    2017 Tacoma TRD Sport
    The real question is, are you able to make these function with the stock head unit?

    no vtec 4me, Sep 5, 2019
    #12
  13. Sep 5, 2019 at 4:54 PM
    #13
    Tullie D

    #13
    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    That camera has been used with the stock head unit. You do have to have an interface to make it work though.
    Here's one example. There are others, maybe better.


    https://www.tacomaworld.com/threads/car-solutions-reverse-anytime-front-camera-install.604733/

    As for me, I'm thinking about NOT using the stock head unit, but instead using a small dedicated monitor, similar to this:
    $24 Backup Camera Monitor Only - 5" HD Image Back up Camera Screen for Cars Trucks SUVs Vans RVs Trailers Campers, Dashboard/Windshield Installation, 12V/24V, Camera Not Included (5")
    https://www.amazon.com/Monitor-Parking-Optional-Bracket-Adhesive/dp/B019GQLNJU

    I'm still undecided. I want to do it without butchering up the OE wiring.

    Tullie D, Sep 5, 2019
    #13
  14. Sep 5, 2019 at 5:08 PM
    #14
    ICU1

    #14
    ICU1 Well-Known Member

    Joined:
    Sep 3, 2016
    Member:
    #196340
    Messages:
    4,544
    Gender:
    Male
    Car Solutions is plug in play. No added switches needed. Amazon has them

    ICU1, Sep 5, 2019
    #14
  15. Sep 5, 2019 at 5:18 PM
    #15
    Bach88

    #15
    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    81
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC

    You can make you own harness and not butcher anything.

    Metra Electronics AX-TOYCAM3...
    $25 Axxess Toyota 2013-2016 Back-Up Camera Retain/Add-On
    https://www.amazon.com/dp/B01E4B6UQS?ref=ppx_pop_mob_ap_share

    28-pin Head Unit Wiring Harness...
    $30 28-pin Head Unit Wiring Harness Adapter Fits Subaru and Toyota
    https://www.amazon.com/dp/B01BSE5X9Y?ref=ppx_pop_mob_ap_share

    I only did the front anytime camera so it was pretty simple to wire up.

    Bach88, Sep 5, 2019
    #15
    Tullie D[QUOTED] likes this.
  16. Sep 6, 2019 at 6:30 AM
    #16
    Tullie D

    #16
    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Maybe "butcher" was not the best choice of words. :eek:
    What I want to have is a front camera without "involving" ANY changes to the OE wiring.

    My intent is to have a isolated (except for getting power) camera and monitor that can not affect, or be affected by, any of the OE equipment.

    I can do that with a small dedicated monitor. :cool:

    Anyway, I've ordered a camera and monitor. I'll let y'all know how it turns out. :)

    Last edited: Sep 6, 2019
    Tullie D, Sep 6, 2019
    #16
  17. Sep 6, 2019 at 8:13 AM
    #17
    Gen3TacomaOBX

    #17
    Gen3TacomaOBX Well-Known Member

    Joined:
    Dec 12, 2018
    Member:
    #275624
    Messages:
    1,488
    Gender:
    Male
    First Name:
    S
    Vehicle:
    2018 Tacoma DCSB SR 4x4
    Bilstein 6112 front / 5100 rear (extended) shocks, Headstrong AAL, Firestone airbags, 4.88 gears, OME Carrier bearing drop kit, Aluminum 1/4" skids (engine to transfer). Custom sliders (1.75" HREW tube w/ 3/16" base plates). Custom front bumper and high clearance rear bumper (1/4" steel plate, 1.75" tube.) Apex 5500 winch w/synthetic line (36lbs) and required accessories for an underpowered winch (snatch blocks and extra line.) Tekonsha P3 brake controller, remote start, any-time-backup camera w/ front facing camera, Leer 100R shell (w/e-track single slot tie-down mounts for removable Yakima EasyTop.) Cat shields by CaliRaised. Husky liners, window tint, heated seat (passenger only.) Relentless bed rail brackets with QuickFists (shovel/axe/fire extinguisher.) Hondo Garage Un-holey vent mount. Anytime rear with front facing camera. Billet front seat risers. Viair 88p. 265/75r16 Goodyear Ultra-terrain tires.
    I used https://www.anytimebackupcamera.com/ with front camera option. I use it all the time parking in narrow parking spaces or cresting a steep driveway/ramp at slow speeds.

    Fortunately (and unplanned) the wheelbase guidelines rendered on-screen match up with the outer edges of my tires.


    Last edited: Sep 6, 2019
    Gen3TacomaOBX, Sep 6, 2019
    #17
    Tocamo and Tullie D like this.
  18. Sep 6, 2019 at 8:20 AM
    #18
    Tullie D

    #18
    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    The fisheye effect of the camera sure changes things, huh? o_O

    Any chance of you posting a front view of the installed camera?

    Tullie D, Sep 6, 2019
    #18
  19. Sep 6, 2019 at 8:24 AM
    #19
    baldbeardedtaco

    #19
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,279
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I mounted my front camera on my sport with the sr/5 grill. I’ll have to find or take pictures later.

    baldbeardedtaco, Sep 6, 2019
    #19
    Tullie D likes this.
  20. Sep 6, 2019 at 8:26 AM
    #20
    Bach88

    #20
    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    81
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC

    Could you post some pics of where you mounted your camera? I used a cheap $10 emblem mounted camera and you can’t see any of the bumper. Thinking of replacing it with something better quality and mount it where I can see some bumper.

    Bach88, Sep 6, 2019
    #20
    Tullie D likes this.
