Front Diff and Transfer Case Oil Change Howto

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jspadaro, Mar 24, 2011.

  1. Mar 24, 2011 at 1:16 PM
    #1
    jspadaro

    jspadaro [OP] Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12342
    Messages:
    2,997
    Gender:
    Male
    First Name:
    Jim
    Knoxville, TN
    Vehicle:
    Former Tacoma Owner
    Blue Oval Mod
    There is an excellent rear diff howto at http://www.tacomaworld.com/forum/technical-chat/24545-changing-differential-fluid-step-step-how.html

    I also put this tutorial on my how-to site.

    Unfortunately, it didn't describe the front or transfer case, and I'm assuming I'm not the only one who is slow enough to need some pointers.

    You need:
    24mm socket (transfer case)
    10mm hex socket (front diff)
    3 quarts 75W-90 (1.6 front, 1.1 transfer case)
    Oil Bucket / Coffee Can / Whatever
    Hand Pump to pump the oil

    PB Blaster is good for all the stuck bolts on this truck, too. Keeps you from stripping plugs. I put some PB Blaster on every plug I was removing beforehand.

    Last edited: Oct 29, 2014
  2. Mar 24, 2011 at 1:35 PM
    #2
    jspadaro

    jspadaro [OP] Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12342
    Messages:
    2,997
    Gender:
    Male
    First Name:
    Jim
    Knoxville, TN
    Vehicle:
    Former Tacoma Owner
    Blue Oval Mod

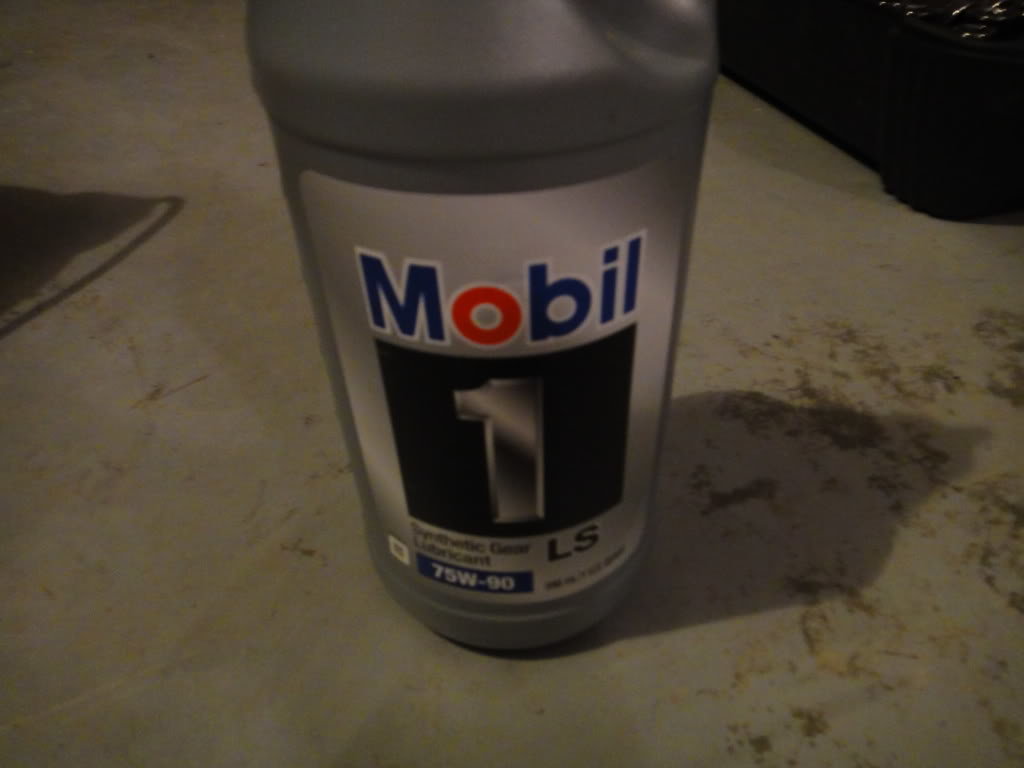

    So here's a shot of the oil I got:
    [​IMG]

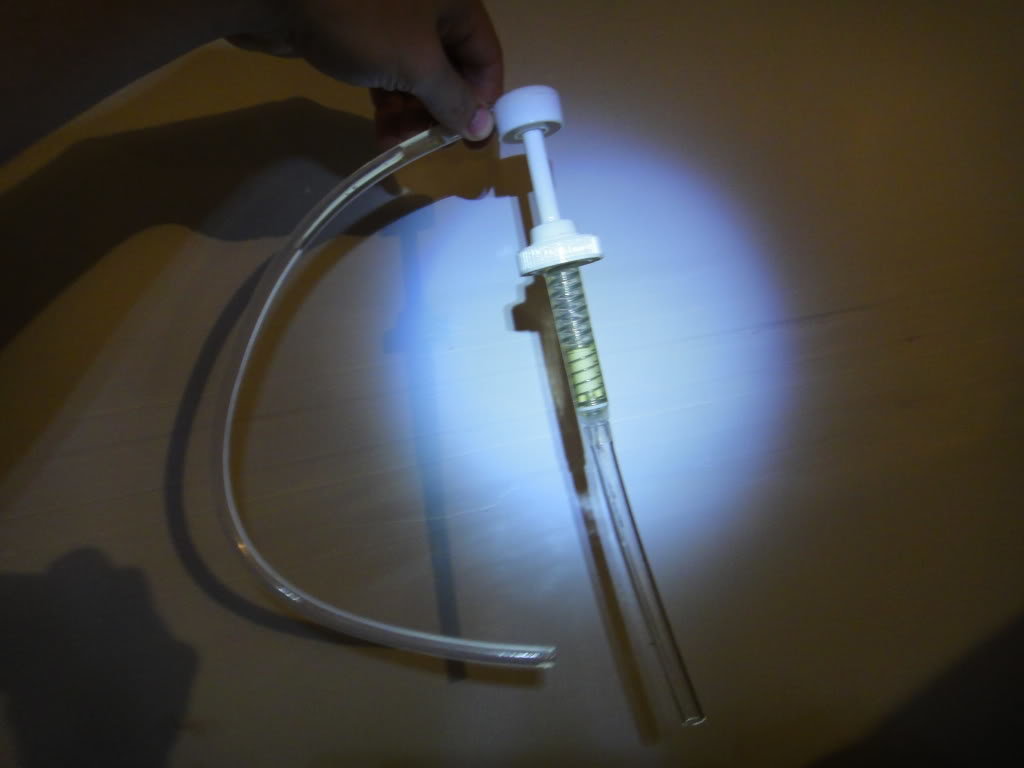

    And here's the pump. The threaded end goes in the oil bottle and screws down, the other tube sticks into the hole in your fill plug.
    [​IMG]

    You need to remove your skid plate to get to the front diff. For perspective, here's where it is relative to other parts of the truck:
    [​IMG]

    Here's a shot of the drain and fill plugs on the front diff. These take 10mm Hex / Allen keys. I found it best to get a 10mm hex socket from autozone, sears, wherever, so I could use a breaker bar + pb blaster to crack them loose the first time. That way I can also use a torque wrench to torque them correctly.

    Front diff gets 1.6 quarts. The fill plug torques to 29lb-ft and the drain torques to 48 lb-ft. The magnet on the drain plug should be cleaned just like the rear diff.
    [​IMG]

    The transfer case uses a 24mm socket like the rear diff. It is easier to get to, almost directly underneath the middle of the truck. Here's a perspective shot of what you're looking for:
    [​IMG]

    The transfer case gets 1.1 quarts. The fill and drain plugs both torque to 27lb-ft. I also noticed that the transfer case's drain plug doesn't seem to have a magnet on it like the front diff.

    Here's a closer shot on where the plugs are:
    [​IMG]

    The procedure for both is identical to the rear. Take off the fill plug first, to make sure you can get it off while you still have oil. Then, put a pan under the drain plug, and crack it open. Let the oil drain. Clean both plugs. For the front diff, make sure to get any metal shavings off of the magnet. Reinstall the drain plug and torque it down. Fill the diff using the pump until it starts coming out. Reinstall the fill plug and torque it down. Done!

    Taco Salad Sport likes this.
  3. Mar 24, 2011 at 3:42 PM
    #3
    Eurosport

    Eurosport Well-Known Member

    Joined:
    Sep 5, 2010
    Member:
    #42772
    Messages:
    440
    Gender:
    Male
    i can't believe 1st change is recommended at 30k
    i changed mine at 5k magnets were full, and obviously very dark on the oil both front and rear, transfer case looked ok.
    Motul synthetic in there now, smoooooth.....

  4. Mar 24, 2011 at 3:44 PM
    #4
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    I changed mine last weekend at 30K. The magnets had crap but nothing serious. The fluid color was fine.

  5. Mar 24, 2011 at 3:54 PM
    #5
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    774
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on,2" Custom Rear Lift, Carrier Bearing flip 5100's and 883 OME Coils
    I changed my rear diff at 30K and it was fine. Magnet had one small piece on it. I dunk the rear diff in water most weekends during the summer

  6. Mar 26, 2011 at 6:19 AM
    #6
    PBJ

    PBJ Member

    Joined:
    Jan 16, 2011
    Member:
    #49331
    Messages:
    6
    Gender:
    Male
    First Name:
    Paul
    Indianapolis
    Vehicle:
    06' TRD Access Cab
    Painted yellow fogs, 4 extra D-rings in bed, Toyota bed mat, Access roll up cover, 20 % tint all around, 3" OME lift kit w/ add a leaf's and spacer up front, Light racing control arms
    Thanks for the great write up, I've been searching for a transfer case how-to.

  7. Mar 26, 2011 at 5:24 PM
    #7
    FLJB

    FLJB Well-Known Member

    Joined:
    Mar 27, 2009
    Member:
    #15235
    Messages:
    95
    Gender:
    Male
    First Name:
    Juan
    NE FLA
    Vehicle:
    2009
    t
    Just completed changing the fluids in both diffs and T Case and this writeup was invaluable. Thank you for posting it.

    The T Case and Rear Diff fluids were fine, but the front diff was definitely milky for some reason.

    went to a local dealer and got replacement crush washers for all 6 plugs for $13.00 or so.

    Here are the part numbers for the washers, i found them in the thread about changing rear diff, so I am just sharing the love in case you want to get them. I did notice the first part number item does get crushed nicely after use so it might be a good idea, but in the other thread people seem to be reusing them with no ill effects.

    12157-10010 - Need 3 2 for rear diff and 1 for front diff fill plug. metal with crush area.
    90430-A0003 - Need 2 both for the T Case. (this used to be part # 90430-18008 but the dealer told me it changed when I got washers on 06/19/2015. These are also for manual transmission fill & drain if you are doing that too...) metal, no crush area.
    90430-24003 - Need 1 for front diff drain plug. it is Brass.

    I Got a 6-point 24MM socket and breaker bar at Harbor Freight for like $13 total which helped a lot.

    One item to note is the front diff drain plug is very large and after screwing it in all the way it did not move much at the torque phase.

    Everything went well for me and the smell of 90 weight brought back memories of changing diff oil in LAVs back when I was in The Corp, so that was an added bonus to the sense of accomplishment of DIY.

    I would add rep to the op, but i do not have that option available at the moment, so REP to the OP!

    Last edited: Jun 21, 2015
    Biscuits, Taco Salad Sport and Crom like this.
  8. Mar 26, 2011 at 5:26 PM
    #8
    jspadaro

    jspadaro [OP] Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12342
    Messages:
    2,997
    Gender:
    Male
    First Name:
    Jim
    Knoxville, TN
    Vehicle:
    Former Tacoma Owner
    Blue Oval Mod
    Lol, FLJB, good info, maybe I'll change washers next time. Glad this was helpful. I didn't see it anywhere else on the site and had to hunt for the plugs, so I figured other people might like pictures.

  9. Apr 26, 2011 at 3:33 PM
    #9
    JoeTacoma02

    JoeTacoma02 Well-Known Member

    Joined:
    Jul 27, 2010
    Member:
    #40831
    Messages:
    3,382
    Gender:
    Male
    Beaverton, OR
    Vehicle:
    SWB 05 Double Cab 4x4 TRD Off Road
    This isn't on a sticky? I was browsing the "How to change gear differential" thread and came upon this. Nice write up..thanks for helping a dumb dumb like me keep up with DIY maintenance :thumbsup:

  10. Apr 26, 2011 at 7:13 PM
    #10
    jspadaro

    jspadaro [OP] Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12342
    Messages:
    2,997
    Gender:
    Male
    First Name:
    Jim
    Knoxville, TN
    Vehicle:
    Former Tacoma Owner
    Blue Oval Mod
    Hah, no problem, rep me if it helped. :)

    It isn't stickied as far as I know, maybe bug a mod about it!

  11. Apr 30, 2011 at 9:08 AM
    #11
    david55838

    david55838 Member

    Joined:
    Apr 21, 2011
    Member:
    #55286
    Messages:
    18
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    99 SR5 Xtra Cab 4x4
    Newbie, idiot... Call me what you want. Trying to do front diff on my '99 3.4. Skid plate is off. Drain plug is right there, but WHERE THE HECK is the fill plug? I'm looking for a 10mm hex plug near the top of the diff on both sides, but I can't find it. Any help is GREATLY appreciated.

    Thanks.

  12. Apr 30, 2011 at 12:09 PM
    #12
    david55838

    david55838 Member

    Joined:
    Apr 21, 2011
    Member:
    #55286
    Messages:
    18
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    99 SR5 Xtra Cab 4x4
    Oops. Wrong thread. Sorry. Found it anyway, but busted a socket trying to get it off.

  13. May 6, 2011 at 7:41 AM
    #13
    gonzo6up

    gonzo6up Well-Known Member

    Joined:
    Jan 5, 2009
    Member:
    #12240
    Messages:
    428
    Gender:
    Male
    Middle Tn
    Vehicle:
    09 tacoma SR5 4x4 sport
    tint/ vent visors/ seatbelt chime mod/ DTRL Mod
    well it looks like i need to get some oil and change all the diffs and transfer this weekend since i have 70K miles and still haven't changed it yet. good write up to all involved

  14. Jun 22, 2011 at 5:40 PM
    #14
    linkfeeney

    linkfeeney Well-Known Member

    Joined:
    Dec 5, 2006
    Member:
    #393
    Messages:
    1,540
    Gender:
    Male
    First Name:
    link the stink!
    aberdeen, nj
    Vehicle:
    09 Doublecab TRD Off-Road! Magnetic Grey!
    awesome!

  15. Jul 6, 2011 at 3:48 PM
    #15
    Seabass

    Seabass I need to go return some videotapes...

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    5,235
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    <insert thief bait here>
    Subbed!

  16. Jul 14, 2011 at 1:05 PM
    #16
    JimT

    JimT Active Member

    Joined:
    Jul 14, 2011
    Member:
    #59858
    Messages:
    28
    Gender:
    Male
    First Name:
    Jim
    Indiana
    Vehicle:
    2008 V6 TRD
    ARB Deluxe bumper, Toytec front springs
    I did mine 2 weekends ago. When I removed the drain plug, oil shot out about a foot horizontally and totally missed the pan. In fact, it almost got me! Besides that, piece of cake.

    I did procure and use a six point impact socket to use for the transfer case and rear differential. I didn't like seeing the marks I left on the rear diff plug using a 12 point and a breaker bar to loosen it. Impact was the only 6 pt Craftsman socket I could find in this size.

  17. Jul 14, 2011 at 1:07 PM
    #17
    THExBUSxDRIVER

    THExBUSxDRIVER Victory is reserved...

    Joined:
    Mar 19, 2010
    Member:
    #33508
    Messages:
    4,201
    First Name:
    GOO5E
    Central Valley Ca.
    Vehicle:
    Old Man Tan!
    Not enough.
  18. Jul 14, 2011 at 9:12 PM
    #18
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    Dang that was pretty easy i changed the rear diff and transfer, will do the front diff maybe at Jerry's mod day. Besides stinking to all hell and buying the wrong hand pump, everything went smooth, though if I recall, somewhere on this forum it's listed as 1.1 quarts of oil and the parts store looked it up and said almost two quarts, what came out was not much over a quart so when I filled it it ended up about a quart and a half maybe a little more. I used Royal Purple 75-90, figured this is something I only have to do every 30K so why not get the good stuff. Either way I can't believe how much smoother the drive train feels after doing this! The was a clunk in the 'train as I pressed the gas that was worrying me, not huge or severe but just enough to make me notice. Thanks TW for all the helpful info.
    Oh BTW, my local Tranny shop quoted me $400 to do what I did for just the cost of the oil!

  19. Jul 14, 2011 at 10:35 PM
    #19
    george3

    george3 Well-Known Member

    Joined:
    Jun 8, 2008
    Member:
    #7173
    Messages:
    3,221
    new jersey
    Vehicle:
    tacoma
    Seat belt beeper, Cabelas (Weathertech) floor liner gray, Covercraft Seat Savers in Taupe, Protecta Heavy Duty Rubber Truck Bed Mat, Pop n Lock PL5200, Pace Edwards Full Metal JackRabbit, Wolverine oil pan heater, Scangauge2, afe pro dry s filter, Remote Underbody 4 Piece LED Light Kit (White) used as Bed light, DIY Washable Cabin Air Filter, PA15-TOY, 4x4 Illuminated Switch, full synthetic, Redline Tuning Hood Support, Smittybilt Nerf Steps black powder-coated
    So you made $200 a hour. Not bad.

  20. Jul 19, 2011 at 12:43 PM
    #20
    JimT

    JimT Active Member

    Joined:
    Jul 14, 2011
    Member:
    #59858
    Messages:
    28
    Gender:
    Male
    First Name:
    Jim
    Indiana
    Vehicle:
    2008 V6 TRD
    ARB Deluxe bumper, Toytec front springs
    It was a miserable failure. First, I found I still had dirt and rocks sitting on top of one of the rear skidplate screws (in the frame crossmember). It had rusted so bad that when I finally got it out, the last 3-4 threads were mashed flat. I'm hoping the threaded hole is not damaged, I may have to chase the threads with a tap. Once I finally got the skidplate off, the fill plug came loose pretty easily. The drain plug refused to come loose with a 10" bar though. After trying repeatedly, I finally went and got my 18" bar and 1/2-3/8 adapter. On my first try, the tip of my hex socket snapped off!

    I'm thinking the Craftsman design is poor. They've reduced the diameter of the hex bit to fit into the socket.

    So, I used an allen wrench and put the fill plug back in. Went to town last night and got a replacement Craftsman tip and picked up a Kobalt tip. The Kobalt tip is 10mm all the way into the socket.

    I'm going to try to pick up some stainless cap screws to replace the mangled skid plate screw and the not mangled ones. They appear to be M8-1.25x20 if anyone is interested.
