Front diff mount replacement bushings. Another plastics guy first.

Discussion in '1st Gen. Tacomas (1995-2004)' started by Plastics Guy, Jun 27, 2018.

  1. Jun 27, 2018 at 9:39 PM
    #1
    Plastics Guy

    Plastics Guy [OP] Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226573
    Messages:
    363
    Gender:
    Male
    Vehicle:
    02 4Runner
    Plasti-dip & exhaust tip
    Hello again, Your local lot lizard roaming the forums with another product that I made because I wasn't happy with the fact that Toyota doesn't offer a replacement bushing for the front diff mount brackets. you have to buy the entire bracket at over $100 each x 2.

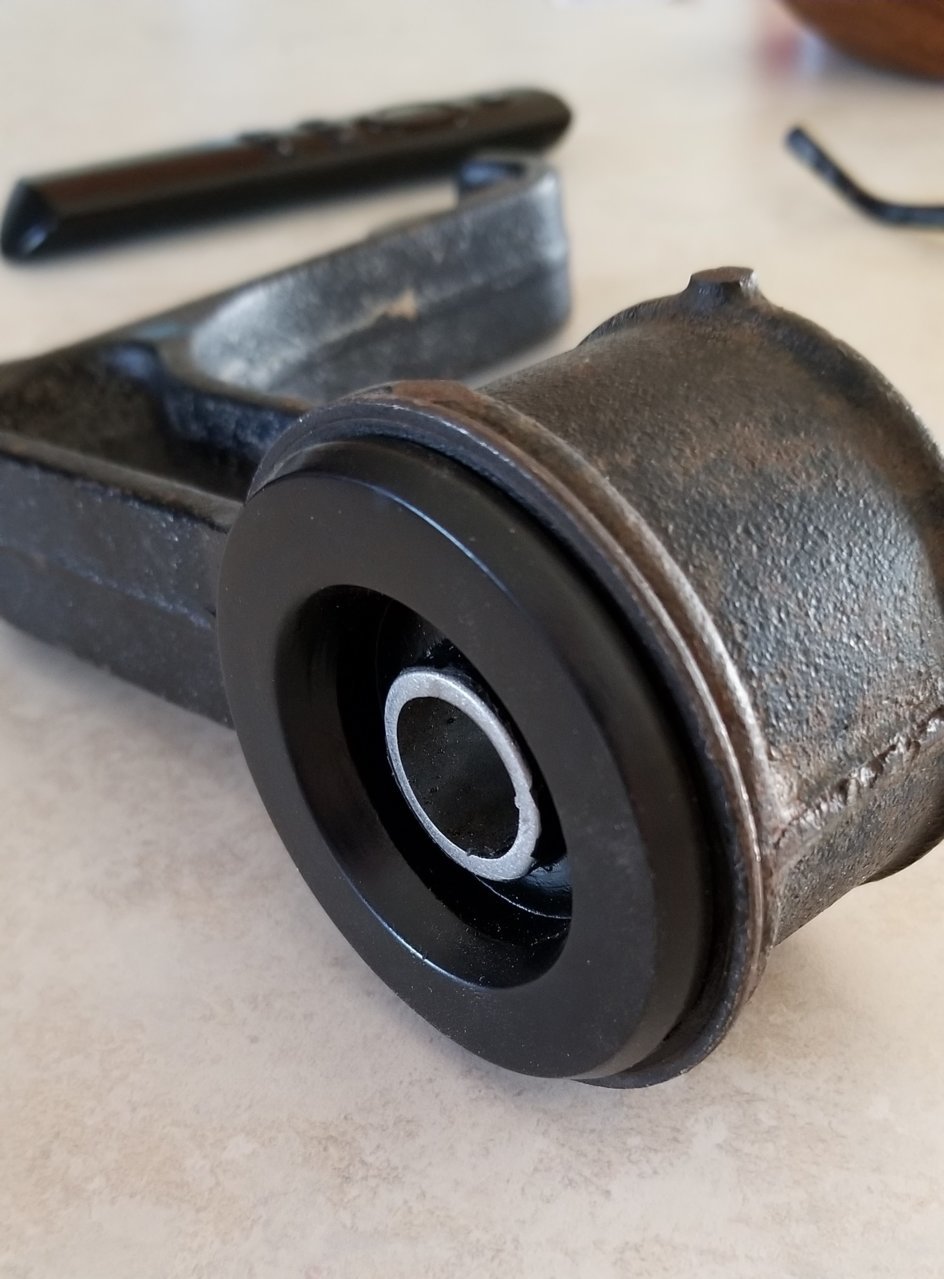

    So I made these replaceable bushings that have a cast in place metal bushing surrounded by a firm urethane rubber. After removing your original bushing with a little heat my bushing simply presses in.

    My bushing is solid rubber around the metal inner bushing, unlike the factory OEM bushing that has two large voids (this is where they fail). My design offers more support around the metal bushing.

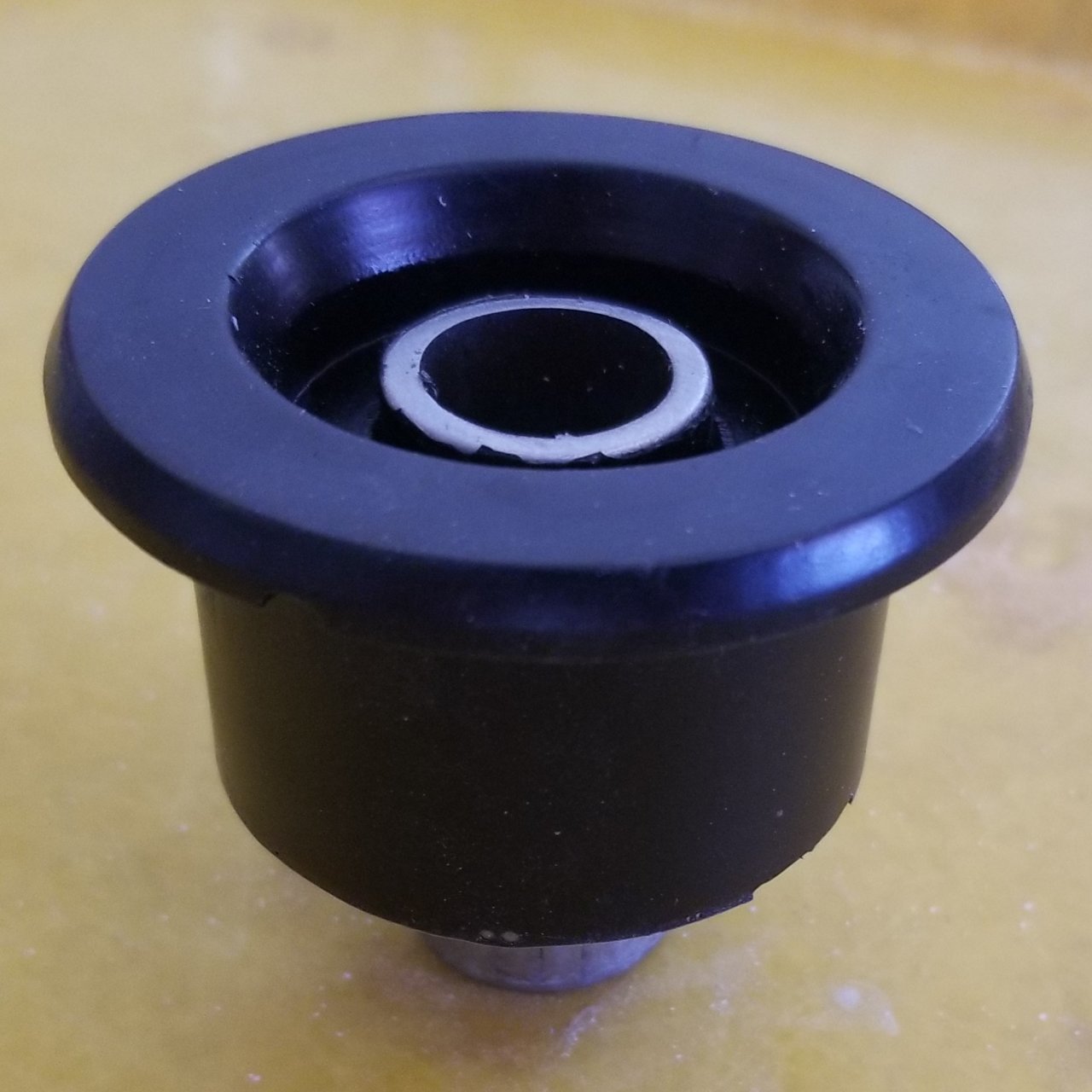

    This is just a prototype in the photo but I'm very close to finishing this up. What do you guys think?




    I am taking orders for the front diff bushings. $55.00 + shipping. Payment through Pay-pal.

    This is a list of everyone that is interested in the front diff replacement bushings.
    Batch #1 - updated July 7th

    @Squeaky Penguin
    @Kiloyard
    @otis24
    @Stout890
    @Smash8ight
    @codosa - paid
    @1997tacomav6 - paid
    @The Driver - paid
    @yota864x4
    @Birdog - paid
    @jubei - paid
    @weenerdog - paid
    @F250orelse - paid

    Last edited: Jul 8, 2018
  2. Jun 27, 2018 at 9:44 PM
    #2
    ThunderOne

    ThunderOne Average Contributor

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    8,493
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    When will you make lower control arm bushings??

  3. Jun 27, 2018 at 10:06 PM
    #3
    Plastics Guy

    Plastics Guy [OP] Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226573
    Messages:
    363
    Gender:
    Male
    Vehicle:
    02 4Runner
    Plasti-dip & exhaust tip
    Lol!!! Its hard to compete with the whiteline bushings. I'm not much of a competitive guy, I like to be the only one on the block making what I make. its easier to claim your the best... But in all honesty those big companies that bang out thousands of parts a year are really good at what they do. If they made the various bushings and bump stops that I'm making I wouldn't have even bothered with all the R&D, Molds, and countless hours of spinning my wheels.

    But if you have any ideas shoot me a pm. I'm always looking to fill the voids in the market

    ThunderOne likes this.
  4. Jun 27, 2018 at 11:55 PM
    #4
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    7,977
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Awesomeness

  5. Jun 27, 2018 at 11:56 PM
    #5
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    25,112
    Gender:
    Male
    First Name:
    Zane
    Spokane, WA
    Vehicle:
    1993 Land Cruiser Triple Locked
    I've done a mod or two
  6. Jun 28, 2018 at 9:56 AM
    #6
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    6,867
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD
    Lots of dust and custom dents, Check Build
    I'd be interested in a set. Mine are disintegrating.

    Is there another part to the bushing that goes on the top of the mount?

  7. Jun 28, 2018 at 10:11 AM
    #7
    joeficsit

    joeficsit Well-Known Member

    Joined:
    Aug 9, 2014
    Member:
    #135758
    Messages:
    66
    Gender:
    Male
    First Name:
    Chris
    Texas 'Yall
    Vehicle:
    PreRunner with transfer case in
    Dude that's awesome! Sub'd.

    Plastics Guy [OP] likes this.
  8. Jun 28, 2018 at 10:37 AM
    #8
    Stout890

    Stout890 Well-Known Member

    Joined:
    May 8, 2011
    Member:
    #56287
    Messages:
    810
    Gender:
    Male
    First Name:
    Jason
    Palmdale ca
    Vehicle:
    99 prerunner sr5
    Navigation, 10" sub, ome881 on billies 3" all-pro leaf springs with billies, taneau cover, k&n intake,axle swap with a E locker. 31" BFG A/T on KMC XD wheels, hoola girl air freshener and a broadie knob!
    Yes I think this is a good idea I’d buy some or better yet I’ll be a tester for them if you like!

    Plastics Guy [OP] likes this.
  9. Jun 28, 2018 at 10:46 AM
    #9
    otis24

    otis24 Hard Shell Taco

    Joined:
    Dec 3, 2012
    Member:
    #92402
    Messages:
    4,072
    Gender:
    Male
    First Name:
    Mark
    West Coast
    Vehicle:
    03 Access Cab TRD 4X4 V6
    Things
    I’m doing a regear at some point. This is something I would be interested in doing at the same time.

    What other products do you make?

  10. Jun 28, 2018 at 10:47 AM
    #10
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,684
    Gender:
    Male
    North Carolina
    Vehicle:
    99 Taco w/ a V8
    The cab, Bed and frame are stock...
    Cool idea, but are people actually having bushings fail? Asking for a friend.. :anonymous:

  11. Jun 28, 2018 at 12:06 PM
    #11
    Plastics Guy

    Plastics Guy [OP] Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226573
    Messages:
    363
    Gender:
    Male
    Vehicle:
    02 4Runner
    Plasti-dip & exhaust tip

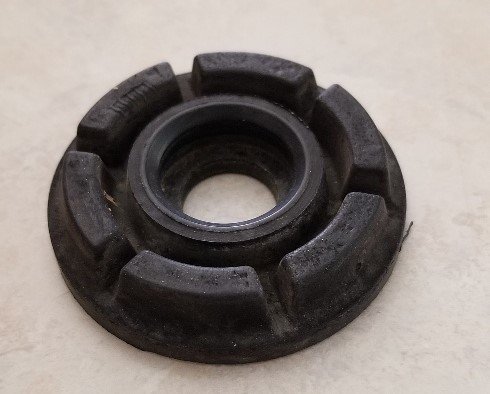

    Yes, Two of these guys. Front support upper insulators. they are the only part of the bracket that Toyota actually offers as a replaceable part. Currently $16.10 each from Camelback.
    My kits will be coming with 2 of these included. Im just waiting on materials to arrive to finish them up.

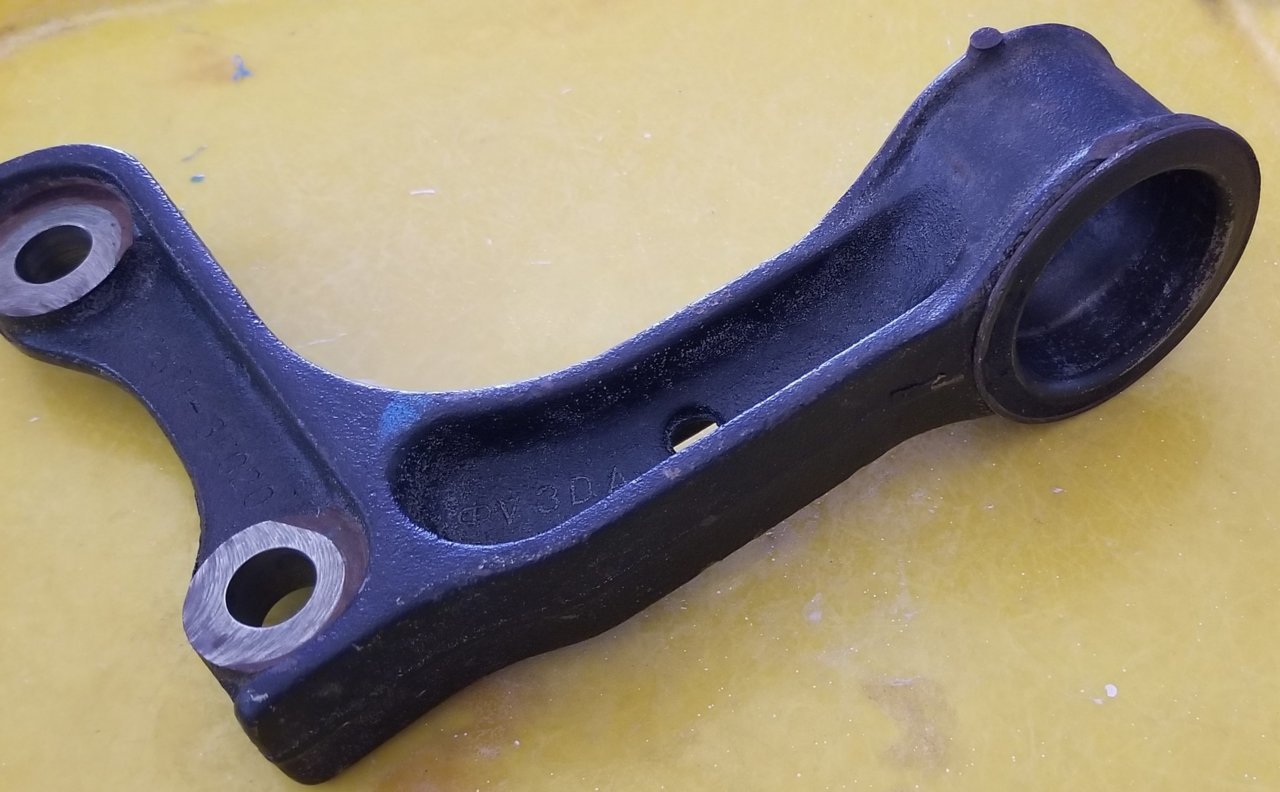

    The front diff mount brackets can be removed easily without needing to pull the diff out. Just remove your skid plate, and unbolt the 3 bolts that hold each bracket on. the diff will stay put. easy peazy. The complete job can be done in an hour, with beers.

    I also make:
    -Front and rear bump stops for 3rd gen 4runners
    -front bump stops for 4th and 5th gen 4 runners. plans on rear bumps in future. -Front bump stops for 1st, 2nd, 3rd gen Taco's. Currently prototyping rear bump stops for all Taco's.
    https://www.tacomaworld.com/threads/r-d-new-tacoma-specific-front-bump-stops.545984/page-4

    -a stupid little transfer case damper "saver" Its a silicone insert that fits between the counter balance hanging from the transfer case to keep it from clanking and making noise on rough roads
    Let your friend know... Hell yeah!!! our trucks are over 16 years old. the rubber breaks down after all that time and then we go beat them up even more on the trail. They don't completely fail or fall out of the truck or anything, they just get sloppy and loose... who likes that?

    Read Squeaky Penguin post above. this is very common.

    the front bushings have a fair amount of flex and as they wear out it is allowing for the front diff to clock further than intended and makes for a sloppy feel as well as moving the CV angle around in the process. it can also make a clunking sound depending on how worn your OEM bushings are.

    otis24 likes this.
  12. Jun 28, 2018 at 1:35 PM
    #12
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,684
    Gender:
    Male
    North Carolina
    Vehicle:
    99 Taco w/ a V8
    The cab, Bed and frame are stock...

    I wonder if these bushings fail more often in trucks with ADD hubs? I .. uhh my friends truck... Has manual hubs and they still seem tight?

  13. Jun 28, 2018 at 2:54 PM
    #13
    Plastics Guy

    Plastics Guy [OP] Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226573
    Messages:
    363
    Gender:
    Male
    Vehicle:
    02 4Runner
    Plasti-dip & exhaust tip
    Sounds like your friend is good! I don't believe it has anything to do with ADD. if your in 4 wheel drive, your in 4 wheel drive and the same torque is being applied to these front bushings.

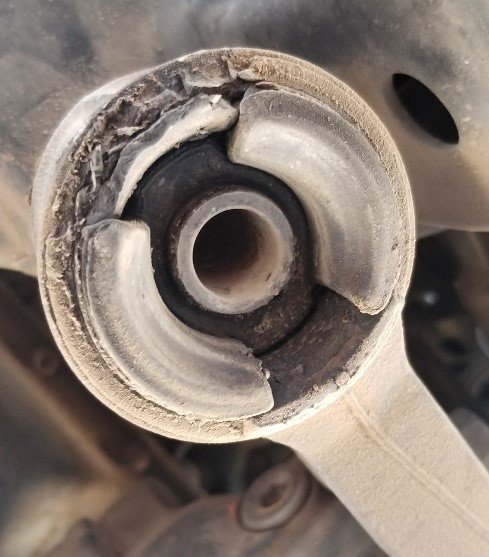

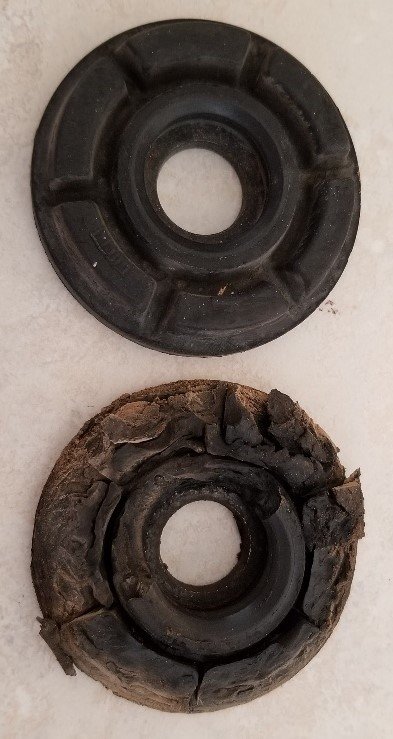

    My bushing look like this, so its obviously not holding up well...

    COMAtized99 and Speedytech7 like this.
  14. Jun 28, 2018 at 6:02 PM
    #14
    Kiloyard

    Kiloyard Road Warrior

    Joined:
    Oct 28, 2017
    Member:
    #234330
    Messages:
    457
    Gender:
    Male
    First Name:
    John
    Phoenix, AZ
    Vehicle:
    1999 3.4L SR5 4X4 355k miles
    Toytec Boss/Eibach Coils & Deaver J59's
    I want a set. Mine is cracked on driver side due to oil contamination, at least the top cushion is.

  15. Jun 28, 2018 at 6:42 PM
    #15
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,089
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
  16. Jun 29, 2018 at 12:03 PM
    #16
    Stout890

    Stout890 Well-Known Member

    Joined:
    May 8, 2011
    Member:
    #56287
    Messages:
    810
    Gender:
    Male
    First Name:
    Jason
    Palmdale ca
    Vehicle:
    99 prerunner sr5
    Navigation, 10" sub, ome881 on billies 3" all-pro leaf springs with billies, taneau cover, k&n intake,axle swap with a E locker. 31" BFG A/T on KMC XD wheels, hoola girl air freshener and a broadie knob!
    When will these be ready for purchase? I’m doing a pre-runner to 4x4 swap and I’d like to get a set before I install my diff

  17. Jun 29, 2018 at 12:07 PM
    #17
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,512
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  18. Jun 29, 2018 at 12:08 PM
    #18
    Smash8ight

    Smash8ight Well-Known Member

    Joined:
    May 6, 2017
    Member:
    #218360
    Messages:
    162
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    04 trd
    Bone stock
    In in on both,bump stops and diff bushings....
    Ill be watching this closely.

  19. Jun 29, 2018 at 12:51 PM
    #19
    Plastics Guy

    Plastics Guy [OP] Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226573
    Messages:
    363
    Gender:
    Male
    Vehicle:
    02 4Runner
    Plasti-dip & exhaust tip
    Now! I just finished cleaning up my prototype to get it ready for the production molds. I will be making a rolling list of everyone that wants a set later this evening. I order enough material to make 50 sets and have a little over 30 sets spoken for already. These will be shipping out the 3rd week of July.


    Sweet! Ill shoot you a PM shortly.

  20. Jun 29, 2018 at 1:10 PM
    #20
    Smash8ight

    Smash8ight Well-Known Member

    Joined:
    May 6, 2017
    Member:
    #218360
    Messages:
    162
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    04 trd
    Bone stock
    My PayPal is still smoking from rims and bumper purchase today.....I'm in....lol....
