Hardwiring Dash Cam Help

Discussion in '3rd Gen. Tacomas (2016+)' started by vtac, Feb 1, 2018.

  1. Feb 1, 2018 at 12:21 AM
    #1
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    I've recently ordered the VIOFO A119S Dash Camera
    https://www.amazon.com/gp/product/B01MFAK888/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

    Along with their Hard-wiring kit
    https://www.amazon.com/gp/product/B073J5ZZG4/ref=oh_aui_detailpage_o01_s02?ie=UTF8&psc=1

    I've gone through multiple threads, but I can't really find an answer specific to me.

    These threads appeared to help a little

    - https://www.tacomaworld.com/threads/dashcam-hardwire-install.526470/
    - https://www.tacomaworld.com/threads/dash-cam-installed.461286/
    - https://www.tacomaworld.com/threads...-switch-on-parking-mode-constant-lead.460891/

    My questions:

    Does my hardwire kit pictured below have some sort of protector that will stop the power going through if my truck battery goes below a certain limit?

    Which fuse is the one most used to constant on and which fuse is the one most used for power only when the vehicle is on?

    Anything else I should know before I go ahead with the install?

    Thanks,
    [​IMG]

  2. Feb 1, 2018 at 12:54 AM
    #2
    Guapo Taco

    Guapo Taco Yut life!

    Joined:
    Aug 14, 2017
    Member:
    #226849
    Messages:
    88
    Gender:
    Male
    SoCal
    Vehicle:
    '17 Taco OR 4x4 Tortilla Tansand
    No idea on your hardware kit. As far as fuses, I think the most common power “only when truck is on” are the outlet 1 & 2 fuses. Although I can’t remember which one is which but they are the cigarette lighter fuses. I hardwired my dash cam to “dome” for constant on. And installed a voltmeter to keep an eye on it. I honestly don’t think the dashcam draws enough power to drain the battery, at least not mine. Mine does have parking mode which means it’s not constantly recording. It goes in standby and records a 12-15 second clip of it senses a sudden bump or something crosses its view. Also, the longest I’ve gone without turning the truck was either 3 or 4 days.


  3. Feb 1, 2018 at 7:35 AM
    #3
    trdordcsb

    trdordcsb Well-Known Member

    Joined:
    Jan 18, 2018
    Member:
    #241640
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2018 Silver Tacoma TRD OR 4x4
    I followed the first link you posted and it works great
    https://www.tacomaworld.com/threads/dashcam-hardwire-install.526470/


    Tapping Into Power

    Next, I removed the 30A fuse used by the wiper fluid. Inserted the fuse tap and then placed the 30A fuse I removed into the tap. I attached the ground wire to the bolt/nut of the fuse box.

    I took up the wire slack and zip-tied the convertor and the extra wire behind the fuse box.

    NOTE - the fuse box cover will not fit back on with the fuse-tap installed. No biggie. I put mine the glovebox for safe keeping.

    NOTE 2 - Using the wiper fluid fuse only send power to the camera when you have the car on or on accessory mode. Alternatively, you can tap into a different fuse that has constant power if you want your dashcam to have power 24/7. Reference the fuse box cover to decide which fuse will work best.


    [​IMG]

  4. Feb 1, 2018 at 7:48 AM
    #4
    commbubba19

    commbubba19 Well-Known Member

    Joined:
    Jan 2, 2018
    Member:
    #240020
    Messages:
    1,081
    Gender:
    Male
    Omaha, NE
    Vehicle:
    2017 Tacoma OR - SOLD
    I believe they make taller fuse box covers.

  5. Feb 1, 2018 at 7:51 AM
    #5
    trdordcsb

    trdordcsb Well-Known Member

    Joined:
    Jan 18, 2018
    Member:
    #241640
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2018 Silver Tacoma TRD OR 4x4
  6. Feb 1, 2018 at 8:10 AM
    #6
    Beerpayzdabillz

    Beerpayzdabillz Pastryatarian

    Joined:
    Jul 28, 2016
    Member:
    #193169
    Messages:
    1,235
    Gender:
    Male
    Nor Cal
    Vehicle:
    2016 DCSB 4x4 sport

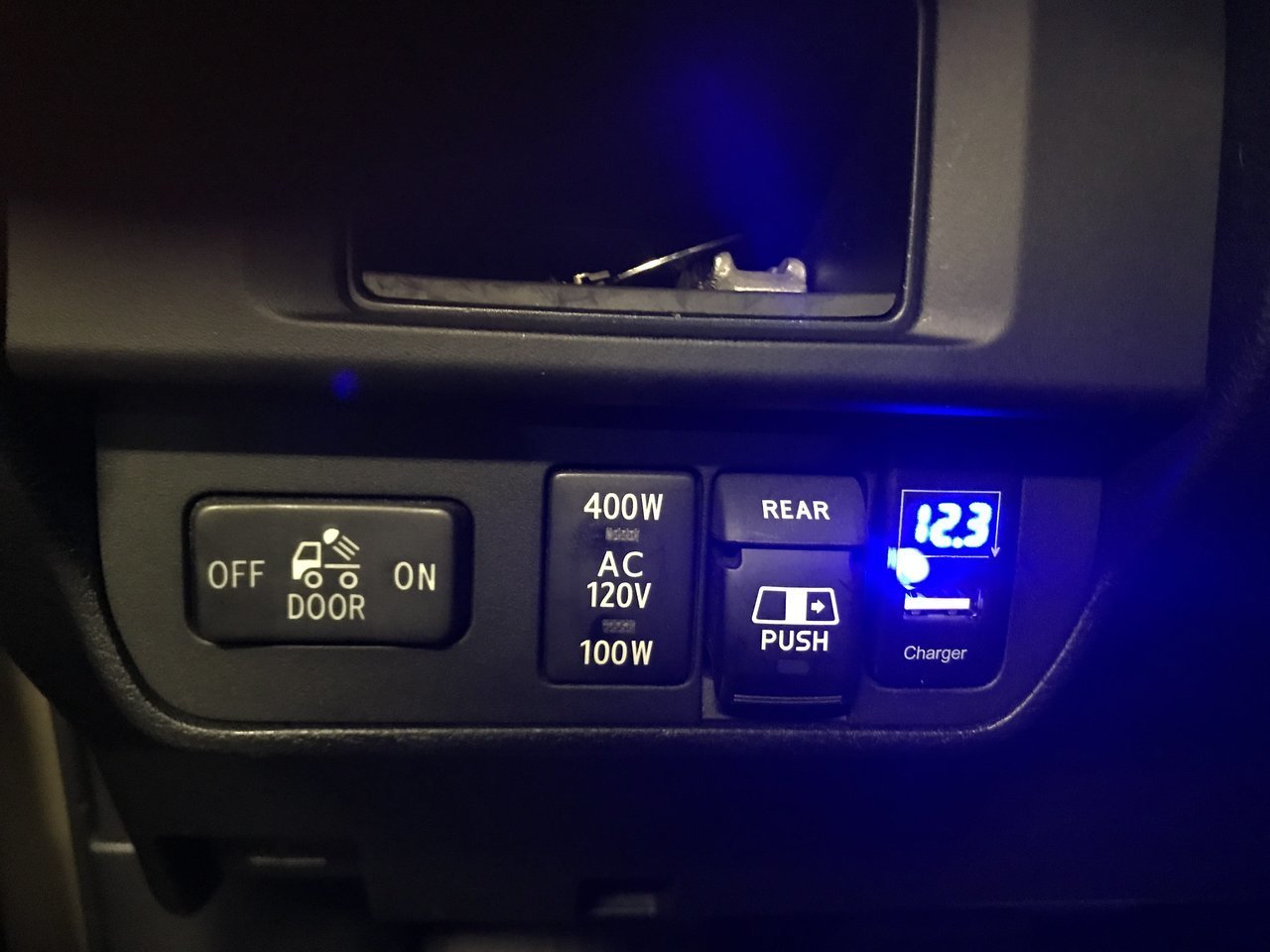

    I have the Thinkware F770 and it has voltage protection but it's part of the camera software. I tapped into my homelink mirror for power.

    dzkritzas likes this.
  7. Feb 4, 2018 at 11:24 PM
    #7
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Thanksnall for the help. Successful install after a experiementing here and there. I used the dome fuse for constant on to have power for parking mode. I also noticed that it requires an extra fuse to the add a fuse in order for the cam and dome to both seperstely function. Bought some extra fuse right before the local store closed and got er done.

    Leathermatt likes this.
  8. Feb 5, 2018 at 5:17 AM
    #8
    Leathermatt

    Leathermatt Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186187
    Messages:
    259
    Gender:
    Male
    First Name:
    Matt
    Boston, MA
    Vehicle:
    2016 SR MGM ACLB 4x4
    255/85/16 Cooper ST Maxx 33s Midland CB Radio w/ A-Pillar Mount KB Voodoo Mid-Rise Bed Rack Bedrail-Mounted Headache Backrack OEMassive LED Sequential Headlights Tail Light Guards w/ VHT Niteshades Tint 50" Curved LED Cree Lightbar w/ MCM Fab Brackets 3" LED Front/Rear Lower Cube Lights (OZ Pods) 2" LED Fog Light pods (OZ Pods) MBRP Ditch Light Brackets w/ 2" OZ Pods Bushwhacker Bolt-On Style Fender Flares Rear EVO3 Bumper Guard Plasti-Color Flushmount Mudflaps Rear Cabin mounted Survival Bag/ Medical Kit Black 3" Access Cab Nerf Rails Black Powdercoat Fine Mesh Grill (Customgrills.com) Black Metal Grenade Grill Emblem Insert 2" Black Receiver Hitch w/ Pintle Hitch or D- Shackle Black Aluminum 21" Toolbox Interior Black Leather Seat Covers Weathertech Window Visors Weathertech Hood Bug Deflector
    Do you use two fuses of the same size amp rating?

  9. Feb 5, 2018 at 6:10 AM
    #9
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Knowing nothing about electricals...I did use two of same size and it appears to work without issues for now.

    Leathermatt likes this.
  10. Feb 5, 2018 at 6:37 AM
    #10
    strictlys

    strictlys Well-Known Member

    Joined:
    Dec 29, 2014
    Member:
    #145203
    Messages:
    244
    Gender:
    Male
    Vehicle:
    2016 Super White Tacoma DC TRD OR SB
    how did you do this? I have the thinkware F770 but never hardwired in yet since I wanted a cleaner quicker install. I have the hardwire kit, but never used it. Thanks in advance

  11. Feb 5, 2018 at 7:01 AM
    #11
    ssanders2211

    ssanders2211 Well-Known Member

    Joined:
    Jan 31, 2014
    Member:
    #121976
    Messages:
    263
    Gender:
    Male
    Midwest
    Vehicle:
    '14 DCLB 4x4
    behind the rear seat hi-lift mount bracket, easy-out crossbed toolbox brackets, sliders, ATO plate rear bumper, hood/bed lighting, always-on 12v outlets, dashcam, Viper 5806V w/ GPS
    I wanted to throw in some advice on something I wish I'd done when wiring in my dashcam: Make your own pigtail adapter for the last few inches before you plug into your dashcam. It's a PITA to hardwire these in compared to just plugging it into the 12v outlet, but totally worth it. You won't want to do it twice though, and when your dashcam burns out on you it's no fun to try to splice a new adapter in place of the old one. So just do it right away with a common type of plug before you do your install. Take some pictures and notes so future you can build another one when the time comes.

    I installed mine 3 years ago, and a couple months ago part of the sensor went bad so now it only records in psychedelic color. I bought another camera exactly like mine but they changed the power jack on it so it's not compatibile. I'm thinking I'll use the plugs off a 2.5mm headphone extension cord to replace with. They have 3 wires, they're common, and will probably be available for a couple more decades. I'm going to have to try to solder this in about 1" from my headliner, not looking forward to that...

  12. Feb 5, 2018 at 9:28 AM
    #12
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    I'll get some details for you later in the evening today.

  13. Feb 10, 2018 at 6:58 PM
    #13
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Sorry for such a late response.

    before you start you'll also need to buyextra fuse coinciding with whichever one you initially take out. (I don't know if this makes sense but refer to the picture. Sorry I'm also learning as I go.

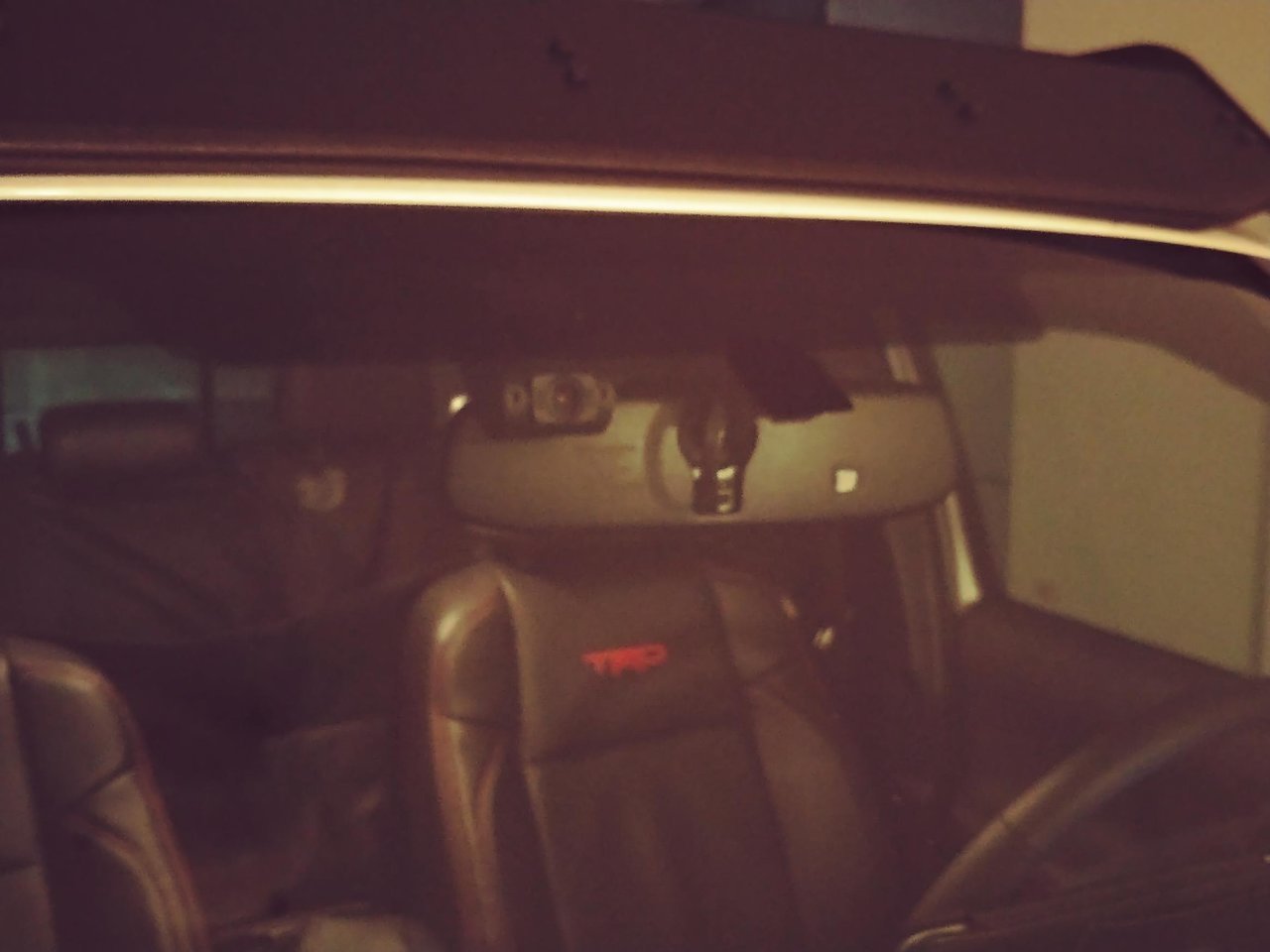

    1) Find the placement you want of your dash cam. Mine comes with a live screen so I used the cigarette jack outlet to power it on while I found the desired angle of the camera.

    2) Decide on whether you would like to have it constant power to your camera or to have it only turned on when your truck is on. This will be the deciding factor on which fuse to piggyback off of. I did mine on the "Dome" fuse for constant power, but your needs may be different.

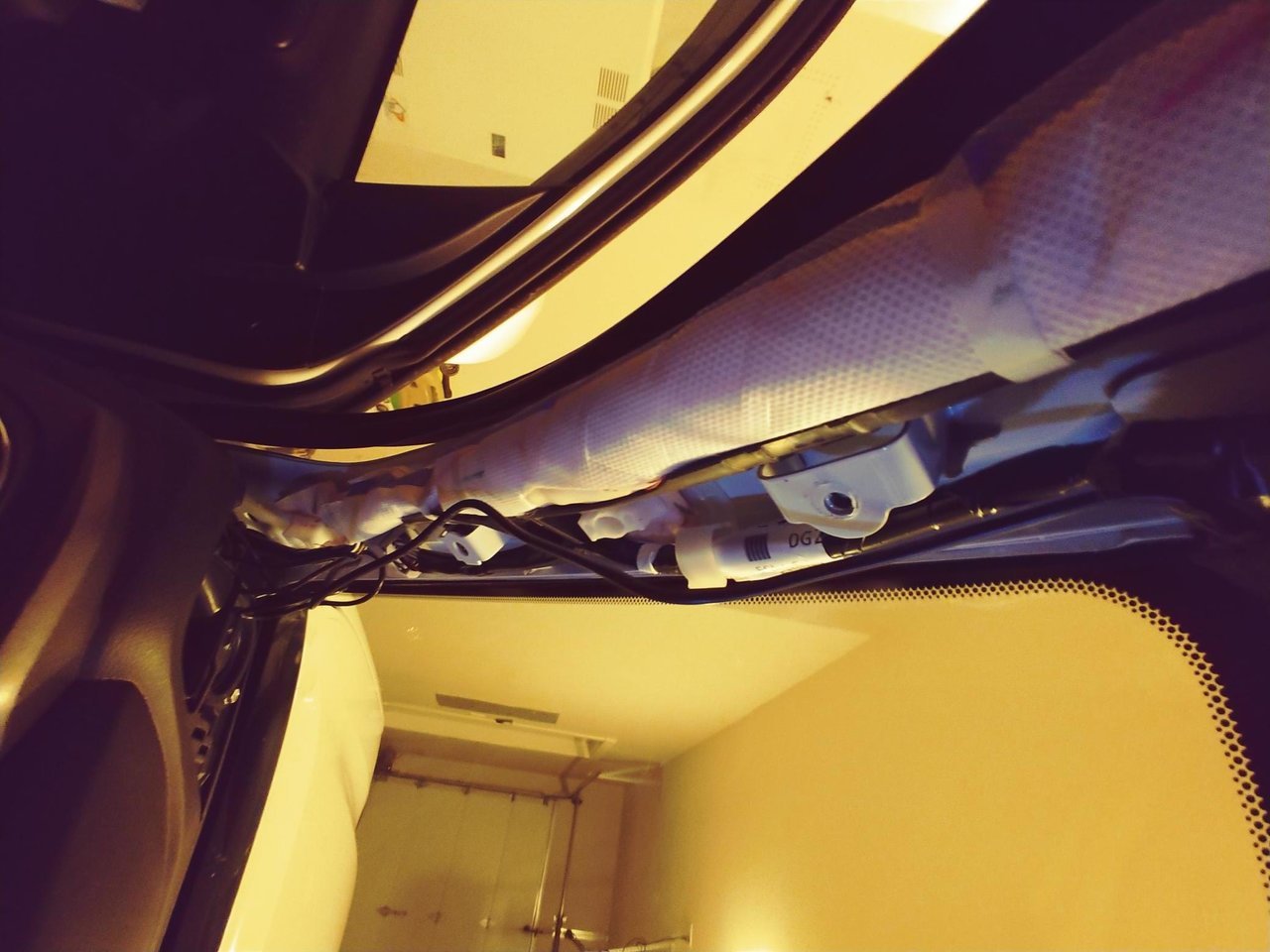

    4) Take off the rubber seal surrounding the driver's side, then unbolt the A pillar plastic trim.

    This video of speaker installations will give you more clear directions on how to take off the trim

    https://www.youtube.com/watch?v=c37zgaUQsVo

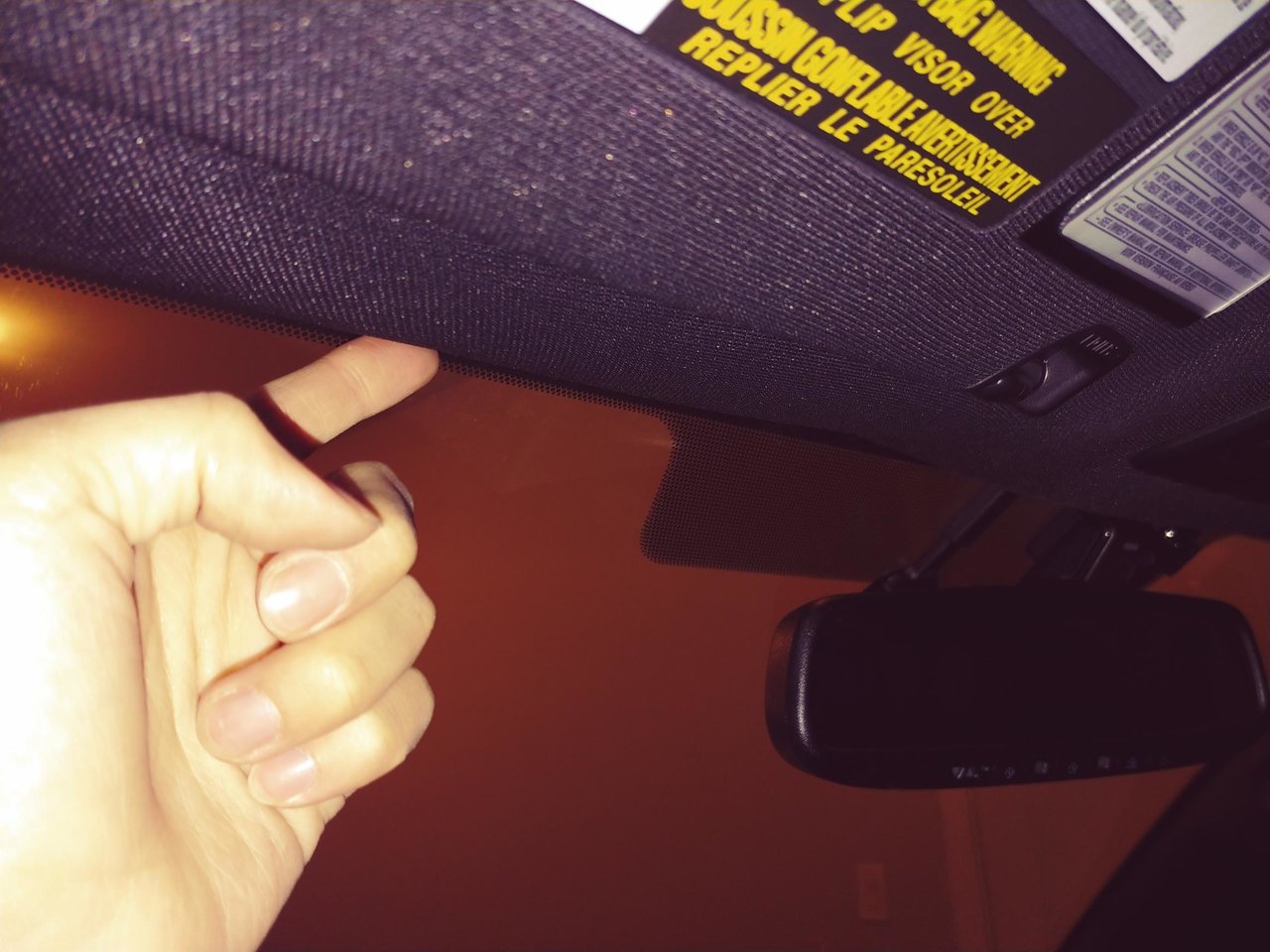

    5) From the point where your dash cam is set, run the hardwire lines through the headliner. You can use a soft plastic trim tool to just shove it in there. When you reach the A pillar, zip tie it along with the factory wires to tidy up.

    6) tape then ends of the add a fuse and grounding wire to a clothes hanger and place into the dash until it reaches the bottom near the fuse box, then you can pull it out which is much easier.

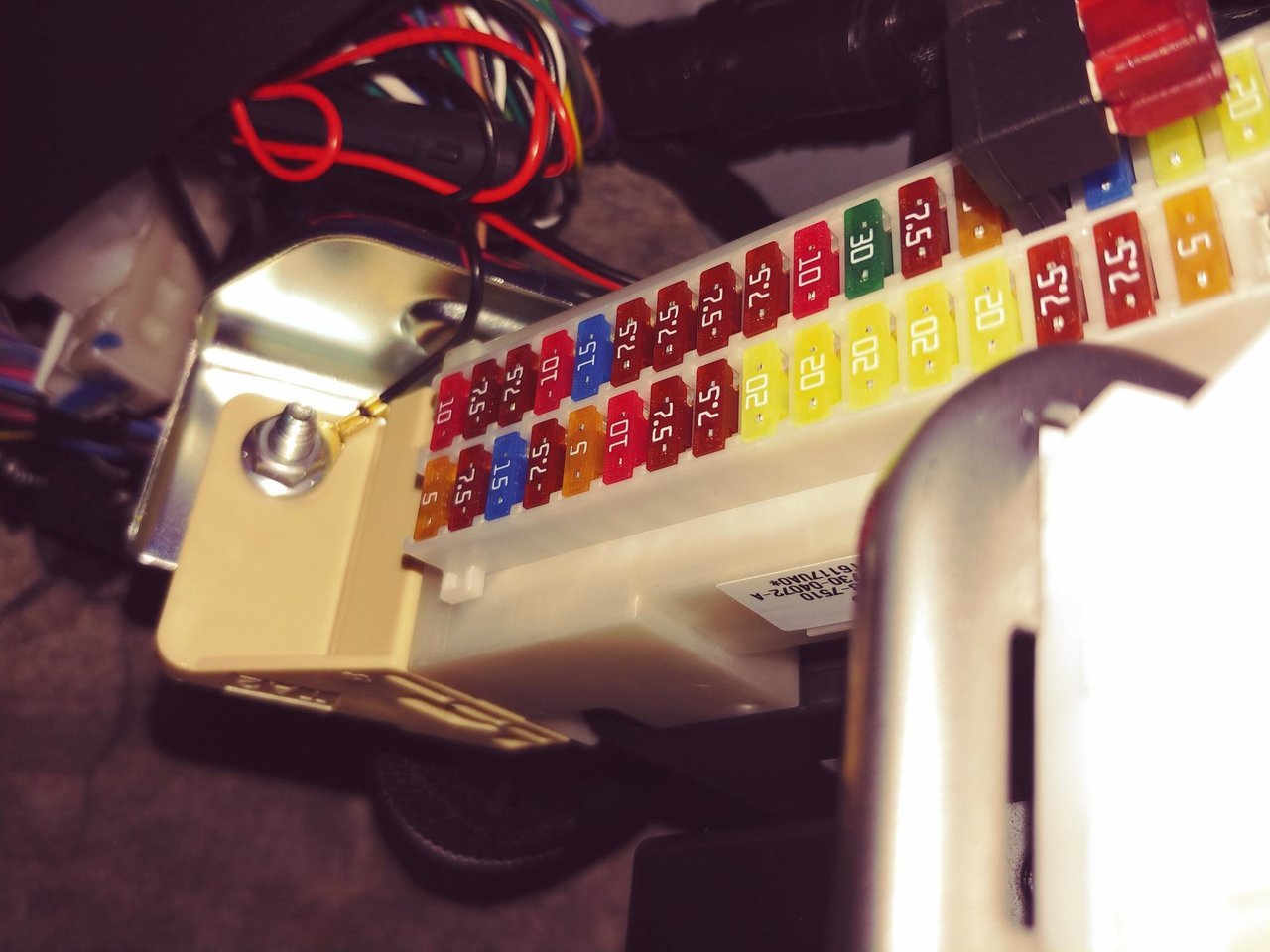

    7) Place the grounding wire to the bolt at the end of the fuse box.

    8) Choose the correct fuse and take it out. (A fuse puller might work easier or you can use a flathead but it might take chunks off the fuse as it is fragile.) Then replace it with the add a fuse as pictured.

    9) Buy a fusebox cover from @mesojdm. I'm still waiting for him to have it restocked.

    Hope this helps.


  14. Feb 11, 2018 at 8:39 AM
    #14
    transworldmoto

    transworldmoto Well-Known Member

    Joined:
    Aug 6, 2014
    Member:
    #135540
    Messages:
    995
    Gender:
    Male
    First Name:
    Ben
    California Coast
    Vehicle:
    2016 Access Cab TRD OR 4X4
    In the last image you posted, read the center section:

    " LOW Voltage Protection Parameter". Under 12V, it clearly states 11.6V, which means the unit will disconnect power when the power source reaches 11.6 volts.

    So to answer that portion of your question, yes, the unit will disconnect power if your battery gets too low.

  15. Feb 11, 2018 at 2:25 PM
    #15
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Excellent. Thanks!

  16. Feb 11, 2018 at 2:27 PM
    #16
    theredofshaw

    theredofshaw Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41484
    Messages:
    6,933
    Gender:
    Male
    First Name:
    John
    Somewhere on the East coast
    Vehicle:
    not a taco (guess that means I can be a MOD now)
    (totaled) 2011 Tacoma DC
    @USDashCamera may have some ideas for ya if you still need help.

  17. Feb 11, 2018 at 6:14 PM
    #17
    USDashCamera

    USDashCamera Put it in H

    Joined:
    Jun 22, 2016
    Member:
    #190311
    Messages:
    621
    Gender:
    Male
    Vehicle:
    2017 Quicksand TRD OR
    Tbh I connected my BATT "constant on" wire to my actual battery because I use an aux fuse box under my seat. But from recollection I think the dome lights of of the truck are on some fuse that's always on.

    Then the ACC fuse of course for the ACC wire.

  18. Feb 11, 2018 at 6:49 PM
    #18
    =JSG=

    =JSG= Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41475
    Messages:
    646
    Gender:
    Male
    Canada
    Vehicle:
    2021 DC TRD OR 4x4 SB
    Morimoto 2 Stroke 2.0 lows, Baja designs Squadron-R Sport as fogs, Method NVs
  19. Feb 11, 2018 at 6:52 PM
    #19
    USDashCamera

    USDashCamera Put it in H

    Joined:
    Jun 22, 2016
    Member:
    #190311
    Messages:
    621
    Gender:
    Male
    Vehicle:
    2017 Quicksand TRD OR
    Oh wait a119 uses just a ground/ACC connection? I thought it had a 3 wire kit for it's parking mode.

  20. Feb 11, 2018 at 9:02 PM
    #20
    transworldmoto

    transworldmoto Well-Known Member

    Joined:
    Aug 6, 2014
    Member:
    #135540
    Messages:
    995
    Gender:
    Male
    First Name:
    Ben
    California Coast
    Vehicle:
    2016 Access Cab TRD OR 4X4
    You got it! Sometimes it's in the fine print. Good luck!
