Has anyone modified the bed light to control aux ditch lights?

Discussion in '3rd Gen. Tacomas (2016+)' started by OnHartung'sRoad, Dec 3, 2019.

  1. Dec 3, 2019 at 12:19 PM
    #1
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    I am considering using my bed light circuit to turn on aux ditch lights mounted to the sides of my cabrack by adding a relay from under the bed light. I know about the leak risk, but can properly reseal it. Has anyone done this? If so, how did you do it and how did it go?

  2. Dec 3, 2019 at 12:28 PM
    #2
    Greg.Brakes.Tacos

    Greg.Brakes.Tacos Don't Feed the Animals

    Joined:
    May 24, 2018
    Member:
    #254446
    Messages:
    1,539
    Gender:
    Male
    First Name:
    Greg
    Between Richmond and Virginia Beach
    Vehicle:
    2017 Taco DCSB TRD off road
    wanna be mods
  3. Dec 3, 2019 at 12:39 PM
    #3
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,229
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    You would tap the +12v near the lamp and use it to trigger the relay. Power and ground for the lights would still come from the batt on a decent gauge wire.

    Cargo lamp fuse is only 7.5a so not enough room to straight power the lights from there.

    OnHartung'sRoad [OP] likes this.
  4. Dec 3, 2019 at 12:42 PM
    #4
    uploadadventure

    uploadadventure 10% off SOS Concepts Products- promocode uploadadv

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    7,376
    First Name:
    Rich
    10% off DesertArmor RTT&merch- promocode uploadadv
    Vehicle:
    2019 Tacoma TRD Offroad
    OVTune, SOS Armor, MESO stuff, UpTopOverland roof rack, Softopper, Rigid & BD lights, RCI Armor, ROAM awning, misc stuff
    The cargo lamp fuse will power side lights.
    But they will not turn on and off with the rocker switch on the dash (ask me how I know)

    Greg.Brakes.Tacos likes this.
  5. Dec 3, 2019 at 12:46 PM
    #5
    Blais03

    Blais03 Guess I'll bring a spare wheel bearing...

    Joined:
    Nov 13, 2015
    Member:
    #169518
    Messages:
    4,255
    Gender:
    Male
    First Name:
    Nick
    Easthampton MA
    Vehicle:
    '08 Reg. Cab 4WD 5-speed
    Thats easy. Just use a relay.

  6. Dec 3, 2019 at 12:48 PM
    #6
    uploadadventure

    uploadadventure 10% off SOS Concepts Products- promocode uploadadv

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    7,376
    First Name:
    Rich
    10% off DesertArmor RTT&merch- promocode uploadadv
    Vehicle:
    2019 Tacoma TRD Offroad
    OVTune, SOS Armor, MESO stuff, UpTopOverland roof rack, Softopper, Rigid & BD lights, RCI Armor, ROAM awning, misc stuff
    Someone posted how to do it off the cargo rocker switch in the Uptopoverland thread. I’m to lazy to look back where

  7. Dec 3, 2019 at 12:48 PM
    #7
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,229
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    Fuse is before the dash switch.. if you tapped after the switch it would control it.

  8. Dec 3, 2019 at 12:49 PM
    #8
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,229
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    someone call @caribe makaira

  9. Dec 3, 2019 at 12:54 PM
    #9
    uploadadventure

    uploadadventure 10% off SOS Concepts Products- promocode uploadadv

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    7,376
    First Name:
    Rich
    10% off DesertArmor RTT&merch- promocode uploadadv
    Vehicle:
    2019 Tacoma TRD Offroad
    OVTune, SOS Armor, MESO stuff, UpTopOverland roof rack, Softopper, Rigid & BD lights, RCI Armor, ROAM awning, misc stuff
    The wiring after the switch isn’t enough power (ask me how I know too lol)
    You gotta run a relay from one of the switch wires. I forgot which one.

  10. Dec 3, 2019 at 12:58 PM
    #10
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,229
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    It would trigger a relay, that's what OP is looking for.

  11. Dec 3, 2019 at 2:18 PM
    #11
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Thanks for the reply. Yeah, I have heavy gauge positive and negative lead going from an auxiliary battery to a fuse block in my bed and was going to power and ground off that, and using a heavy amp relay switched on and off through the cargo light.

    I was wondering if anyone had actually done it and if there any suggestions for accessing the cargo light and other ideas for the project. It just seems like a very easy way to do it for those of us who have a shell and rarely use the cargo light anymore for anything else, otherwise it’s a waste of a really good switch already installed in the dashboard.

  12. Dec 3, 2019 at 2:20 PM
    #12
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    what did you do...?:notsure:

    Last edited: Dec 3, 2019
  13. Dec 3, 2019 at 2:29 PM
    #13
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    1,229
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    I'm a fan of wiring in my own circuits, I try to avoid any splices or piggybacks on the OEM system.
    Addafuse and another switch would be my route.

    OnHartung'sRoad [OP] likes this.
  14. Dec 3, 2019 at 2:29 PM
    #14
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    uploadadventure likes this.
  15. Dec 3, 2019 at 2:31 PM
    #15
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    I agree, but it’s totally an unused circuit now, so in my case this would be a good way to do it. Besides, I’m planning on keeping my truck until just before it dies.

  16. Dec 3, 2019 at 4:33 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,646
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OnHartung'sRoad [OP] and vicali like this.
  17. Dec 4, 2019 at 7:02 AM
    #17
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Thank you for the post, that looks to be very helpful! I’m curious though, will a basic five pin 12 V relay overload the hot wire going to the cargo light? that’s what Cidgel did here on step 3:

    https://www.tacomaworld.com/threads...pping-conus-only.599113/page-51#post-21704559

    It just seems like it would be so much easier to tie it’s low amp coil into the positive wire feeding the light up in the ceiling, especially for controlling lights that are mounted to the roof racks and with the power feed from my auxiliary power source and fuse box I already installed in the bed of the truck... not sure about the main advantage of what you posted in that case...

    Last edited: Dec 4, 2019
    uploadadventure likes this.
  18. Dec 4, 2019 at 7:06 AM
    #18
    TacomaUSA

    TacomaUSA Cross Country Tacoma

    Joined:
    Apr 6, 2017
    Member:
    #215533
    Messages:
    261
    Gender:
    Male
    PA
    Vehicle:
    2007 Tacoma TRD Sport 4x4 Access Cab- 6 speed
    Hang on....the 3rd gen comes with a bed light?!

    Well that's awesome. Lol

  19. Dec 5, 2019 at 10:05 PM
    #19
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,813
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    OK well this will be interesting, I am now planning on putting a junction box underneath my Prinsu cabrack for accessory 12 V power up on the roof (the source is a third battery I have in the bed). I will put a blue seas waterproof cigarette plug up there for powering various accessories I use outside and for my RTT, such as phone, camera and drone chargers, lights and even a diesel heater, along with a relay to run my ditch lights mounted on the sides of the rack. I will post about it here.

    Last edited: Dec 6, 2019
  20. Jan 10, 2020 at 7:07 PM
    #20
    Bunk Moreland

    Bunk Moreland Well-Known Member

    Joined:
    Jun 16, 2019
    Member:
    #296509
    Messages:
    458
    Gender:
    Male
    First Name:
    Bunk
    PNW... For now.
    Vehicle:
    2019 TRD OR 4x4 DCLB

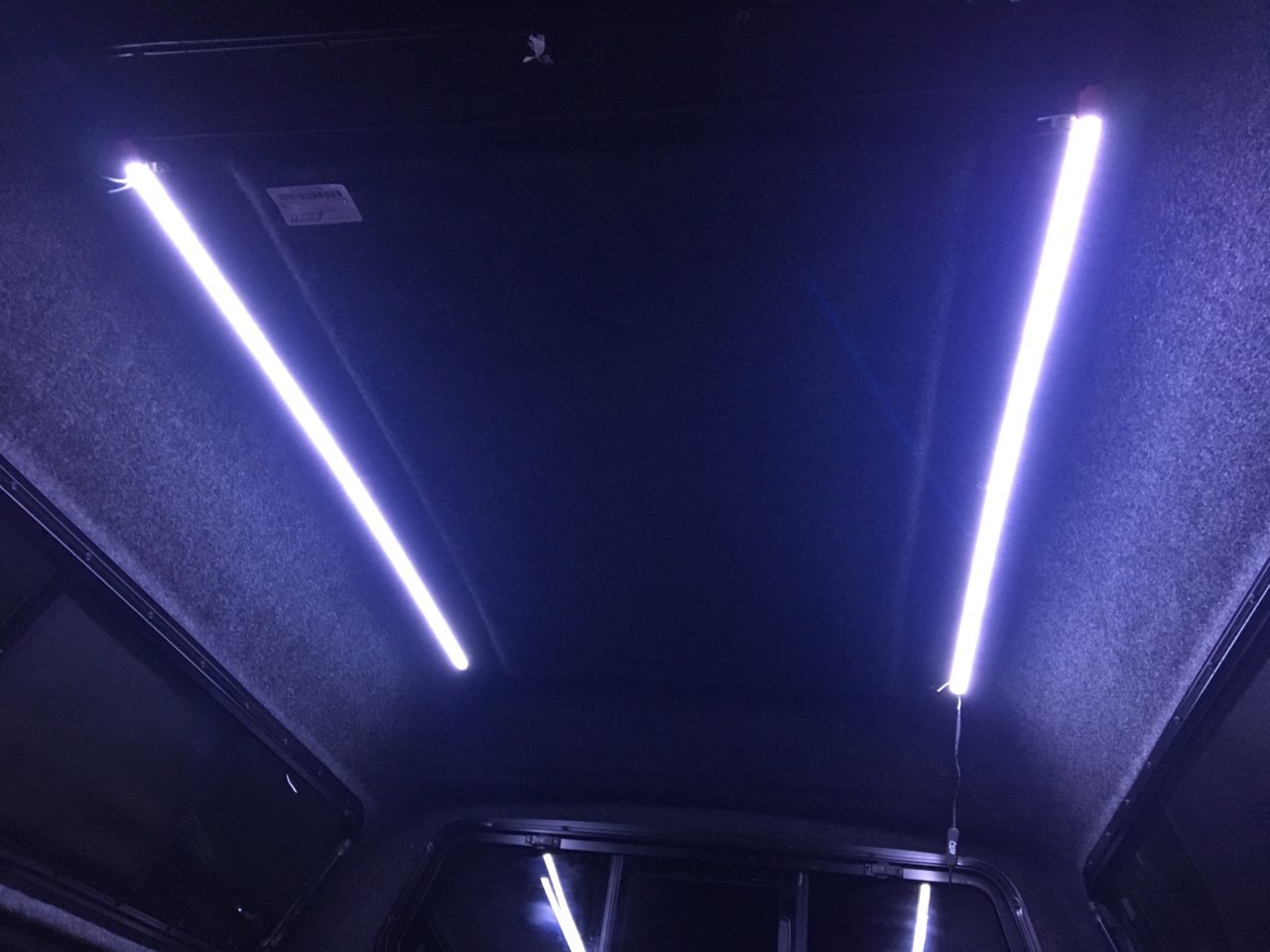

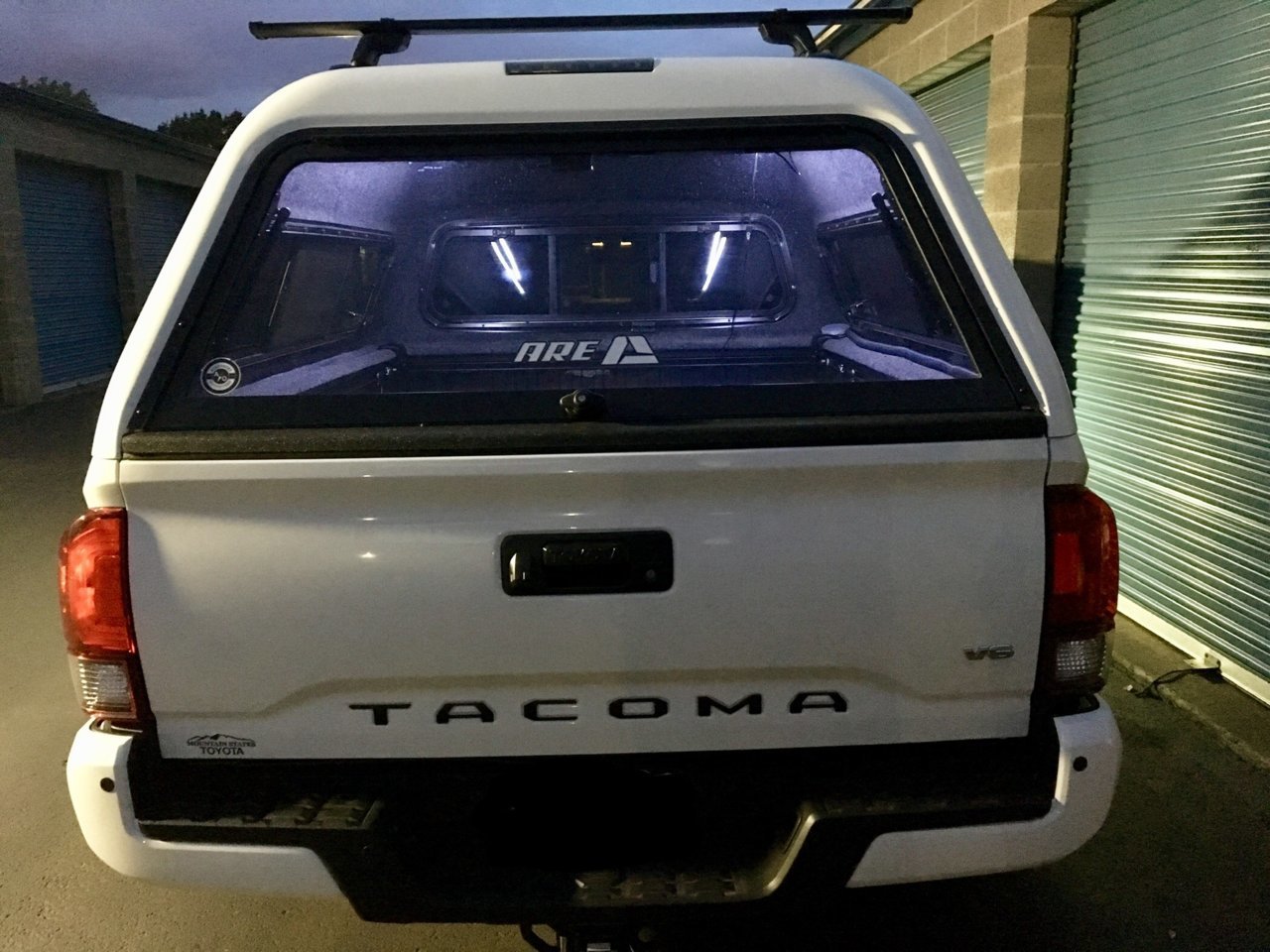

    I repurposed my bed light switch to work with the LED light strips underneath my MX canopy. I also wired-in a dimmer/remote control. The stock wiring is really small gauge (likely 18-22) so I don't know that it could support high wattage lights.

    IMG_7483.jpg IMG_7486.jpg

    Last edited: Jan 10, 2020
