Hayden Transmission Oil Cooler Install

Discussion in '1st Gen. Tacomas (1995-2004)' started by zero4, Aug 16, 2010.

Page 6 of 12
  1. Jan 28, 2014 at 1:23 PM
    #101
    zero4

    #101
    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    5,976
    Gender:
    Male
    First Name:
    Will
    SFV, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Sorry, haven't logged on in quite sometime. A few have asked about the spacer length so I added this to the OP.

    I don't remeber the exact lengths I made them as I turned to fit during the install. But from roughly measuring with just a ruler the top one is 15/16" & the the two others are 3/8". YMMV

    zero4, Jan 28, 2014
    #101
  2. Jan 28, 2014 at 10:12 PM
    #102
    DIRT YOTA

    #102
    DIRT YOTA Aka EL ROJO

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    6,789
    Gender:
    Male
    First Name:
    Cory
    Camarillo, CA
    Vehicle:
    03' dbl cab with some stuff
    Hey man! I thought maybe u sold the taco lol...

    DIRT YOTA, Jan 28, 2014
    #102
  3. Mar 17, 2014 at 4:17 PM
    #103
    lepedog23

    #103
    lepedog23 Taco Rookie

    Joined:
    Mar 29, 2010
    Member:
    #34221
    Messages:
    947
    Gender:
    Male
    First Name:
    Frank
    Huntington Park
    Vehicle:
    Wrecked 2002 4Runner 4x4 trying to rebuild ***Sold2001 DC Tacoma. Stock. Salvage Title MOD.
    Wrecked 2002 4Runner 4x4 ***Sold 2001 Tacoma, Salvage Title MOD. ***Sold 2010 Tacoma doublecab prerunner
    Pics of where hoses go?

    lepedog23, Mar 17, 2014
    #103
  4. Mar 17, 2014 at 5:48 PM
    #104
    DIRT YOTA

    #104
    DIRT YOTA Aka EL ROJO

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    6,789
    Gender:
    Male
    First Name:
    Cory
    Camarillo, CA
    Vehicle:
    03' dbl cab with some stuff
    Will doesn't get on much anymore Frank, pm him he may still get an email alert...

    DIRT YOTA, Mar 17, 2014
    #104
  5. Mar 17, 2014 at 7:28 PM
    #105
    Trapperr

    #105
    Trapperr Well-Known Member

    Joined:
    Mar 6, 2014
    Member:
    #124720
    Messages:
    1,002
    Gender:
    Male
    Reno, NV
    Vehicle:
    2002 Tacoma Double Cab 4x4 3.4l V6

    My 02 double cab with 3.4 has the orange fan clutch.

    Trapperr, Mar 17, 2014
    #105
  6. Apr 10, 2014 at 10:07 AM
    #106
    Johnnie

    #106
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds

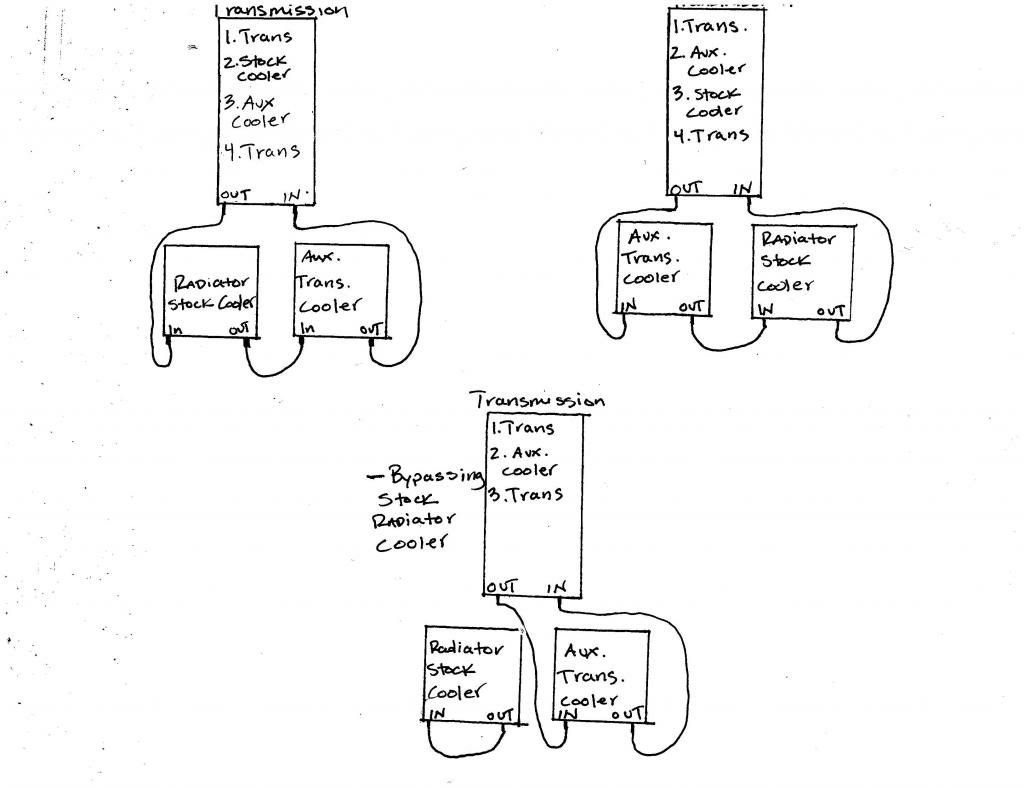

    For those that have installed a cooler, please take a look at my diagram (non-scale) and make sure my hoses plumbed accurately.

    1. Trans-stock cooler-aux cooler-trans
    2. Trans-aux cooler-stock cooler-trans
    3. Trans-bypass stock cooler-aux cooler-trans

    I'm still trying to decide how I want to plumb it.


    Johnnie, Apr 10, 2014
    #106
  7. Apr 10, 2014 at 10:19 AM
    #107
    stikle

    #107
    stikle Well-Known Member

    Joined:
    Apr 26, 2013
    Member:
    #102916
    Messages:
    1,201
    Gender:
    Male
    First Name:
    Seth
    The Sovereign State of Eastern Oregon
    Vehicle:
    1997 LX Xtracab 4x4 V6 3.4L
    Eh, see my Build Thread sig link. Too many mods to list.
    Last edited: Apr 10, 2014
    stikle, Apr 10, 2014
    #107
  8. Apr 10, 2014 at 10:22 AM
    #108
    Johnnie

    #108
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Does my plumbing look correct?

    Johnnie, Apr 10, 2014
    #108
  9. Apr 10, 2014 at 10:34 AM
    #109
    T@co_Pr3runn3r

    #109
    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    14,580
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Number 2 above doesn't make sense. Why would you cool the fluid down with the aux only to heat it back up with the oem one. Defeats the purpose of what the Hayden is for. Generally, the oem "cooling" is from running the trans fluid line thru the radiator which isn't much help anyway but better than nothing? Let's have the tranny fluid heat up what is cooling the motor? Not much help for the motor or trans. Option 1 or 3.

    T@co_Pr3runn3r, Apr 10, 2014
    #109
  10. Apr 10, 2014 at 10:48 AM
    #110
    Johnnie

    #110
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    I agree with you but it is an option. However, not something I'm going to do. Folks in the colder weather choose this option so the ATF doesn't get too cold. Regardless, my main goal is to make sure my plumbing is correct. Hopefully when I receive it, it will make more sense.

    Johnnie, Apr 10, 2014
    #110
  11. Apr 10, 2014 at 1:19 PM
    #111
    stikle

    #111
    stikle Well-Known Member

    Joined:
    Apr 26, 2013
    Member:
    #102916
    Messages:
    1,201
    Gender:
    Male
    First Name:
    Seth
    The Sovereign State of Eastern Oregon
    Vehicle:
    1997 LX Xtracab 4x4 V6 3.4L
    Eh, see my Build Thread sig link. Too many mods to list.
    Yes.

    Throw option 3 in the trash. Option 2 is not really the best way to go, so go with option 1.

    Do yourself a favor and buy extra hose at your autoparts store of choice before you start the install - you'll be short otherwise. It's cheap so get an extra 6' or so.

    stikle, Apr 10, 2014
    #111
  12. Apr 10, 2014 at 1:35 PM
    #112
    Johnnie

    #112
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Thanks. Why is option 3 trash? Bypassing the radiator will keep the ATF cooler.

    I plan on buying more hose.

    I just want to make sure my plumbing is correct and makes sense.

    Johnnie, Apr 10, 2014
    #112
  13. Apr 10, 2014 at 7:10 PM
    #113
    Johnnie

    #113
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds

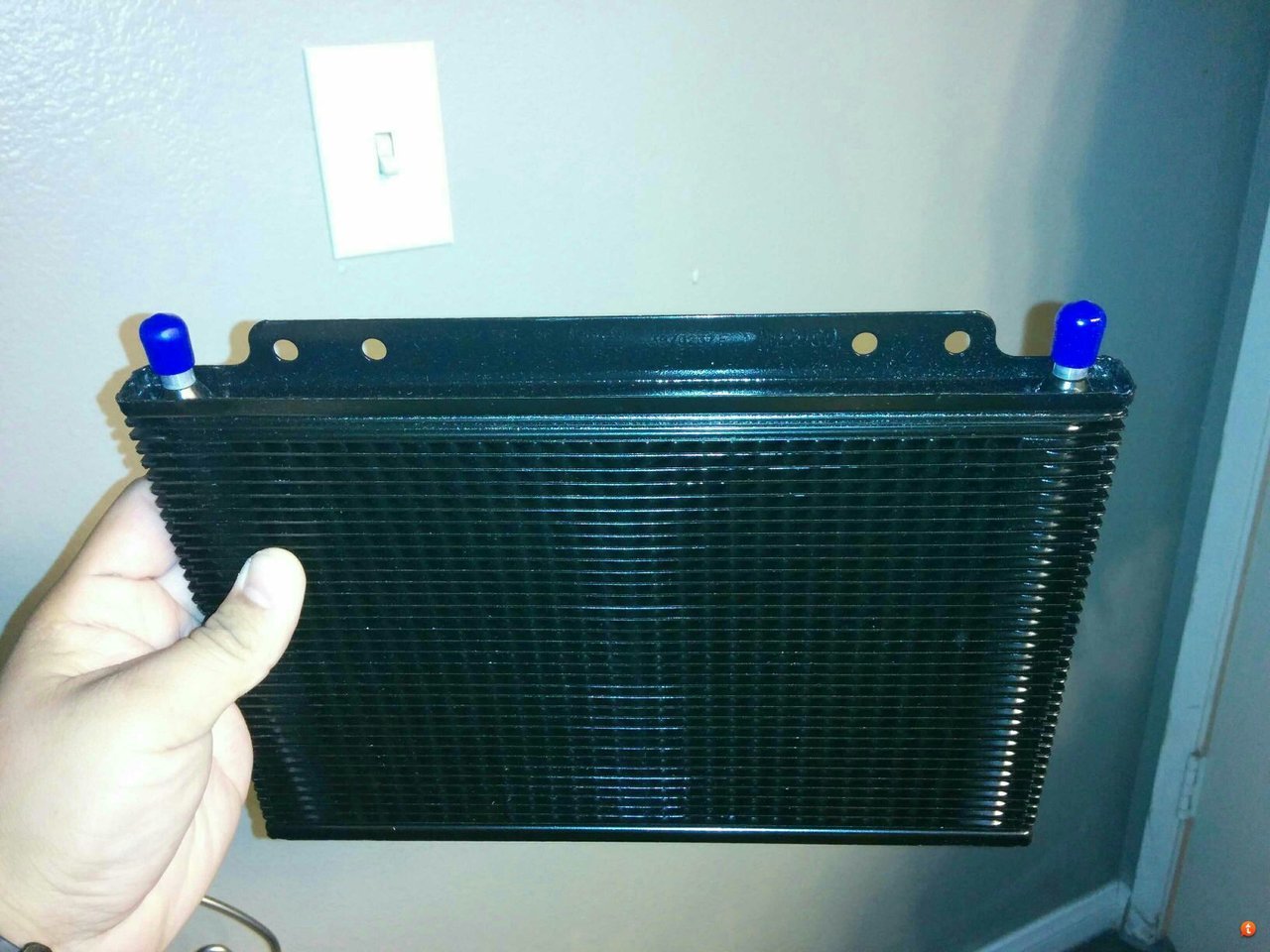

    Stupid question but I noticed my aux cooler does not have a labeled Sender or Return outlet connection. Are the inlet and outlet connections based on how I hook up the tranny sender and return lines?

    I guess my question is, the ATF will flow in any direction based on how I connect the sender and return hoses, right?


    Johnnie, Apr 10, 2014
    #113
  14. Apr 11, 2014 at 4:54 AM
    #114
    T@co_Pr3runn3r

    #114
    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    14,580
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    OK, didn't think about the cold climate thing. I live where hot is the thing 8 months of the year so somewhere that is the opposite is not foremost in my thought patterns.............

    Not a stupid question and answer = yes, just hook it up and it will flow.

    T@co_Pr3runn3r, Apr 11, 2014
    #114
  15. Apr 11, 2014 at 5:48 AM
    #115
    Johnnie

    #115
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Thanks brotha.

    Johnnie, Apr 11, 2014
    #115
  16. Apr 11, 2014 at 8:05 AM
    #116
    asus611

    #116
    asus611 Well-Known Member

    Joined:
    Jan 22, 2010
    Member:
    #29821
    Messages:
    254
    Gender:
    Male
    CA
    Vehicle:
    03 Double Cab Prerunner
    You are correct. I plumbed mine so the cooler is placed sideways (inlet holes on the side, facing the center of the radiator) and my inlet goes in on the top hole and exits from the bottom



    asus611, Apr 11, 2014
    #116
  17. Apr 11, 2014 at 8:07 AM
    #117
    Johnnie

    #117
    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,889
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Awesome, thanks. Now to figure out which is the sender and return hose on my truck. I keep reading conflicting information so I'm going to have to figure it out myself.

    Johnnie, Apr 11, 2014
    #117
  18. Apr 11, 2014 at 8:08 AM
    #118
    StAndrew

    #118
    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,311
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    If you are in a colder state or Canada, this will help keep you from overcooling the fluid. That said, it really wont make that much of a difference either way.

    StAndrew, Apr 11, 2014
    #118
  19. Apr 11, 2014 at 9:54 AM
    #119
    stikle

    #119
    stikle Well-Known Member

    Joined:
    Apr 26, 2013
    Member:
    #102916
    Messages:
    1,201
    Gender:
    Male
    First Name:
    Seth
    The Sovereign State of Eastern Oregon
    Vehicle:
    1997 LX Xtracab 4x4 V6 3.4L
    Eh, see my Build Thread sig link. Too many mods to list.
    You are adding ADDITIONAL cooling to further cool your oil. Why would you want to remove the primary cooling from the equation and just use the one?

    Turn your engine on for a minute or two and shift through some gears. Turn it off. Put your hand on both hoses going to your radiator. The warmer one is the inlet. The colder one then goes to the Hayden, then that goes to where the colder one used to go. That follows your #1 diagram and you should be good to go.

    stikle, Apr 11, 2014
    #119
  20. Apr 11, 2014 at 10:39 AM
    #120
    T@co_Pr3runn3r

    #120
    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    14,580
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    That's how I did mine on my car since it made getting the hoses to it simpler and also to feed the hot shit in top and let the cool shit come out the bottom so not to fight the heat rises thing.

    T@co_Pr3runn3r, Apr 11, 2014
    #120
