How to: drop, clean, and reinstall the 2nd Gen transmission pan and filter

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Hook78, Jun 23, 2021.

  1. Jun 23, 2021 at 7:26 PM
    #1
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    This forum has given me a lot over the last few years, so thought I would give a little back in the form of this write-up. Haven’t seen a how-to on dropping and cleaning the transmission pan, hope this isn’t a duplicate.

    There is already an excellent thread describing how to drain and fill the transmission fluid including the procedure to get into temp check mode and set the proper transmission fluid level with the engine running:

    https://www.tacomaworld.com/threads/how-to-drain-refill-automatic-transmission.63851/

    This post adds in steps to remove the pan, remove the filter, and clean both along with the four pan magnets. Then reinstall with a new gasket (and as I chose to do, new o-ring for the filter and new crush washers for the drain and overflow plugs).

    Note: this procedure is for the A750F transmission. Your A/T P/N is listed on your driver’s door jamb above the tire PSI sticker. My vehicle is a 2015 DCSB V6 with 65k miles at the time of service.

    Material and parts:
    5 qts ATF (I used Toyota WS)
    Filter o-ring P/N 90301-31014
    Gasket P/N 35168-60010
    Crush washers (2) P/N 35178-30010
    Shop towels
    Brake cleaner
    PB blaster
    Optional: should you choose to replace rather than clean the filter (or “strainer”), it is Toyota P/N 35330-60030 or Wix P/N 58136 which includes the pan gasket, or NAPA P/N ATP 17061 which also includes the gasket.

    CB00CE72-9AD5-4726-A674-AACFB7499FA8.jpg BE53383D-7800-47D2-BE3F-0F04AEA59CA4.jpg DFB32C74-49EE-4A56-AE96-B37D14A1FB69.jpg

    Tools:
    24mm socket (fill plug)
    14 mm socket (drain plug)
    10 mm socket (pan bolts)
    5 mm hex (overflow plug)
    Torque wrench in ft-lbs
    Torque wrench in in-lbs
    5 quart metered clear bucket (recommended)
    Drain container (I liked the Hopkins 16 qt variety because it’s shaped like the transmission pan)
    Hand pump

    Torque values derived from https://www.tacomaworld.com/threads/the-torque-spec-guide.318116/
    Fill plug: 29 ft-lbs
    Drain plug: 21 ft-lbs (note: see posts #4, #25 and #26 where other members state this torque value should be corrected to 15 ft-lbs and that 21 ft-lbs can damage the plug and/or pan. I can only reference the torque spec in the manual. If someone has an official updated reference for this I’d appreciate it)
    Overflow plug: 15 ft-lbs
    Bolts attaching filter to valve body: 7 ft-lbs or 84 in-pounds
    Bolts attaching pan to transmission case: 39 INCH-pounds

    Procedure:

    Soak the fill, drain, overflow and pan bolts with PB blaster the day prior. Just in case.

    Remove fill plug located high on passenger side of transmission case using the 24mm socket. Should come off with an o-ring attached. Note: this is not doable with a deep socket due to lack of clearance. I chose a six-sided shallow socket, which is hard to find apparently. Didn’t want to round off corners with a 12-sided, but opinions vary on the subject.

    6D1EB405-74C8-417A-BEE0-0FEE5DAD62FB.jpg 3161FDBB-9314-4CE9-ABCD-0A6EF21BBA58.jpg

    Position catch bucket and remove drain plug. This is the plug that sits lower on the pan and requires the 14 mm socket. Loosen overflow plug with 5mm hex socket once pan is drained.

    In the photo above, taken from the driver’s side, the overflow plug is center and closest to the camera.

    Reinstall drain plug but only hand tighten. This is just to prevent the next part from being any messier than necessary.

    Remove (20) pan bolts with the 10mm socket in a star pattern. They have washers so take your time and make sure you retain each bolt and washer. Ensure the last two you leave are opposite and easy to access. Hold the pan firmly in place while removing the last two bolts, lower slowly and then place over bucket or drain container to remove both plugs and pour out any remaining fluid. Once the pan is low enough to pull away from the filter intake, some fluid will dump from the filter so be prepared. Keep a bucket or drain container under the transmission as it will continue to drip.

    The gasket may stick to the pan or to the case. Pull free or gently pry loose with a non-metallic tool if necessary. Mine came off the pan easily. There is no sealant holding the gasket in place. Make sure you have a soft cloth to place the pan on.

    Remove the four magnets, and clean the magnets and pan with brake cleaner. Ensure the mating surface of the pan is clean. Replace magnets.

    F6B91A4B-1C93-4D38-B5C0-4566C68AA908.jpg FE5CF335-CCEB-4577-AF99-C241406CC625.jpg 35808F83-4770-4337-9D9C-A3EC6F5006D7.jpg 072D48AC-ADE3-4DDE-95C9-895AB4DAA9CF.jpg AF078583-734F-44DB-8135-02535CD94B3F.jpg 124E2351-8040-46C0-B68E-0865FCB45022.jpg

    Next, remove the four 10mm bolts holding the filter to the valve body and then remove the filter. It takes a bit of force. Be prepared for some more fluid to dump once the filter comes off. Keep track of the o-ring on the top of the filter where it connects to the valve body.

    Cleaning the body of the filter with brake fluid is easy, but getting the grit off the screen is awkward because of the access. I just wiped it out as best I could with a shop towel. Be careful as the screen is fragile. I also replaced the o-ring but some might consider this overkill.

    F8D688FC-1C14-444B-8B9D-C62657D20515.jpg B63DB420-F0A1-47E1-AA61-C3EB6095E26A.jpg 6CF97F03-498A-4D12-9B80-03A0B7755A71.jpg D95C24BA-05EE-4323-94DC-603AD230C408.jpg

    You could also choose to replace the filter.

    All told, through this whole process I collected about 4.3 qts of fluid.

    Reinstall the filter with o-ring, it takes a hard push and kind of clunks into place. Torque bolts to spec in star pattern.

    Clean mating surface of transmission case. Arrange new gasket in place on the transmission pan. Install two bolts to hold in place and hand tighten. It was a huge ass pain to keep the gasket in place on the pan while raising it to the case, because I did this whole procedure on my back on the floor of my garage with the transmission a foot or less from my face. Fun times! Some might put a drop of sealant on the four corners to hold the gasket in place, I was determined not to.

    Install remaining bolts and torque to spec in star pattern. Congratulate yourself and drink copious beers.

    At this point, install the drain plug with new crush washer and torque to spec, then install the overflow plug with new crush washer and only tighten slightly.

    Add 5 quarts minimum to transmission via fill port and then reinstall fill plug. Up to you whether or not to torque it down, because if nothing comes out when you go into temp check mode and open the overflow plug, you will need access back to the fill port to add more fluid.

    From here, refer to the remainder of the fill procedures in the drain and fill thread linked above, starting with turning on the engine and cycling through all the gears. I stayed in each gear for 30 seconds and cycled through twice. Don’t forget to ensure you’ve properly torqued all three transmission plugs to spec.

    Some notes: this gets awkward because all three socket head sizes are involved: 1/2, 3/8 and 1/4 inches. So plan ahead. On the overflow plug make sure your hex socket seats deep into the plug, and clean it or blow it out if needed. Also, finding the smaller inch-pound torque wrench was a pain in the butt. Harbor Freight was the only game in town, had one for $20. But overall the mechanical difficulty level was very low, and it was pretty satisfying to clean all the sludge off the pan and magnets in addition to replacing some of the fluid. I do plan on 3 more drain and fills over the next month so that I’ll have gotten to most of the overall fluid.

    Last edited: Jun 25, 2021
  2. Jun 23, 2021 at 7:31 PM
    #2
    EricT

    EricT Well-Known Member

    Joined:
    Jun 1, 2009
    Member:
    #17887
    Messages:
    836
    Gender:
    Male
    Arizona
    Vehicle:
    '09 4x4 shortbed TRD Sport
    Nice writeup! I see you got all 4 magnets, I only found 3 in my pan.

    PzTank and Hook78 [OP] like this.
  3. Jun 23, 2021 at 7:39 PM
    #3
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    Thanks, and it’s funny you say that because a video I watched to educate myself had the same outcome, only three magnets. It’s gotta make you wonder, is the other one back at the factory? Or....maybe in your exhaust somewhere...

  4. Jun 23, 2021 at 7:47 PM
    #4
    jkuniverse

    jkuniverse Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283862
    Messages:
    383
    Gender:
    Male
    First Name:
    Jason
    Arlington TX
    Vehicle:
    2013 Limited DCSB 4x4 Super White
    Nice write up! **21 ft-lbs torque value for drain plug is wrong in the service manual. It’s almost certain to strip the pan/bolt next time it’s out. It should be around 15 ft-lbs.

    PzTank, 4x4spiegel and Hook78 [OP] like this.
  5. Jun 23, 2021 at 7:53 PM
    #5
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    I thought it was odd that they had such different torque values given that the plugs are similar size with similar threads. Does Toyota know the info is wrong, I would think that would’ve been corrected? I’d like to be able to point to a documented value...

  6. Jun 23, 2021 at 8:04 PM
    #6
    EricT

    EricT Well-Known Member

    Joined:
    Jun 1, 2009
    Member:
    #17887
    Messages:
    836
    Gender:
    Male
    Arizona
    Vehicle:
    '09 4x4 shortbed TRD Sport
    I just snugged that bolt. Aluminum casting man gotta be careful. Yeah I hope that magnet isn’t in the exhaust. If it was man that is some journey…

    Hook78 [OP] likes this.
  7. Jun 23, 2021 at 8:16 PM
    #7
    Rick's 2012

    Rick's 2012 Well-Known Member

    Joined:
    Dec 11, 2017
    Member:
    #238253
    Messages:
    2,156
    Gender:
    Male
    First Name:
    Rick
    Costa Rica
    Vehicle:
    2012 Double Cab 4x4 Grey with leather
    Stock
    Excellent write up and pictures!!:thumbsup:

    Hook78 [OP] likes this.
  8. Jun 23, 2021 at 8:37 PM
    #8
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,478
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Fantastic write up n pics.

    I probably shoulda done exactly this 1k miles ago at 120k when i did my trans fluid.... fawk, tho the fluid came out SUUUPER clean. Next time.

    Honestly didnt know there was a gasket, thought it was just FIPG.


    OP. how bad was your filter screen clogged? (and how many miles did you have on it)

    PzTank likes this.
  9. Jun 23, 2021 at 8:55 PM
    #9
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    Thanks! Hope it’s helpful.

    65k miles, I’ll edit that into the post. Screen was pretty much as you see it in the close-up pic. Not clogged or anything but a good amount of debris captured.

    PzTank and nd4spdbh like this.
  10. Jun 23, 2021 at 8:59 PM
    #10
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    5,997
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Nice write up.
    Great job:thumbsup:

    Hook78 [OP] likes this.
  11. Jun 23, 2021 at 9:01 PM
    #11
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,478
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    Awesome!

    With how clean my fluid came out at 120k (previously changed the original fluid at 60k), I was going to extend my trans from a 60k interval to 80k so id be doing a full flush at 200k. MAYBE, ill split the difference and do a pan drop and filter change at 160k for peace of mind, or send it till 200k and do the full 12+qt flush and filter change then.... ill "circle back" in a few years. HAHA

    Hook78 [OP] likes this.
  12. Jun 24, 2021 at 3:50 AM
    #12
    TheDevilYouLove

    TheDevilYouLove You can’t polish a turd, but you can polish a TRD

    Joined:
    May 26, 2016
    Member:
    #187953
    Messages:
    2,444
    Gender:
    Male
    First Name:
    Steve
    Marylandistan
    Vehicle:
    2010 Tacoma TRD Sport Access cab 4x4 silver streak
    For a torque wrench that does inch pounds, I used a Wheeler FAT wrench.

    wguest and Biscuits like this.
  13. Jun 24, 2021 at 4:30 AM
    #13
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    Ah, essentially a torque screwdriver right? This was an option I considered but couldn’t find locally. I’d already set everything up and was about to get started when I realized I didn’t have a wrench for the low torque specs. Felt lucky to find something same-day so I didn’t have to delay the maintenance.

    TheDevilYouLove likes this.
  14. Jun 24, 2021 at 4:41 AM
    #14
    TheDevilYouLove

    TheDevilYouLove You can’t polish a turd, but you can polish a TRD

    Joined:
    May 26, 2016
    Member:
    #187953
    Messages:
    2,444
    Gender:
    Male
    First Name:
    Steve
    Marylandistan
    Vehicle:
    2010 Tacoma TRD Sport Access cab 4x4 silver streak
    The good news is that if you’re doing a pan drop, the full flush is not a lot of extra work. I did a full flush at 125k and am planning to do another at 200k. I chose to replace the factory transmission filter rather than clean it.

    I am also using a Magnafine transmission filter installed on the return line from the cooler. I change that every 30k.

    Biscuits and nd4spdbh like this.
  15. Jun 24, 2021 at 7:32 AM
    #15
    Jeffch

    Jeffch Well-Known Member

    Joined:
    Dec 23, 2011
    Member:
    #69251
    Messages:
    2,124
    Gender:
    Male
    First Name:
    Jeff
    Vermont
    Vehicle:
    2012 TX pro.
    Hell of a job:thumbsup:
    I should do this!!

    Hook78 [OP] likes this.
  16. Jun 24, 2021 at 9:19 AM
    #16
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    Doooooo it!

    Jeffch likes this.
  17. Jun 24, 2021 at 9:29 AM
    #17
    Tacoche

    Tacoche Member

    Joined:
    Dec 26, 2020
    Member:
    #350721
    Messages:
    21
    Gender:
    Male
    Vehicle:
    2008 trd sport
    3rd gen trd sport suspension
    I’ve read somewhere that its not a filter, only a strainer. Can someone open that « filter » to see what’s inside ?

    Hook78 [OP] likes this.
  18. Jun 24, 2021 at 9:35 AM
    #18
    Hook78

    Hook78 [OP] Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    2,393
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Lund 5" Nerf Bars Undercover Tonneau Cover
    I can’t speak for the field service manual, but the torque spec guide refers to it as a strainer. The assembly can’t be opened, the two sides are crimped together. The screen inside is metal. It can be replaced rather than cleaned, but it’s expensive.

  19. Jun 24, 2021 at 10:28 AM
    #19
    bswords

    bswords Member

    Joined:
    Apr 13, 2021
    Member:
    #362577
    Messages:
    16
    Gender:
    Male
    Subbed. Great write up

    Biscuits and Hook78 [OP] like this.
  20. Jun 24, 2021 at 10:51 AM
    #20
    ARB1977

    ARB1977 It’s a beaut Clark

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    1,414
    Gender:
    Male
    North Texas
    Vehicle:
    15 DCSB Prerunner 4.0L Blue Ribbon Metallic
    Black TRD Fj Cruiser wheels, TRD catback exhaust.

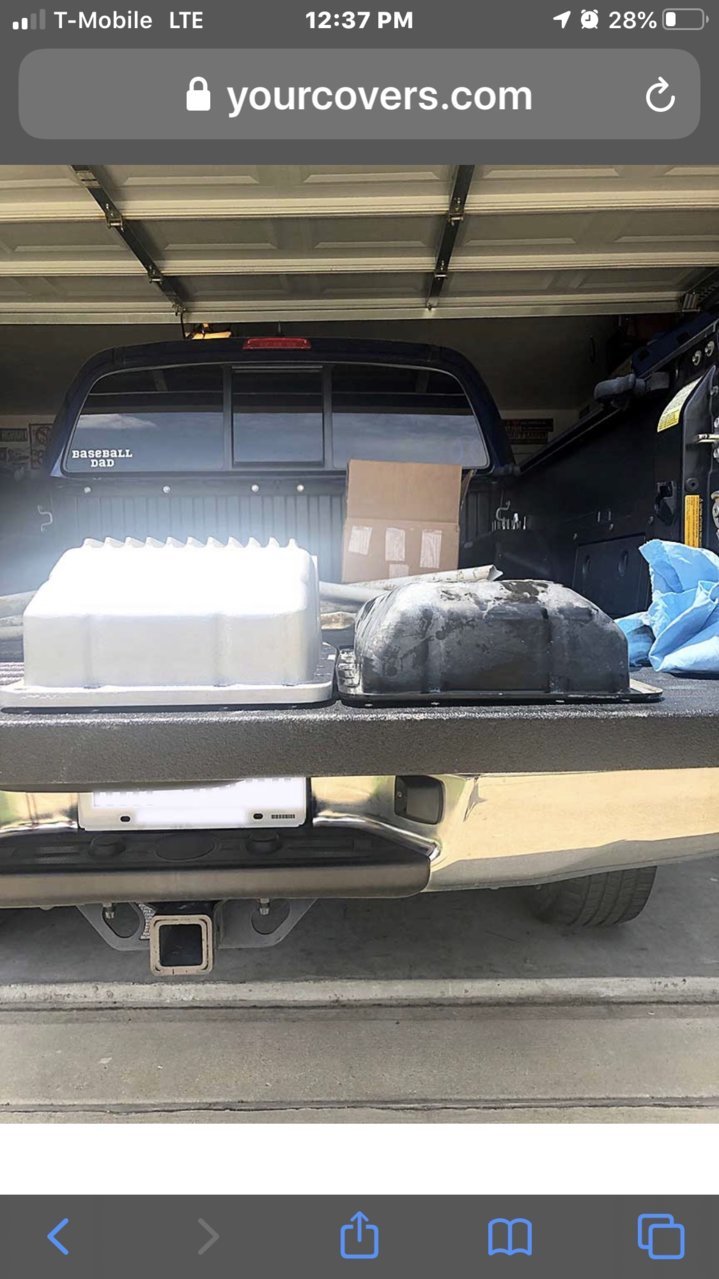

    At 80K I installed this beast. Gave me about 3.5 qrts extra. D637B3CA-10D0-4D4C-8008-B41132C25850.jpg

    fatfurious2, Biscuits and SR-71A like this.
