How to: Install Airflow snorkel and keep your TRD Intake

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Fosk, Mar 9, 2017.

  1. Mar 9, 2017 at 4:42 PM
    #1
    Fosk

    Fosk [OP] Well-Known Member

    Joined:
    Nov 11, 2009
    Member:
    #25787
    Messages:
    368
    Gender:
    Male
    First Name:
    Andrew
    Huntington Beach, CA
    Since I couldn't find any definitive solution and no one could/would offer one. Here is how I did it:

    Follow lemons guide for particulars on general install. I will cover only specifics to the TRD Intake and how I mated the snorkel to it.

    lemons's guide can be found HERE.

    First: Buy you one of THESE in 3.75" to 4". The 4" end will go to the TRD Intake, the 3.75" end will go to the pipe supplied with your snorkel.

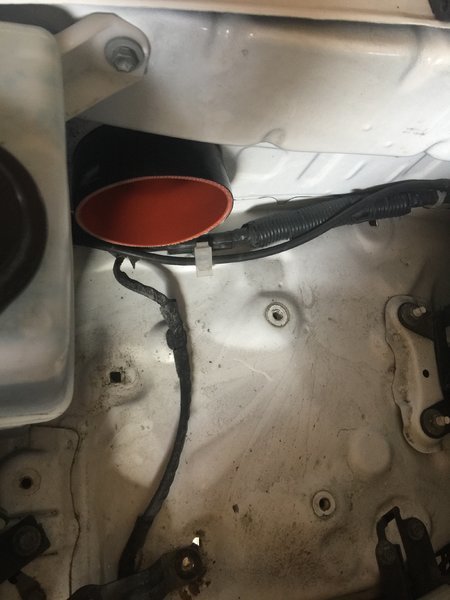

    The elbow will go through the intake hole as so, with the 4" end inside the engine bay. I recommend removing your intake for this as I have....

    Photo Mar 09, 9 23 17 AM.jpg

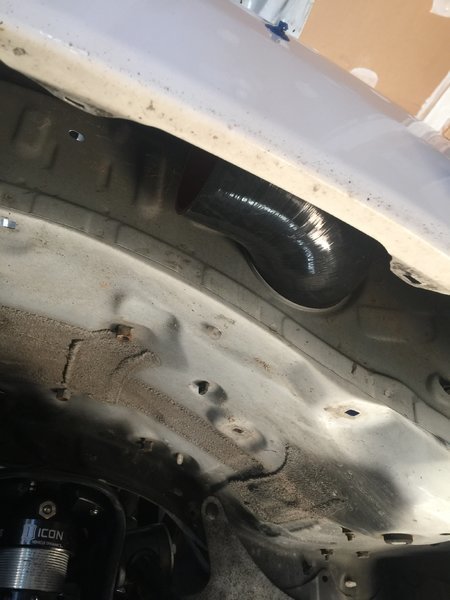

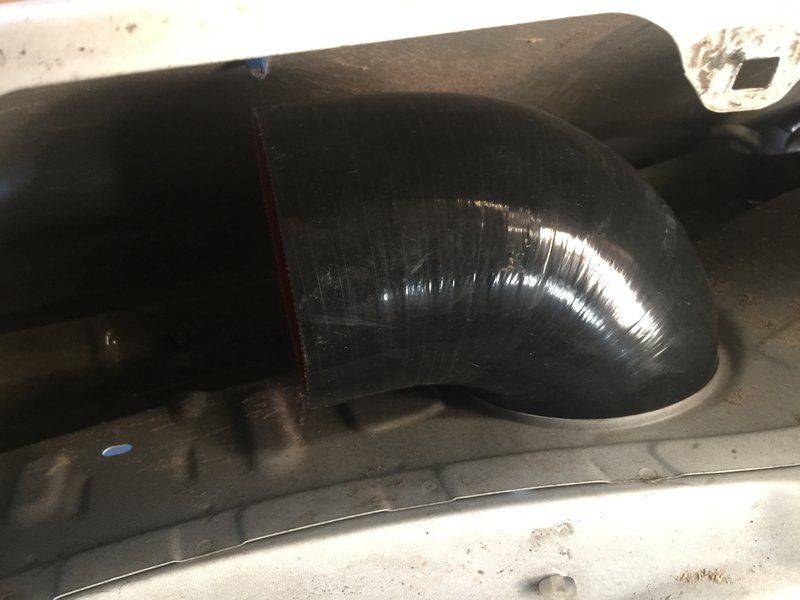

    This is the 3.75" end on the other side waiting for the snorkel pipe:

    Photo Mar 09, 9 23 26 AM.jpg

    Photo Mar 09, 9 23 31 AM.jpg

    When it comes time to piece your pipe and fittings together to connect your snorkel to your intake, you are going to have to either modify the supplied Airflow elbow or purchase a 3.75" diameter pipe.

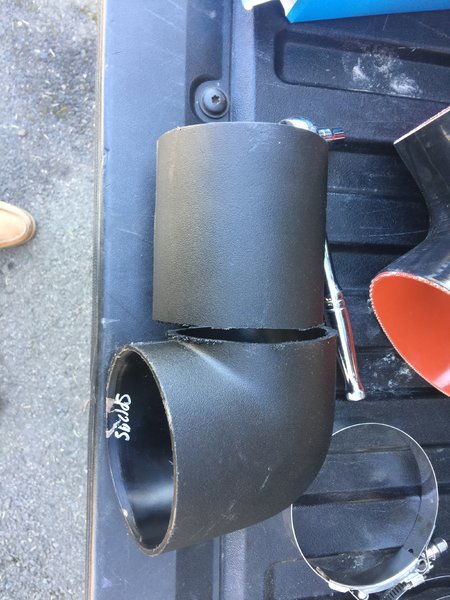

    I chose to modify the supplied elbow:

    Photo Mar 09, 11 22 40 AM.jpg

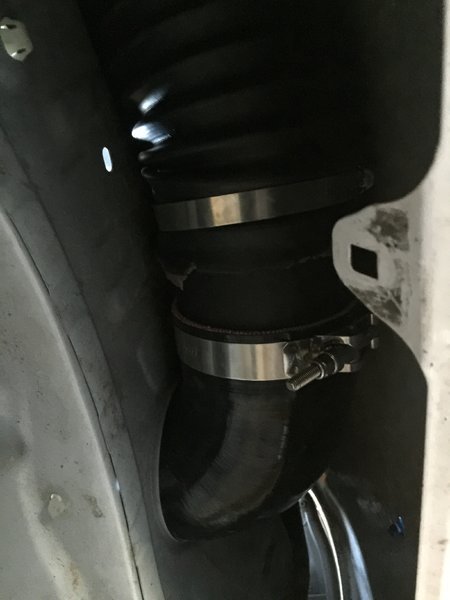

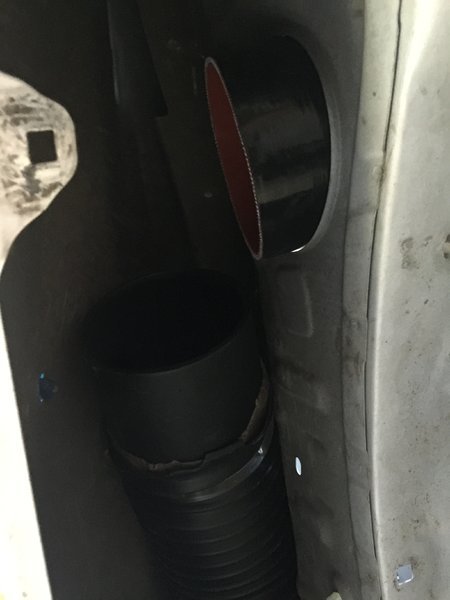

    One of the supplied elbows will connect to the snorkel housing and the other end to the hose. You then use your modified elbow or new pipe to connect the hose to the silicone elbow that is connected to your intake: (sorry, dark cell phone image)

    Photo Mar 09, 12 10 53 PM.jpg

    Photo Mar 09, 12 19 56 PM.jpg

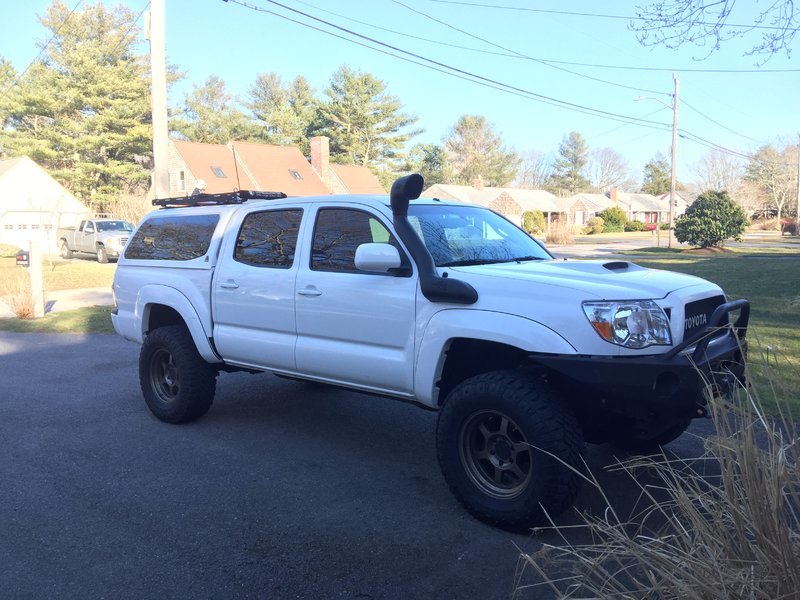

    and that's it.

    Photo Mar 09, 3 46 56 PM.jpg

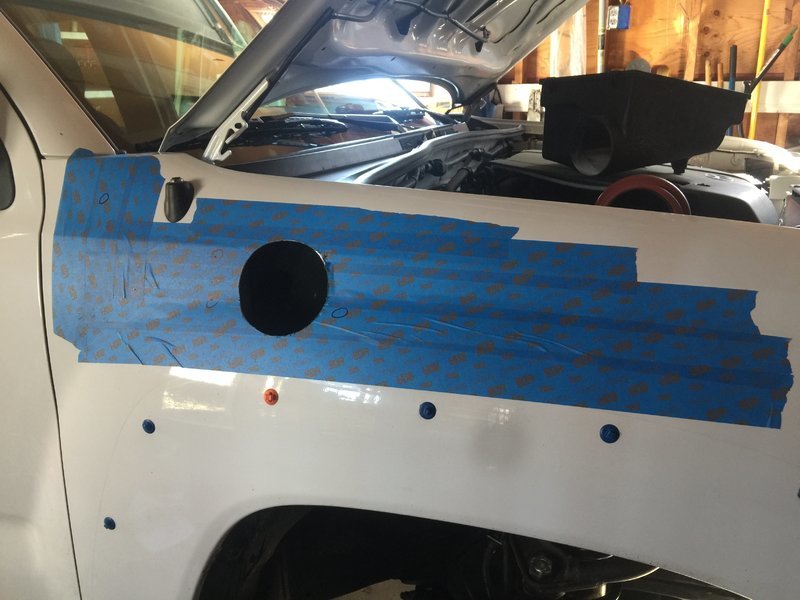

    Photo Mar 09, 10 04 36 AM.jpg


    Attached Files:

    Last edited: Mar 9, 2017
  2. Mar 9, 2017 at 9:27 PM
    #2
    desertrunner24

    desertrunner24 Well-Known Member

    Joined:
    Oct 30, 2016
    Member:
    #201101
    Messages:
    3,943
    Gender:
    Male
    First Name:
    Jake
    Fresno , CA
    Vehicle:
    2011 TRD offroad 4x4
    Some
    good to know :thumbsup:

  3. Mar 10, 2017 at 4:35 PM
    #3
    lynlan1819

    lynlan1819 Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181268
    Messages:
    5,808
    Gender:
    Male
    First Name:
    Troy
    Las Vegas
    Vehicle:
    2017 Pro/2015 Tacoma
    Lifted
    Why do guys need a snorkel ?

  4. Mar 10, 2017 at 5:26 PM
    #4
    desertrunner24

    desertrunner24 Well-Known Member

    Joined:
    Oct 30, 2016
    Member:
    #201101
    Messages:
    3,943
    Gender:
    Male
    First Name:
    Jake
    Fresno , CA
    Vehicle:
    2011 TRD offroad 4x4
    Some
    I don't, just is good to know

  5. Mar 11, 2017 at 11:22 AM
    #5
    lynlan1819

    lynlan1819 Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181268
    Messages:
    5,808
    Gender:
    Male
    First Name:
    Troy
    Las Vegas
    Vehicle:
    2017 Pro/2015 Tacoma
    Lifted
    I have heard some Tacoma owners are into drug smuggling,they drive down too Mexico and then use their snorkeled trucks too come back just off the coast with only the top half of the truck showing and the dope in the back.
