How to: Install Overhead Compass / Temperature Gauge

Discussion in '2nd Gen. Tacomas' started by jefferson, Apr 2, 2009.

  1. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    I'm gonna show you how to install the overhead compass and temperature gauge into your Tacoma if you don't already have it installed from the factory.

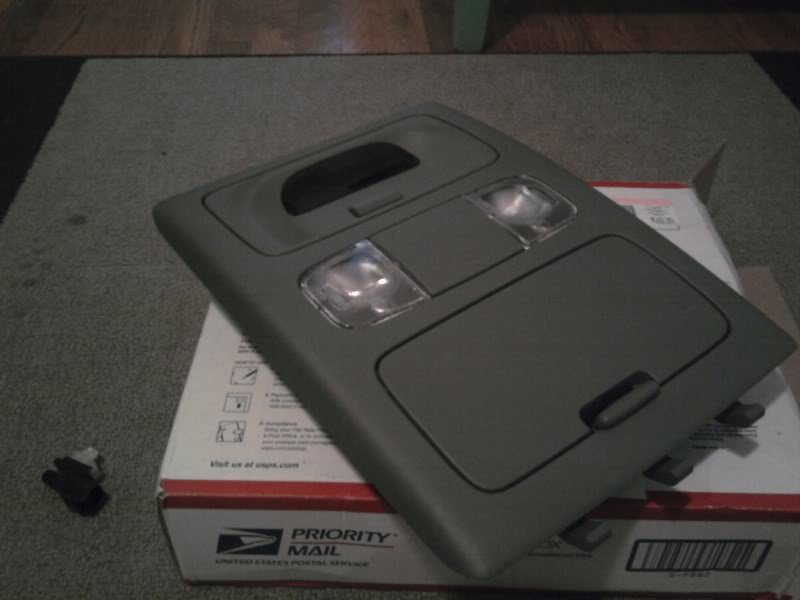

    First off, get ahold of one of these bad boys:

    [​IMG]

    I got it from our member Sideways. He steals them out of cars. He'll have another sometime soon I'm sure. Mostly because he steals them out of cars. He packed me a sending unit with the console. For a bit i thought maybe you could take the compass out of the console and install it into your own console.. but because of the riveted tabs that would make it very hard to do. Might as well install the whole thing unless you wanna go nutty on an expensive part.. I don't.

    So now lets find the plug for the sending unit for the temperature gauge portion of the console. You have to fish for it a bit.. for me, it was tucked away and taped BEHIND the horns. Here's a picture of it looped around in tape off to the left.. (i was laying on the ground, looking up)

    [​IMG]

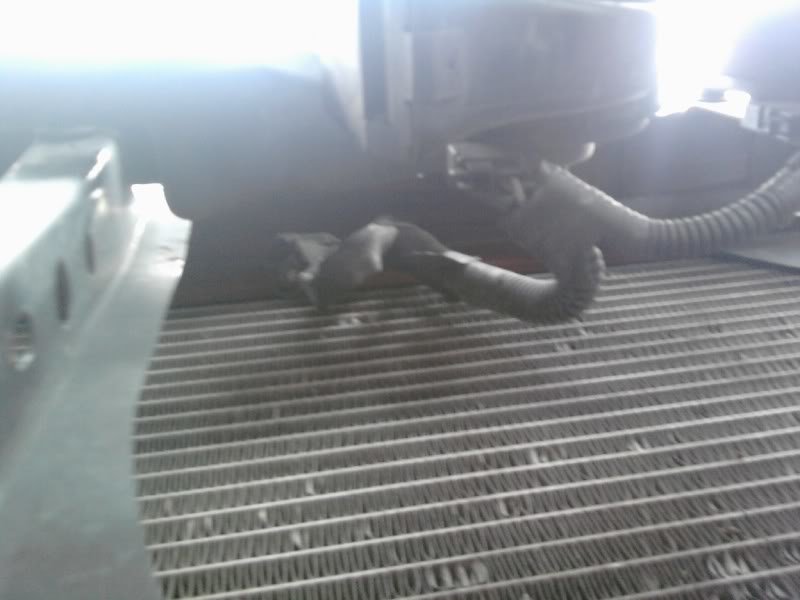

    The best way to approach this is around the hood latch and reach your hand under the horns and pull the tape away:

    [​IMG]

    [​IMG]

    Now lets grab the sending unit

    [​IMG]

    and install it into the new found plug

    [​IMG]

    Here is the stock location for the temp sending unit. The sending unit's white clip attaches it to the hood latch bracket

    [​IMG]

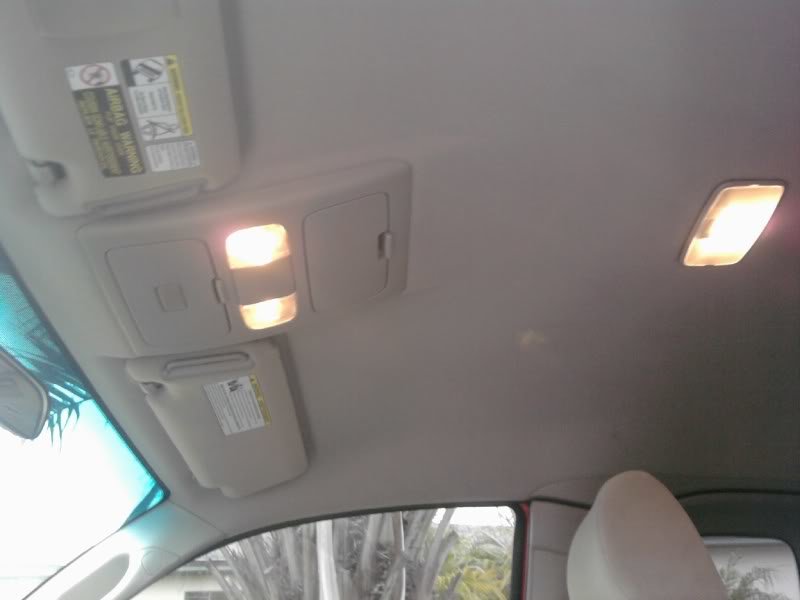

    We're done here. Time to move inside. I have already done the mod to make the map lights come on with the dome light. I'll show you how to move that mod over to the new console too!

    [​IMG]

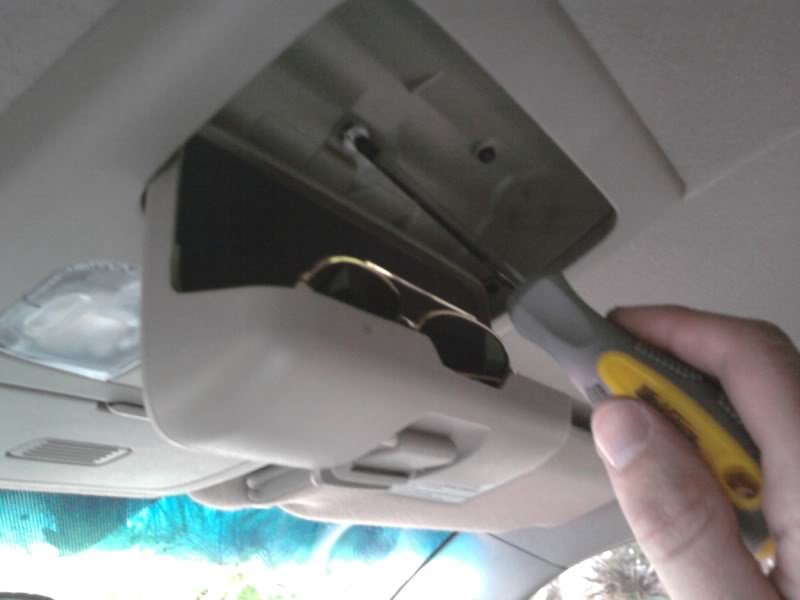

    Start by unscrewing the only screw in this entire mod, located inside the cup holder:

    [​IMG]

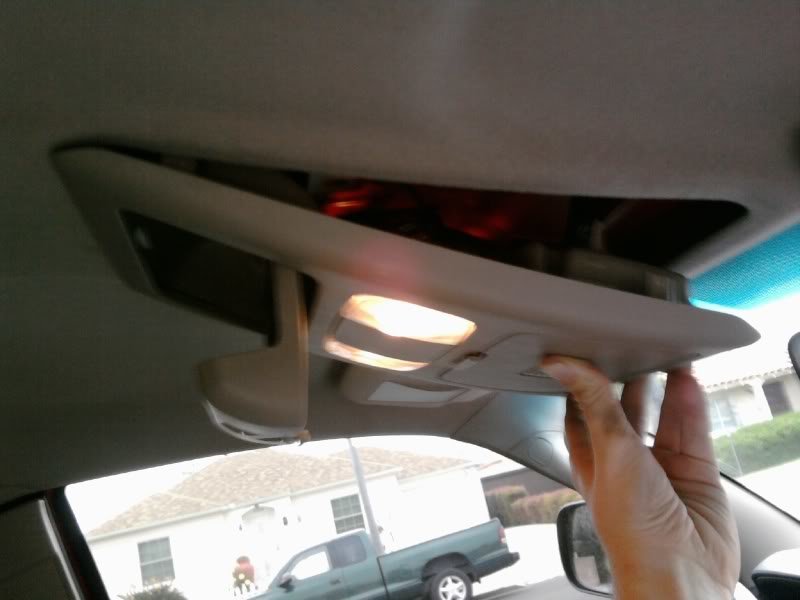

    Pull down on the front of the console. Its held on by these little snap connectors, so give it a good yank and it'll come loose

    [​IMG]

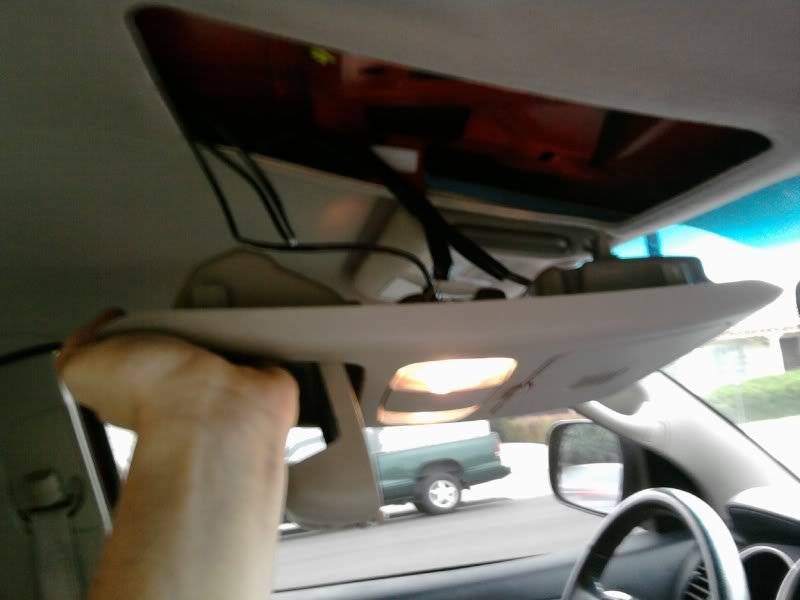

    Slide it forward and unhook the back of the console from the headliner. It will be very obvious

    [​IMG]

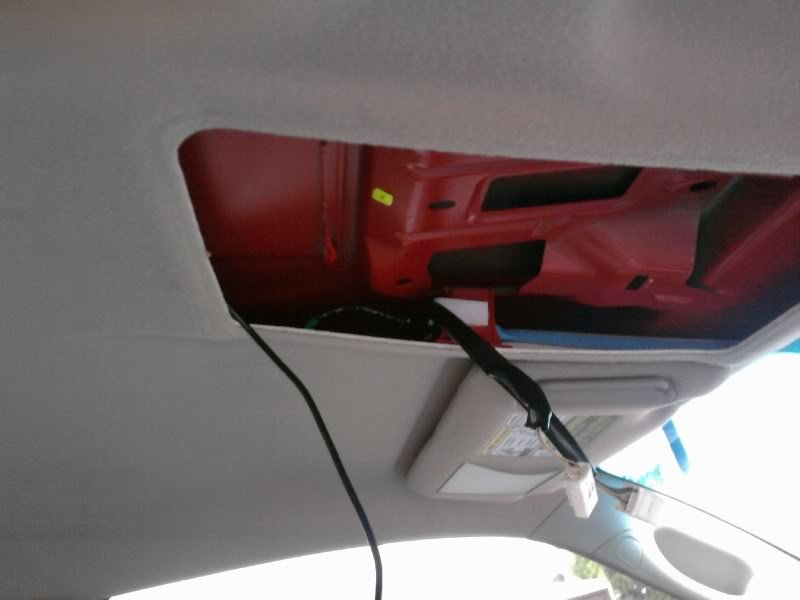

    You'll have the two plugs only if you have not done the dome light mod.. for me, that black wire is my dome light mod's wire.

    [​IMG]

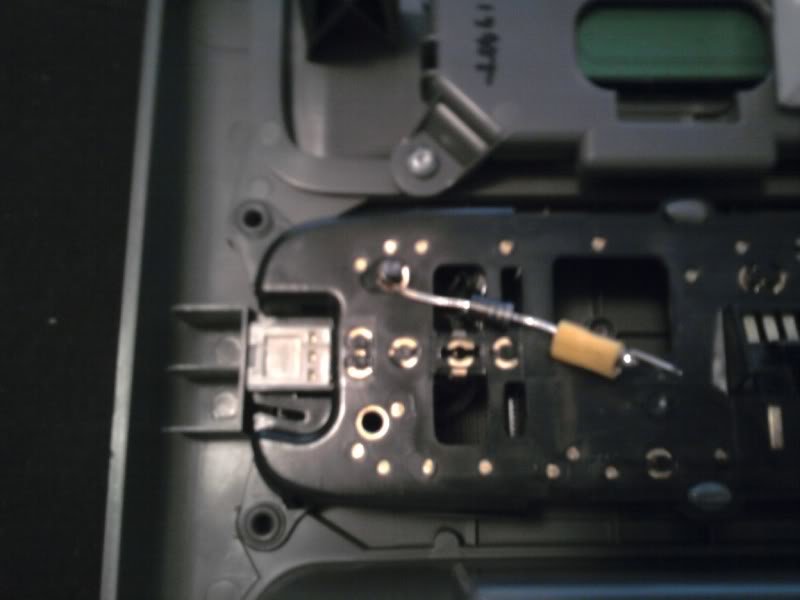

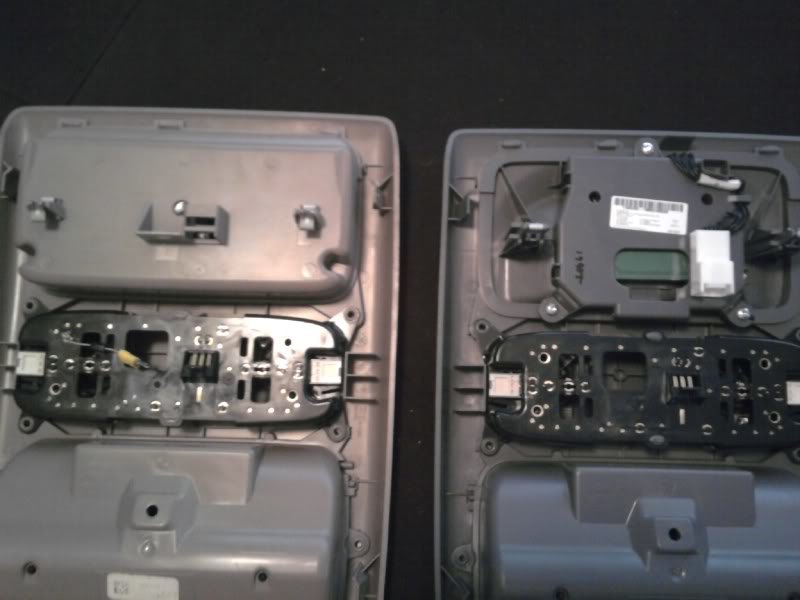

    Now lets walk our old console inside next to the new one. (Again, these are steps you can skip if you have not and will not do the dome light mod.) Notice where my diode is.. this was an awesome spot. I want to resolder it in the same place on the new console. I left it tooo exposed last time, so i'll clean that up a bit.

    [​IMG]

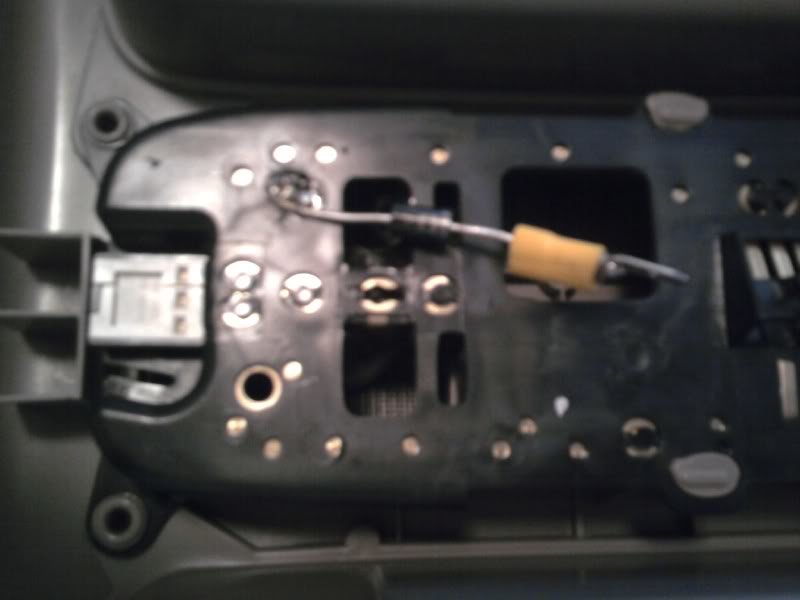

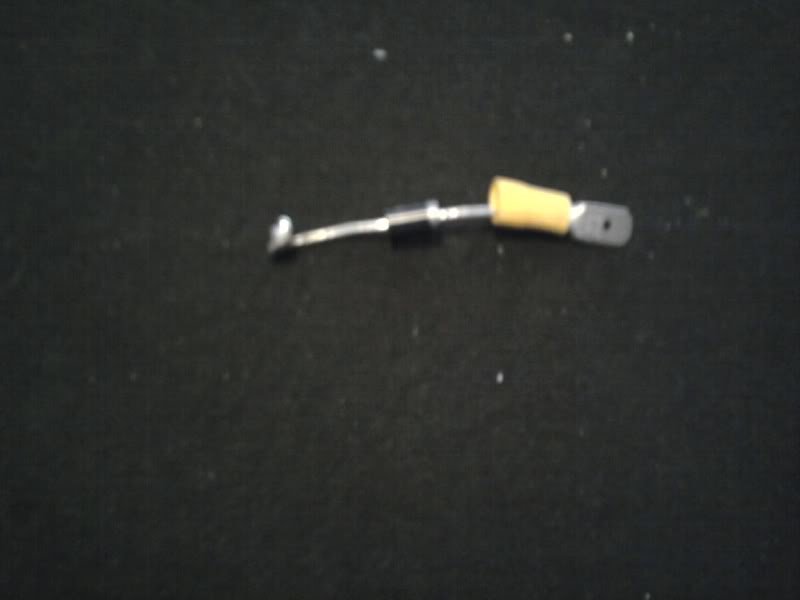

    So lets unsolder that guy

    [​IMG]

    [​IMG]

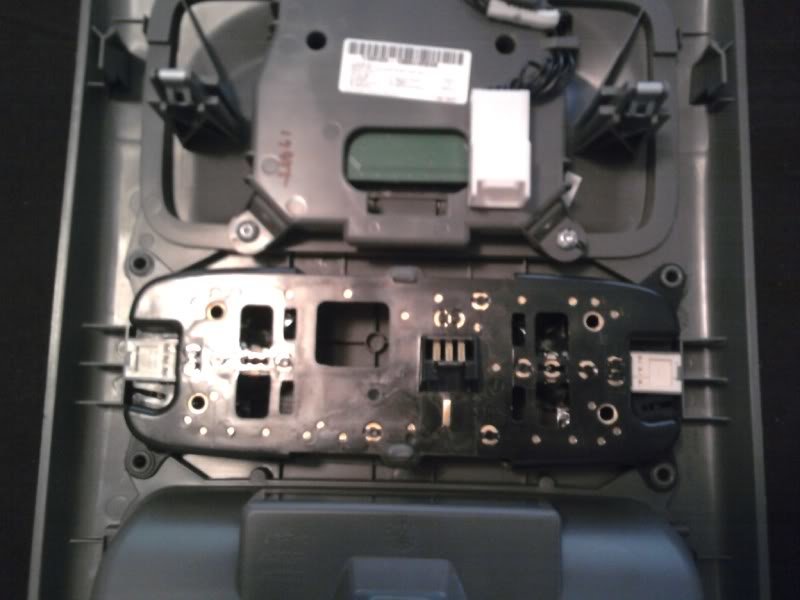

    New console:


    [​IMG]

    [​IMG]

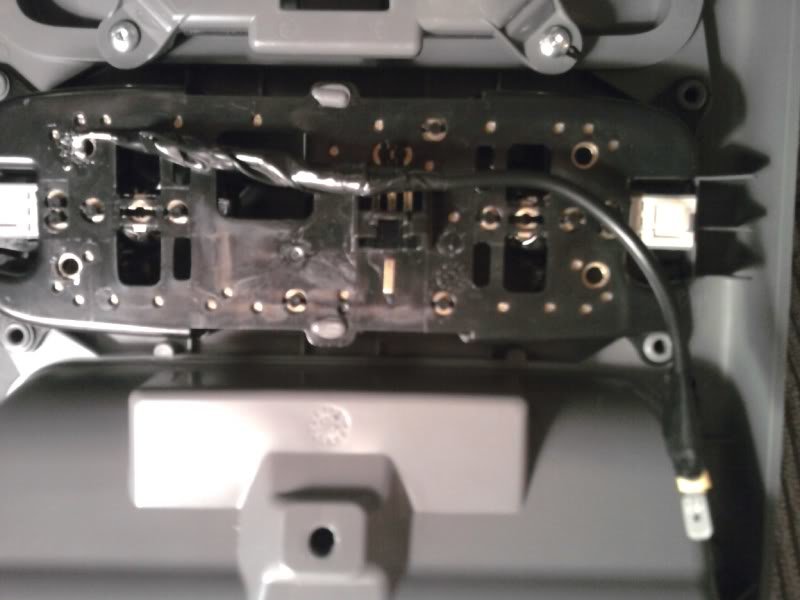

    Tada. now I'm just gonna clean up my own install a bit. You can also see how i'm expecting to connect the black wire still in my truck to this console with that clip at the end. I like this because it makes the console removable.

    [​IMG]

    Now just reverse the process to get it back up there. I hooked up my black wire first, then hooked up the two plugs. Install the back of the console first with the hooks and then snap the snap connectors in. I'd have pictures of this, but it got dark. So here is proof that both the mod for the dome light AND my temperature / compass actually work.

    [​IMG]

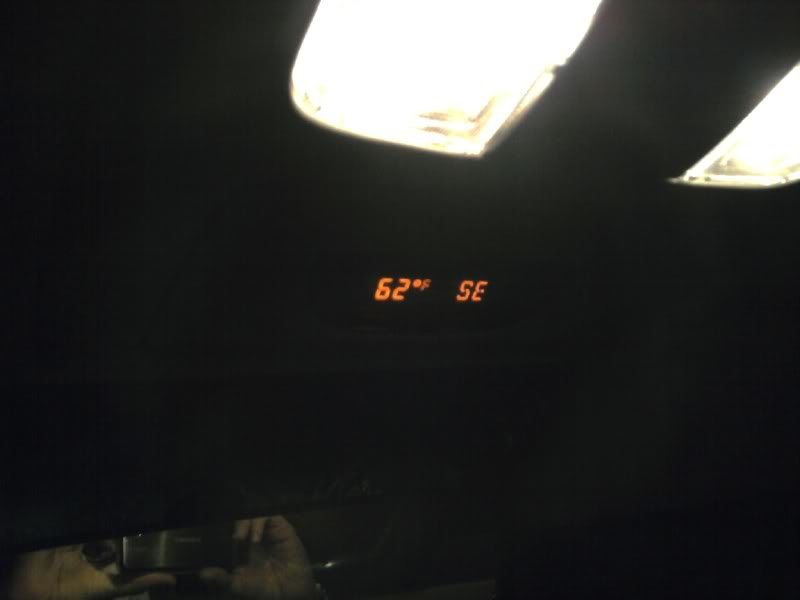

    Good times.

    EDIT:

    Now, if you just wanted to add JUST the temp unit directly to your unit in the space where the garage door opener is on your current unit, Car15 figured out how to do it. Below is a picture and description, found on page 3 of this thread:

    [​IMG]

    He ended up using epoxy on the tabs, and screws/washers where the plastic rivets go.
    You need to have the two parts (the temp screen/unit itself and the cover plate) Good
    job bud

  2. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    p.s.

    People have had issues in the past with the console’s screen going out. I do recommend resoldering one of the parts within the console before installing. View SecretSquirrl’s link on how to do this here: http://www.tacomaworld.com/forum/2nd-gen-tacomas/18497-overhead-console-fix.html

    ALSO:

    DO CHECK and see if you have the wires for the temp sending unit. Some of us, even SR5 people do NOT have the plug for the unit. If you do not, its not totally over - you can add it on.. just click here for the writeup on that:

    http://www.tacomaworld.com/forum/2nd-gen-tacomas/39264-ambient-temperature-gauge-sensor-install.html

  3. Notty

    Notty Well-Known Member

    Joined:
    May 9, 2008
    Member:
    #6505
    Messages:
    308
    Gender:
    Male
    5Twenty
    Vehicle:
    08 DubCab PreRunner
    5100's @ 2.5, Rear TSB, ToyTec 1.5 AAL, 17" Incubus 511's, 285/70/17 Dueler Revo A/Ts, BHLM
    Nice write up!!! :headbang:

    On a related note, are any of the wires in the harness going to the compass/temp gauge easy enough to tap into for hard wiring a radar detector? I have seen the DIY to run the wire down into the dash, but that seems like overkill if I can just have the detector up by the mirror and run the wire about 6 inches or so into the headliner and tap into that harness.

  4. TacticalBacon13

    TacticalBacon13 Sorry for party rockin'

    Joined:
    Mar 24, 2008
    Member:
    #5480
    Messages:
    16,165
    Gender:
    Male
    First Name:
    Dunk
    Beech Creek
    Vehicle:
    2014 tundra platinum
    baby seat and a muffler
    dude you and your write ups:).
    least this one worked:D.
    good job on the write up. real informative.

  5. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    YES very easy. That is exactly where i would tap in because they're only hot with the key ON. SO its a perfect area to tap into, and easy to get to.

    HAHA I KNOW HUH?? Hey - i'll write it up if it works (and even if it doesnt!) and haven't found a write up on it yet! I know plenty of people have done this, but it might help someone at some point to see that step by step.. Who knows, but thank you!

  6. Sideways

    Sideways Well-Known Member

    Joined:
    Sep 7, 2008
    Member:
    #9057
    Messages:
    561
    Maryland
    Vehicle:
    05 TRD dbl cab
  7. SocalMan22

    SocalMan22 Founder Socaltacomas.com Staff Member

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,151
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Nice write up!!

  8. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    nah, i call you a "acquirer of fine automotive parts" :D

    (Nothin but love!)

  9. MattN03

    MattN03 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12571
    Messages:
    706
    Gender:
    Male
    First Name:
    Matt
    Bluegrass State
    Vehicle:
    07 DC 4x4 TRD Off-Road
    20% window tint, beep mod, hardwired V1, TSB springs, AVS Bugshield-21803, USA Spec PA15, OEM Tacoma scuff plates, Weathertech mats, Truxedo LoPro, TRD skid, GY Duratrac's 265/75/16 C Range, locker mod (switch method)
    Which wires do you tap to hardwire the radar detector if using the overhead console?

  10. MattN03

    MattN03 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12571
    Messages:
    706
    Gender:
    Male
    First Name:
    Matt
    Bluegrass State
    Vehicle:
    07 DC 4x4 TRD Off-Road
    20% window tint, beep mod, hardwired V1, TSB springs, AVS Bugshield-21803, USA Spec PA15, OEM Tacoma scuff plates, Weathertech mats, Truxedo LoPro, TRD skid, GY Duratrac's 265/75/16 C Range, locker mod (switch method)
    UPDATE:

    Found a write up at Tundra Solutions. I tapped the light green wire for power & a black/white wire for ground. Super easy and took 20 minutes tops. Now I have my V1 hardwired :D

  11. Boomerdog

    Boomerdog New Member

    Joined:
    Feb 21, 2009
    Member:
    #13910
    Messages:
    2
    Gender:
    Male
    Julian California
    Vehicle:
    Tacoma
    I read your well written guidelines on putting in a tem p and compass. Although it is well written, I remain intimidated to do it myself. I live in Julian and come down to San Diego often. I have an 07 Access cab 4X4 with a manual 6 speed. I want the temp guage because of the freezing point in winters here in Julian. I would like to chat with you about the process of putting one in my truck. My phone number is 760 765 1160.
    Carl

  12. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    Sounds great. Its super easy, and you could skip the light mod if you want.. i just threw that in there cause i was doing that at the same time. I'll shoot you a call after 5 tomorrow!

  13. ilg

    ilg VanCity Taco.

    Joined:
    May 5, 2009
    Member:
    #16835
    Messages:
    649
    Gender:
    Male
    BC, Canada
    Vehicle:
    09 MGM TRD O/R 4x4 6-Spd
    WeatherTechs, Yellow Fogs, Alpine X-100 iPod Stereo, Custom Seat Covers, Debadged, Locking Bed Compartments, Black Front Toyota Emblem, AVS Vent Visors, Colour Matched Grill, TRD Shift Knob, Eagle Alloy 187s in 16x8 wrapped in 265/75/R16 Goodyear Wrangler Duratracs, Black Chrome TRD Badge on Tailgate, Black Rear Bumper, 8 in shorty antenna, 5100s @ 2.5.
    Great write up. I may just have to do this once I "acquire" the necessary parts. Haha

  14. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    hahaha "acquire" away! Just not from me ;)

  15. adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,500
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 TRD PRO INFERNO
    is there any sites that sells this parts?

  16. kevinff

    kevinff Member

    Joined:
    Apr 28, 2009
    Member:
    #16538
    Messages:
    14
    Gender:
    Male
    Sunny AZ
    Vehicle:
    2009 Tacoma 4x4
    Ditto. I haven't been able to find a part number either. I have a 2009 4x4 w/Access cab

  17. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    DO remember that the 2009 gauge is different (not in style but in electronics) so a 05-08 console will not work in a 2009

  18. kevinff

    kevinff Member

    Joined:
    Apr 28, 2009
    Member:
    #16538
    Messages:
    14
    Gender:
    Male
    Sunny AZ
    Vehicle:
    2009 Tacoma 4x4
    Thx. Anyone have a 2009 compass/temp gauge for sale or an online sales source?

  19. nhtundra

    nhtundra Well-Known Member

    Joined:
    May 26, 2009
    Member:
    #17649
    Messages:
    63
    Gender:
    Male
    NH
    Vehicle:
    2012 AC 4x4 6cyl Super White
    Has anyone tried to retrofit a unit from another Toyota model? Like Sienna? Lots of them on ebay. I may give it a shot once I get my '09 (tommorow).

  20. jefferson

    jefferson [OP] needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    only an 09 console will work on an 09. they changed the way they work for 09, so anything from 05-08 works ONLY on 05-08 models. You try a 06 on an 09 tacoma, it will read "--". SO if you get one from a Sienna, make sure its an 09 to rule this out.
