How To Install Switchback LEDs

Discussion in '1st Gen. Tacomas (1995-2004)' started by SlimDigg, Apr 7, 2011.

  1. Apr 7, 2011 at 9:14 PM
    #1
    SlimDigg

    SlimDigg [OP] Resident MMA Fanatic

    Joined:
    Sep 1, 2010
    Member:
    #42613
    Messages:
    1,433
    Gender:
    Male
    Calgary, AB
    Vehicle:
    2001 TRD Double Cab Limited 4x4
    OME 881, Bilstein 5100, Icon AAL, Wheelers Anti-Sway kit, aFe Pro Dry-S Air Filter, Deck Plate Mod, Rear Diff Breather Mod, GE Nighthawk Platinum headlights, Wet Okole Seat Covers, Husky Liners. LED Tail Lights
    First off, huge thank you to mtucker and jblaze805. I couldn't have done it without you.

    I followed mtucker's write-up here:

    http://www.tacomaworld.com/forum/1s...gnals-running-lights-switchback-leds-how.html

    Please use it to fill in the blanks.

    Here we go:

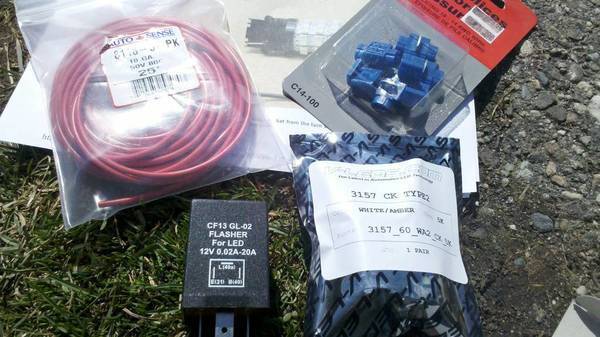

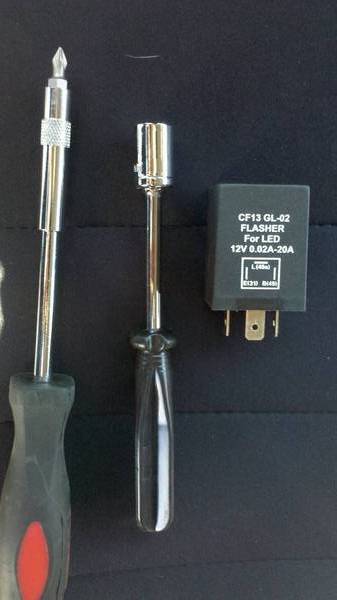

    Materials:

    18 AWG wire (I would use thinner wire if I had to do it again)

    Quick Splice connector

    cf13 gl-02 LED Flasher (http://www.superbrightleds.com/cgi-...tion=DispPage&Page2Disp=/specs/CF13GL-02.html)

    Switchback LED bulbs (http://www.v-leds.com/Exterior-LED/Turn-Signal-LED/White-LED/CK-TYPE-2-DUAL-COLOR-p7431626-1-2.html)

    Philip head screwdriver

    10mm socket

    mtuckers guide :D

    [​IMG]

    After buying the wrong LED flasher, the first thing I wanted to do was test out the one new one. You'll need your screwdriver and socket here.

    [​IMG]

    I guess I missed a photo here but you should be able to figure it out.

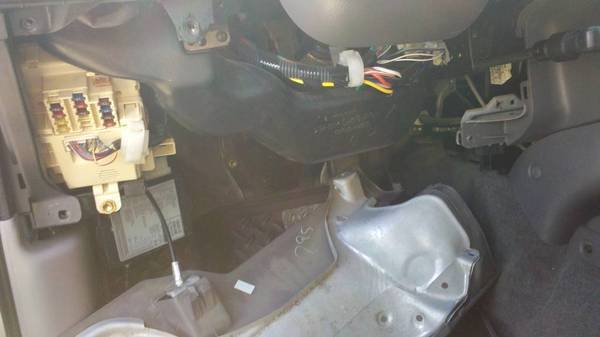

    Remove the screw and 4 10mm bolts holding in the piece under the steering wheel.

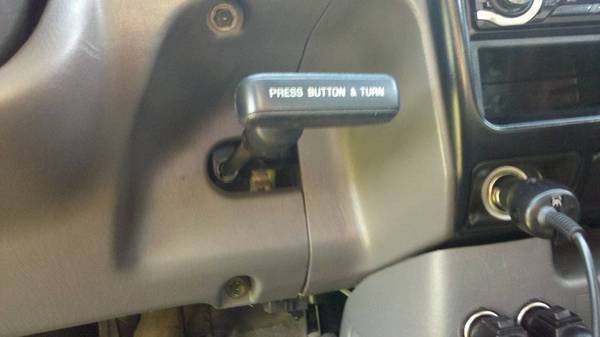

    The ones above and below the ebrake:
    [​IMG]

    I didn't disconnect the hood release, mostly because I didn't know how to too and also because you don't need to.

    [​IMG]

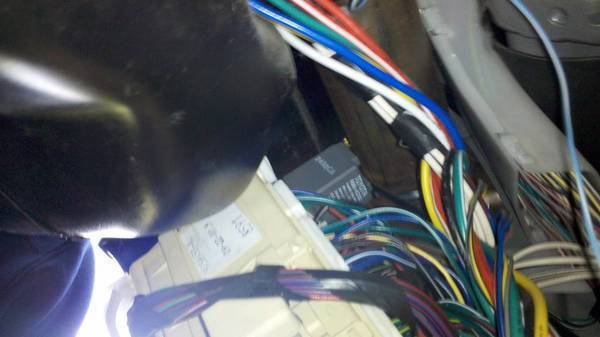

    On the backside of the fusebox, the stock flasher it at the top:

    The grey thing:
    [​IMG]

    Reach your hand up there and wiggle it out. Mine was in there tight, wiggle and it will come out. Replace with LED flasher unit. Test your signals to make sure everything is still working. It should be all normal.

    Put your dash back together.

    Now the bulb swap.

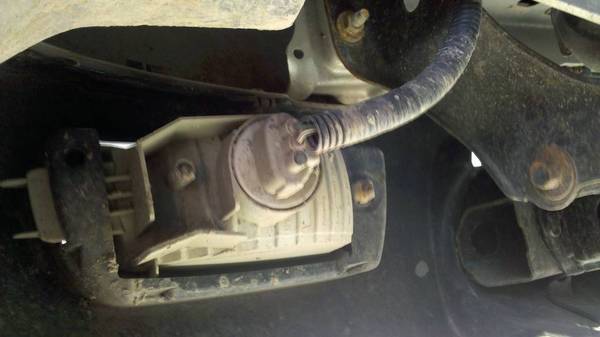

    Drivers side stock:

    [​IMG]

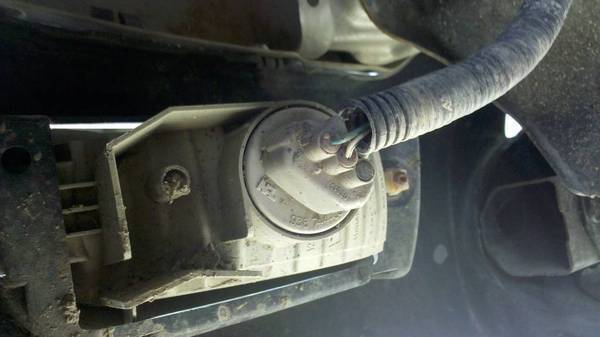

    Turn the socket counter clockwise:

    [​IMG]

    Gently wiggle out:

    [​IMG]

    Clean the dirt around where the socket came out.

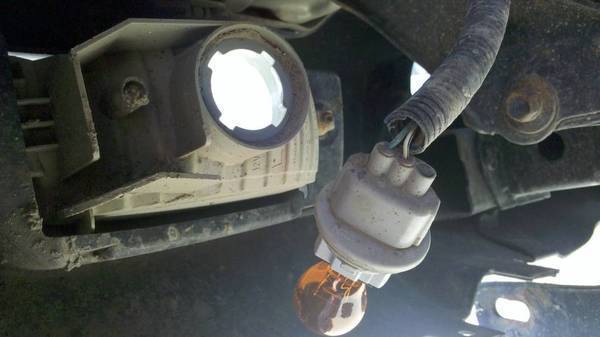

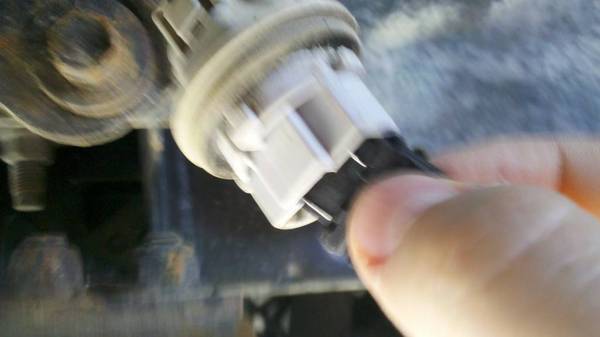

    Gently remove the stock bulb with a tug and wiggle:

    [​IMG]

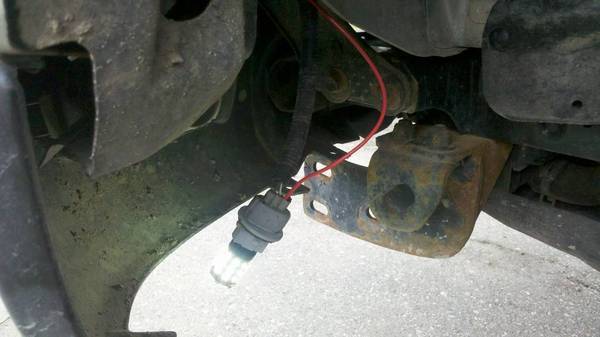

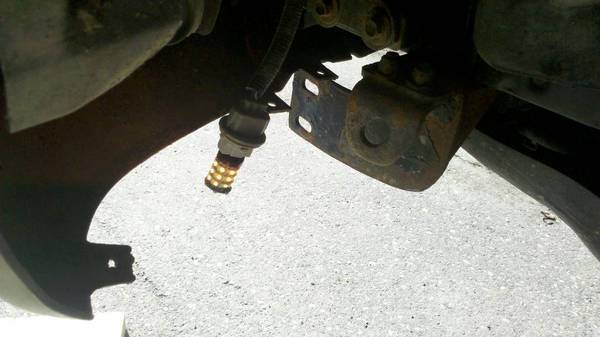

    I then inserted the new led bulb and tested it. It should work normally if you don't add the new wire in:

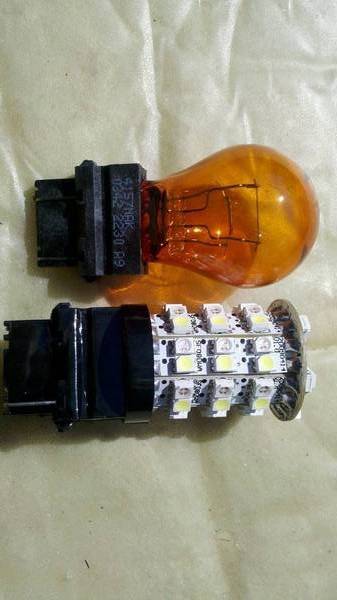

    New LED bulb:

    [​IMG]

    [​IMG]

    This was the most time consuming part. Once I figured it out and it was easy.

    Following mtucker's guide to take the socket apart, I stuck my flathead screwdriver in to push down the tab connecting the socket to the wiring. I couldn't pull it apart with my hands. I used my flathead to gently push each side until the socket came free.

    Please refer to mtuckers guide to take apart the socket and add the wire:

    http://www.tacomaworld.com/forum/1s...gnals-running-lights-switchback-leds-how.html

    His pictures are great I didn't feel the need to make my own.

    The wire I had was too think so I had to cut the smaller rubber plugs in half. I ended up losing the passenger side one, So I stuffed a small piece of foam in with the wire.

    I then installed the extra wire and ran into a problem. All my stock wiring was still intact, nicely pinned and wrapped. I didn't want to disturb any of the that and all the spaces were really tight to work in. This is where the add a fuse comes into play.

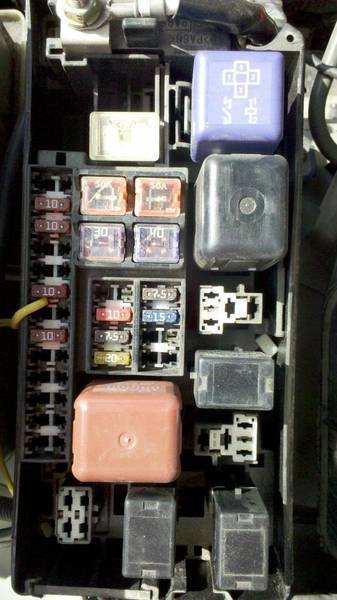

    I opened my fuse box and investigated:

    [​IMG]

    [​IMG]

    My original choice was to use the empty 15amp Fog fuse. I got to the auto parts store looking for my add a fuse and they didn't carry and couldn't get any 15mp ones. So I took the 10amp add a fuse and decided i'll jsut figure it out.

    I ended up using the LH headlight fuse.

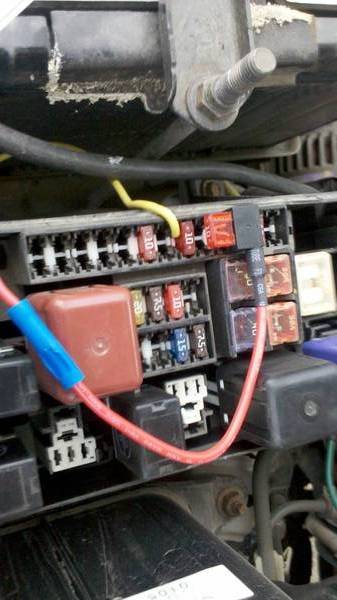

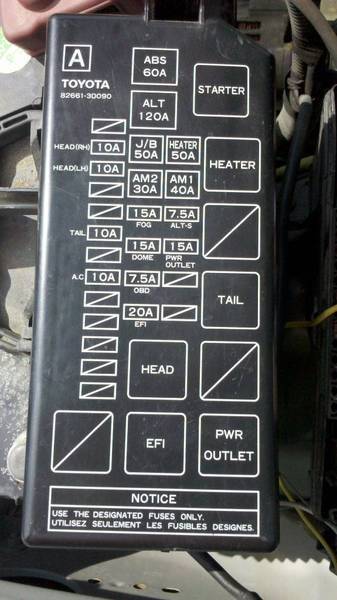

    Remove that fuse and put in the AAF:

    [​IMG]

    I stuck the original 10amp fuse back in the AAF. Then I took the wire I added to the driver signal and ran it into the AAF (the blue connection at the bottom of the picture above. The 18 gauge wire didn't fit really good inside the 16 gauge AAF I bought, but it did fit so I tested:

    [​IMG]

    Success!!!!!

    Since my wire didn't sit really nice or crimp correctly, I just wrapped it all up in electricians tape.

    Repeat the stock bulb removal and add a wire to the passenger side. I ran my wire around the firewall and over to the fusebox.

    I then used the quick splice connector to hook the passenger side wire into the driver side wire before the add a fuse:

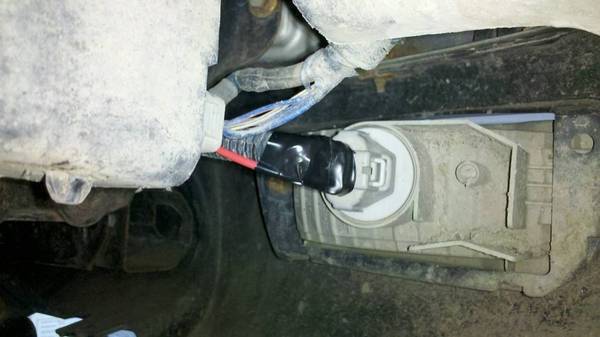

    It's the blue thing at the bottom of the picture:

    [​IMG]

    Once everything was tested I wrapped up sockets with electrical tape because I felt the rubber plug I cut in half (and the foam) weren't going to do a great job :

    [​IMG]

    [​IMG]

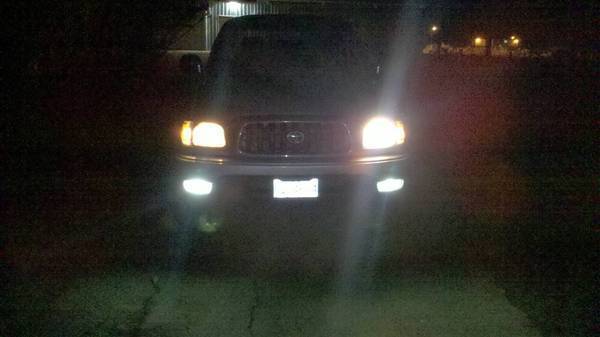

    DONE

    http://www.youtube.com/watch?v=v8xNORBsh8s

    One other note, my headlights used to come on automatically. I never had to turn the lights on, they were full power always. After installing the leds, the passenger lamp only half lit up and now I have to actually turn the lights on. No big deal.
