How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. Dec 4, 2014 at 8:12 AM
    #121
    npiccoli

    npiccoli New Member

    Joined:
    Nov 18, 2014
    Member:
    #142617
    Messages:
    2
    Gender:
    Male
    First Name:
    Nick
    Have a particular relay in mind? Electrical wiring isn't really my forte.

    EDIT: Would this one work?

    EDIT 2: I think I get it now... I watched this video, and it makes sense to me now. A 4 or 5 pin relay would work best for what I'm trying to do I believe...

    Last edited: Dec 4, 2014
  2. Dec 4, 2014 at 5:52 PM
    #122
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,986
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Heres an updated pictured of mine -

    [​IMG]

    I still need to finish wiring the accessories into it

    Mikey-C and hoverlover like this.
  3. Jan 8, 2015 at 8:14 AM
    #123
    fireman903

    fireman903 Well-Known Member

    Joined:
    Jan 8, 2015
    Member:
    #145858
    Messages:
    88
    Gender:
    Male
    new jersey
    Vehicle:
    06 taco
    3 inch lift 33 in tires undercover emergency responder light 30 rigid led light bar bed lights engine compartment lights
    do you have specs on the piece you made I like it and would like use it if possible

  4. Jan 19, 2015 at 7:25 PM
    #124
    Gabassman

    Gabassman Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,643
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Here is what I made.

    Toynado likes this.
  5. Jan 31, 2015 at 3:05 AM
    #125
    AfroWookie

    AfroWookie Active Member

    Joined:
    Feb 4, 2014
    Member:
    #122273
    Messages:
    34
    Gender:
    Male
    First Name:
    Ryan
    Portsmouth, VA
    Vehicle:
    09 Speedway Blue DC Sport
    I was looking into adding an aux fuse box like these and I had a question or two. There are a lot of things I'm decent at, but wiring and electrical is not included haha. Is the circuit breaker a necessity on this install? What exactly does it do? I apologize for the newb questions, I'm trying to do some research on it myself at the same time, but I like hearing the experiences of other people as well. Also, any way I could get you guys to fab me a bracket like one of these and ship it to me on my dime? haha

  6. Jan 31, 2015 at 4:36 AM
    #126
    TRSJimmy

    TRSJimmy All I Do Is Nguyen

    Joined:
    Jul 10, 2012
    Member:
    #82308
    Messages:
    3,089
    Gender:
    Male
    First Name:
    Jimmy
    Gainesville, GA
    Vehicle:
    12' Mall Crawlin Peerunner
    100A Circuit Breaker performs three tasks. It serves as an on/off switch, 100A Fuse, and circuit protection trips if draw exceeds 100 amps.

    Yotamac makes some if you're interested
    http://www.tacomaworld.com/forum/2nd-gen-tacoma-marketplace/294195-fuse-panel-mounting-plate.html

  7. Feb 4, 2015 at 3:49 AM
    #127
    AfroWookie

    AfroWookie Active Member

    Joined:
    Feb 4, 2014
    Member:
    #122273
    Messages:
    34
    Gender:
    Male
    First Name:
    Ryan
    Portsmouth, VA
    Vehicle:
    09 Speedway Blue DC Sport
    I'm gearing up to do this project but I'm a compete electrical newb and I have one more question. Obviously since the fuse box is coming straight off the battery, anything you wire in will have constant power. Most things I plan on adding, I'm okay with that. In the case that I want something to have power only when the ignition is on, how would I go about doing that? Is that where those little relay boxes come in handy?

  8. Feb 4, 2015 at 4:04 AM
    #128
    Kolunatic

    Kolunatic Broke ass

    Joined:
    Apr 29, 2012
    Member:
    #77862
    Messages:
    46,677
    Gender:
    Male
    First Name:
    Kevin
    Texas
    Vehicle:
    07 DC peerunner
    Nice write up.

  9. Feb 4, 2015 at 9:05 AM
    #129
    logcabinwc

    logcabinwc Well-Known Member

    Joined:
    Jan 28, 2012
    Member:
    #71584
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Micah
    SF East Bay
    Vehicle:
    08 4d 4x4 White V6 TRD
    Old Man Emu 885s with Nitrocharged 90000, Bilstein 5100 in the back with AllPro 3 spring progressive AAL, 16 inch Baja Black 6-spoke alloy wheels, Flow Master exhaust, bed lights, Pioneer HD radio, Uniden CB Radio, K&N Air filter, BAMF Sliders w/kickout, Relentless Aluminum IFS Skid, 24 LED light bar, custom/homebuilt expedition style bed rack and basket combo, and Body Armor rear plate bumper.
    Yes, you would want to hook that device up to a relay, and run the trigger wire into the trucks fuse box and find a fuse/port that is only one when the truck is on. Easiest would probably to run a fuse tap which you can get almost anywhere. Wire that to the 86 pin on the fuse. This will then allow for the accessory to only power up when the truck is on. If you want to also be able to manually control the accessory as well, install a switch along that same wire (from the fuse block -> switch -> relay).

    timinNC likes this.
  10. Feb 4, 2015 at 9:39 AM
    #130
    Poofyfoot

    Poofyfoot Well-Known Member

    Joined:
    Oct 23, 2013
    Member:
    #115097
    Messages:
    94
    Gender:
    Male
    First Name:
    Jordan
    Logan, Ohio
    Vehicle:
    89' Pickup and 2013 AC Sport
  11. Feb 5, 2015 at 7:47 AM
    #131
    AfroWookie

    AfroWookie Active Member

    Joined:
    Feb 4, 2014
    Member:
    #122273
    Messages:
    34
    Gender:
    Male
    First Name:
    Ryan
    Portsmouth, VA
    Vehicle:
    09 Speedway Blue DC Sport
    Thanks for the response! I understood about 95% of it haha. I figure when the time comes to me getting my hands dirty, it'll be easy to figure out. thanks again

  12. Feb 5, 2015 at 11:27 AM
    #132
    bbersanti

    bbersanti Well-Known Member

    Joined:
    Nov 4, 2013
    Member:
    #115883
    Messages:
    190
    Gender:
    Male
    First Name:
    Ben
    Redondo Beach
    Vehicle:
    2011 Access TRD Offroad 4.0 V6, 6-spd
    Weathertech's, All-Pro APEX Front Bumper, Maglite seat mount, Fog Light Anytime, Aux Blue Sea Fuse Box, Toyota Bed Mat, color-match grille, 21" LED bumper Light bar, Redline Hood Struts, Full OME 3" Lift
    Sub'd for reference later

    Awesome write up. I'm going to do something very similar and love how clean the whole set up looks.

  13. Mar 11, 2015 at 7:49 PM
    #133
    Li0nel1234

    Li0nel1234 Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118634
    Messages:
    441
    Gender:
    Male
    First Name:
    Lionel
    Denver
    Vehicle:
    14 TRD OR DCSB SSM
    So blue sea also sells a 12 circuit... is there an issue with installing that? I'm just thinking that I might as well go for 12 vs 6 instead of having to upgrade later down the road...

    Thanks for the write up and ideas.

  14. Mar 11, 2015 at 8:16 PM
    #134
    TRSJimmy

    TRSJimmy All I Do Is Nguyen

    Joined:
    Jul 10, 2012
    Member:
    #82308
    Messages:
    3,089
    Gender:
    Male
    First Name:
    Jimmy
    Gainesville, GA
    Vehicle:
    12' Mall Crawlin Peerunner
    Nothing wrong with it! I just finished mine today

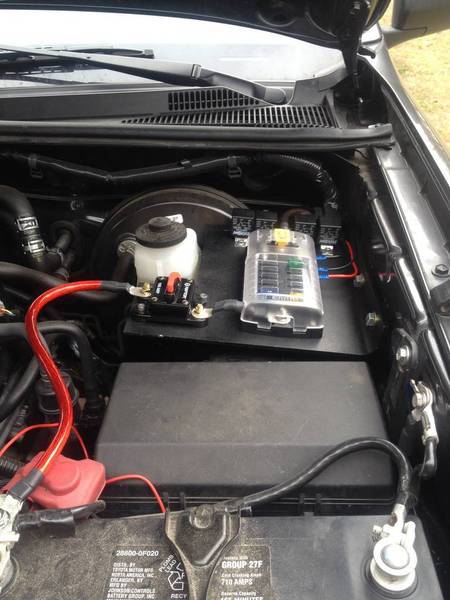

    [​IMG]

  15. Mar 11, 2015 at 8:30 PM
    #135
    mbmack1

    mbmack1 That F'n guy

    Joined:
    Apr 5, 2012
    Member:
    #76361
    Messages:
    2,986
    Gender:
    Male
    First Name:
    matt
    az
    Vehicle:
    SAVAGE silver '06
  16. Mar 15, 2015 at 10:40 AM
    #136
    Li0nel1234

    Li0nel1234 Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118634
    Messages:
    441
    Gender:
    Male
    First Name:
    Lionel
    Denver
    Vehicle:
    14 TRD OR DCSB SSM
    Sweet, thanks and thanks to OP. I'm ordering the blue sea box today! I'll post pics of my crappy install once complete!

  17. Mar 15, 2015 at 10:41 AM
    #137
    mauigrown

    mauigrown Well-Known Member

    Joined:
    Sep 21, 2014
    Member:
    #138773
    Messages:
    319
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2011 4x4 DCSB TRD sport
  18. Mar 29, 2015 at 6:15 AM
    #138
    mlbdriver

    mlbdriver Well-Known Member

    Joined:
    Jan 3, 2009
    Member:
    #12170
    Messages:
    390
    Gender:
    Male
    First Name:
    Ben
    Santa Rosa
    Vehicle:
    2020 TRD Off-Road
    Go Fast Camper ARB Dual Air-Compressor Pro-Comp 7089 17x8 BFG AT KO2 265x70x17
    Can you run the arb air compressors off the fuse block or should it be wired directly to battery?

  19. Mar 30, 2015 at 2:09 AM
    #139
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    It depends on the model. The smallest one (CKSA12) pulls 5.5 amps. So yes, you can run it through the fuse block. The largest 12V model (CKMPT12) pulls 28.4 amps. Also a yes, mostly. While you can get a 30a fuse, I would use a 30a inline fuse and run it through a relay, running the switch for the relay through a 1A fuse in the fuse block. This may sound like a lot of extra wiring, but it really would be the safest way for both your rig and the compressor's safety. While you can probably run even a 30a fuse through a block, you have to keep in mind the total pull on the block as well.

  20. Apr 29, 2015 at 9:34 AM
    #140
    conifers4

    conifers4 Tired and Broke

    Joined:
    Dec 12, 2014
    Member:
    #144143
    Messages:
    834
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    2010 DCLB 4X4
    sub'd...perfect
