How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. May 6, 2015 at 3:27 PM
    #141
    DPC08

    DPC08 Well-Known Member

    Joined:
    Nov 27, 2013
    Member:
    #117465
    Messages:
    212
    Gender:
    Male
    FL
    Vehicle:
    09 DCSB
    Getting there...
    About to install this as I'm paranoid that I'll burn my truck down with too much stuff running off of the battery. For you electrical gurus, I already have some stuff running to the battery with small inline fuses (don't know the amps off the top of my head, but nothing crazy). When connecting them to the fuse block, should I get rid of the inline fuse before connecting it to the block, or should I leave it and connect as usual to the block? If I can/should just leave it, any special considerations when selecting a fuse to use on the block? Thanks in advance.

  2. May 6, 2015 at 3:40 PM
    #142
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,508
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    The whole point of the fuse block is that it holds your fuses in one central location instead of using inline ones. You should get rid of the inline fuses are re-wire your accessories to the block and then uses the same size fuses that are already in the inline holders.

  3. May 7, 2015 at 7:35 AM
    #143
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    I have everything needed to install, now I'm trying to figure out the wiring. All of my accessories will be ran via relay and I'm using OTTRAW rocker switches, can I daisy chain power and ground off the switches? Also, is the fog light wire a good source to tap for the dash illumination? can I daisy chain all of my switches to one dash light source?

  4. May 7, 2015 at 7:55 AM
    #144
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,749
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    http://www.otrattw.com/J66a.pdf
    8, 7, 2, and 6 can all be daisy chained across multiple switches. The input wire that will be different per switch is 3 in the diagram. Hope this helps.

  5. May 7, 2015 at 9:57 AM
    #145
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    This helps a lot. I plan on mocking everything up this evening. For pin 6, i've read a good source is the 4th wire on the back of the stock fog light switch, is there an easier wire to tap? I plan on mounting the switches in front of the center armrest as I understand there is a good ground spot under the center dash that i've read from another thread.

  6. May 7, 2015 at 10:46 AM
    #146
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,508
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    If I understand correctly you plan on installing the switches in the center console? I put mine there and tapped into the backlight for the shifter. I used this thread to disassemble the console and access the light:

    https://www.tacomaworld.com/threads/how-to-replace-your-automatic-shifter-indicator-lamp.22332/

    Dd not attach pin 7 to the chassis ground if you want the dimmer to work on your switch, our trucks control the dimmer by changing the resistance of the ground wire. You need to tap into both the positive and negative wires of your light power source. In my case it was the two green wires off the console light (I can't remember off the top of my head which is positive and which is negative, I used a multi meter to find out) If you jump pin 7 with the chassis ground the switch will always be at full brightness regardless of what your dimmer is set at.

    ...if I misunderstood and you're putting the switches somewhere else then you can ignore most of my post

  7. May 7, 2015 at 10:47 AM
    #147
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,508
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4

    Here is the switch location I was referring to

  8. May 7, 2015 at 10:58 AM
    #148
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    Stole this picture from another thread. Its a ground source located under the center console. I think some owners use this source for their heated seat install.

    [​IMG]

  9. May 7, 2015 at 12:27 PM
    #149
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,508
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    That will work great for a chassis ground but if you ground pin 7 to it your dimmer won't work (I had mine there initially)

  10. May 7, 2015 at 1:07 PM
    #150
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,749
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
  11. May 7, 2015 at 6:00 PM
    #151
    DPC08

    DPC08 Well-Known Member

    Joined:
    Nov 27, 2013
    Member:
    #117465
    Messages:
    212
    Gender:
    Male
    FL
    Vehicle:
    09 DCSB
    Getting there...
    Got it thanks!

  12. May 9, 2015 at 1:51 PM
    #152
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

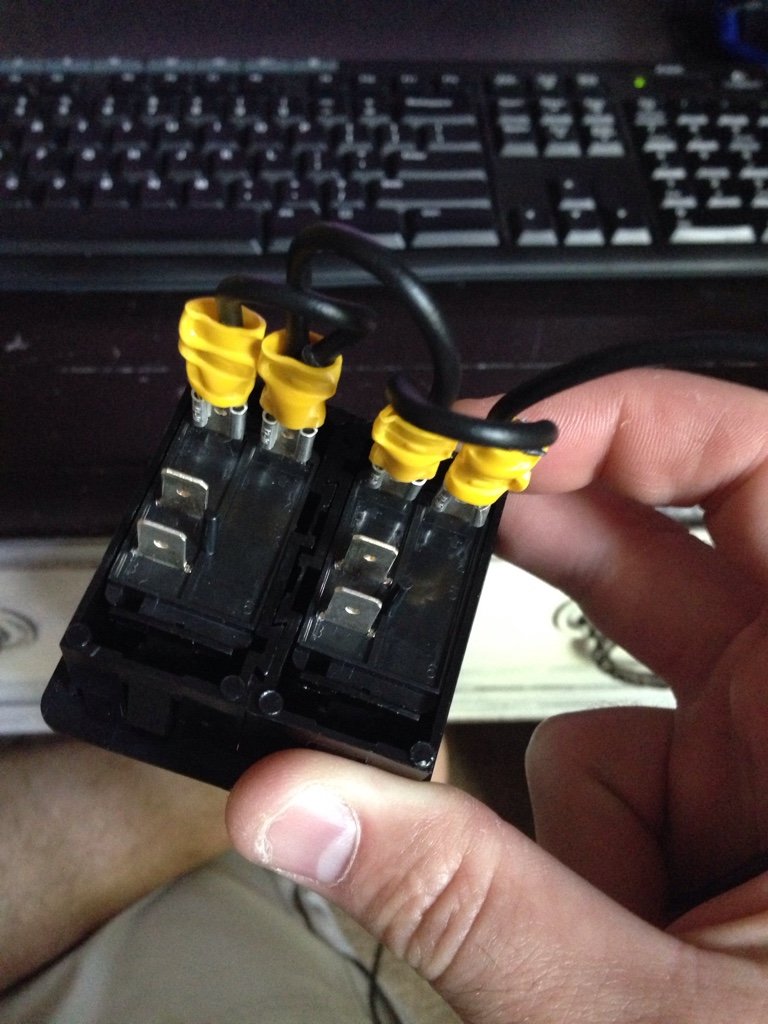

    So I'm prepped some of the wiring but noticed that my switch only has 4 pins in the back. All the wiring diagrams I see show 5? I checked all of the diagrams on ottraw site and don't see the specific diagram I need for the style of switch I received. Pic below.


  13. May 9, 2015 at 4:40 PM
    #153
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,461
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    What's your switch designation? It should be on the side. Ex: V1d1-ajxx

  14. May 10, 2015 at 8:07 AM
    #154
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
  15. May 10, 2015 at 8:32 AM
    #155
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,461
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  16. May 10, 2015 at 8:42 AM
    #156
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    Sandman614 likes this.
  17. May 10, 2015 at 9:58 AM
    #157
    RogueTRD

    RogueTRD Learn to swim...

    Joined:
    Aug 11, 2011
    Member:
    #61546
    Messages:
    2,780
    Gender:
    Male
    First Name:
    Cade
    So. Oregon
    Vehicle:
    Supercharged '14 Pyrite Mica DCSB 4x4 TRD OR
    Stacked spacer lift, 22x12 wheels with stretched 33's, tow mirrors, bull nuts.
    I like it, subbed for future use.

  18. May 11, 2015 at 6:49 AM
    #158
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,508
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    I've been mocking up the mounting plate for my setup and I wondering is body flex much (or any) of a concern at that location? I have a TRD off road so real estate is much tighter around all the fun ABS stuff in there. I just want to be sure to give everything enough space. Judging by the pics you sport and base guys have a lot more room to work with in there.

  19. May 11, 2015 at 7:45 AM
    #159
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

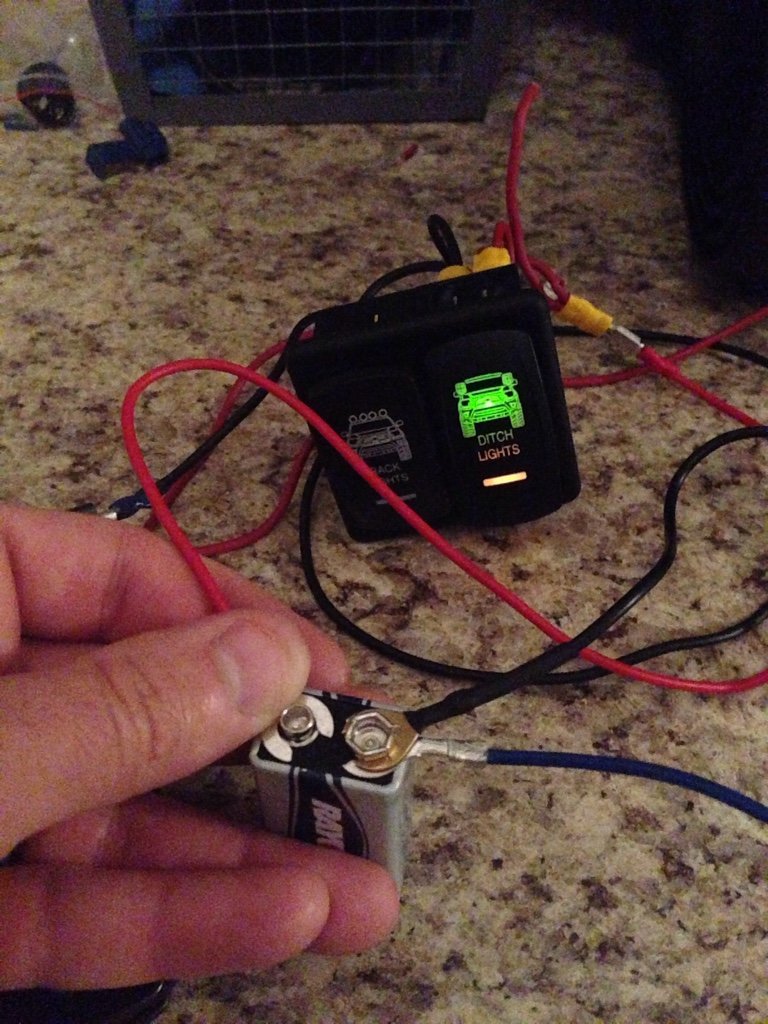

    I tested my switch/relay with a 9v battery before throwing it into the truck and on the fuse block, so i am starting to familiarize myself with the install. Question - If the fuse block carries power from the battery, and it is hot all the time, how do i make my accessories so that they are not hot all the time? Is that the job of the relay? Also, I guess for the led on the rocker switch to not be on all the time, it must be tapped into an illumination circuit (fog light harness as mentioned earlier)?


    PPansini10 likes this.
  20. May 11, 2015 at 8:46 AM
    #160
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,508
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    You'll need to wire in a relay to have the lights go off with ignition. What you'll want to do is use an "add a fuse" (available at any auto parts store) to tap into an accessory circuit to get your switched power and then wire your switch in line with that (the valet switch in the diagram). This will make it so that the relay always switches off when you turn the truck off.

    Basically a relay is a electronically triggered switch that can handle more power. When power is applied to pin 86 it closes and completes the circuit between Pin 30 and 87 turning your light on. When power taken off pin 86 relay opens and lights turn off.

    [​IMG]

    Link to add a fuse:
    http://www.amazon.com/Bussmann-BP-HHH-ATM-Add-A-Fuse/dp/B000GKEXK2

    EDIT: Here's a link to the wiring diagram image too. For some reason the embedded image shows up on my phone but not on my computer so I dunno what everyone else is seeing:
    http://www.mp3car.com/imagehosting/12527647e9129233622.bmp
