Hutchinson Rock Monster DOT legal REAL beadlock wheels and 37" tires

Discussion in 'Wheels & Tires' started by bullaculla, May 12, 2017.

  1. May 12, 2017 at 12:44 AM
    #1
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,159
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Although there are a couple of members running Hutchinson Rock Monsters, there is not a lot of info on these, so I thought I would make a thread here on TW. Most of this is just copy and pasted from my build thread.
    For those of you that don't know, Hutchinson makes heavy duty, bombproof beadlock wheels for many military vehicles.
    http://www.hutchinsoninc.com/CMS/index.php?page=military-tactical-wheels

    They also make beadlock wheels for different vehicle applications, including Toyota trucks.
    http://www.rockmonsterwheels.com/products.php?product=toyotatrucks
    Hutchinson P/N WA-0567
    Size 17 x 8.5"
    Bolt pattern 6H - 139.7 mm BCD
    Lug style M12 shank nut (hub piloted)
    Hub bore diameter 4.18" (106.2 mm)
    SAE rated load 2,750 lbs. - 60 psi
    Backspacing 4.51" (114.3 mm)
    Construction Cast aluminum alloy

    If you want to know what they cost:
    http://www.4wheelparts.com/Wheels/H...c=11&t_s=535&t_pt=101508&t_pn=HUT60670-023-01

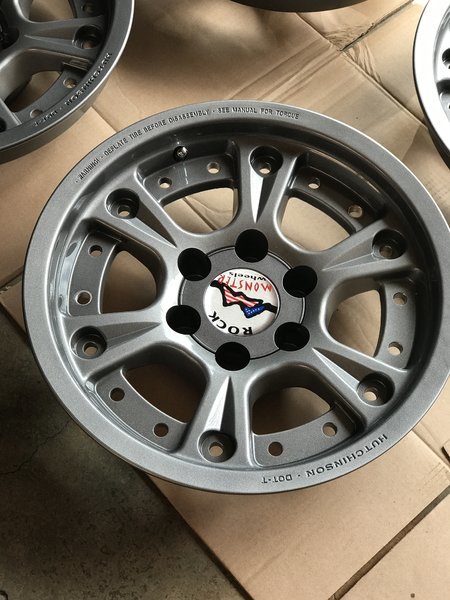

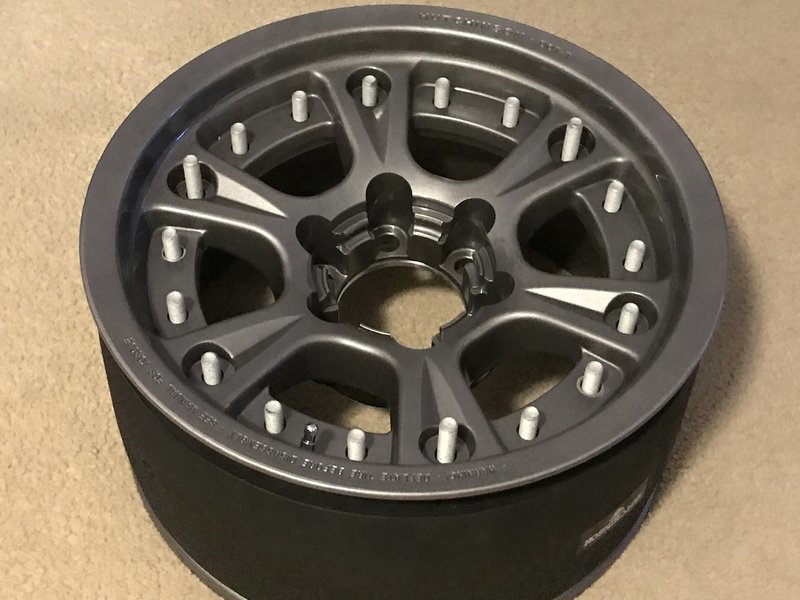

    So these are a 2 piece internal beadlock wheel that clamps on to both inner and outer bead without the use of external rings. It uses a large rubber donut that goes inside the tire and keeps both beads tight against the wheels lips. I think there are only a couple of street legal beadlocks on the market. I got them in the Argent color.
    [​IMG]
    There are some great videos on putting these together, so I'm not gonna go into too much detail on that, just some tips. I'm still in the middle of SASing my Tacoma, but these came in, and I thought I'd put them together so its not taking up so much space, and also so that I can keep an eye on them to make sure they are not leaking. Tires are Goodyear MT-R 37x12.5x17 load D :cool:
    [​IMG]

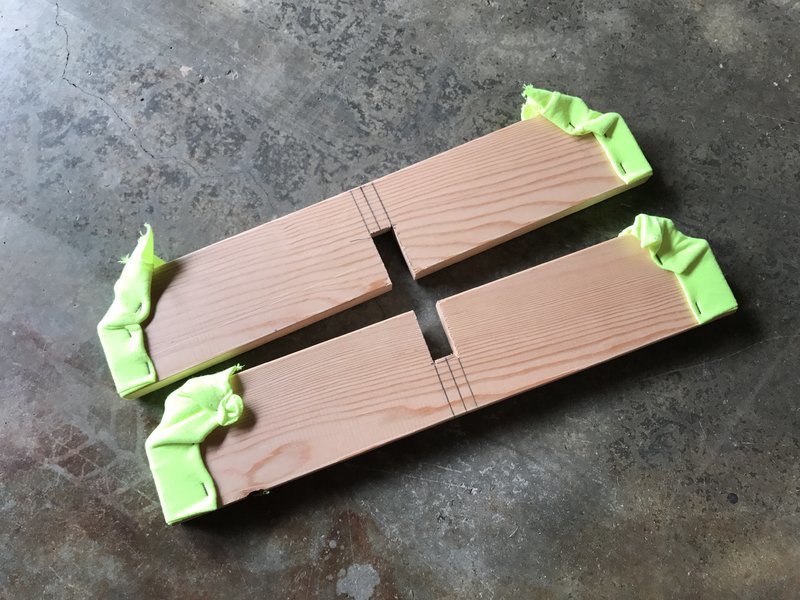

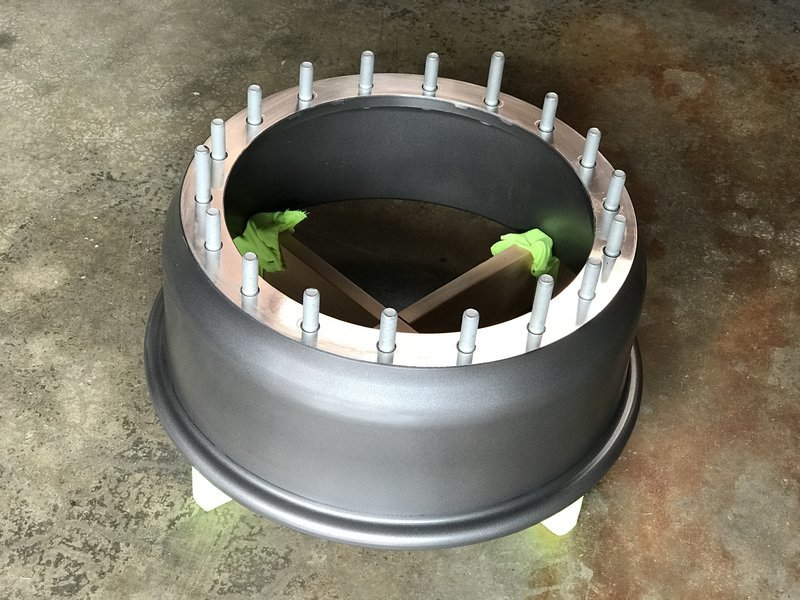

    I made this stand so when I step on the wheel, my weight is pushing the wheel against the ground and not just compressing the tire. With the tires spaced off the ground, my weight will just be putting direct pressure on the two sides of the wheel forcing it into the tire and getting the bead closer to being seated.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

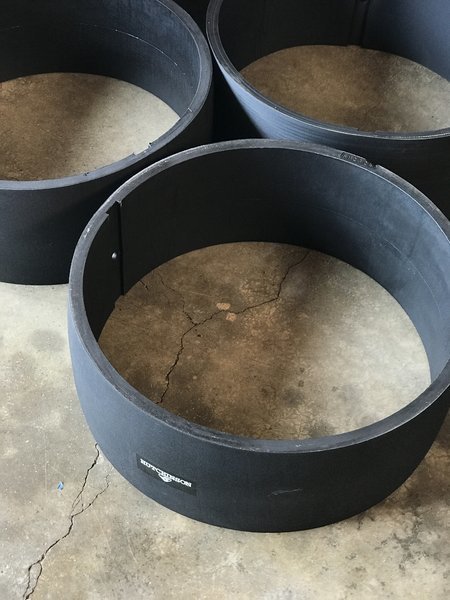

    First thing to do is get the donut into the tire, and pretty centered.
    [​IMG]

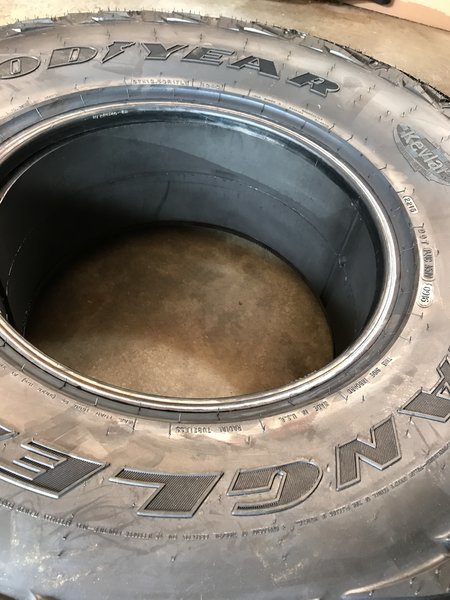

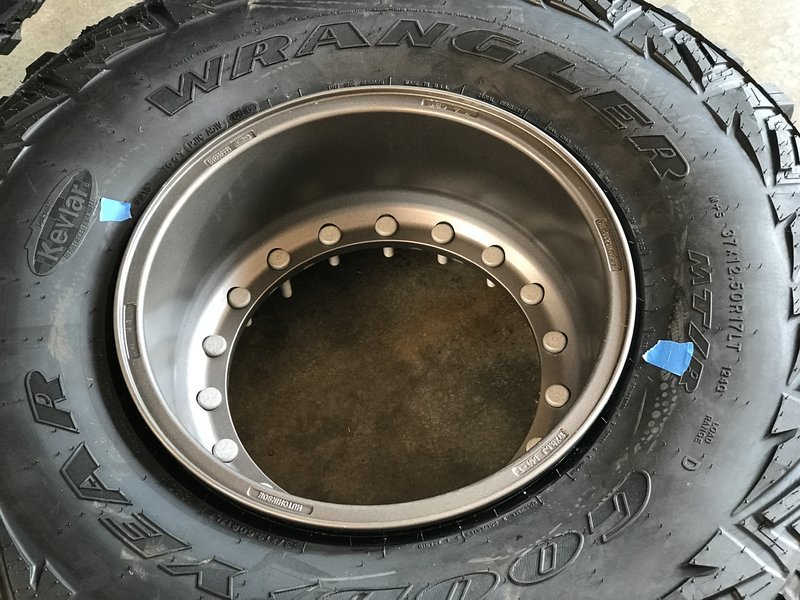

    Then shove the inner part of the wheel in, trying to get it in there as far as possible. Blue tape is to line up the groove in the doughnut with the studs so I get the valve stem in the right place. Also, if you want your TPMS to work with these, they mount onto the rubber donut using the hole in that groove. Pay attention to the tire direction and orientation. MTRs are non directional, but do have an inboard and outboard.
    I did carefully lube the bead with a little soapy water before inserting the wheel sides. I don't think getting liquid in the tire is a good idea with balance beads.
    [​IMG]
    Lubing up the O-ring with Vaseline. this will help it say in place when you turn it over.
    [​IMG]

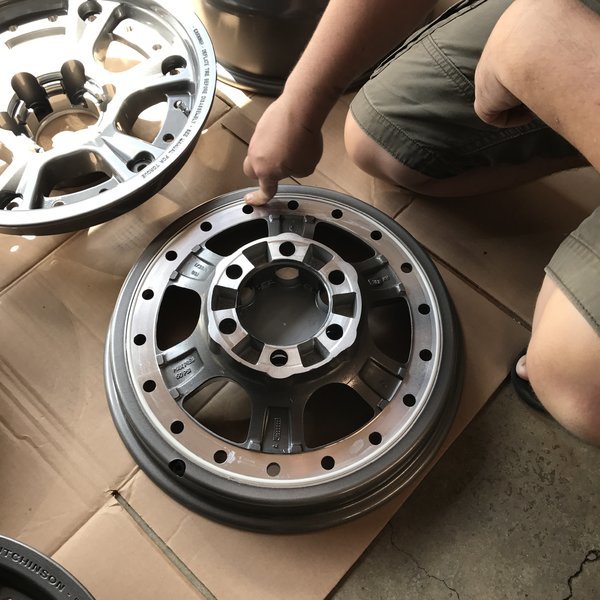

    Back of the wheel is on my stand. Gotta stomp on the face to get the 3 long starter studs to protrude enough to get some of those weird locknuts on. If you gonna run dynabeads, get them in before putting on the outer wheel. Hutchinson does not recommend it tho...
    [​IMG]
    Once you close up the gap a little, check to make sure the O-ring is still seated in place.
    [​IMG]

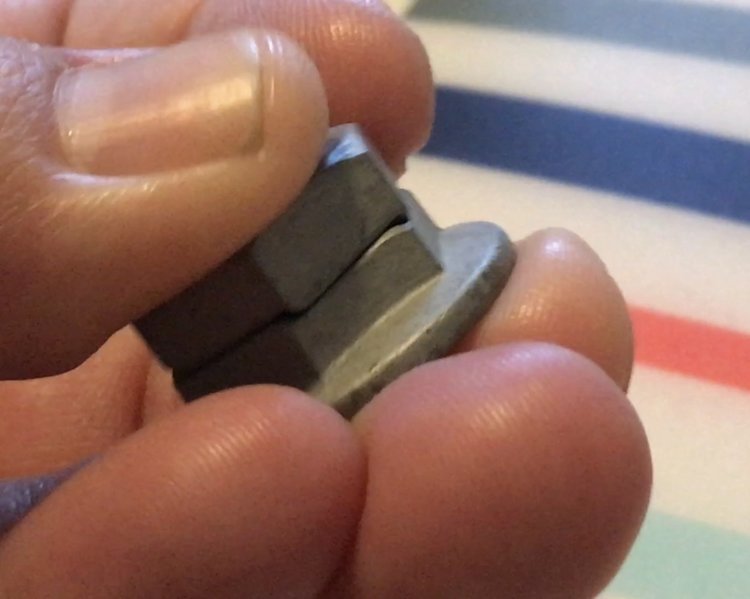

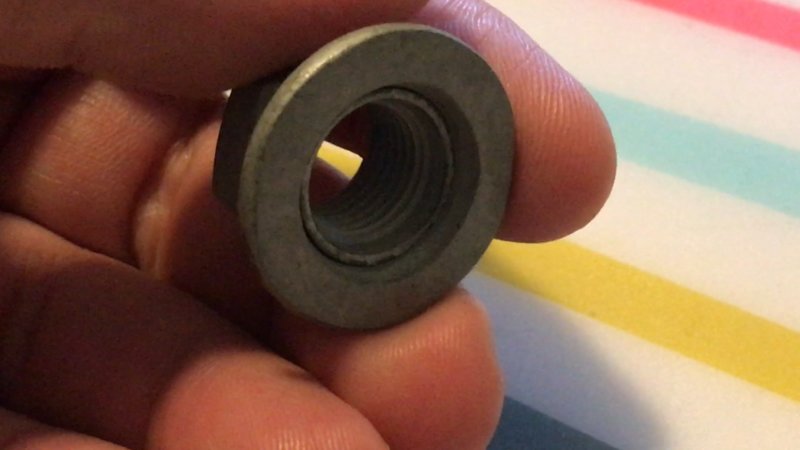

    Here is the locknut. Weird 2 piece thing. I've been a machinist for awhile and have never seen this before.
    [​IMG]
    Threads go all the way down tho.
    [​IMG]

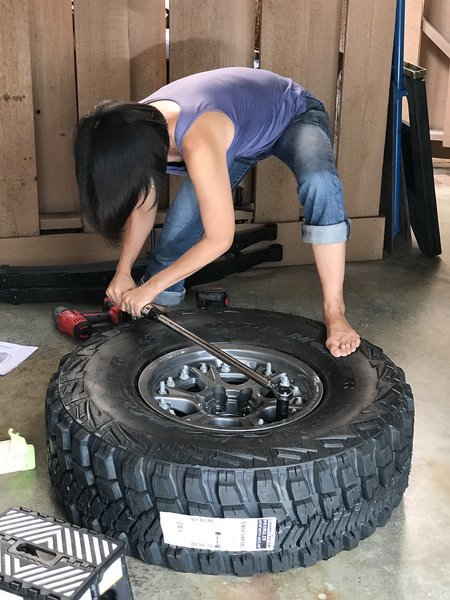

    Put them all on and torque to 100ft lbs in a star pattern. Wife tried, but couldn't get the torque wrench to click 100lbs :D
    [​IMG]

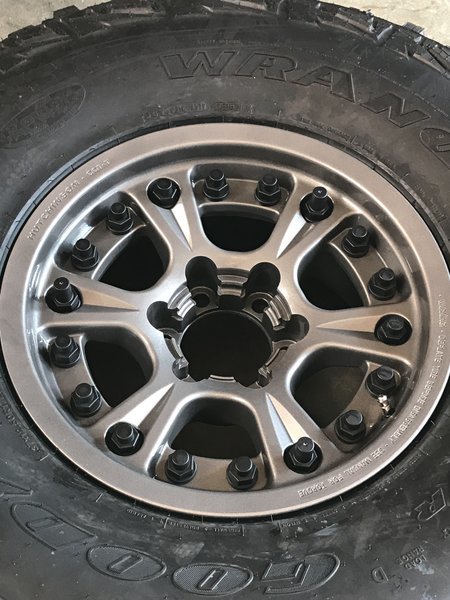

    Then put these plastic caps over the nuts and studs to make your real beadlocks look like fake beadlocks :rofl:
    [​IMG]

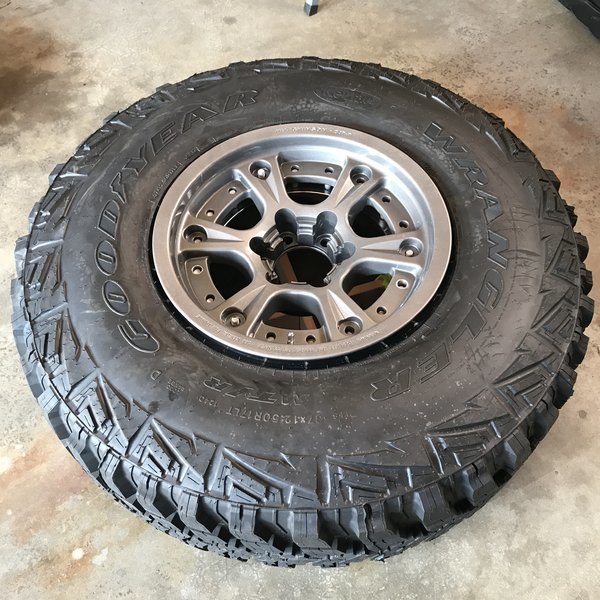

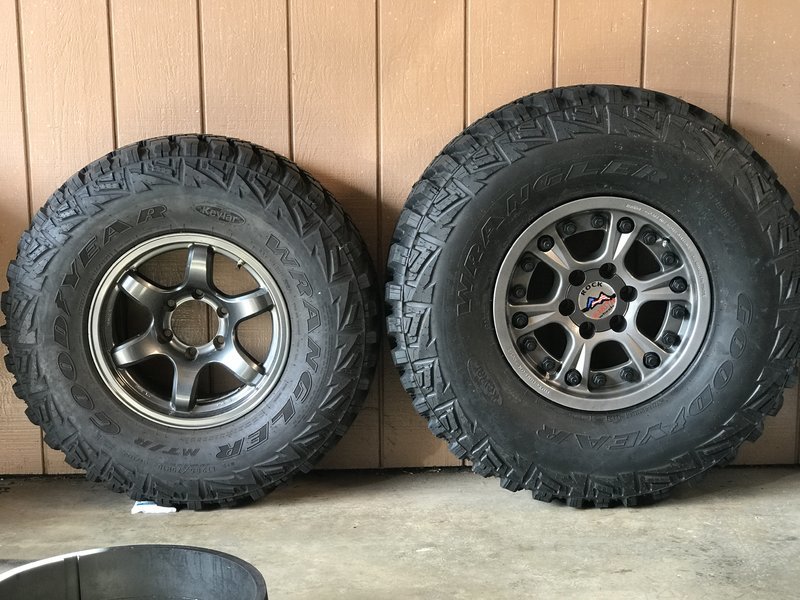

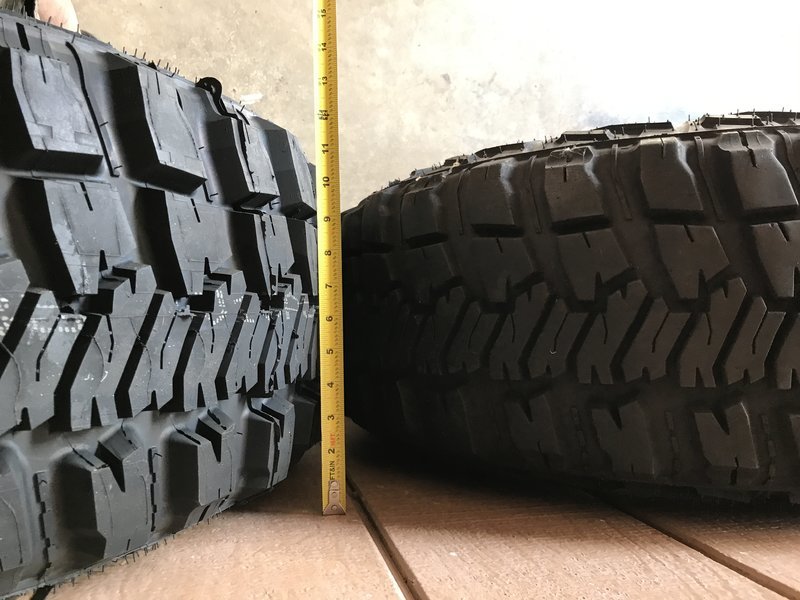

    In case you were wondering, 37s are a little bigger than 285s ;)
    [​IMG]
    Not much wider tho thankfully!
    [​IMG]
    Daughter was making rain noise with the dynabeads :)
    [​IMG]

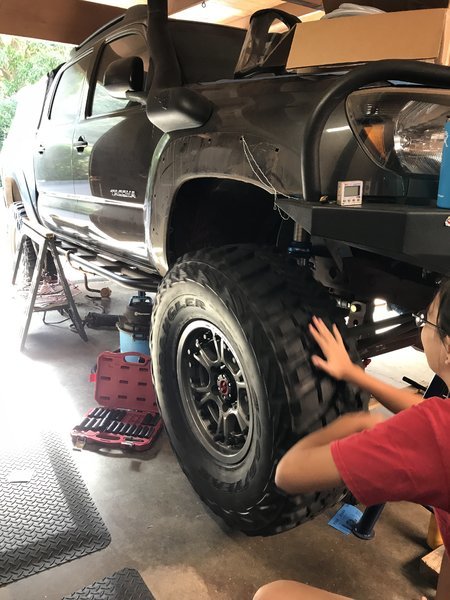

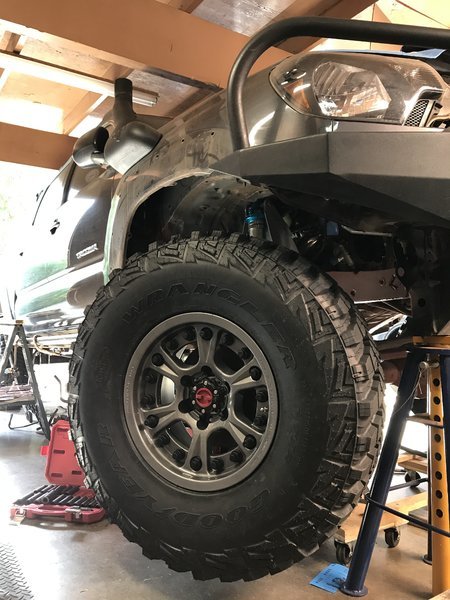

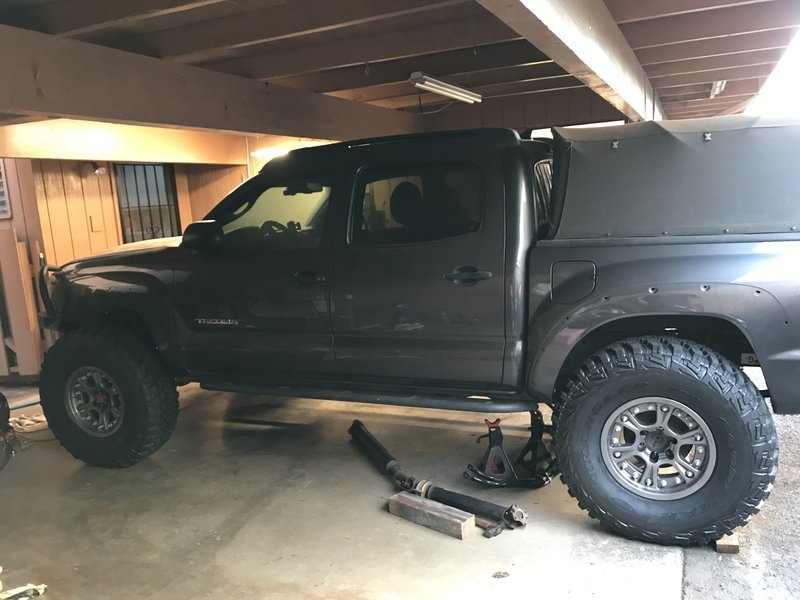

    Looks right at home on there :D
    [​IMG]

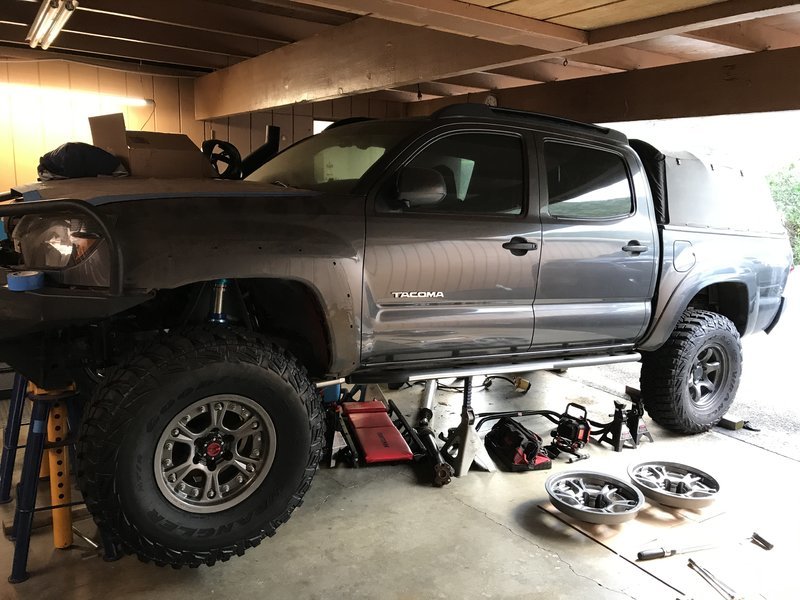

    Only managed two today. We'll do the other two tomorrow and if I get better pics of anything, I'll add it to this post.
    [​IMG]

    So people keep asking what these things weigh. And I got all kinds of numbers searching.
    I weighed all the individual parts.
    The face plate. Unsurprisingly since it has the spokes and hub, it weighs the most at 22lbs and 3oz.
    [​IMG]
    The inner wheel, 17lbs 3oz.
    [​IMG]
    Rubber donut, 13lbs 8oz.
    [​IMG]
    Hardware, 1lb 5oz.
    Total, 54lbs and 3oz :eek:
    [​IMG]
    Plus 10oz or so of dynabeads.
    and then wrap it with a 75lb tire!
    :benchpress:
    Anyway, I hope this thread helps someone thinking about Hutchinsons, or introduces someone to them that has never heard of these awesome wheels.
    :cheers:

    Last edited: Jul 24, 2017
  2. May 12, 2017 at 1:09 AM
    #2
    Matic

    Matic The "OFG" Baby!!!

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    24,539
    Gender:
    Male
    First Name:
    Tricky Dick
    Easley, SC
    Vehicle:
    1 owner 2002 TRD, SR5, DC, 2.7. Full OME suspension, STT pro's.
    OME 881 coils with OME nitrochargers shocks up front. TC UCA's OME Dakars with extra leaf in the rear. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Fantastic write up. Looks like a great product.

  3. May 12, 2017 at 7:49 AM
    #3
    hamiltonuh60

    hamiltonuh60 Well-Known Member

    Joined:
    Oct 21, 2015
    Member:
    #167348
    Messages:
    325
    Gender:
    Male
    Texas
    Vehicle:
    2016 DCSB TRD OR 4WD
    Frontrunner, CVT RTT, Foxwing, Switch Pros, OGE, Fox, ADS, TC UCA, Dakar, Superbumps, U bolt flip, blah blah blah
    Let me know when you upgrade again and i'll take these as hand-me-downs!

  4. May 12, 2017 at 7:55 AM
    #4
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,091
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    Those are nice!

    *people are going to start asking you about your locking hubs on a second gen*

    eccracer104 and bullaculla [OP] like this.
  5. May 15, 2017 at 8:34 PM
    #5
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,159
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

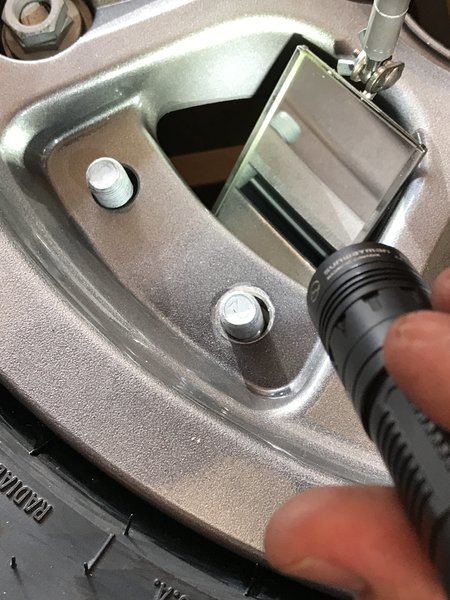

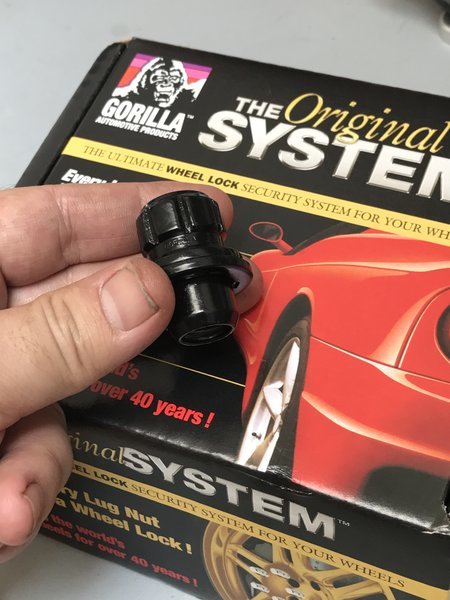

    I forgot to mention that these wheels are hubcentric, so they don't need any rings, and they use the factory style/mag lug nuts. I gave my stock lugs away, so I bought a set of Gorilla "the system" lug nuts. Every nut is a wheel lock.
