Installed a Trans Cooler

Discussion in 'Performance and Tuning' started by shr133, Jul 13, 2014.

  1. Jul 13, 2014 at 9:12 PM
    #1
    shr133

    shr133 [OP] Well-Known Member

    Joined:
    Jul 8, 2013
    Member:
    #107900
    Messages:
    2,172
    Gender:
    Male
    First Name:
    Steve
    Muskego, WI
    Vehicle:
    2010 V6 Sport
    K & N filter, 275 70 17 Cooper AT3, OME Nitrocharger shocks, 884 Springs, Dakar leafs.
    After my motor mods and my suspension upgrade I was over heating my trans on the dunes so I read some threads and decided to put on a trans cooler and flush my fluid...

    Here is a great write up on how to add a trans cooler. zero4
    http://www.tacomaworld.com/forum/1st-gen-tacomas/108470-hayden-transmission-oil-cooler-install.html

    How to change trans fluid. Fortech
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/63851-how-drain-refill-automatic-transmission.html

    http://www.youtube.com/watch?v=Sdq30go2V7w

    How to Flush the trans fluid. mountain lion
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/68462-diy-full-flush-automatic-transmission.html

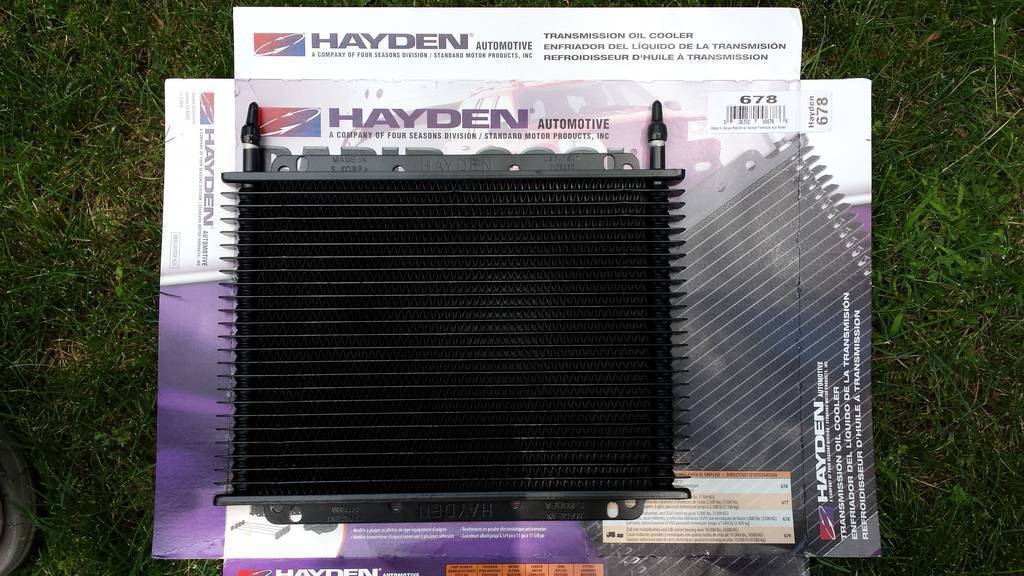

    I used a hayden 678 I don't know if the 679 will fit.

    [​IMG]

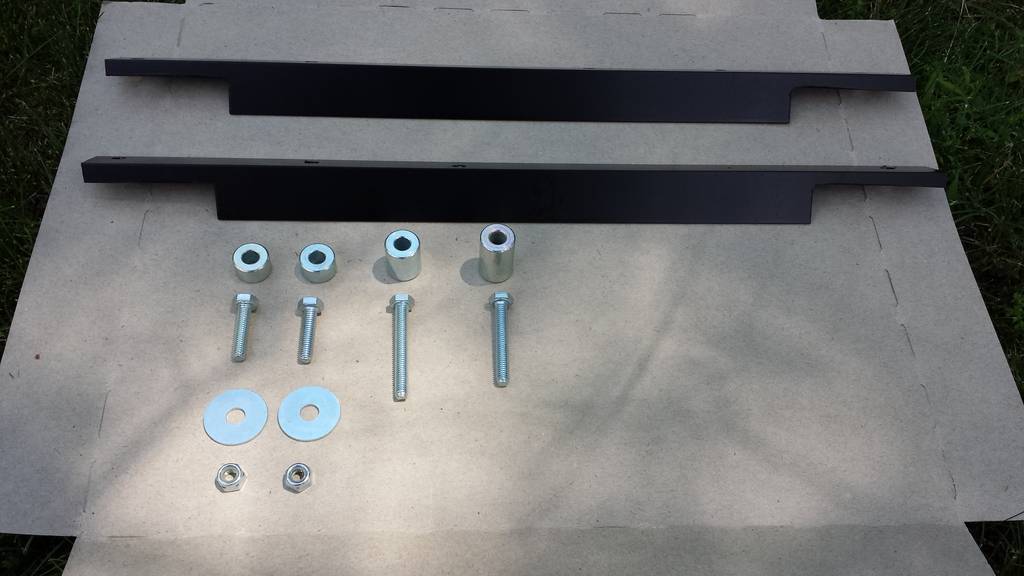

    You need
    3/4" or 1" aluminum angle iron, I used 1" to allow for off center drilling.
    1 1" spacer
    1 3/4" spacer
    2 3/8" spacer
    4 3/4" bolts
    2 1 1/4" bolts
    2 replacement bolts 1 3/4" longer 1 1" longer
    6 lock nuts
    2 fender washers
    8 washers
    3 hours

    [​IMG]

    I was trying not to drill holes and I only had to drill 1 hole.

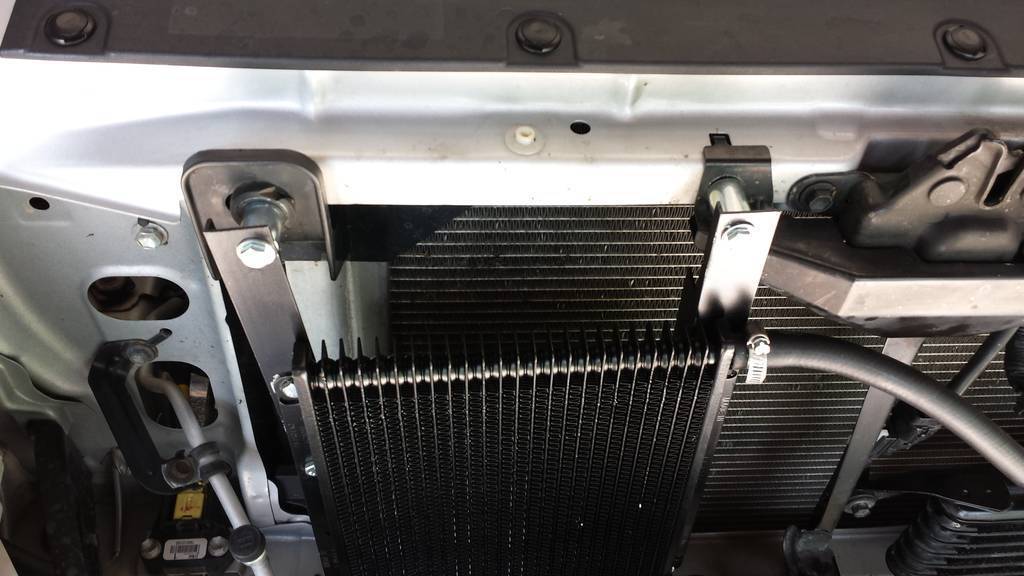

    I mounted off of the AC mount and hood latch protector bracket holes for the top mounts.

    [​IMG]

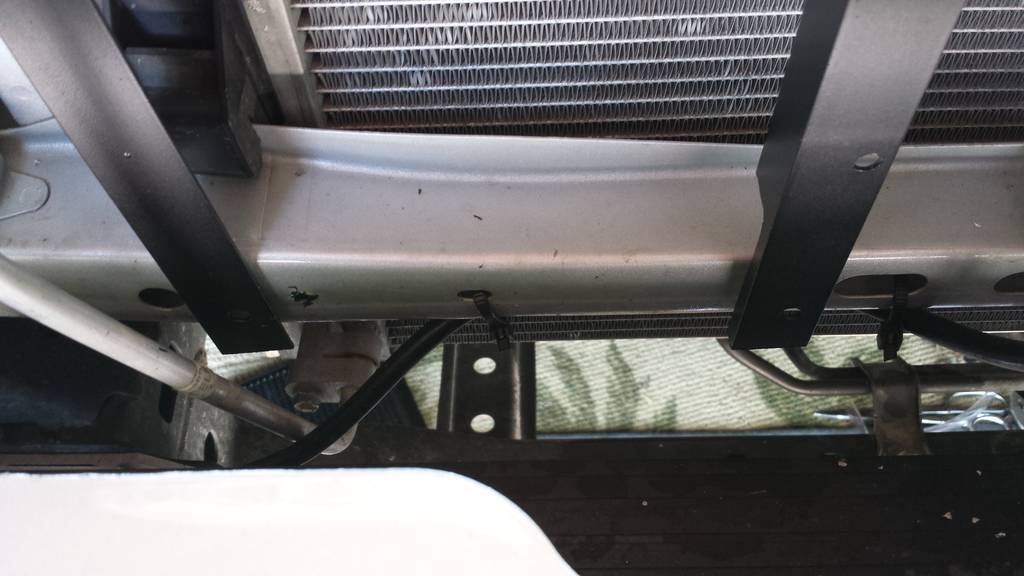

    I tried to go straight down but it is very very hard to get behind the lower mount so I had to go at a slight angle so I could tighten the bolts on the back side.. I had to run the bolts from the back side, it was too hard to get the nuts on the back and you will have to loosen the AC radiator to get your hand in...

    [​IMG]

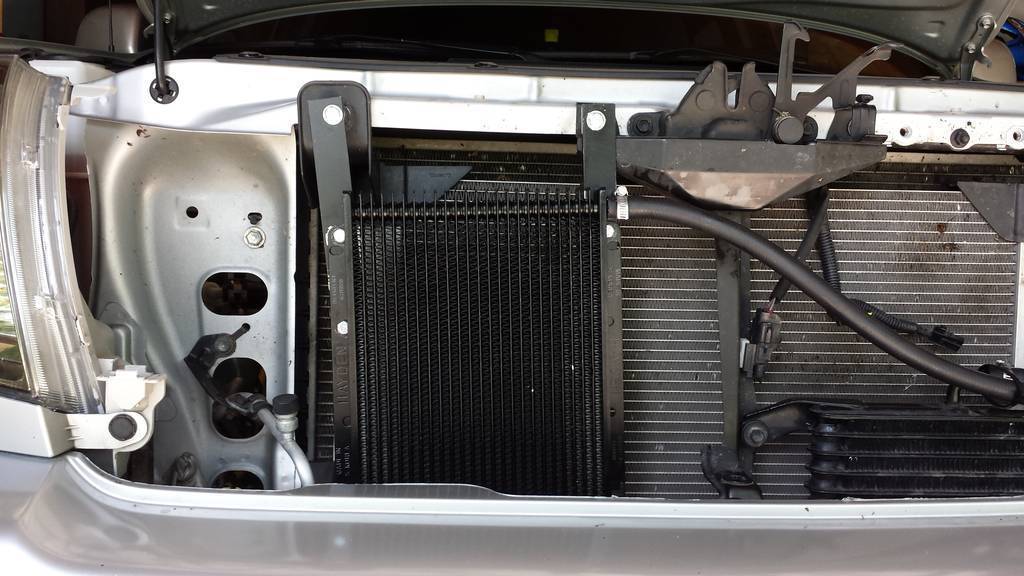

    It turned out good, very solid and almost straight, and only had to drill 1 hole.

    [​IMG]

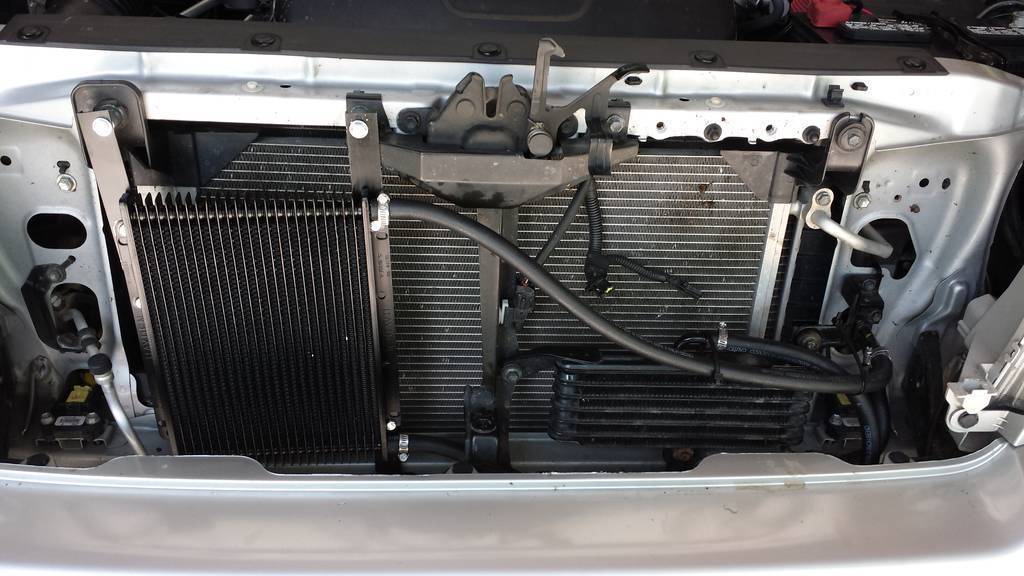

    I'm running both coolers for the summer, I ran the input to the hayden cooler first and then through the Toyota cooler and I by passed the heat exchanger for now.

    [​IMG]
