Installing 2012 Entune Nav into pre-2012 Tacoma

Discussion in 'Audio & Video' started by dibble9012, Sep 28, 2012.

  1. Jun 27, 2013 at 2:13 PM
    #21
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    Also any more info on how to wire the R15 harness...did you use all the pins?

    I need one of those harnesses to make the bluetooth mic function. (still looking for a bluetooth mic)

  2. Jun 28, 2013 at 3:01 PM
    #22
    DNA

    DNA Member

    Joined:
    Jun 27, 2013
    Member:
    #107157
    Messages:
    6
    Gender:
    Male
    So is the wiring different on 2013's with non jbl ? I may interested in this in the future.

  3. Jun 29, 2013 at 6:56 PM
    #23
    benright

    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    What year is your truck and what system did it originally have? I wired up R15 according to the write up from the first post on this thread.

  4. Jun 30, 2013 at 3:36 AM
    #24
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    I have a 2012 and it was an sr5 model. So it didnt have anything in it . I need a mic and a r15. I know how to wire up a stereo and I retrofitted hids before but I can't read that diagram to understand which wire to run ....... Can u explain the wiring- dumbed down version....

    And where did u find your r15 harness

  5. Jul 7, 2013 at 6:40 PM
    #25
    benright

    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.

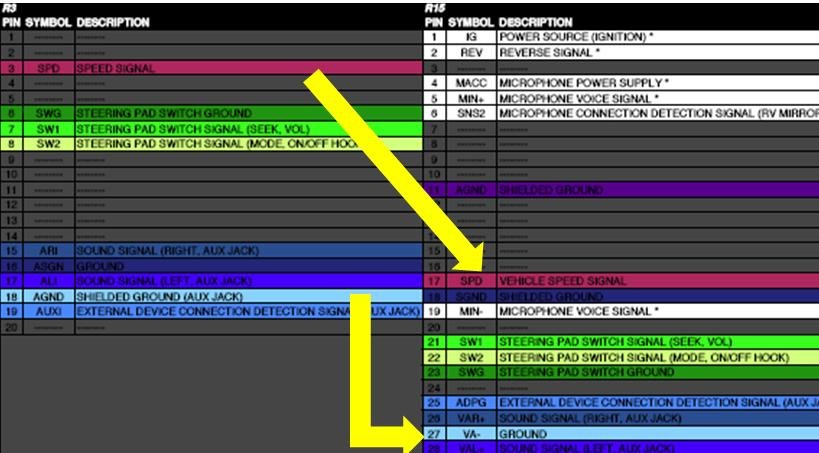

    The diagram is color coded. Just take the wire from the listed pin location and run it to the listed pin location on the new harness.
    In the example below, the wire in harness R3, pin location #3 needs to be moved to harness R15, pin location #17. R3, pin #18 goes to R15, pin #27.
    If a box is white in the diagram, that wire either doesn't exist in your truck or the new system.
    I got my R15 wiring harness from here: http://www.toyotapartszone.com/oem/90980-12555.html
    I can't help you with mic situation. If you're really set on getting it I'd try to get an OEM mic...aftermarket might not wire up the same. Hope this helps.


    Last edited: Jul 7, 2013
  6. Jul 8, 2013 at 12:29 PM
    #26
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    got it- thanks...one more questions tho,

    so for the R15 white boxes in the above diagram...

    Pins 1-2 and 4-6....are those needed to run the bluetooth mic. Is it necessary to run those wires to have everything work with the stereo and BT mic.... im assuming yes. My truck did not come with those wires.

    Pins 1 and 2 seems self explanatory. But the 4,5, and 6 - where did you guys connect those to (is that off the mic plug itself)?

  7. Jul 8, 2013 at 12:32 PM
    #27
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    Sorry, forgot to ask-

    Were you able to remove the R3 wires from the R3 harness with the pins connecters still atttached and just pop them into the R15 harness?

    Or did you have to cut wires and splice to R15 harness

  8. Jul 8, 2013 at 4:11 PM
    #28
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    Hey there
    i am in the process of this mod and i need to find the 90980-12916 CONNECTOR E16
    preferably with wiring and plugs

    anyone have a source or other part place to find this cable?

    UPDATED
    I found this cable which should be easy to splice into
    http://www.ebay.com/itm/Axxess-AX-T...2942?pt=US_Radio_Antennas&hash=item2c6f92f4de
    and not very expensive-

    now onto the rest of the plugs!
    anyone have a good lead on where to get the female terminal pins for these oem connectors?

    Last edited: Jul 8, 2013
    This site contains affiliate links for which the site may be compensated.
    #28
  9. Jul 8, 2013 at 5:54 PM
    #29
    UrPebkac

    UrPebkac Well-Known Member

    Joined:
    Jan 20, 2013
    Member:
    #95649
    Messages:
    820
    Gender:
    Male
    First Name:
    David
    RI
    Vehicle:
    2016 GMC SIERRA
    For the Bluetooth mic I used part # Pt546-74120-mc
    The 8 pin connector I took apart keeping the pins attached and put them in the r15 connector.

    I then used the diagram on this page to move the wires from the 8 pin in the bottom left to r15 / 28 pin connector that is in the top right of that page.

    http://forum.ih8mud.com/showpost.php?p=7538569&postcount=39

    Last edited: Jul 8, 2013
  10. Jul 8, 2013 at 7:45 PM
    #30
    benright

    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    Here is a link for the pins:
    http://www.mouser.com/Search/ProductDetail.aspx?R=1123343-1virtualkey57100000virtualkey571-1123343-1

    This site contains affiliate links for which the site may be compensated.
    #30
  11. Jul 8, 2013 at 10:18 PM
    #31
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    i think there should be a separate write up for 2012 non-jbl to 2012 jbl as i am finding a lot of differences in the connectors- i am also looking for a plug n playsolution. i so far ordered the antenna converter, usb plug, gps antenna, metra kit 70-1761 and 71-8113 and the # Pt546-74120-mc - only 1 more plug to go -a 10 terminal plug (on the back of the 2012) that i need to find as a male plug
    - any leads?

  12. Jul 9, 2013 at 6:33 AM
    #32
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    So for anyone attempting this with a 2012- this harness PT546-00120-CH from a scion should convert the 20 terminal plug and the 8 terminal plug directly to the 28 terminal (R15) and it even appears to be wired exactly the same- but i'll confirm this after i receive it-

  13. Jul 9, 2013 at 11:43 AM
    #33
    BORNWILDGUY

    BORNWILDGUY Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77942
    Messages:
    2,783
    Gender:
    Male
    First Name:
    Rich
    Florida
    Vehicle:
    2020 TACOMA TRD SPORT DCLB LIFTED W KDMAX-PRO XT TUNE
    FULLY LOADED WITH THE TECH PACKAGE, LEATHER, JBL, LED HEADLIGHTS, MOONROOF, EXTANG FULL TILT COVER, NFAB SIDE STEPS, OEM ROOF RACK, TRD PRO TAILS, WHITE RAPTOR LIGHTS, 15% TINT ALL THE WAY AROUND, BILSTEIN 6112'S W 650# SPRINGS AND 1/4 SPACER, ICON LEAF SPRINGS W 5125 REAR SHOCKS, 18 x 9 -12 Weld Racing Ledge 6 wheels w 275/65r18 Toyo AT III tires
    Interesting to see if this works

  14. Jul 9, 2013 at 2:24 PM
    #34
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    yes please update us the results

  15. Jul 9, 2013 at 3:29 PM
    #35
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    I noticed that as well...this looks like this may be the solution to re-wiring the 20 pin harness to get the 28 pin to work.

    Where did you order yours from?

    looks like I will need one of those and a mic kit with above part number and have full functioning bluetooth phone calls.....

  16. Jul 9, 2013 at 3:45 PM
    #36
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    I also found someone posted this on another forum as possible parts that may convert our pre 2013 harnesses:

    Conversion Cable : Antenna - Toyota Part No. PT546-00120-AD
    Conversion Cable : 20pin + 8pin to 28pin - Toyota Part No. PT546-00120-CH 1
    Conversion Cable : USB - Toyota Part No. PT546-00120-US

  17. Jul 10, 2013 at 5:37 PM
    #37
    benright

    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    Instead of splicing into the wire you might just be able combine it with this mod:
    http://www.tacomaworld.com/forum/au...tereo-input-tacoma-aftermarket-head-unit.html

    This site contains affiliate links for which the site may be compensated.
    #37
  18. Jul 11, 2013 at 8:18 AM
    #38
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    thats basically what i was planning to do- thanks for the link! i'll let you know how it works out

  19. Jul 15, 2013 at 6:11 PM
    #39
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    so i ordered the wrong plug! so if anyone here needs a 2009+ s24 plug to connect ot jbl amp, i have one - toyota part # 90980-10803
    still in bag, $5 shipped to your house
    pm me if interested

  20. Jul 15, 2013 at 8:56 PM
    #40
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    192
    Gender:
    Male
    Hawaii
    Vehicle:
    2019 off road dc
    So I ordered the above harness and it works perfect! I didn't have to rewrite anything! I also ordered the mic from the above post and its plug and play into the harness!!! So I now have Bluetooth calling all plug and play!

    So pre 2013 tacomas need the adapted above and the mic from the above post. I Ordered both online at Toyota parts sales and shipped came out to around 85 bucks!!!!
