Installing 2012 Entune Nav into pre-2012 Tacoma

Discussion in 'Audio & Video' started by dibble9012, Sep 28, 2012.

  1. Sep 28, 2012 at 12:32 PM
    #1
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    The purpose of this thread is to document the process of installing a 2012 Entune navigation unit into a pre-2012 Tacoma with or without the JBL system. Here is a link to the write-up. As of now it's just pinouts, part numbers, and notes but will be updated as I make progress on this project. Most of the information I looked up myself on the Toyota tech site, but I also referenced these posts/threads:
    http://www.tacomaworld.com/forum/audio-video/199737-non-jbl-jbl-conversion-harness.html
    http://www.tacomaworld.com/forum/2n...ssues-tips-tricks-updates-lets-hear-them.html
    http://www.tacomaworld.com/forum/audio-video/237764-f-s-2012-factory-navigation-radio.html
    http://www.tacomaworld.com/forum/audio-video/213184-installing-2012-stock-radio-pre-2012-a.html

    A lot of you would say "go aftermarket" and for the most part I would agree. Personally the JBL system is plenty loud and has all the functionality I want, plus it looks OEM. My Tacoma is a 2010 without the JBL system but I will describe the process for the JBL system as well (it's a lot easier than going from non-JBL to JBL).

    This is for reference use only, if you mess up your vehicle it's not my fault. I am however willing to offer advice or help if you PM me. Ok so lets get started...

    First things first: I purchased the Entune navigation unit, JBL subwoofer, and amp. Notice on the back of the headunit there are two boxes. The top box is "Display Audio". The bottom box is the navigation computer. I unplugged the navigation computer just out of curiosity and sure enough the interface changed to the basic display audio features.




    Changing the backlighting color, this could be an entire write-up in itself so I won't go into too much detail. If there is enough interest in a write-up for that I'll do it. I like red because it doesn't ruin your night vision and it's better than the Tacoma amber/orange (or white in the 2012), the knobs might stay white. Still waiting on replacement tiny LEDs to ship but below you can see I already did the clock and hazard switch. The hazard switch was an incandescent bulb that I swapped out with a red LED I had lying around. The clock has three white PLCC2 LEDs that I replaced with red ones. The first two images below show the right and left switch/LED panels of the Entune unit. The third image shows how small the LEDs are compared to a PLCC2 LED.






  2. Oct 11, 2012 at 11:58 AM
    #2
    hudsonstrong

    hudsonstrong Member

    Joined:
    Oct 7, 2012
    Member:
    #88485
    Messages:
    24
    Gender:
    Male
    First Name:
    Jonathan
    Columbus, GA
    Vehicle:
    2013 Tacoma Double Cab 4x4
    The link to the write up is broken.

  3. Oct 12, 2012 at 9:38 AM
    #3
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Works for me?

  4. Oct 12, 2012 at 9:40 AM
    #4
    Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    17,405
    Gender:
    Male
    Az
    Works for me too. Nice work OP! I know a lot of people want to do this.

  5. Oct 12, 2012 at 9:44 AM
    #5
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Thanks! I'll post more info when I get back into the project. In the process of moving.

  6. Oct 12, 2012 at 9:45 AM
    #6
    adio

    adio Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,646
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    sub'd. might be interested in doing this. is it possible at all to do this on an 08? I'm thinking no chance at all since 09+ is different.

  7. Oct 13, 2012 at 11:15 PM
    #7
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Anything is possible if you can get your hands on the right parts. Next time I'm on TIS I'll look at the differences between 2009-2010/2012 audio systems.

  8. Oct 14, 2012 at 1:12 AM
    #8
    adio

    adio Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,646
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    thanks man. I think the only problem that I see is having that head unit fit flush with an 08.

  9. Oct 14, 2012 at 1:34 AM
    #9
    BEEFY_CHEESY_TACO

    BEEFY_CHEESY_TACO DUDE MAN BRO

    Joined:
    Mar 28, 2010
    Member:
    #34112
    Messages:
    810
    Gender:
    Male
    First Name:
    Hot Carl!!!
    Roy UT
    Vehicle:
    2010 TRD-Off Road TACO Extra value package
    Icon Ext Travel w/ Resi Front and rear, Dakar leaf springs, total chaos UCA's, color matched rear bumper, color matched satoshi grille with black chrome TRD emblem, konig countersteer offroads (black) w/ 285/75 Duratracs, sockmonkey Trailiens 3rd tail light cover, Tacomaworld.com sticker (made by me), debadged all around, Relentless Front Bumper, Sliders, Rear bumper, and bed bars with Yakima rack w/ full size spare, shovel, hi-lift
    sounds cool, too bad I can't see this on my stupid work computer!

  10. Nov 18, 2012 at 12:08 AM
    #10
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,763
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Estock
    any updates?

    and your radio came with the clock part as well?? damn i hate you :laughing:

  11. Nov 18, 2012 at 1:15 AM
    #11
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Yes mine came with the clock. I'm still waiting on the radio to arrive (along with my household goods). Just moved and it will take a while for my stuff to arrive. Once the radio arrives I'll be at the point to plug and play and test the system out.

  12. Nov 18, 2012 at 9:20 AM
    #12
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,763
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Estock
    Awesome cant wait :popcorn:

  13. Nov 19, 2012 at 9:30 AM
    #13
    Quigs

    Quigs New Member

    Joined:
    Jul 18, 2012
    Member:
    #82920
    Messages:
    2
    Gender:
    Male
    First Name:
    James
    South Carolina
    Vehicle:
    2012 Tacoma Double Cab Long Bed
    Where did you get the entune?

  14. Nov 19, 2012 at 10:51 AM
    #14
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Off of a member on here.

  15. Dec 6, 2012 at 5:15 PM
    #15
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Well I got my custom non-JBL to JBL Entune harness installed. Just waiting on my navigation unit to arrive with my household goods (just moved). More details once I start testing everything.

    The custom harness is 13 feet long from the rear amplifier to the head unit. I ran it along the passenger side threshold up behind the glove box to the stereo.

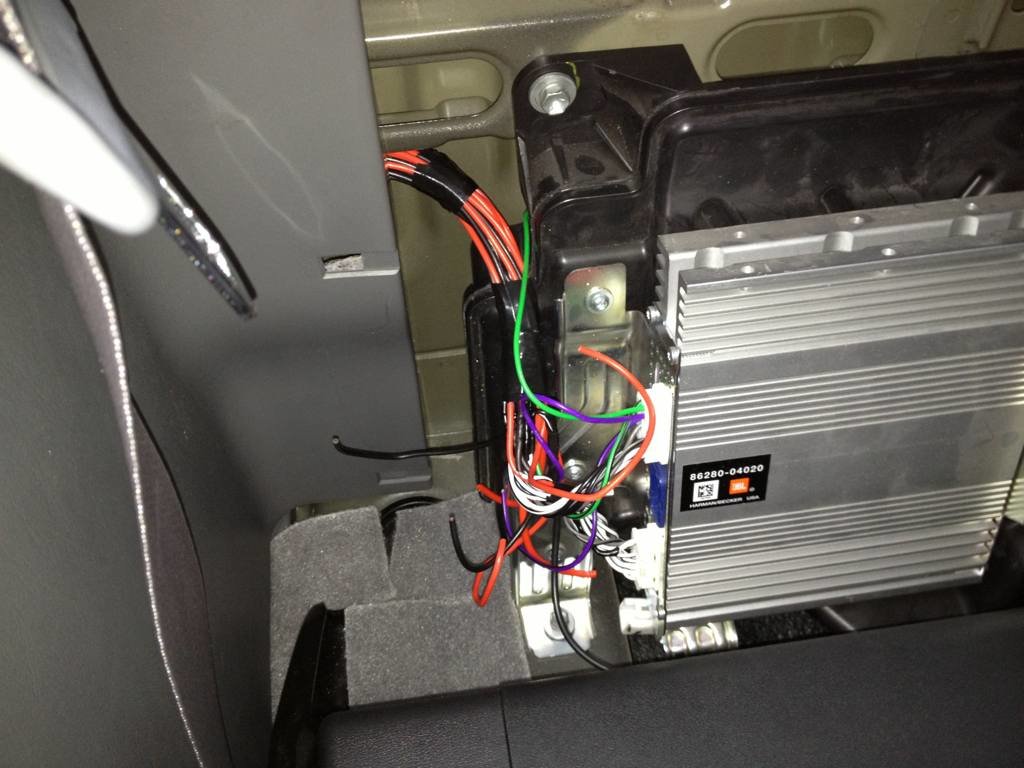

    Harness at amplifier. The third connector is in the mail now.

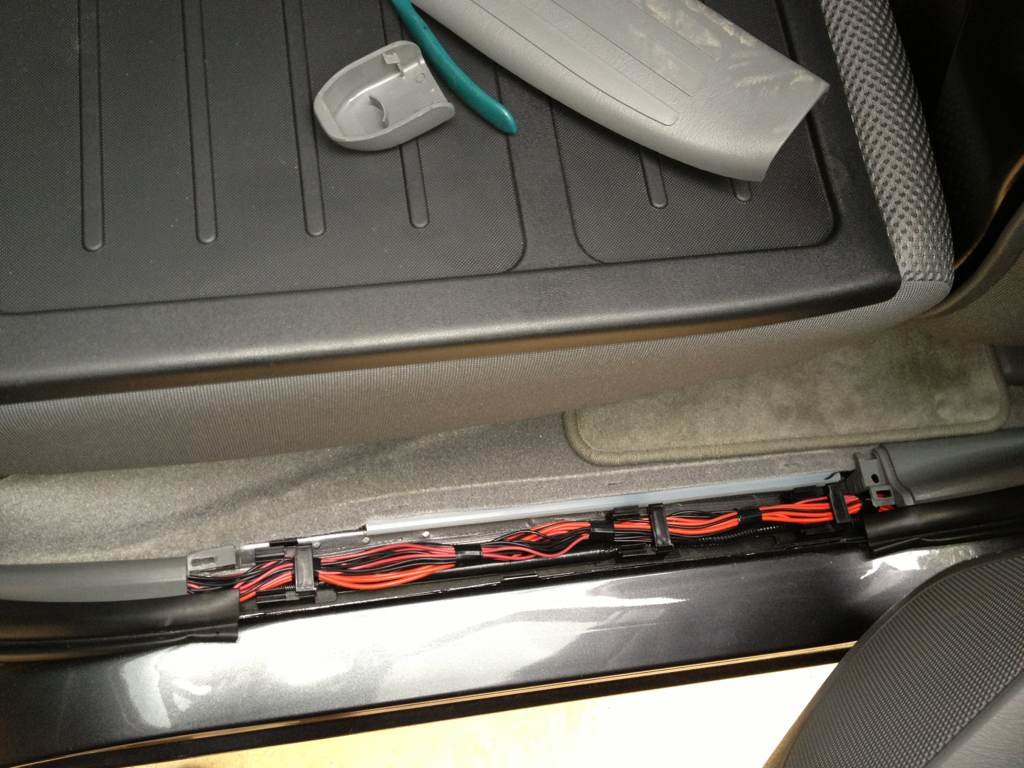

    Harness running along passenger door threshold.

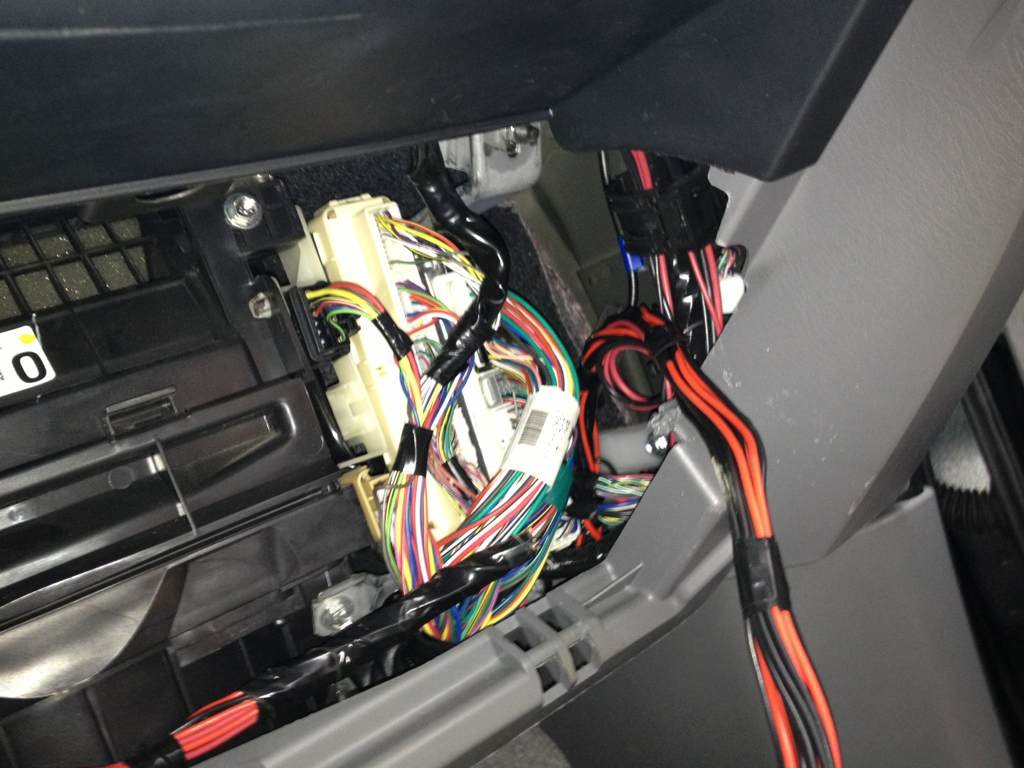

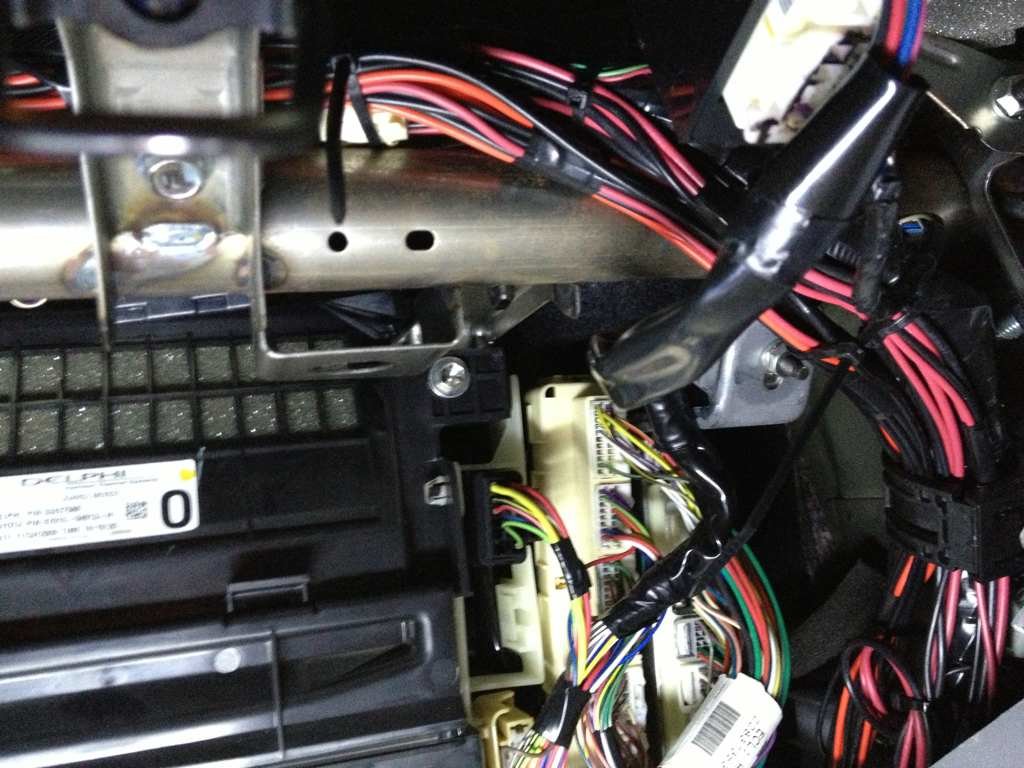

    Going behind glovebox.

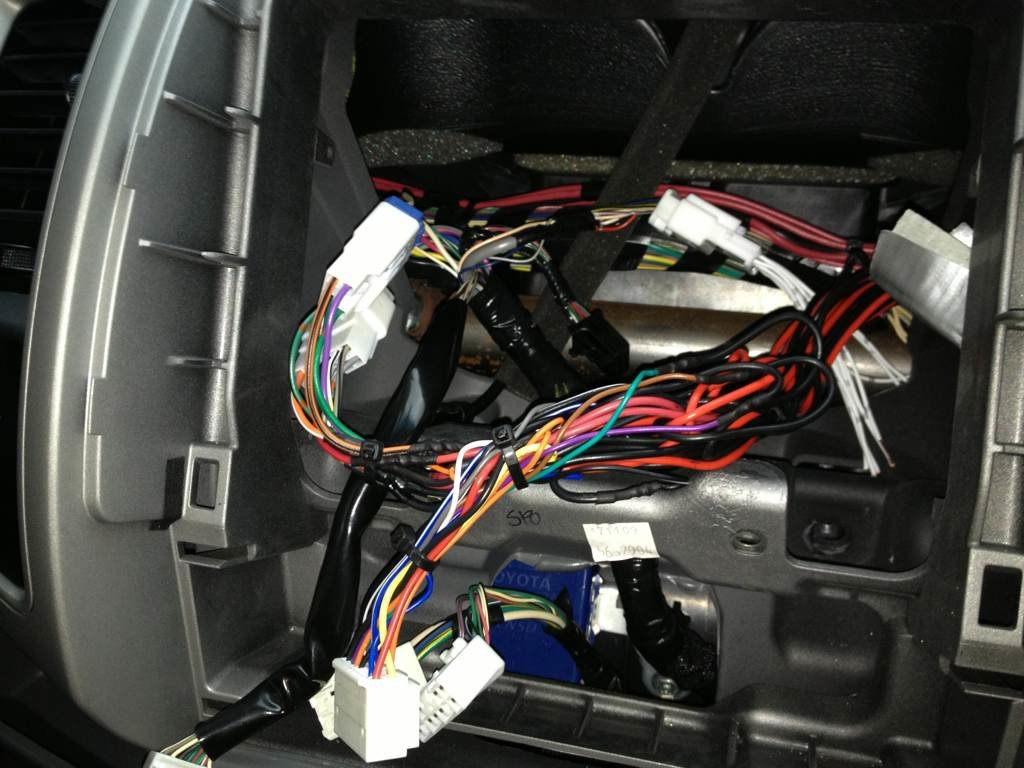

    Behind headunit.

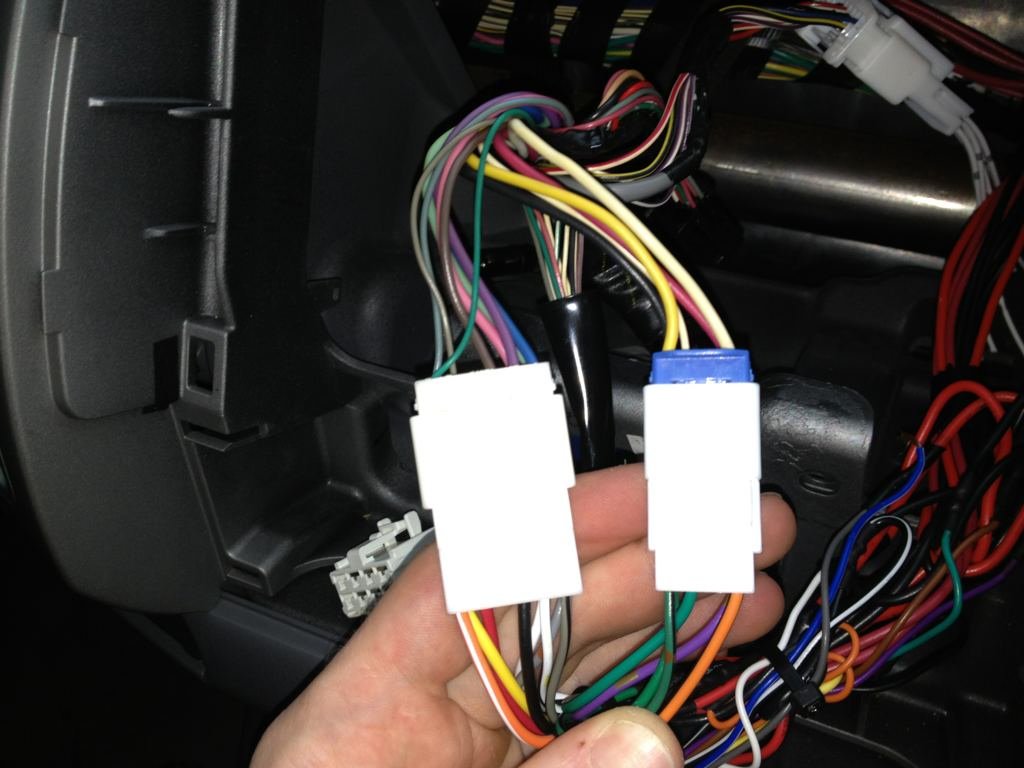

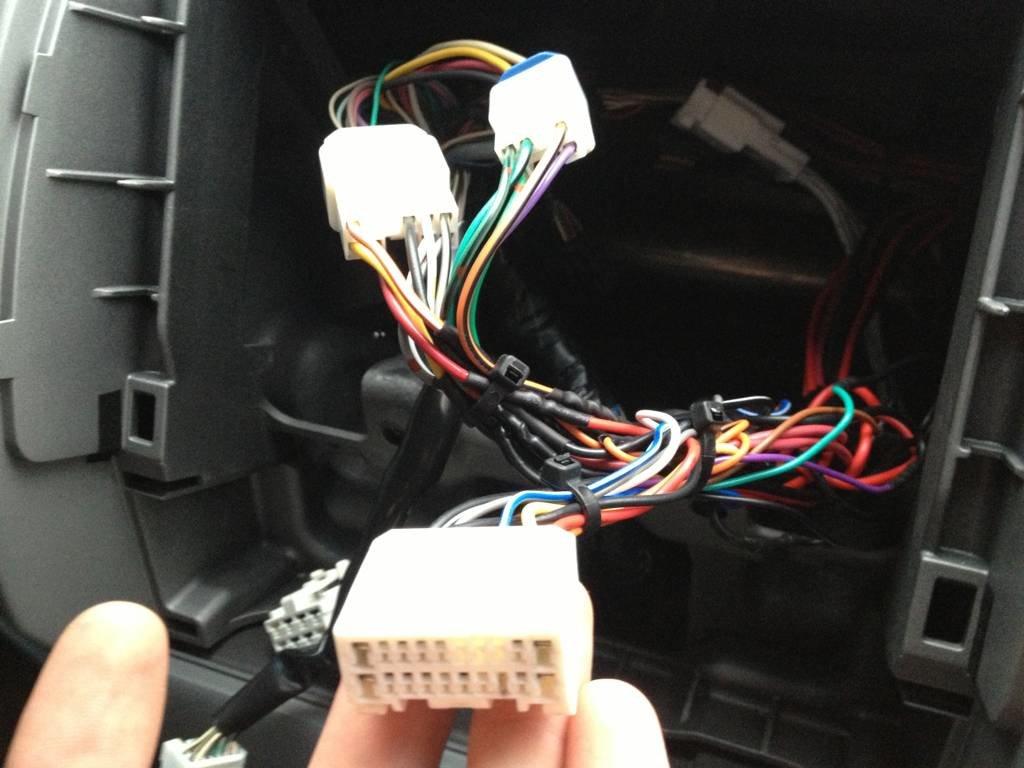

    My custom harness that converts the non-JBL wiring that went to the old sustem to go to the JBL amp. Everything is plug and play, I didn't want to cut into any of the stock wiring.




    Like I said more details to come once I test everything.

  16. Dec 7, 2012 at 8:54 AM
    #16
    hudsonstrong

    hudsonstrong Member

    Joined:
    Oct 7, 2012
    Member:
    #88485
    Messages:
    24
    Gender:
    Male
    First Name:
    Jonathan
    Columbus, GA
    Vehicle:
    2013 Tacoma Double Cab 4x4
  17. Jan 31, 2013 at 5:54 PM
    #17
    Cali Taco

    Cali Taco Member

    Joined:
    Dec 18, 2012
    Member:
    #93364
    Messages:
    24
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    10 PreRunner DCSB Sport
    So were u able to get the navi to work? If so did u need to buy an after market antena

  18. Feb 1, 2013 at 6:14 AM
    #18
    dibble9012

    dibble9012 [OP] Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    212
    Everything works perfectly. Best to buy a more expensive toyota antenna from eBay vs an aftermarket one. Tested an aftermarket one and it was not sensitive enough.

  19. Jun 13, 2013 at 8:57 PM
    #19
    benright

    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    54
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    So I've got a 2011 w/ JBL that I have almost successfully converted. The only problem I'm running into is my microphone isn't working. I'm guessing it's because I don't have pin 6 on connetor R15 connected. What did you use for this wire? Your write up says "see the end of the document" but nothing is listed.

    Also were did you get your antenna for the nav unit?

    Edit:
    Pin 6 for R15 can pull off of Pin 19 (mic voice signal) from the same harness. Hooked mine up and everything is now functional.

    [​IMG]

    Last edited: Jun 14, 2013
  20. Jun 27, 2013 at 1:59 PM
    #20
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    169
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    with your conversion cable, is there a way to use an aftermarket amp with this system or does it have to be the jbl amp?
