Installing Overhead Garage Door/Gate Opener Button w/ a FOB Retrofit

Discussion in '3rd Gen. Tacomas (2016-2023)' started by RyanDCLB, Apr 5, 2022.

  1. Apr 5, 2022 at 4:45 PM
    #1
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    :notsure: :thumbsup:


    A picture of our gate FOB:

    [​IMG]

    Here's where the FOB was previously located:
    [​IMG]

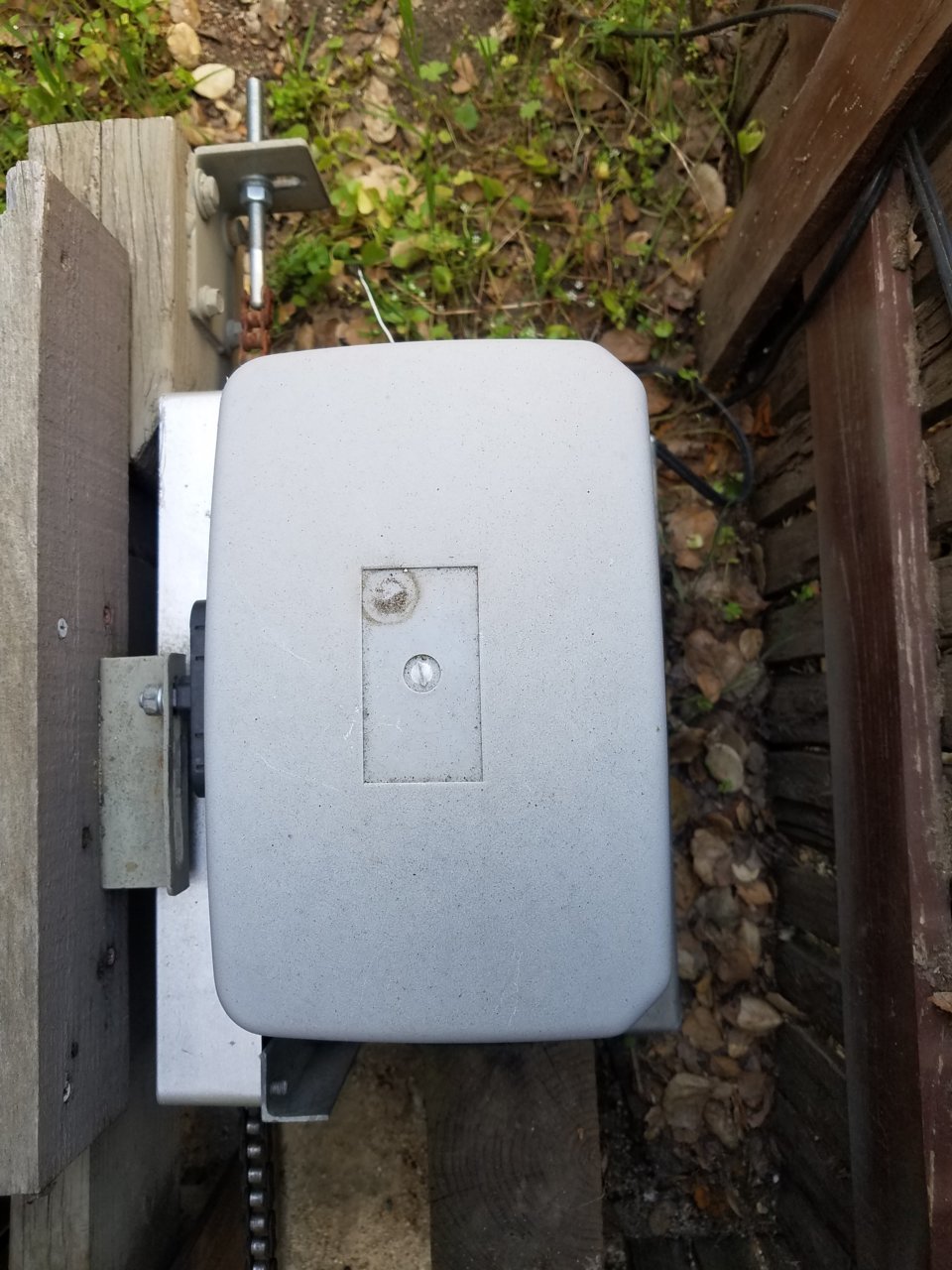

    Our sliding gate opener made by ALEKO, but the remote/FOB is the universal type:

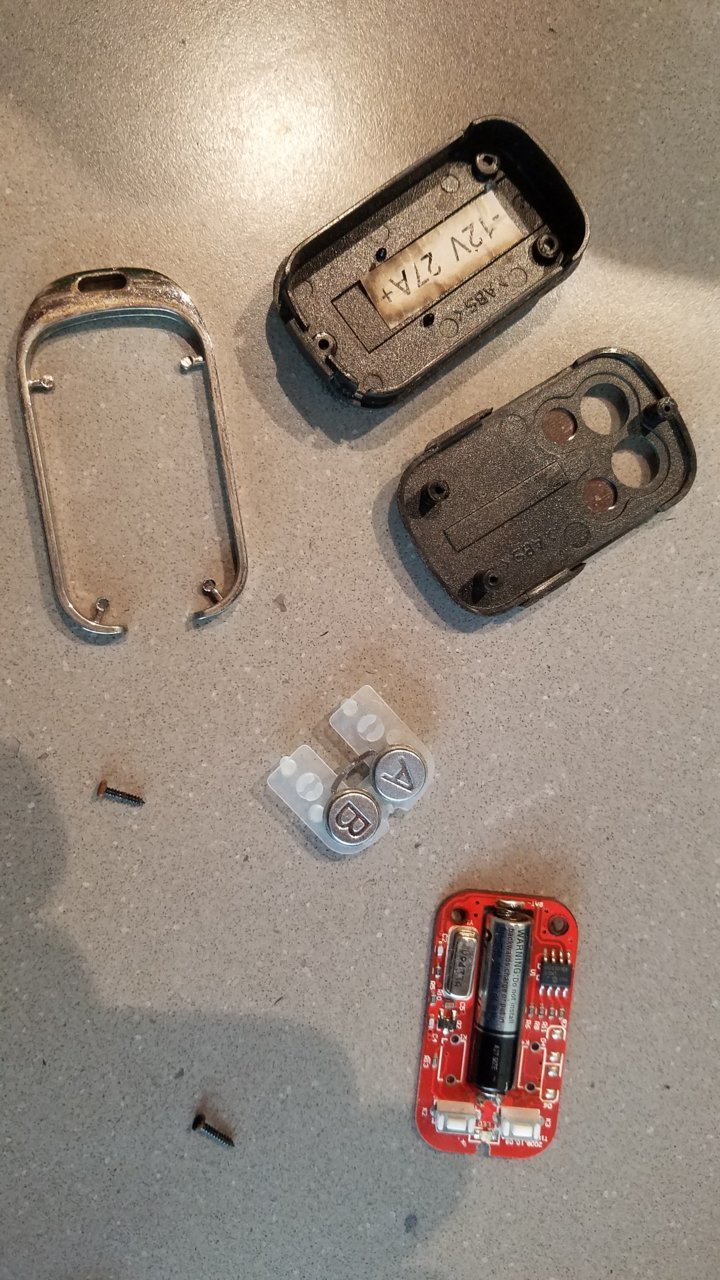

    Here's the FOB disassembly:

    Pull down the overhead console, but always disconnect the negative battery terminal first before removing any electrical connectors:

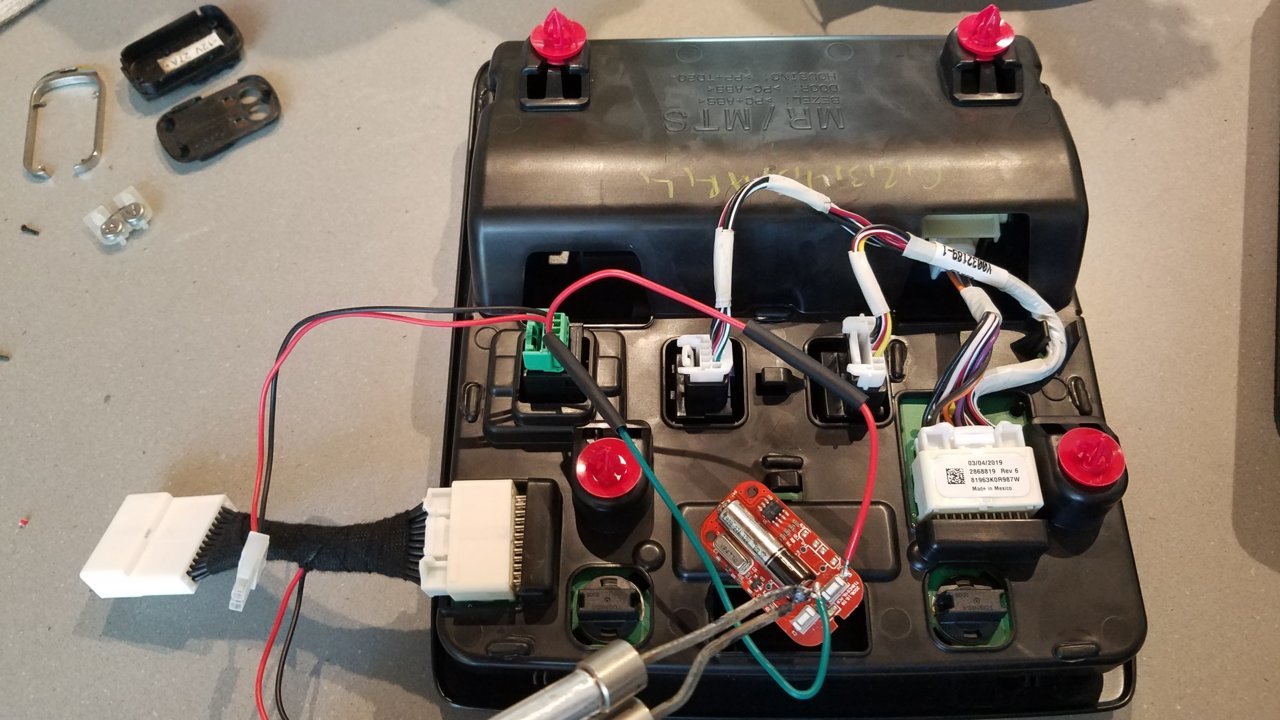

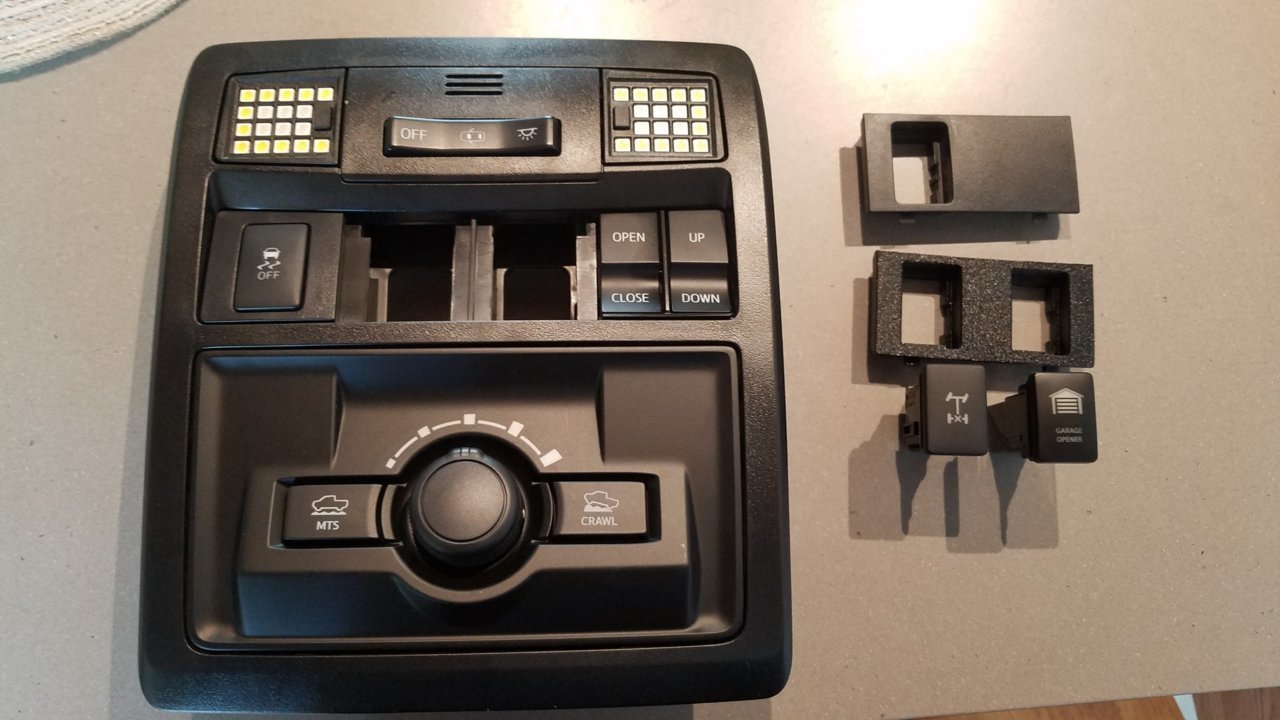

    Back of the overhead console with the new switch panel in place (all three switches relocated), with the garage/gate button on the left. Note, the red and green trigger wires for the FOB:

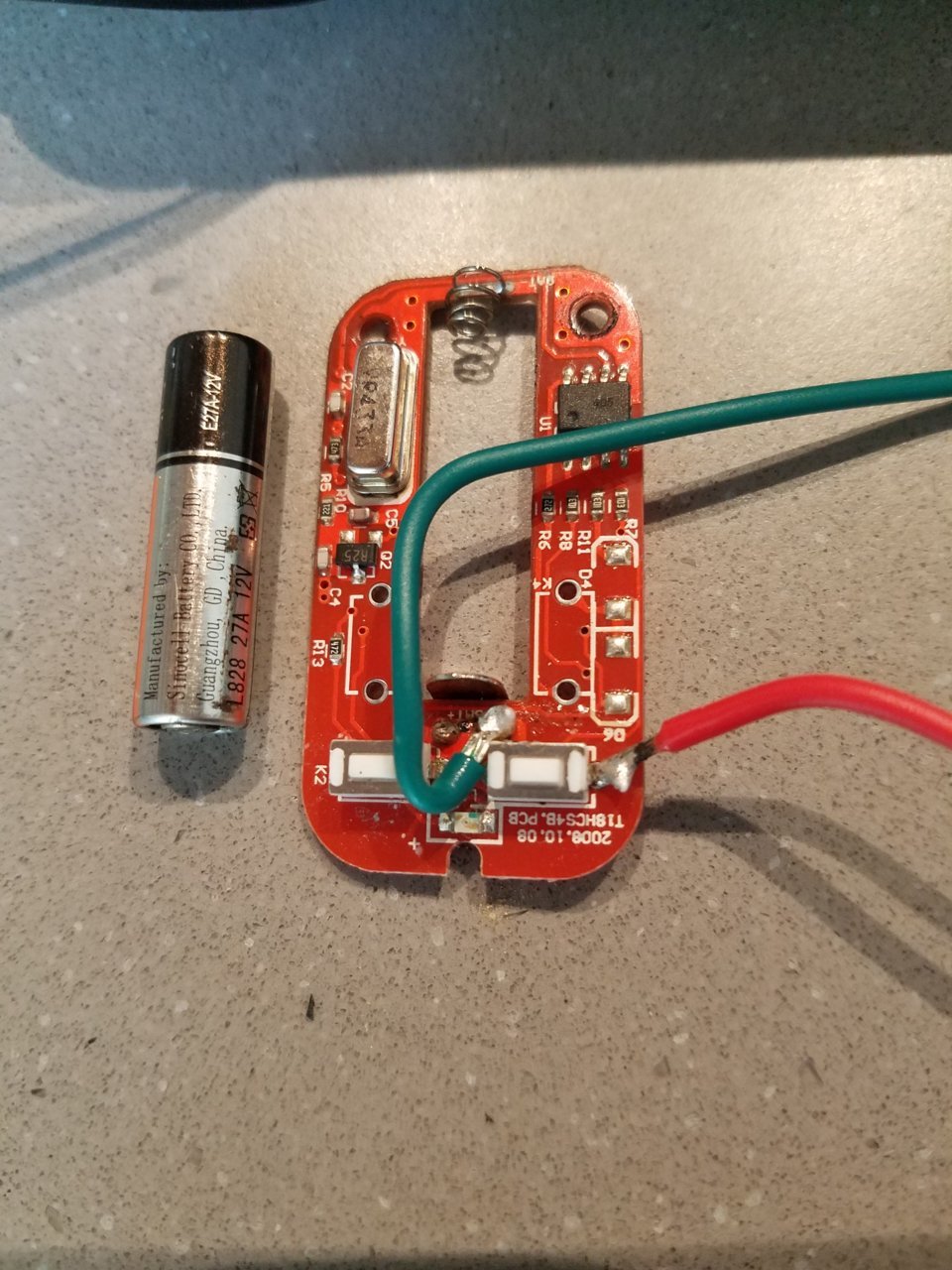

    Soldered and heat shrunk these two wires to the circuit board:

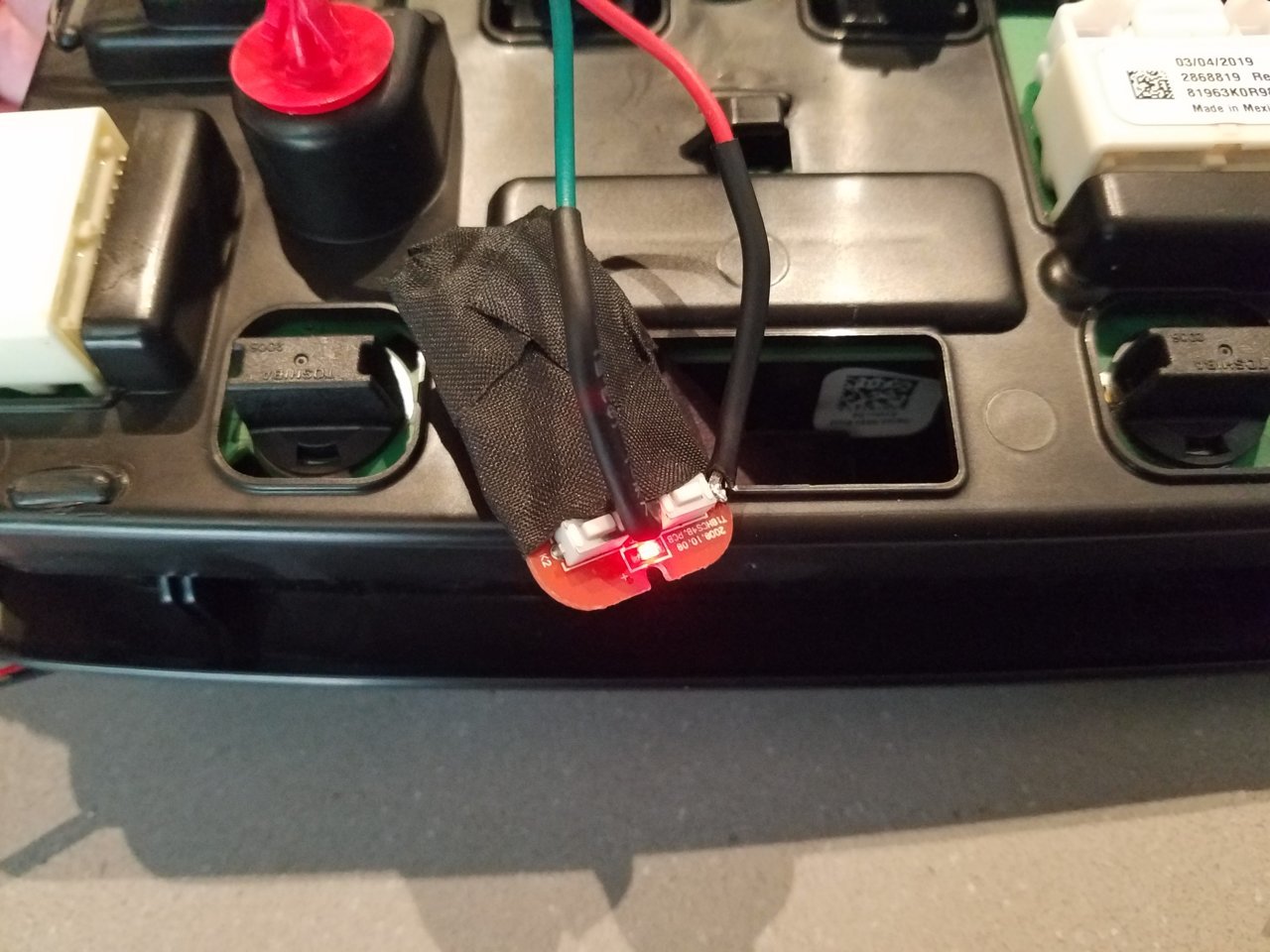

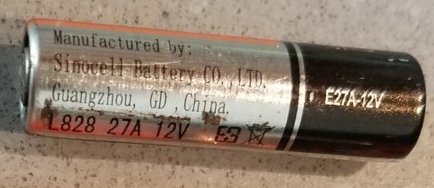

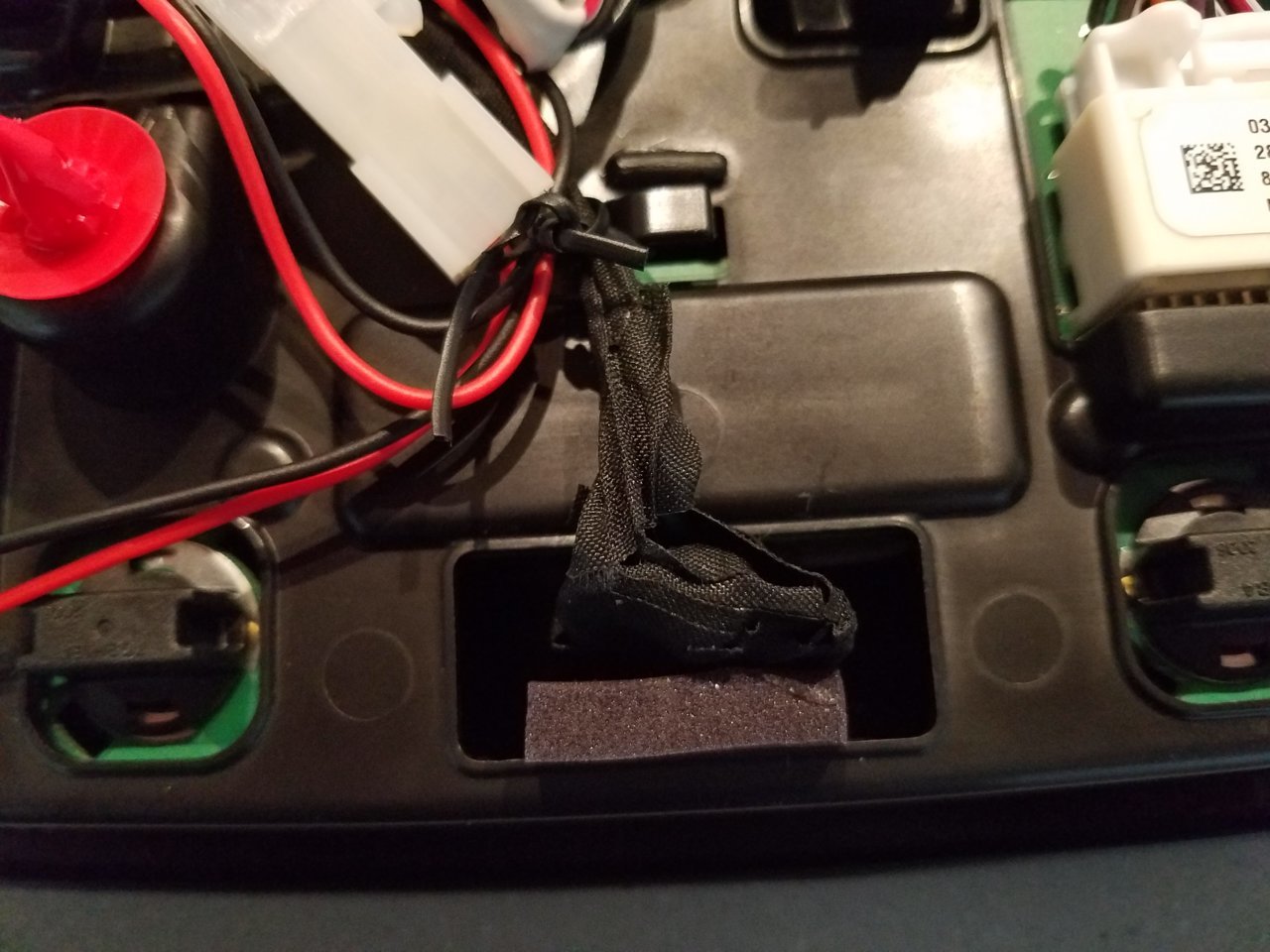

    Installed a new battery in the FOB, added some cloth tape keeping the LED light exposed, remove the rubber plug located down in the vent, stuffed and zip-tied the FOB into the hole with a window for the RED light, added the rubber plug as "backing":

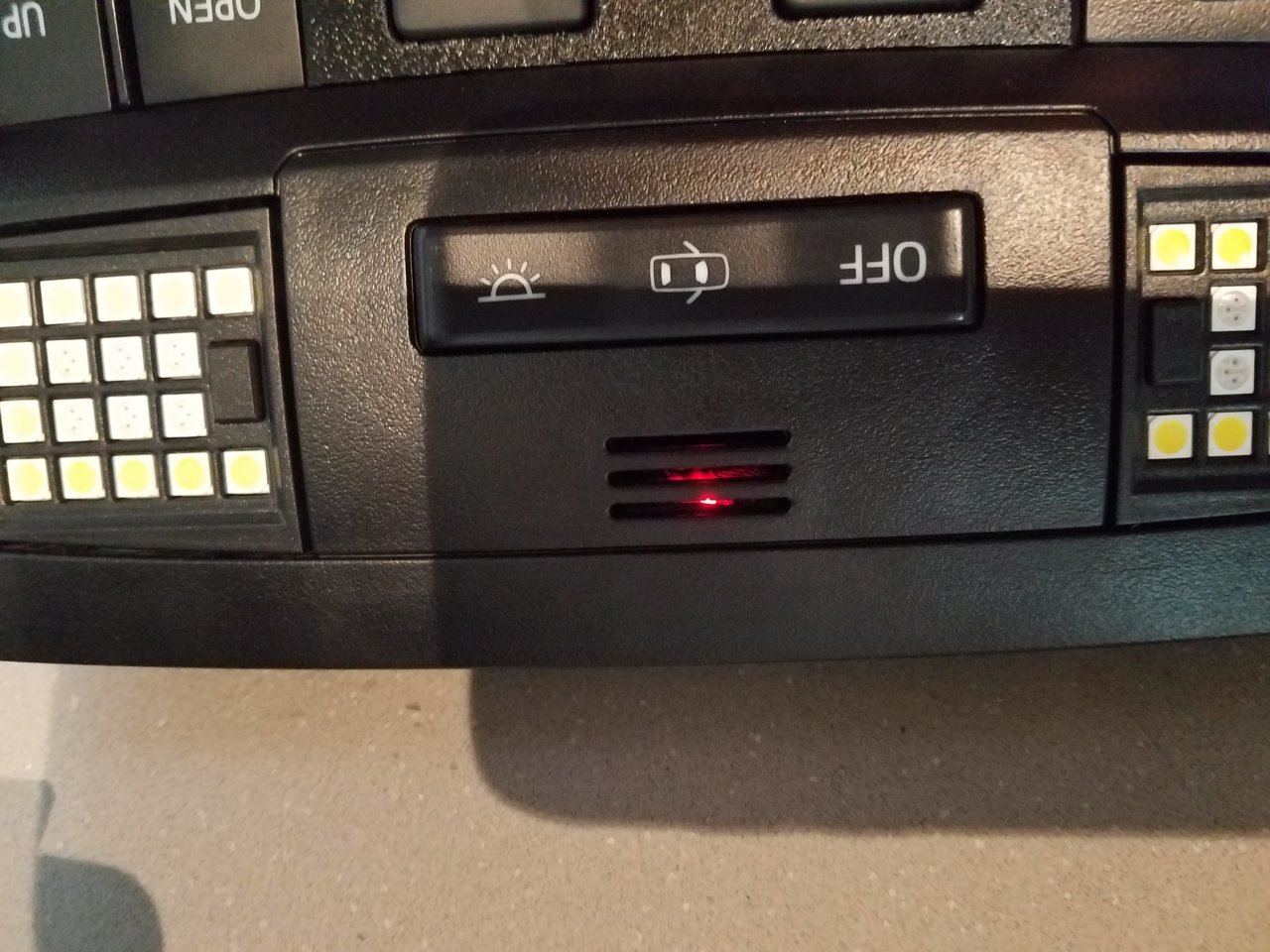

    Final result: Gate works 10x better compared to the Homelink Universal Transmitter, and the look and illumination are OEM style! :cool: :hattip:


  2. Apr 5, 2022 at 4:47 PM
    #2
    ClassyTacos

    ClassyTacos I must know whats on page 47

    Joined:
    Sep 26, 2019
    Member:
    #306325
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Papalote
    Florida
    Vehicle:
    2017 TRD Sport 4x4
    Stockish
    As always, great job. Clean and crispy.

    RyanDCLB[OP] likes this.
  3. Apr 5, 2022 at 5:03 PM
    #3
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,295
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    NICE! Bonus points if you get a 12V-->3V stepdown and hardwire it into power on the truck. NO more battery.

    dleriche, poroto, mic_sierra and 5 others like this.
  4. Apr 5, 2022 at 5:06 PM
    #4
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Thanks! I think I'll call my Youtube channel "Clean and Crispy Tacos" because "Classy Tacos" was already taken... :frusty:




    Attached Files:

    ClassyTacos[QUOTED] likes this.
  5. Apr 5, 2022 at 5:16 PM
    #5
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,641
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    Hell yeah dude. I need to do this too.

    RyanDCLB[OP] likes this.
  6. Apr 5, 2022 at 5:42 PM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    o_O

    kmorgan3 and RyanDCLB[OP] like this.
  7. Apr 5, 2022 at 5:51 PM
    #7
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

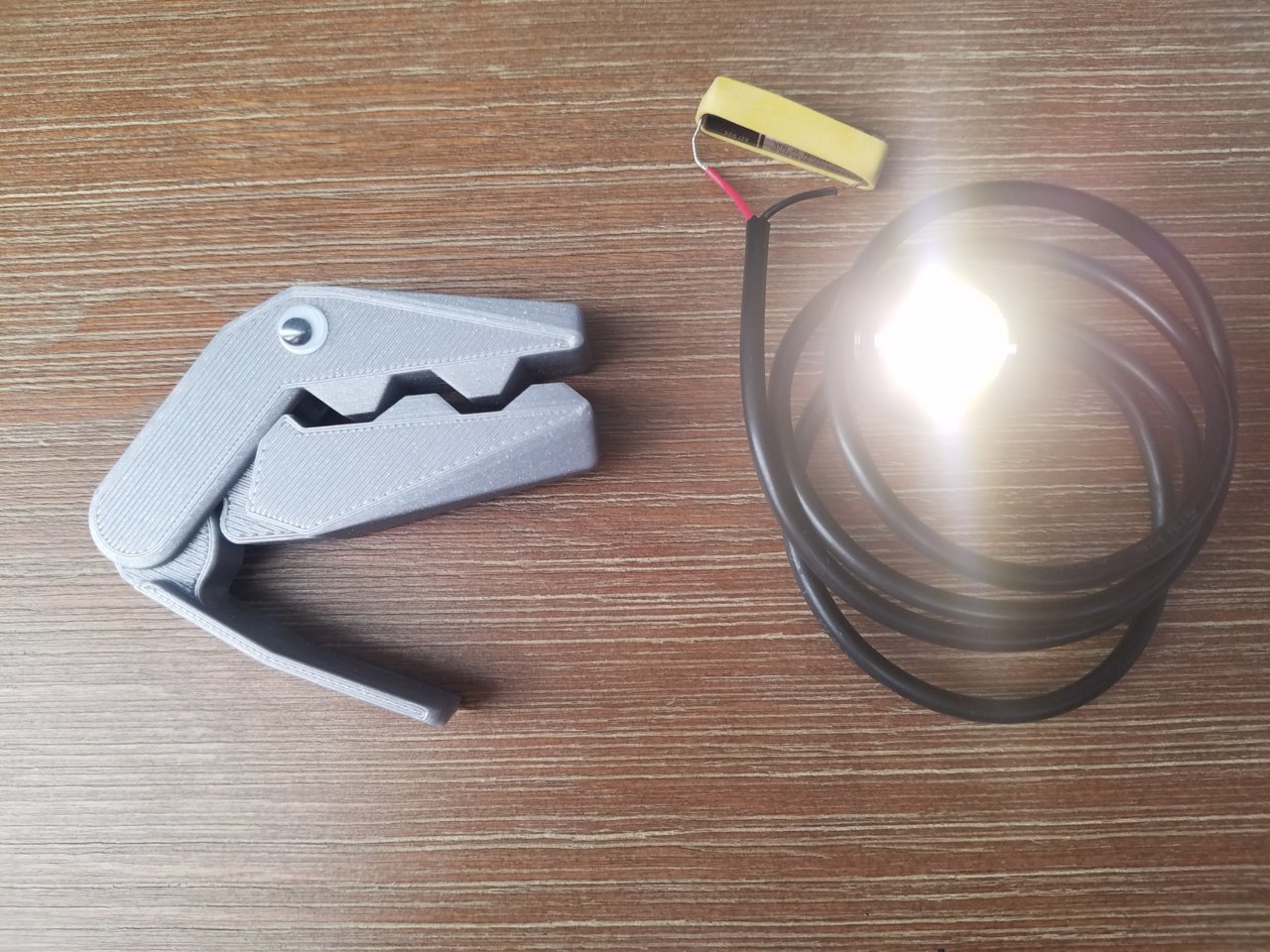

    :thumbsup: I'll know what to do when the battery dies... :D Side note, is there constant power up there?


  8. Apr 5, 2022 at 6:10 PM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  9. Apr 5, 2022 at 6:16 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  10. Apr 5, 2022 at 9:20 PM
    #10
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

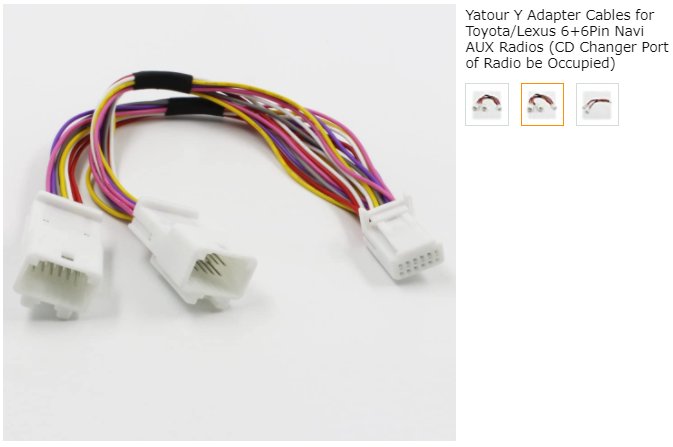

    Thank you! If I'm reading this correctly, 8 is constant power and 12 is ground. The link is for an inline harness I could modify to provide power to the FOB, instead of relying on a battery. Chances are I'll pass because the battery in the FOB seems to last forever. These ideas are good to know though!

    The thing about my gate FOBs is that the other button is a duplicate. I can see adding different programmable FOBs with separate frequencies, along with those dual CH4×4 switches, to add more triggers/switches on the cheap. Something like these remotes connected to a couple of those dual switches. They have programmable momentary or latching settings. I can think of 5 or 6 additional switches I might need in the near future. :D

    Last edited: Apr 5, 2022
  11. Apr 5, 2022 at 9:22 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yeah. There might be others that have a few gates to get through at home and at work...

    RyanDCLB[OP] likes this.
  12. Apr 5, 2022 at 9:25 PM
    #12
    MGMDesertTaco

    MGMDesertTaco Come on, live a little...

    Joined:
    Jan 30, 2021
    Member:
    #354573
    Messages:
    5,881
    Gender:
    Male
    Vehicle:
    2017 MGM TRDOR 4x4 DCSB
    JL Audio/Focal/SS3 Max/Pro Led Headlights/X4S
  13. Apr 5, 2022 at 9:34 PM
    #13
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Right! I don't know why, but that just made me think of Jurassic Park. :turtleride:

    MGMDesertTaco likes this.
  14. Apr 5, 2022 at 10:00 PM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    RyanDCLB[QUOTED][OP] likes this.
  15. Apr 5, 2022 at 10:20 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Remove the wires you don't require.

  16. Apr 5, 2022 at 11:08 PM
    #16
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

    o_O :sorry: I didn't pass electrical diagram interpretation 101.

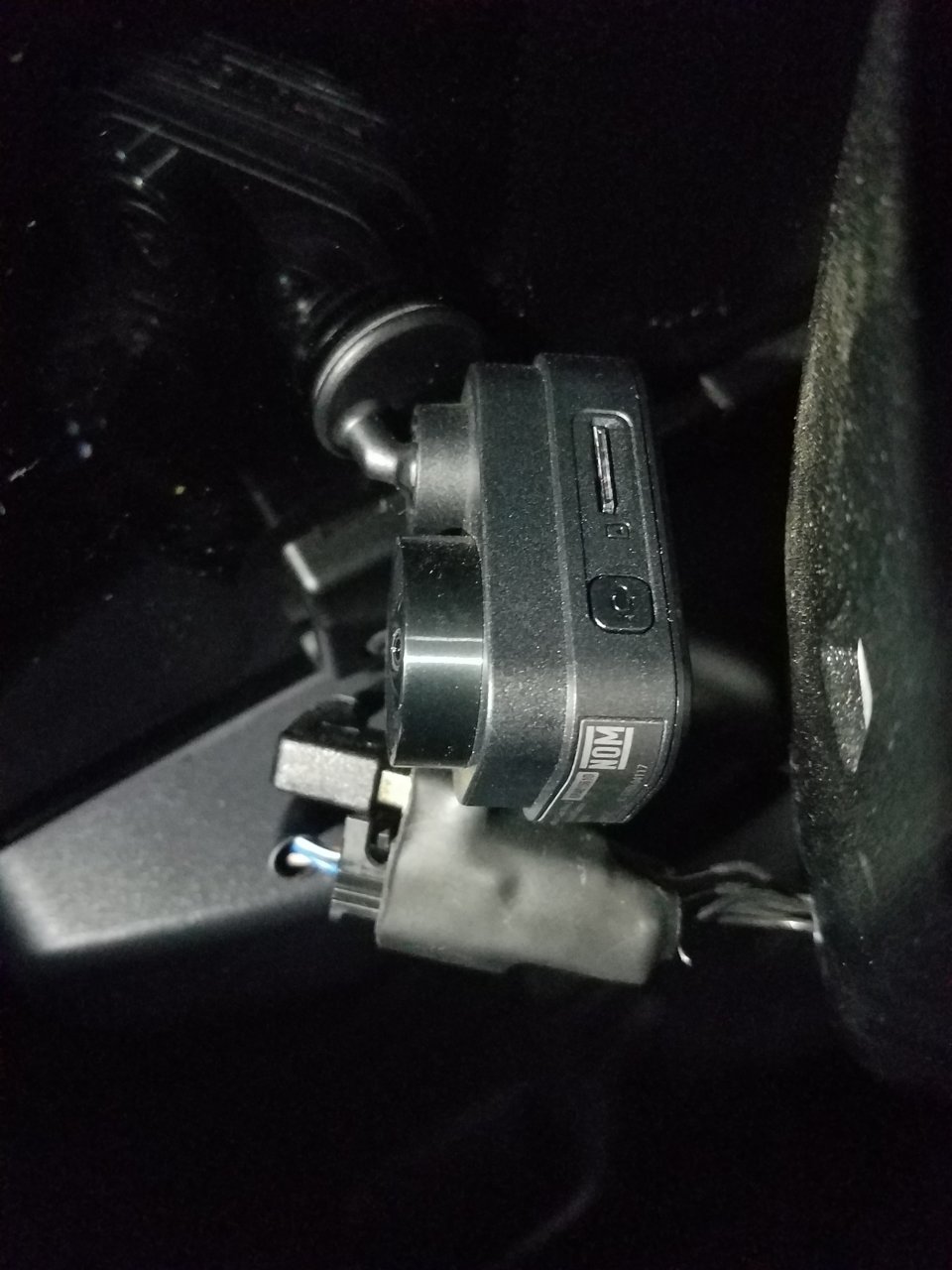

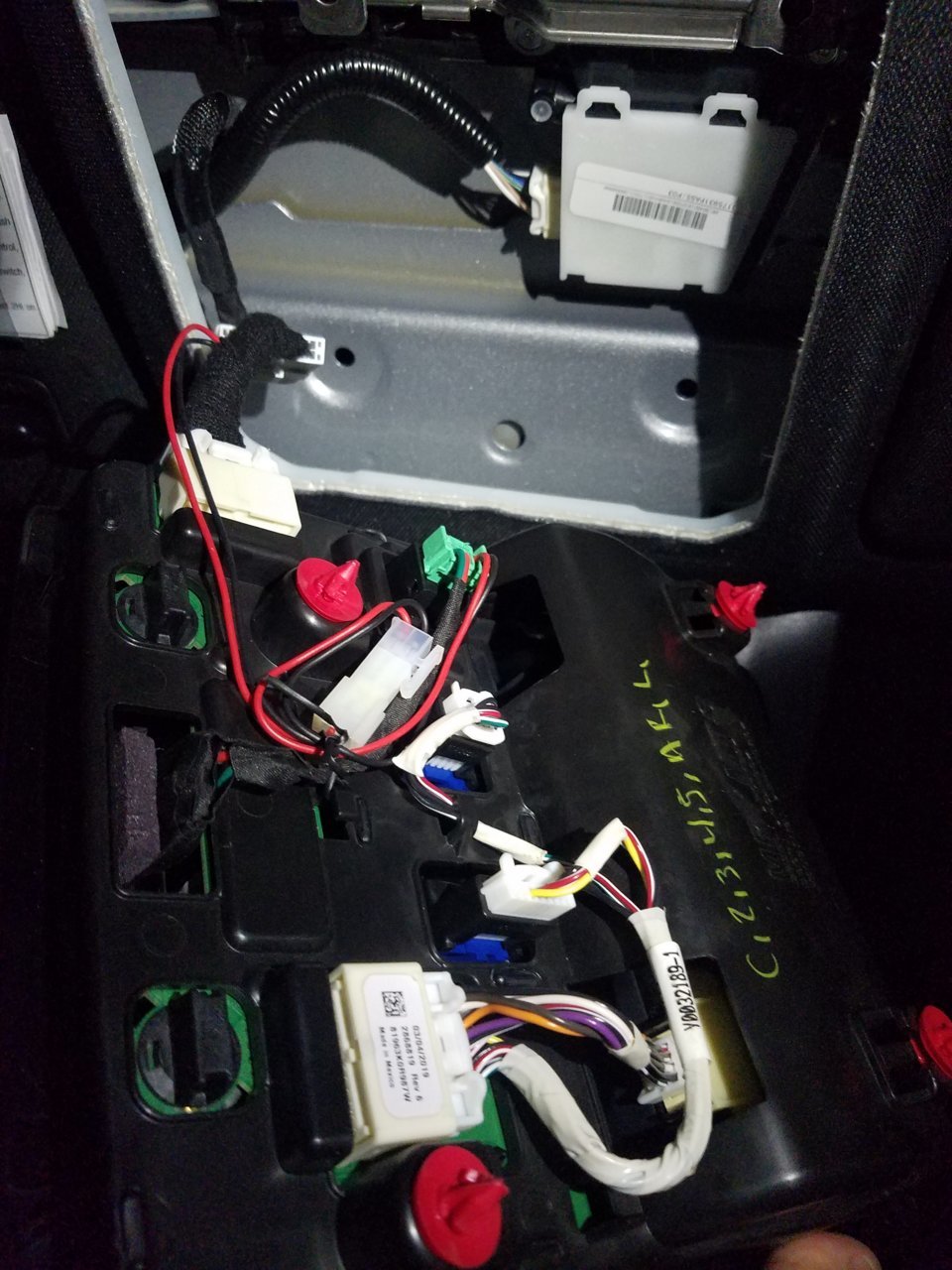

    I see the sunroof motor plug, but are you suggesting I draw fused or IGN power from the mirror? I already have a Dongar there for the Dashcam, and it looks like the harness is tucked up in the headliner. Inquiring minds want to know... :spy:

    [​IMG]



  17. Apr 5, 2022 at 11:26 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You inquired on fused battery power at the overhead.
    The Dongar has a USB port for the dash cam. The additional harness would go centipede type to it.
    It's just another option for fuse battery source...
    Other's might not have a dash cam or the Dongar "need".

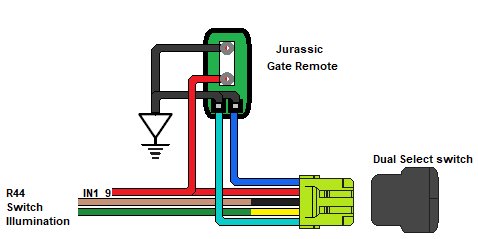

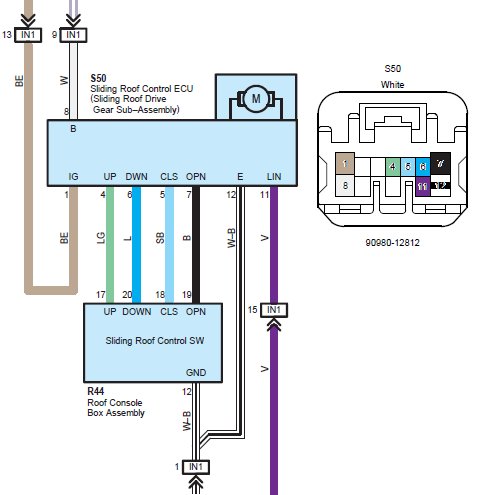

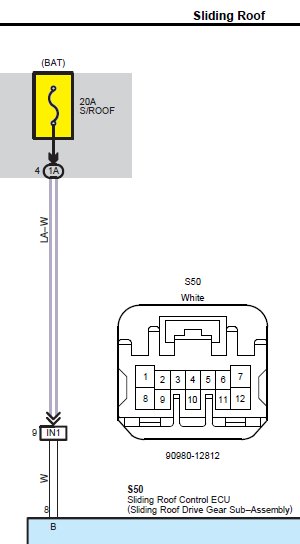

    Most do not have the sliding roof either...but the sliding roof circuit fuse and wire is present in the sail panel connector(IN1) on the Driver's side. All that's needed to run fused battery power is a wire and a 090/2.3II terminal at IN1 slot 9. Sliding Roof fuse (20a) should be exchanged for a lower amp one.

    Last edited: Apr 5, 2022
    RyanDCLB[OP] likes this.
  18. Apr 5, 2022 at 11:55 PM
    #18
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I figured that's what you were getting at. :thumbsup:

    I appreciate all the tips! I'll eventually find a home for all my switches somewhere. :notsure:

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 6, 2022
  19. Apr 6, 2022 at 12:04 AM
    #19
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You could sell them and buy "nicer looking" ones.:D


  20. Apr 6, 2022 at 12:42 AM
    #20
    RyanDCLB

    RyanDCLB [OP] Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,264
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

    That's a great idea! I might be able to afford that S-pod after all!
