Instructions: How to replace driver side cubby with switch panel!

Discussion in '3rd Gen. Tacomas (2016+)' started by ZekeR7, Feb 7, 2018.

  1. Feb 7, 2018 at 9:55 PM
    #1
    ZekeR7

    ZekeR7 [OP] Well-Known Member

    Joined:
    Jan 19, 2018
    Member:
    #241779
    Messages:
    1,282
    Gender:
    Male
    Vehicle:
    2018 TRD Off-Road 4x4 Quicksand
    This thread will have which switches and panels needed to do the mod WITHOUT removing the lower dash trim.

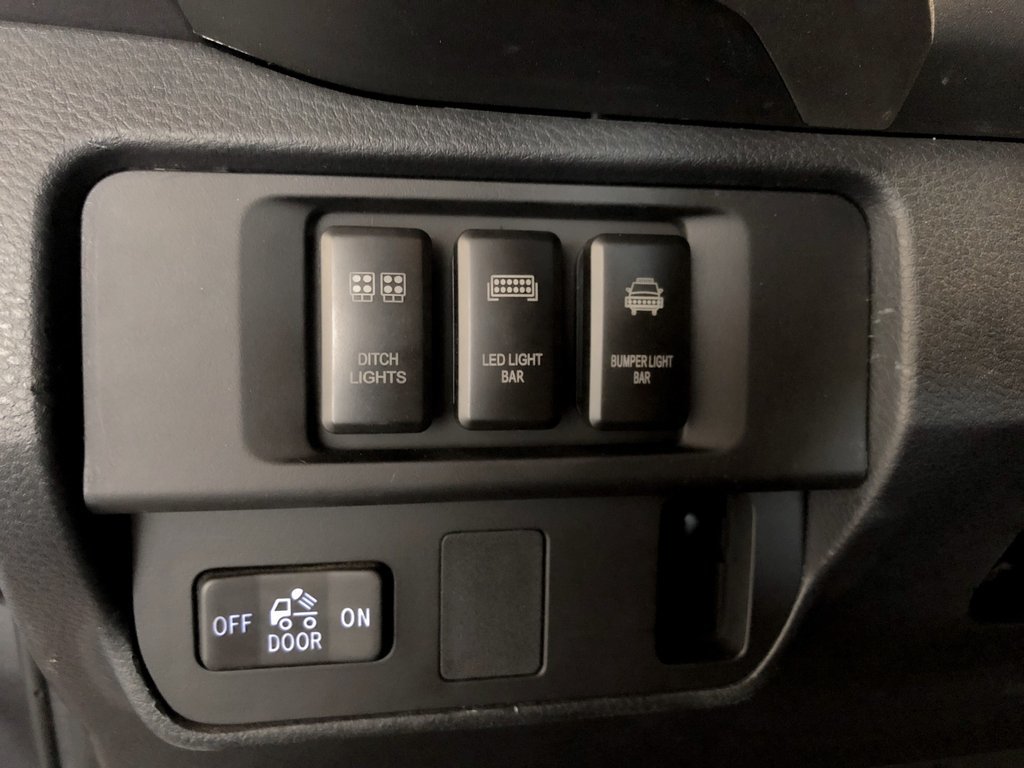

    END RESULT:
    Switch panel.jpg
    (Picture from Cali Raised LED website)

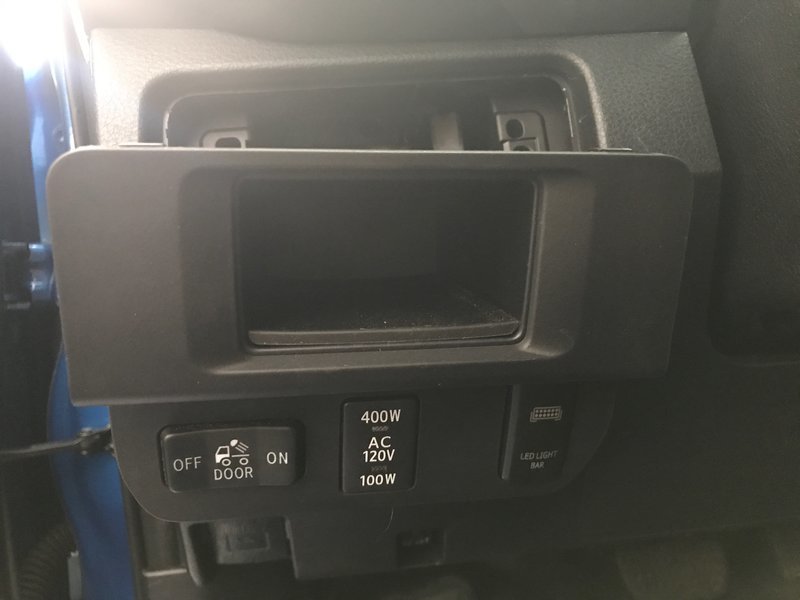

    STEP 1:

    Pop out the trim by simply using a pry tool to get the clips off
    (This picture was not taken by me. It was on a different thread that I had found a while back. Would tag the member if I could find it again)

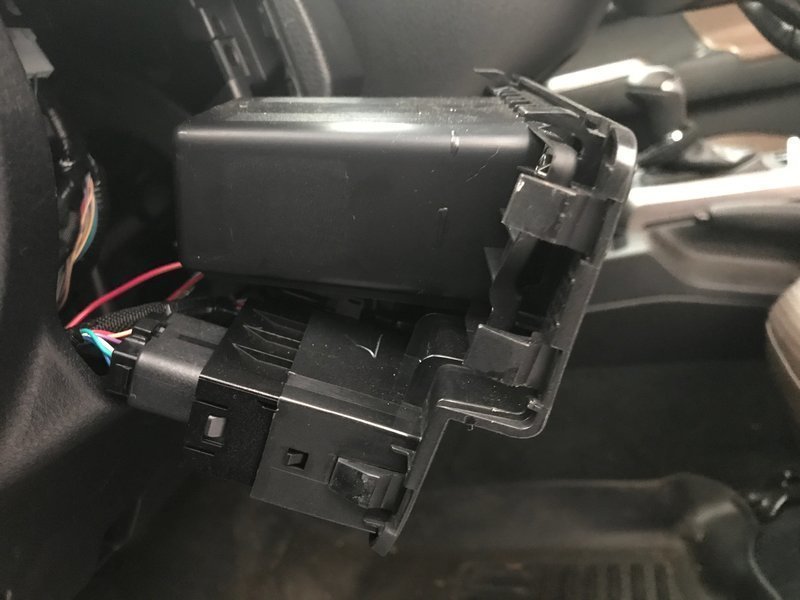

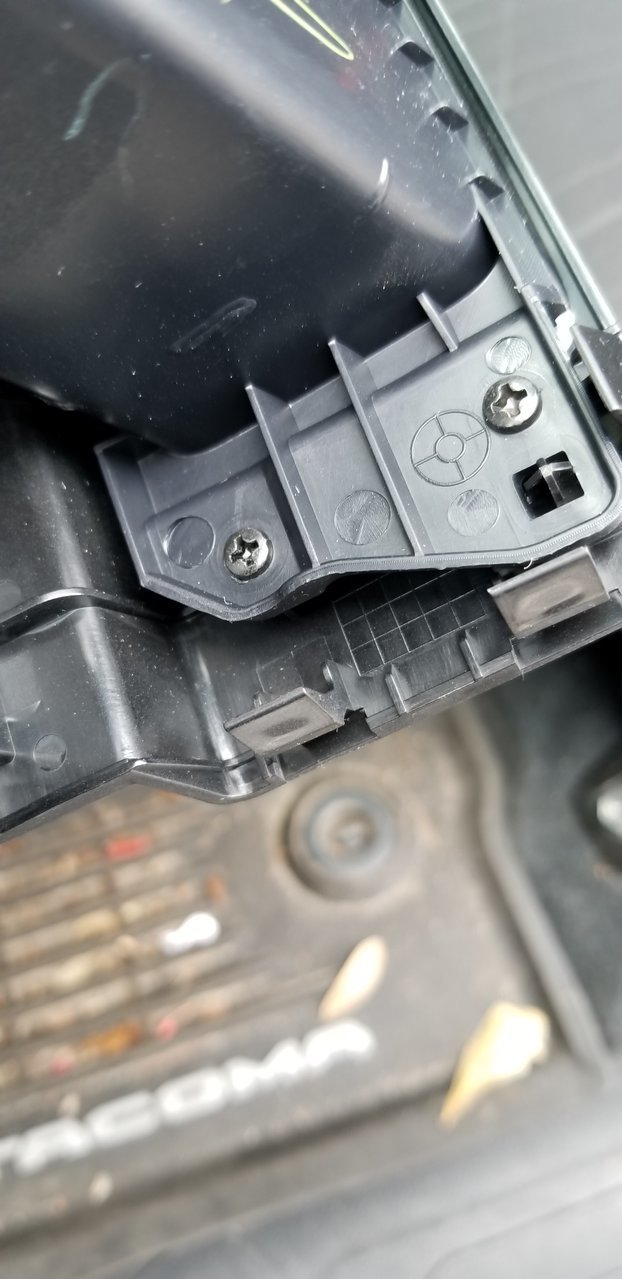

    STEP 2:

    Remove four corner screws that is holding the cubby.
    (Thanks to @HappyHour for the pics)


    STEP 3:

    Align switch panel and install the same screws you removed on the same spot that the cubby was attached to. (Again, sorry. Don't have picture)

    The switch panel I used was from Cali Raised LED. Here is the link:
    https://caliraisedled.com/collectio...016-2018-toyota-tacoma-oem-style-switch-panel
    They are only $15 at the time of this thread and be delivered within a week. A lot of people seem to link the Shapeway website, but that is a bit more and will have a lead time.



    STEP 4:

    Install your switches and start wiring!
    You can purchase your switch directly from Cali Raised LED:
    https://caliraisedled.com/collections/2016-toyota-tacoma

    If you want more options like I did, I went on Amazon:
    https://www.amazon.com/dp/B01EOOMDGG?ie=UTF8&psc=1

    Each switch cost $10-11 from both websites.

    Size of switches from Amazon: 21x39mm
    Size of switches from Cali Raised LED: 20x39mm
    The amazon one was pretty snug, which I like. It still goes into the panel but if you are having a hard time, you can just file the sides of the hole on the panel a bit. I did not do this, nor have I ran into anyone else on this forum with an issue.



    Final Step:

    Pop the trim back into place and you are done!



    *I created this thread since a lot of people have been asking about it lately. I didn't take pictures of my install since I didn't know there was so many people still posting threads; asking about it and half of the replies were telling people to remove the lower dash trim.

    If there is already a thread that compile all this information, please delete.

    Last edited: Feb 11, 2018
  2. Feb 8, 2018 at 10:37 AM
    #2
    ZekeR7

    ZekeR7 [OP] Well-Known Member

    Joined:
    Jan 19, 2018
    Member:
    #241779
    Messages:
    1,282
    Gender:
    Male
    Vehicle:
    2018 TRD Off-Road 4x4 Quicksand

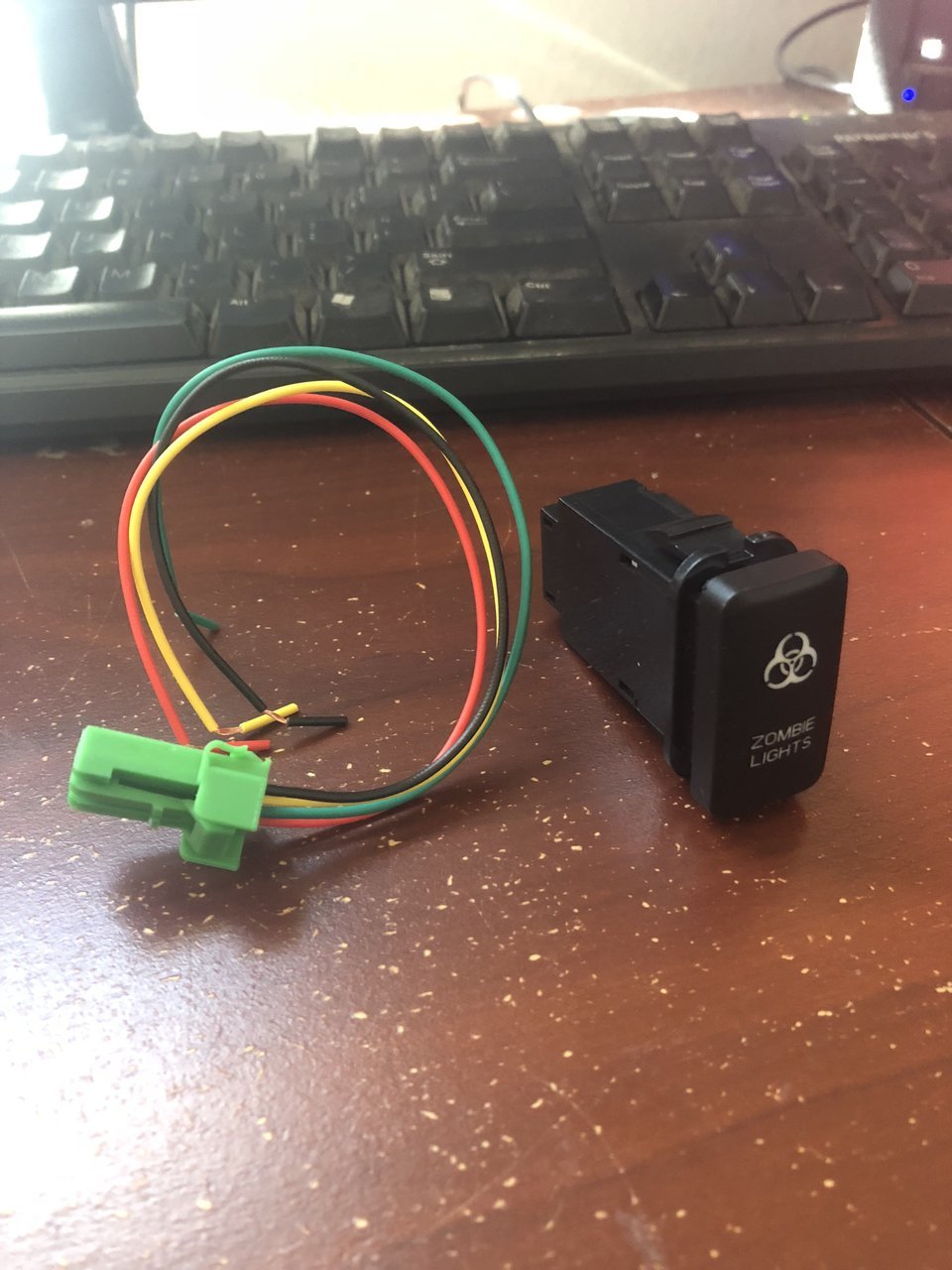

    Here is a switch from the Amazon link I have attached to the original post that I recently received:


    stealthmode and HappyHour like this.
  3. Feb 11, 2018 at 3:24 PM
    #3
    HappyHour

    HappyHour Active Member

    Joined:
    Sep 8, 2017
    Member:
    #229489
    Messages:
    29
    Gender:
    Male
    Vehicle:
    17 TRD OffRoad
    Lift - Brushbar
    LOL - Zombie Lights !! I like that..

    I am not able to put the all three switches in because they are to wide. So I am going to have to file. I bought these from Amazon.

    https://www.amazon.com/gp/product/B012WH6228/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1

    The switches are cool with back led but I wired straight to battery. I heard both sides to this but I guess I am going to have to wire to a HOT line but I am not sure which to use. All the wires are so tiny. I am kinda afraid to touch it. Any suggestion?

    Rob Daman likes this.
  4. Feb 11, 2018 at 3:28 PM
    #4
    vietjdmboi

    vietjdmboi Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165979
    Messages:
    386
    Gender:
    Male
    First Name:
    Hieu
    Orange County
    Vehicle:
    '18 Tacoma TRD Off-Road
    Thanks for the instructions. This will come in handy

  5. Feb 12, 2018 at 2:32 AM
    #5
    ZekeR7

    ZekeR7 [OP] Well-Known Member

    Joined:
    Jan 19, 2018
    Member:
    #241779
    Messages:
    1,282
    Gender:
    Male
    Vehicle:
    2018 TRD Off-Road 4x4 Quicksand
    I had a local shop did my wiring since I didn’t have tools to route my roof rack LED, but my LED came with a wiring harness. It has its own kit that went straight to the battery with a fuse mini fuse box and my switch was connected to the wires that were meant for em.

    That switch looks like a CH4x4 size. Caliraised used to make a panel for it, but since the other one was a lot more popular, I think they stopped production for that switch panel. You can try Amazon to see if they have it.

    The panel I had on the original post is not plastic so you are aware.

  6. Feb 14, 2018 at 12:42 PM
    #6
    ZekeR7

    ZekeR7 [OP] Well-Known Member

    Joined:
    Jan 19, 2018
    Member:
    #241779
    Messages:
    1,282
    Gender:
    Male
    Vehicle:
    2018 TRD Off-Road 4x4 Quicksand
    It was never taken out. We were talking about the rocker panel switch that holds ch4x4 switches. That is the OEM switch panel that is on my instruction. The reason why they probably sent an email out is cause they made the panel that I had on my original post only about 3 weeks ago so it’s fairly new, but they Never marketed it. I just found it by chance when I was looking for their ditch pod bracket.

  7. Feb 26, 2018 at 11:38 AM
    #7
    Tracoma17

    Tracoma17 Well-Known Member

    Joined:
    Mar 9, 2017
    Member:
    #212828
    Messages:
    146
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2017 Black Tacoma Limited
    Tinted windows, Clear Bra, running boards

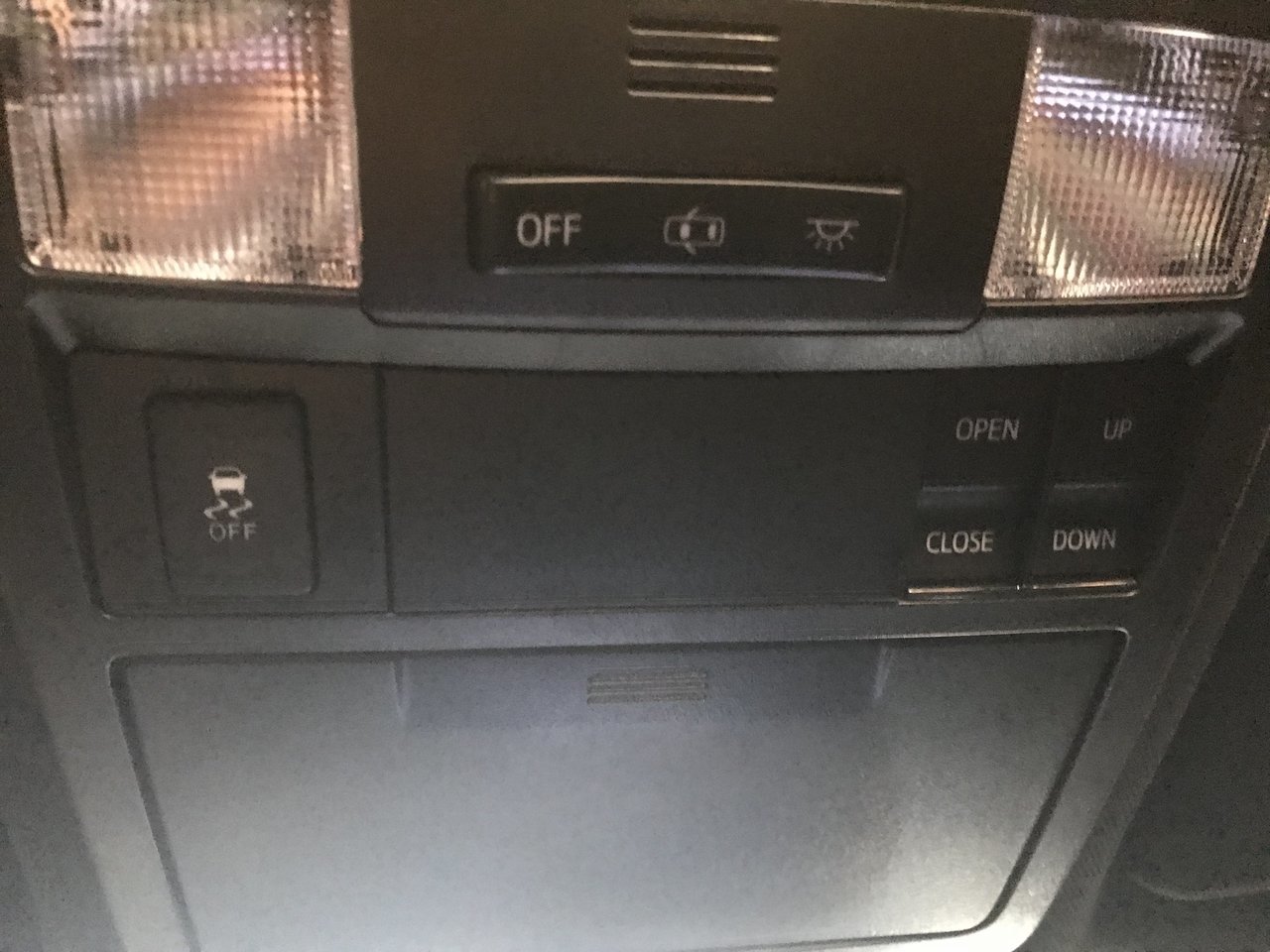

    Anyone know if there is inserts for buttons for this open middle section?


  8. Feb 26, 2018 at 12:32 PM
    #8
    chaotic_taco

    chaotic_taco Well-Known Member

    Joined:
    Jul 3, 2017
    Member:
    #223018
    Messages:
    331
    Gender:
    Male
    First Name:
    Matt
    ATX
    Vehicle:
    2017 DCSB TRD OR MT
    There definitely are, that's where the A-Trac, traction control, and locker switches are for models that have those options.

    PS Sweet sunglasses holder! :burnrubber:

  9. Feb 26, 2018 at 12:58 PM
    #9
    Tracoma17

    Tracoma17 Well-Known Member

    Joined:
    Mar 9, 2017
    Member:
    #212828
    Messages:
    146
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2017 Black Tacoma Limited
    Tinted windows, Clear Bra, running boards
    Lol you don’t like the sunglass’ Holder?

  10. Feb 26, 2018 at 1:00 PM
    #10
    chaotic_taco

    chaotic_taco Well-Known Member

    Joined:
    Jul 3, 2017
    Member:
    #223018
    Messages:
    331
    Gender:
    Male
    First Name:
    Matt
    ATX
    Vehicle:
    2017 DCSB TRD OR MT
    My understanding was only manual transmission trucks had that, but I see you have a Limited which is automatic only. So I guess only the manual Off-Roads have the sunglasses holder. I love mine!

    InfernoPhil likes this.
  11. Feb 26, 2018 at 1:27 PM
    #11
    Tracoma17

    Tracoma17 Well-Known Member

    Joined:
    Mar 9, 2017
    Member:
    #212828
    Messages:
    146
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2017 Black Tacoma Limited
    Tinted windows, Clear Bra, running boards
    Yeah I love mine too.

  12. Mar 7, 2018 at 7:32 AM
    #12
    YOTA 4X4

    YOTA 4X4 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242780
    Messages:
    1,903
    Gender:
    Male
    Vehicle:
    2017 Double Cab Off-Road
    OME HD Lift all around, SCS SR8 Rims, 255 85 R16 Cooper ST Maxx, Decked Drawers, 30" Rigid Pro Light bar above bumper on Rago Mounts, Rigid Dually Side Shooters on Rago ditch brackets, Hondo Garage Un-Holey Phone Mount X2, Hondo Radio Knobs AR Bolt Face, Garmin InReach SE GPS synch'ed to Iphone for GPS only mapping, Wet Okole Seat Covers, Husky Liner Contour floor mats, 63 QT ARB Fridge on Alu-Cab tilting slide. GoFastCamper (#41), ARB 2500 Awning with Full Room, Mobtown Off-road Sliders and Full Aluminum Skids.
    Sub’d so i don’t lose this thread. Trying to make sure i can make rigid wiring harnesses hook up to the CH4X4 switches

    Tac0Joe likes this.
  13. Mar 7, 2018 at 7:45 AM
    #13
    El Latigo

    El Latigo Well-Known Member

    Joined:
    Jan 4, 2018
    Member:
    #240278
    Messages:
    655
    Gender:
    Male
    Anaheim CA
    Vehicle:
    2017 MGM TRD OR Double Cab Short Bed
  14. Mar 7, 2018 at 11:43 AM
    #14
    BarcelonaTom67

    BarcelonaTom67 Well-Known Member

    Joined:
    Mar 25, 2017
    Member:
    #214386
    Messages:
    468
    Gender:
    Male
    First Name:
    Tom
    El Dorado County, CA
    Vehicle:
    2017 Barcelona Red Off-Road DCSB M/T
    I also have a possibly dumb question, as I haven't added extra wiring and switches to a vehicle since around 2002...

    Do any of you all use relays in these light circuits, or do you all just wire these switches directly inline with whatever hot/power source you use? Back in 2002, when adding a couple extra sets of various lights to my previous truck (non-Toyota), I wired my switches to relays (which I added), which were directly in the power circuit. Just curious...

  15. Mar 8, 2018 at 8:00 AM
    #15
    ZekeR7

    ZekeR7 [OP] Well-Known Member

    Joined:
    Jan 19, 2018
    Member:
    #241779
    Messages:
    1,282
    Gender:
    Male
    Vehicle:
    2018 TRD Off-Road 4x4 Quicksand
  16. Mar 8, 2018 at 8:01 AM
    #16
    ZekeR7

    ZekeR7 [OP] Well-Known Member

    Joined:
    Jan 19, 2018
    Member:
    #241779
    Messages:
    1,282
    Gender:
    Male
    Vehicle:
    2018 TRD Off-Road 4x4 Quicksand
    I used inline fuses

    BarcelonaTom67 likes this.
  17. Mar 8, 2018 at 8:03 AM
    #17
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,373
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    I'm waiting on one to be designed. I have the locker one already there and I'm moving the rear window switch so that it's next to sunroof controls.

  18. Mar 8, 2018 at 2:03 PM
    #18
    Tracoma17

    Tracoma17 Well-Known Member

    Joined:
    Mar 9, 2017
    Member:
    #212828
    Messages:
    146
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2017 Black Tacoma Limited
    Tinted windows, Clear Bra, running boards
    BT17 likes this.
  19. Mar 8, 2018 at 2:06 PM
    #19
    ratcityrain

    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,373
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
  20. Mar 8, 2018 at 2:40 PM
    #20
    Parker315

    Parker315 Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127

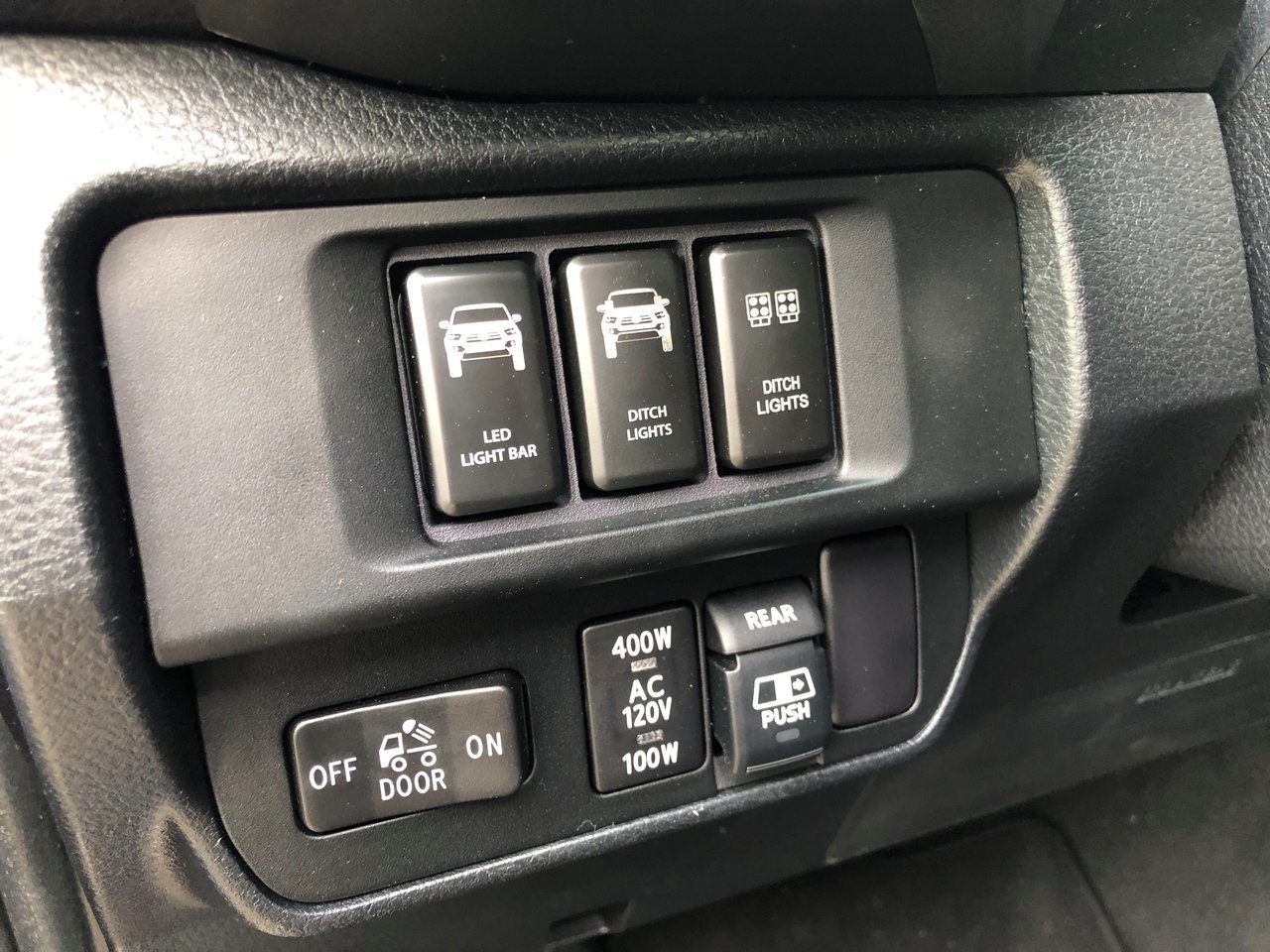

    Nice How too! I actually got my switch panel from ShapeWays link HERE. It was originally made by @forty2 link to original post HERE

    I got my switches from CH4x4 which is a great place for tons of variety and options on switches. Link HERE

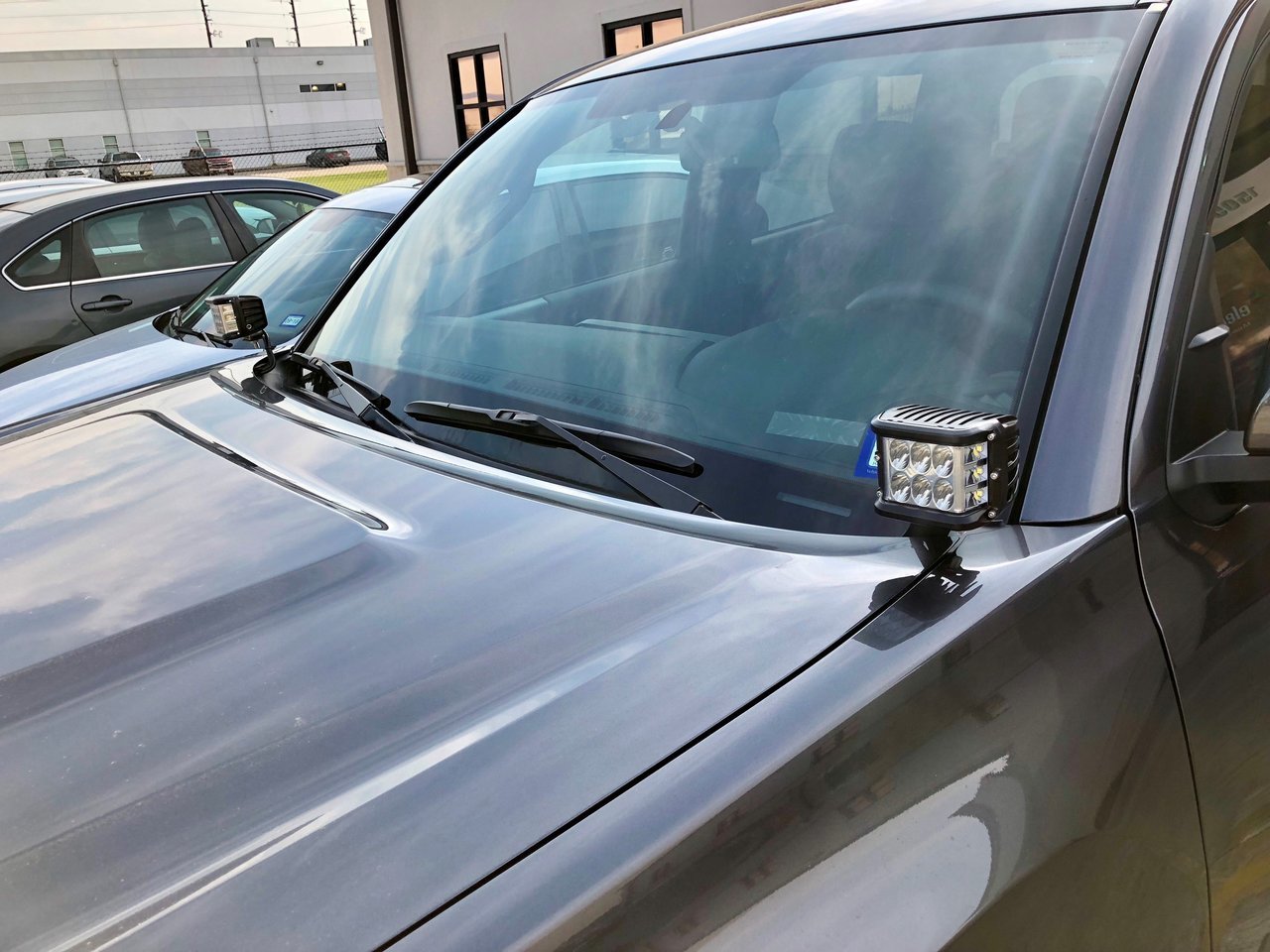

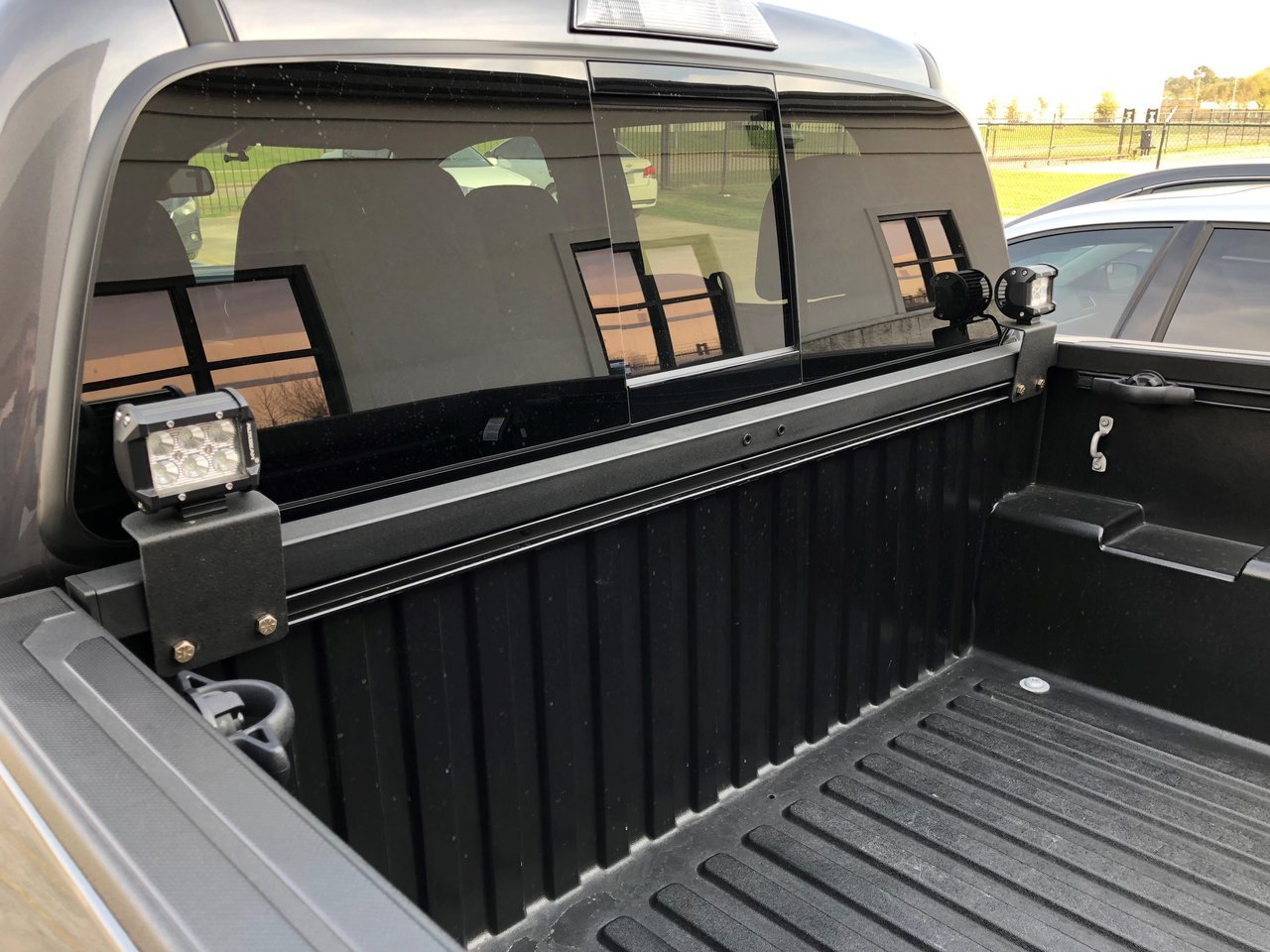

    I hooked up a 32" LED light bar in the bumper, Some @CaliRaisedLed LED pods on the front and some small 4" pods on the bed.

    switch panel.jpg front pods.jpg rear pods.jpg


    Last edited: Mar 10, 2018
    BarcelonaTom67 likes this.
