Let me see your DIY stock rim paint job

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ef1992, Jan 2, 2012.

  1. Jan 2, 2012 at 3:00 PM
    #1
    ef1992

    ef1992 [OP] Member

    Joined:
    Apr 1, 2010
    Member:
    #34424
    Messages:
    6
    Gender:
    Male
    First Name:
    Eric
    LA; South bay
    Vehicle:
    Currently own a 2001 v8 Jeep Grand Cherokee
    I used the search engine and didn't find what I was looking for, which is several photos of stock rims that were spray painted BLACK. Im looking for pictures with someone who went through the steps of cleaning, sanding, primer, several coats of spray etc.(maybe even clear coat?)

    Im on an extreme budget and I have the patience to properly paint these wheels myself, I just want to see some examples if I could please.

    Thanks, Happy New Year.

    PS- I have a stock 2006 single cab pre-runner. Its a maroon/deep red. Thought black would look very nice. Satin not gloss.

  2. Jan 2, 2012 at 3:06 PM
    #2
    canadian tacokid

    canadian tacokid Member

    Joined:
    Aug 16, 2011
    Member:
    #61798
    Messages:
    18
    Gender:
    Male
    nova scotia
    Vehicle:
    2001 4x4 v6 5 speed taco
    stock, just got brand new frame from from dealership, 277k miles still running strong

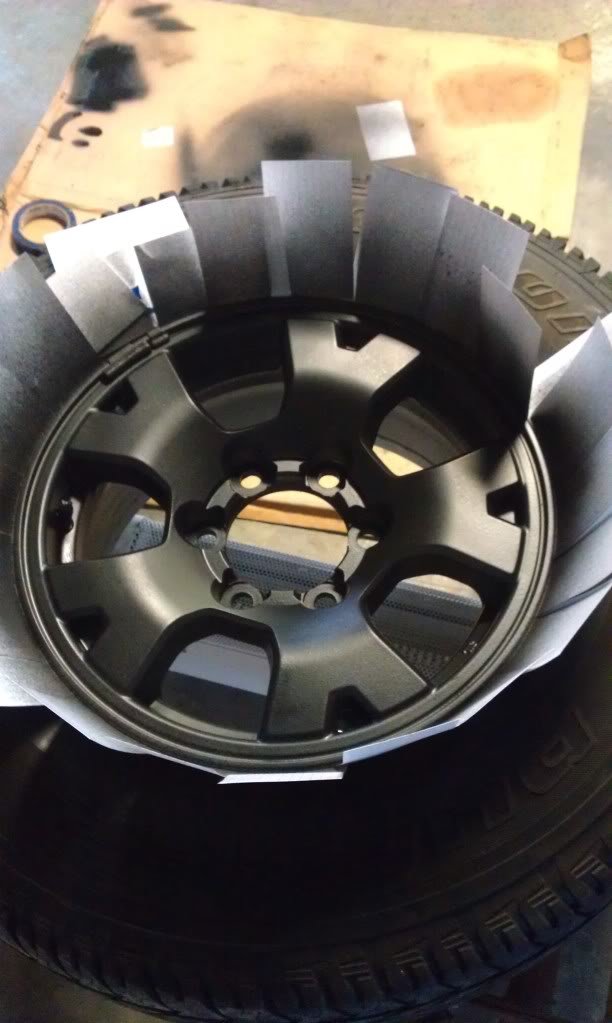

    sanded
    [​IMG]

    primed
    [​IMG]

    first coat
    [​IMG]

    second coat
    [​IMG]

    final coat
    [​IMG]

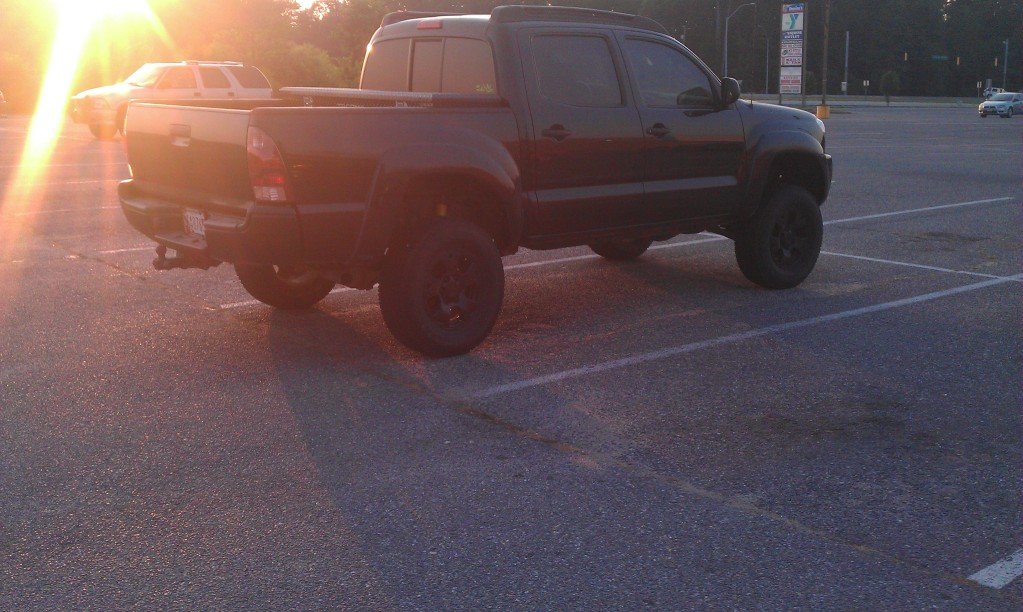

    installed
    [​IMG]

    [​IMG]

  3. Jan 2, 2012 at 3:08 PM
    #3
    TACOMABOSS

    TACOMABOSS Well-Known Member

    Joined:
    Jul 7, 2011
    Member:
    #59499
    Messages:
    4,302
    Gender:
    Male
    Vehicle:
    96 SR5 4x4
    Bilstein 5100s, Toytec AAL, Deck plate mod, Hella 500ff's, Sportsman Camo seat covers, Total Chaos 1" diff drop, JVC stereo, Painted bumpers and grille, Custom grille insert, HID projectors, Black spray paint

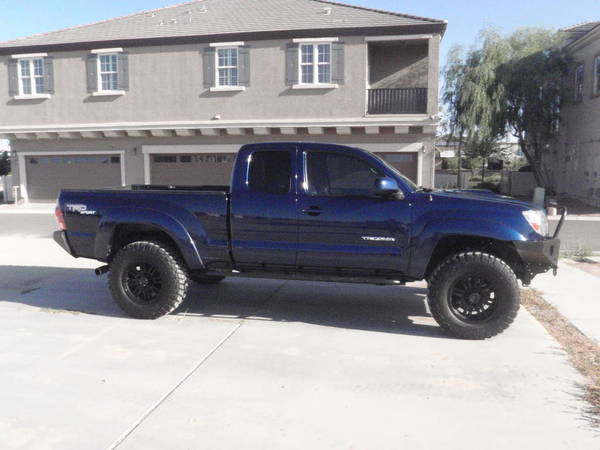

    all i did was clean them up with SOS pads and rattle canned away.
    [​IMG]

  4. Jan 2, 2012 at 3:09 PM
    #4
    canadian tacokid

    canadian tacokid Member

    Joined:
    Aug 16, 2011
    Member:
    #61798
    Messages:
    18
    Gender:
    Male
    nova scotia
    Vehicle:
    2001 4x4 v6 5 speed taco
    stock, just got brand new frame from from dealership, 277k miles still running strong
    i used 80grit then 150grit and last i believe was somewhere near 300grit, just regular sand paper and my hands,

  5. Jan 2, 2012 at 3:20 PM
    #5
    wrxRome

    wrxRome Houston's Swamp Rat

    Joined:
    Aug 25, 2011
    Member:
    #62338
    Messages:
    5,880
    Gender:
    Male
    First Name:
    Brandon
    Covington, LA/Friendswood,TX
    Vehicle:
    06 SWB 4x4 trd off road
  6. Jan 2, 2012 at 8:11 PM
    #6
    ef1992

    ef1992 [OP] Member

    Joined:
    Apr 1, 2010
    Member:
    #34424
    Messages:
    6
    Gender:
    Male
    First Name:
    Eric
    LA; South bay
    Vehicle:
    Currently own a 2001 v8 Jeep Grand Cherokee
    THANK YOU to everyone who contributed. Very very helpful stuff. I have a feeling its going to be pretty nice looking. I cant decide between semi gloss and flat black. Im thinking the flat black might look too tacky and fake. Well see, its only wheels.

    Thanks again! <3

  7. Jan 2, 2012 at 8:54 PM
    #7
    RockRescue

    RockRescue Well-Known Member

    Joined:
    Sep 19, 2011
    Member:
    #63796
    Messages:
    97
    Gender:
    Male
    Oregon
    Vehicle:
    2007 TRD Sport
    semi will be easier to keep clean flat colors are harder to keep clean

  8. Jan 2, 2012 at 8:55 PM
    #8
    MonkeyChief

    MonkeyChief Mr. Magoo

    Joined:
    Dec 20, 2011
    Member:
    #69116
    Messages:
    177
    First Name:
    Citizen #1839-7634-001
    In the desert, by the beach, under the mountains
    Vehicle:
    2012, DCSB, 4x4, TRD Sport (for the skewp)
    884, OME shocks 4 corners, no badges / decals
    I'm wondering if anyone ever paints wheels silver instead of going silver to black? Is anyone just refinishing the wheels or even going black to silver?

  9. Jan 2, 2012 at 9:04 PM
    #9
    TACOMABOSS

    TACOMABOSS Well-Known Member

    Joined:
    Jul 7, 2011
    Member:
    #59499
    Messages:
    4,302
    Gender:
    Male
    Vehicle:
    96 SR5 4x4
    Bilstein 5100s, Toytec AAL, Deck plate mod, Hella 500ff's, Sportsman Camo seat covers, Total Chaos 1" diff drop, JVC stereo, Painted bumpers and grille, Custom grille insert, HID projectors, Black spray paint
    i used flat on mine and it doesnt look tacky at all. looks pretty good imo

  10. Jan 2, 2012 at 9:31 PM
    #10
    Nater

    Nater Well-Known Member

    Joined:
    Mar 30, 2011
    Member:
    #54071
    Messages:
    45
    Gender:
    Male
    First Name:
    Nate
    Vernal, UT
    Vehicle:
    '10 Sport Access Cab
    Bestop, custom storage in bed, many more to come she's only two months old!
    Here's mine... Degreased, scotch brite, self etching primer, and 4-5 coats of paint. so far, so good.

    [​IMG]

    [​IMG]

  11. Jan 3, 2012 at 7:36 AM
    #11
    GeauxTigers

    GeauxTigers //TRD

    Joined:
    Jul 17, 2011
    Member:
    #60041
    Messages:
    481
    Gender:
    Male
    First Name:
    Caleb
    Sterlington, Louisiana
    Vehicle:
    '06 TRD OffRoad Access Cab 4x4
    Badge delete, plastidipped grille, 20% window tint, mudflap delete, Black LowProfile Toolbox, AFE ProDry Drop in Filter, 265/70/17 Federal Couragia MT's, 17x9 XD Addicts, DeeZee Bedmat, Bilstein 5100s in front @1.75", ToyTec 1.5" AAL, TRD Seat Covers, Pioneer AVH-P2300DVD Double Din with Boyo back-up camera, 4x Polk DB651s 6.5 speakers, Husky Liners, Weathertech window visors, Fog Light Anytime, LED interior and license plate lights.
    any trd offroad wheels?

  12. Jan 3, 2012 at 11:14 AM
    #12
    TheGrinch

    TheGrinch Cheese Head.

    Joined:
    Dec 22, 2010
    Member:
    #48070
    Messages:
    953
    Gender:
    Male
    First Name:
    Sean
    RP, CA
    Vehicle:
    07 TRD DCSB OffRoad on 33's
    6" procomp lift
    Or even any non stock with matte black? Don't wanna jack your thread but would love to see some pics too. Don't know if I wanna powder coat or paint my motto metal chrome ugly thongs

  13. Jan 5, 2012 at 8:19 AM
    #13
    ewa2fl

    ewa2fl Taco Jinx...

    Joined:
    Jun 8, 2011
    Member:
    #57945
    Messages:
    105
    Gender:
    Male
    First Name:
    Ed
    Wayne Co. 14516
    Vehicle:
    Tacoma DBLB V6 4x4
    Plati-Dip Badges & Removed a few, added D-rings in Bed, added recovery D-shackle, Added Front Recovery Hook, TRD Skid Plate-Rhinoed, added 2 mini tie downs, removed rear seat headrests.
    Plasti-Dipped! :)

    09-01-2011 Cooper AT-3's 265-70-16.jpg

  14. Jul 31, 2012 at 7:59 AM
    #14
    JW Stockton

    JW Stockton Member

    Joined:
    Jul 23, 2012
    Member:
    #83279
    Messages:
    13
    Gender:
    Male
    First Name:
    John
    Tacoma
    Vehicle:
    05 PreRunner
    Dig the contrast of the toyota symbol! How did you manage that?

  15. Jul 31, 2012 at 8:36 AM
    #15
    stocksport

    stocksport Well-Known Member

    Joined:
    Apr 11, 2012
    Member:
    #76715
    Messages:
    120
    Gender:
    Male
    Orlando, FL
    Vehicle:
    White 2011 TRD Sport DC 4x4
    Blacked out emblems, Weathertech liners, LED interior, tag, and 3rd brake light, reverse light mod, rear TSB, rear diff. breather, added black factory running boards, OR tow hook, and rhino lined UWS low profile box.
    Agreed and was wondering the same thing.

    Thinking about going the plasti dip route for starters.

  16. Jul 31, 2012 at 8:43 AM
    #16
    chewingonabone

    chewingonabone Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82646
    Messages:
    80
    Gender:
    Male
    First Name:
    Josh
    Charlotte, NC
    Vehicle:
    09 Tacoma SR5
    Retrax One tonneau, bull bar, step bar, PL8521
    Great pics! I can't wait to do this to my steelies! ...Just gotta find time.

  17. Jul 31, 2012 at 8:43 AM
    #17
    BassMaster06

    BassMaster06 VA ○ ES ○ SC

    Joined:
    Aug 11, 2010
    Member:
    #41558
    Messages:
    1,119
    Gender:
    Male
    First Name:
    Dan
    Ritter, SC
    Vehicle:
    Black DCSB
    3" OME w/ Dakars, LR UCAs, 285/75/16 Duratracs, SS extended brake lines, UWS low pro, torn CV boots
  18. Jul 31, 2012 at 12:27 PM
    #18
    pdctaco12

    pdctaco12 Well-Known Member

    Joined:
    Jan 29, 2012
    Member:
    #71708
    Messages:
    129
    Gender:
    Male
    First Name:
    Phillip
    Western North Carolina
    Vehicle:
    2012 TRD Sport DC SB
    Anytime fogs, bkack emblems, horns, and blacked out center caps
  19. Jul 31, 2012 at 12:57 PM
    #19
    ccurtis0805

    ccurtis0805 Well-Known Member

    Joined:
    May 13, 2012
    Member:
    #78743
    Messages:
    198
    Gender:
    Male
    First Name:
    cale
    South Florida
    Vehicle:
    2010 SR5 4x4
    5100s all around, rear tsb, interior LEDs (center console, driver & passenger side floor boards, glove box, under a/c controls, rear cupholders; BHLM; DIY Satoshi
    [​IMG]
    [​IMG]
    [​IMG]

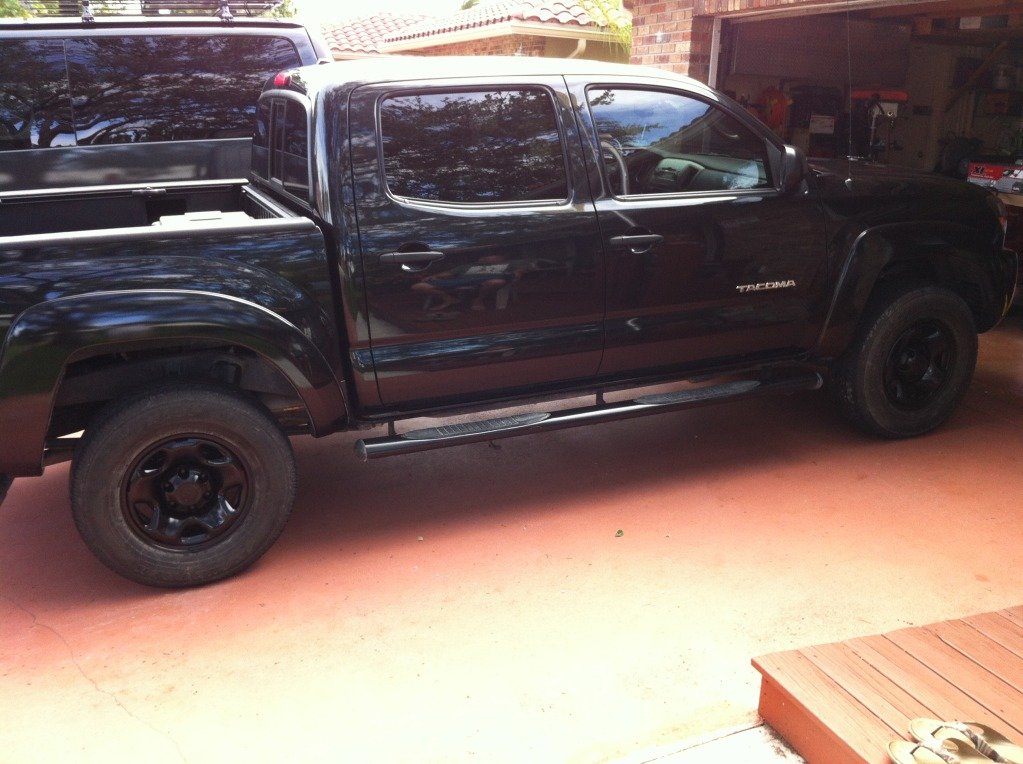

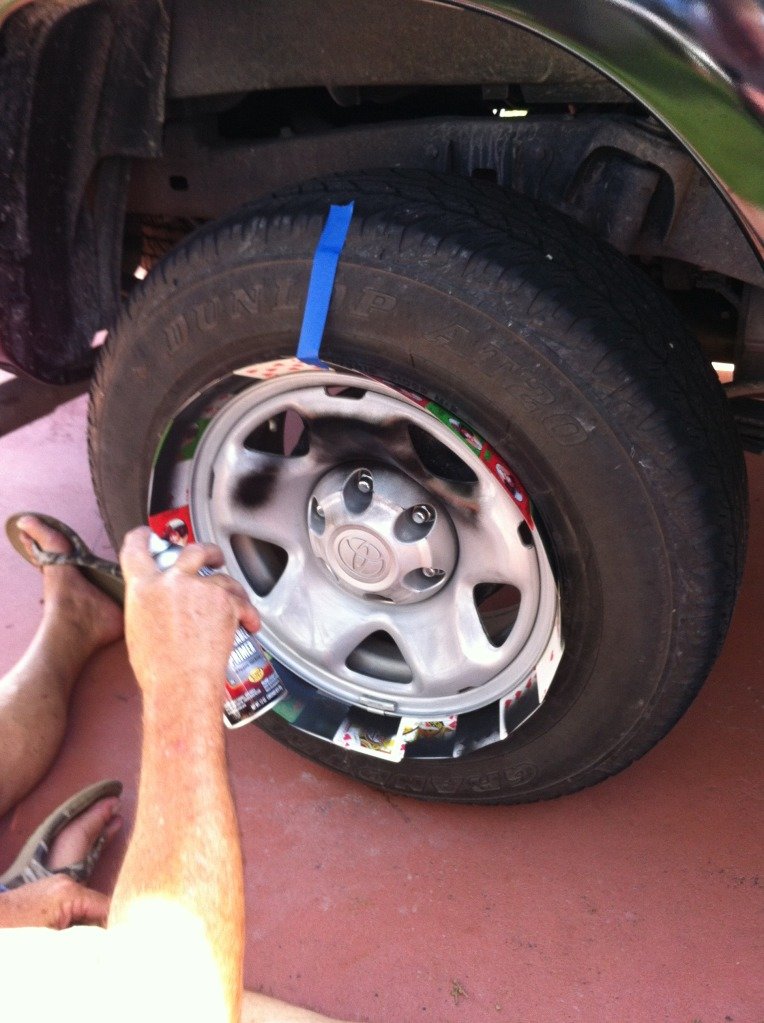

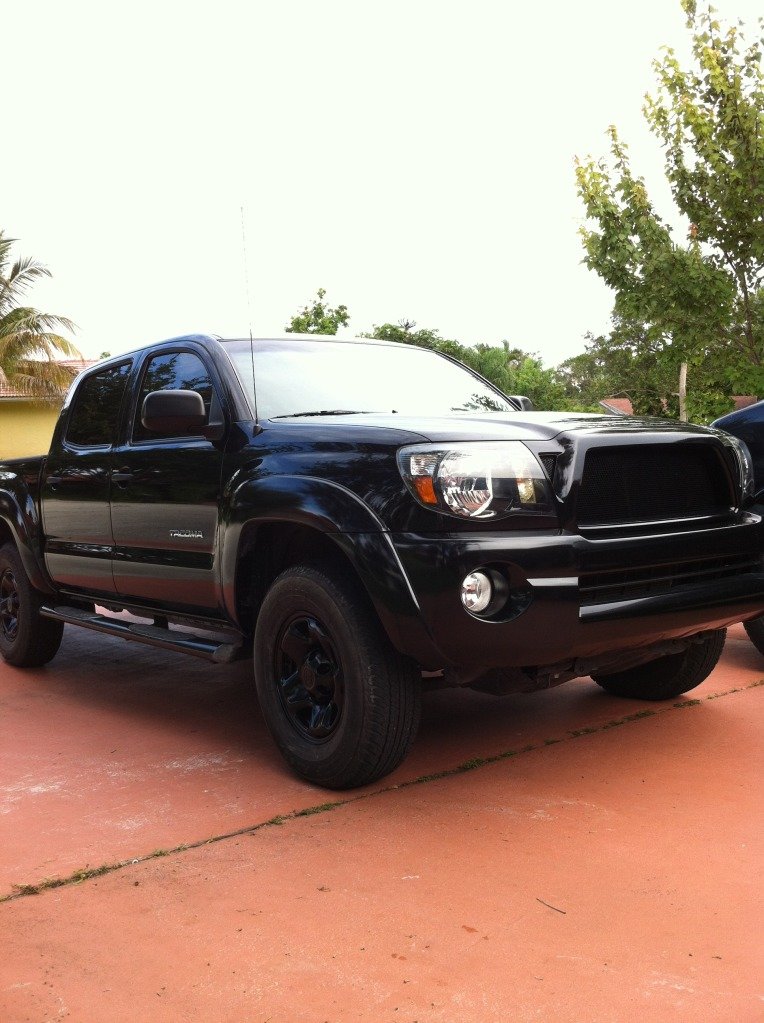

    did mine in about 2 hours with a little help from the father. I did all the sanding and he came behind me with the paint. One coat of primer and one coat of black gloss. didn't do anymore than that because I figure I'll have to hit them again in a few months or sooner depending on the amount of off roading I do. using the playing cards or index cards was such a bad ass idea though (saw someone on here do it). Can't tell you how much time that saves you as opposed to to trying to tape the wheel off.

  20. Jul 31, 2012 at 1:05 PM
    #20
    Seabass

    Seabass Chrome won't get you home

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    6,463
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    You don't really care, do you.
    Did my shitty MB Wheels from Discount Tire with scotch-brites, 3 coats of primer and 4-5 coats of Duplicolor. It is a semi gloss that has the tiniest metal flakes in it. Rims look semi gloss shiny black when clean, but when slightly dirty they take on a cool gunmetal look.

    [​IMG]
