Loading a Motorcycle in a DCSB (pics)

Discussion in 'Motorcycles' started by Pugga, Oct 30, 2010.

  1. Oct 30, 2010 at 11:33 AM
    #1
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    There have been a few threads asking how to and people showing different methods so I figured I'd put up some pics of my method.

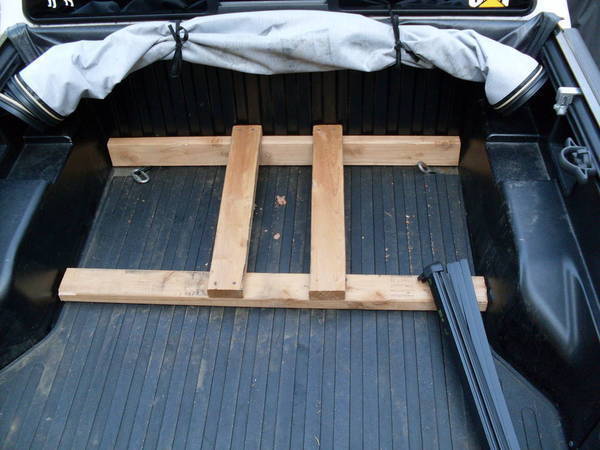

    First is a little contraption I made to keep the front tire straight while in transport. Just a couple of 2x4's I had laying around screwed together.
    [​IMG]

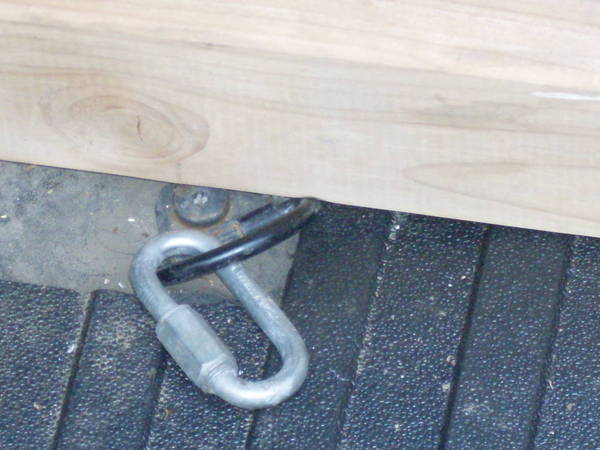

    The front D-rings I added. Purchased from Toyota, same as the factory ones in the back of the bed. I put an added link on to make it easier to hook a strap on to.
    [​IMG]
    Back the truck up against a hill, or put the back end in a ditch. From this angle I didn't even need to have the bike running to load it up.
    [​IMG]
    A shot of the front tied down. I bought the strap that uses the handlebars through Dennis Kirk.
    [​IMG]
    All tied down, 2 straps on the front, 2 on the back.
    [​IMG]
    All set and ready to go.
    [​IMG]

  2. Oct 30, 2010 at 11:35 AM
    #2
    brettb

    brettb Well-Known Member

    Joined:
    Nov 27, 2009
    Member:
    #26587
    Messages:
    1,527
    Gender:
    Male
    First Name:
    Brett
    Laramie, Wyoming
    Vehicle:
    '99 Tacoma TRD Offroad sr5
    3" fabtech fox front, 2.5" DAKAR/Bilstein 5100 rear
    Very cool :thumbsup: good looking bike and taco too :)

  3. Oct 31, 2010 at 1:55 PM
    #3
    GoatFiddyone

    GoatFiddyone Well-Known Member

    Joined:
    Feb 15, 2010
    Member:
    #31464
    Messages:
    258
    Gender:
    Male
    Orlando, FL
    Vehicle:
    '11 DC/ LB, 4x4, TRD Sport
    The strap he is referring to is called a Canyon Dancer. They are without a doubt the best way to tie a street bike down.

  4. Oct 31, 2010 at 2:05 PM
    #4
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Thanks, I remembered where I got it but couldn't remember what they're called.

  5. Oct 31, 2010 at 9:48 PM
    #5
    oldtimertoyota

    oldtimertoyota Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20697
    Messages:
    278
    Gender:
    Male
    New Mexico
    Vehicle:
    2009 4X4 Double Cab
    Good job and nice bike!

    Can you tell me a little more about the tie downs you added, did you have to drill holes? I noticed but have not really looked but there looks to be a few holes in the bed of my truck, not sure if they go through the frame though, could you give a little more detail on how you added the tie downs.

  6. Nov 1, 2010 at 6:44 AM
    #6
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Sure. I bought the same D-ring from Toyota that is already mounted in the rear of the bed (Cost about $50 for the pair, they aren't called the Stealership for nothin'). It came with the D-ring and the shouldered bolt. The holes that are in the front of your bed (there are 3) are for water to drain out of the bed. I drilled the outter 2 holes slightly larger to accomodate the bolt. I used a large plate washer on the underside and tightened them down. It is NOT bolted to the frame. The frame rails were too close together to tie the motorcycle down.
    Another option is military D-rings. You can get a set of military D-rings and install them with the bed bolts. There are 6 large torx head bolts connecting the bed to the frame. You undo them one at a time and install the D-rings, and tighten them in. Link to some Army surplus D-rings.
    http://www.armysurpluswarehouse.com/product/rope-ring-with-clip-b21-5-for-500-3752.cfm
    Another option is the JPMetal Fab bracket. If I had known about this before I drilled in my D-rings, I would have gone this route. Check out post 10 of this thread. It uses the side racks but mounts in a corner so you're not just pulling on one side of the bed.
    http://www.tacomaworld.com/forum/motorcycles/115612-hauling.html
    http://www.tacomaworld.com/forum/product-reviews/69666-hook-ups-dirtbike-solution.html

  7. Nov 1, 2010 at 6:49 AM
    #7
    Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,110
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    I have the newer canyon dancer that I used to use for my R1.
    The older one with the straps had problems cause it would twist on the throttle and put pressure on it.. The newer ones have a "cup" that slides over the ends instead.
    Looks like you have the one with the straps. correct?

  8. Nov 1, 2010 at 6:59 AM
    #8
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Yep, I've got the older model, I didn't know they revised it. I thought that was a dumb set-up, I fiddle with that thing for 20 minutes every time so when the strap has pressure on it, it doesn't twist the throttle. I might have to look into the newer ones. Thanks for the heads up!

  9. Nov 1, 2010 at 7:16 AM
    #9
    Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,110
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Yea. there like an abs cup that slips over the end. No fumbling with straps or anything. pull it tight and hook your other straps to it.
    I was talked out of the "older" style because the strap somehow turned the throttle back to full on and was putting uneaded pressure on the cable and stretching it. It was generating quite a bit of torque on the handle itself.
    pm me you addy and I will send you out the gen 2 with the cups. Hell, I dont need it since some asshat thiefs decided to steal my beloved Rossi skinned R1 while I was at work one nite.
    5 locks and they just picked it up and tossed it in a mini van. Douche nozzles.

  10. Nov 1, 2010 at 7:17 AM
    #10
    Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,110
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
  11. Nov 1, 2010 at 7:24 AM
    #11
    Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,110
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    here's a pic of the gen 2 cups.

    [​IMG]

  12. Nov 1, 2010 at 7:38 AM
    #12
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Holy crap man, that sucks! Some dick tried that with my old CBR when I was in Richmond, VA. They broke the handlebar lock but I had a Kryptonite lock on the disk they didn't know how to deal with. My neighbor said he saw them rocking the bike back and forth and when he yelled at them, they dropped the bike into the truck and took off. Left a nice dent in the side of my Chevy. The new method I use is the same disk lock, but make a 200 lb block of concrete with an eye hook in it and run a high strength chain between the eye hook and the kryptonite lock and block it in with the truck. Someone could still yank it if they really wanted to but I live in a complex with much nicer bikes that aren't as well protected so I figure I'm safe.

    As far as the new Canyon Dancer, I'll shoot you a PM, thanks for the offer!

    Very nice bike by the way!!

  13. Nov 1, 2010 at 7:58 AM
    #13
    Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,110
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    Thx. if they want it, they'll get it. Deter as much as possible and hope for the best.

  14. Nov 2, 2010 at 3:02 PM
    #14
    cbrbob

    cbrbob Member

    Joined:
    Nov 2, 2010
    Member:
    #45600
    Messages:
    15
    Gender:
    Male
    First Name:
    Bob
    Central, NJ
    Vehicle:
    06 X-Runner
    Try using soft straps around the lower triple clamps, then you never have a chance of the clip-on breaking(which does happen quite often I am sad to say). Also remember to have ALL the straps you use pull FORWARD, just in case one in front fails, the rest will keep it in place and not pull it to the rear. Wil 4 straps forward, you won't need the chock(boards in this case).

  15. Nov 2, 2010 at 4:33 PM
    #15
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    You still need the boards because of the composite box. It flexes more than the standard metal boxes. This is the first truck I've ever needed a wheel chock in. I do have all 4 straps pulling the bike forward (including the back straps) but because the box flexes, the first time I hauled the bike, the front tire turned sideways. Fortunately the straps were tight enough where it stayed standing up and the suspension took up the slack. Another tip for hauling a bike, check your straps after a few miles and make sure they're still tight.

    With a full fairing bike like this one, I can not get a strap to the triple clamp. The geometry doesn't work, the straps would be pulling against the plastic fairings unless I removed them before hand. I could tie my old CBR like that and did not need the Canyon Dancer.

  16. Nov 3, 2010 at 2:39 AM
    #16
    cbrbob

    cbrbob Member

    Joined:
    Nov 2, 2010
    Member:
    #45600
    Messages:
    15
    Gender:
    Male
    First Name:
    Bob
    Central, NJ
    Vehicle:
    06 X-Runner
    Hmm, never used a chock yet in 4 years with many different bikes, even with the flex in the bed. Never had a wheel turn yet. I see if the fairing extends too far forward it will contact it, though I never had anything I carried touch.

  17. Nov 3, 2010 at 2:53 AM
    #17
    skytower

    skytower Well-Known Member

    Joined:
    Jun 7, 2010
    Member:
    #38505
    Messages:
    3,221
    Gender:
    Male
    First Name:
    Dave
    virginia
    Vehicle:
    08 Tacoma 4x4
    Hitch and wiring, aux back-up light, rear strobe lights, radio and underseat sub.
    Keep in mind that the throttle grip is a plastic sleeve on the handlebar which is easily broken. The clutch grip is directly on the handlebar. At least that's the way my magna is setup.

  18. Nov 4, 2010 at 3:35 AM
    #18
    cbrbob

    cbrbob Member

    Joined:
    Nov 2, 2010
    Member:
    #45600
    Messages:
    15
    Gender:
    Male
    First Name:
    Bob
    Central, NJ
    Vehicle:
    06 X-Runner
    Which is why I try and not use handlebar style straps if at all possible. I do have a Cycle Cynch which is like a canyon dancer, but better if necessary.

  19. Nov 4, 2010 at 9:02 PM
    #19
    Gabex35

    Gabex35 Shinty Killer

    Joined:
    Jul 24, 2010
    Member:
    #40673
    Messages:
    1,176
    Gender:
    Male
    First Name:
    Gabe
    San Diego
    Vehicle:
    2014 4 Runner Trail Premium
    King OEM Performance Series with compression adjusters, Custom rear coils drom CSS, 22% Tint, Method Race NV's 17x8.5, 285/70-17 MTR's, AllPro welded Sliders, Cobra CB, Gobi stealth roof rack, Rigid 40" e series & duallys out back
    what kind of ramp is that?

  20. Nov 5, 2010 at 5:36 AM
    #20
    Pugga

    Pugga [OP] Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,965
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I'll have to check and see if there's a brand on it. My parents gave them to me for Christmas a couple years ago. They're rated to 750 lbs each and fold in half for storage. They're also aluminum so they're fairly lightweight. I'll check to see if I can find a brand on them when I get home but I'm pretty sure these are the ramps.
    http://www.northerntool.com/shop/tools/product_15771_15771
