Looking for front video camera for off roading and parking

Discussion in '3rd Gen. Tacomas (2016+)' started by bnv, Aug 22, 2017.

  1. Aug 22, 2017 at 11:59 AM
    #1
    bnv

    bnv [OP] Boy I say, use CRAWL to sneak up on that dawg!

    Joined:
    Jan 31, 2016
    Member:
    #176740
    Messages:
    515
    Gender:
    Male
    First Name:
    Bruce
    San Diego
    Vehicle:
    2016 Tacoma Access Cab TRD Off Road 4X4 Quick Sand
    Kings adj, TC UCA, Zeon 10s, PB bumper, BD 30" light bar, BD cornering lights, Line-X Grill, Wheels, Tires Duratracs, tint, gate lettering, glove box lettering, ARB compressor
    Last edited: Aug 22, 2017
  2. Aug 22, 2017 at 5:13 PM
    #2
    tacitos

    tacitos Tah-Key-Toes

    Joined:
    Nov 16, 2015
    Member:
    #169837
    Messages:
    1,771
    Gender:
    Male
    Vehicle:
    16 TRDORDCLBJBL
    I've seen some posts about it before. I purchased a slightly different, yet to install it though.

    bnv [OP] likes this.
  3. Aug 22, 2017 at 7:56 PM
    #3
    Mi2CaMatt

    Mi2CaMatt Well-Known Member

    Joined:
    Apr 21, 2016
    Member:
    #184923
    Messages:
    96
    Gender:
    Male
    First Name:
    M.
    San Luis Obispo, CA
    Vehicle:
    2016 DCSB TRD OR 6SM 4X4 QUICKSAND
    ALL-PRO sliders and pack rack, Tepui Ayer RTT, Total Chaos Bed Stiffeners, OME 2" Med/Heavy, FJ Steel Wheels, 255 80 R17 BFG KM2s, Wilco Offroad Hitchgate Solo High Clearance
    Been thinking the same thing ... I want to rig it up to come on in 1st, like how the rear comes on in R.

    Comb likes this.
  4. Aug 22, 2017 at 8:02 PM
    #4
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,912
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD 2JZ
    I just got all the components together and will be installing it this weekend. I will have the front camera being able to be activated on screen at any time with a OEM style push button. While the reverse will still work like stock. So far here are my components list and price;
    1)28pin OEM Radio T harness $13
    2)2X1 Rca video auto splitter $24
    3)OEM style camera button $13
    4)front camera $20

    So for about ~$70 total cost and will look factory:)

    The_Black_Pearl and shakerhood like this.
  5. Aug 22, 2017 at 8:40 PM
    #5
    Istan

    Istan Leave it stock they said

    Joined:
    Jan 3, 2017
    Member:
    #206502
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Stan
    Northern NV
    Vehicle:
    2016 Tacoma DCSB TRDOR
    When are you going to start selling these? I needs it.

    Shellshock and House Forsaken like this.
  6. Aug 23, 2017 at 10:17 AM
    #6
    IkemanTx

    IkemanTx Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195877
    Messages:
    322
    Gender:
    Male
    First Name:
    Isaac
    Vehicle:
    2017 4X4 SR5 Tacoma
    Ya.... we're going to need links to those items, as well as a detailed install write up. haha

  7. Aug 23, 2017 at 10:58 AM
    #7
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    3,481
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    Another awesome mod!! I want this for my Taco too. I'm planning on pulling the iQ switch and use that slot for the front camera switch.

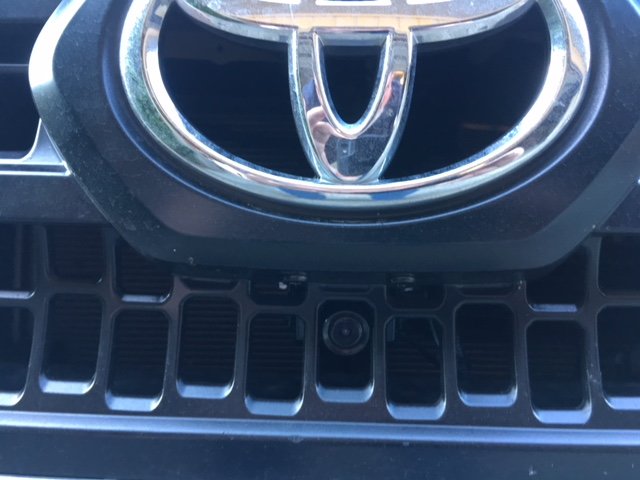

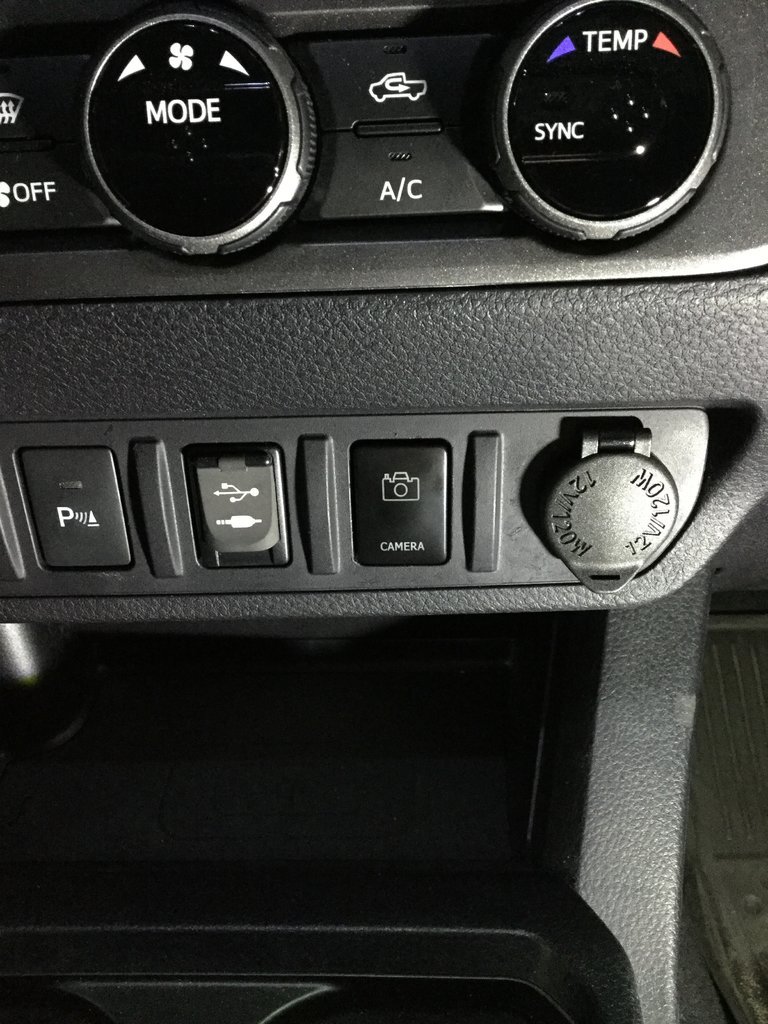

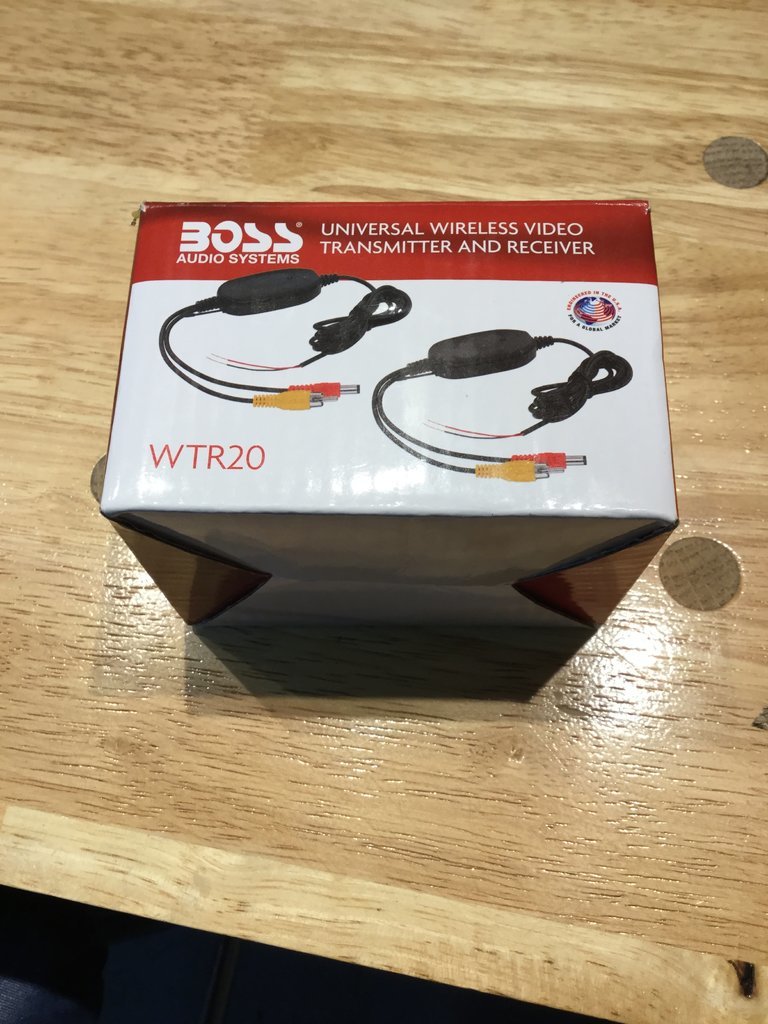

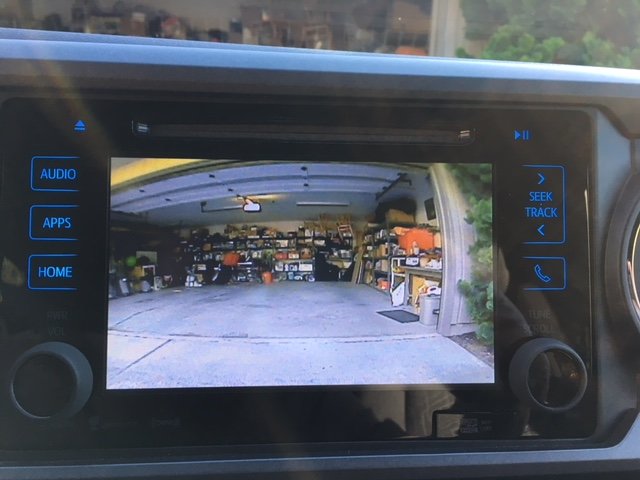

    Update: I finished up my install (Posted as “Throwing Codes”) as I had a brain fart during a late night install. Here are a few pics.


    Last edited: Oct 7, 2017
  8. Aug 23, 2017 at 10:59 AM
    #8
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,912
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD 2JZ
    I am doing the same..

  9. Aug 23, 2017 at 10:59 AM
    #9
    2017TRDpro

    2017TRDpro Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216440
    Messages:
    553
    Gender:
    Male
    Vehicle:
    2017 TRD Pro
  10. Aug 23, 2017 at 11:08 AM
    #10
    Reluctanse

    Reluctanse Granny shiftin, not double clutchin

    Joined:
    Apr 8, 2016
    Member:
    #183699
    Messages:
    464
    Gender:
    Male
    First Name:
    Sam
    Newberg, Oregon
    Vehicle:
    '17 Tacoma DCSB Inferno TRD OR 6MT
    OVTuned, Grabbers, 5100s, Bakflip VP
    In... this is on my to-do list after my first wheeling trip... can't see over the hood in this thing!

    chucklefunkk and shakerhood like this.
  11. Aug 23, 2017 at 11:12 AM
    #11
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    30,007
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    Good thing you don't have a Sport and have to try to look over that Scoop.

  12. Aug 23, 2017 at 11:28 AM
    #12
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    3,481
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    So you've never had the fun of having a buddy walking in front of you with a rag tied to a fishing pole so you could stay on the track? The old Blazers were impossible to see over their hoods when the angles got steep! Been at pucker factor 10 more than once!!!

  13. Aug 23, 2017 at 12:00 PM
    #13
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,912
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD 2JZ
    Edit

    Last edited: Aug 23, 2017
    slowpoke16taco likes this.
  14. Aug 24, 2017 at 6:25 AM
    #14
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,438
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    I have that exact camera installed. Not super happy with it, but its a lot better than nothing. I might eventually replace it but not right now...
    I used the following thread to design my wiring.
    https://www.tacomaworld.com/threads...ass-homelink-smartphone-mirroring-mod.473033/
    I went with a no-cut harness method to splice all my wires into, so that I wouldn't have to splice into my factory harness.

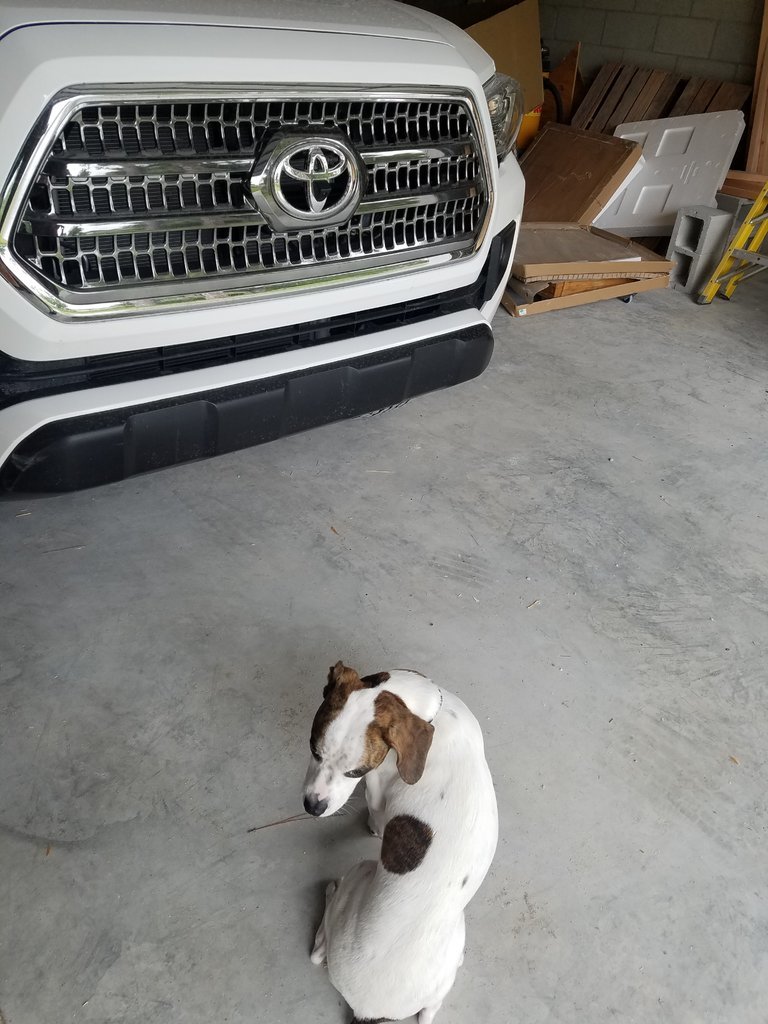

    A few pictures of the result. Sorry about the large size, I am normally a lurker and don't know what I am doing.

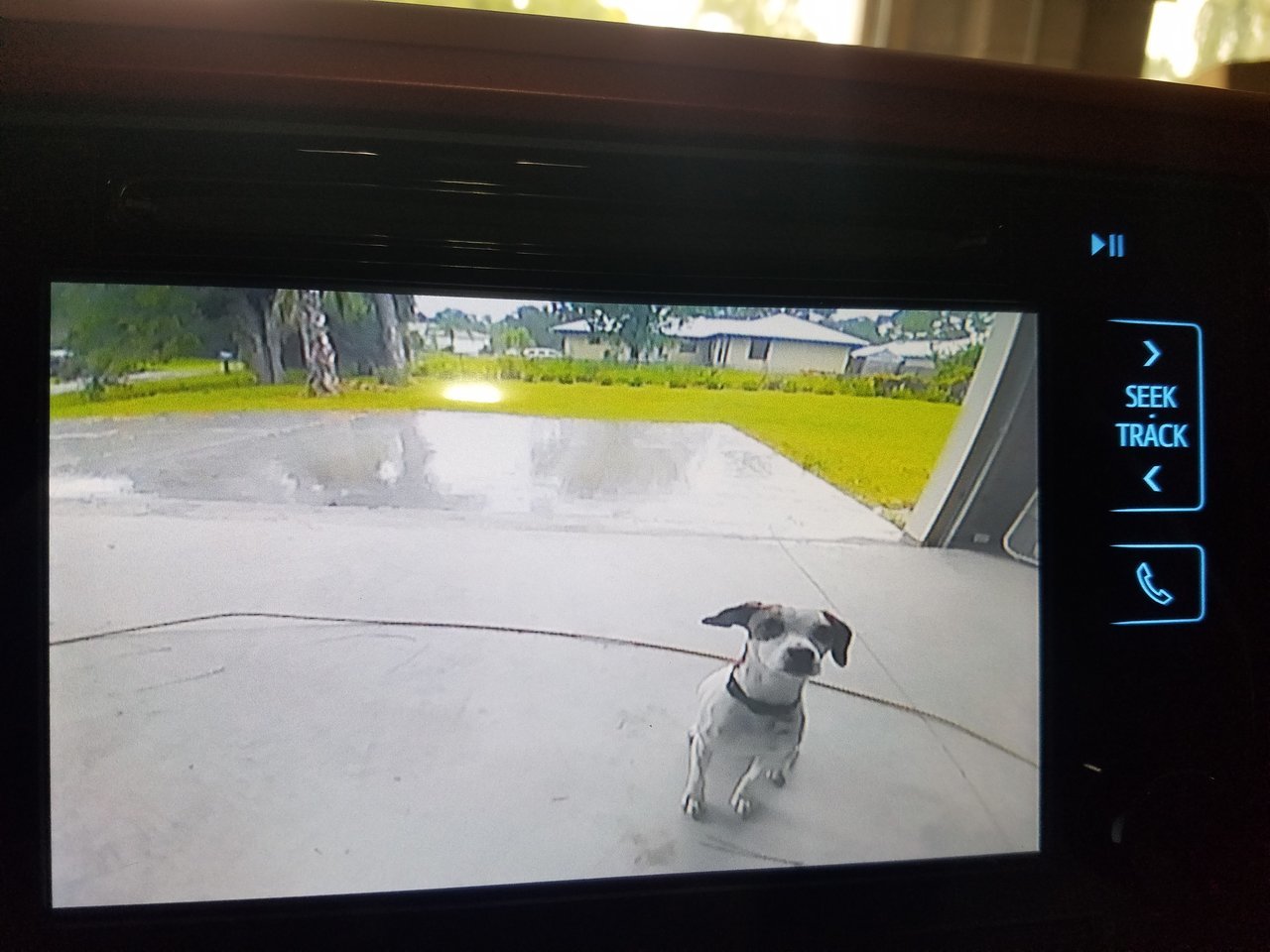

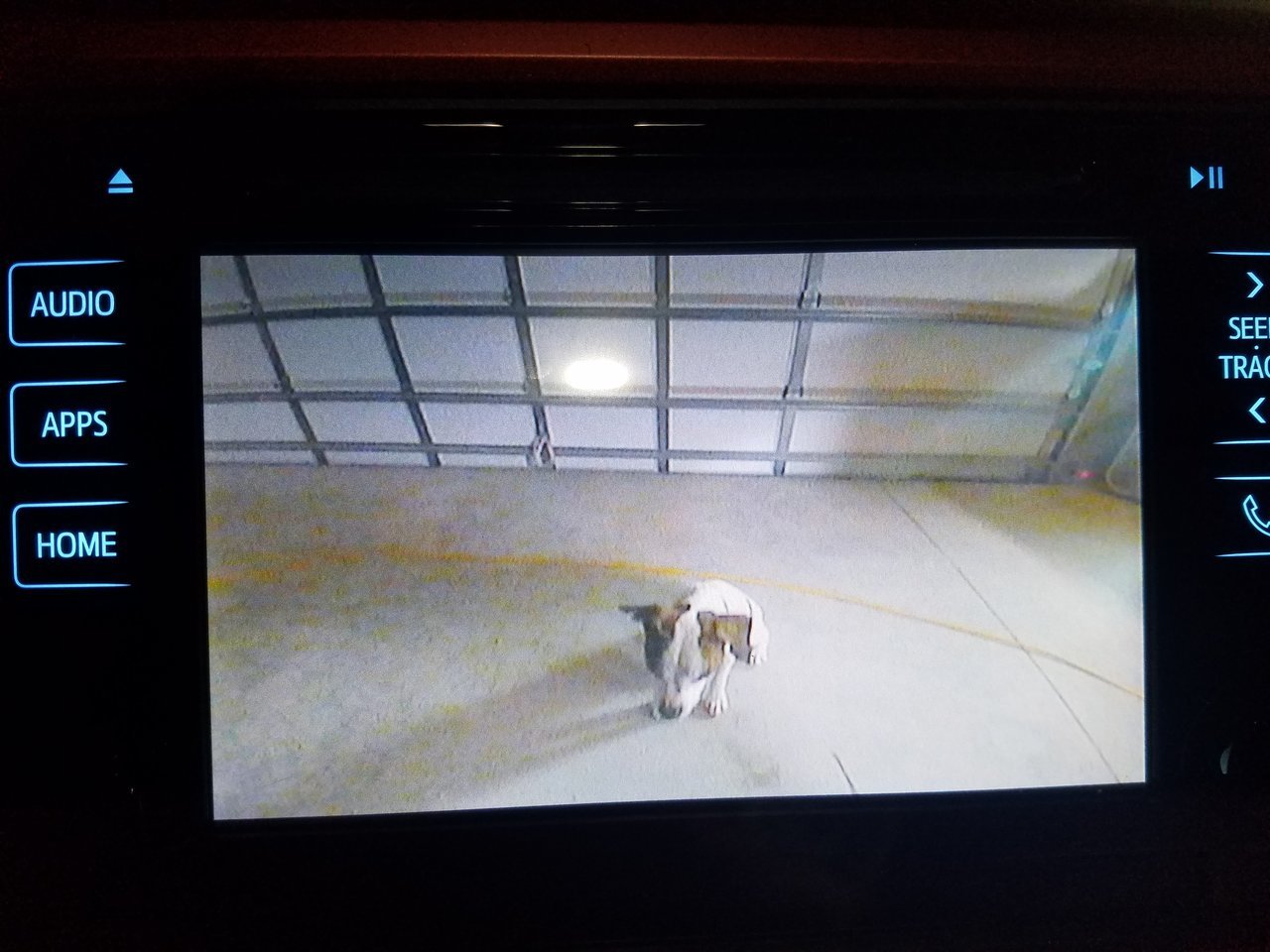

    Pictures of the head unit are with the garage doors shut with window illumination, and the garage door open. The two switches are my front and rear view anytime camera, and nav override switches.

    20170824_090817.jpg 20170824_090917.jpg 20170824_090922.jpg 20170824_090937.jpg

  15. Aug 24, 2017 at 8:28 AM
    #15
    IkemanTx

    IkemanTx Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195877
    Messages:
    322
    Gender:
    Male
    First Name:
    Isaac
    Vehicle:
    2017 4X4 SR5 Tacoma
  16. Aug 24, 2017 at 9:02 AM
    #16
    TurdOR89

    TurdOR89 Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220485
    Messages:
    289
    Gender:
    Male
    Vehicle:
    2017 Black TRD OFF ROAD DOUBLE CAB LONG BED
    Been wanting front camera

  17. Aug 24, 2017 at 12:02 PM
    #17
    amontances

    amontances Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205842
    Messages:
    117
    Gender:
    Male
    Vehicle:
    2017 White Tacoma OR
    TRD Pipes | 18" Fuel Assault | Roof Rack | Tint | Steps | Husky Floor Liners | Bed Liner | LED Interior Lights | Swing Arm Bed Storage |

    hi... just saw your post. i have the anytime front/rear camera setup. i haven't installed it just yet, but will be very soon. the little switch on the left; is that a mini SPDT switch? and why do you have a NAV over ride switch? when do you need to use the NAV over ride?

  18. Aug 24, 2017 at 12:25 PM
    #18
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,438
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    The LH switch is a little SPDT switch with On-Off-On positions from digikey.com

    Nav override primarily lets a passenger type addresses into the nav system. It can be permanently overridden, but it seems to permanently reduce the gps refresh rate if you do. Don't use that switch very often, but might as well do it while I had harnesses opened up.

    Feel free to ask any other questions.

  19. Aug 24, 2017 at 12:33 PM
    #19
    amontances

    amontances Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205842
    Messages:
    117
    Gender:
    Male
    Vehicle:
    2017 White Tacoma OR
    TRD Pipes | 18" Fuel Assault | Roof Rack | Tint | Steps | Husky Floor Liners | Bed Liner | LED Interior Lights | Swing Arm Bed Storage |
    i seem to be having a hell of a time trying to find a "MINI" dpdt switch that will fit in the place you put yours on. then again, you just said that it is a SPDT switch. i thought that a DPDT was needed to operate the front/rear anytime camera mod. do you have a direct link to that mini spdt switch?



  20. Aug 24, 2017 at 1:00 PM
    #20
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,438
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    It is very hard to find a DPDT switch that is small that will fit there, so I put a SPDT.
    https://www.digikey.com/products/en?keywords=EG5440-ND

    Especially with electronics, there are an inifinte number of ways to skin a cat. Some methods definitely have advantages. The method I used has some more parts, but I like how clean it came out. My version of the wiring uses diodes and a DPDT relay and SPDT switch was inspired by @Abec23 here: https://www.tacomaworld.com/threads...martphone-mirroring-mod.473033/#post-14341706 with some personal mods such as I am switching camera power with the spdt switch and camera signal with soft relay.
    Note, I would NOT use the relay I used the first time, as it was too hard to solder wires to, but this is what I used.
    https://www.digikey.com/products/en?keywords=399-11029-5

    Basically, for the rear camera position, the switch just powers 12v into the backup wire. For the forward camera position, the switch powers 12v into the backup wire and switches the relay to send front camera signals to the head unit. The diodes are used to keep the functions from happening all the time.

    Edited to clarify changes I made to the referenced wiring.


    Last edited: Aug 24, 2017
