Mini H1 retrofit

Discussion in 'Lighting' started by REDTRD, Sep 4, 2012.

  1. Sep 4, 2012 at 10:23 AM
    #1
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    I just got my whole setup to do the mini H1 retro, I even bought a second set of headlights to give my self plenty of time to do it. My question is has anyone done a write up on the mini H1 for second gen headlights yet? I've searched and best I could find was one for 1st gen. I know they are plenty for the FX-R and D2S. My plan is to start tonight on it and finish by the weekend. So far only thing I haven't figured out is what order the "4" washers they sent go in.:confused: Hopefully I can post pics as I go (atleast that's my plan) Thanks for any help!

    Will be updating with pics thru the whole process!

    This is what I'm working with as far as the kit from www.theretrofitsource.com
    1 x Bi-xenon Morimoto Mini Stage III Kit (H1) (MiniH1III)
    Re-sealing Glue Yes please
    Wire Harness Relay: H4/9003
    Shrouds 1) Mini Gatling Gun (standard model)
    Ballasts Morimoto 3Five (35w)
    Halos No Thanks
    Projectors LHD (North American Standard)
    Bulbs H1: Morimoto 3Five 5000K
    [​IMG]

    [​IMG]

  2. Sep 4, 2012 at 10:29 AM
    #2
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
    I see this thread didn't take to long to pop up after you got your retros in! Good luck, Mine should be here thursday

  3. Sep 4, 2012 at 10:35 AM
    #3
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
  4. Sep 4, 2012 at 10:36 AM
    #4
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    BTW...I like your workshop set-up! Looks clean

  5. Sep 4, 2012 at 10:37 AM
    #5
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!

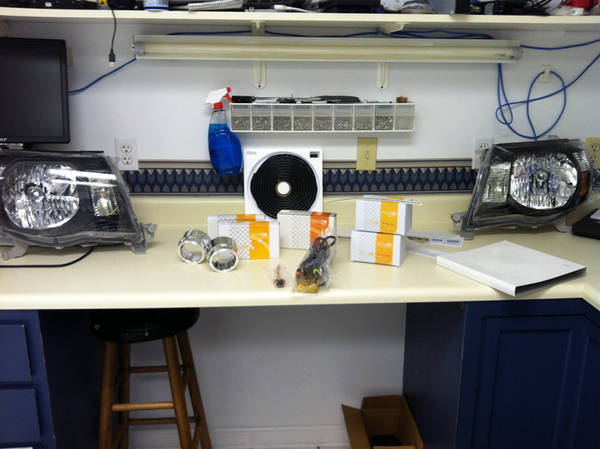

    lol I know I've got everything sitting here in my office at work right trying to put it all together in my head. I've got all kinds of shit printed out to try make myself some kind of walk thru process. You will love the quality of the kit though man TRS out did themselves.

  6. Sep 4, 2012 at 10:37 AM
    #6
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
    ^^ i second that, sweet workbench!

  7. Sep 4, 2012 at 10:46 AM
    #7
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
  8. Sep 4, 2012 at 10:50 AM
    #8
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    Yeah, that's correct, H4. Just remember to do your horizontal alignment before you permanently lock everything in place and put the front lens on.

    The H1 is pretty easy to work with...you can do it!

  9. Sep 4, 2012 at 10:53 AM
    #9
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,932
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
  10. Sep 4, 2012 at 10:56 AM
    #10
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    Cody that is the thread I've been looking for! I read yours earlier and yours helped explain alot to even though it was for a 1st gen (btw looks great) for some reason I couldn't find that thread again when I needed it. Also thanks again Oliver for the quick help! I think I'm just thinking this is gonna be harder than it really is lol I guess that's why I bought a second set of lights in case I screwed it up!

  11. Sep 4, 2012 at 11:09 AM
    #11
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,932
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    Don't worry. I have the mechanical skills of a quadriplegic walrus, and I still got mine done in a few hours :thumbsup:

    and I used my only set of assemblies :spy:

  12. Sep 4, 2012 at 11:16 AM
    #12
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    HAHA! Well I'm ranked right up there pretty close to one of those myself ;)

  13. Sep 4, 2012 at 12:29 PM
    #13
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    Cody's right, it's pretty simple...once you have your headlight assy apart, it's straight forward from then on...it'll take longer if your painting the housing and shroud, but other than that, it's easy peasy.

  14. Sep 4, 2012 at 12:38 PM
    #14
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!

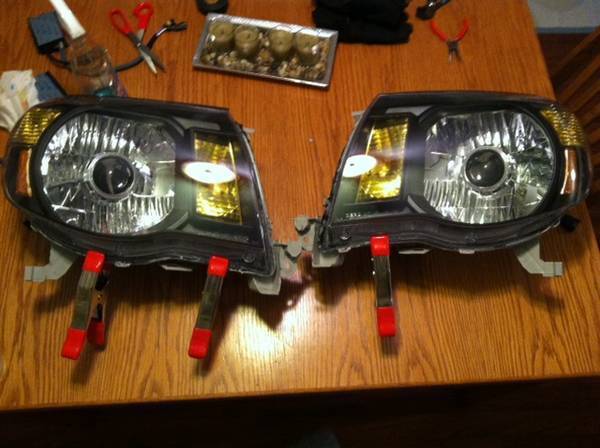

    The spare set I bought were already done painted black, so I'm gonna leave them and the reflector bowl alone. Only thing I'm gonna paint are the turn signal reflectors with some krylon staind glass yellow to match the fogs. So all in all it should be pretty painless retro! oh and which temp works best and for how long...lol I've read 255 265 300 5 min 10 min 12 min blah blah

  15. Sep 4, 2012 at 12:41 PM
    #15
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    I pre heated the oven to 300 F, turned it off and then put the headlights in (lens up) on cardboard for 10 mins....I kept a close eye on it (for the first one) to make sure it didn't start to melt anything. I would do the same since it's not OEM ones your using.

  16. Sep 4, 2012 at 1:29 PM
    #16
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!

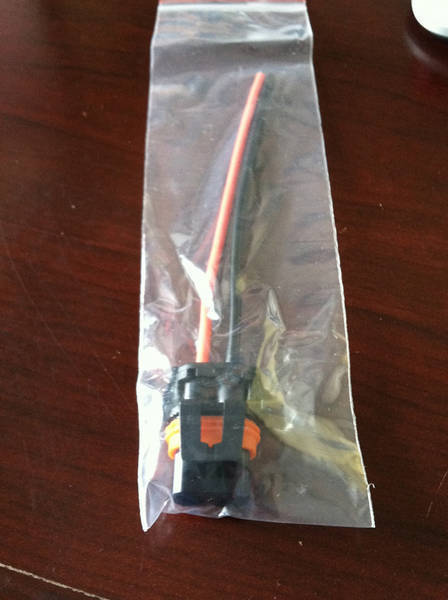

    ok last question for the day lol is this just a extra connection or something?:confused:
    [​IMG]

  17. Sep 4, 2012 at 1:30 PM
    #17
    Tacolover443

    Tacolover443 Well-Known Member

    Joined:
    Jul 23, 2011
    Member:
    #60381
    Messages:
    602
    Gender:
    Male
    First Name:
    Kyle
    Haverford, PA
    Vehicle:
    07 TRD OR DCSB BSP
    Satoshi, color match grill, 2 Hella 500ff's, rear TSB, yellow "Taco", OEM all-weather floor mats, OEM TRD seat covers, Ultra-Gauge, bed linered rear bumper, Plasti-dipped rims, DuraTrac's,
    That is the test lead.

  18. Sep 4, 2012 at 1:33 PM
    #18
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    like Kyle said...test lead

    plug that into the balast and connect the other ends to 12V (obviously orange to + and black to -)

  19. Sep 4, 2012 at 1:38 PM
    #19
    REDTRD

    REDTRD [OP] Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    Thank you both, man Oliver I'm gonna have to +++REP the hell outta you after this is done lol. Your freaking johnny on the spot with answers. I'll fedex you a 12 pack of your favorite beer!

  20. Sep 4, 2012 at 2:04 PM
    #20
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    hahaha...glad I could help! isn't this what these forums are for??!!
