My Differential Breather Mod Photos

Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

  1. Feb 4, 2013 at 6:59 PM
    #321
    CUtacomaTIGER

    CUtacomaTIGER Unprofessional Driver

    Joined:
    Jul 23, 2011
    Member:
    #60412
    Messages:
    380
    Gender:
    Male
    Clemson
    Vehicle:
    '01 4X4 SR5 Chrome Stepside
    Black Wheels Window Rain Guards Bed Liner Tow Hitch w/4 Pin Weathertech Floor Mats Flowmaster Deck Plate Mod Window Tint Rear Diff Breather Mod Blacked out Badges
    I believe the threads on toyotas use BSPT not NPT

    this sources confirm my thoughts some what:
    -http://www.tacomaworld.com/forum/1st-gen-tacomas/15223-diy-differential-breather-extension-3.html
    -http://www.youtube.com/watch?v=hXqzJJtKW7A
    -http://www.fjcruiserforums.com/forums/engine-performance/111727-oil-pressure-kit-connection.html
    -http://www.4crawler.com/4x4/CheapTricks/WaterProofing.shtml

    BadBrains likes this.
  2. Feb 9, 2013 at 9:07 AM
    #322
    Hylandr18

    Hylandr18 New Member

    Joined:
    Jan 8, 2013
    Member:
    #94737
    Messages:
    2
    Gender:
    Male
    First Name:
    AL
    New York
    Vehicle:
    Tacoma Sport
    Fog light bypass,TPMS bypass,LED cap lights
    My son burned up his rear differential in his 2005 because this vent became clogged.He traded it in for a 2013 so, I'm glad I joined this forum and came across this post.Thank You very much as this will probably save me $ in the future Very helpful!

  3. Feb 12, 2013 at 12:21 PM
    #323
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yes, much harder to clog it up if it is up inside the storage compartment and not down in the mud!

  4. Mar 1, 2013 at 12:08 PM
    #324
    akaryanreynolds

    akaryanreynolds STRIKER TRD

    Joined:
    Jul 31, 2012
    Member:
    #83823
    Messages:
    524
    Gender:
    Male
    First Name:
    Ryan
    Los Angeles
    Vehicle:
    2012 DCLB MGM TRD Sport 4x4
    Debadged, Tint, Euro Antenna, OEM Roofracks, OEM skid plate, SMD LED interior lighting, AFE ProDry Drop-in, FX-R 6000K headlights w XB halos, VHT taillights, Fog light mod, Flyzeye V2W, T-Rex T1 Eyelids by Toyota Man, King 2.5 resis Front and Back, Devil Horns by Andres, Redline Hood Struts, PIAA 2500K H11 Fog Bulbs, Escort 9500ix, Ultra Gauge, Cobra 75 WXST, Firestik II w/ Quick Disconnect & Spring
    Payment sent for Bass union

  5. Mar 5, 2013 at 1:27 PM
    #325
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,840
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    What size are the hose claps for this?

    I just ordered
    90404-51026
    90930-03136

    I am hoping I don't have to order 90404-51319 instead.

    Last edited: Mar 5, 2013
  6. Mar 5, 2013 at 11:35 PM
    #326
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    On the opening post, I took a photo of the parts bag, so nobody would get the wrong number...

    [​IMG]

    On the first page of this thread is a photo of all the parts I bought, including a package of hose clamps... ones that will fit 1/2" to 1" diameter hoses... here's a close up of the end, in the compartment:

    [​IMG]

  7. Mar 12, 2013 at 9:27 AM
    #327
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,840
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja

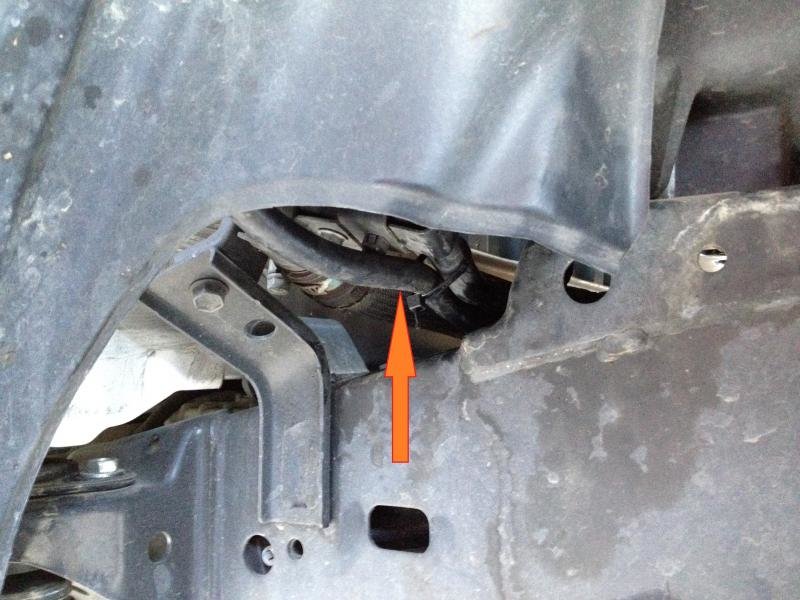

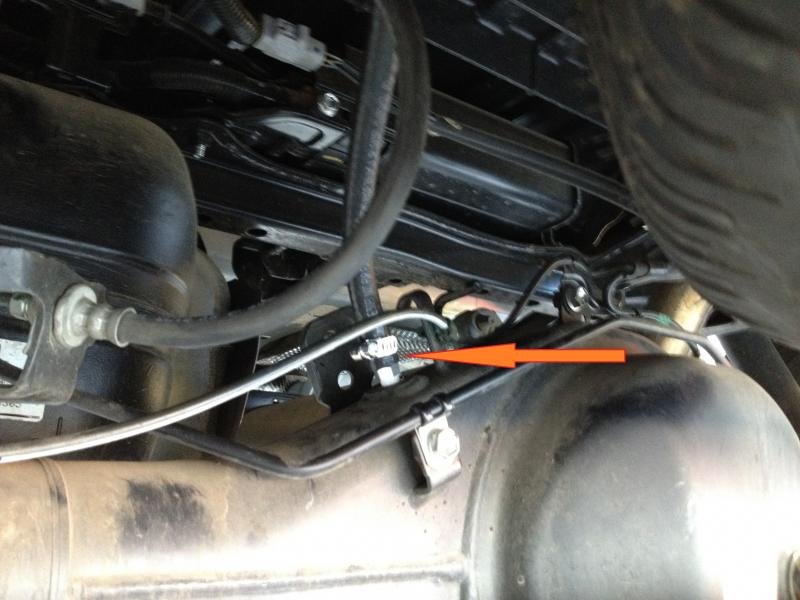

    Just completed this today! Thanks for the write up!

    [​IMG]

    [​IMG]

  8. Apr 2, 2013 at 5:26 PM
    #328
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    You get an A !

  9. May 21, 2013 at 9:33 PM
    #329
    DoorDing

    DoorDing Intentionally obtuse

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    30,335
    Gender:
    Male
    Bodie, CA
    Vehicle:
    2017 RC Off-Road 3.5WD
    yes
    I finished the thread and this is as good a reason for a timely bump as anything.

    The Trail-Gear Creeper Breather addresses the second point ^^^ by collapsing as needed. As long as the bellows remains flexible, airtight, and has sufficient volume, it'll work fine. I'd have to have some proof of steam issues before intentionally damaging a sealed bellows. My main concern with this part is the life span of the rubber. Fuel hose is cheap and lasts a very long time.

    [​IMG]

    The T-G part seems like a good solution, but I'm going with the hose. I ordered the parts from David's OP and should have them installed soon. I'll be crossing the Fremont river in a few weeks, and don't want to worry about water contamination.

  10. Jun 2, 2013 at 10:34 AM
    #330
    Pearcem87

    Pearcem87 Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103539
    Messages:
    137
    Gender:
    Male
    Vehicle:
    2013 TRD Off Road
    Did anyone ever get confirmation on whether or not the e-locker breather needs to be moved as well? It might have been in the 17 pages, but I easily could have missed it. Just waiting on the parts to do this mod next weekend.

  11. Jun 9, 2013 at 6:53 PM
    #331
    Agent Smith

    Agent Smith Always outnumbered, never outgunned

    Joined:
    Oct 4, 2010
    Member:
    #44197
    Messages:
    1,030
    Gender:
    Male
    Vehicle:
    05 TRD Offroad Ivan Stewart Edition
    Toytec lift,FJ Anthracite wheels wrapped in BFG A/T 265/75/16's,WAAG Brush Guard, IPF 868's,sleeved fog lights
    Did this mod just now. For those wondering like I did, the stock breather threading is the same length as the new union you are replacing it with. It can be tightened all the way down to the differential housing. I was wondering why I saw about 1/4 of the threads on the earlier pics, thinking that it was longer and intruding into the gear area. It's not. +1 Rep for OP!

  12. Jun 10, 2013 at 4:34 PM
    #332
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Did I do something right?!! LOL

    Thank you! You will also note that I wrapped teflon tape on the threads so it would seal without over-tightening and risk of snapping it off!:cool:

  13. Jun 10, 2013 at 4:47 PM
    #333
    DoorDing

    DoorDing Intentionally obtuse

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    30,335
    Gender:
    Male
    Bodie, CA
    Vehicle:
    2017 RC Off-Road 3.5WD
    yes
    Completed using David K's part numbers from OP. I ran the hose between the bed structure and zip tied it to the fuel filler tube. No need for the extension for the Fremont last week (5"), but it's good to know it's done.

    Thanks again, David. :wave:

  14. Jun 12, 2013 at 1:09 AM
    #334
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    de nada amigo!

  15. Jun 22, 2013 at 2:23 PM
    #335
    Pearcem87

    Pearcem87 Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103539
    Messages:
    137
    Gender:
    Male
    Vehicle:
    2013 TRD Off Road
    Just finished this mod, routed my breather through my bed cubby. The actual replacement breather valve I got doesn't have much articulation in the little silver cap over the valve, unlike the stock one from the axle, which moves around a lot. There is not a seal or anything, and it will freely spin, but there is not much of a gap. Anything to be concerned about? first time doing a breather relocation with this type of valve. Thanks

  16. Jun 22, 2013 at 2:30 PM
    #336
    DoorDing

    DoorDing Intentionally obtuse

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    30,335
    Gender:
    Male
    Bodie, CA
    Vehicle:
    2017 RC Off-Road 3.5WD
    yes
    If you blow through the original part from the axle, you'll see that the movement is actually the valve at work. Push it in, and the air flow is stopped. The new part doesn't act as a valve, so there's no movement.

  17. Jun 25, 2013 at 6:21 PM
    #337
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    That is the whole point of doing this mod... to put a real breather on the end of a tube, above any deep water line.

    The thing that is on the differential from the factory is a one way VENT... It has a spring loaded seal that takes a pressure build-up in the diff. to push against the little spring, and let gasses vent to atmosphere.

    A BREATHER allows venting AND vacuum breaking! That's the key, to break a vacuum created inside the diff., when you cross a stream... The sudden cooling of a hot differential makes the outside air/ muddy water want to suck INTO the differential, passing the rubber axle seals.

    Yes, it happens... either how I explained or or another way, the differential oil gets contaminated.

    Why does Toyota put a remote breather on the front differential, but not on the rear? Specially on OFF ROAD or 4WD Tacomas...??!!

    This mod put the same breather Toyota has on our front differentials, on the rear... and up high in the bed compartment or the gas fill bay, etc.

    Didn't I cover all this in the first page of this thread? No problem, I like talking about my Tacoma... Hope that explains it, but don't hold back if you have questions!

  18. Jun 25, 2013 at 7:18 PM
    #338
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    Hey David, the two breathers that are right next to the battery on an '09 off-road are the Transmission and Front Diff breathers? Or are they something else...

    I'm try to find ALL the breathers on the truck similar to this:

    http://www.tacomaworld.com/forum/off-roading-trails/15093-scuba-mod-relocating-front-rear-diff-tranny-transfer-case-e-locker-breather.html

    But I think two of them are already relocated. Either way, I am running all of them into these instead:

    Specter Breather

    Then I will partially cover those to protect from splash off the fan if it catches water.

    Does that sound sane?


    EDIT: I am running all of them to the driver side front up to a custom bracket I made. Will post pics if this all works out.

    Last edited: Jun 25, 2013
  19. Jun 26, 2013 at 8:19 AM
    #339
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,482
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yes, front diff breather is one of the two by the battery... and your breather choice looks good to me!

  20. Jun 26, 2013 at 8:35 AM
    #340
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    What's the other one? :confused:

    I'm going to start it this Friday since I am off. Hopefully, everything turns out nice.
